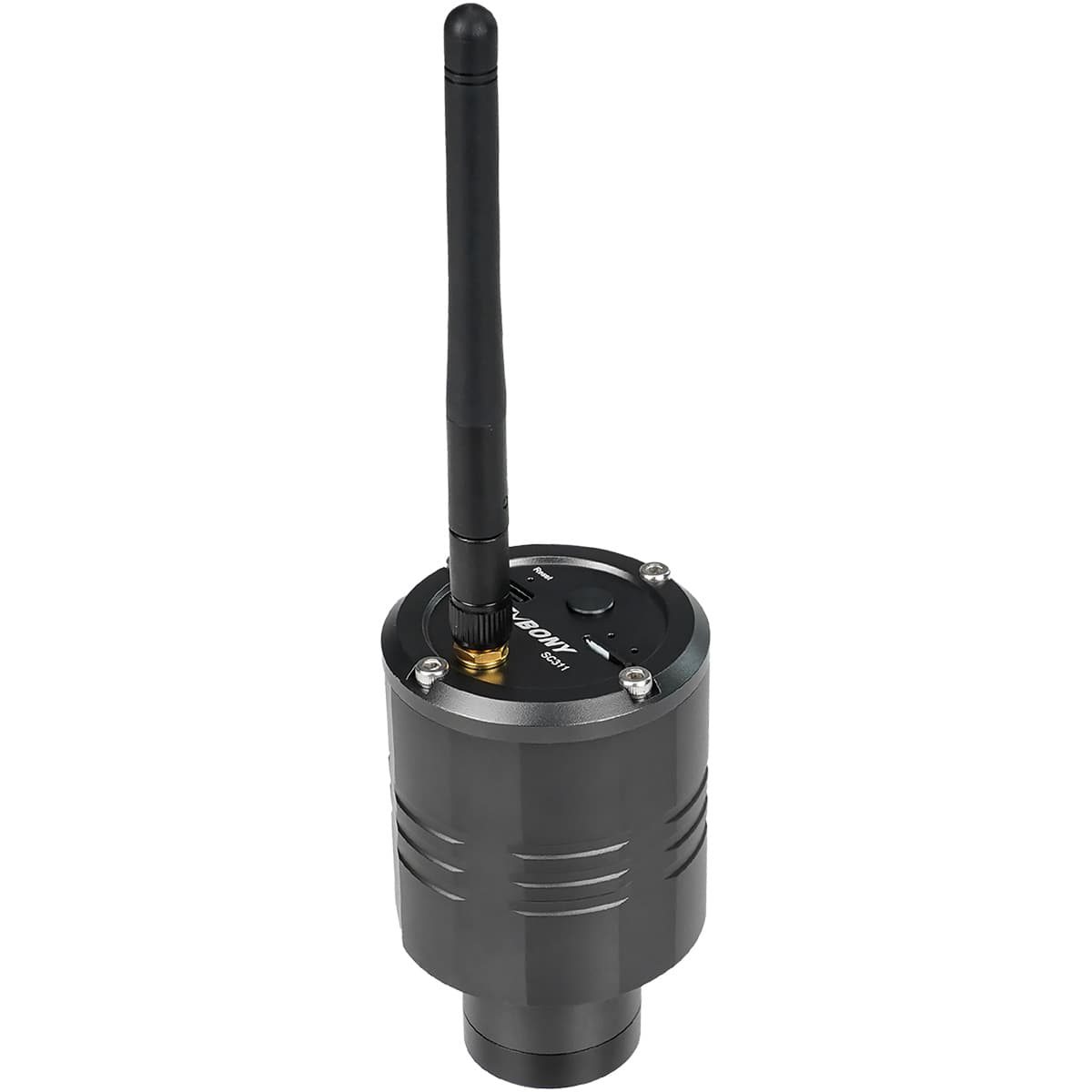

SC311 WIFI Astronomy Camera IMX662 EAA 2.4G for Astronomical Planetary Photography
- The SC311 is designed with Sony IMX662 color CMOS sensor, which uses advanced STARVIS 2 technology. It has the characteristics of no amp glow and very low readout noise, higher sensitivity to red and near infrared(NIR) light；
- 2.4G WiFi technology let you can use 4 devices at the same time and share the fun of astronomy with your friends. Support Android and Apple systems, you can download them in the software store；
- 10M effective transmission sensing distance allows you to get rid of the shackles of the data cable, it is easier to realize the fun of astronomy observation outdoors；
- Built-in 2400mah lithium battery, it can support about 4 hours of continuous work, allowing you to have more time to focus on observations；
- Connect to our SvbonyAstro a software application designed by ourselves. You can do observation on your phone or pad and save them to the SC311 built-in TF card, and then easily share to social media.
- The SC311 camera can be connected via USB cable to a PC. You can use this camera to capture with the AstroDMx Capture program or etc. Also it complies with the standard UVC protocol and no need to install SVBONY driver.
FAST shipping, duty-free

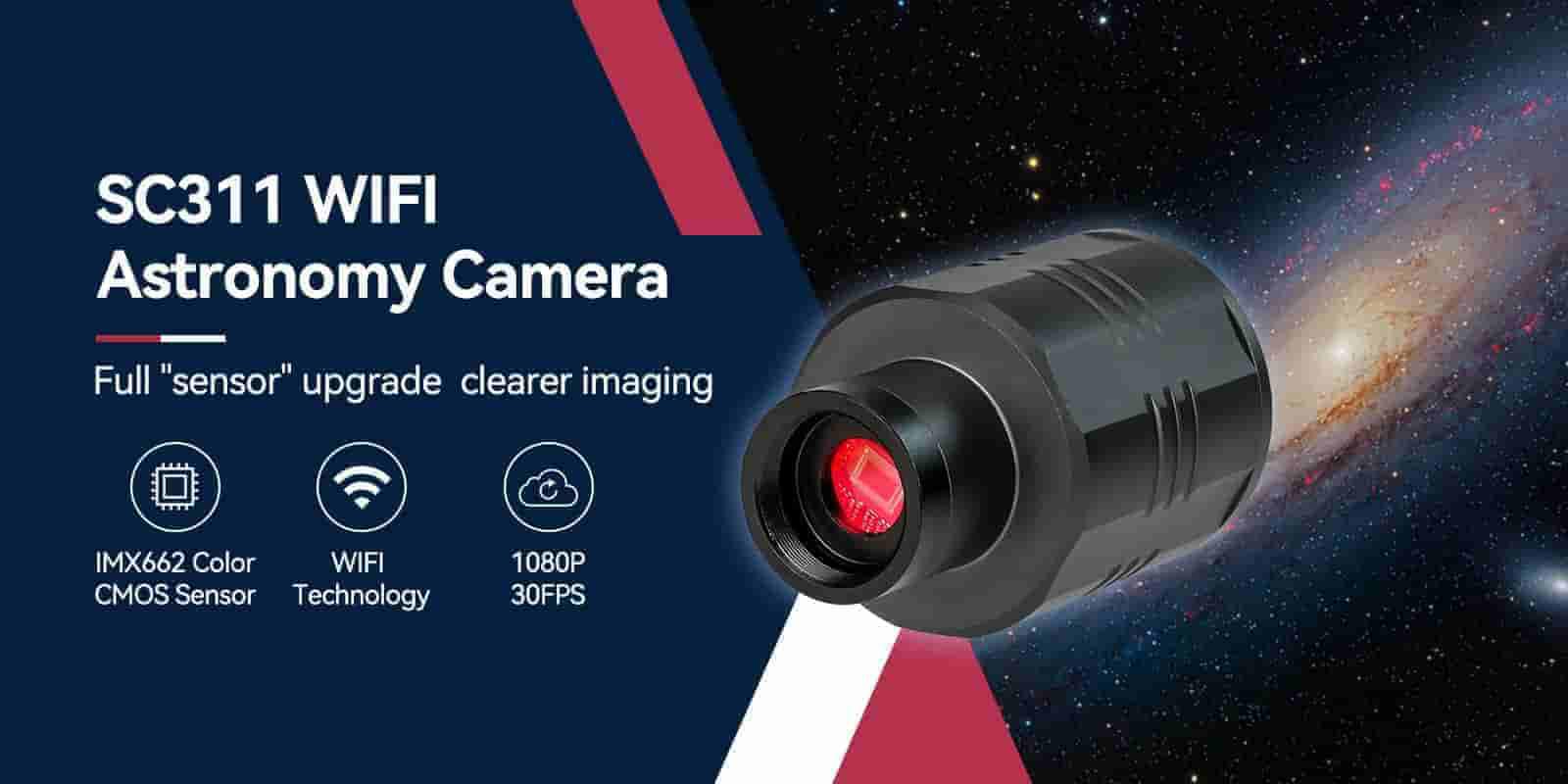

SC311 WIFI Astronomy Camera/IMX662/EAA
The SVBONY SC311 is the first wifi camera we developed for astrophotography. It uses Sony IMX662 color CMOS chip and 2.4G wifi technology to enjoy the fun of sharing with multiple people and a clearer visual experience.

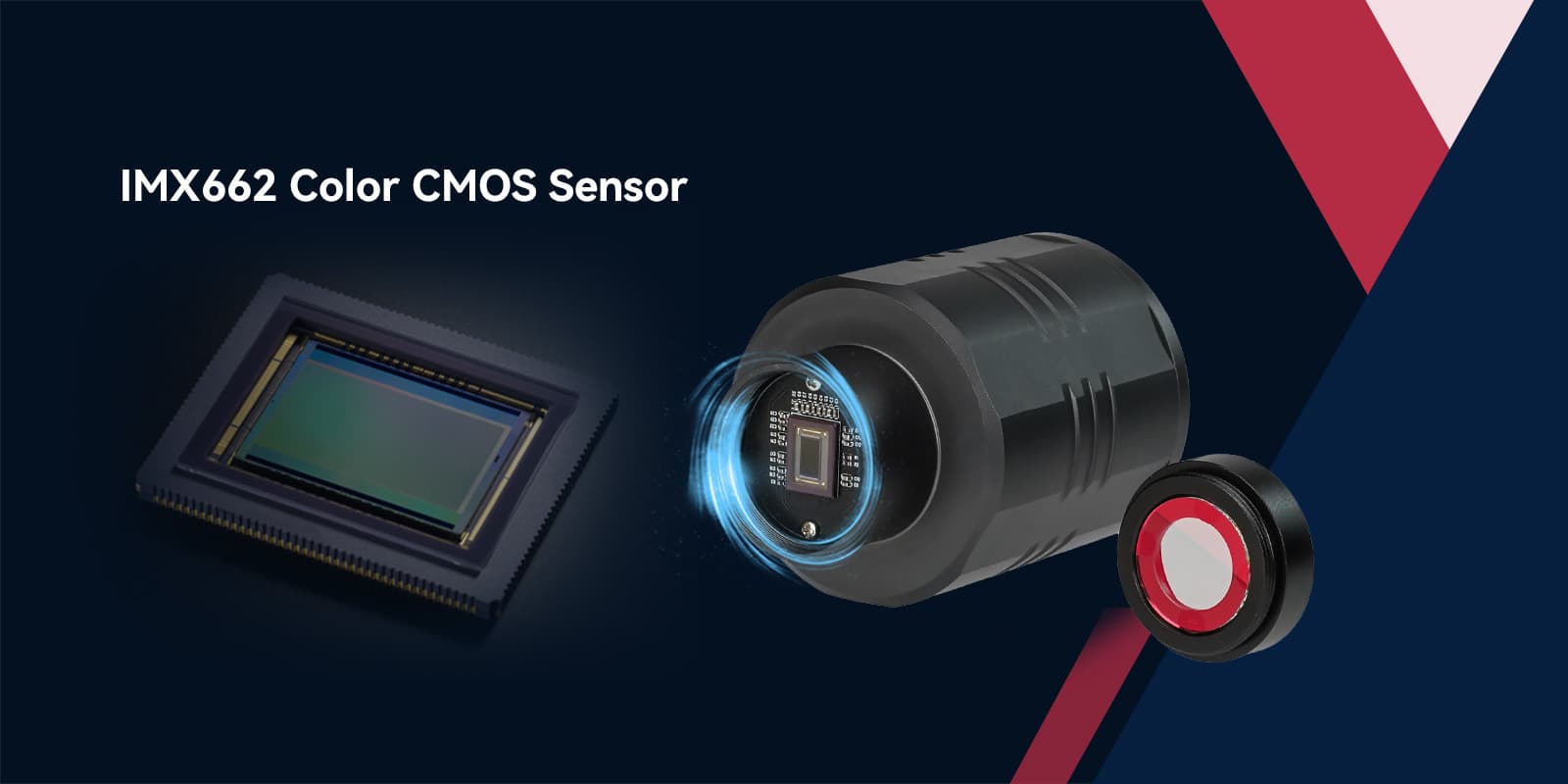

IMX662 Color CMOS Sensor
The SC311 is designed with Sony IMX662 color CMOS sensor, which uses advanced STARVIS 2 technology. It has the characteristics of no amp glow and very low readout noise, higher sensitivity to red and near infrared(NIR) light. It is especially suitable for EAA Astronomy.

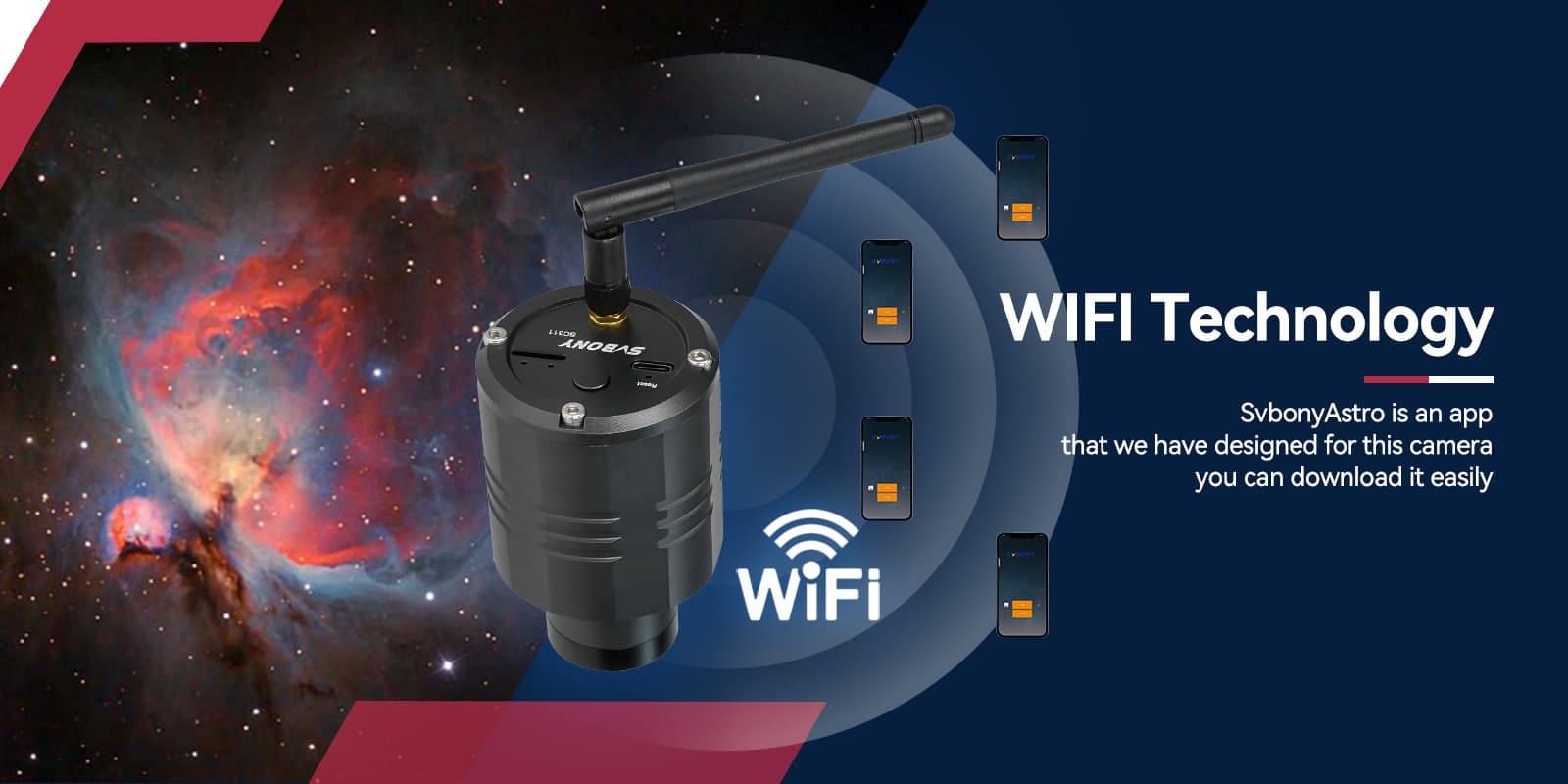

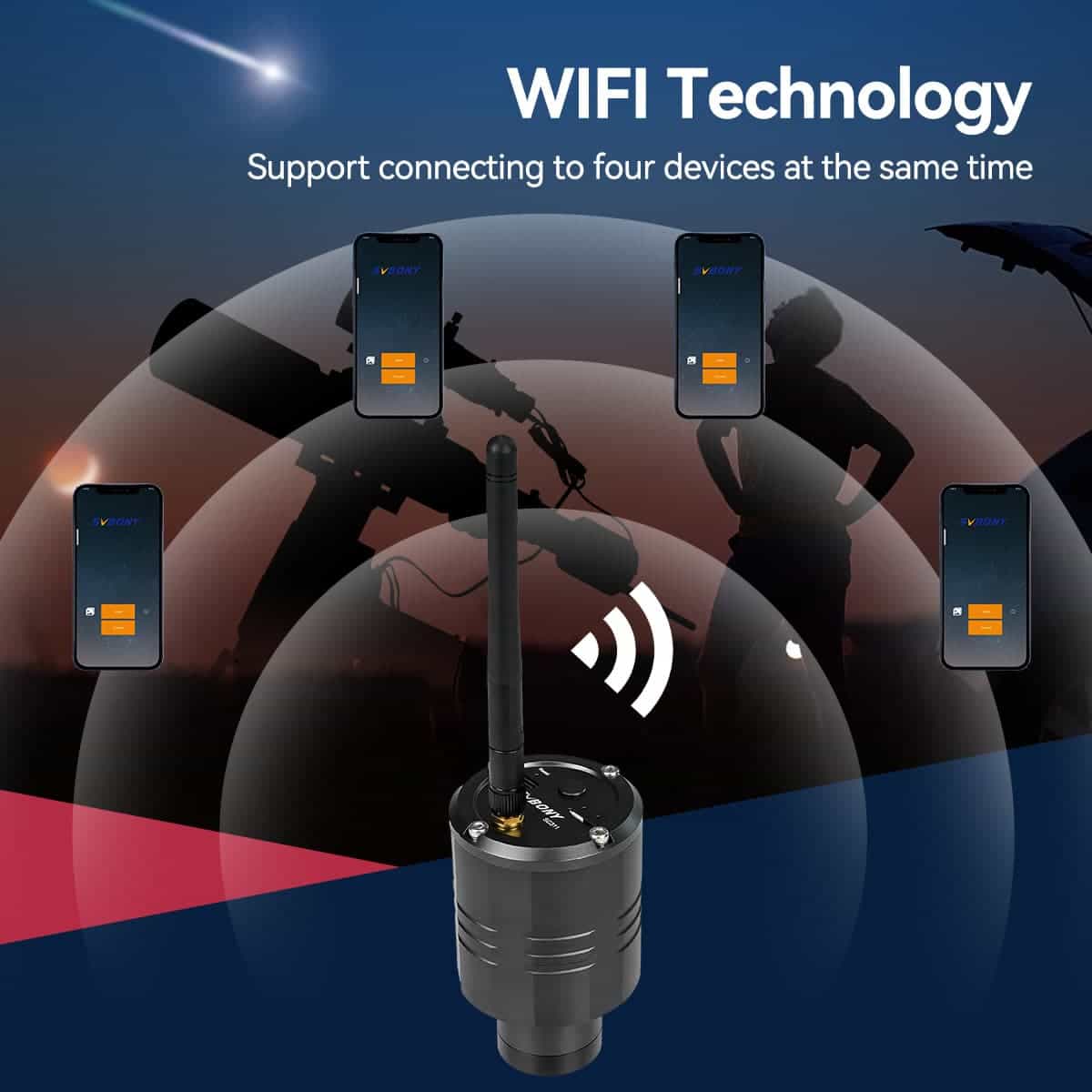

WIFI Technology
2.4G WiFi technology let you can use 4 devices at the same time and share the fun of astronomy with your friends. Support Android and Apple systems, you can download them in the software store .

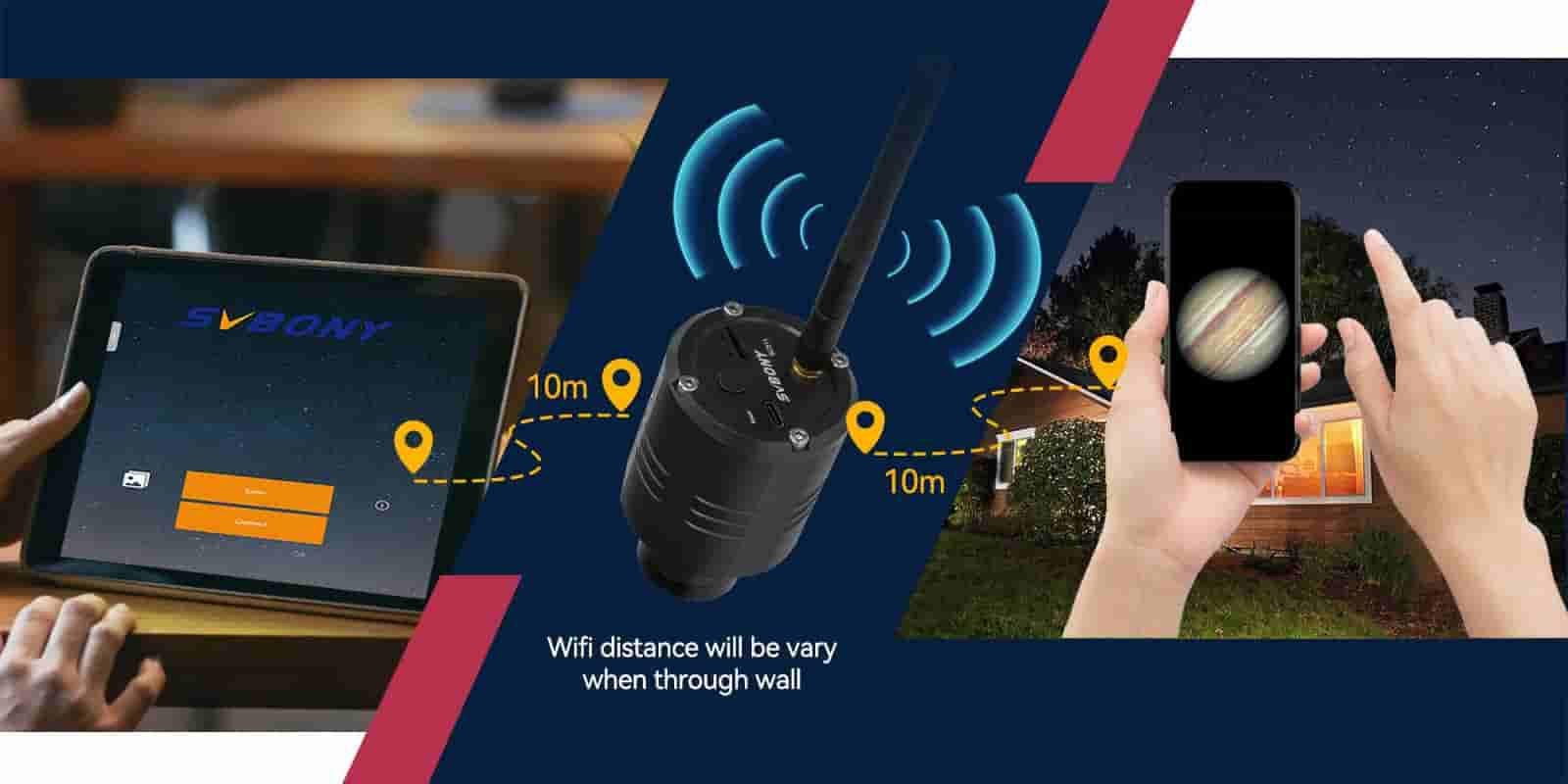

10M WIFI Distance
10M effective transmission sensing distance allows you to get rid of the shackles of the data cable, it is easier to realize the fun of astronomy observation outdoors.
Share the Joy of Observation with Friends
4h Standby Time
Built-in 2400mah lithium battery, it can support about 4 hours of continuous work, allowing you to have more time to focus on observations.

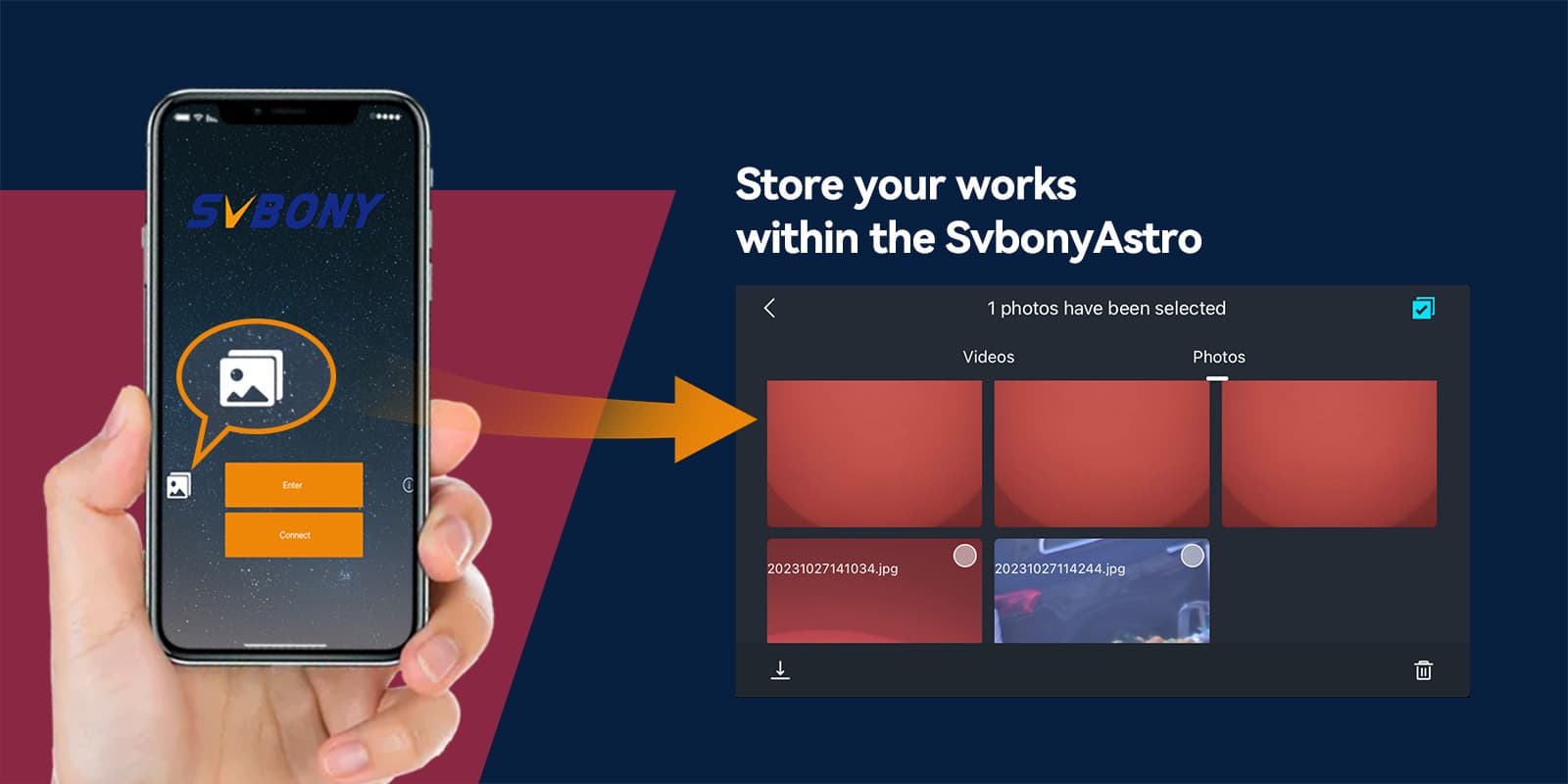

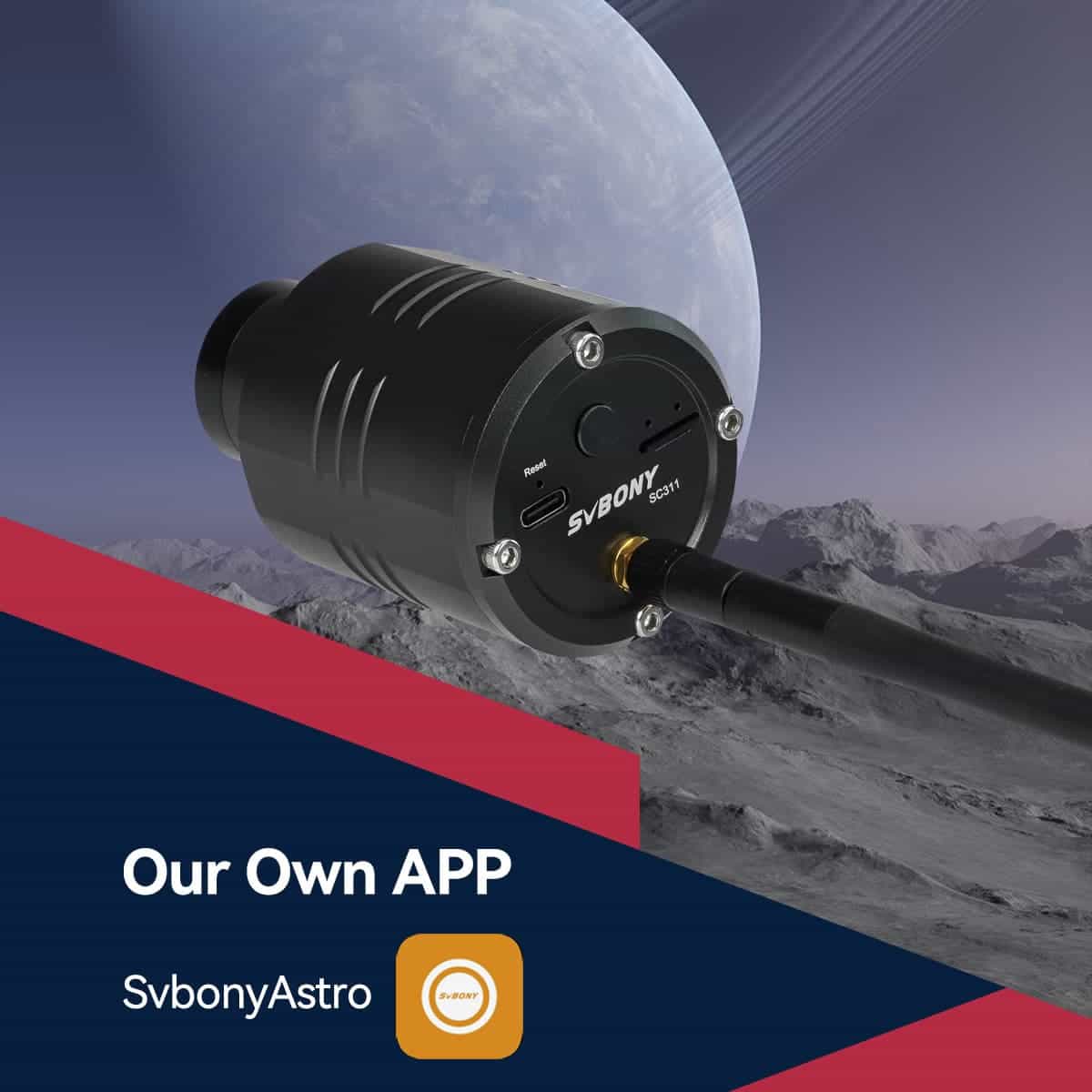

SvbonyAstro Software
Connect to SvbonyAstro, a software application designed by SVBONY. You can do observation on your phone or pad and save them to the SC311 built-in TF card, and then easily share your fun through social media with just one click. For Apple phones, please search for SvbonyAstro in the app store and install the app.

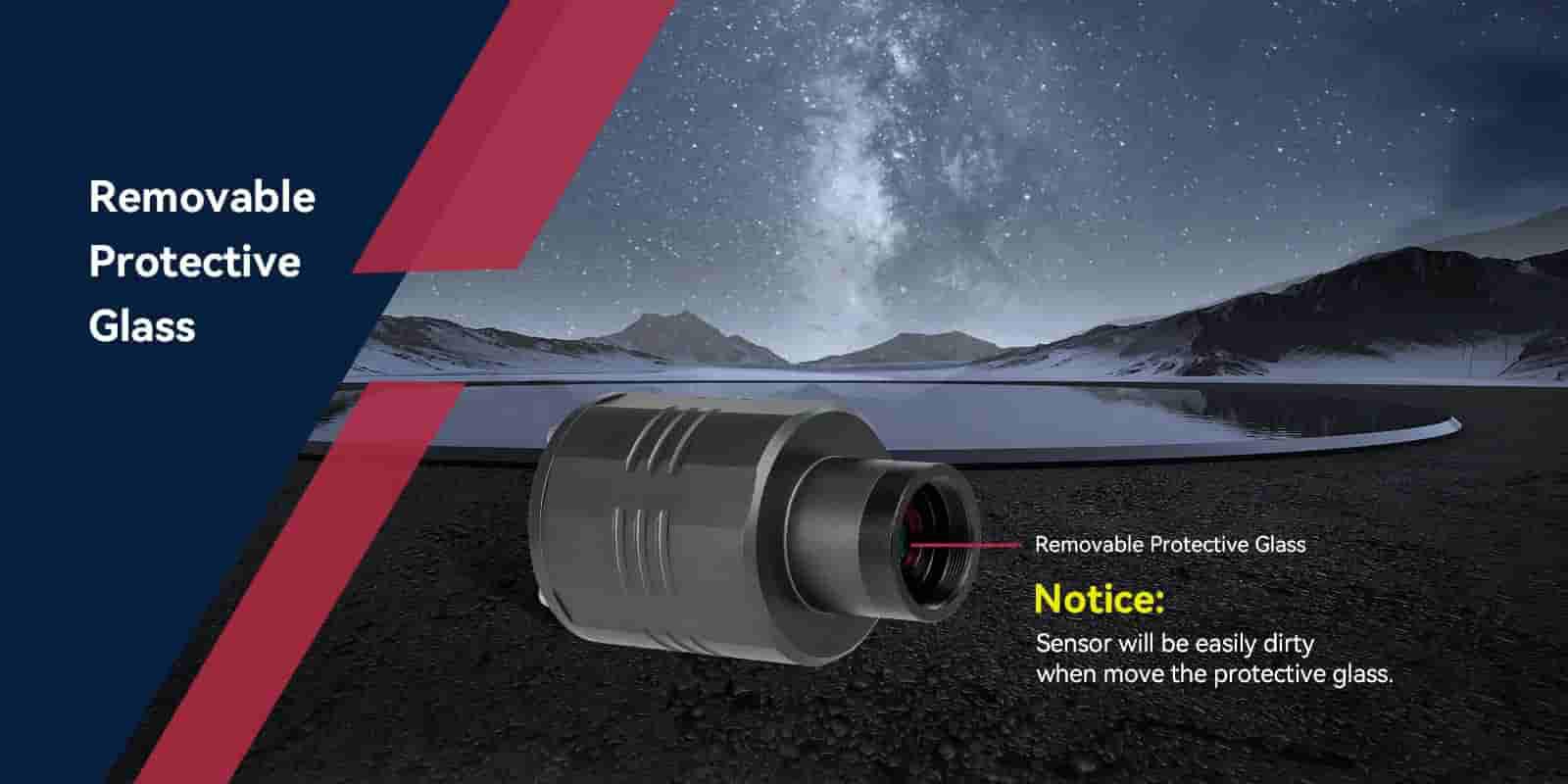

Removable Protective Glass

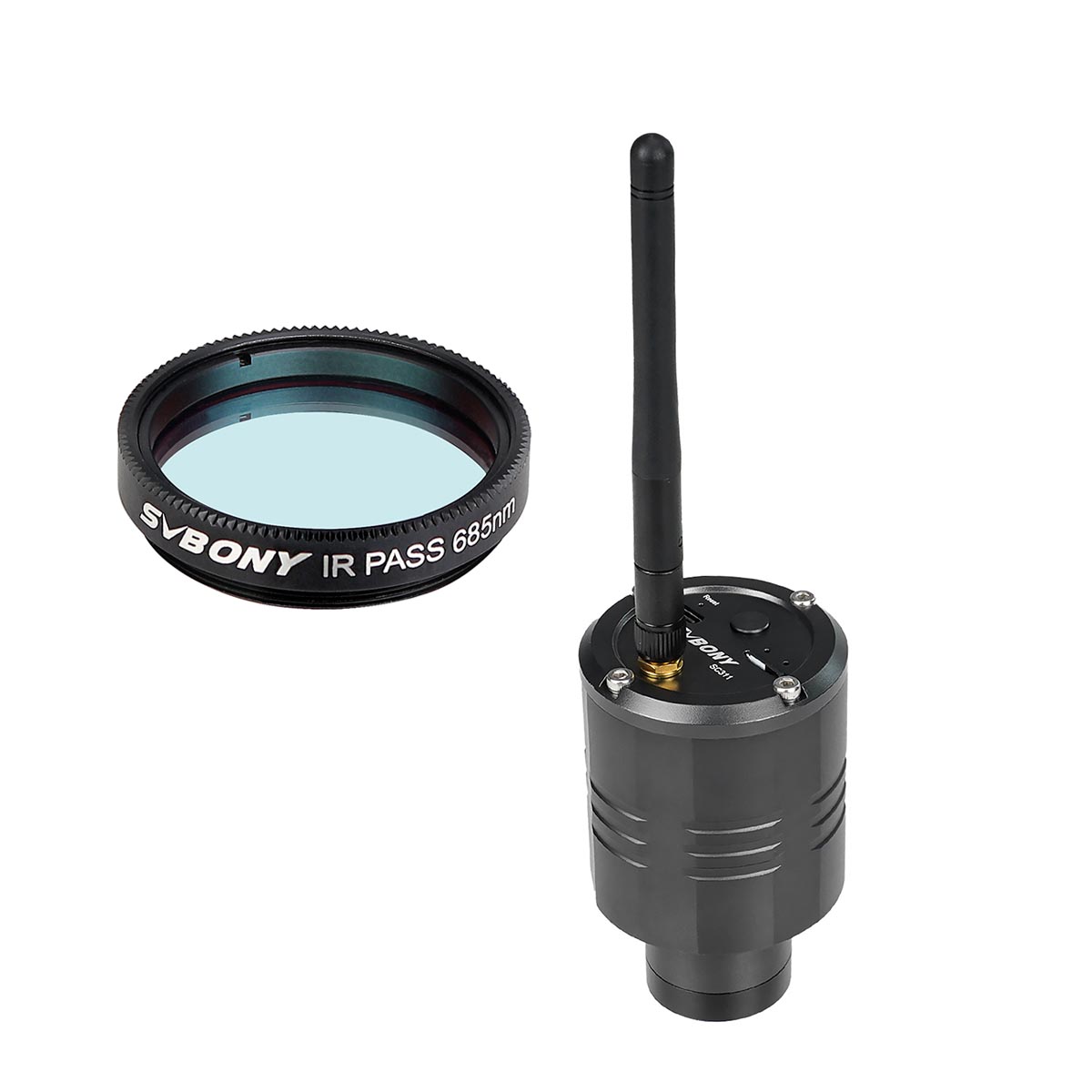

The removable protective glass(UV/IR CUT filter) design allows you to experience it in more ways, but it should be noted that you should try not to disassemble it to avoid dust entering and affecting the later shooting results. This removable UV/IR CUT filter design high transmittance of more than 96% in the visible light range of 400-700nm. If you want to shoot infrared or ultraviolet band, try to use the IR685, IR850 filter to achieve different shooting experience.

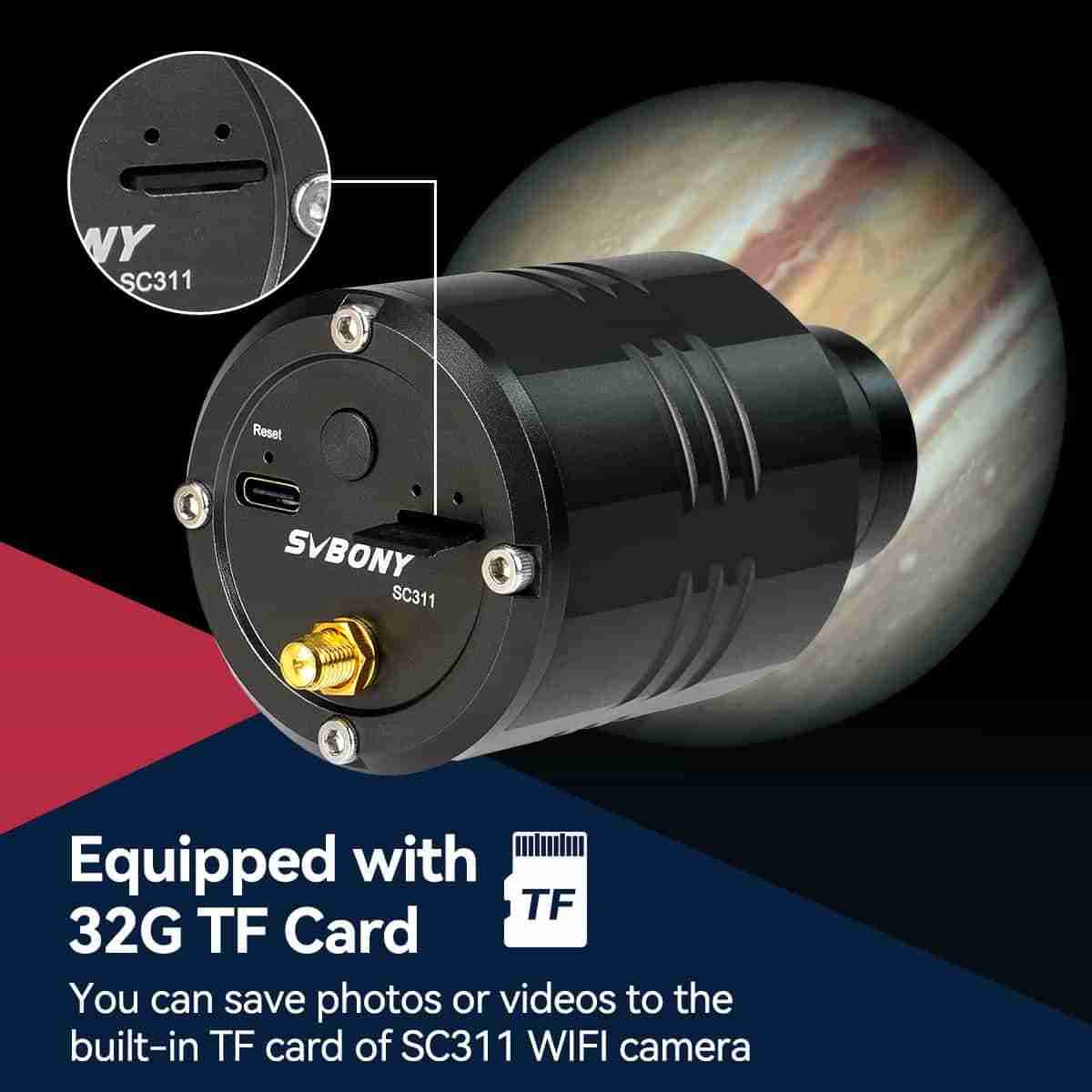

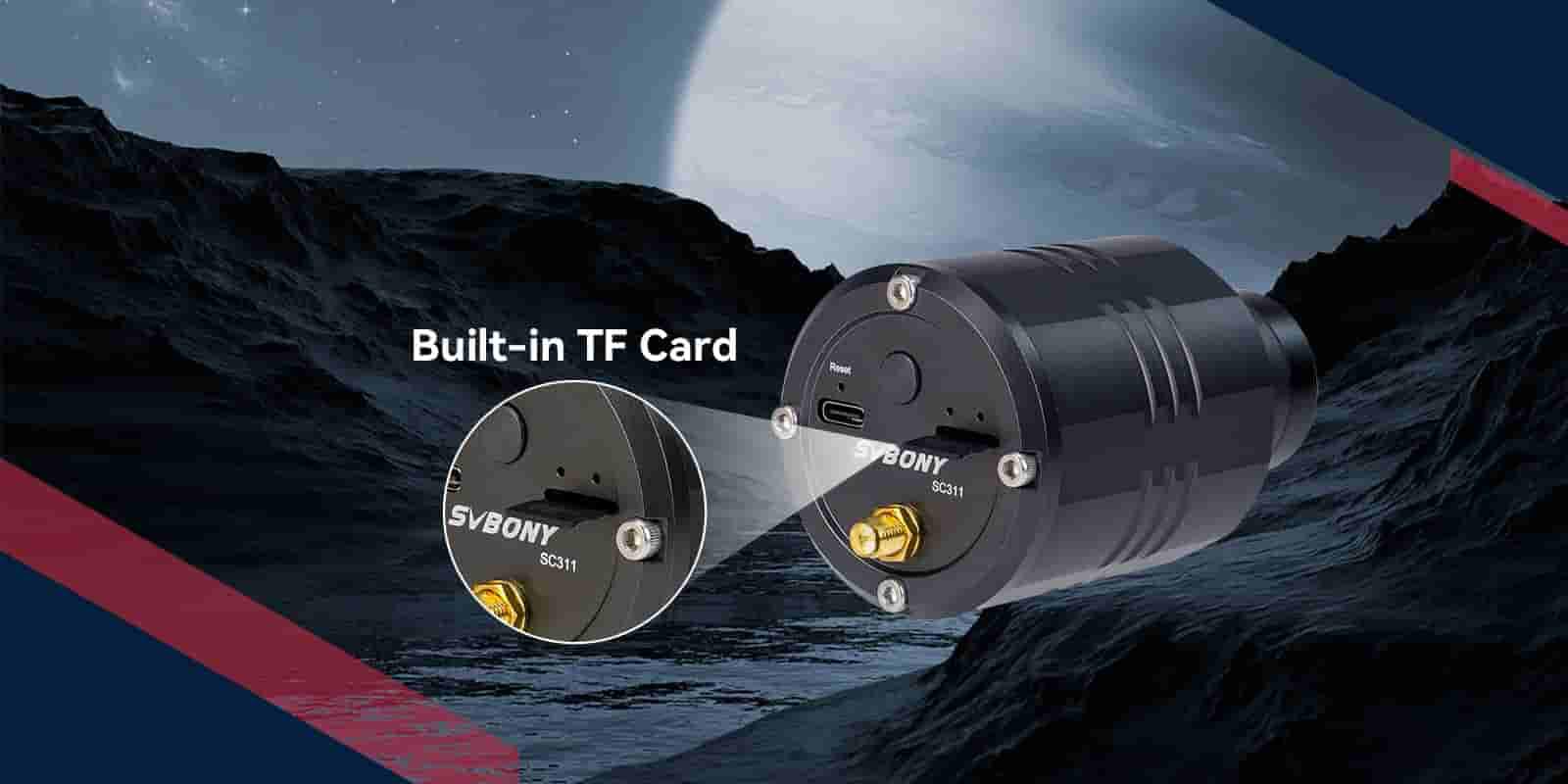

Built-in TF Card
Built-in 32GB TF card, you can save photos or video files to the TF card, it will not occupy the storage space of the mobile device.

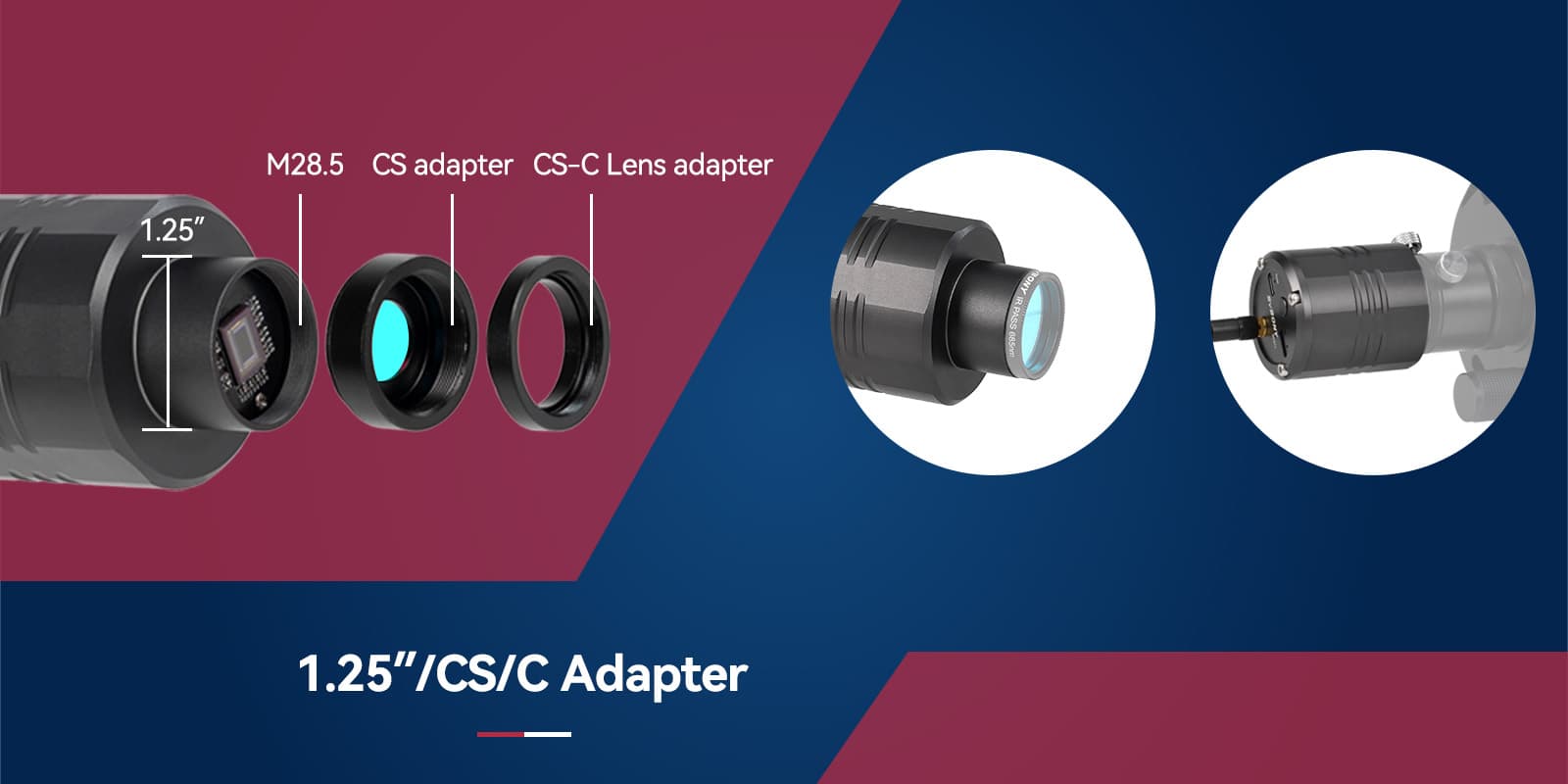

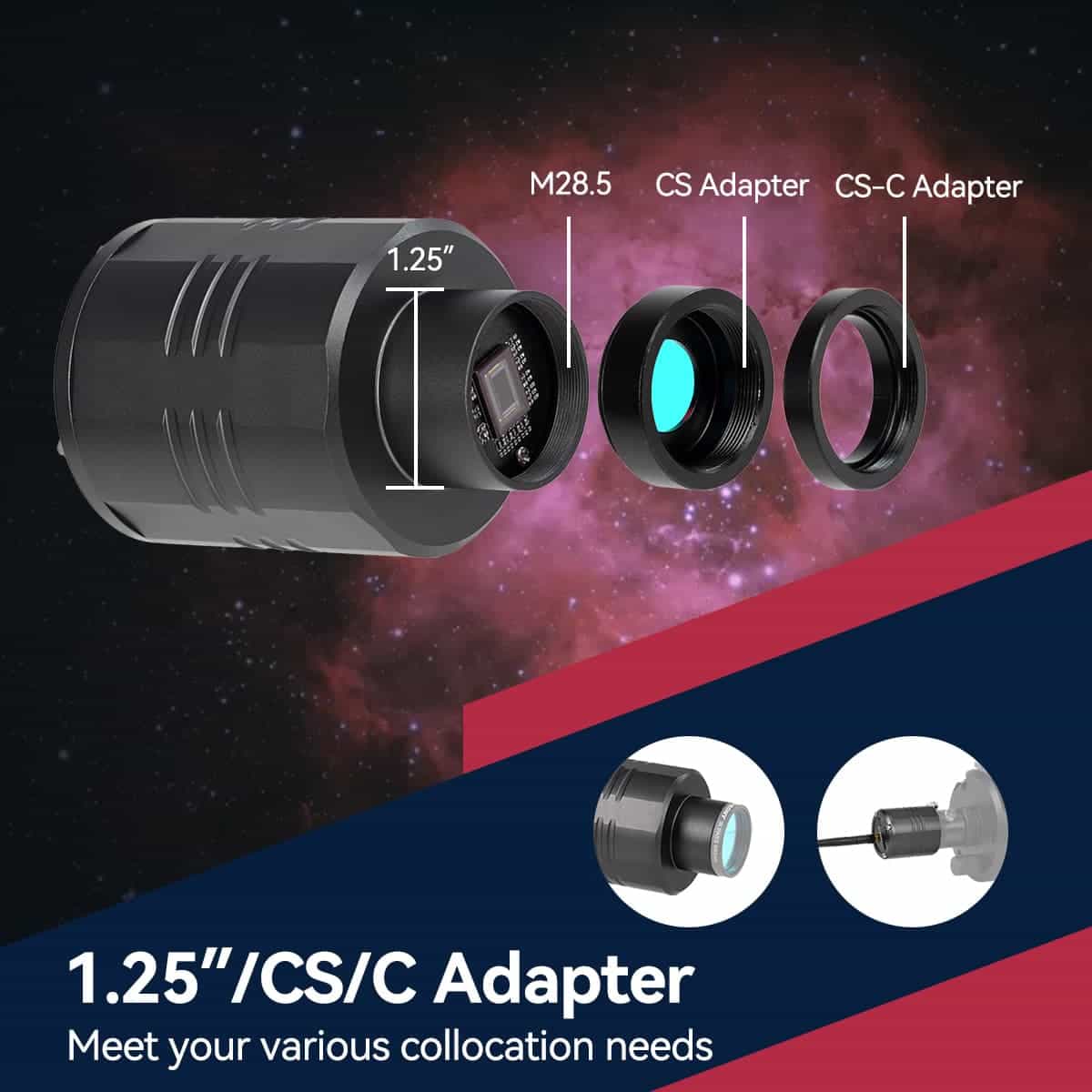

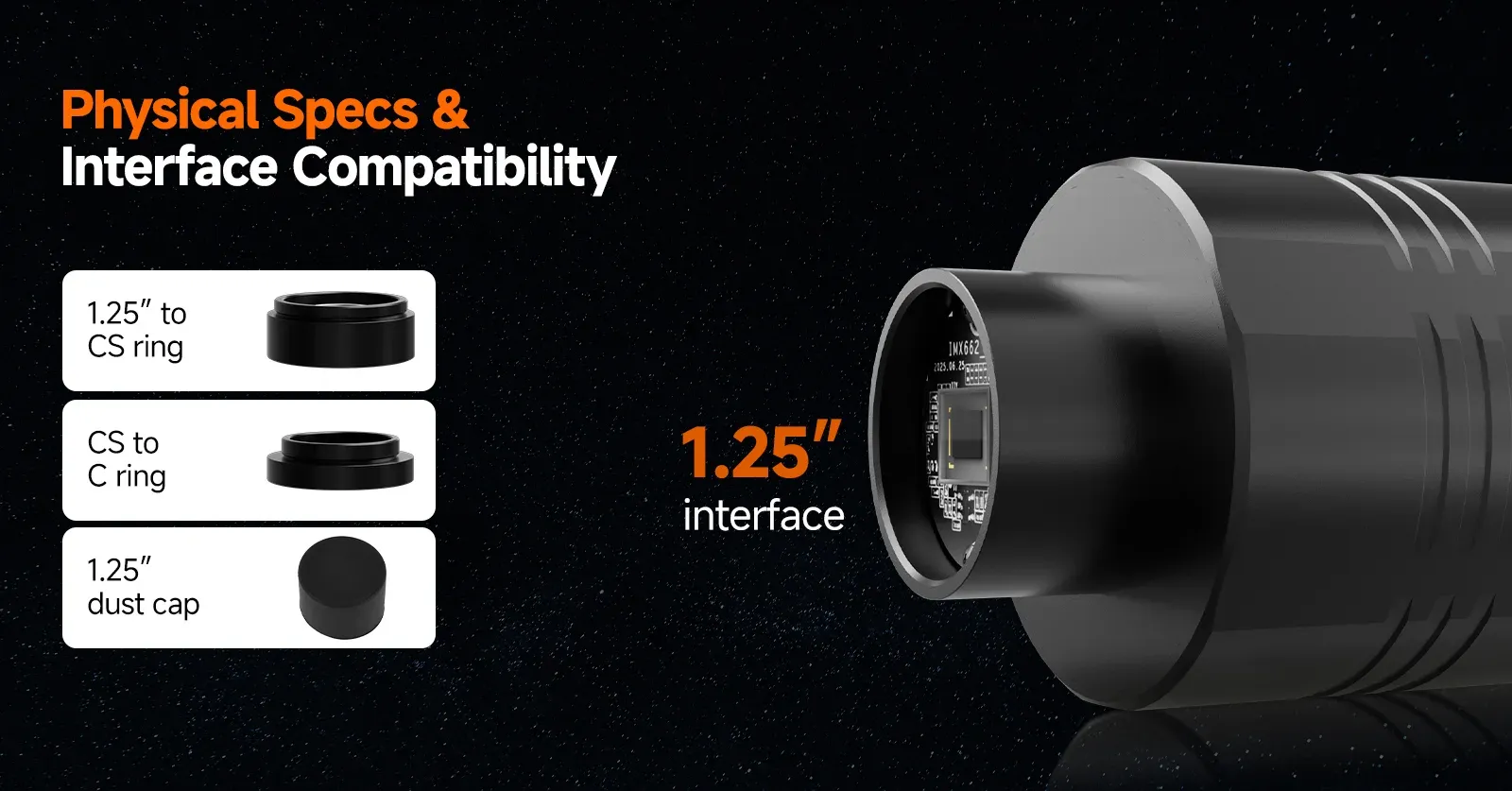

1.25"/CS/C Adapter
Equipped with a 1.25-inch/CS/C adapter ring to meet your various needs. You can install filters or camera lenses without having to consider purchasing adapters separately.

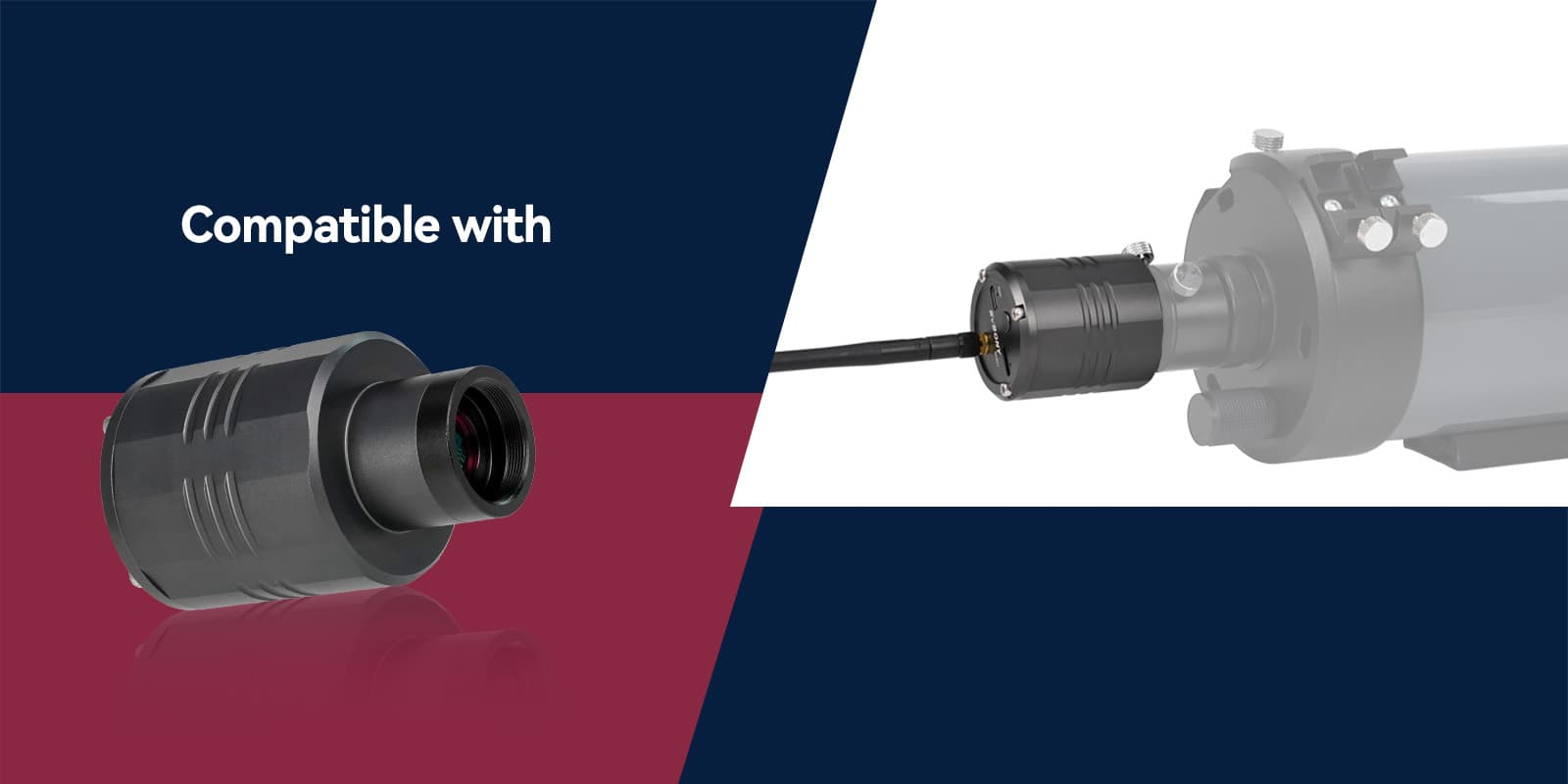

Compatible with MK105
Used with MK105, you should get good results in planetary photography, solar and lunar photography.
Application Scenario
Give it a try and start a new exploration with us, and what kind of photos will you get?
| SKU | Model | CMOS Sensor | Classification | Pixel size | Resolution | USB Type |
| F9198A | SV305 | IMX290 | color | 2.9μm x 2.9μm | 2MP | USB 2.0 |
| F9198B | SV305 Pro | IMX290 | color | 2.9μm x 2.9μm | 2MP | USB3.0 |
| F9198C | SV305Pro AR | IMX290 | color | 2.9μm x 2.9μm | 2MP | USB3.0 |
| F9198D | SV305M Pro | IMX290 | Monochrome | 2.9μm x 2.9μm | 2MP | USB3.0 |
| F9198L | SV305C | IMX662 | color | 2.9μm x 2.9μm | 2.1MP | USB2.0 |
| F9198G | SV905C | IMX225 | color | 3.75μm x 3.75μm | 1.2MP | USB2.0 |
| F9198H | SV505C | IMX464 | color | 2.9μm x 2.9μm | 4.2MP | USB3.0 |
| F9198J | SV705C | IMX585 | color | 2.9μm x 2.9μm | 8.3MP | USB3.0 |
| F9384A | SC311 | IMX662 | color | 2.9μm x 2.9μm | 2.1MP | Type-C |
| Model | SC311 |
| Sensor Model | SONY IMX662 |
| Total Pixels | 2.1 Mega Pixels |
| Diagonal | 6.44mm |
| Max Resolution | 1920×1080 |
| Pixel Size | 2.9μm X 2.9μm |
| Chip Size | 5.6mm×3.2mm |
| Exposure Range | 0.02ms-5s |
| QE Peak | ≈91% |
| ADC | 12 bit |
| Adapter | 1.25″/CS/C |
| Removable Protective Glass | UV/IR CUT |
| Back Focal Length | 12.5mm |
| Wifi module | 2.4G,150Mbps |
| Storage | TF Card, Max support 256G, come with 32G |
| USB Type | Type-C |
| Build-In Battery | 2400 mAh |
| Output Format Support | Image jpg; Video MP4 |
| Video | support |
| Photograph | support |
| Plan to take pictures | support |
| Working Humidity | 20%RH-80%RH |
| Storage Humidity | 20%RH-95%RH |
| Operating Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Net Weight | 372g |
| Total Weight | 400g |
Feature
1.Sony IMX662 color CMOS sensor
2.2.4G WiFi Technology, it can be connected to 4 devices at the same time
3.Built-in 2400mah lithium Battery & a 32GB TF ard
4. SvbonyAstro Software Application
5.Removable UV/IR CUT Filter Design
6.10M Effective Transmission Sensing Distance
7.Comes with 1.25″/CS/C Adapter
The Real Shot Image by SC311 WIFI Camera

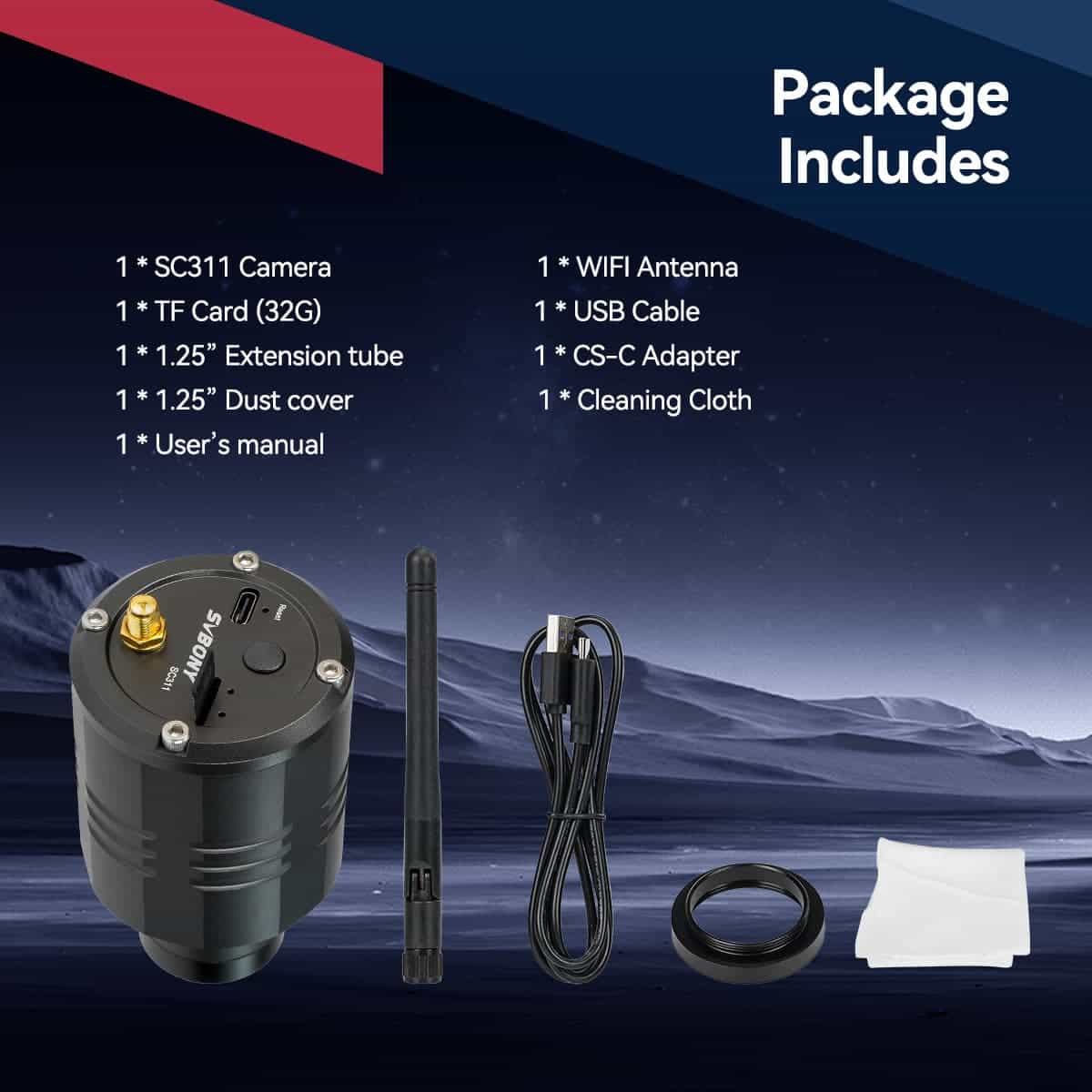

Package Includes
1 * Svbony SC311 Camera
1 * WiFi Antenna
1 * TF Card (32G)
1 * USB Cable
1 * 1.25” Extension tube
1 * CS-C Lens adapter
1 * 1.25”Dust cover
1 * Cleaning cloth
1 * User’s manual
I already use the SC311 for jupiter and the moon. With my 102mm ED and manual AZ Mount. With a manual Mount it is quite difficult to keep tracking and meanwhile be busy with camera settings. But it still worked out for jupiter. The full moon can't quite fit into the field of view which is a shame. It should be possible to zoom out. Deepsky doesn't seem to work for me yet. Tried Orion but I couldn't find the right settings. Have reordered some more filters, see if these add some more....
I use SVBony MK105, SC311 camera, 2X Barlow, color correction filter to capture Saturn, friendly recommendation.
Arrived all right very fast.Satisfied excellent camera to connect to the phone
The SC311 is directed towards solar, moon and planets but focal length plays a large role, with a small censor, you would be better off using a smaller telescope to frame objects, not ideal if you only have a long focal length telescope, one way around this could be add a focal reducer which would increase field of view, this may be enough to frame larger objects.
I loved that I didn’t have to worry much about looking at my phone, I just needed to follow the planet slowly. I did the same just taking pictures. In the end I separated the video frames and stacked the best frames to get a nice image. I have done this before with a DSLR and a barlow but this was much easier with this camera as everything saved on the camera memory and on my phone which is connected to my computer where I could grab the file and start working on it.
Reçu aujourd'hui, après charge pour avoir la batterie entièrement chargé je l'ai installée sur mon MK105 et entre 2 nuages j'ai observé la lune car pas d'étoile visible ce soir ( temps couvert) image excellente sans coupure même à plusieurs mètres de distances vivement de bonne condition pour que je puisse observé et filmé Jupiter. Très content de mon achat. Très bonne caméra couleur pour un prix modique et l'application sur mon iPad fonctionne parfaitement. Je la recommande pour débuté en astrophoto planétaire et lunaire à un prix modeste.
