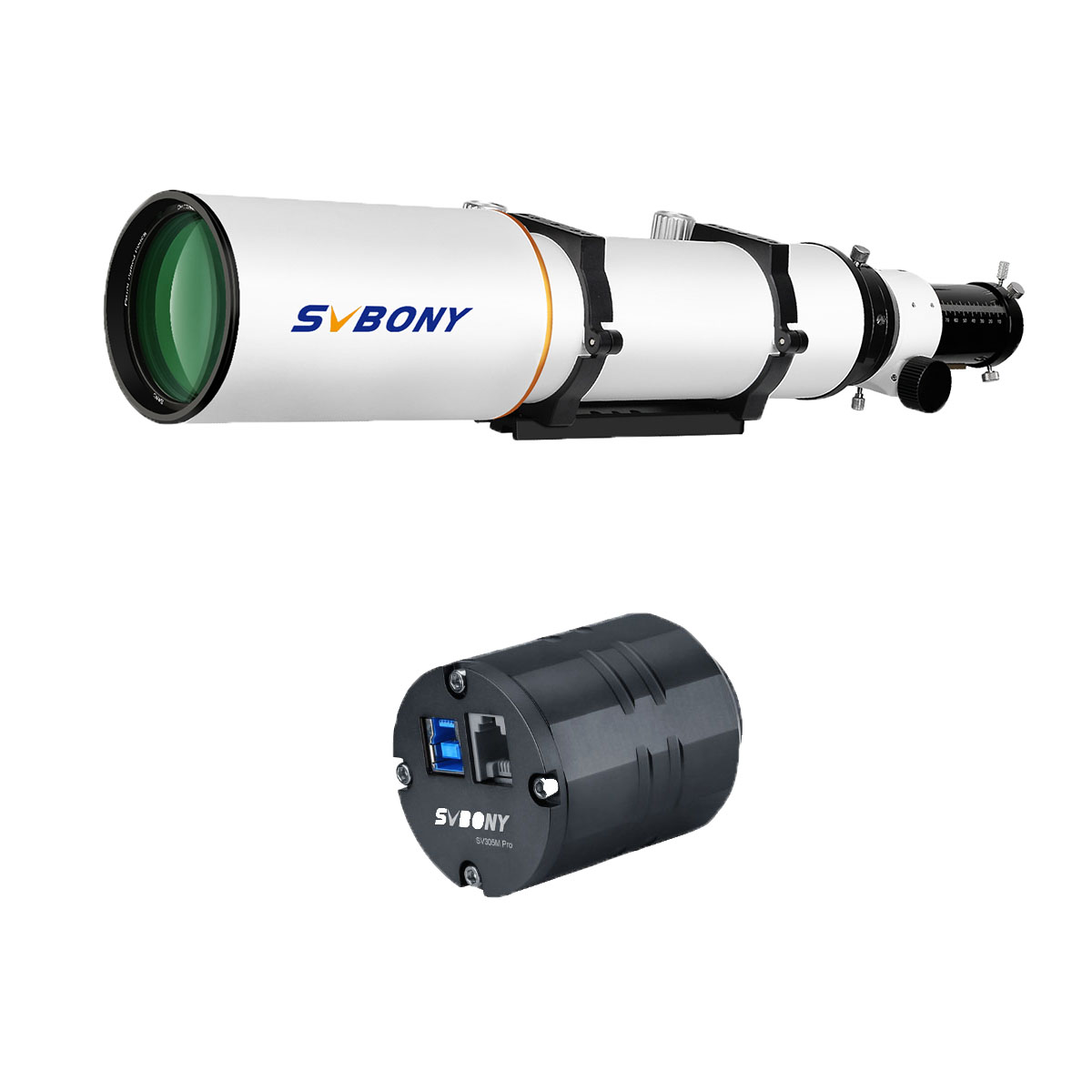

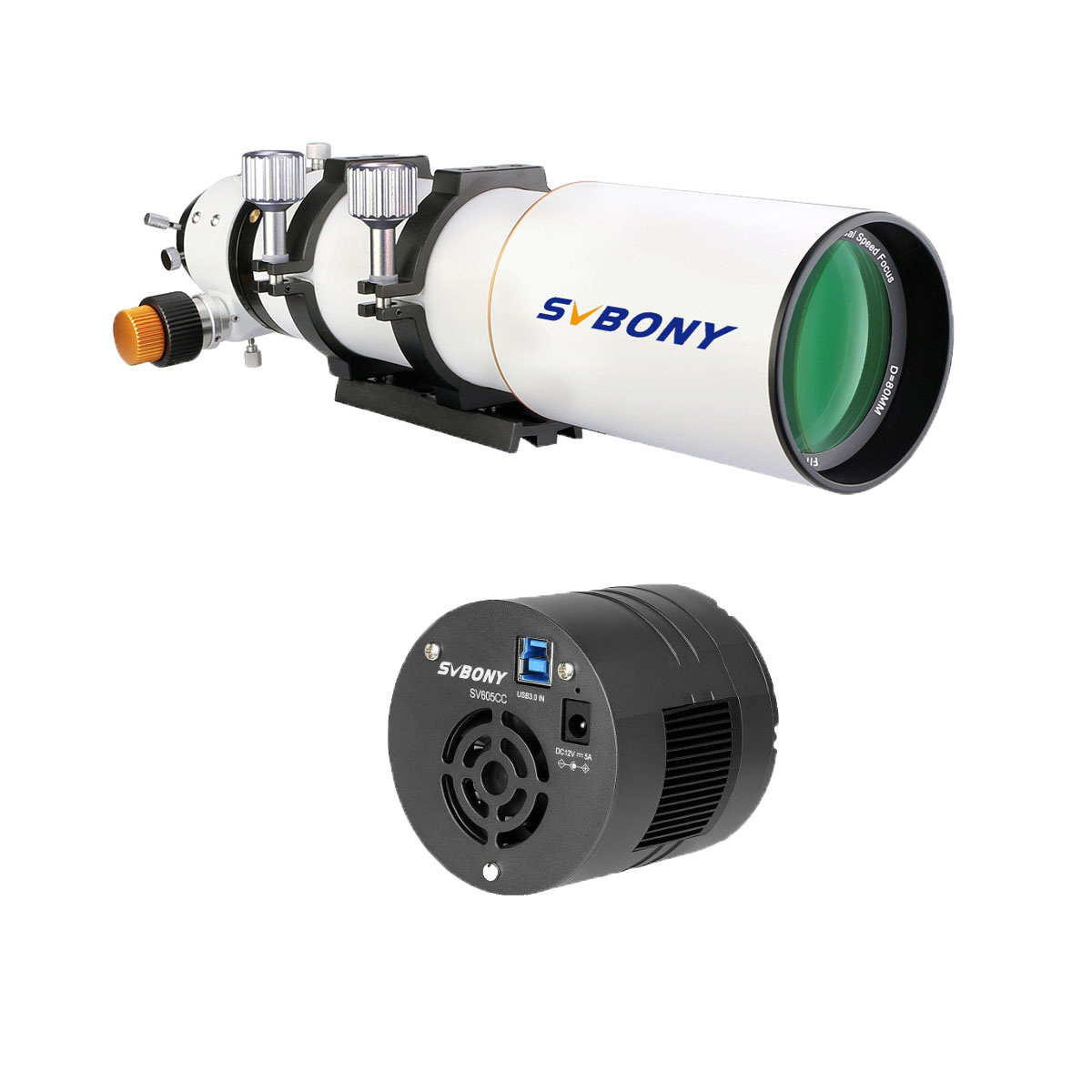

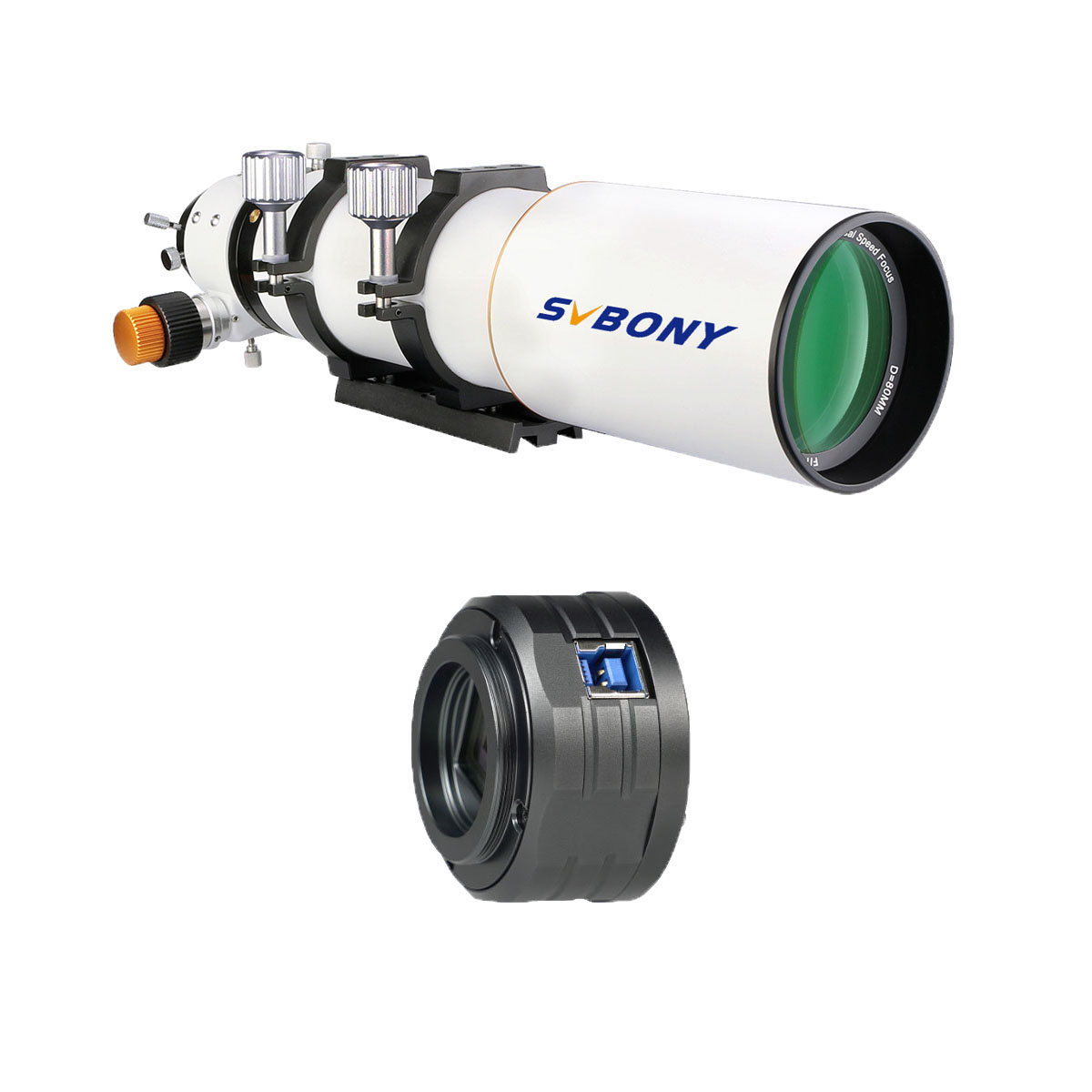

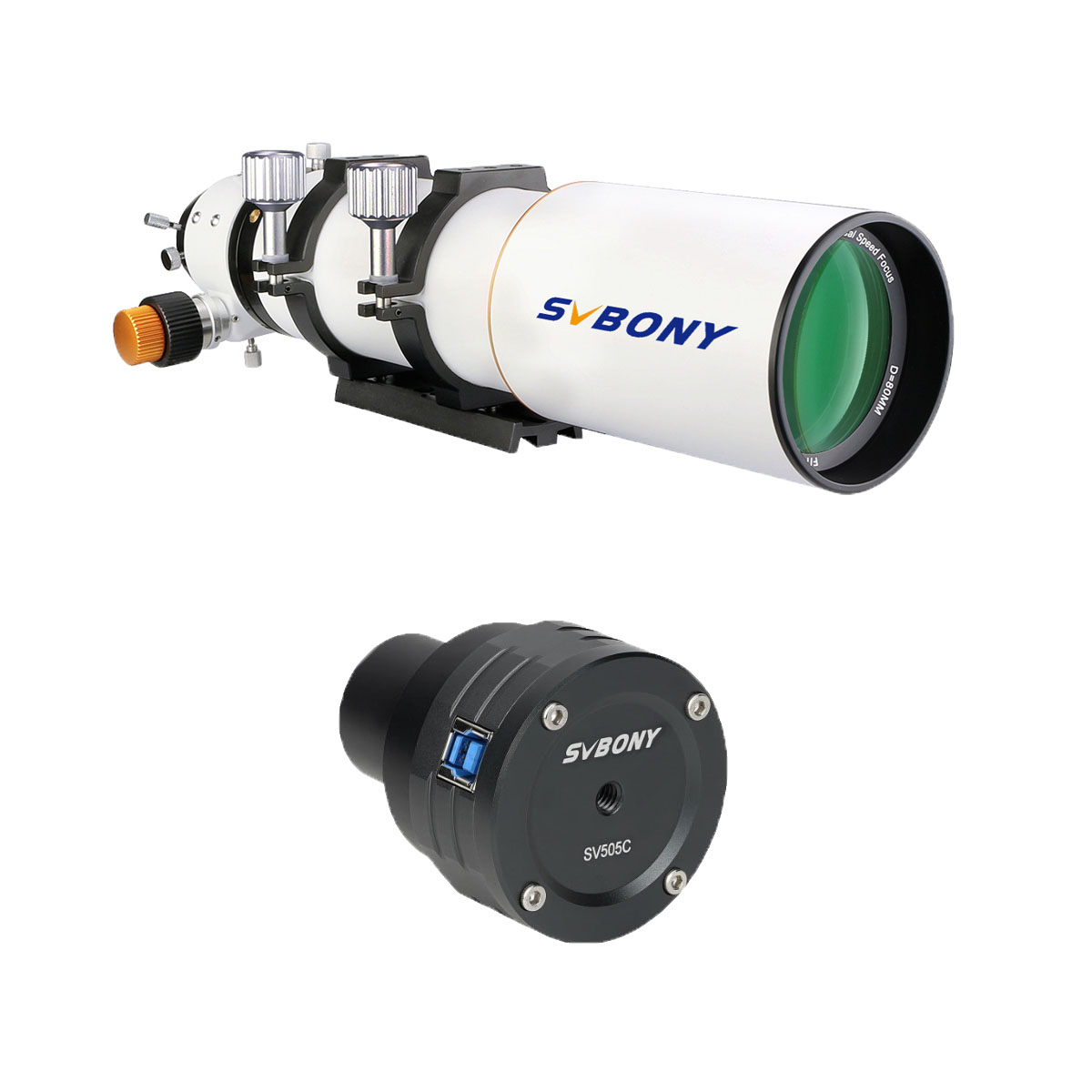

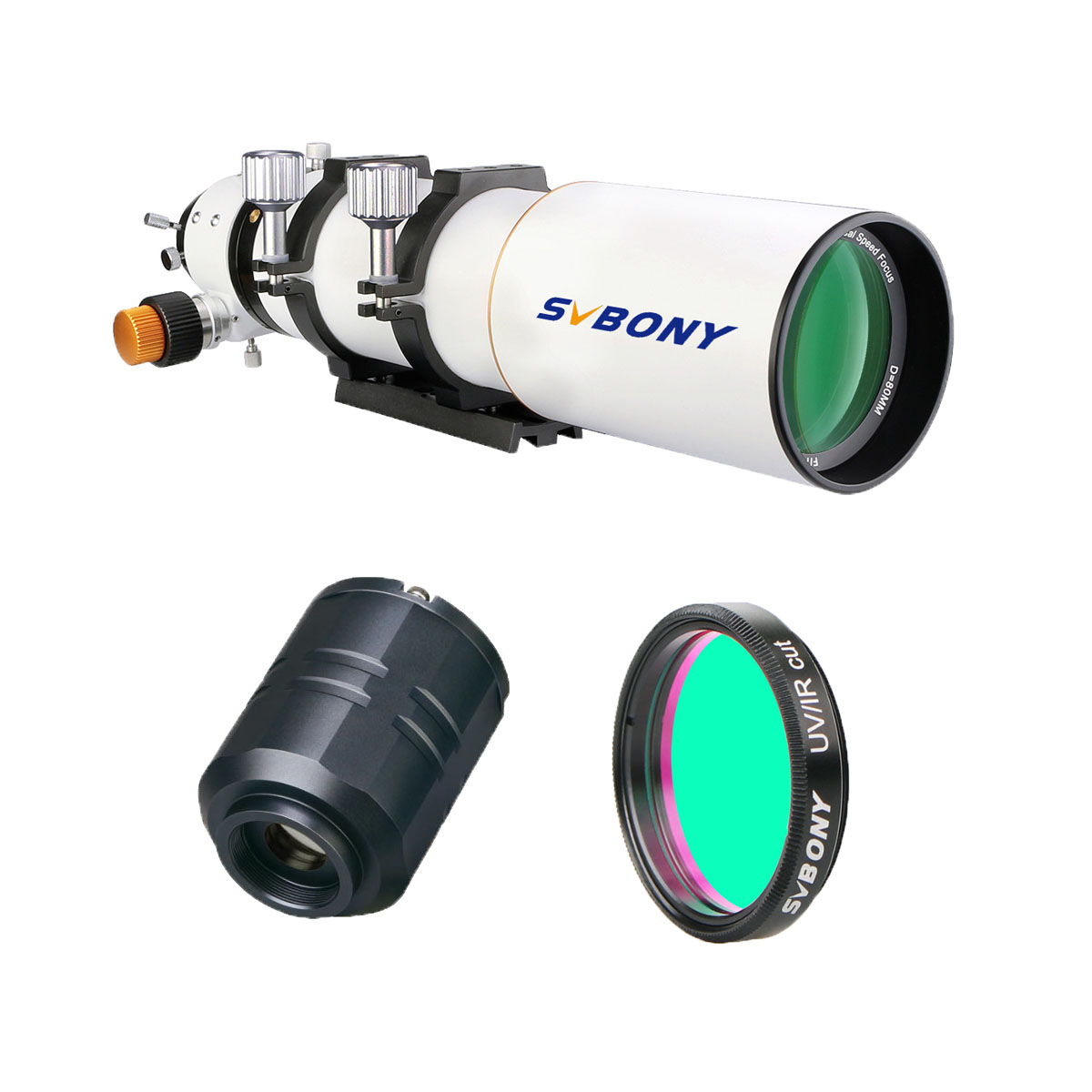

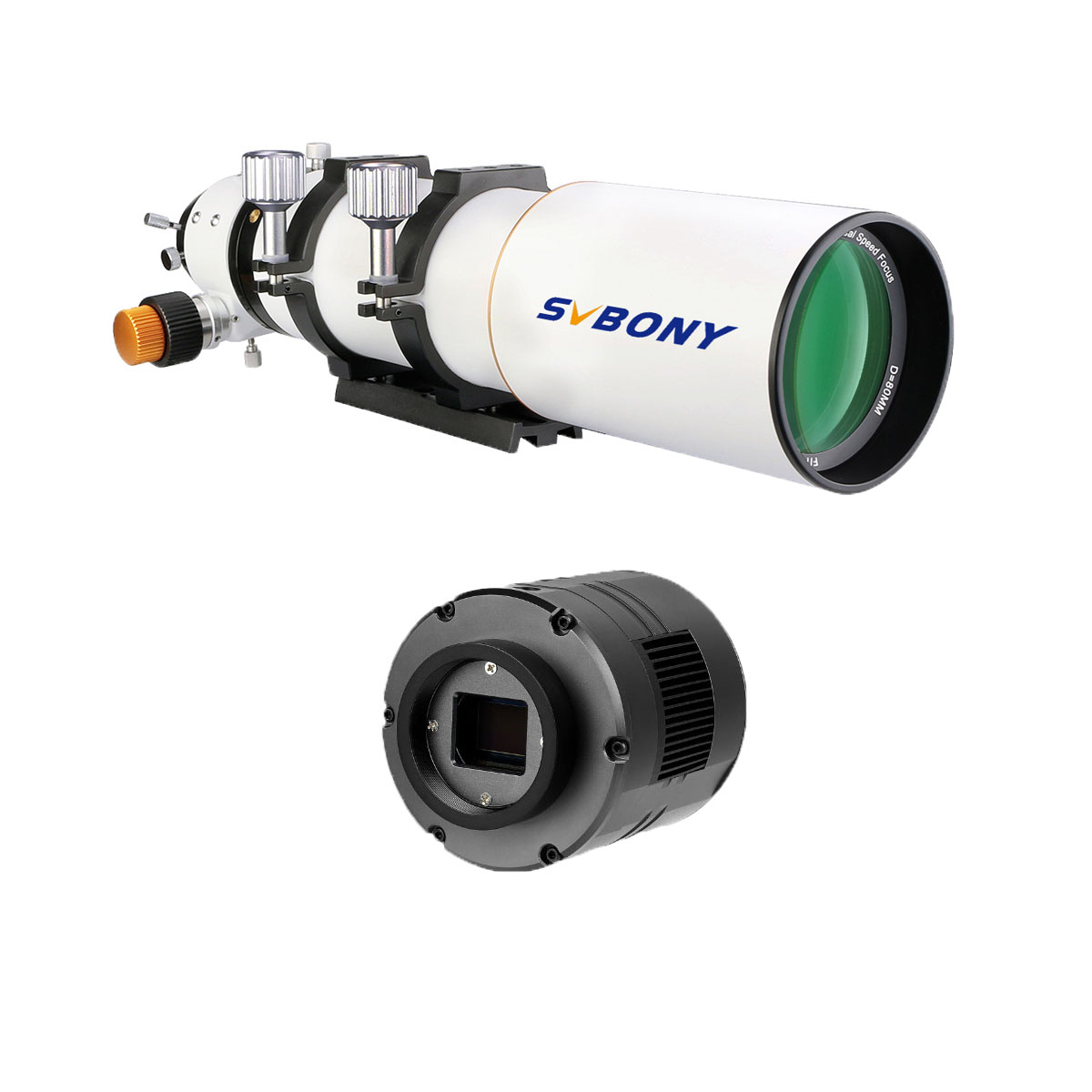

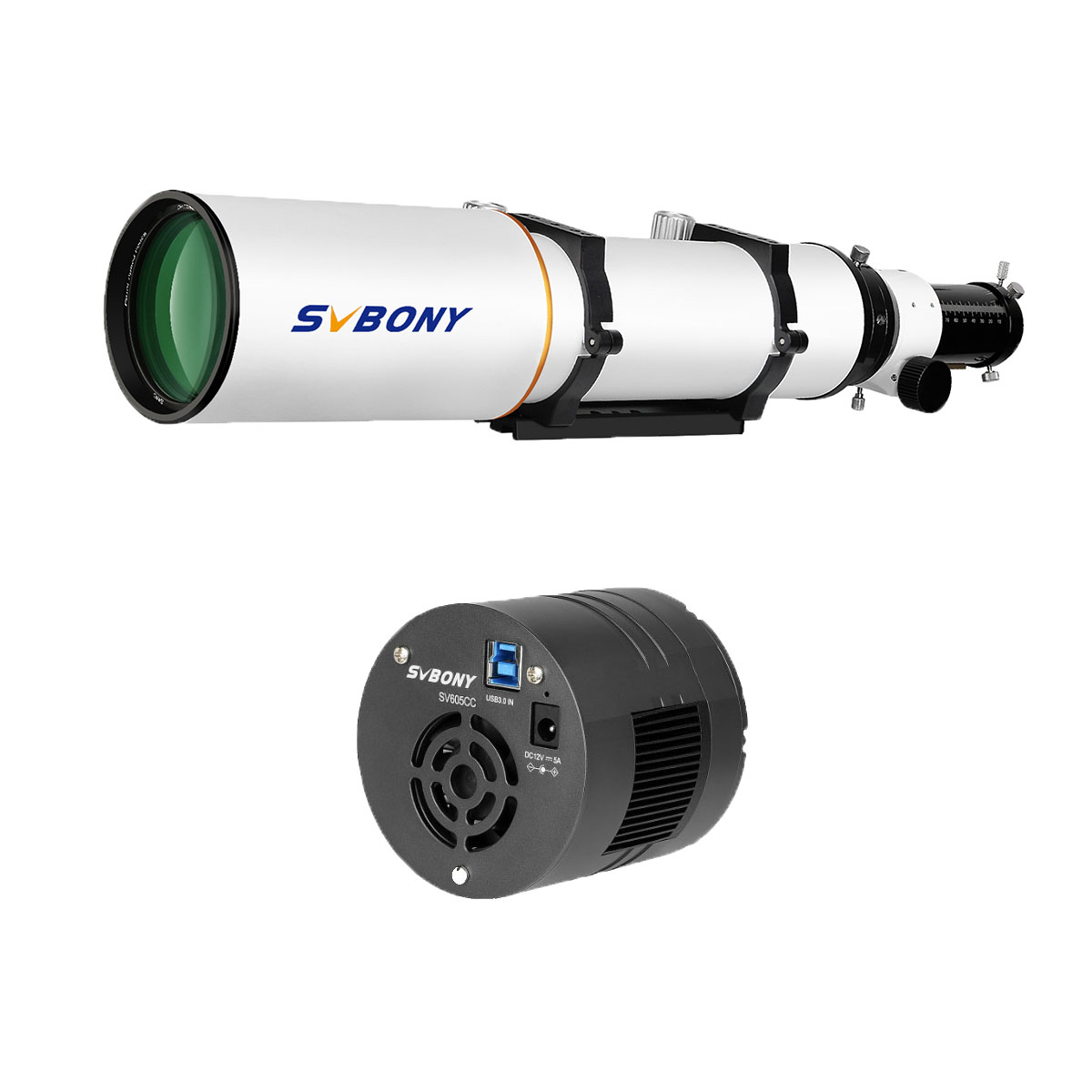

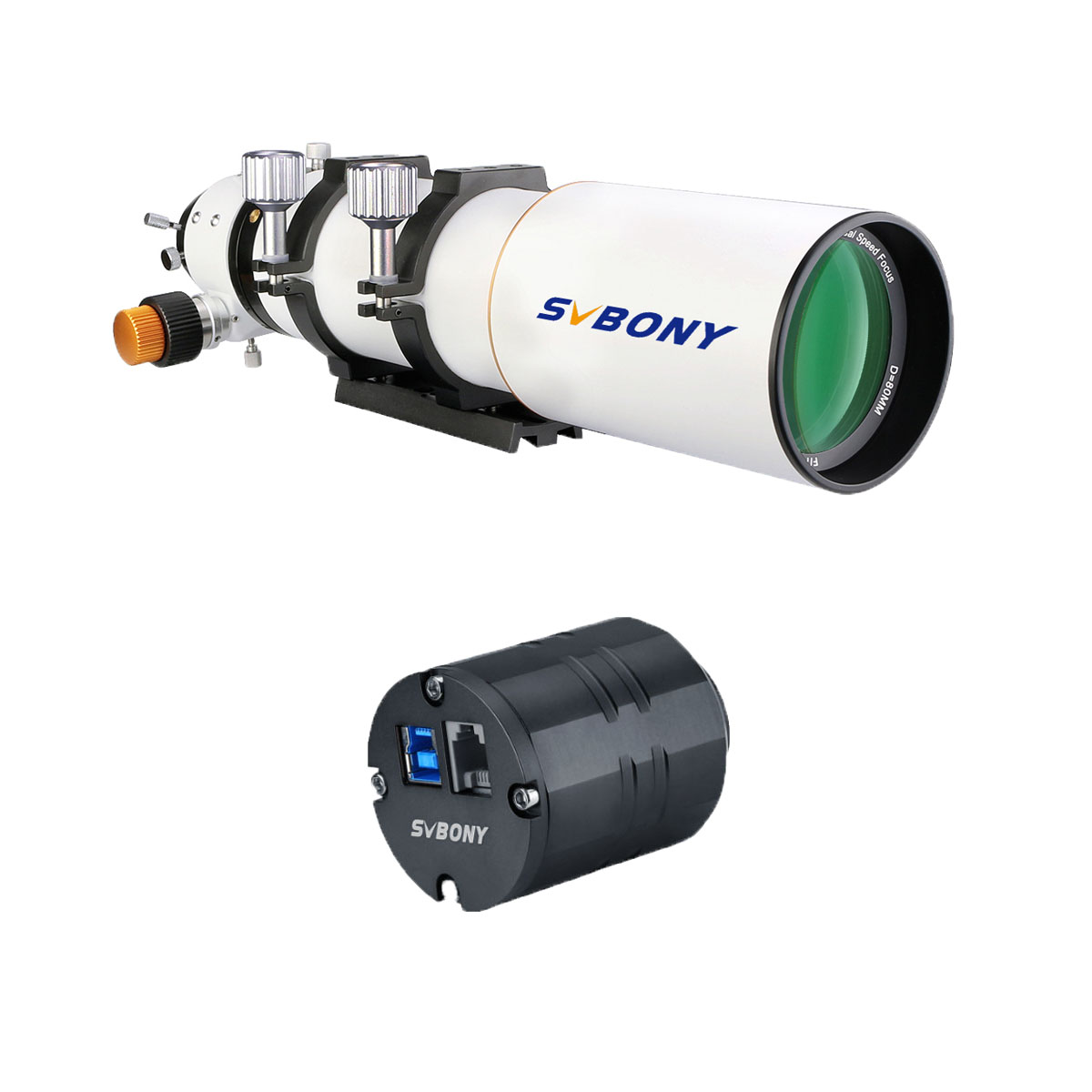

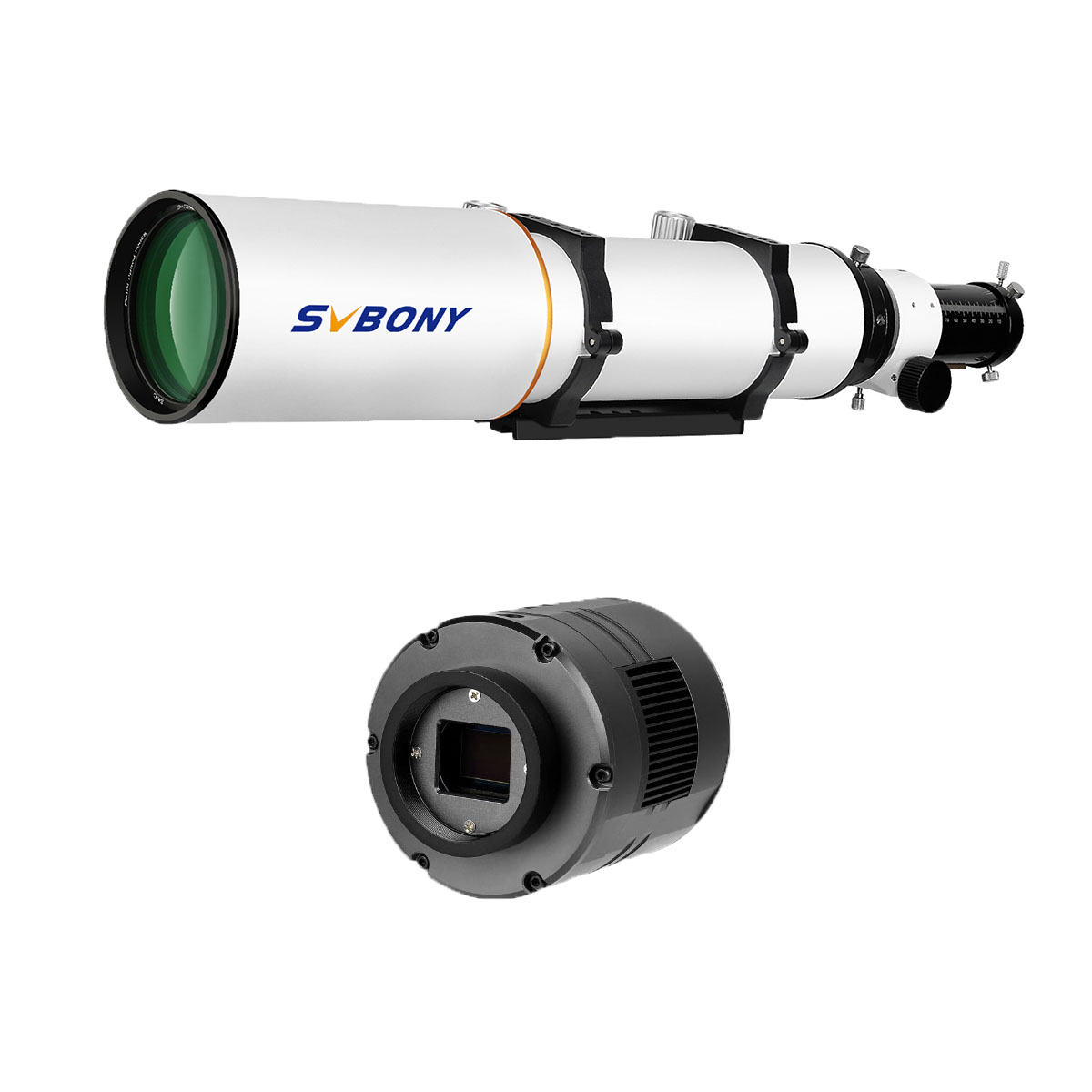

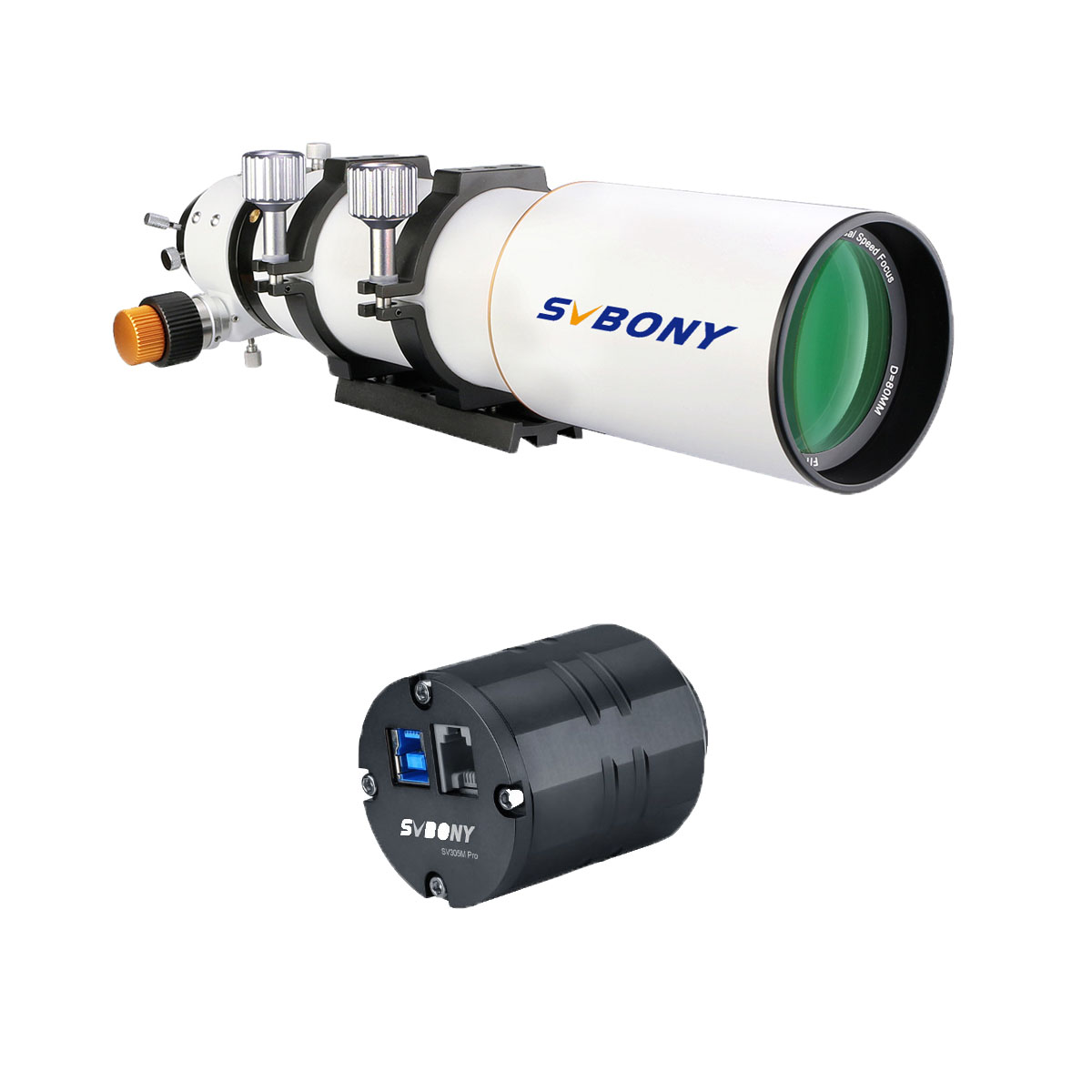

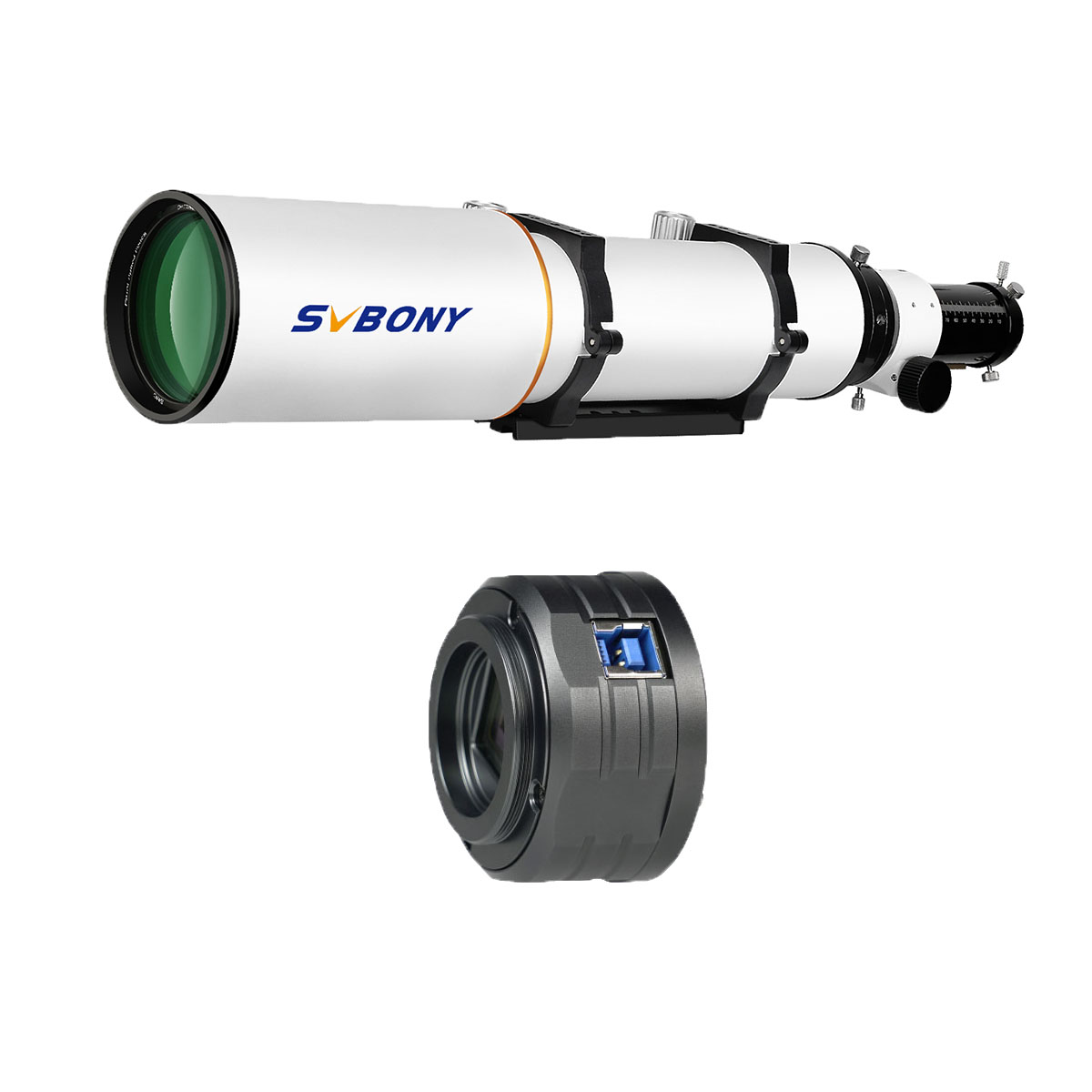

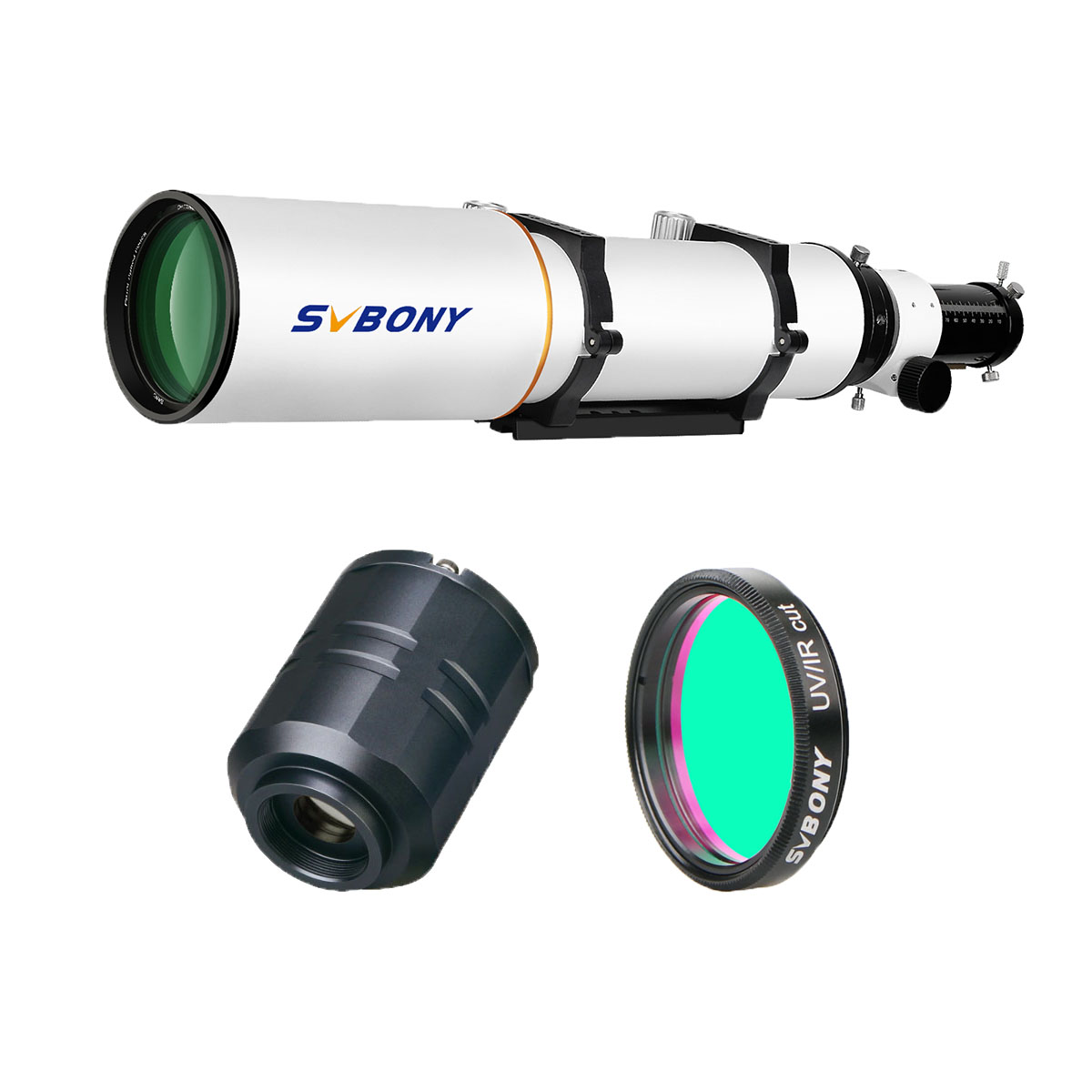

SV503 OTA Astronomy Gear for CMOS Astrophotography
Write a reviewThis SV503 set connected for CMOS astrophotography,give you more playing methods,let's try it now,any questions,contact us freely!

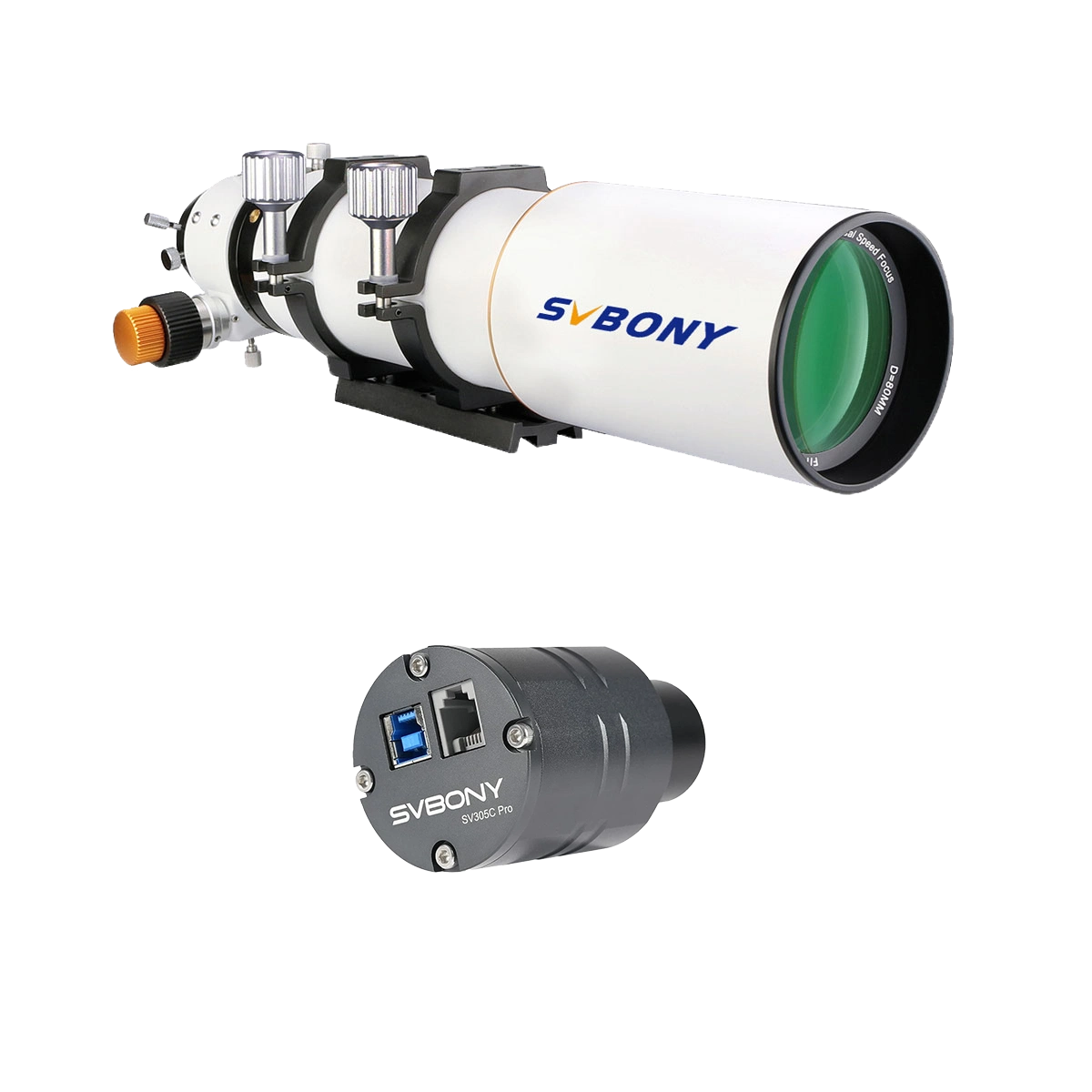

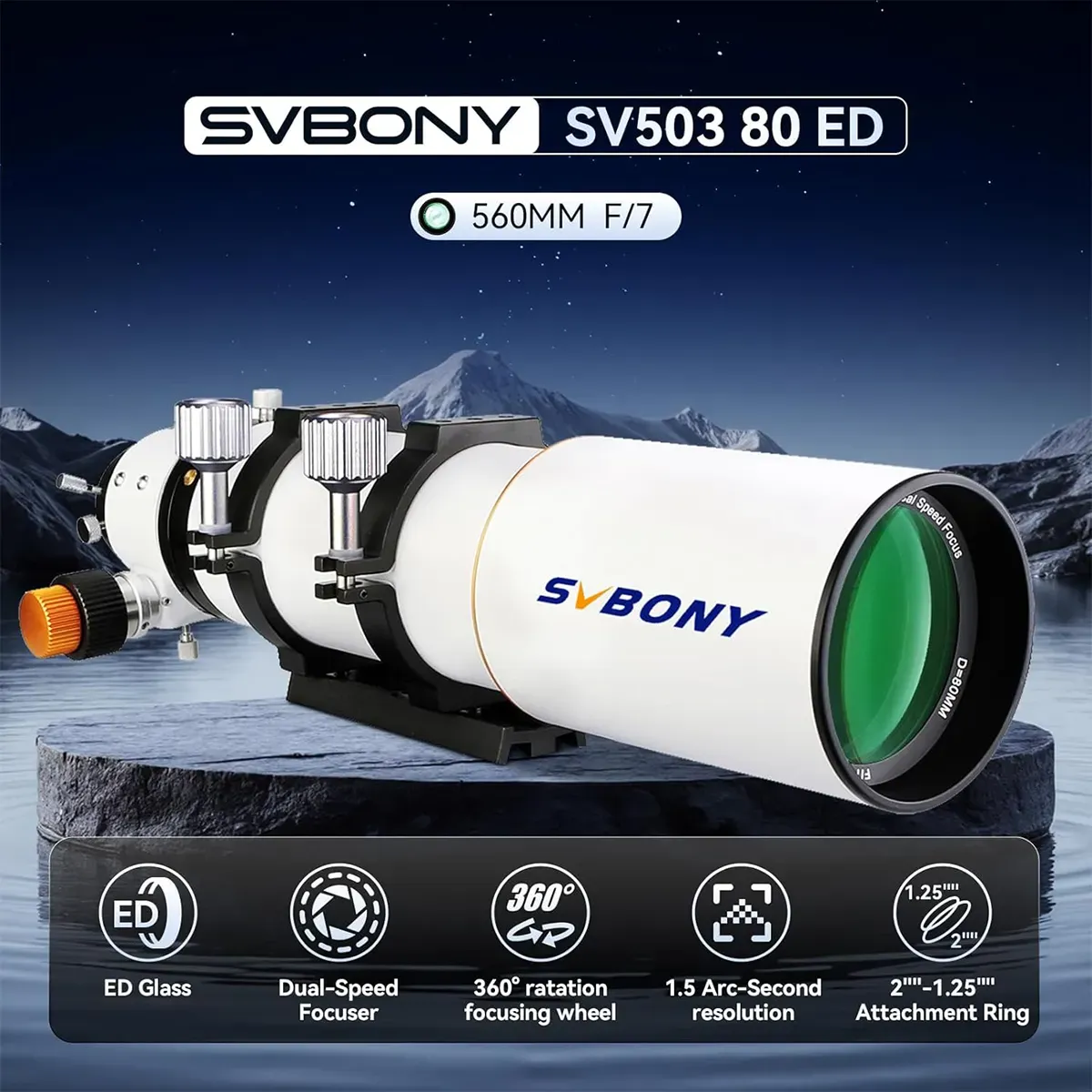

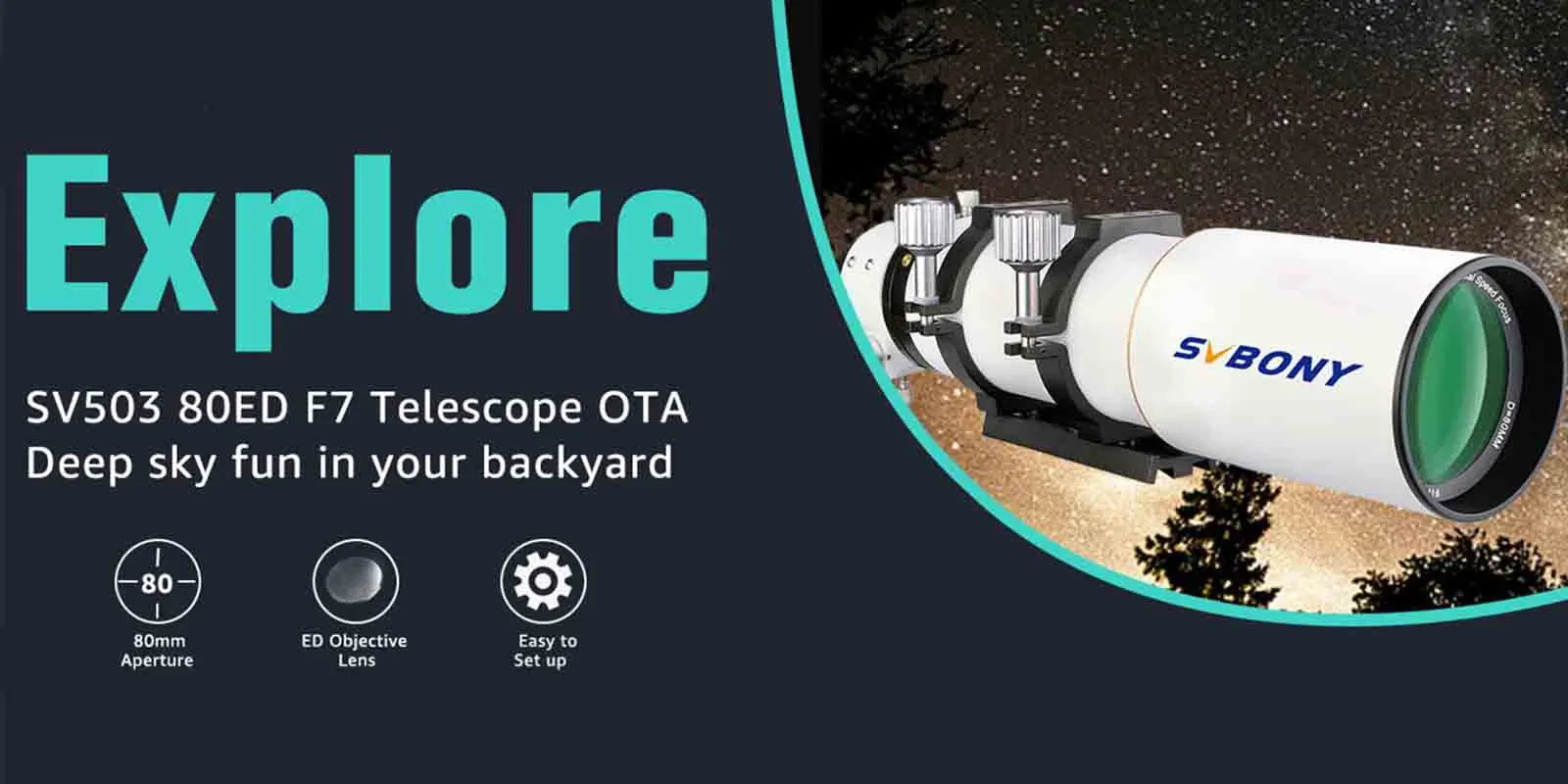

SV503-80ED
SV503-102ED

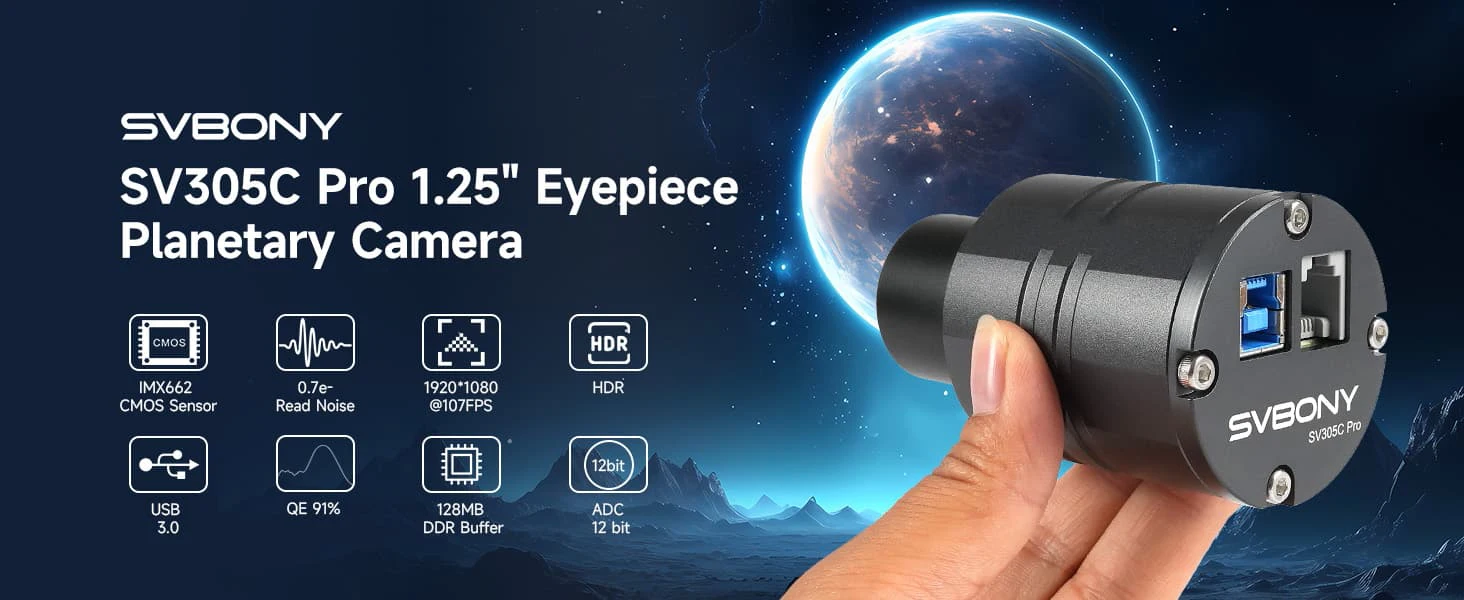

SV305 Pro
SV305 Pro AR
SV305M Pro

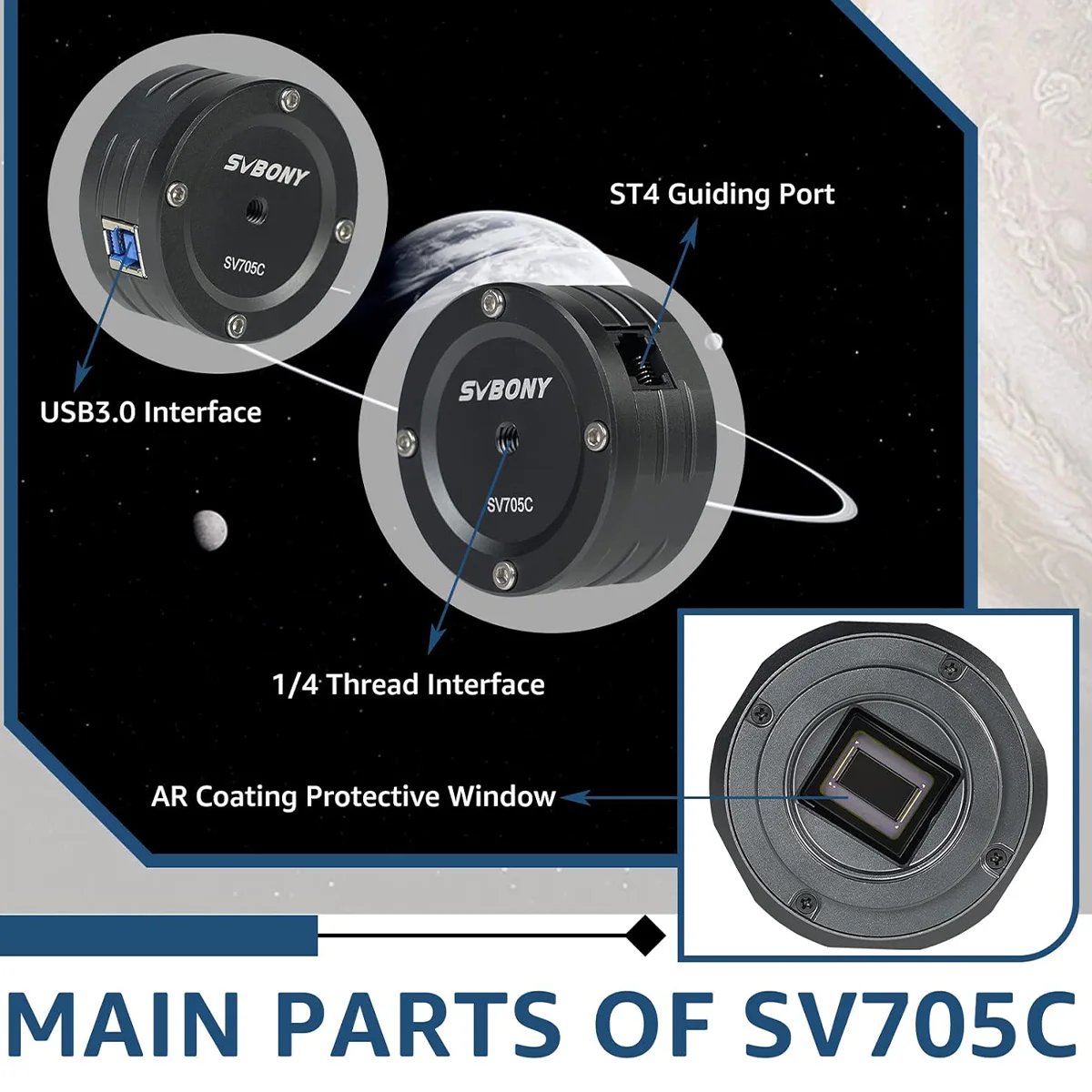

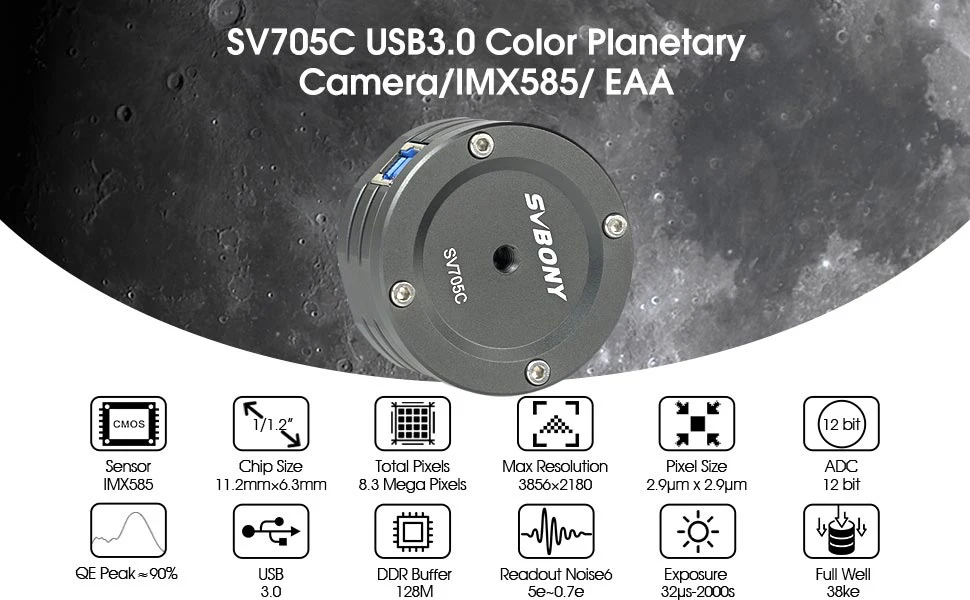

SV705C

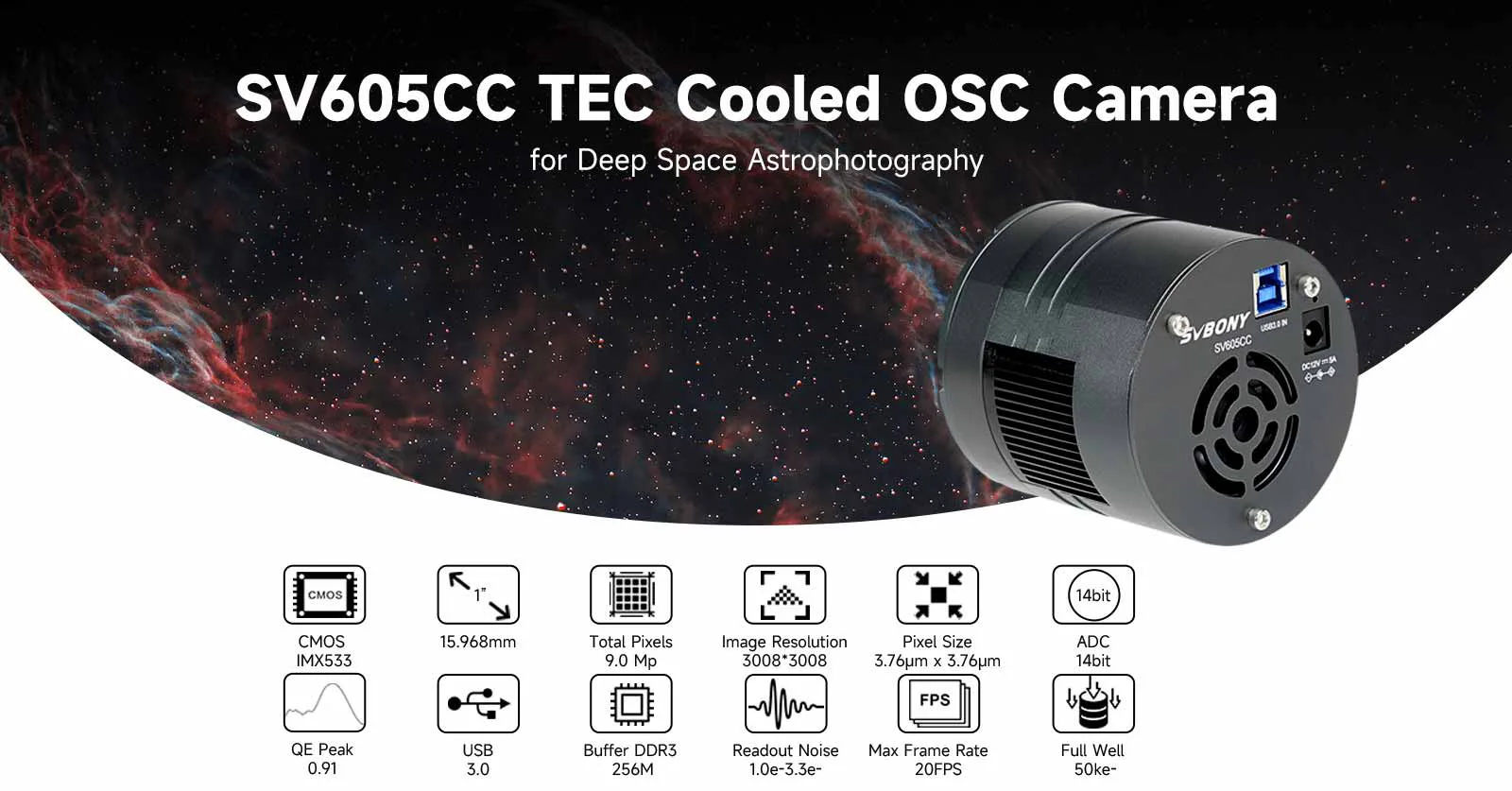

SV605CC

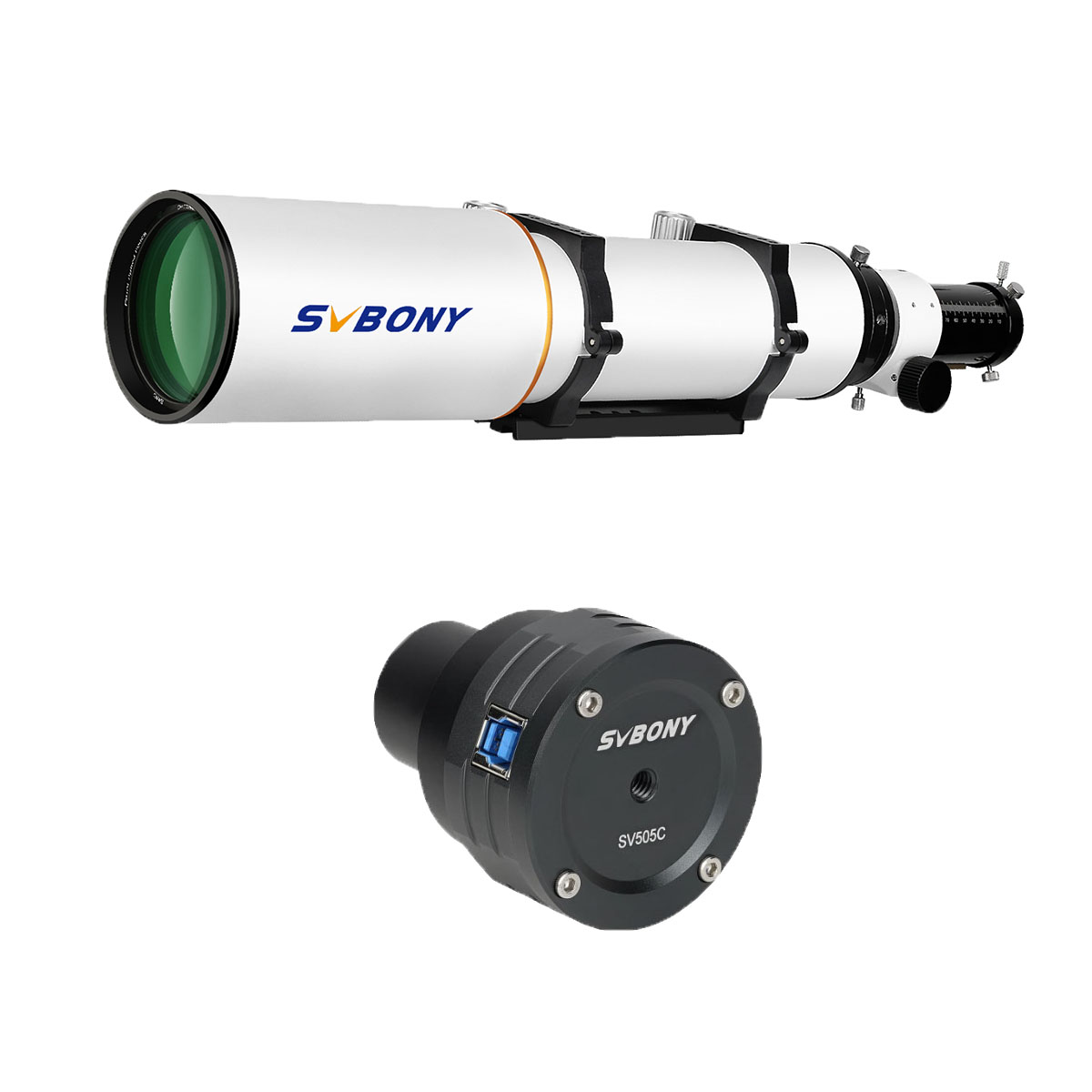

SV505C

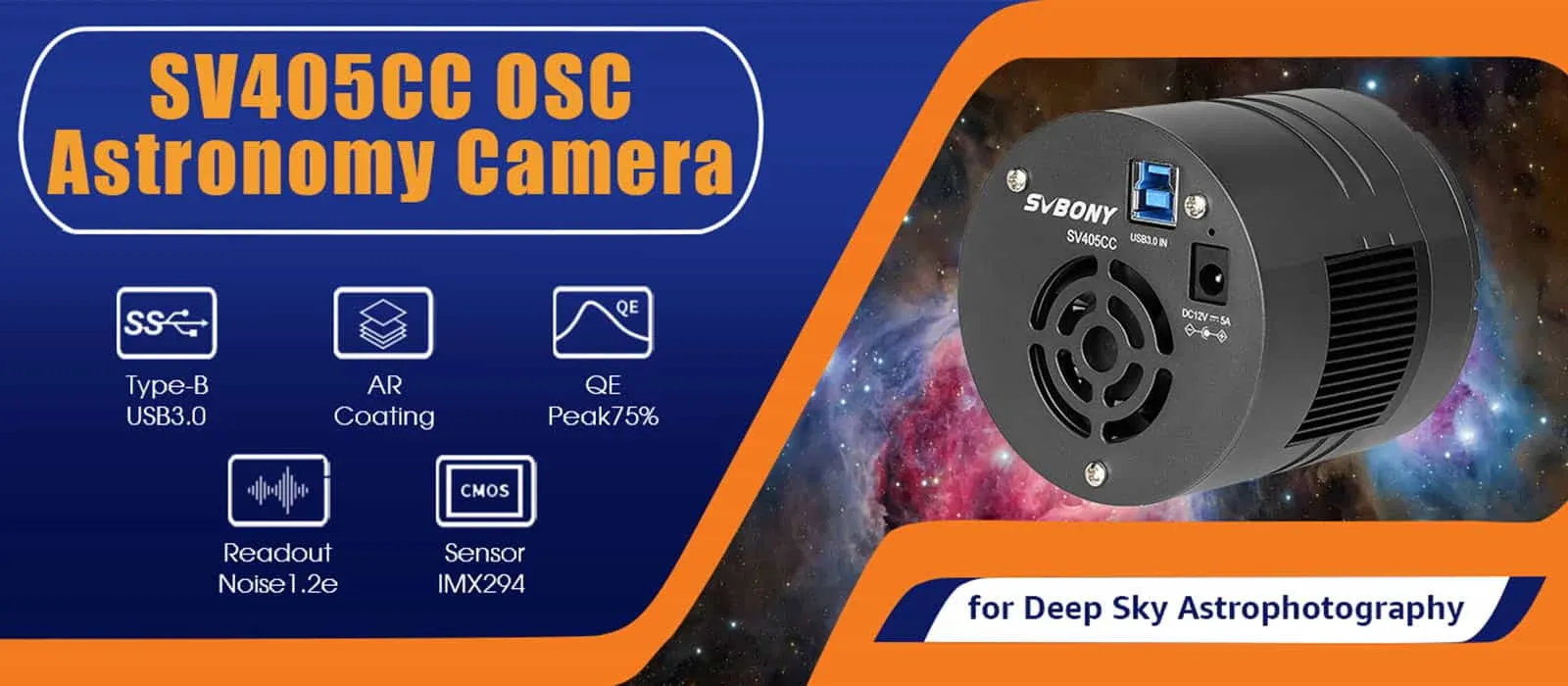

SV405CC
⚡ Shipped: 72 hrs after ordering (Pre-sale products excluded).
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT
🔒 Secure Payments | SSL Encrypted
💰️ 30-Day Money-Back Guarantee
🛡️ Hassle-Free Warranty | No Hidden Fees
🎧 Lifetime Customer Support
💳 Payment Methods

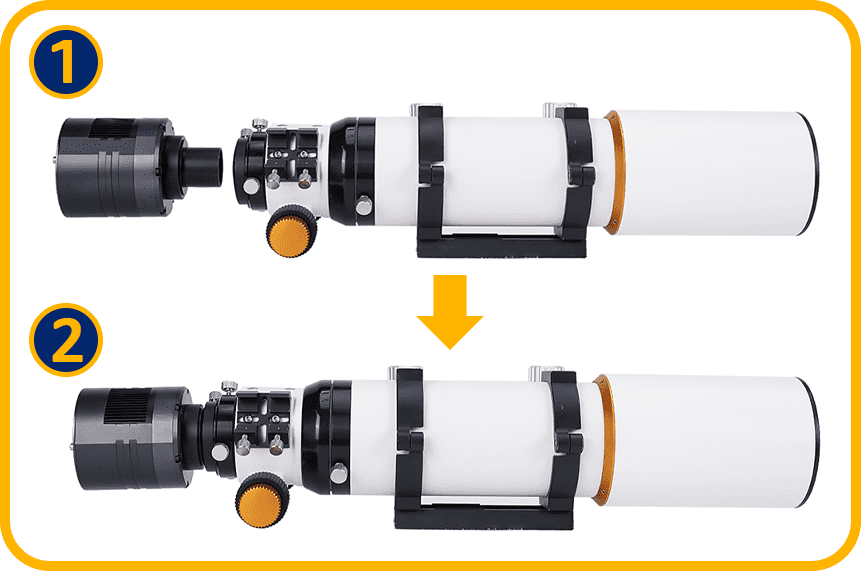

SV503 series with astronomy camera seriesconnected can achieve different effects.1. Have sensitive capture ability2. Get clear images3. Planets and nebulae can be captured according to different choices
Customer Reviews
There are no customer reviews yet
| Model | SV503-F9359A | SV503-F9359B | SV503-F9359D |
| Type | Refractor | Refractor | Refractor |

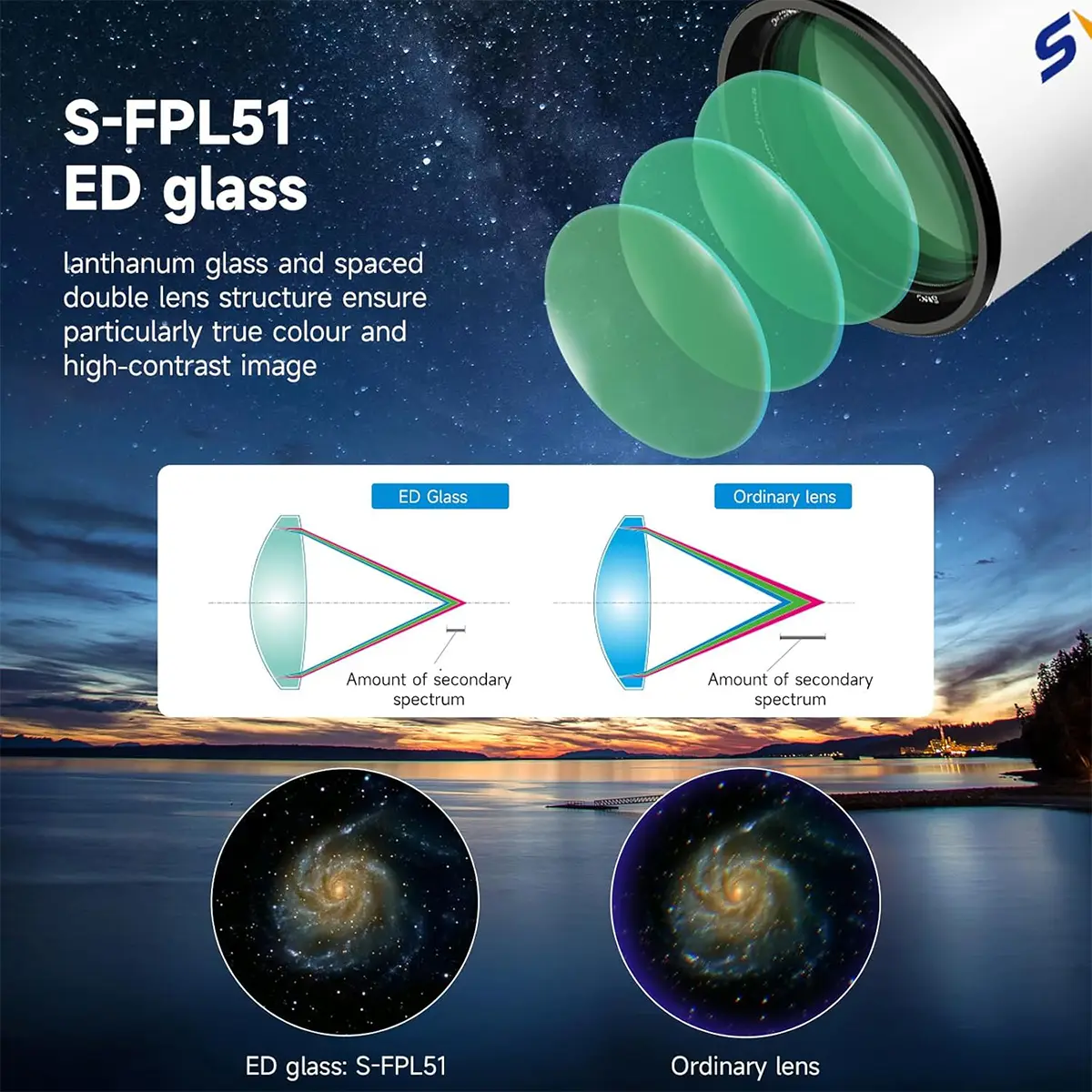

| ED Glass | S-FPL51 | S-FPL51 | S-FPL51 |
| Coating | SMC | Ultra-wideband coating（SMC） | SMC |
| Aperture | 70mm / 2.75-Inch | 80mm | 102mm / 4.01-Inch |
| Focal length | 420mm | 560 mm | 714mm |
| Focal Ratio | f/6 | F7 | f/7 |
| Type of Focuser | RAP (Rack and Pinion) | 2 inch Dual speed focuser | RAP (Rack and Pinion) |
| Gear Reduction | 1:10 Fine movement | 1:10 | 1:10 Fine movement |
| spec | F9198A | F9198B | F9198C | F9198D | F9198F | F9198H | F9198J | F9198K |
| Model | SV305 | SV305 Pro | SV305 Pro | SV305M Pro | SV405CC | SV505C | SV705C | SV605CC |

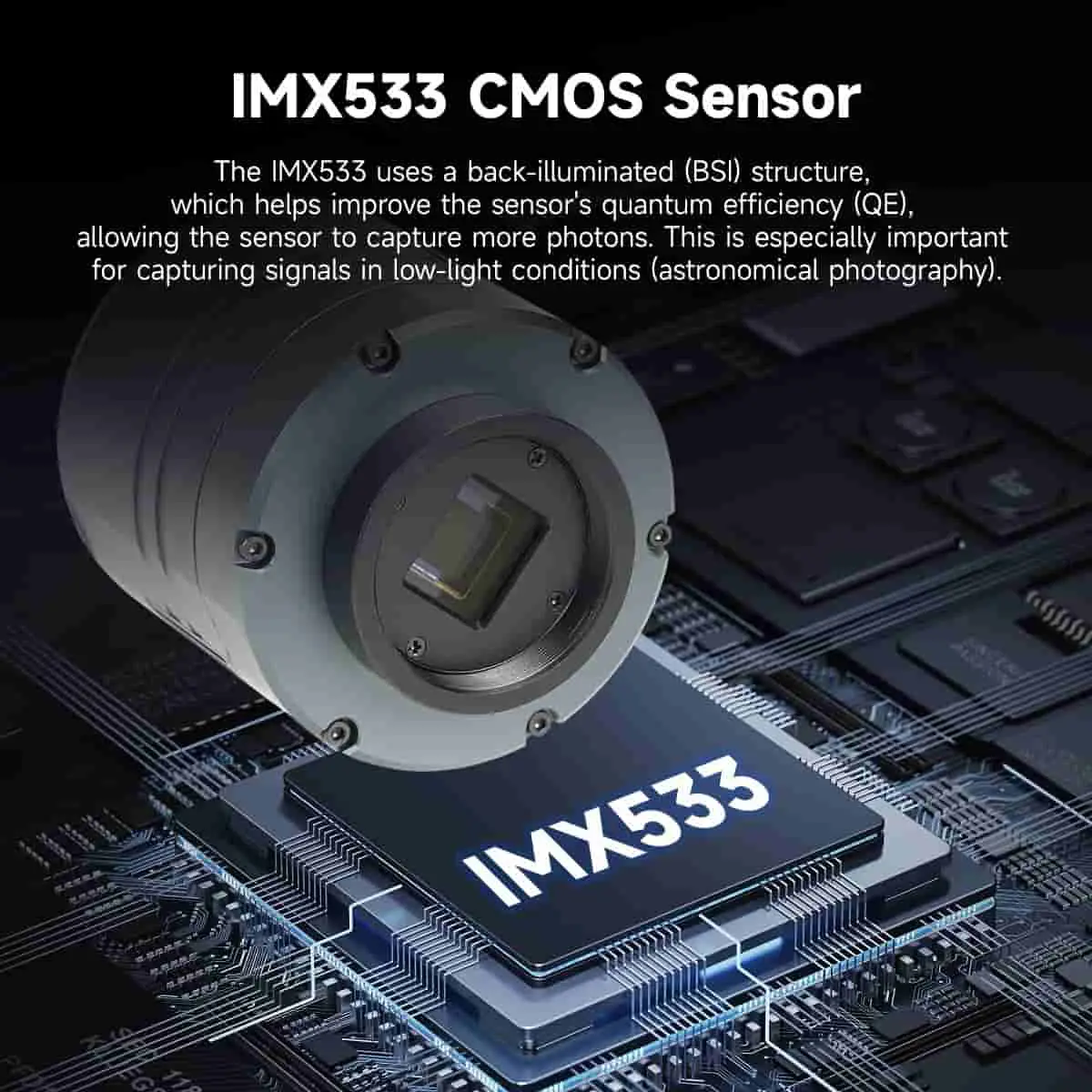

| Sensor | 1/2.8" CMOS SONY IMX290 | 1/2.8" CMOS Color SONY IMX290 | 1/2.8" CMOS Color SONY IMX290 | 1/2.8” COMS monochrome Sensor SONY IMX290 | 4/3'' SONY IMX294 CMOS19.2mm*13mm | SONY IMX464 CMOS | IMX585 | Color IMX533 CMOS |
| Pixel Size | 2.9X2.9μm | 2.9µmx2.9µm | 2.9µmx2.9µm | 2.9um X 2.9um | 4.63*4.63μm | 2.9μm* 2.9μm | 2.9um X 2.9um | 3.76um x 3.76um |
| Resolution | 2 Mega Pixels 1920X1080 | 2MPixels(1920*1080@120FPS)360*240@260fps | 2MPixels(1920*1080@120FPS)360*240@260fps | 2M Pixels (1944*1096) | 11.7 megapixels 4144*2822 | 2712×1538 | 3856×2180 | 3008*3008 |
| Supported OS | Windows, Linux, Raspberry Pi & Mac OS | Windows, Linux, Raspberry Pi & Mac OS | Windows, Linux, Raspberry Pi & Mac OS | Windows8.1& win 10 & Linux &Raspberry Pi & Mac OS | Windows, Linux, Raspberry Pi & Mac OS | Windows , Linux OS Raspberry Pi，Mac os, Chrome os | Windows , Linux OS Raspberry Pi，Mac os, Chrome os | Windows,Linux,Mac OS,Raspberry Pi,Chrome OS |
| Power Consumption | 200mA@5V | 230mA@5V | 230mA@5V | 200mA 5V | ||||
| Working Temperature | -0°C~45°C | -10°C~50°C | -10°C~50°C | -10℃ to +50℃ | -10℃-50℃ | -10℃ to +50℃ | ||
| Storage Temperature | -10°C~60°C | -20°C~60°C | -20°C~60°C | -20℃ to +60℃ | -20℃-60℃ | -20℃ to +60℃ | ||
| Working Relative Humidity | 20%~80% | 30%-80% | 30%-80% | 30%-80% | 20％-80％ | 30%-80% | ||
| Storage Relative Humidity | 20%~95% | 20%-90% | 20%-90% | 20%-90% | 20％-95％ | 20%-90% | ||
| USB Type | USB3.0 | USB3.0 | USB 3.0 | USB3.0 | USB3.0 | Type-B USB 3.0 | ||
| Exposure Time | 1ms~30min | 1ms~30min | 0.03ms-2000s | 0.05ms-2000s | 64us-2000s | 0.05ms-2000s | ||
| Gain | Automatic/Manual | Automatic/Manual | 1~30 | 0-500 | ||||
| Diagonal Line | 6.5mm | 23.2mm | 9mm | 12.85mm | 15.968mm |
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 80mm |
| Focal Length | 480mm |
| Focal Ratio | f/6 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.45 arc seconds |
| Coatings | SMC |
| Limiting stellar magnitude | 11.6 |
| Lens design | Apochromatic |
| dovetail plate length | 150-175mm |
| barrel weight | 2900g |
| mirror Brief Size | 377.8mm |
| Net weight | 3750g |
| Gross weight | 3850g |
| Package size | 440x220x210mm |
| Model | W2811C |
| Size | 2" to 1.25" |
| Material | Metal |
| Color | Black |
