SV503 80/102 ED F7 Refractor Telescope Set for Deep Space Photography
22 | ReviewsOfficial Store Exclusive, Double points for a limited time+138 Points
Save 9%When you buy $500 of this item
Save 11%When you buy $1000 of this item
Key Features
Unlock the full potential of your telescope equipment with our all-in-one accessory set designed for deep space photography. Includes everything you need for optimal performance and image quality.

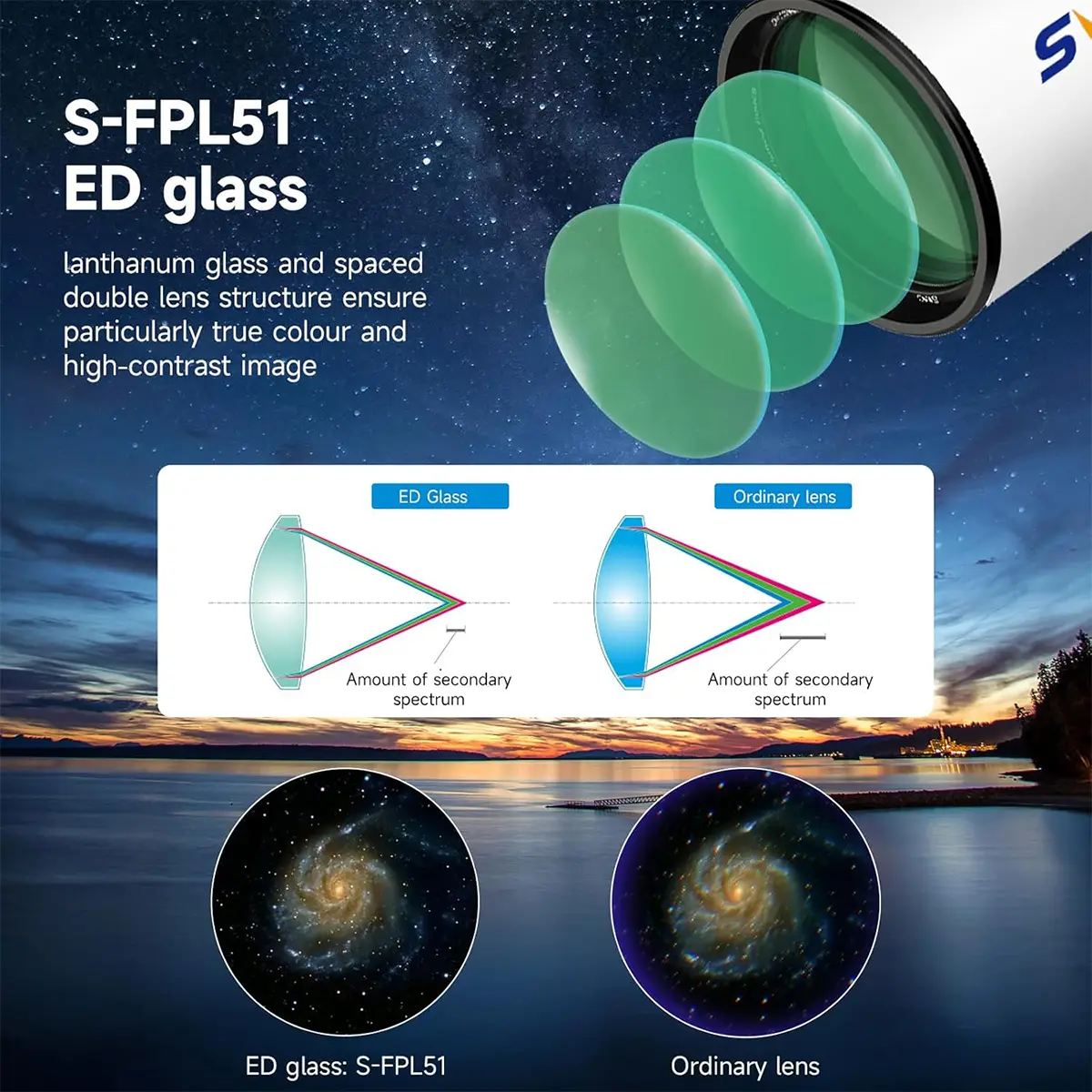

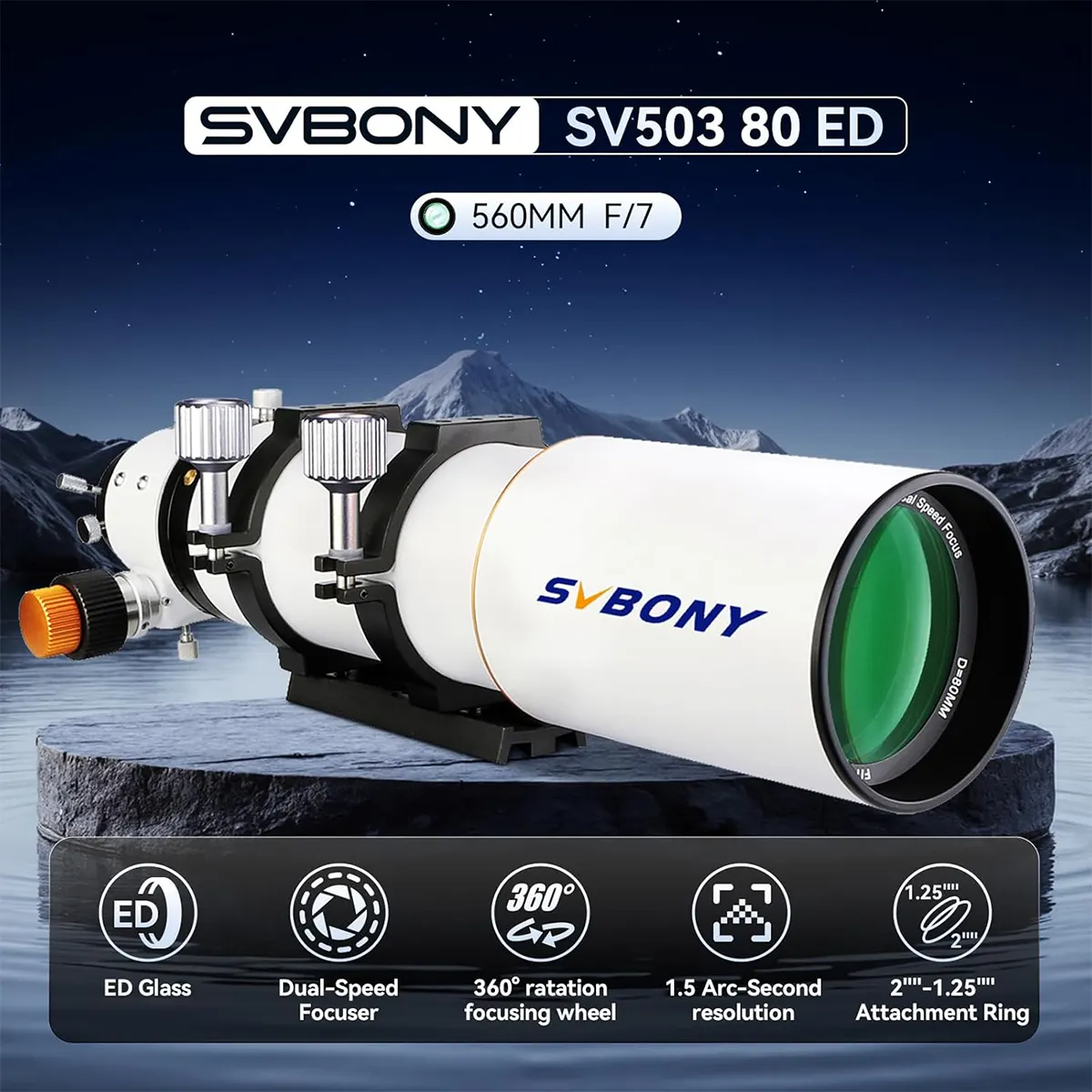

Choose between the SV503 80ED or SV503 102ED OTA, both offering high-quality optics for deep space photography, providing clear and precise imaging of galaxies, nebulae, and star clusters.

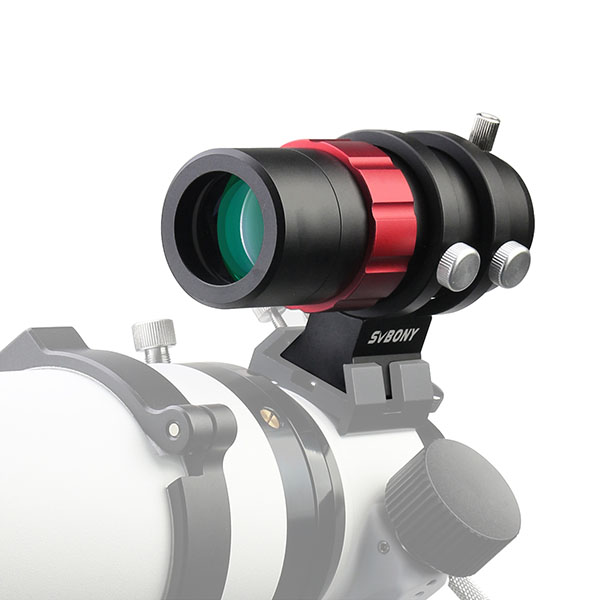

The SV165 30mm f/4 guiding scope and SV905C CMOS guiding camera work in tandem for accurate autoguiding, ensuring sharp, precise exposures during long deep space imaging sessions.

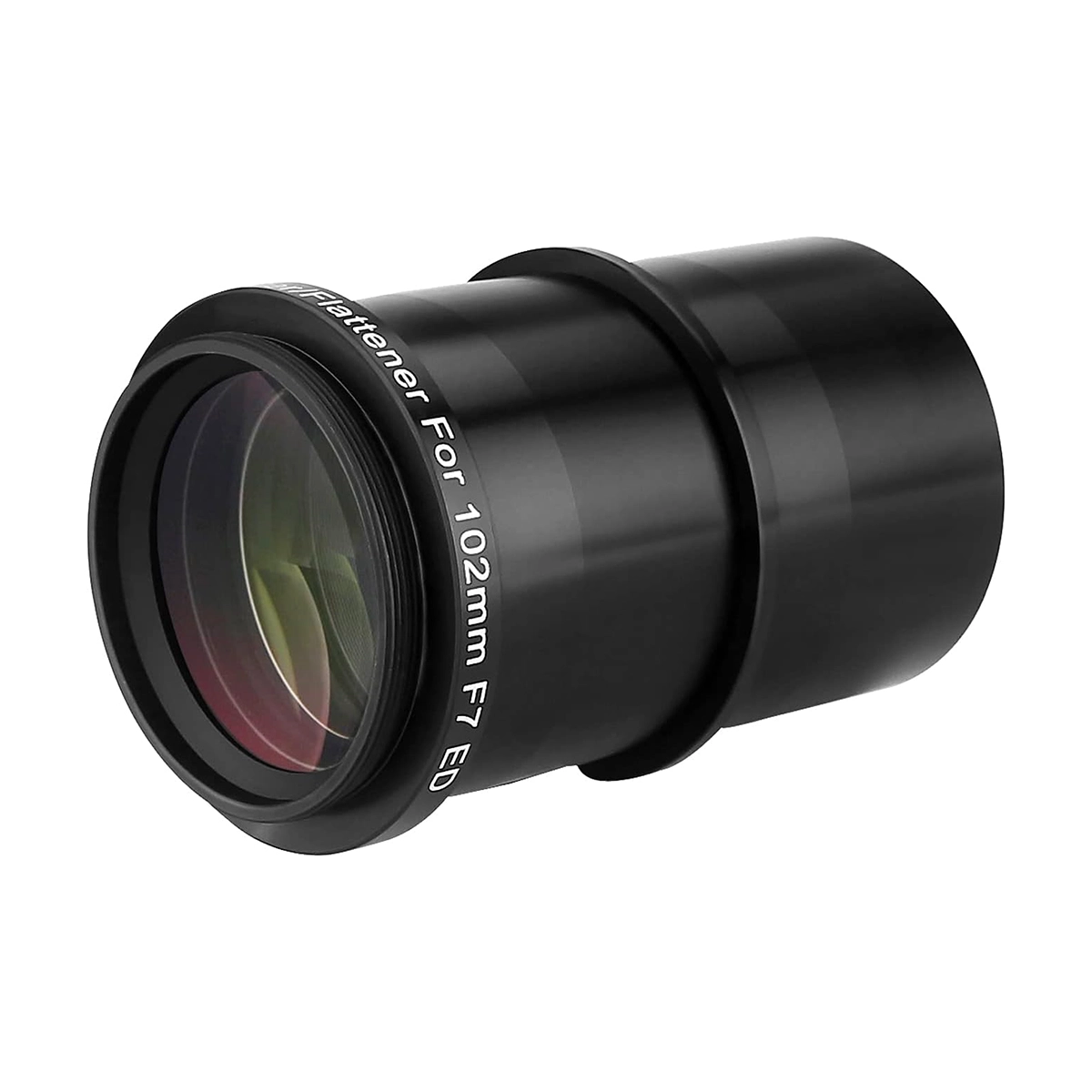

The SV193 0.8x field flattener and focal reducer reduce distortions and improve the overall sharpness of images, ensuring wide-field astrophotography with minimal optical flaws.

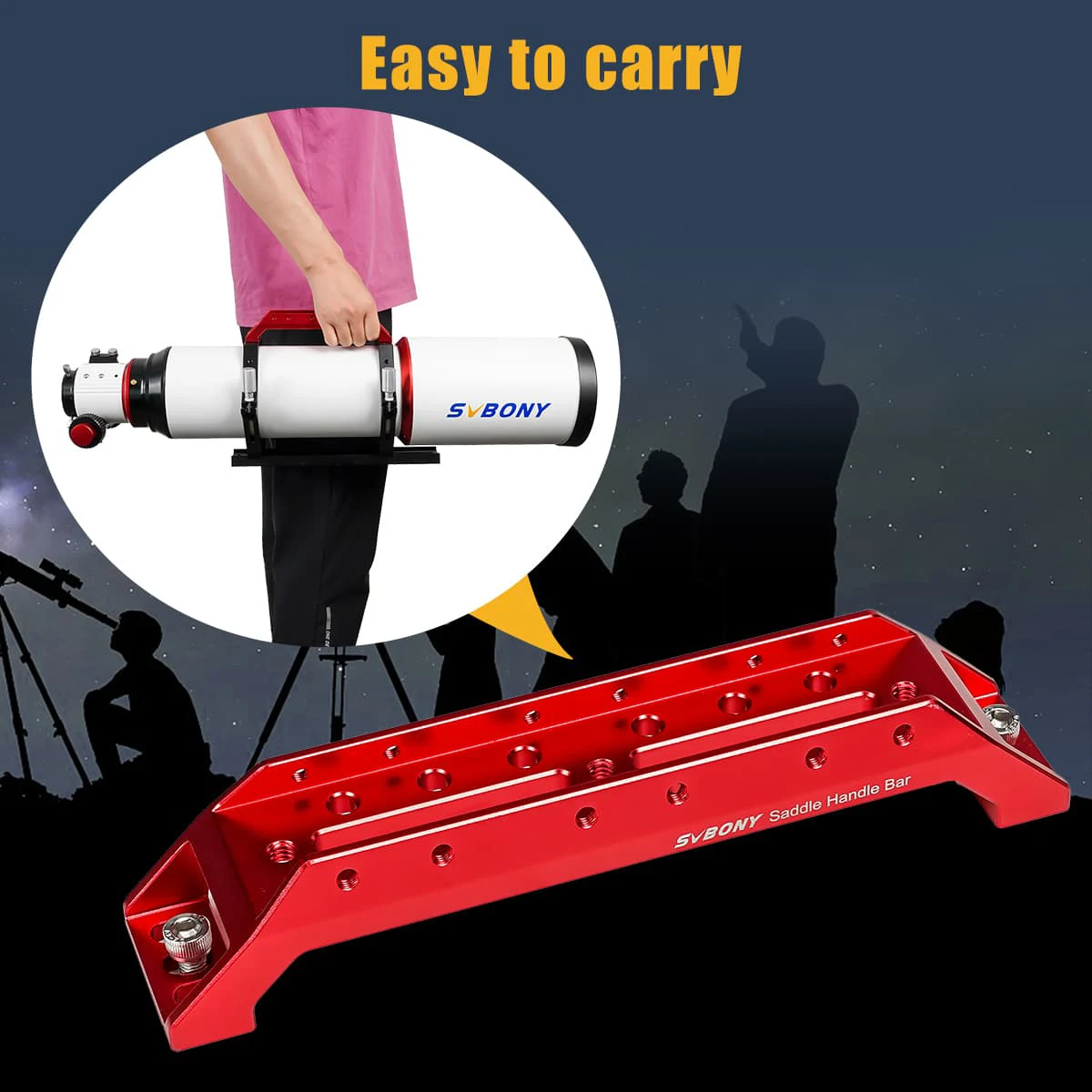

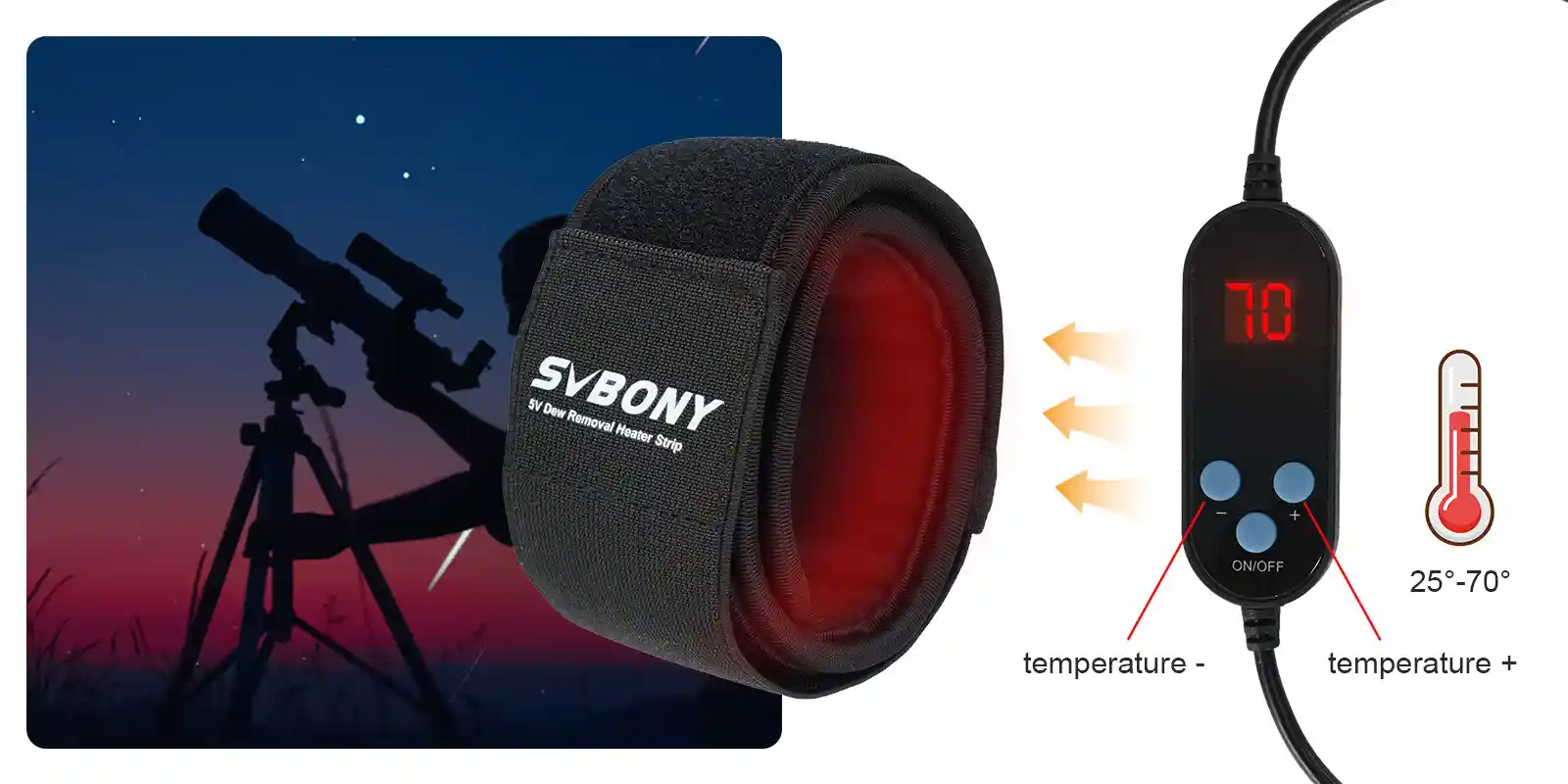

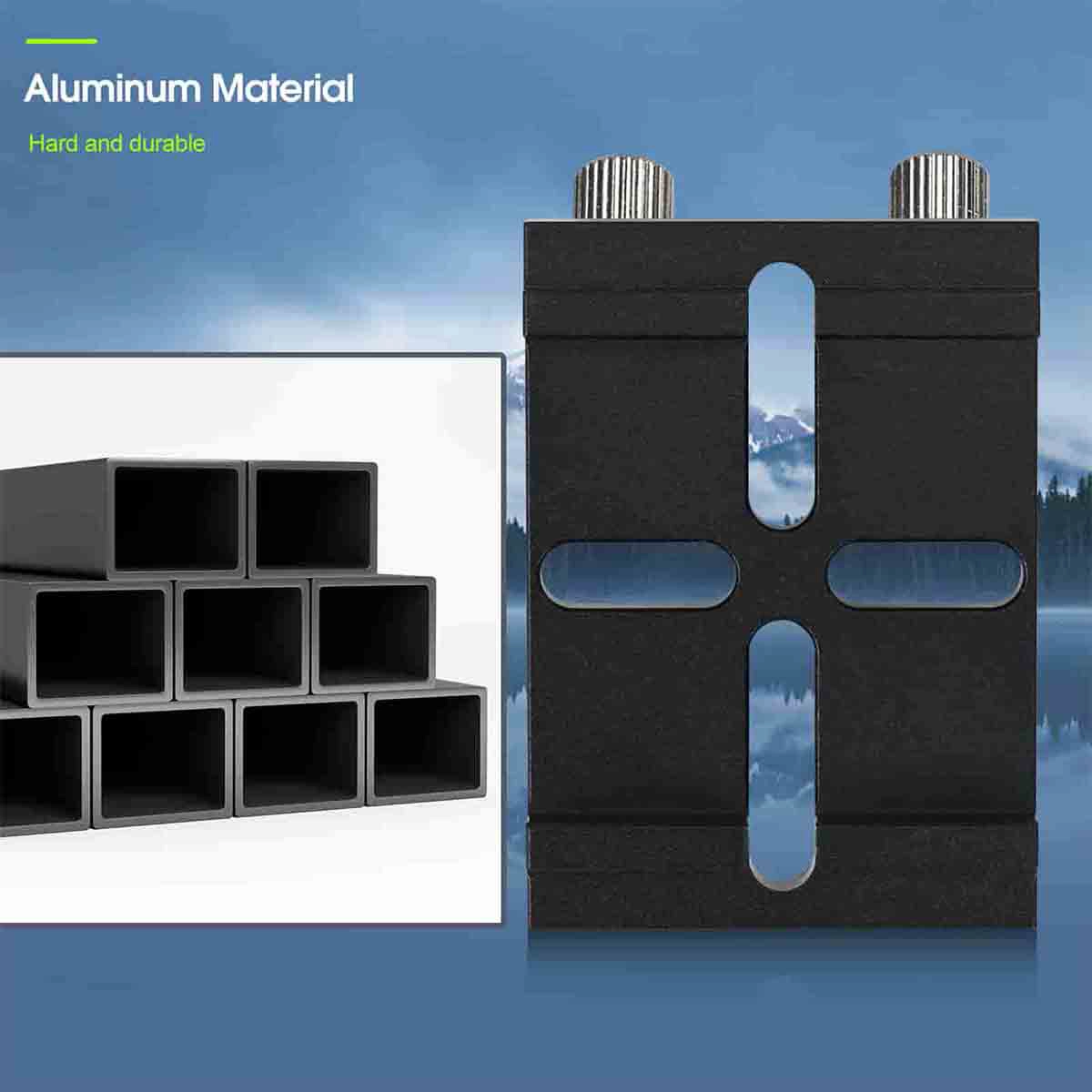

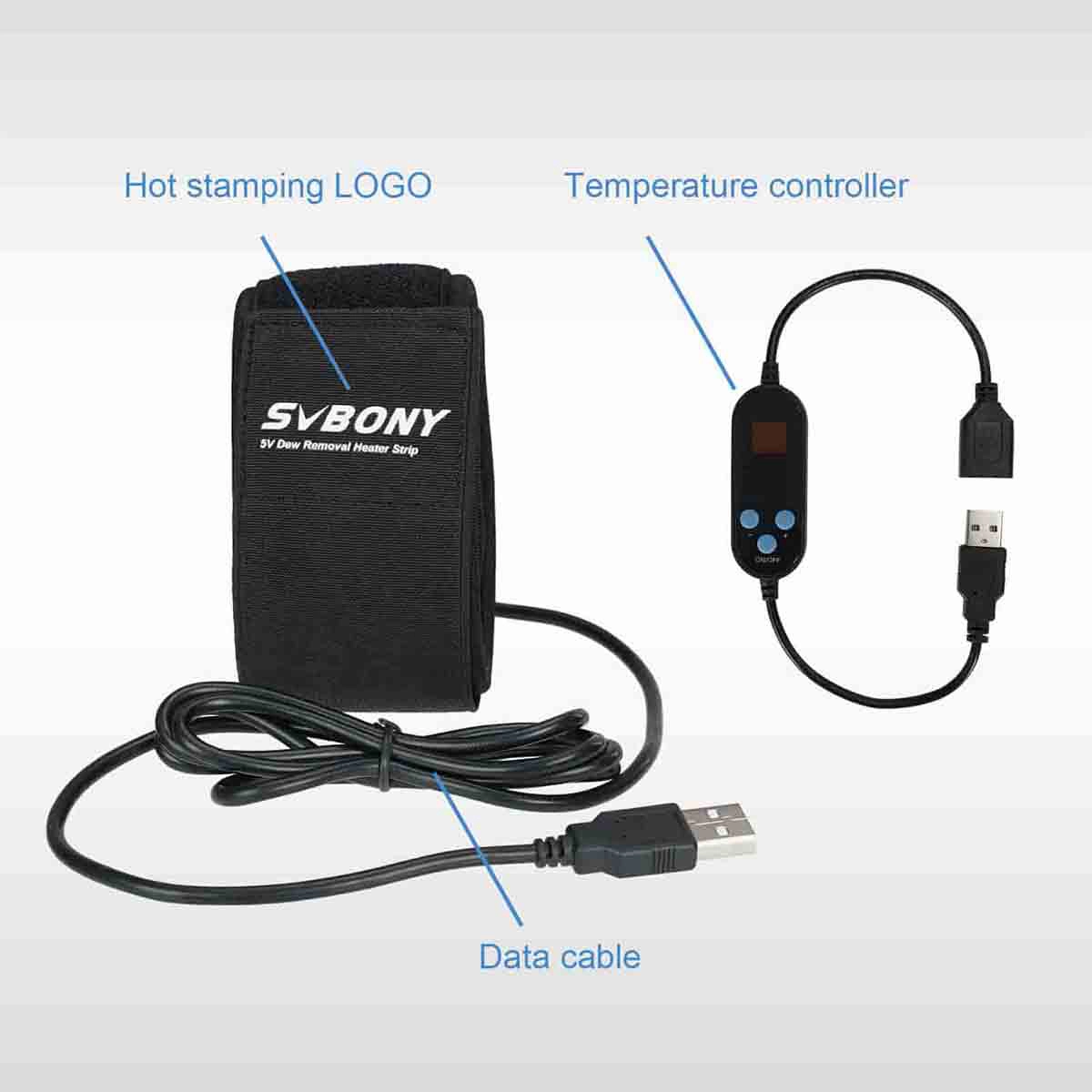

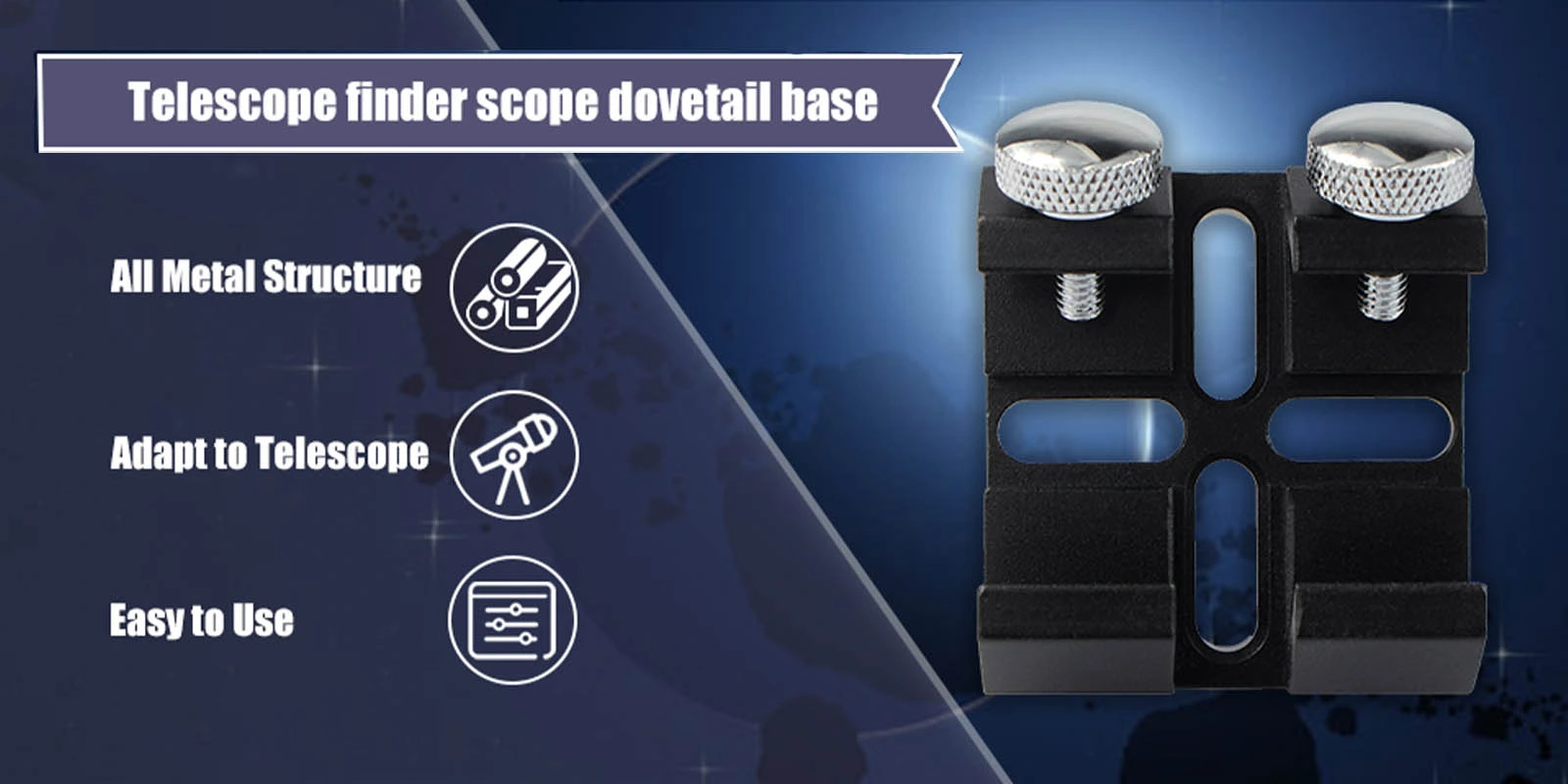

This set includes a SV172 heater strip, SV211 handle bar, and dovetail slot for easy attachment of your star finder or guide scope, enhancing both stability and image quality.
SV503 80ED Bundle
SV503 102ED Bundle
⚡ Shipped: 72 hrs after ordering (Pre-sale products excluded).
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT
🔒 Secure Payments | SSL Encrypted
💰️ 30-Day Money-Back Guarantee
🛡️ Hassle-Free Warranty | No Hidden Fees
🎧 Lifetime Customer Support
💳 Payment Methods
📦 Payment Methods
Customer Reviews
All Reviews
Loading...
| Brand | SVBONY |
| Model | SV503 |
| Objective Lens Diameter | 80mm |
| Eye Piece Lens Description | ED |
| Focal Length | 560 mm |
| Focal Ratio | F7 |
| Lens Coated | Ultra-wideband Coating |
| Objective Lens Type | Double Separation Lens Structure |
| Limit Magnitude | 11.6 |
| Set The Light Force | 130.6x |
| Resolution | 1.5 Arcseconds |
| Weight | 3950g |
| Telescope Tube Material | Aluminum |
| Tube Outer Diameter | 103mm |
| Focuser | 2 inch Dual Speed Focuser; The Gear Ratio 110 |
| Focuser Type | Rack Pinion Design |
| Packages | 1x SV503 White 80ED F7 Telescope OTA (for observing and for astrophotography) |
| Product Dimensions | 540mm*215mm*230mm |

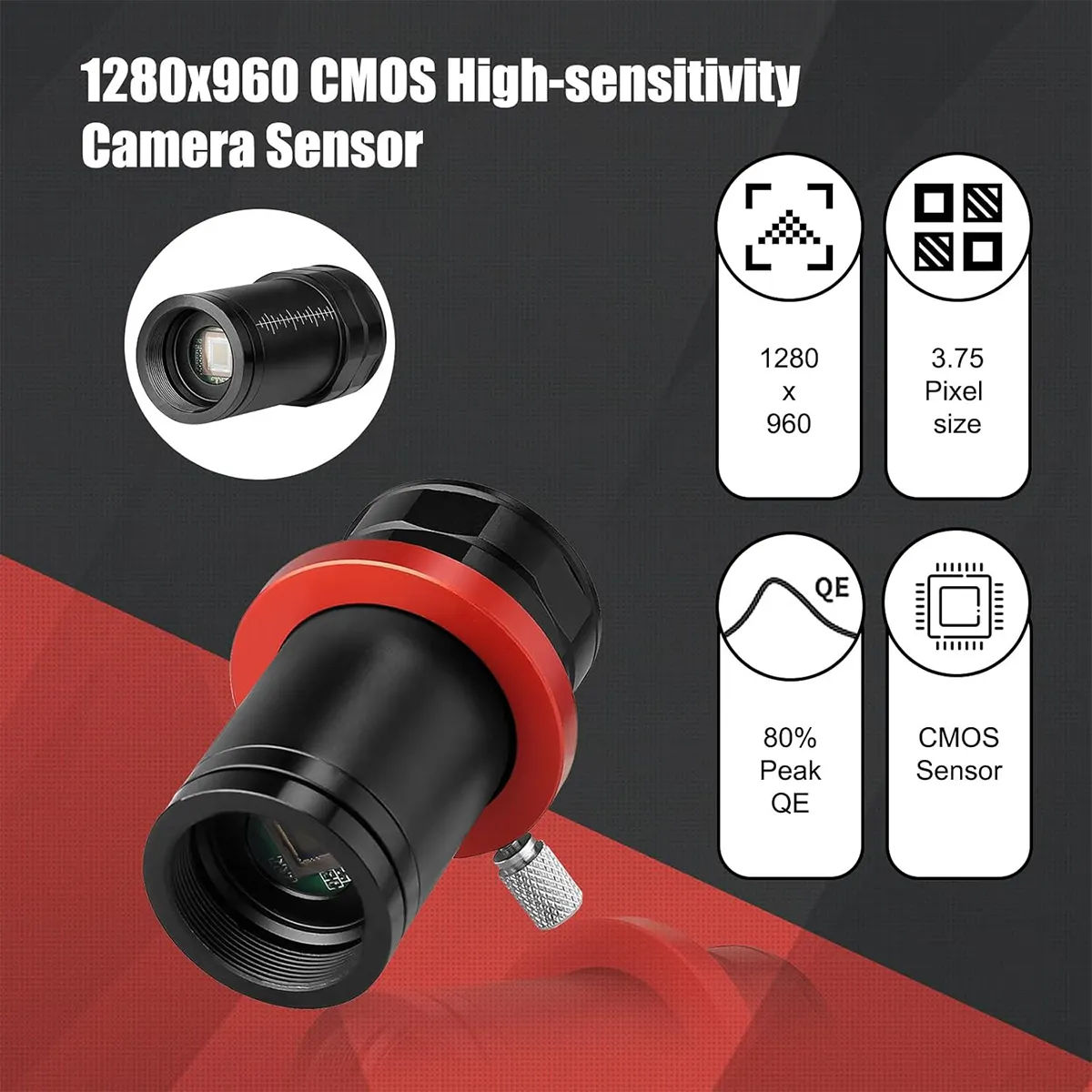

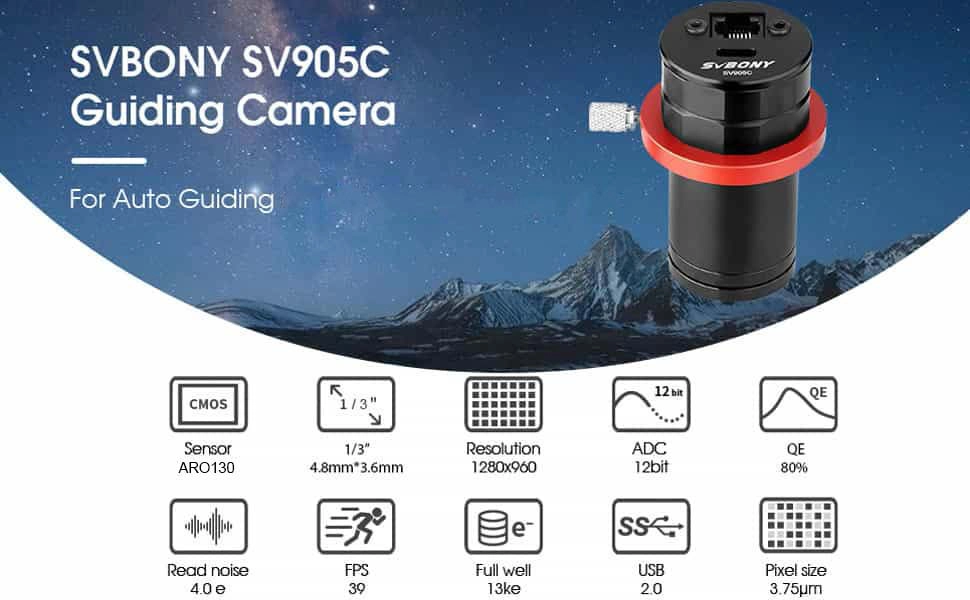

| Model | SV905C |
| Sensor | IMX225 |
| USB Type | TypeC USB2.0 |
| Pixel Size | 3.75µmx3.75µm |
| Image Area | 4.8mm×3.6mm |
| Total pixels | 1.2M pixel |
| Diagonal | 6mm |
| Maximum Resolution | 1280×960 |
| Exposure Time | 64us~20s |
| Gain | 0-500 |
| Maximum Frame Rate | 39 FPS |
| Read noise | 4.0 e |
| QE peak | 80% |
| Shutter type | Rolling Shutter |
| Full well charge | 13ke |
| ADC | 12 bit |
| ROI function | Yes |
| Bin | 1x1 2x2 |
| Digital noise reduction | HCG mode |
| Video format | AVI mode |
| Communication interface | DirectShow interface |
| Application software | Windows OS: Sharpcap, Firecapture,PHD2 ASCOM platform Linux OS: AstroDMX capture for LinuxRaspberry Pi: AstroDMX Capture Mac OS: AstroDMX Capture |
| Compatible system | Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS |
| Working temperature | - 5℃～45℃ |
| Storage temperature | - 20℃～60℃ |
| Working humidity | 20% RH-80% RH |
| Storage humidity | 20% RH-95% RH |
| Power consumption | <0.5W |
| Back intercept | 8.5mm/12.5mm |
| Protective glass | AR Coating |
| weight(with parcel) | 230g |
| Package size | 162*132*70 mm |

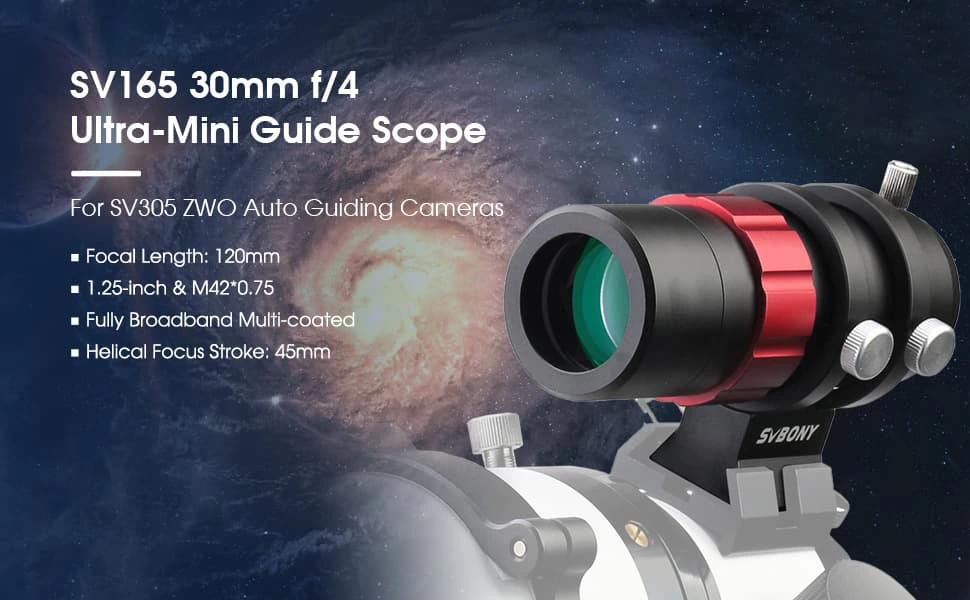

| Model | SV165 |
| Aperture | 30mm |
| Focal length | 120mm |
| Focal Ratio | F4 |
| Hoop and Mount | Yes |
| Tube travel | 45mm |
| Back Focus Length | 26mm |
| Mount | UNC 1/4-20 |
| Material | Aluminum |
| Surface technology | Sandblasting oxidation |
