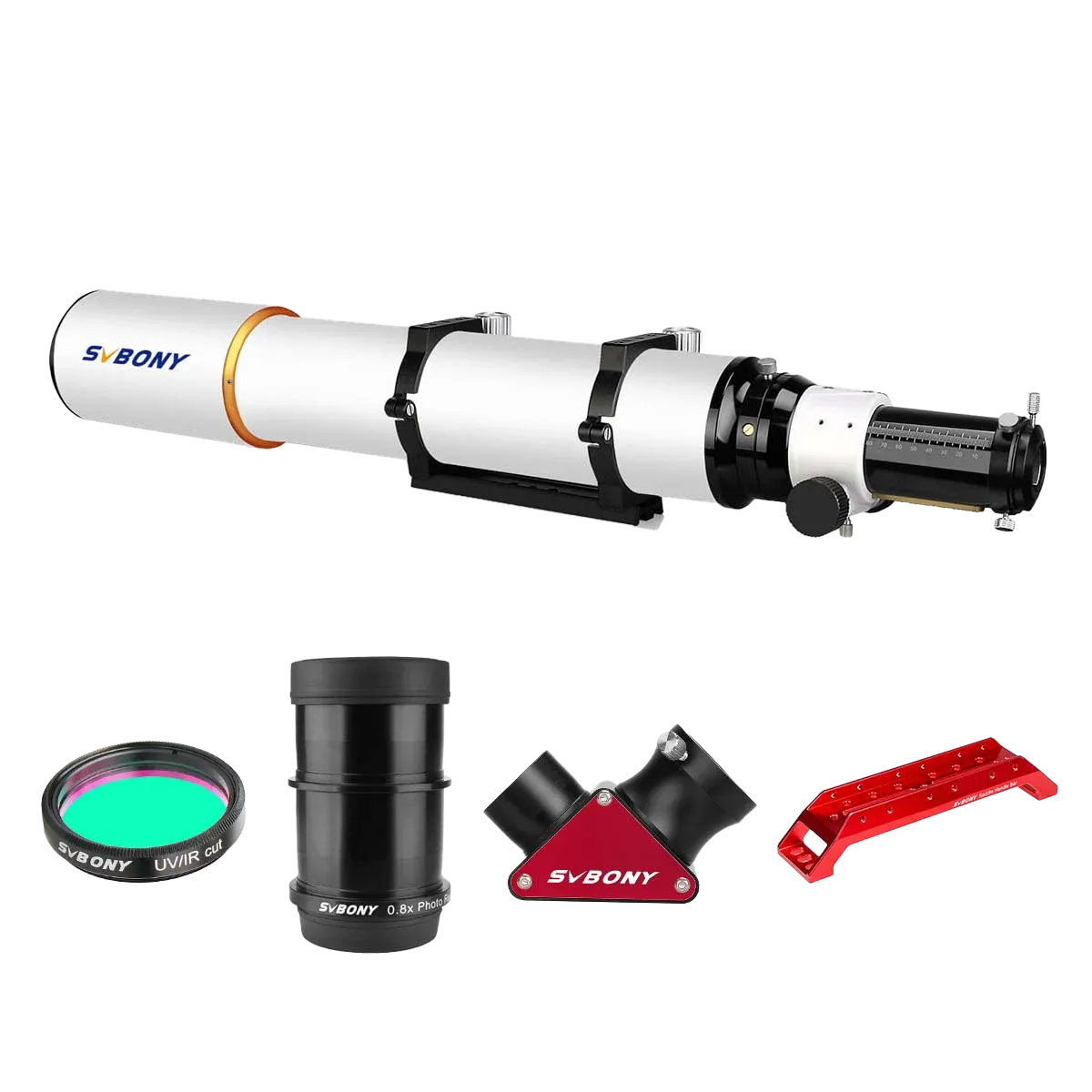

SV503 102ED Telescope Bundle Set For Visual Observation & Planetary Imaging

Set Includes:

  FAST shipping, duty-free


SV503 102ED Telescope Bundle Set For Visual Observation

Product Name SVBONY SV503 102F7 ED Astronomy Telescope
Type Refractor

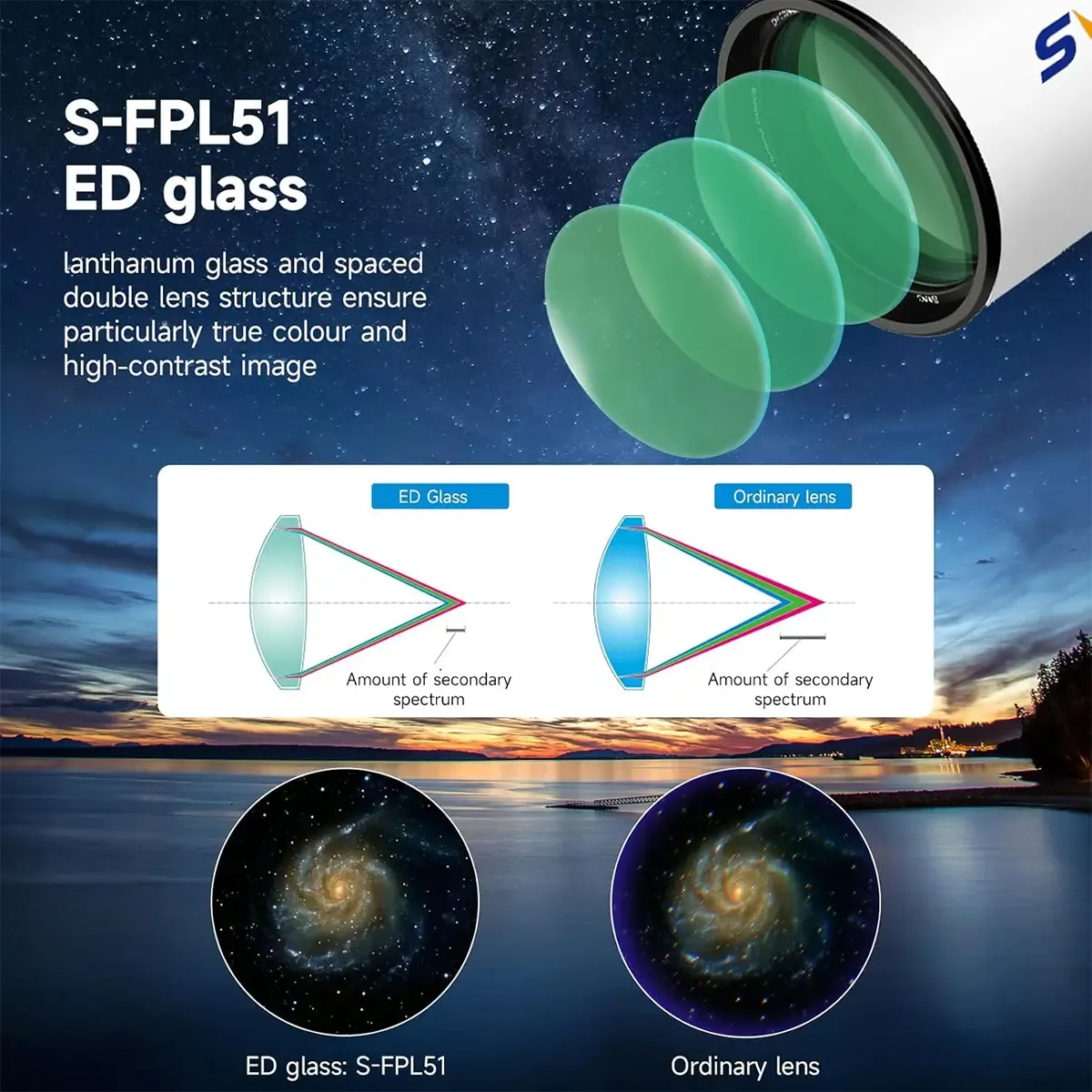

ED Glass S-FPL51
Coating SMC
Aperture 102mm / 4.01-Inch
Focal length 714mm
Focal Ratio f/7
Type of Focuser RAP (Rack and Pinion)
Gear Reduction 1:10 Fine movement
Resolving capacity 1.17"
Limit value 12.1
Light gathering capacity 212x
Max. Useful magnification 204x
Tube weight(with rings) 5.7kg
Tube outer Diameter 121mm
Tube Material Aluminum
Back Focus Length 101.9mm
OTA Length 630mm
Dovetail & Ring Yes
Dovetail Length 200mm
product Dimensions 690mm*210mm*250mm

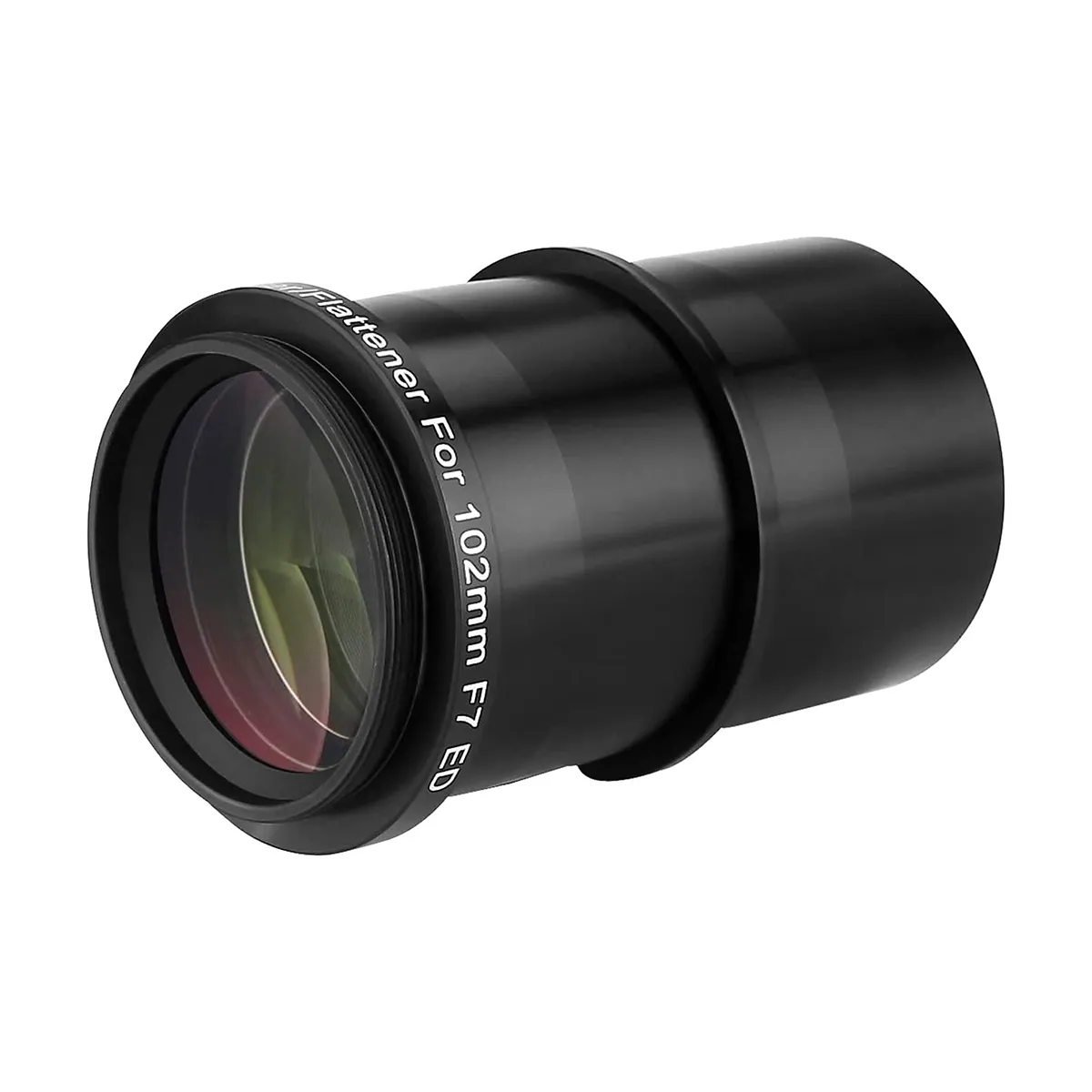

Model SV193
Fit For SV503 102ED F7
SKU W9152D
Back Focus 55mm
Barrel Size 2-inch
Threads Standard M48*0.75
Lens Structure 3-Elements/2Groups
Lens Coating FMC
Blackened Lens Edges Yes
Net Weight 177g / 6.24oz / 0.39lb

Model F9127B
Size 2''
Thread M48*0.75
thickness​ 1.85mm
Type UV IR cut filter

Model SV188P
SKU F9171D
Size 2inch
Optical Design  Mirror Diagonal
Coatings Dielectric
Reflectivity dielectric 99% coating for bright images
Material Aluminum Alloy
Filter Threads M48x0.75
M4 Set Screws Yes
Outer Connection(Lens Sided) Barrel 2inch
Inner Connection(Lens Sided) Thread M48x0.75
Inner Connection(Eyepiece Sided)  Clamp 2inch
Reflection Surface Dielectrically Coated
Image Orientation Erect Image, Mirror Inverted
Thickness of Mirror 11mm
Net Weight 463g

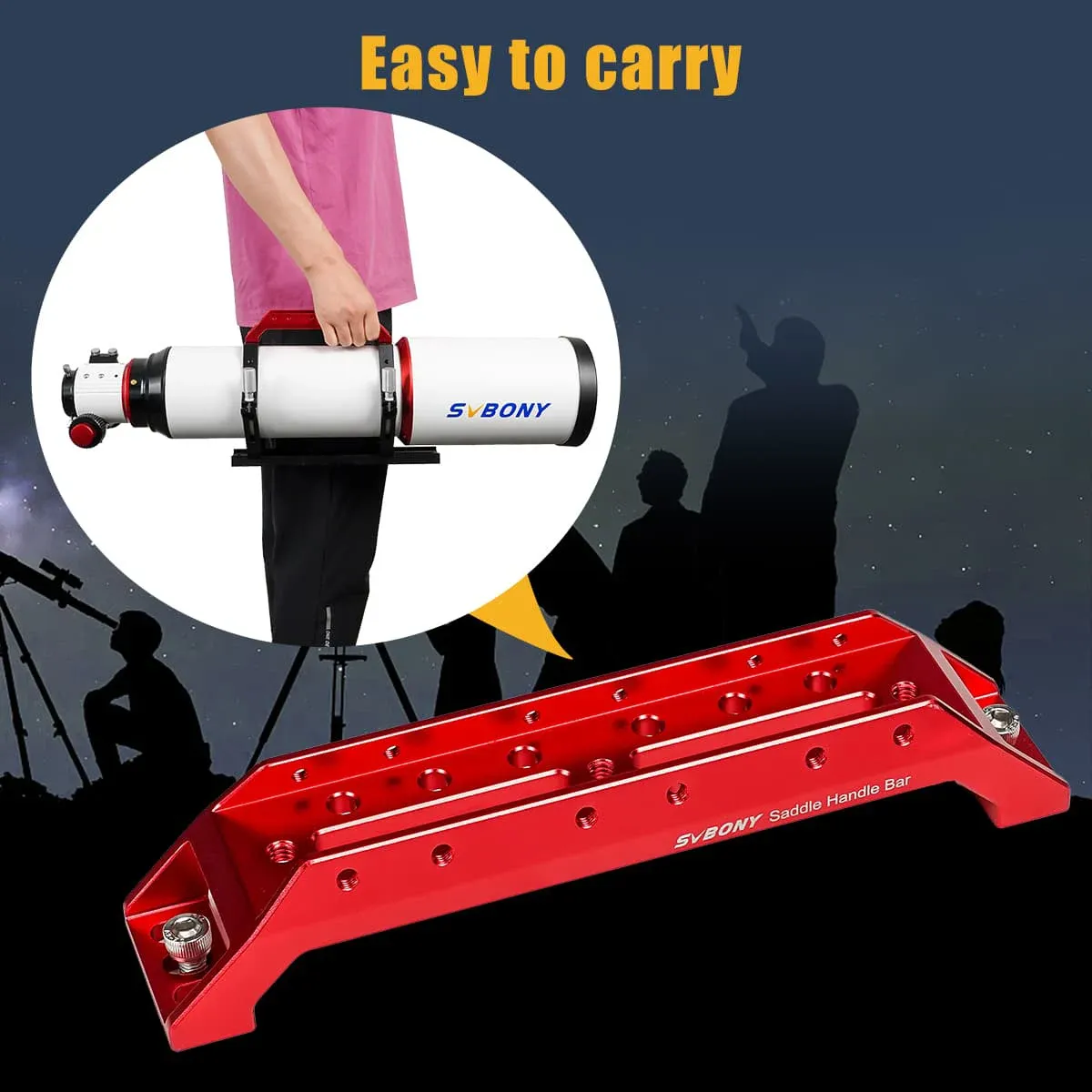

Model SV211
Color Red
Material 6061T Aluminums
Length 203mm
Width 42mm
High 39mm
Net Weight 161.5g/5.7oz
Fit For OTA SV503 102mm f/7、SV550 122mm f/7
Distance Between Two M6 Screws 187mm

I owned a 102/1000 mm F10 Bresser achromat for some time, now I purchased the Svbony 102mm ED FPL51 and its significaltly better with a lot less chromatic aberrations. I like this refractor a lot, especially because it's sold for an excellent price

I have the the 80mm version of this scope. I think for the price it's very good. It's not as good as a triplet but the difference is not big, mainly slight halos on bright stars. It's well built and nice to use. I have the reducer for it as well. It's my go to scope and I really like it.

This is the exact telescope I use with an ASI2600MC. With a 0.8X FF/FR and a Pegasus Focus Cube, this was the best rig I could afford.

I have the 102 and the 70 and I love them! Glad at got them before the tariff war being in the states!

I purchased the 503 102ed during the Black Friday sale with competitive price. Thanks svbony. I can proceed my hobby.

I got one sv503 telescope a few months ago. Pretty happy with it.

i have the 503, 102 for a few years now and i really like it, i use it with my asi 585 and it produces images i am happy with for the price of the setup. it seems to be a good match for a smaller censor i think most people buying a cheaper beginner telescope like this are not going to have an expensive apc sized cooled camera anyway. the chromatic aberration is a pain but it can mostly be sorted out in pixnsight.

I have the 102 mm ED verson from Svbony. I have used it for visual observations and photography, it's very very nice for the planets and the Moon (with filter) clearly better than my Bresser 102/1000 mm achromat. It also has an excellent focuser.

I've been using this scope for almost 2 years. Primarily DSO astrophotography with some visual use. I have zero complaints.

Just a quick review for anyone wondering about this scope. First impressions are excellent build quality. Critical items like the focuser and dew sheild are near perfect. The Focuser has just the right weight and zero play. I can bring my DSLR to focus with the draw tube at 65 mm - the focuser is easily strong enough to hold it in position. Colour correction? First look at The Moon and Jupiter - there was no CA. But when I video through the scope with camera phone then yes you can see CA - the camera of course can see into the Ultra-Violet Spectrum unlike the human eye. I bought this scope for visual, so I'm super impressed with an ED Doublet (I also wanted the Doublet for its lightness) that shows no CA visually at the same price as an achromat. I've looked at The Moon, Saturn and Jupiter at high power - 223x (8-24mm zoom with 2.5x Barlow) and views are outstanding. I can't help pass a glance over the 122 mm - LOL - but now for now the 102 ED is ruling the scope shed.

I own the Svbony 102/714 mm for 6 months now, previosely I had a Bresser 102/1000 mm F10 achromat and the Svbony 102 ED has a much better optical quality and performance. Also the 2 speed focuser is infinitely better than the ones used on simple achromats.

I bought this exact OTA a month ago and I tried planetary photography and the results surprised me a lot.

I bought the SV503 80 and I'm very happy with it's performance and build quality.

I have the svbony 503 80ED and the sv550 122mm, I started astrophotography seriously at the end of last year.I'm a real fan of the Svbony brand.

The SV503 telescopes are awesome for this price-range. And especially the 102mm is the best choice for both visually observing and astrophotography.

I own this 102ED myself, and I am planning to add a mono camera and filters ouch instead of getting a triplet/APO

I purchased the 503 80ED last year after having entered into AP and had no idea what a doublet was. I found that the quality was great considering it was my first refractor.

I bought the 102 version last month. I'm under Bortle 8 skies, so even my C6 has contrast issues . Yet, the Svbony, under full magnification 200x (using your favorite Baader Zoom and barlow set) at Jupiter and Saturn worked very well.
