SV905C Guiding Camera - SV165 Guide Scope Combination
5 | ReviewsOfficial Store Exclusive, Double points for a limited time+30 Points
Save 5%When you buy $300 of this item
Save 9%When you buy $500 of this item
Save 11%When you buy $1000 of this item
Key Features
With 80% peak quantum efficiency and low read noise, the camera delivers exceptional guide star tracking accuracy, even in challenging conditions

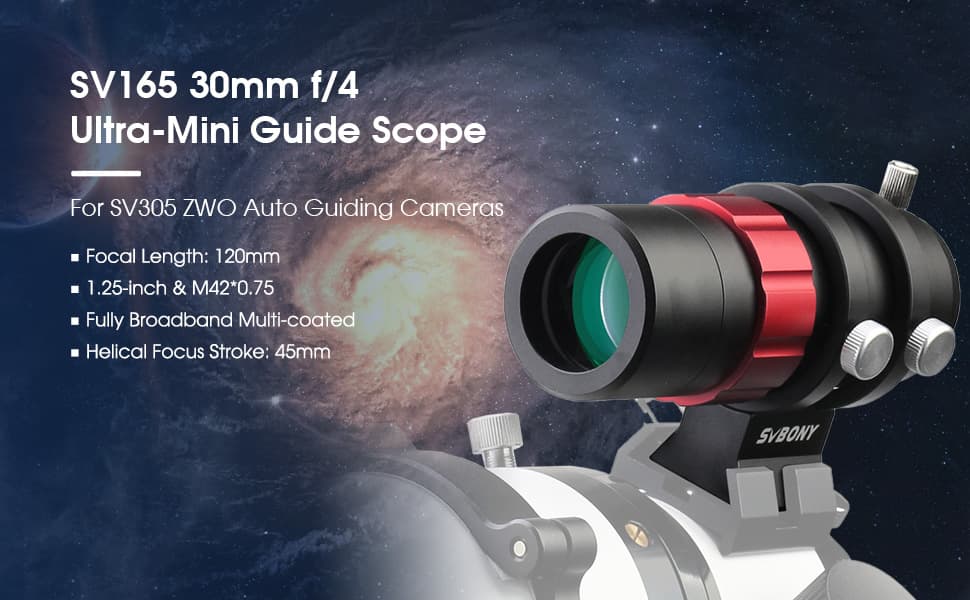

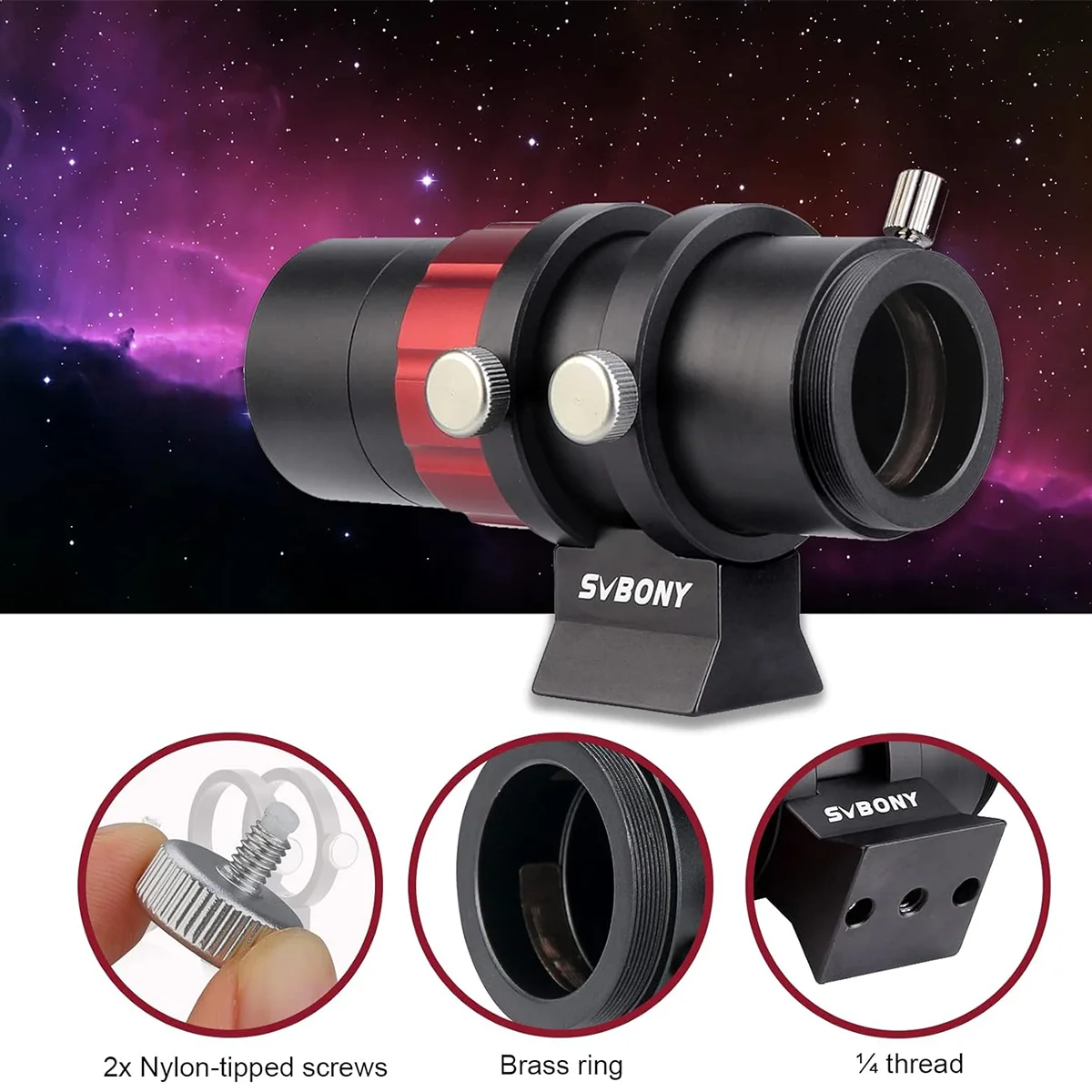

The SV165 guide scope uses 30mm achromatic optics and a fully multilayer coated lens, ensuring bright, sharp images without reflections.

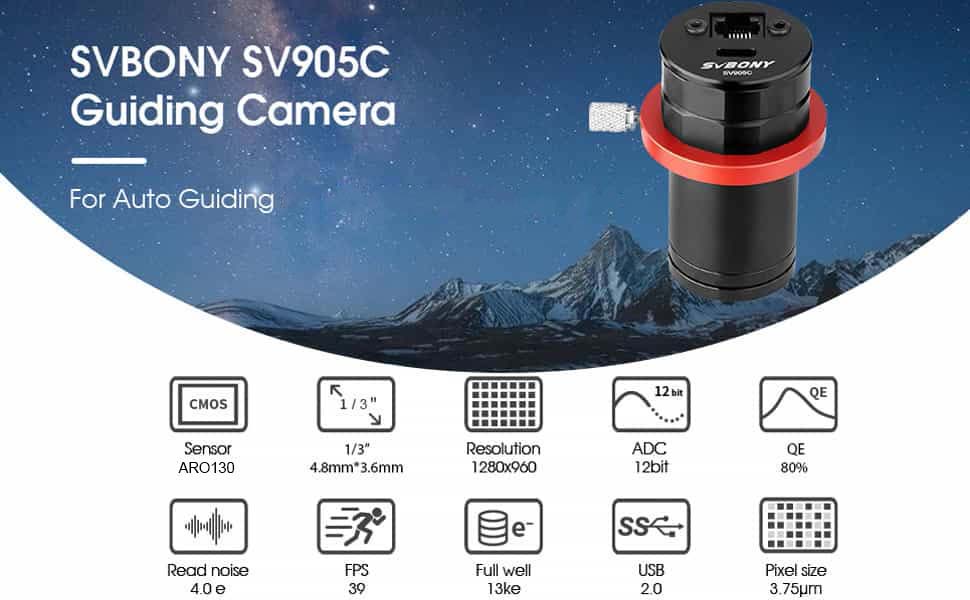

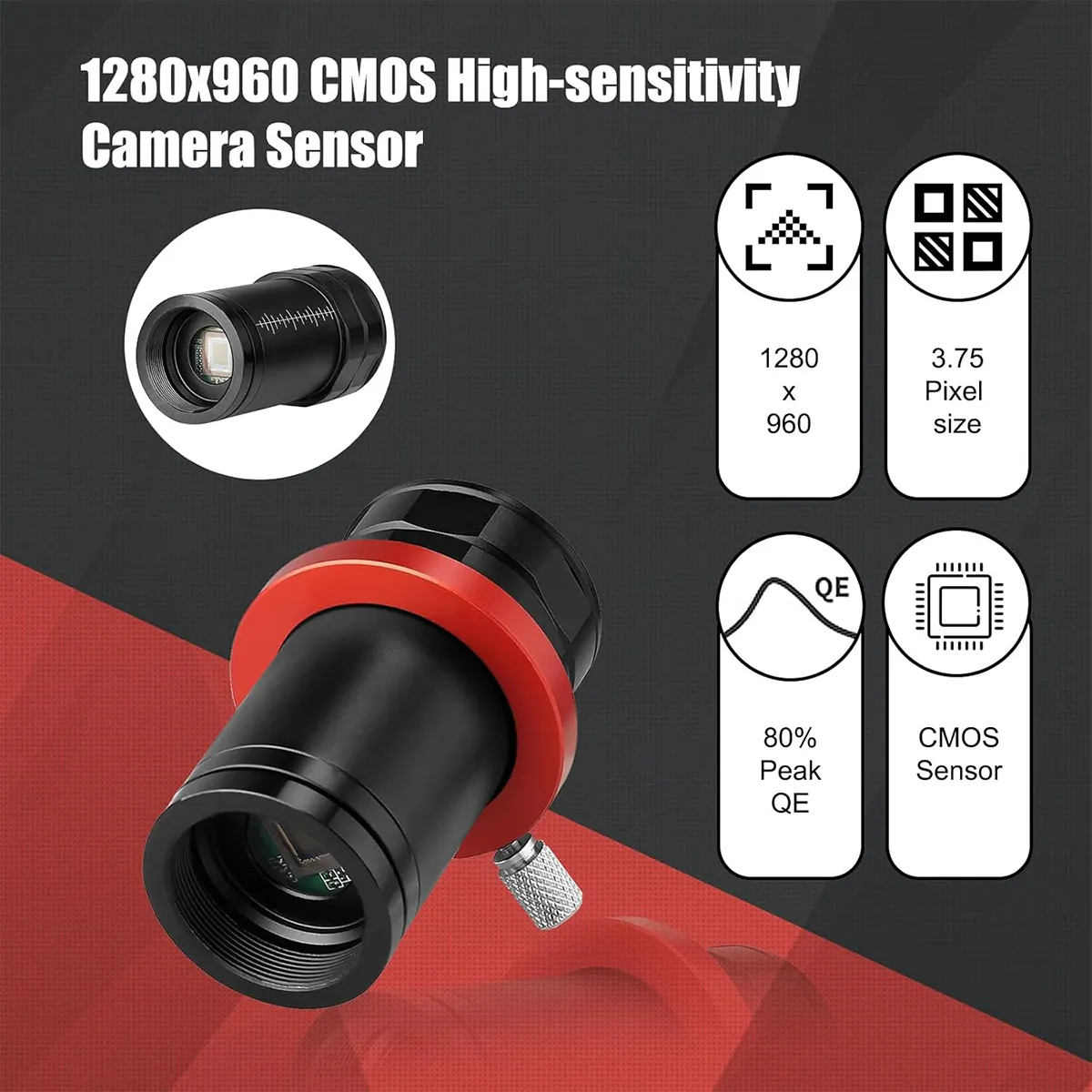

The SV905C features a 1.23-megapixel color camera with a 1/3” CMOS sensor (1280x960), providing high sensitivity for tight tracking of faint guide stars.

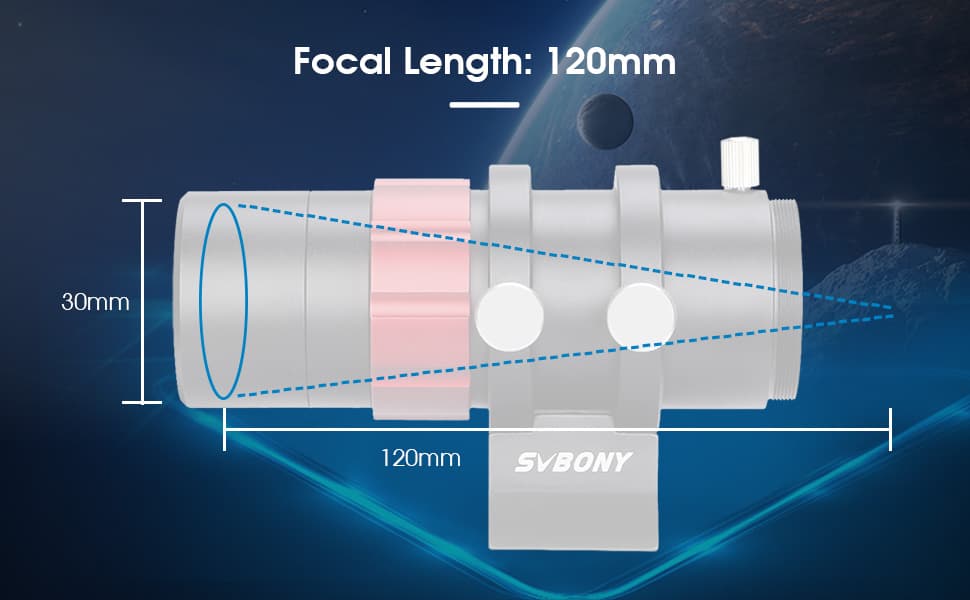

The compact 30mm/120mm F4 design of the SV165 guide scope makes this system highly portable, ideal for astrophotographers who need a lightweight guiding solution on the go.
The SV905C guiding camera paired with the SV165 mini guide scope offers an affordable, practical solution for precise autoguiding and planetary imaging.
⚡ Shipped: 72 hrs after ordering (Pre-sale products excluded).
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT
🔒 Secure Payments | SSL Encrypted
💰️ 30-Day Money-Back Guarantee
🛡️ Hassle-Free Warranty | No Hidden Fees
🎧 Lifetime Customer Support
💳 Payment Methods
📦 Payment Methods
Customer Reviews
All Reviews
Loading...
| Model | Svbony SV165 |
| Aperture | 30mm |
| Focal length | 120mm |
| Focal Ratio | F4 |
| Hoop and Mount | Yes |
| Back Focus Length | 45mm |

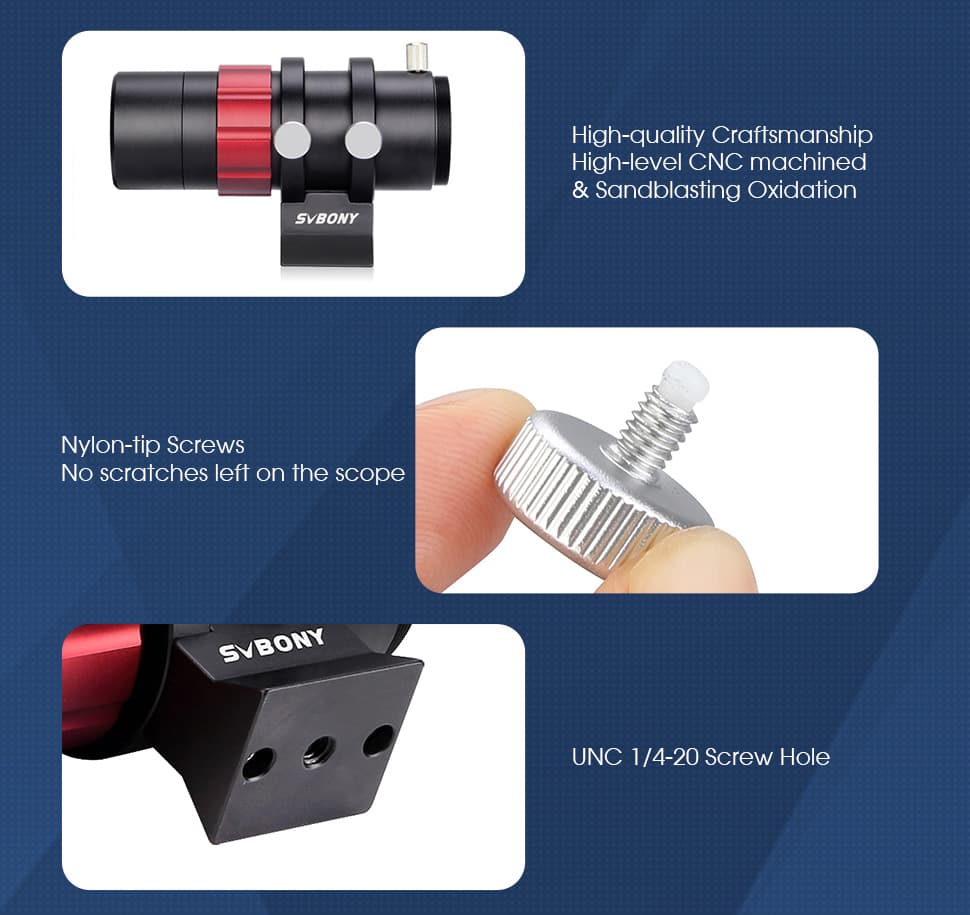

| Mount | UNC 1/4-20 |
| Material | Aluminum |
| Surface technology | Sandblasting oxidation |
| Model | SV905C |
| Sensor | ARO130 |

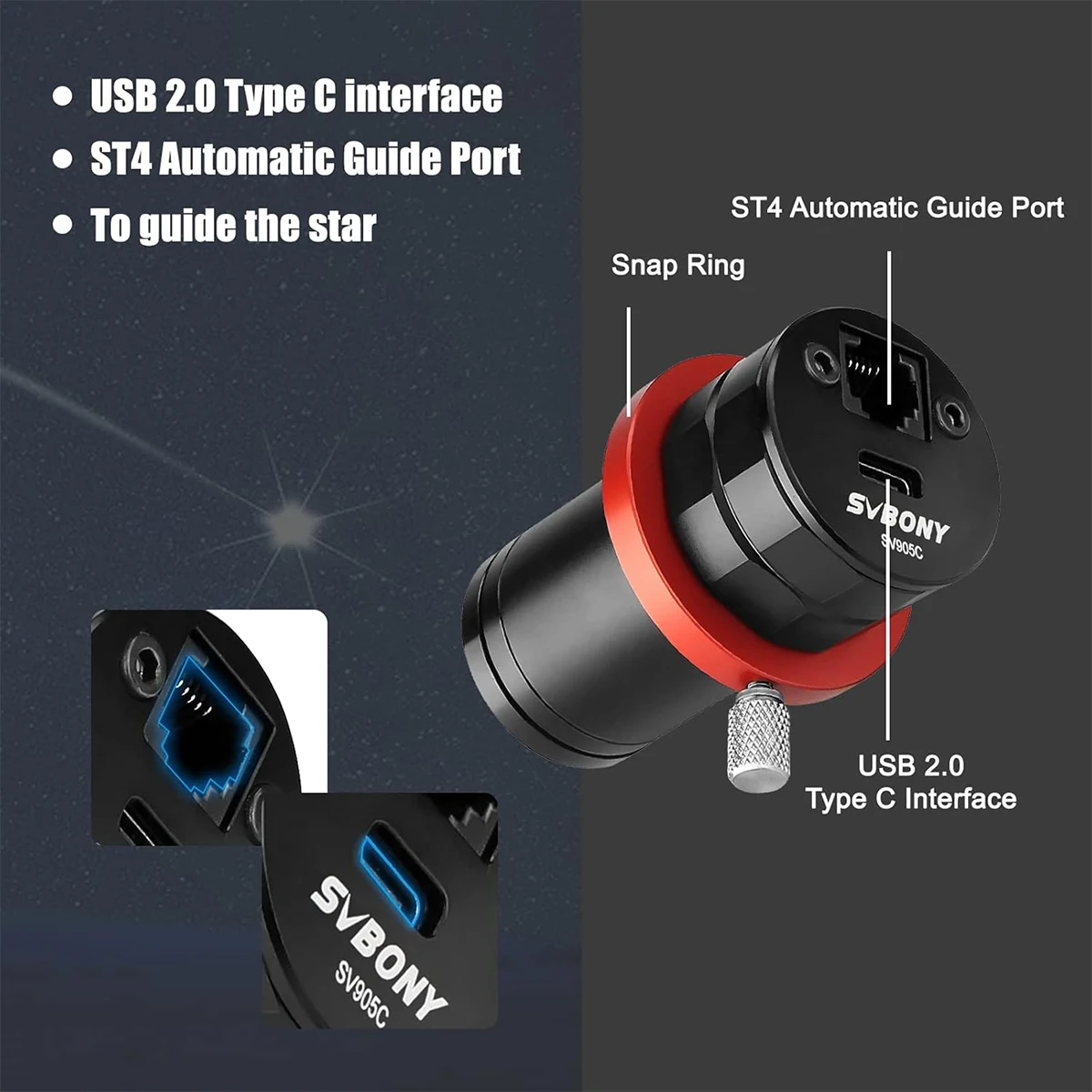

| USB Type | TypeC USB2.0 |
| Pixel Size | 3.75µmx3.75µm |
| Image Area | 5.6mm×3.2mm |
| Total pixels | 1.2M pixel |
| Diagonal | 6mm |
| Maximum Resolution | 1280×960 |
| Exposure Time | 64us~20s |
| Gain | 0-500 |
| Maximum Frame Rate | 39 FPS |
| Read noise | 4.0 e |
| QE peak | 75% |
| Shutter type | Rolling Shutter |
| Full well charge | 13ke |
| ADC | 12 bit |
| ROI function | Yes |
| Bin | 1x1 2x2 |
| Digital noise reduction | HCG mode |
| Video format | AVI mode |
| Communication interface | DirectShow interface |
| Application software | Windows OS: Sharpcap, Firecapture,PHD2 ASCOM platform Linux OS: AstroDMX capture for LinuxRaspberry Pi: AstroDMX Capture Mac OS: AstroDMX Capture |
| Compatible system | Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS |
| Working temperature | - 5℃～45℃ |
| Storage temperature | - 20℃～60℃ |
| Working humidity | 20% RH-80% RH |
| Storage humidity | 20% RH-95% RH |
| Power consumption | <0.5W |
| Back intercept | 7.5mm/12.5mm |

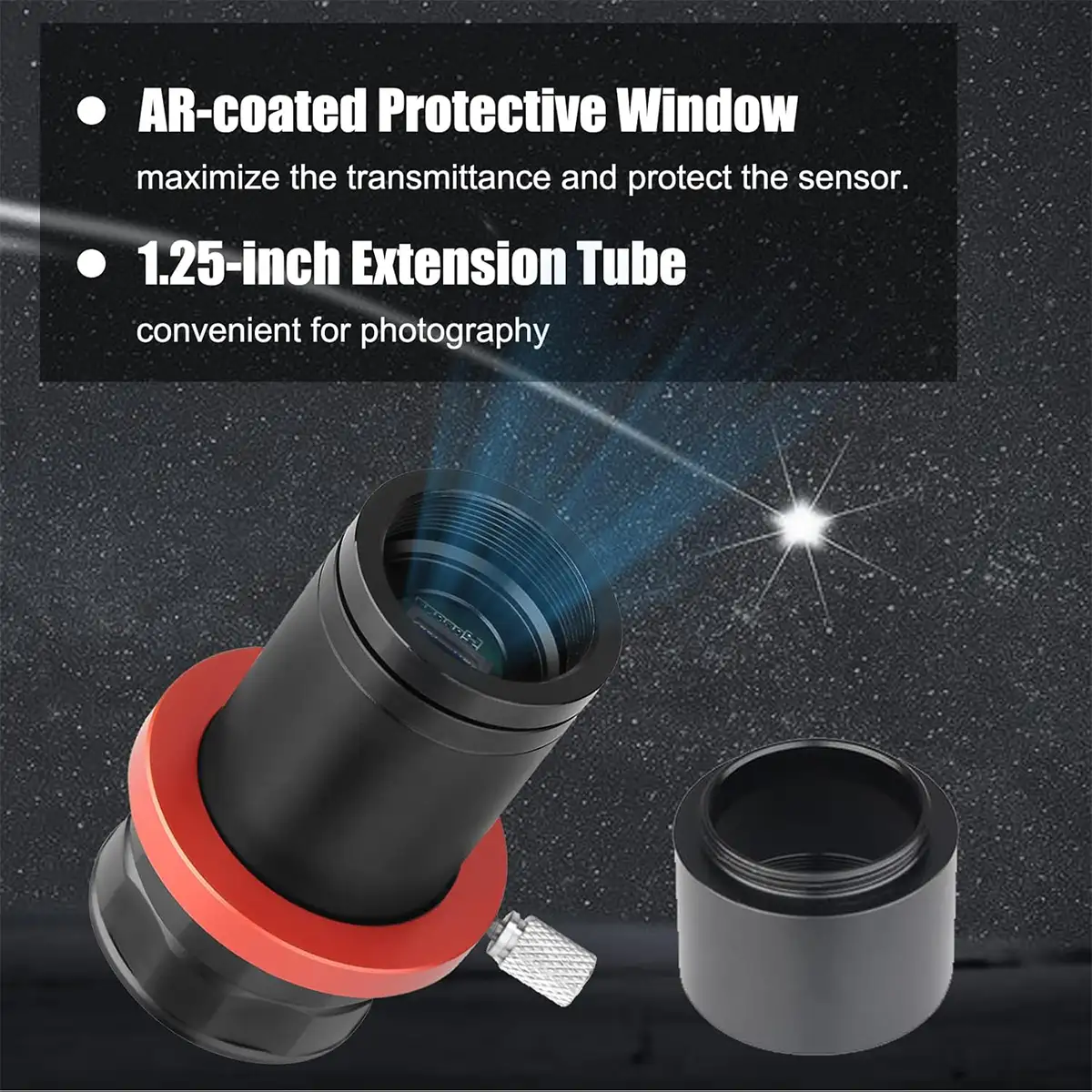

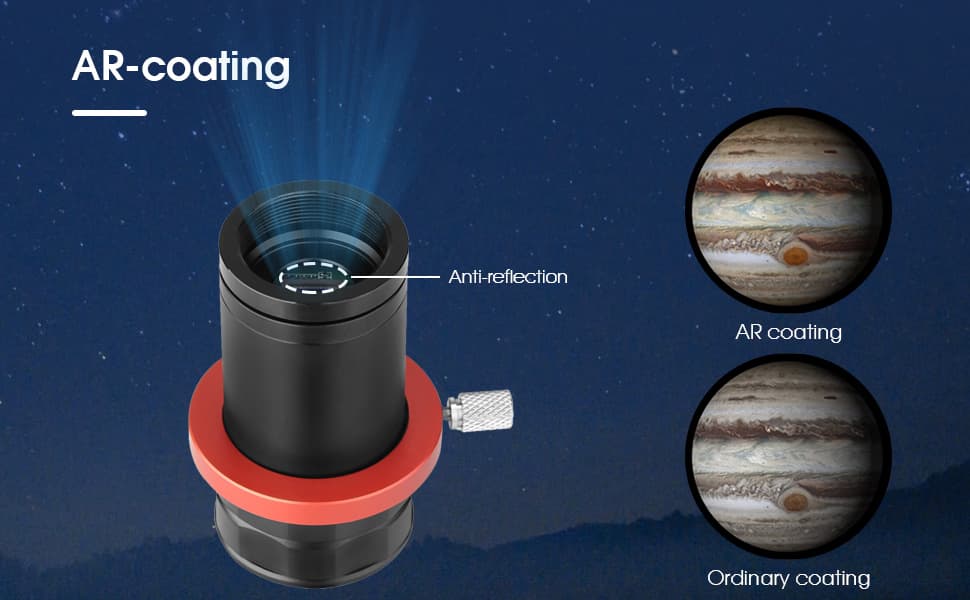

| Protective glass | AR Coating |
| Net weight | 230g |
| Package size | 162*132*70 mm |
- 1. The affordable SV905C+SV165 guiding combination also provides precise tracking ;

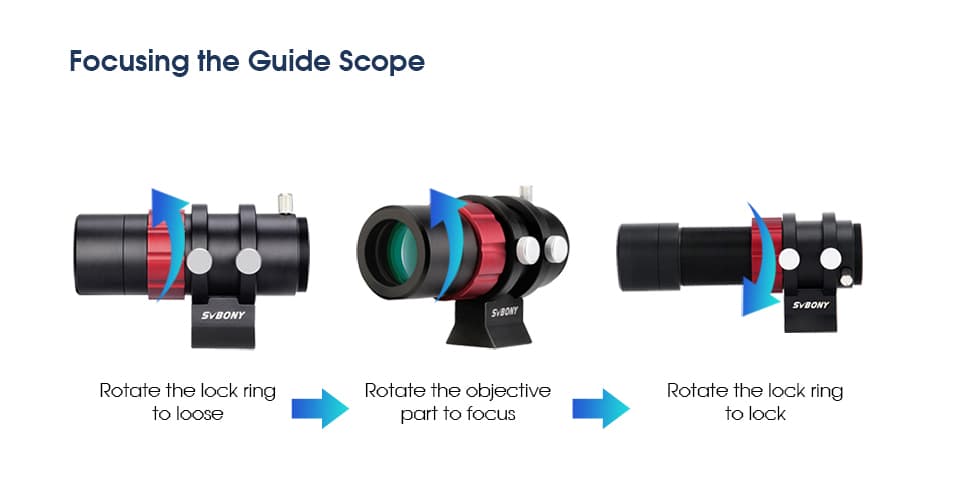

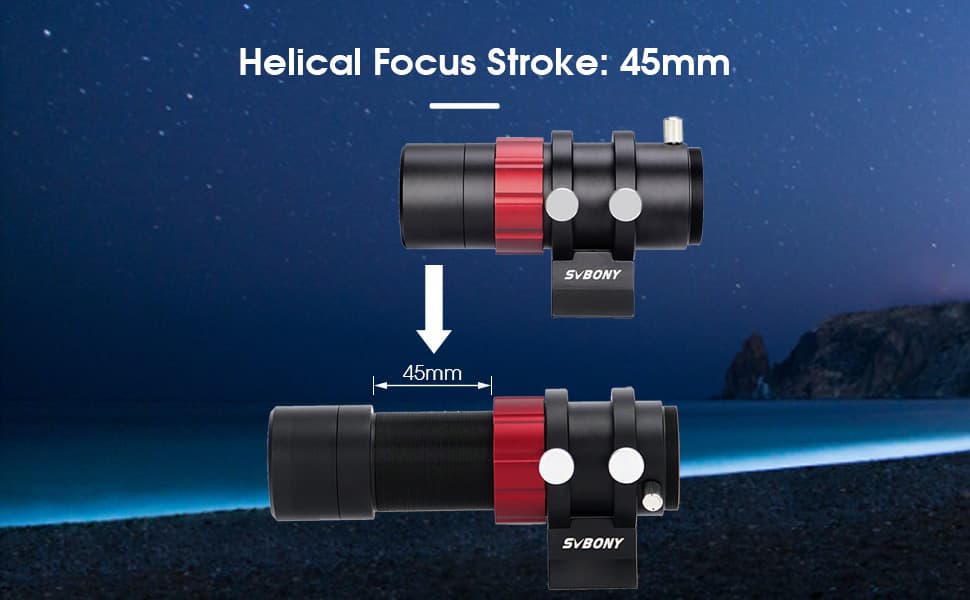

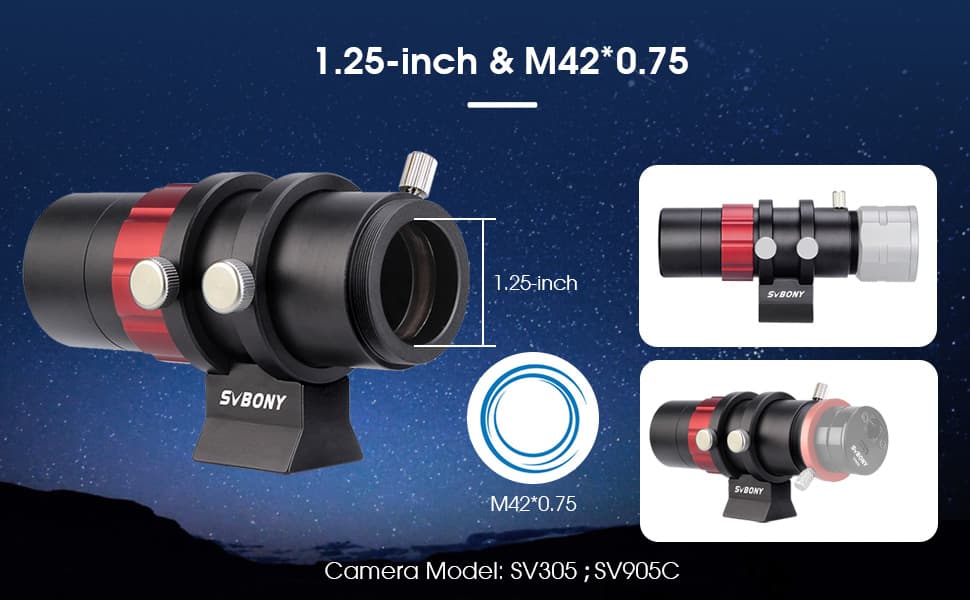

- 2. SV165 is a compact versatile 60mm aperture guide scope with a built-in helical focuser for precise focusing of potential guide stars;

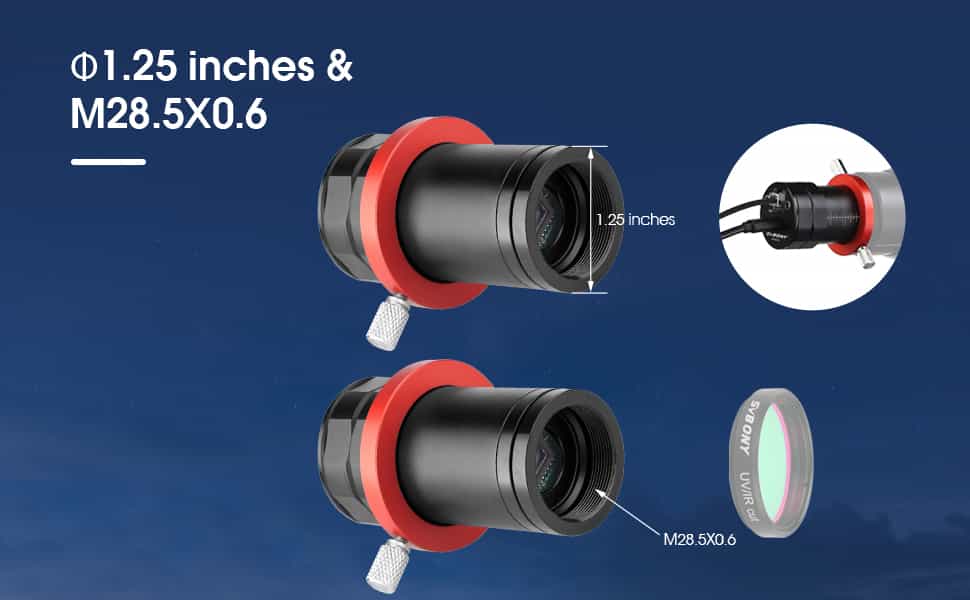

- 3. SV905C is a high speed1.25'' 2MP guiding camera for Astronomy tracking or planetary imaging.
