SVBONY SM401 50x-1000x Wireless Microscope Hand-held USB HD Camera with Bracket for Android and iOS System Smart Phones.

SM401 50x-1000x Wireless Microscope

SKU: F9376D
US$ 56.99

SVBONY SM401 50x-1000x Wireless Microscope Hand-held USB HD Camera with Bracket for Android and iOS System Smart Phones.

In Stock Out Of Stock

SM401 F9376D-1SM401 F9376D-2SM401 F9376D-3SM401 F9376D-4SM401 F9376D-5SM401 F9376D-6SM401 F9376D-7SM401 F9376D-8

2 reviews

Write a review

Info Miroskop SM401 50x-1000

Hello SVBONY, please tell me the data of the image sensor from Miroskop SM401 50x-1000. The data of the enlargement and the pixels of the images do not make any statement about the data of the image sensor. So I need pixel x pixel. Thank you for your efforts. Kind regards Gerd Langhammer

Quality instrument!

Very easy to set-up and use. The image quality and color rendition is surprisingly good; no post-processing of images is necessary. I love the metal mounting plate and the rack-and-pinion height adjustment. Precise focus control and light adjustment. I am impressed!
Product name SM401 digital microscope
Optical dimension of lens 1/4"
Signal-to-noise ratio 37dB
Sensitivity 4300mV/lux-sec
Pixel size 3.0um*3.0um​
Photographic resolution 640x480, 1280x720, 1920x1080
Video resolution 640x480, 1280x720, 1920x1080
Video format Mp4
Picture format JPG
Focus mode: Manual
Magnification 50X-1000X
Light source 8 LEDs (adjustable brightness)
Focusing range 10 ~ 40mm (long-range view)
White balance Automatic
Exposure Automatic
PC operating system Windows XP, win7, win8, win10, Mac OS x 10.5 or higher
WiFi distance Within 3 meters
Lens structure 2G + IR
Aperture F4.5
Lens angle of view 16°
Interface and signal transmission mode Micro/usb2.0
Storage temperature/humidity -20℃ - 60℃   10%~ 80% RH
Operating temperature/humidity 0℃ - 50℃   30% ~ 85% RH
Operating current ~ 270 mA
Power consumption 1.35 W
APP working environment Android 5.0 and above, ios 8.0 and above
WIFI implementation standard 2.4 GHz (EEE 802.11 b/g/n)

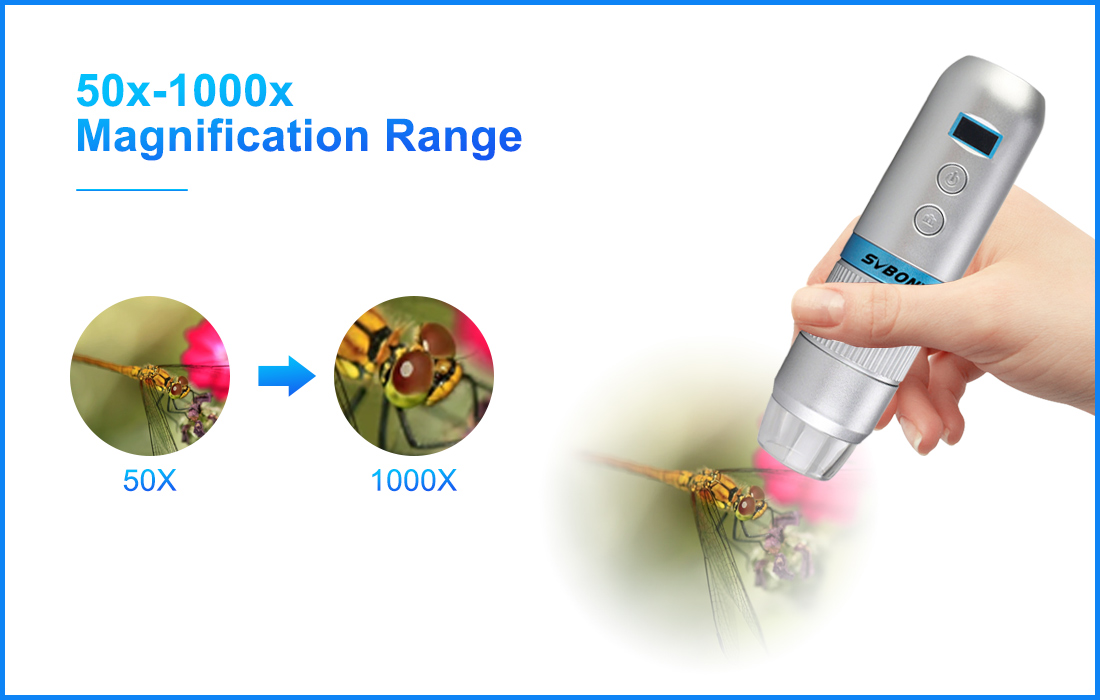

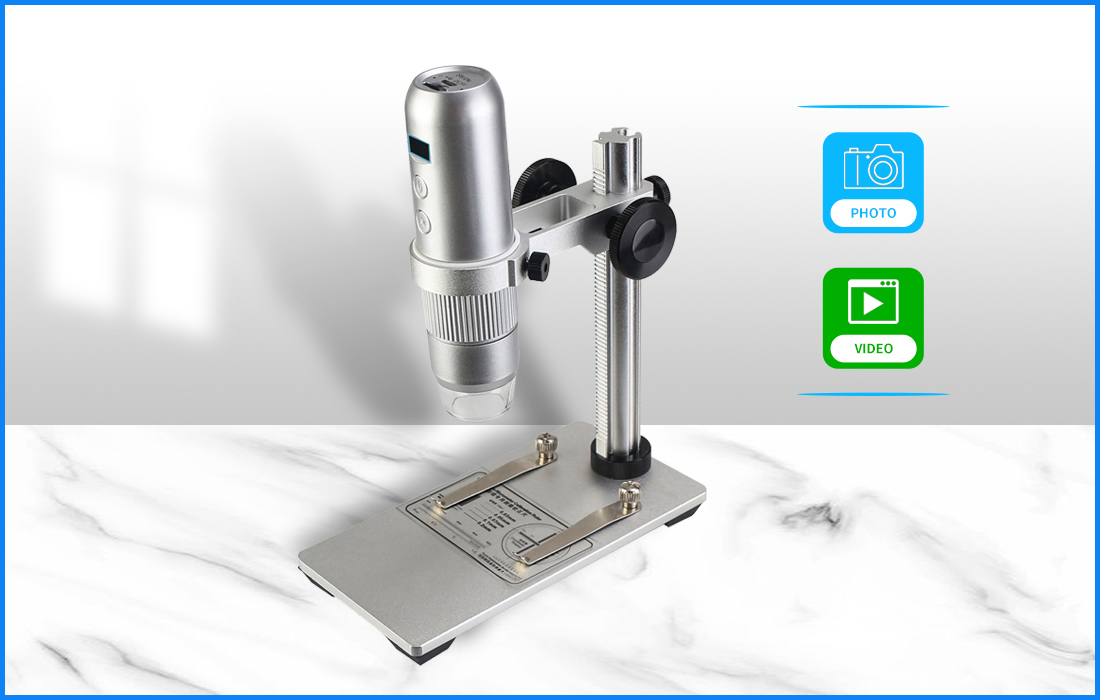

With 50x-1000x powerful magnification, this microscope is ideal for school education, outdoor exploration, microorganism detection, etc. A build-in 8 brightness adjustable LED light can provide sufficient brightness for your targets, which ensures clear and high-quality images. Except for the body of the microscope, we also offer a metal stand that could be used for minimizing the impact from shaking, keeping your targets in sharp focus. A 360-degree  rotating adjustment stand is handy for observation. SM401 is also a compact and very easy-to-use microscope, just grab it and take it anywhere you like to explore the micro world.

Note: The mobile phones are just for demo,not included in the package. Make sure your smartphone has iOS 8.0 or later, Android 5.0 or later system.

To connect with mobile phones, you need to download an App from

Package Includes:

    • 1 x SM401digital microscope
    • 1 x Micro USB Charging Cable
    • 1 x User Manual
    • 1 x Aluminum alloy bracket
    • 1 x Micrometer
