Unlock the full potential of your telescope equipment for deep space photography with our versatile and multifunctional accessories! This bundles is suitable for deep sky photography with dso cooled camera.
Photography Set Includes:

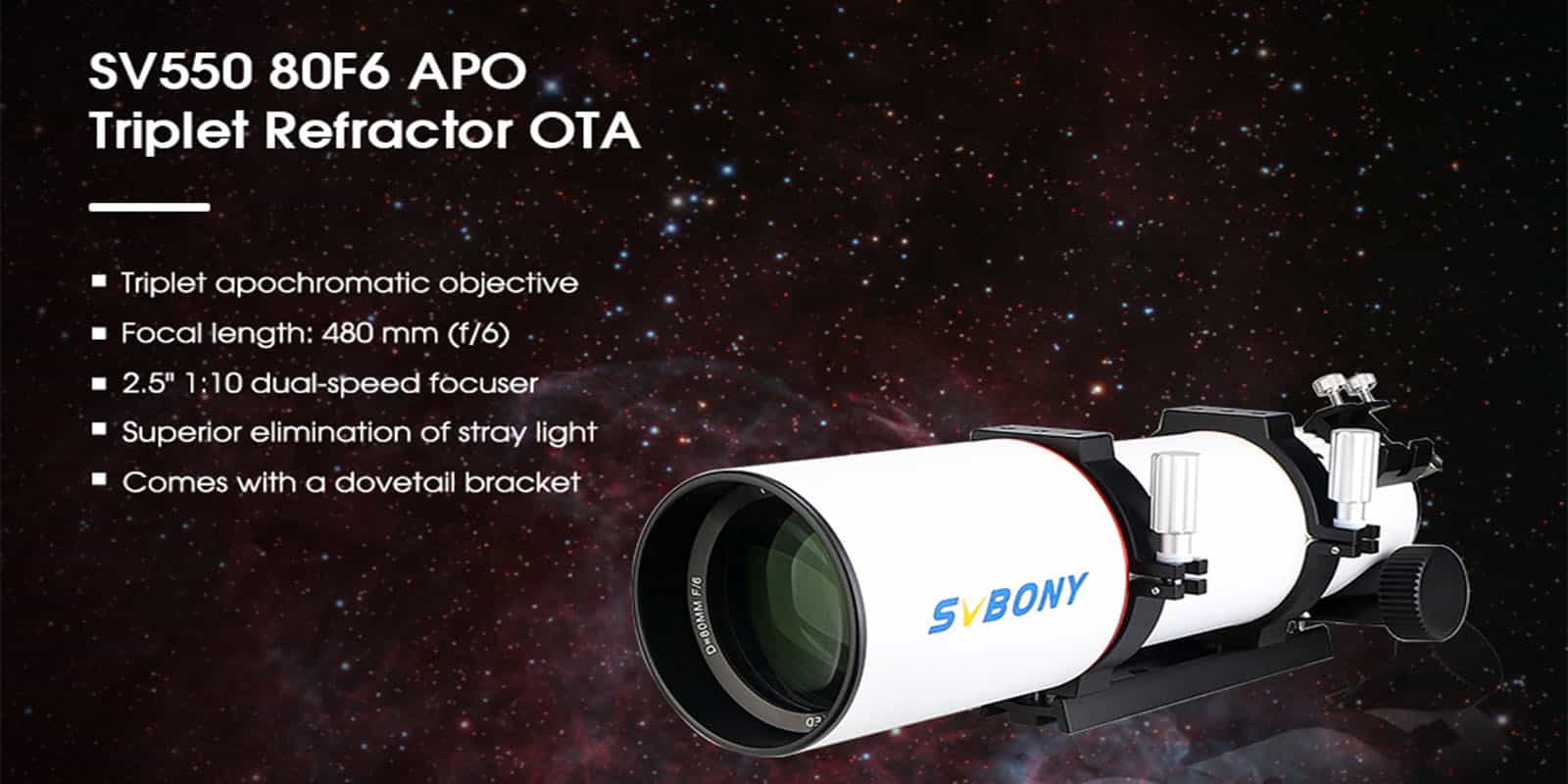

- SV550 80 APO telescope OTA
- SV209 1.0x filed flattener & focal reducer
- SV210 M63 CAA 360 Degree Rotator Camera Angle Adjuster

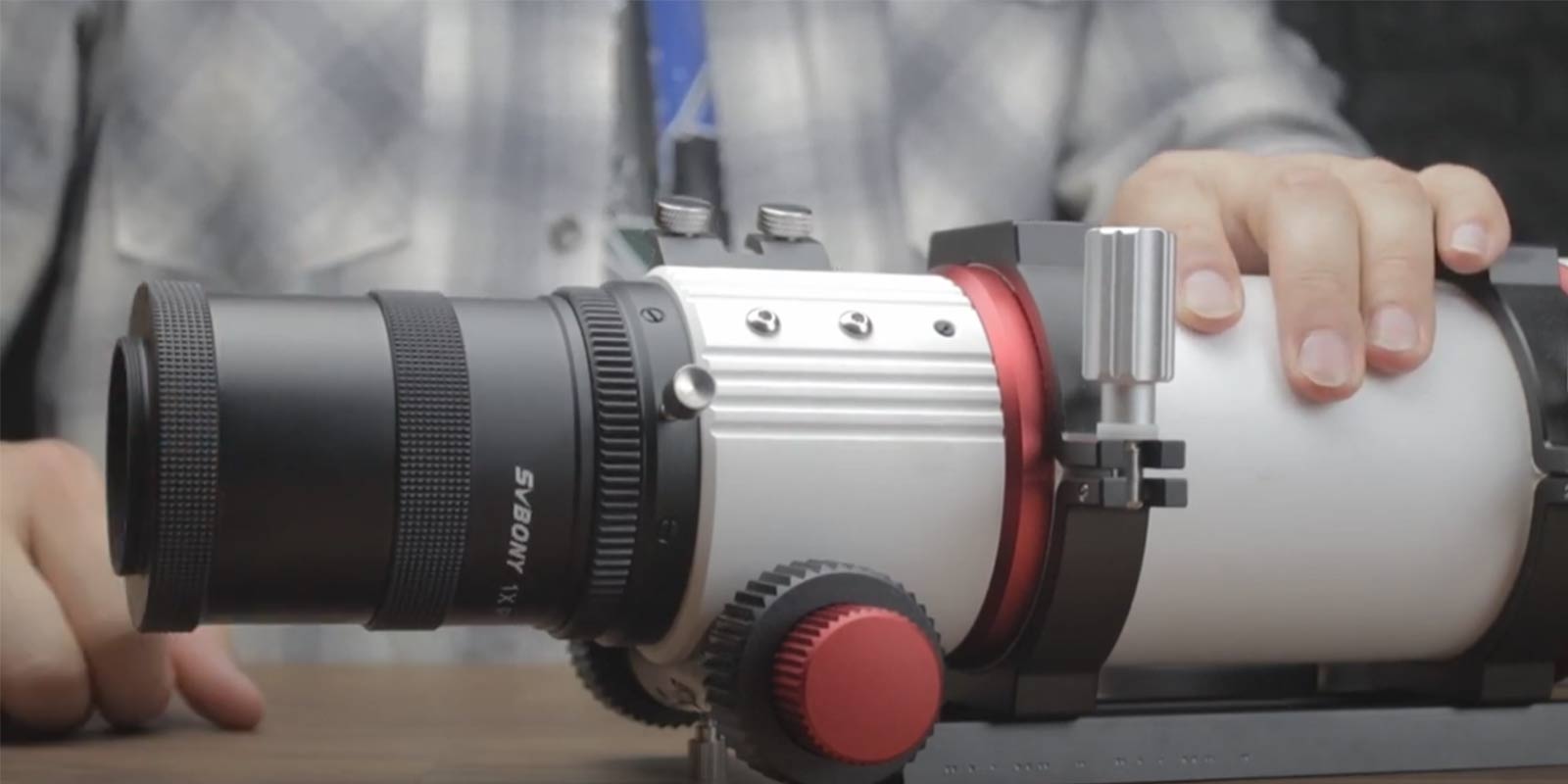

Unboxing and EAF Installation Vdeo
FAST shipping, duty-free
In Stock
Installation Display
Nice little telescope.
I purchased an SV550 80mm APO with its (required for astrophotography but sold separately 1.0 field flattener) and am enjoying the excellent imaging. The build quality of the scope is very and the parts, like the rack and pinion focuser are of high quality.
Very nice OTA, excellent for astrophotography with the corrector
The build quality is superb, the optics are bright and sharp, the focus mechanism is extremely solid and smooth. The entire assembly is much more solid that it appears to be in pictures. Definitely a higher end scope. Pretty thrilled with it so far.
Very good telescope for the price.
The svbony 550 80mm triplet is a great telescope for anyone who wants to get into astrophotography. I would definitely buy again.
Great
Pro build quality, similar to William Optics.. I have an older 90 Megrez, both very nice scopes. I enjoy viewing, no astro-photography as of yet.. but I've seen very nice pics from this 80mm triplet online & read good reviews. I ordered the package mid-Feb w the OTA/tube-rings, soft case, 6x30mm finder/bracket & the 1.25" mirror diagonal w red anodized sides. The dew shield fits snug & moves free w no slop. Focuser is 10:1 ratio heavy duty, well built & smooth. The finder shoe/dovetail bracket may moved from one side to another 10 or 2 clock position.. also has sub-positions to fix it on either side w machined grooves on the housing. The paint, fit & finish are all superb, no flaws. The optics I tested on 1 good night- Jupiter, the Orion nebula & lastly the moon. I could detect no false color on any object at any time except a slight blue haze before it cooled down outside.. 44deg. Very sharp optics, I used multiple power EP's & a barlow in later. Diffraction rings looked sharp inside of focus, a bit fuzzy outside.. read this could be slight spherical aberration. The details on Jupiter were impressive.. the moons, belts & red-spot neat to see.
Overall I'd recommend this little triplet to anyone looking for portability & quality. I mounted it on an AstroTech Voyager alt/az mount I bought years ago.. enjoyable to use in tandem. I'm testing a few other Svbony products soon- relatively newer business since 2018, 7th anniversary -
I've been around the hobby for about 30yrs. JB
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 80mm |
| Focal Length | 480mm |
| Focal Ratio | f/6 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.45 arc seconds |
| Coatings | SMC |
| Limiting stellar magnitude | 11.6 |
| Lens design | Apochromatic |
| dovetail plate length | 150-175mm |
| barrel weight | 2900g |
| mirror Brief Size | 377.8mm |
| Tube Outer Diameter | 103mm |
| Net weight | 3750g |
| Gross weight | 3850g |
| Package size | 440x220x210mm |
| Brand | SVBONY |
| Model | SV209 |
| Additional Thread | M63x1 female thread for photo adaptions |
| Connection at Telescope Side | M63x1 male thread |
| Connection 1 at Camera Side | M63x1 thread female - working distance 103 mm |
| Connection 2 at Camera Side | M48x0.75 male thread - working distance 55 mm or 91.5 mm |
| Fully Illuminated Field | 45 mm（Support Full Frame Sensors） |
| Number of Elements | 2 lenses |
| Factor | 1.0 - no change of focal length to the focal plane |
| Coating | FMC |
| Diameter of the Housing | 67mm |
| Length | 87.5 mm without the male thread |
| Brand | SVBONY |
| Model | SV210 |
| Product Name | M63 CAA 360° Rotator Camera angle adjuster |
| Extension thickness | 20.7mm |
| Fit for | SV550 80F6 |
| Locking Screw | M4 |
| Positioning lock Function | Yes |
| Male Thread | M63x1 |
| Female Thread | M63x1 |
| Length of Male Thread | 8mm |
| Length of Female Thread | 9mm |
| Material | 6061T |
| Color | Black |
| Net Weight | 91.2g/3.22oz |
Feature
- 1.Most astronomical telescopes have a certain field curvature problem, which can be improved with SV209. The SV209 is a special field flattener for SV550 80F6 OTA, which can effectively improve the field curvature of fringe field images. Great for astrophotography.

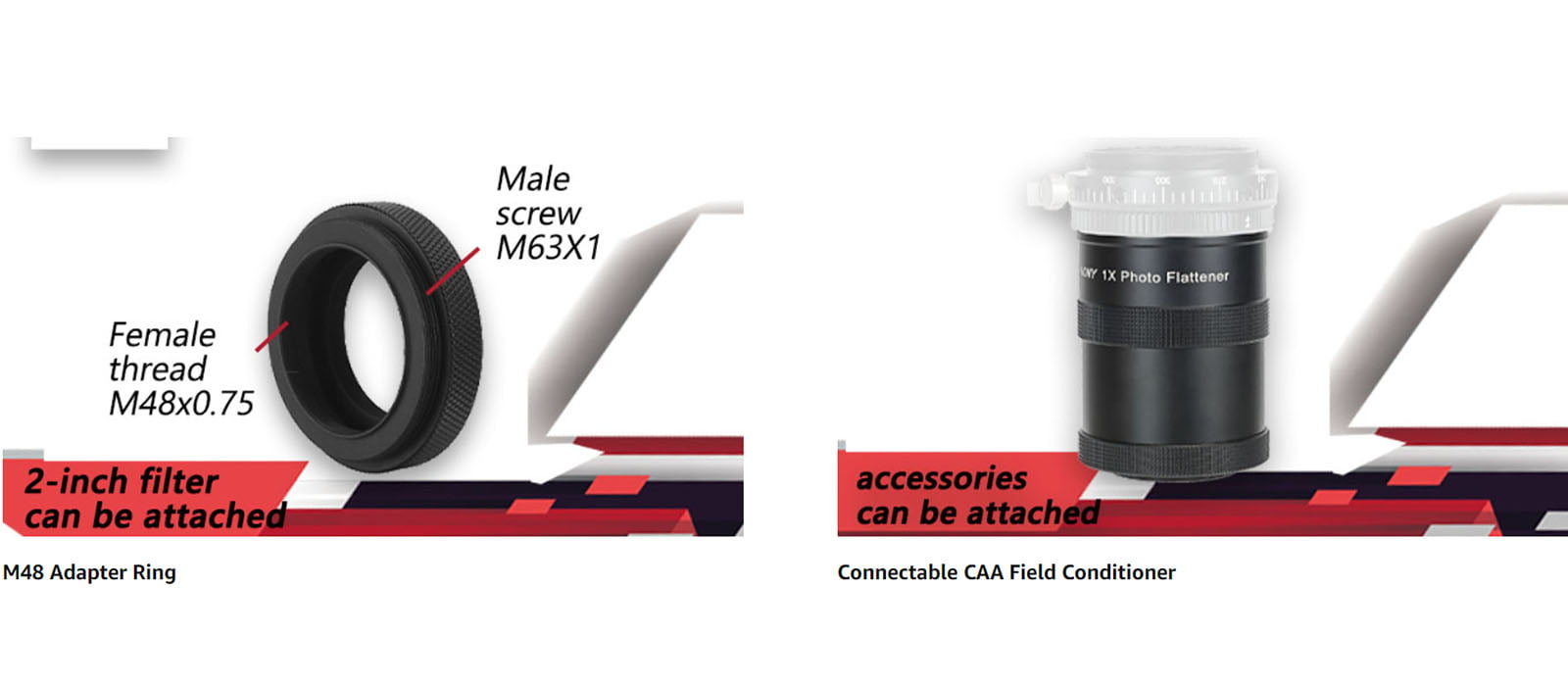

- 2.The SV209 is equipped with an M63 extension tube and an M48 adapter ring to ensure that the back focal length of the flat-field lens conforms to the traditional astronomical 55mm.
