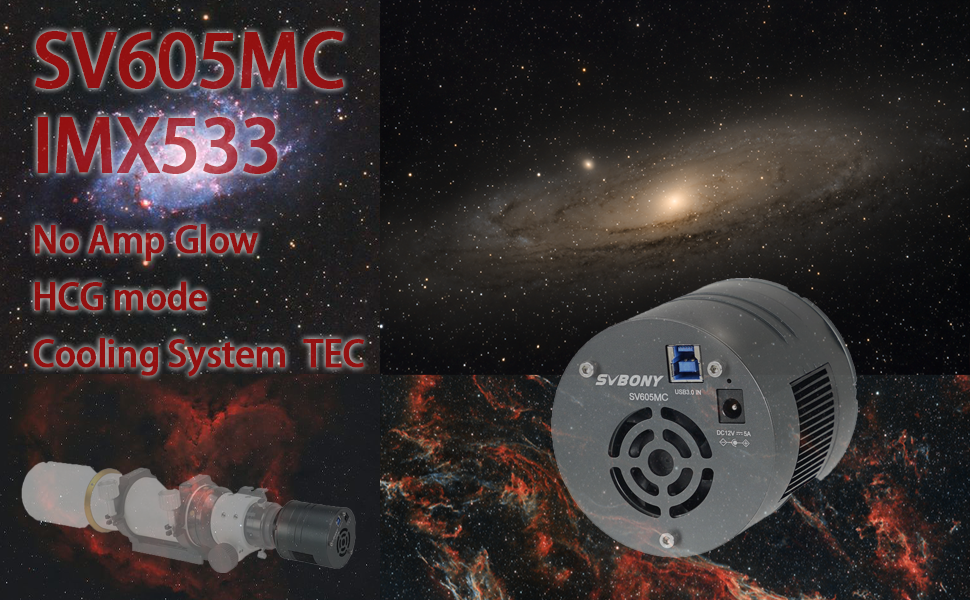

IMX533 Mono Cooled Camera SV605MC Arrival at the End of This Month

IMX533 Mono Cooled Camera SV605MC Arrival at the End of This Month

IMX533 Mono Cooled Camera SV605MC Arrival at the End of This Month

SV405CC,SV605CC or SV605MC?

Which should you choose? We have released three cameras suitable for deep space photography so far, SV605MC is the latest member, it is a mono cooled camera with IMX533.

For beginners, the monochrome camera may be more difficult to operate, and the color camera is a better choice. If you can easily control the color cooled camera and want to use the monochrome camera to experience more real details, then you can consider this one.
At the same time, we also launched the testing plan-the early bird plan.Pre-sale price is $799. If you want to apply for the assessment, you can get it for  $599 after submitting the application form to be reviewed. You can check the plan here. https://www.svbony.com/New-product-Experience/
Some data details about the camera
Model SV605MC
Sensor Monochrome ​IMX533 CMOS
Image Resolution 3003*3003
Total Pixels 9.0 Megapixel
Pixel Size 3.76μm(H) x 3.76μm(V)
Target Size 1''
Diagonal 15.968mm
Maximum Frame Rate 20FPS
Shutter Type Rolling Shutter
Image Area​ 15.469mm(H) x16.375mm(V)
Cache DDR3 256M
Time of Exposure  32ms-2000s
Readout Noise 1.0e-3.3e-
QE Peak  0.91
Full Charged 50ke-
ADC 14bit
Dark Current​ -20C, 0.0005e /pixel/sec
HCG Gain=100, HCG
Anti-condensation  YES
Glow suppression  No-Glow
Temperature Display Display on software
Cooling System TEC Semiconductor 2-Stage Refrigeration
Output image format​ Mono8/Mono16
ROI Support
Pixel Binning BIN1,BIN2,BIN3,BIN4
Software​ N.I.N.A./Sharpcap/TheSkyX/APT/AstroDMx Capture/ ASCOM
Protective Window Optical Glass AR Coating
Camera Interface Specifications 2''/1.25''/M42X0.75
Back Focus Distance 6.5/17.5mm
Workiung Current < 300MA
Stand-by Current < 30MA
Operating Temperature​ -10°----50°
Storage Temperature​ -20°----60°
Working Humidity​​​ 20% RH-80% RH
Storage Humidity​ 20% RH-95% RH
Operating System Windows, Linux, Mac OS, Raspberry Pi, Chrome OS
  • No Amp Glow

Traditional CMOS sensors produce a weak infrared light source during operation quite often seen in the corner of uncalibrated images as the tell tale signs of ‘amp glow’. As the SV605MC uses better zero amp glow design, The glow was not visible during the 300 second exposure, make sure the totally high quality“dark”image.

Cooling System  TEC

Thanks to the two-stage TEC cooling, the SV605MC can lower the CMOS sensor temperature to 30 degrees Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during longer exposure times.

HCG mode

Using the HCG digital noise reduction technology, the readout noise can be greatly reduced and high dynamic range is retained.

256M DDR3 Cache

The SV605MC has a built-in 256MB DDRIII image buffer. The benefit of the image buffer is that the memory will cache the image and transfer it to the computer when the USB interface is not busy or being interrupted, so that the frame won’t be lost or corrupted. This buffer also allows a slower computer with USB 3.0 to capture every frame without loss even if the USB bus is occasionally busy with other peripherals. This buffer also makes it possible to run another camera using the same computer without USB transfer problems from the SV605MC

Support system

For Windows system, SV605MC support N.I.N.A., TheSkyX, APT, Sharpcap and other softwares running through ASCOM platform by using ASCOM driver.SV605MC camera works with Windows, Linux, Mac OS, Chrome OS and Raspberry Pi systems by running AstroDMx Capture.

Any questions about the product can tell us!
