In astrophotography, a wide range of equipments need to work in synergy. From equatorial mounts, cooled cameras, and guiding equipment to motorized filter wheels, electronic focusers, and dew heaters..... Along with this comes the challenge of managing power supplies and data cables. Especially in dark outdoor field environments, the stability of the equipment and the safety of the power supply directly determine the success or failure of the imaging session. The arrival of the SV241 Pro Remote Power Controller, however, has precisely cleared the obstacles in power management for astrophotography enthusiasts.

Intelligent Power Management

This power supply hub features DC5.5*2.1 12V 6A output interface with the following designs:

• Always-On Interfaces: Provide continuous power to critical equipment such as equatorial mounts and guide cameras, preventing data loss or the need for recalibration due to power outages.
• Multi-Channel Independent Control: 5 ports support software-based individual on/off control, allowing power supply to non-core devices on demand and saving energy.
• High Load Capacity: 12V 6A output supports simultaneous operation of multiple high-power-consuming devices.
• Comprehensive Protection Functions: Overcurrent, overvoltage, undervoltage, reverse connection, and electrostatic protection ensure device safety.

Versatile USB Interfaces: Integrated Power Supply and Data Transmission

This astro power controller is equipped with a rich set of USB interfaces:

• USB Type-C Interface: 5V 2.5A output with reversible plug design,easy connection with smartphones,laptops,and tablets.
• 3 USB 2.0 Interfaces: Ideal for devices such as guide cameras and electronic focusers.
• 2 USB 3.0 Interfaces: Enable high-speed data transmission, suitable for high-data-volume devices like dso cooled cameras.
• Simultaneous Multi-Device Operation: Can power multiple devices and transmit data simultaneously, simplifying device connections.

Anti-Dew Solution: Automatic Temperature Control to Prevent Dew Formation on Optical Equipment

Dew formation on optical equipment is one of the most frustrating issues in astrophotography. The portable power box offers a professional solution:

• 5mm T+H Interface: Connects to a temperature-humidity sensor, which automatically calculates the dew point and activates heating.
• 5mm Temp Interface: Monitors the temperature of heating tapes to prevent device damage from overheating.
• PWM Anti-Dew Heating Output: 100Hz 12V 6A output for precise control of heating power.
• Automated Operation: Adjusts automatically based on environmental conditions, eliminating the need for manual intervention.

Power Indicator Lights: Quick Fault Diagnosis

This usb control hub's 12V/5V power indicator solves key challenges in astrophotography:

• Quick Status Check in Dark Environments: Allows you to check the power supply status without using a flashlight.
• Multi-Device Fault Isolation: Dual-voltage indicator lights enable quick identification of fault sources, saving troubleshooting time.
• Real-Time Monitoring During Long Exposures: Continuously monitors voltage stability during hours-long exposures to prevent data loss.

All-Round Power Protection: Building a Safety Barrier for Valuable Equipment

Astrophotography equipment is often expensive, and any power supply abnormality can cause irreversible damage. The SV241 provides multiple protection mechanisms:

• Reverse Polarity Protection: Prevents device damage caused by incorrect power connection, especially useful for operations in low-light outdoor environments.
• Electrostatic Protection: Rapidly dissipates static electricity to protect precision electronic components from damage.
• Electrophoresis Protection: Prevents corrosion of internal metal parts, extending the device’s service life.
• Overcurrent Protection (15A): Automatically cuts off the circuit when current exceeds the safe value, preventing device overheating or burnout.
• Short-Circuit Protection: Quickly shuts off power in case of a short circuit, ensuring the safety of both equipment and users.
• Overvoltage Protection (15V): Prevents damage to devices caused by excessively high voltage.
• Undervoltage Protection (9.5V): Avoids equipment operation under low voltage, which could affect performance or even cause damage.

Flexible Mounting Design: Adapting to Various Observation Scenarios

This power controller is designed with UNC1/4-20 and M4 standard screw holes, allowing easy installation on various astrophotography equipment:

• Can be fixed on tripods for convenient ground operations.

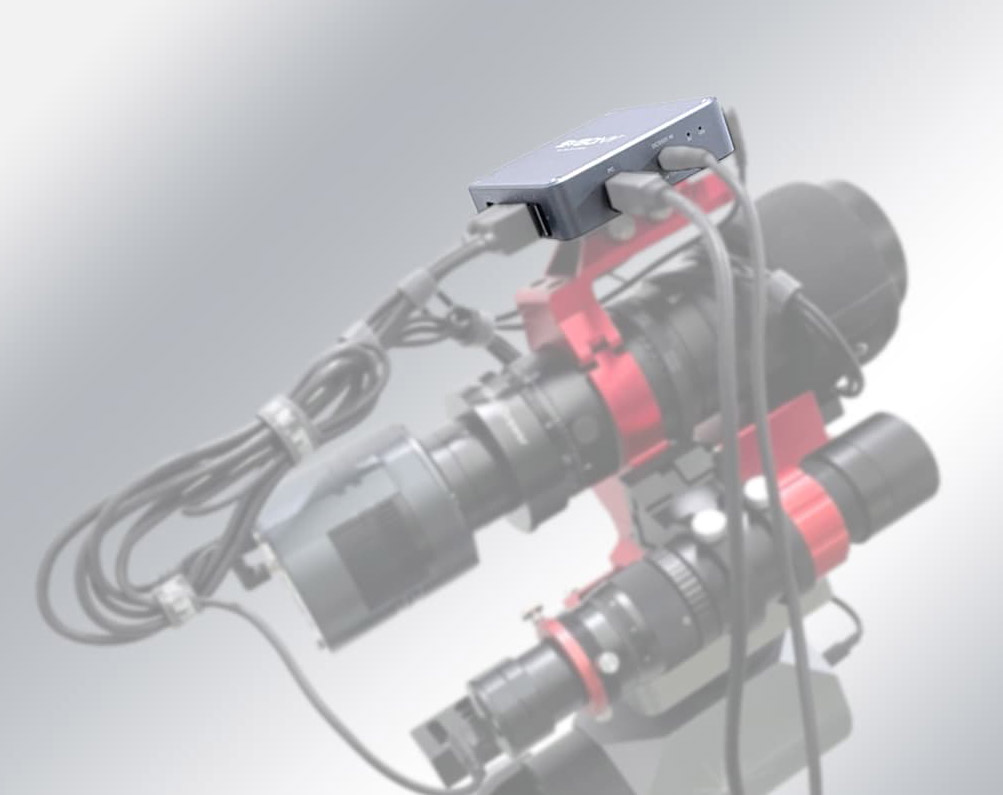

• Can be mounted on equatorial mounts and integrated with devices like telescopes, reducing cable clutter.
• Provides stable mounting to prevent the power box from moving or shaking during observation.
• Helps organize numerous cables, making the entire equipment system more compact and orderly.

Conclusion: Make Astrophotography More Focused and Efficient

This remote pocket power hub serves as a central equipment management hub for astrophotography. With its intelligent design, it addresses the most pressing challenges in astrophotography - such as power supply safety, equipment management, and anti-dew control. It is an indispensable component in modern astrophotography setups.
