The SVBONY SV555 Upgraded Astro-Camera Lens builds on the original Petzval design with practical refinements for easier focusing, handling, and astrophotography setup.

With a 54mm aperture, 243mm focal length, fast f/4.5 optics, and a 44mm image circle, the SV555 is designed for full-frame imaging of large deep-sky targets.

The upgraded system also integrates an EAF Mount Kit, lockable 360° rotator, built-in field correction, and a 2-inch filter holder, bringing key functions for wide-field astrophotography into one optical system.

What Is the SV555 Upgraded Astro-Camera Lens?

The SV555 is a 54mm Petzval astrograph with a 243mm focal length, using five elements in three groups. Its built-in field correction is designed to provide a well-corrected imaging field across its 44mm image circle.

For photographers using full-frame astronomy cameras, the 44mm image circle for full-frame cameras provides coverage suited to the larger sensor area. This allows more of the frame to be used when composing large nebulae, star clusters, and extended star fields.

The 243mm focal length also places the SV555 in a useful range for wide-field astrophotography, offering more image scale than an ultra-wide camera lens while still keeping large celestial targets within the frame.

What the SV555 Upgrade Means for Your Imaging Setup?

The SV555 upgrade goes beyond the optical configuration, with several refinements focused on practical use:

1.More than 90g lighter than the previous design

2.A more compact 93mm lens hood

3.3.22mm focusing travel for finer focus adjustment

4.Included EAF Mount Kit for automated focusing

5.Lockable 360° rotator for flexible framing

6.Integrated 2-inch filter holder

These changes are designed to make the SV555 easier to handle and integrate into a modern imaging workflow.

Instead of adding separate components for every function, the upgraded design combines focusing, framing, and filter support within the optical system.

243mm f/4.5 for Wide-Field Deep-Sky Imaging

With a 243mm focal length for astrophotography, the SV555 is well suited to large deep-sky targets such as emission nebulae, reflection nebulae, and open star clusters.

A focal length in this range provides enough image scale to show structure in a target while retaining a relatively wide field of view. For large objects such as the North America Nebula, this can make it easier to include both the main subject and surrounding star field in the composition.

The fast f/4.5 aperture is also useful for deep-sky imaging. A faster optical system can collect light efficiently, helping photographers capture relatively faint targets without relying solely on extremely long exposures.

The aperture is adjustable from f/4.5 to f/22, giving the SV555 additional flexibility for terrestrial photography when different exposure or depth-of-field control is required.

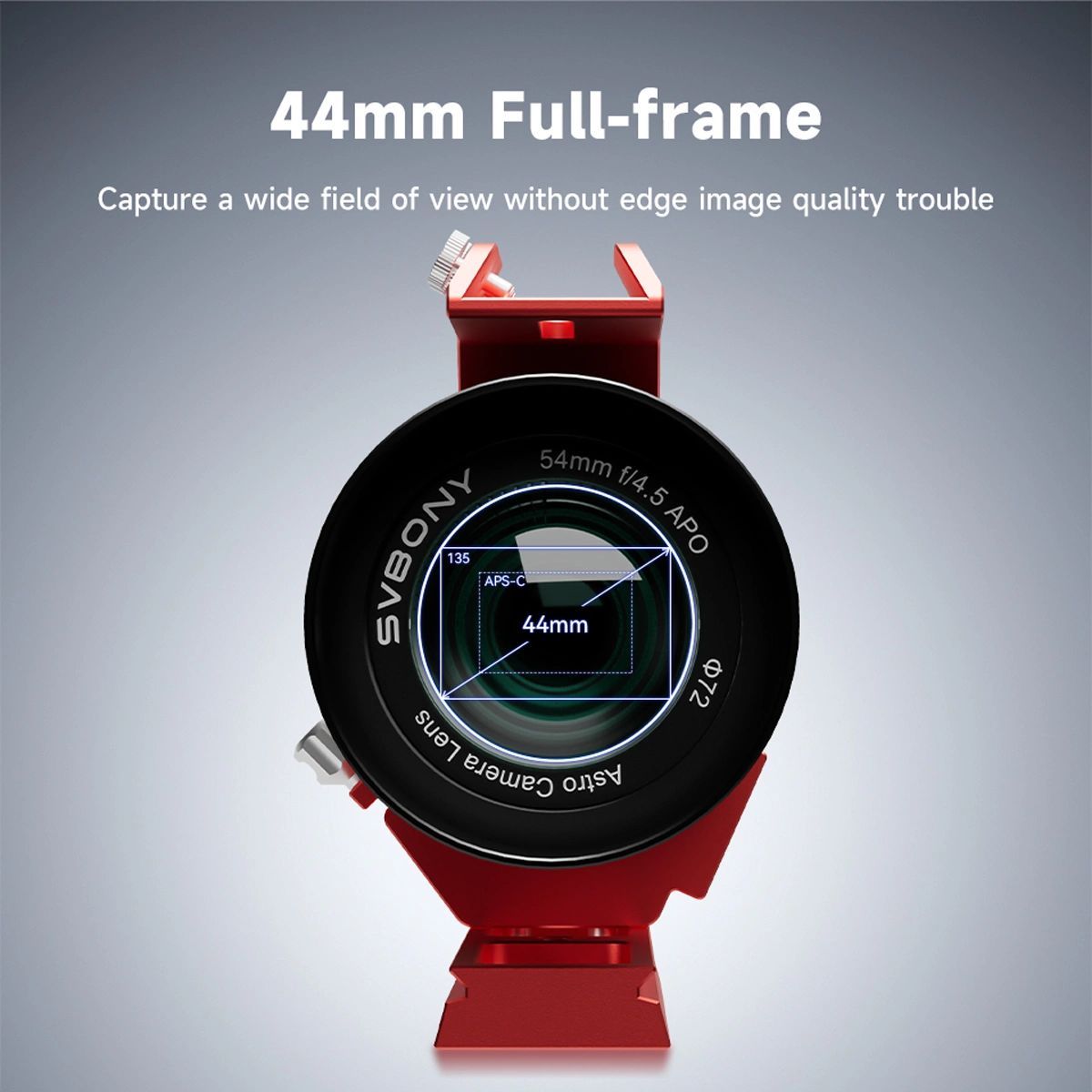

44mm Image Circle for Full-Frame Astrophotography

The image circle becomes particularly important with a full-frame camera. A sufficiently large image circle helps illuminate the sensor across its imaging area, allowing photographers to make better use of the available frame.

The SV555's 44mm image circle is designed for full-frame imaging. In practical terms, this gives photographers more freedom to compose large deep-sky targets without depending on a smaller crop.

Combined with the Petzval optical design and built-in field correction, the large image circle is an important part of the SV555's capability as a full-frame astrophotography lens.

EAF Focusing and Flexible Framing

The included EAF Mount Kit is part of the SV555 upgrade and allows integration with a compatible electronic automatic focuser.

For long imaging sessions, automated focusing can be useful when temperature changes cause small focus shifts. Instead of making every adjustment manually, a compatible EAF can automate focus adjustments as part of a computer-controlled imaging workflow.

The SV555 also features a lockable 360° rotator. This allows photographers to change camera orientation without repositioning the optical system, making it easier to frame large or elongated deep-sky targets.

Together, EAF support and the rotator address two practical parts of astrophotography: maintaining focus and fine-tuning composition.

Integrated 2-Inch Filter Holder

Beyond its core optics, the SV555 also integrates key astro accessories directly into the system. The built-in 2-inch filter holder allows compatible filters to be incorporated without additional mounting components, keeping the optical train clean and organized.

This can simplify the imaging setup by reducing the need for additional filter-mounting components. The lens also provides an M72 front filter thread and an M48×0.75 male rear connection for compatible accessories.

For photographers who regularly use filters during deep-sky imaging, the integrated holder keeps the optical system more organized while maintaining flexibility.

Is the SV555 Worth It for Your Astrophotography Setup?

The SV555 is a good fit for photographers looking for a Petzval lens for astrophotography with a wide field of view and full-frame coverage.

It is particularly suited to:

1.Large emission and reflection nebulae

2.Open star clusters

3.Extended Milky Way scenes

4.Wide-field deep-sky imaging

5.Full-frame astrophotography

6.EAF-assisted automated focusing

The 243mm focal length is better suited to larger targets than small galaxies, planetary nebulae, or planets that require a much tighter field of view. If those are your primary targets, a longer-focal-length telescope may be more appropriate.

The key consideration is whether the SV555's 243mm focal length, f/4.5-f/22 aperture, and 44mm image circle match your camera and preferred targets.

SV555: A Practical Choice for Full-Frame Deep-Sky Imaging

The SVBONY SV555 Upgraded Astro-Camera Lens combines a 54mm aperture, 243mm focal length, fast f/4.5 optics, and a 44mm image circle for full-frame deep-sky imaging.

The upgrade also focuses on practical usability, with reduced weight, a 93mm lens hood, 3.22mm focusing travel, EAF support, a 360° rotator, and an integrated 2-inch filter holder. For photographers looking for a compact astro-camera lens for wide-field and full-frame astrophotography, the SV555 offers an integrated approach to deep-sky imaging.
