Key Features
80 mm triplet APO with FPL51 ED glass delivers sharp, high‑contrast views and minimal chromatic aberration.
480 mm focal length at f/6 is optimized for wide‑field imaging of galaxies, nebulae, and clusters.
2.5″ rack‑and‑pinion dual‑speed focuser (1:10) allows fast and fine focusing for astrophotography.
Internal extinction bars and knife‑edge baffles reduce stray light for improved contrast.
Bundled design supports field flattener use (SV209) to correct edge curvature for full‑frame sensors.
This SV550 triplet bundle includes:

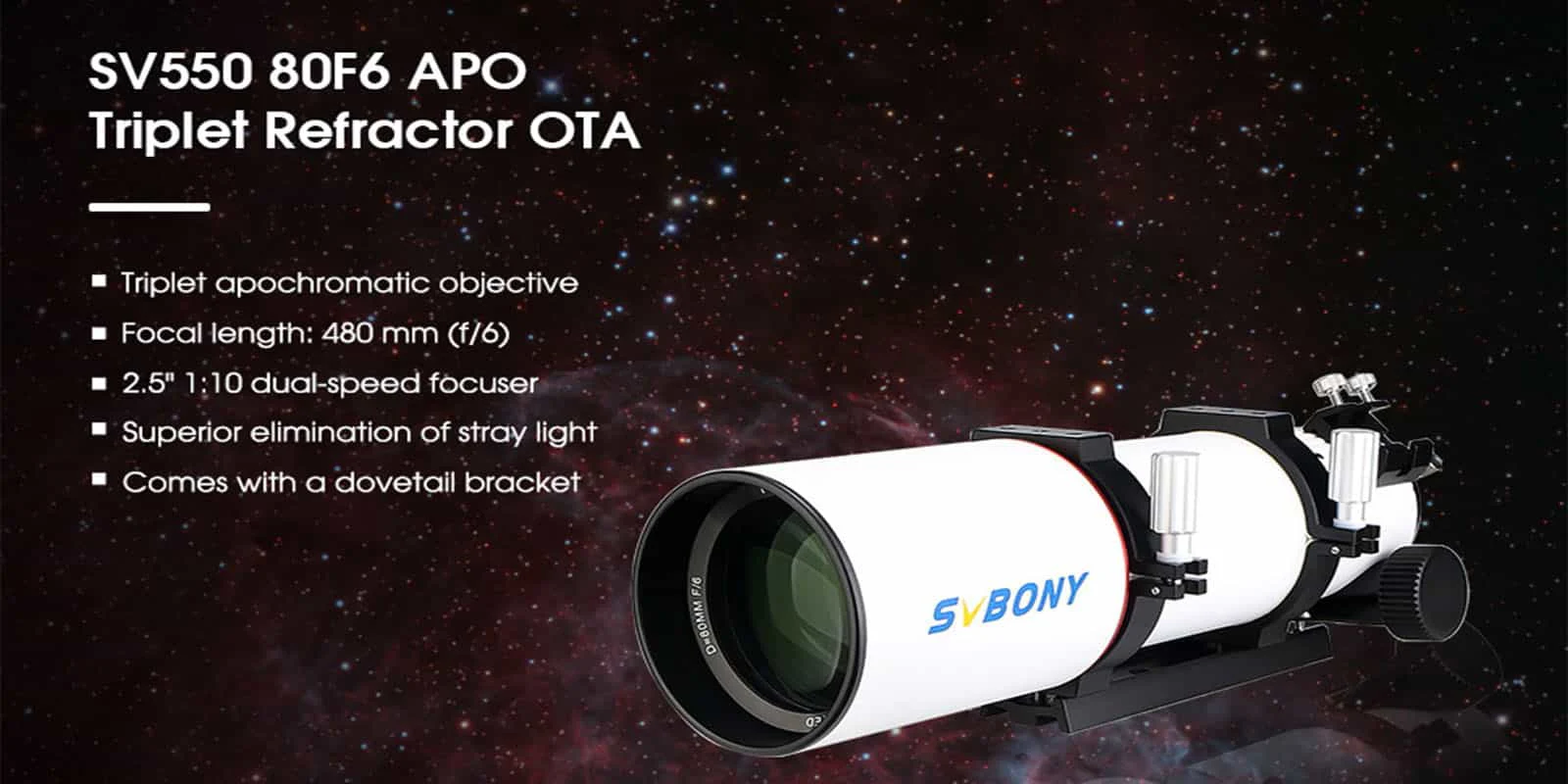

- SV550 80APO;
- SV405CC osc cooled camera;

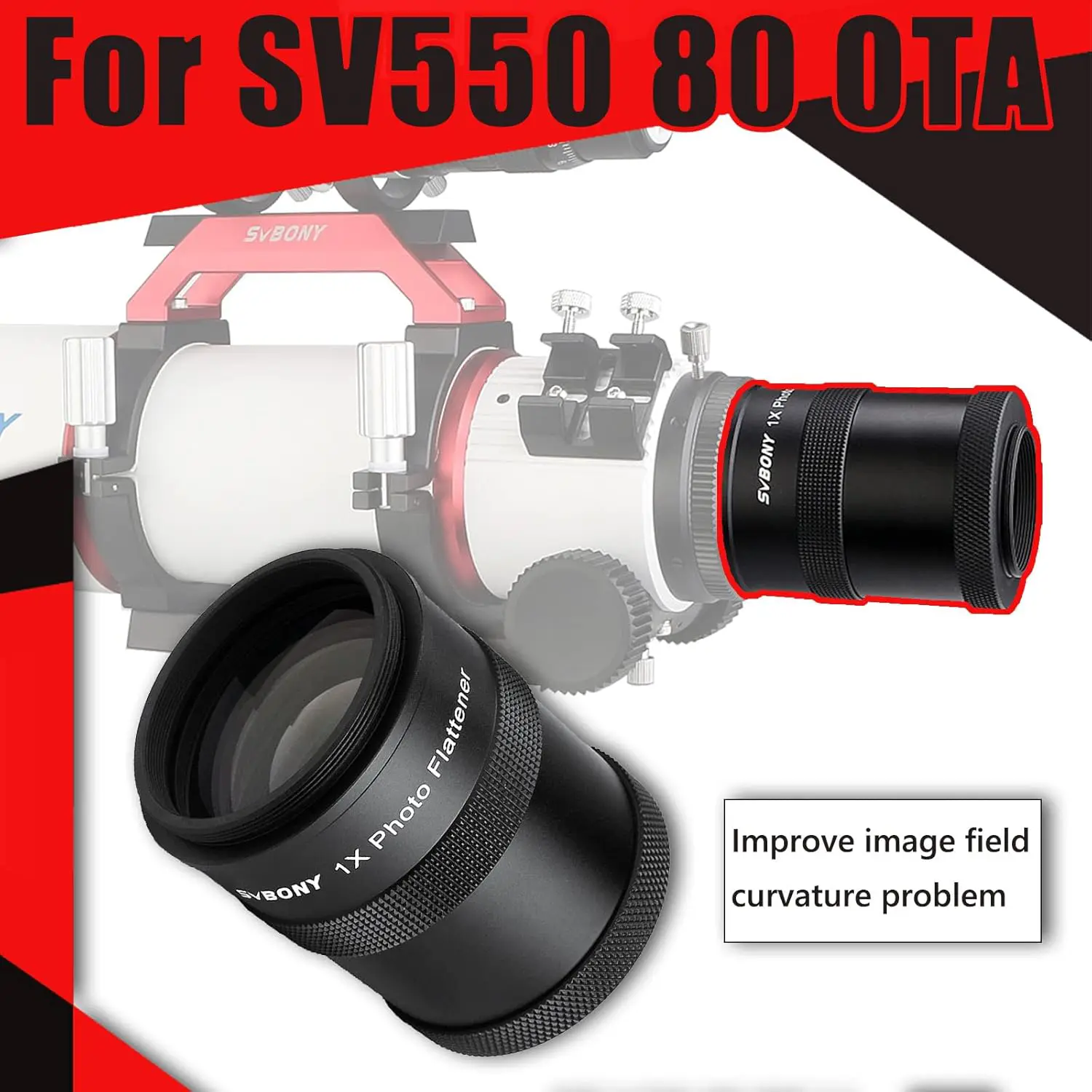

- SV209 1.0x flat-field reducer;

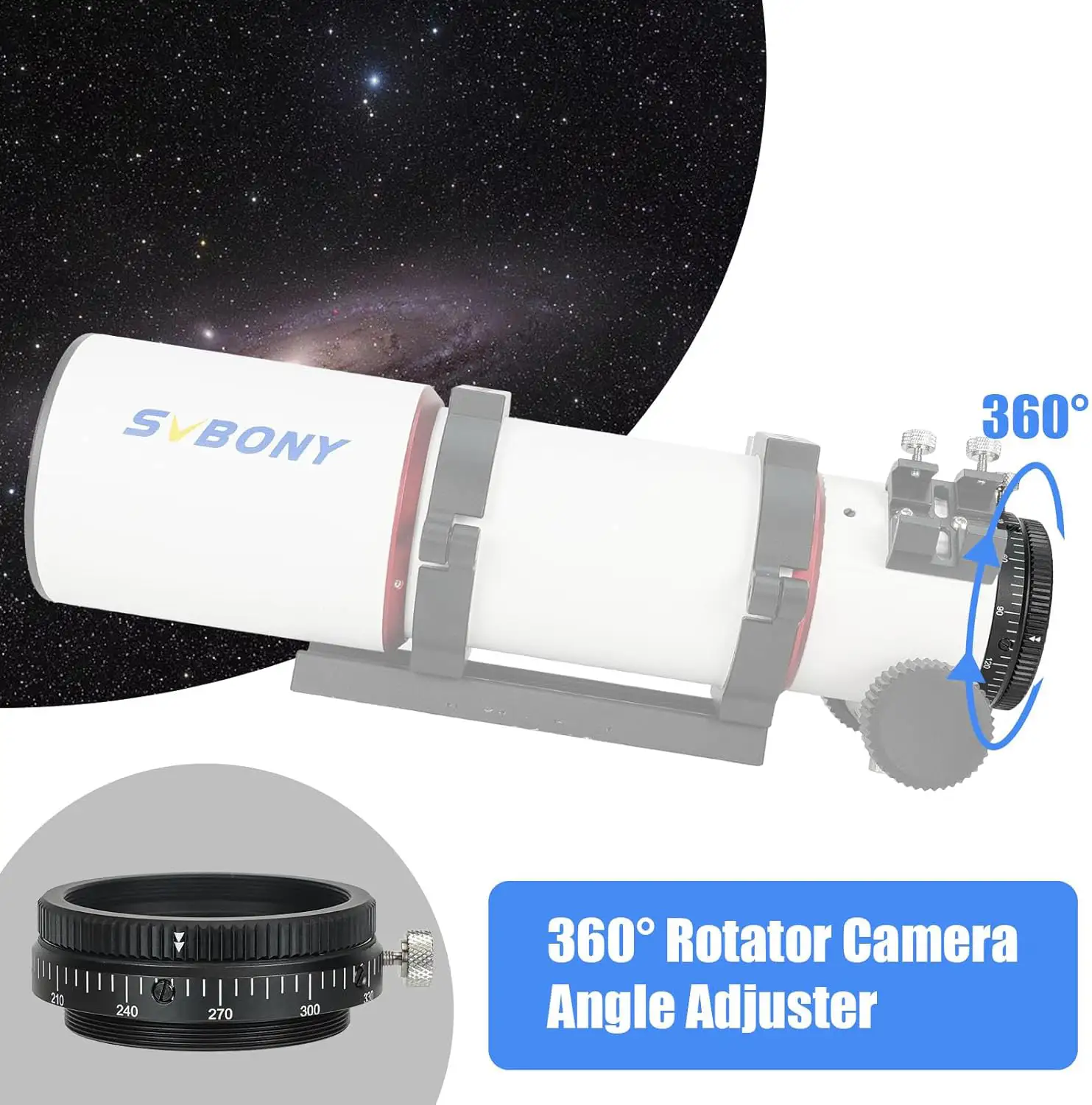

- SV210 M63 CAA 360 degree rotator camera angle adjuster;
- SV220 Dual-band filter 7nm 2inch;

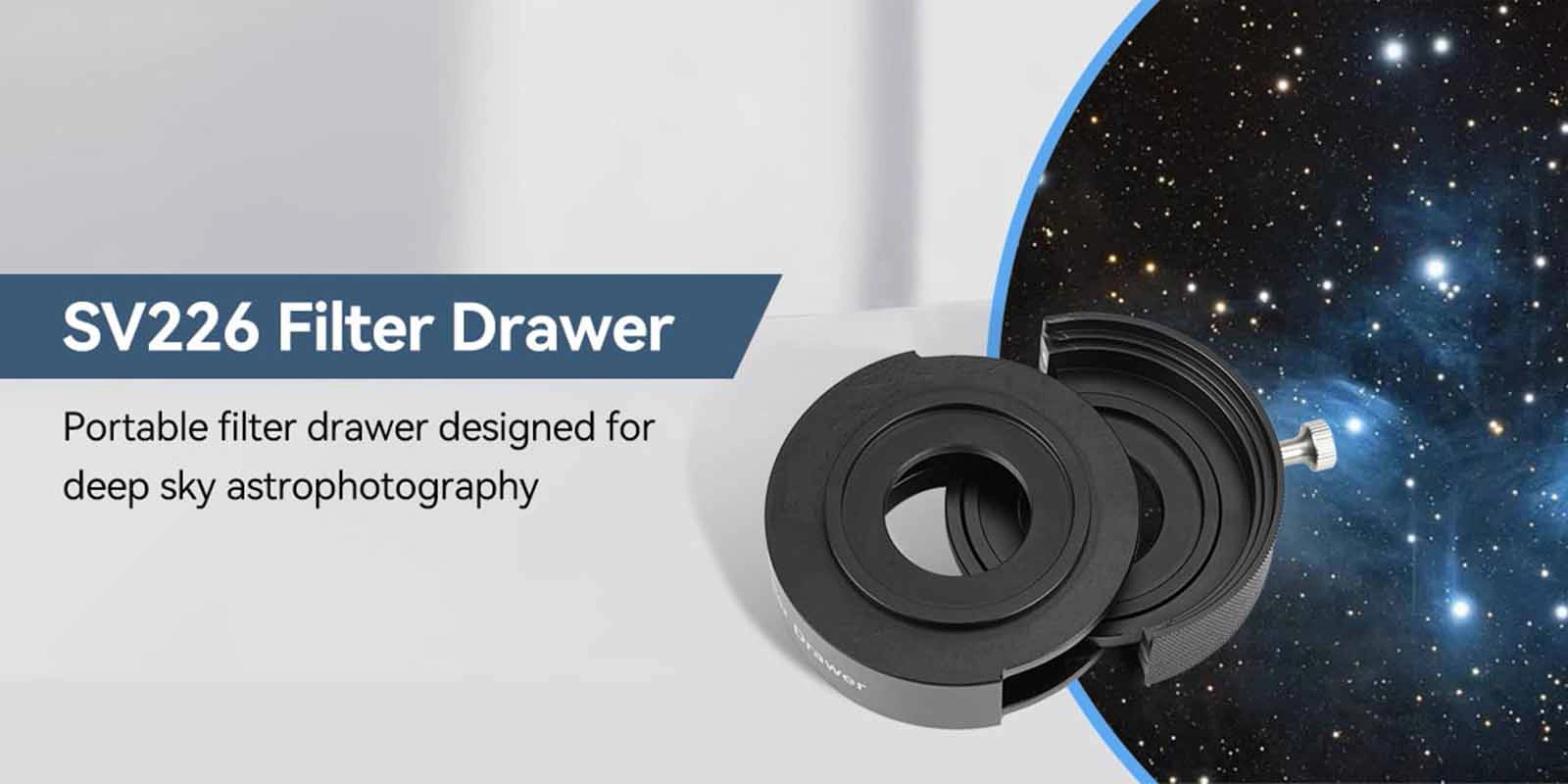

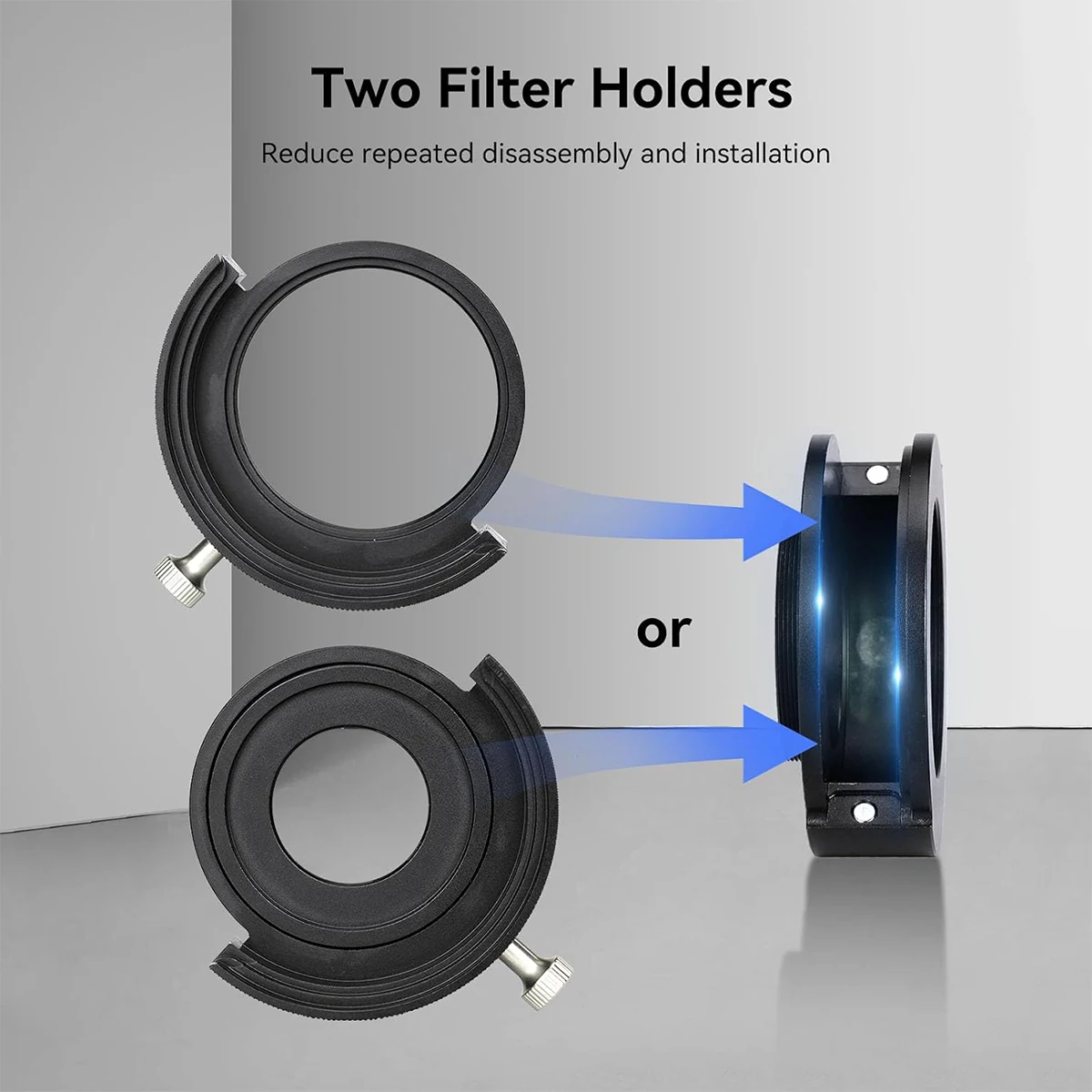

- SV226 2inch filter drawer;

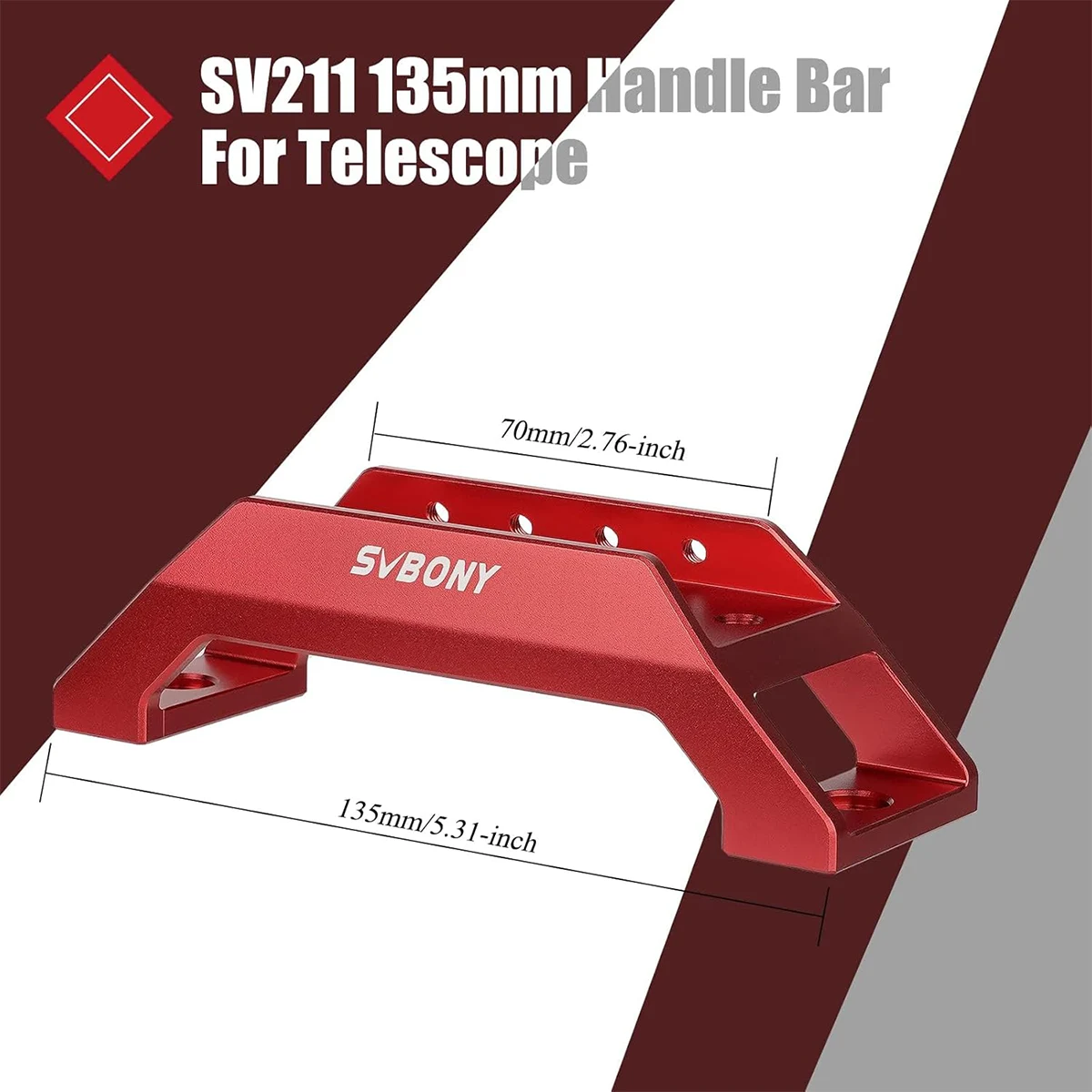

- SV211 135mm handle bar.
FAST shipping, duty-free
⚡ Shipped: 72 hrs after ordering (Pre-sale products excluded).
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT
🔒 Secure Payments | SSL Encrypted
💰️ 30-Day Money-Back Guarantee
🛡️ Hassle-Free Warranty | No Hidden Fees
🎧 Lifetime Customer Support
💳 Payment Methods
📦 Payment Methods
Customer Reviews
There are no customer reviews yet
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 80mm |
| Focal Length | 480mm |
| Focal Ratio | f/6 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.45 arc seconds |
| Coatings | SMC |
| Limiting stellar magnitude | 11.6 |
| Lens design | Apochromatic |
| dovetail plate length | 150-175mm |
| barrel weight | 2900g |
| mirror Brief Size | 377.8mm |
| Tube Outer Diameter | 103mm |
| Net weight | 3750g |
| Gross weight | 3850g |
| Package size | 440x220x210mm |
| Model | SV405CC |
| Sensor | IMX294 |
| CMOS Image Resolution | 4144*2822 |
| Total Pixels | 11.7 megapixel |
| Pixel Size | 4.63µm |
| Target Size | 19.2mm*13mm |
| Diagonal | 23.2mm |
| Maximum Frame Rate | 19FPS |
| Shutter Type | Rolling Shutter |
| USB Type | Type-B USB 3.0 |
| DDRIII Buffer | DDR3 256M |
| Exposure | 0.05ms-2000s |
| Readout Noise | 1.2e |
| QE Peak | 0.75 |
| Full Well | 63ke |
| ADC | 14bit |
|
Brand |
SVBONY |
|
Model |
SV220 |
|
Name |
Multi-Broadband Filter |
|
Size |
2-inch |
|
Substrate Thickness |
1.80mm |
|
Clear Aperture |
44mm |
|
Wavelength Range |
300-1100nm |
|
FWHM |
OIII (7nm) & HA (7nm) |
|
Blocking |
OD5 |
|
Peak Transmittance |
500.7nm@T>90%; 656.3nm@T>94% |
|
Surface Quality |
60/40 |
|
Surface Parallelism |
1/4λ |
|
Thread |
M48x0.75 |
|
Single Thread |
Yes |
|
Net Weight |
12.5g / 0.44oz /0.027lb |
| Brand | SVBONY |
| Model | SV209 |
| Optical Tube Length | 120 Millimeters |
| Eye Piece Lens Description | FMC |
| Objective Lens Diameter | 50.8 Millimeters |
| Telescope Mount Description | Equatorial Mount |
| Product Dimensions | 5"D x 4"W x 3"H |
| Focus Type | Manual Focus |
| Power Source | Focal Reducer |
| Finderscope | Straight-Through |
| Item Weight | 0.45 Kilograms |
-
-
Feature
- 1.The SV550 80 triplet apochromatic optics structure (1 piece of S-FPL51 low-dispersion ED glass and 2 pieces of correction glass) effectively improves the blue-edge chromatic aberration problem of single-ED structure imaging;
2.Dual-speed toothed focus mount (1:10); reduces vignetting on full-frame cameras and reduces the weight of the support platform;
3.SV220 7nm dualband filter with over 90% peak transmission and sharp cut-off can greatly enhance the contrast and bring out the most detailed information for those deep-sky objects in light polluted area;

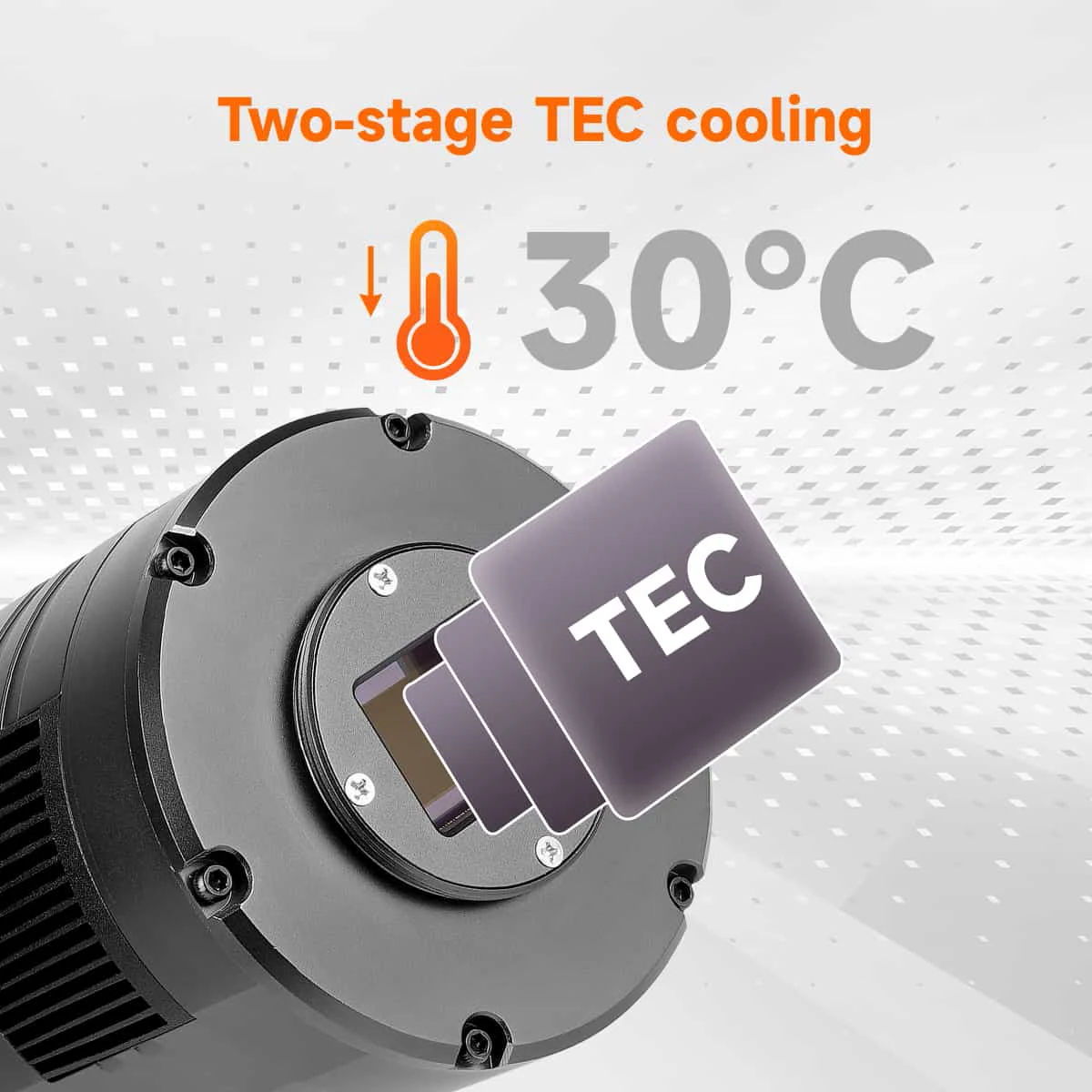

4.SV405CC cooled color camera with IMX294 color CMOS sensor, USB 3.0 high-speed interface, and two-stage tec cooling system.
-
