Key Features

Glow Suppression Technology

With glow suppression, the IMX533 chip minimizes signal-to-noise ratio degradation, providing better image quality by eliminating residual glow from CMOS sensor interference.

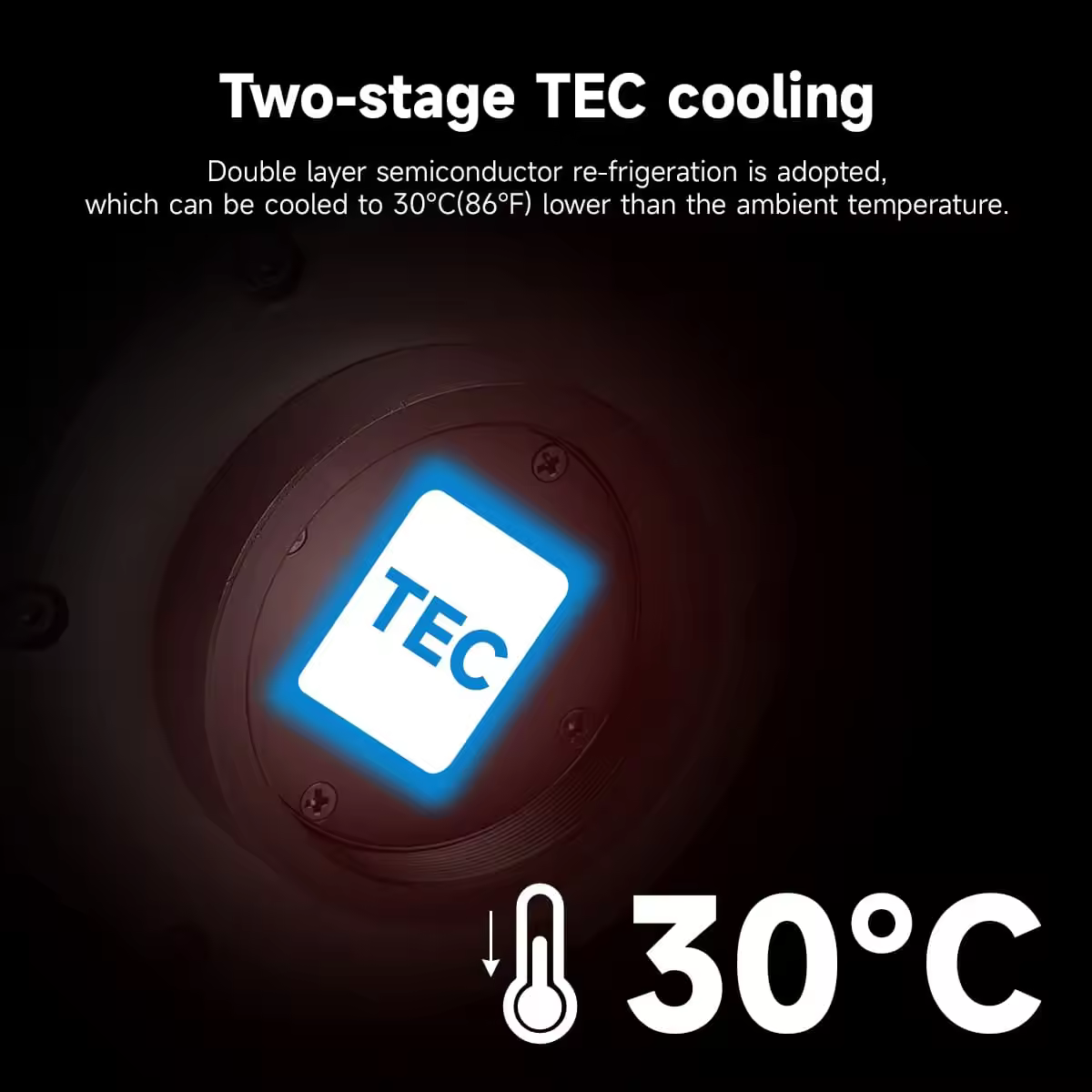

Powerful Cooling System

Equipped with a two-stage TEC cooling system, the SV605CC can lower sensor temperature by 30°C below ambient, significantly reducing dark current and sensor noise during long exposures.

Versatile Compatibility

The SV605CC works seamlessly with Windows, Linux, Mac OS, Chrome OS, and Raspberry Pi, supporting popular software like Sharpcap, N.I.N.A, and AstroDMx Capture for ease of use.

Ideal for Light-Polluted Environments

This camera excels in light-polluted areas with its ability to capture clear images using double narrowband filters, making it perfect for deep space imaging even in urban settings.

High-Resolution Imaging

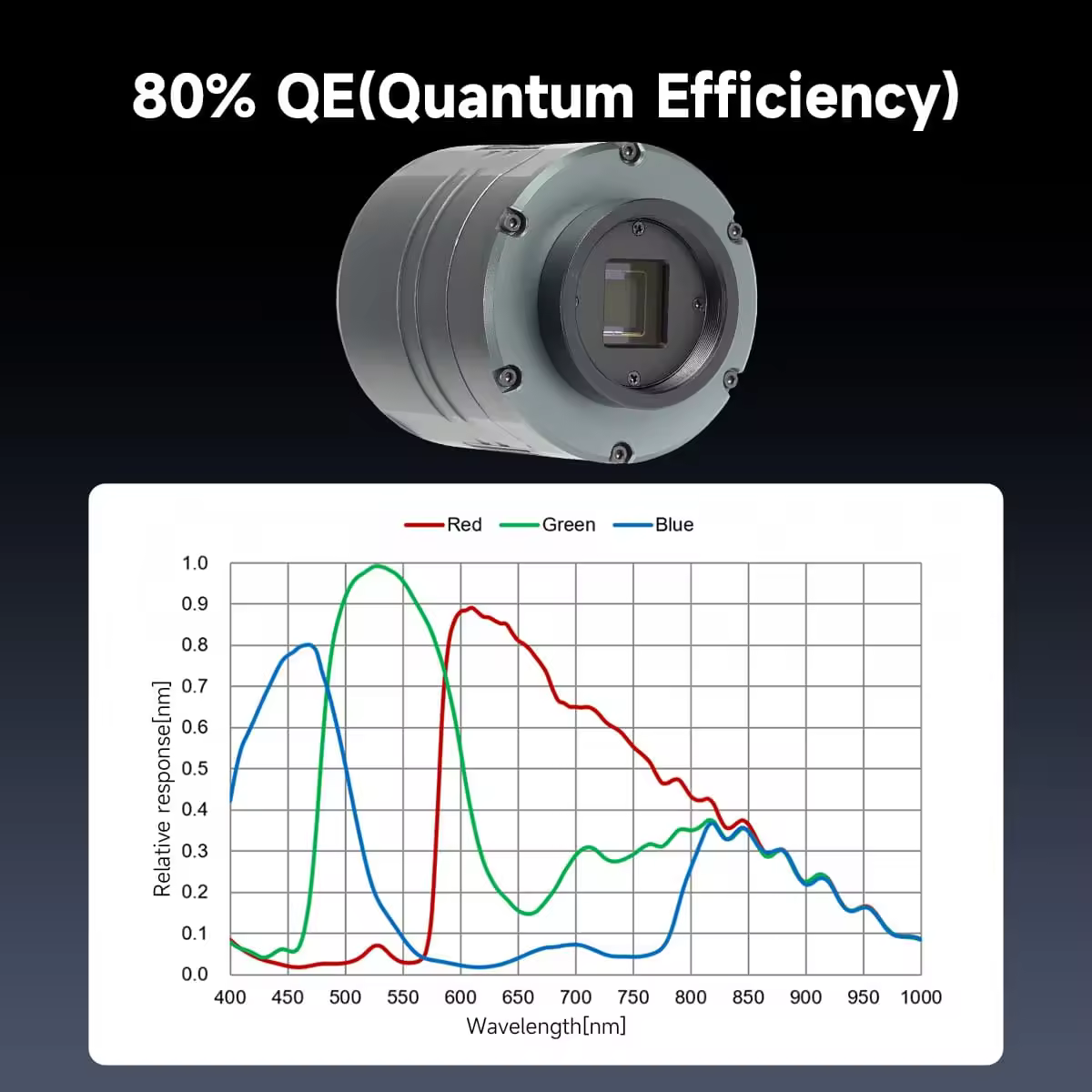

The SV605CC features a 1-inch IMX533 color chip with 3.76µm pixels, offering excellent resolution and 80%+ quantum efficiency for clear, detailed deep space captures.

Style: SV605CC

SV605CC

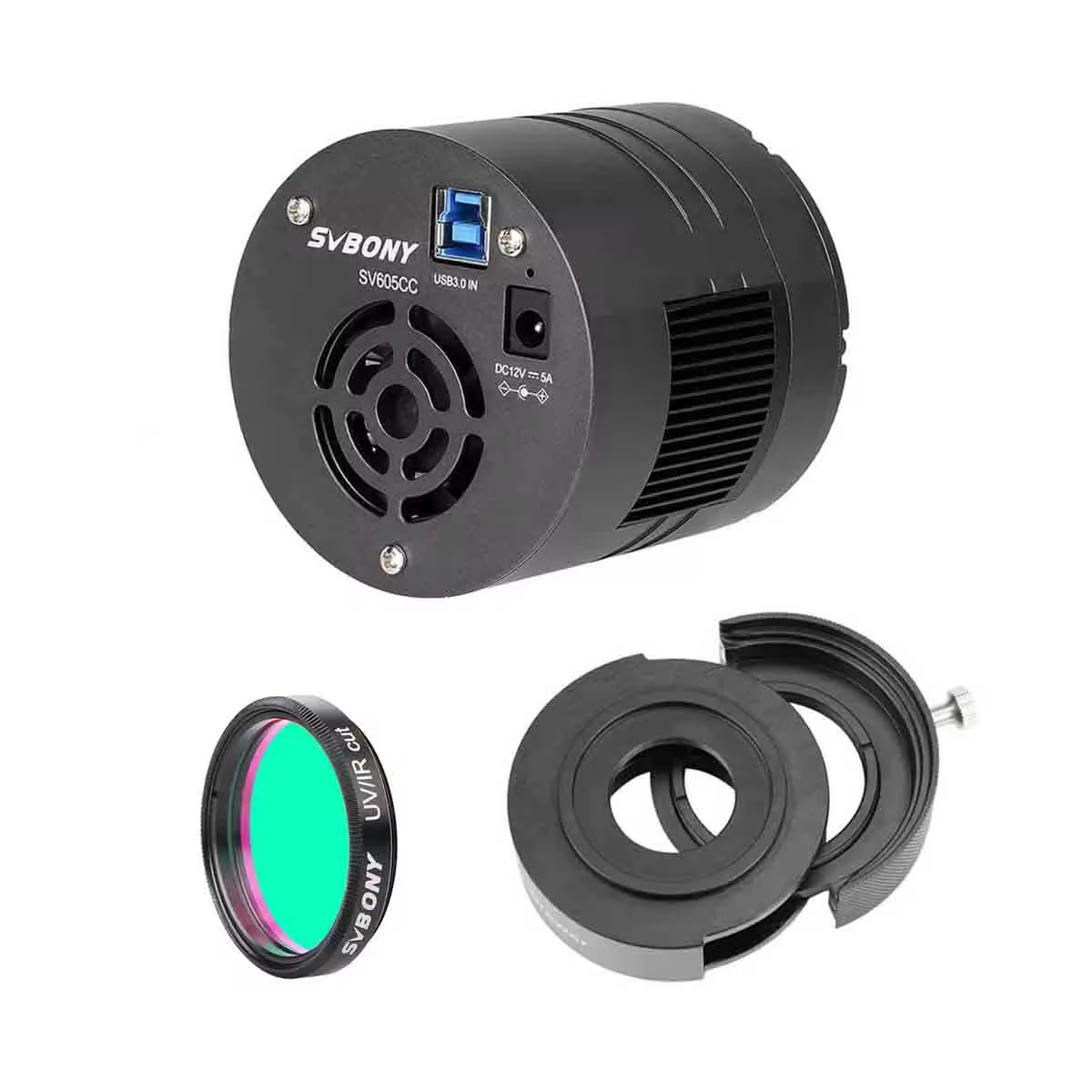

SV605CC-SV226-IR-Cut-Filter

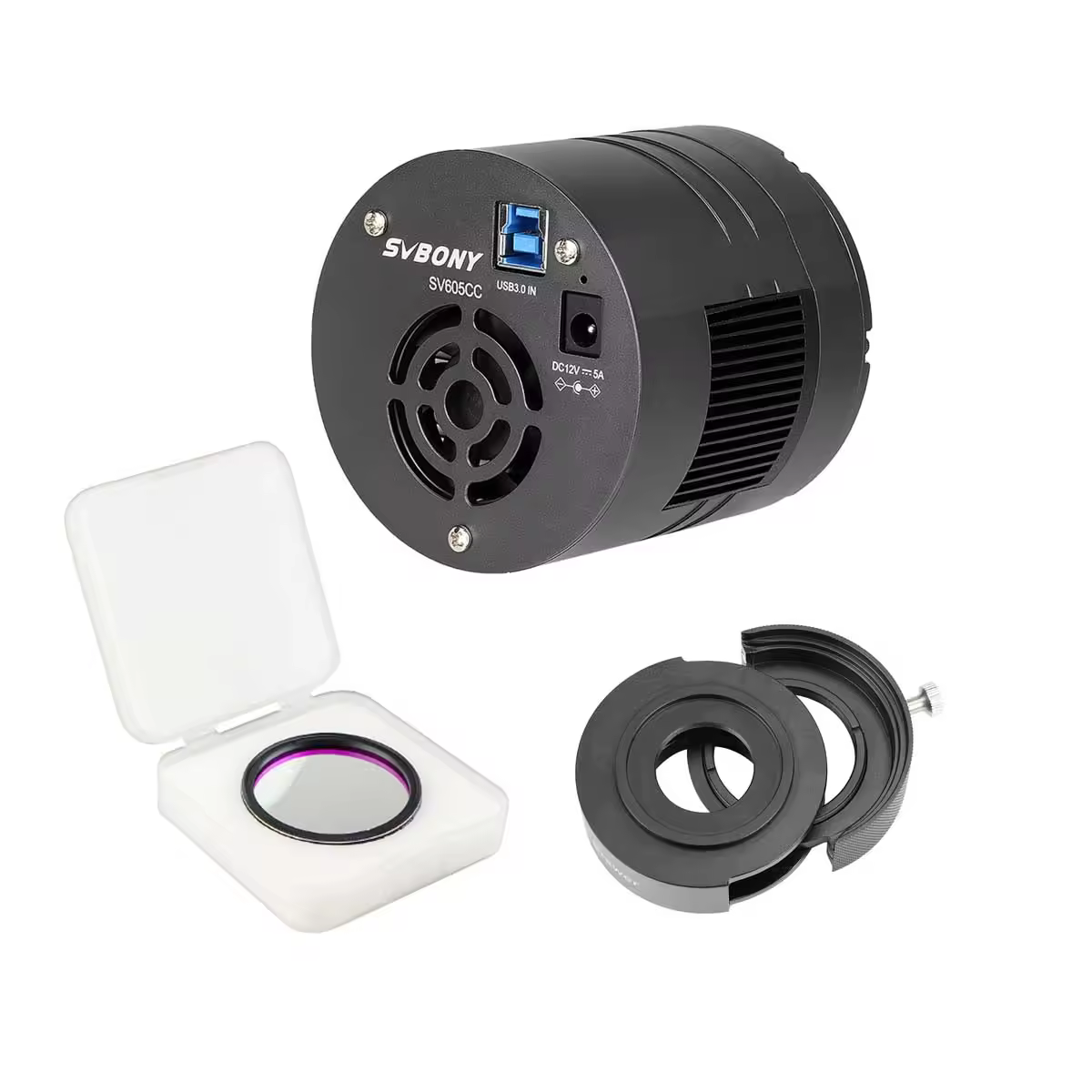

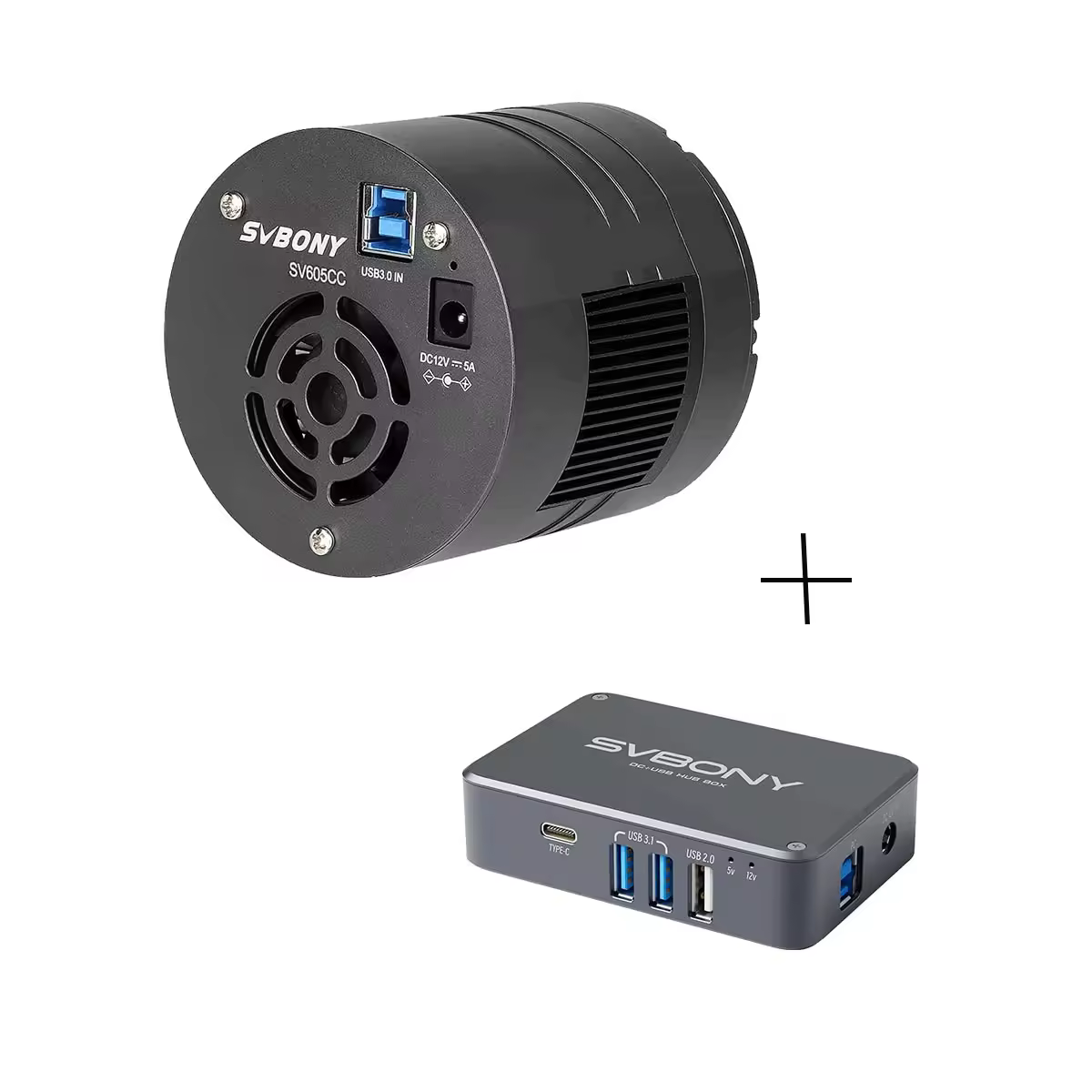

SV605CC-SV241

SV605CC-SV226-SV220-7nm-H-Alpha-OIII

In Stock

You May Also Need

Add to Favorites

Add To Compare

Ask A Question

🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT

Secure Payments | SSL Encrypted

Fast, Free Shipping

30-Day Money-Back Guarantee

Hassle-Free Warranty | No Hidden Fees

Lifetime Technical & Customer Support

Payment Methods

SV605CC OSC Camera IMX533 for Deep Space Astrophotography

Realistic works captured with this device

North America Nebula (NGC 7000)

SV605CC @Kevin Jensen

NGC 6992 Eastern Veil Nebula

SV605CC @antgans

NGC 6888 - Added Data

SV605CC @bkmk

NGC 7000 - North America Nebula

SV605CC @Viktor Uri

IC1396 - Elephants Trunk Nebula - August Contest

SV605CC @Ole Bobrink

IC 1396 - Elephant Trunk Nebula (contest)

SV605CC @Viktor Uri

3X3 Mosaic of IC1396 (Elephant's Trunk Nebula)

SV605CC @Xander Suys

Elephant Trunk Nebula

SV605CC @Jean-Claude DRILLON

IC 1396 - The Elephant Trunk

SV605CC @ Scott A. Labay

IC 1396A — The Elephant's Trunk Nebula

SV605CC @

3x3 Mosaic of the Veil Nebula

SV605CC @Xander Suys

Filamentary Shockwave

SV605CC @Cloud Shepard

Veil nebula

SV605CC @timothy duym

M16/Eagle Nebula

SV605CC @

NGC 6960 - Western Veil Nebula

SV605CC @ Scott A. Labay

Leith Venning

SV605CC @Leith Venning

NGC 7000

SV605CC @Quentin Brandes

Summer Duo (M8 & M20)

SV605CC @Alexandre Santana

Messier 8 (the Lagoon Nebula) and Messier 20 (the Trifid Nebula)

SV605CC @Bruno Araujo

Galaxies from Portugal

SV605CC @Alexandre Santana

Images taken with my SV555 and SV238

SV605CC @Zoltán Belső

The Horsehead Nebula

SV605CC @Hans Haans

Customer Reviews

0
Based on __COUNT__ reviews

Quality

Ship

Other

Write a review

With media

All Reviews

Model	SV605CC
Sensor	Color IMX533 CMOS
Image Resolution	3008*3008
Total Pixels	9.0 Megapixel
Pixel Size	3.76μm x 3.76μm
Target Size	1''
Diagonal	15.968mm
Maximum Frame Rate	20FPS
Shutter Type	Rolling Shutter

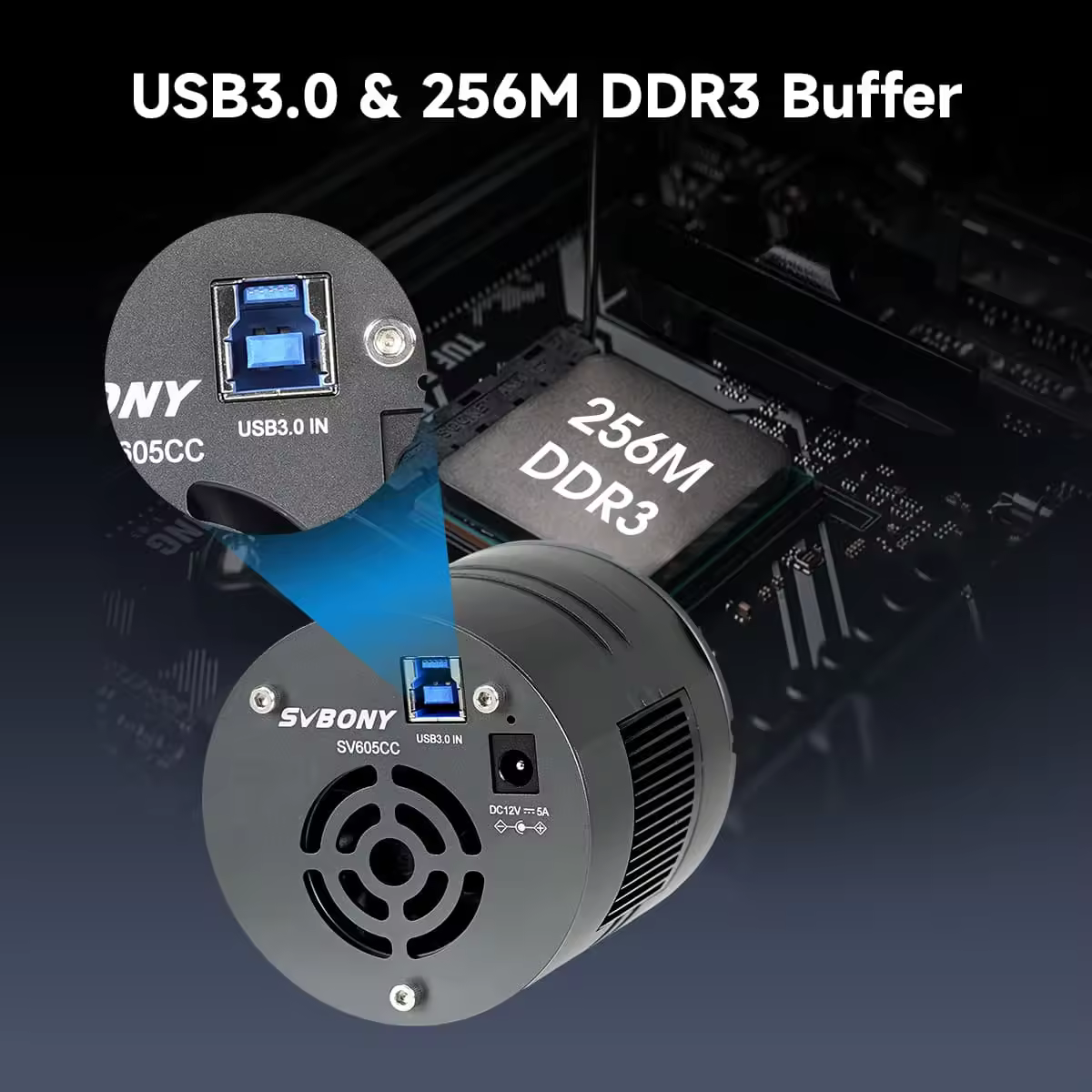

USB Type	Type-B USB 3.0
Cache	DDR3 256M
Time of Exposure	0.05ms-2000s
Readout Noise	1.0e-3.3e-
QE Peak	0.91
Full Charged	50ke-
ADC	14bit
Temperature Display	Display on software
Cooling System	TEC Semiconductor 2-Stage Refrigeration
Digital Noise Reduction	Support
ROI	Support
Pixel Binning	BIN1,BIN2,BIN3,BIN4
Operating System	Windows,Linux,Mac OS,Raspberry Pi,Chrome OS

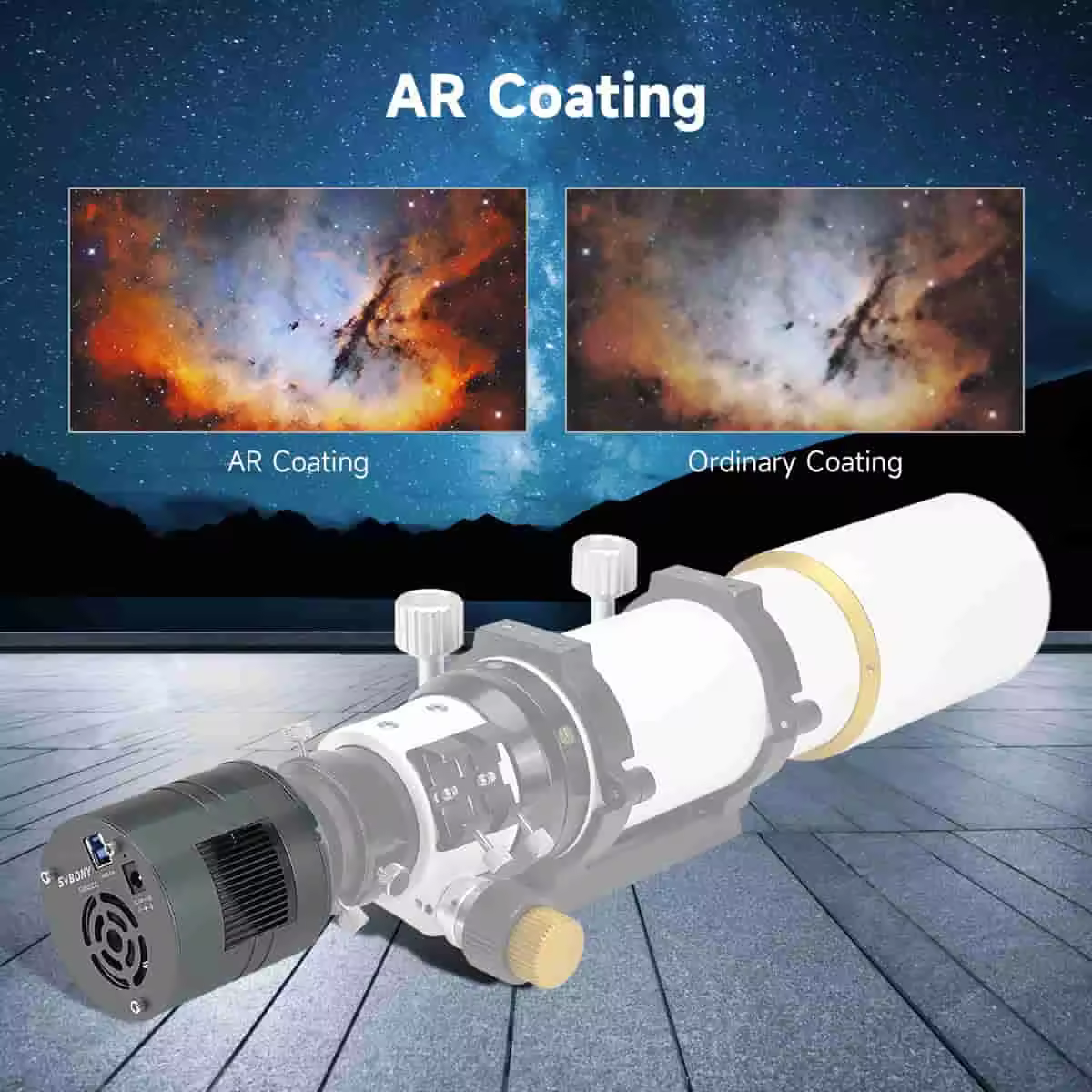

Protective Window Optical Glass	AR Coating
Camera Interface Specifications	2''/1.25''/M42X0.75
Back Focus Distance	6.5mm/17.5
Workiung Current	< 300MA
Stand-by Current	< 30MA

Features

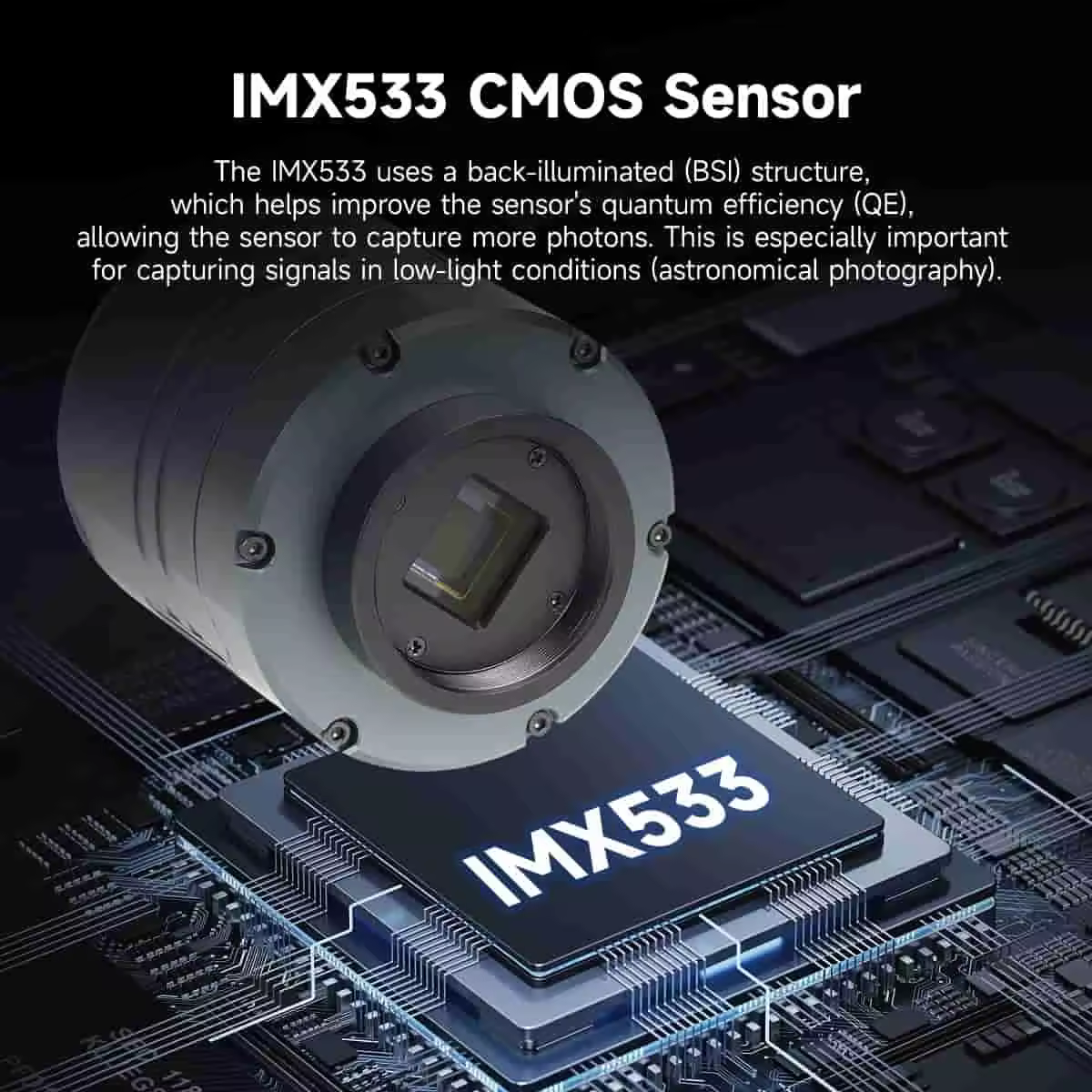

SV605CC is the deep space camera of SVBONY brand. It is designed with SONY IMX533 color SMOS sensor,which is recommended by amateur asreonomers.Here are some highlights:
1. Back-illuminated sensor - improving sensitivity and reducing noise
2. 1'' format with 3.76 um pixel size - ideal for many types of telescopes
3. 14-bit ADC - giving high dynamic range of 13 stops.
4. An impressive 50ke-full well capacity - helping to reduce the issue of,for example,saturated stars.

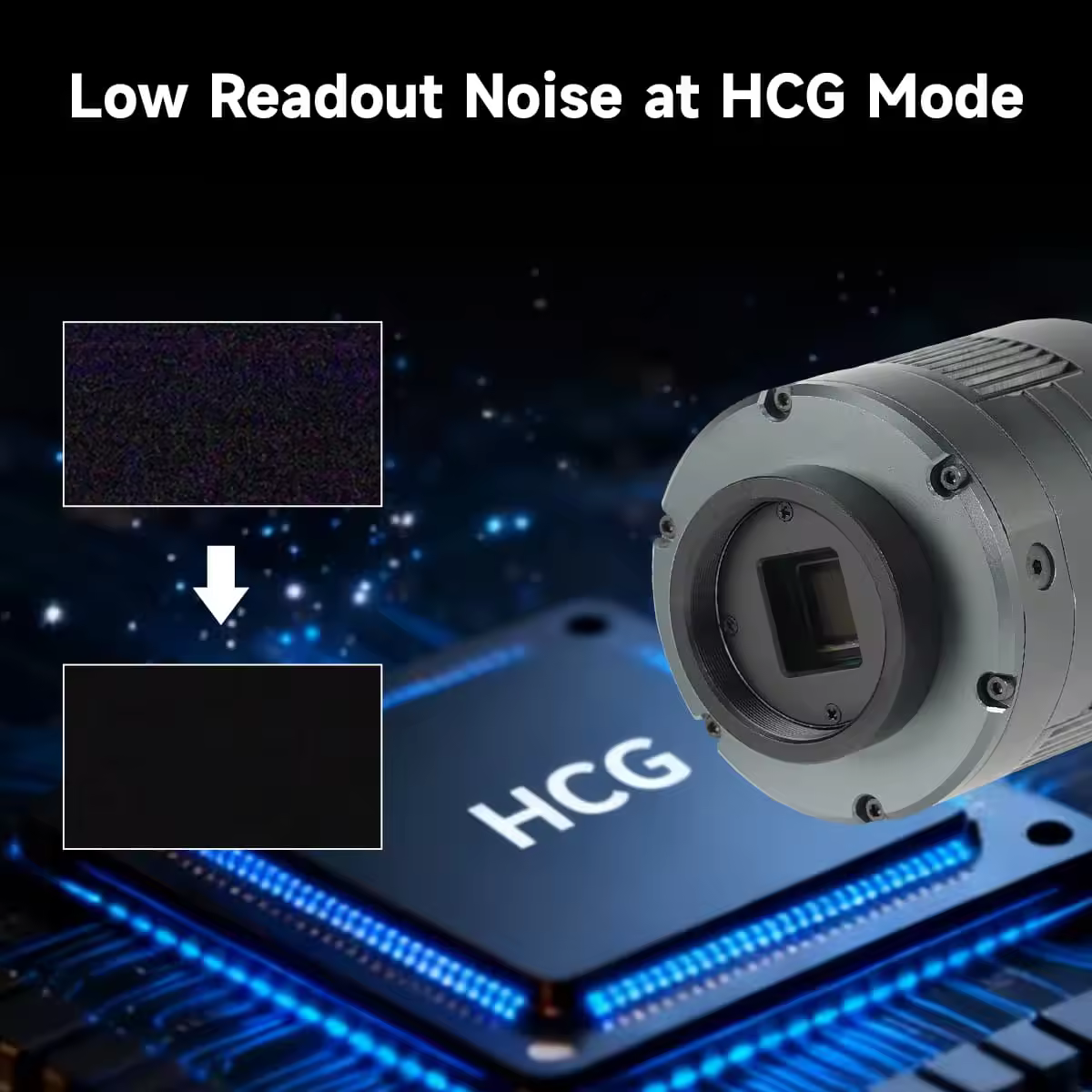

5. HCG mode - When set the gain at 120 or higher,the HCG mode is autonatically enabled,and reduce the read noise to even lover levels without loss the dynamic range.
6. Exceptuinal low-illumination performance of SNR1s:0.14 lx is realized by use of a large-size optical system and by expanding the area per pixel to 3.76um.This makes the IMX533 ieal for security camera market applicatiuons that require low illumination performance.
7. The IMX533 sensor adopts the 1'' format and provides the necessary number of pixels for true 4k output at 120 frames per second(W/ ADC 10-bit output mode,the SV605CC can run up to 20fps at 4k format when used with USB3.0)
