Product Detail

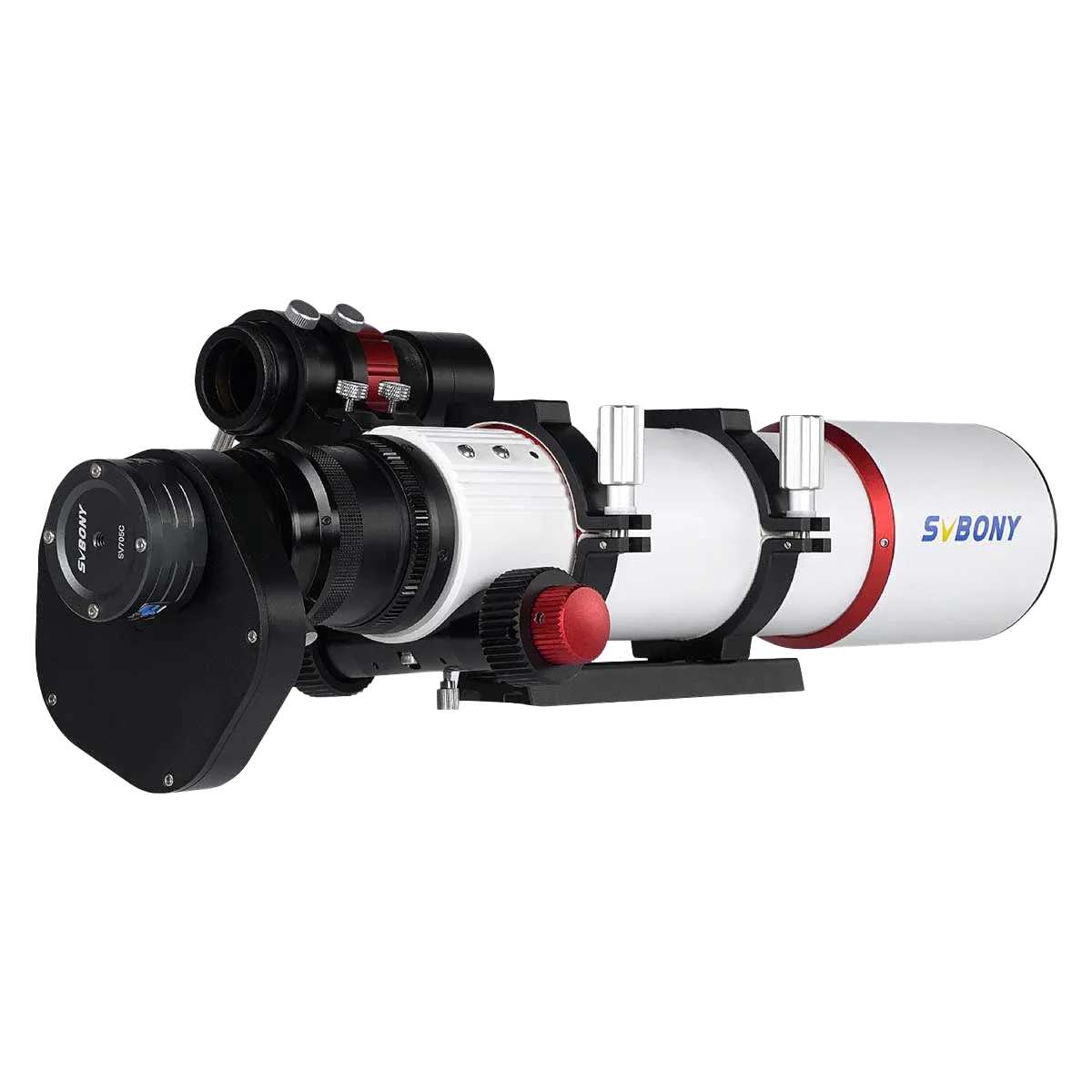

SV550 80APO Refractor Telescope - SV705C Planetary Camera Set for Planetary Imaging

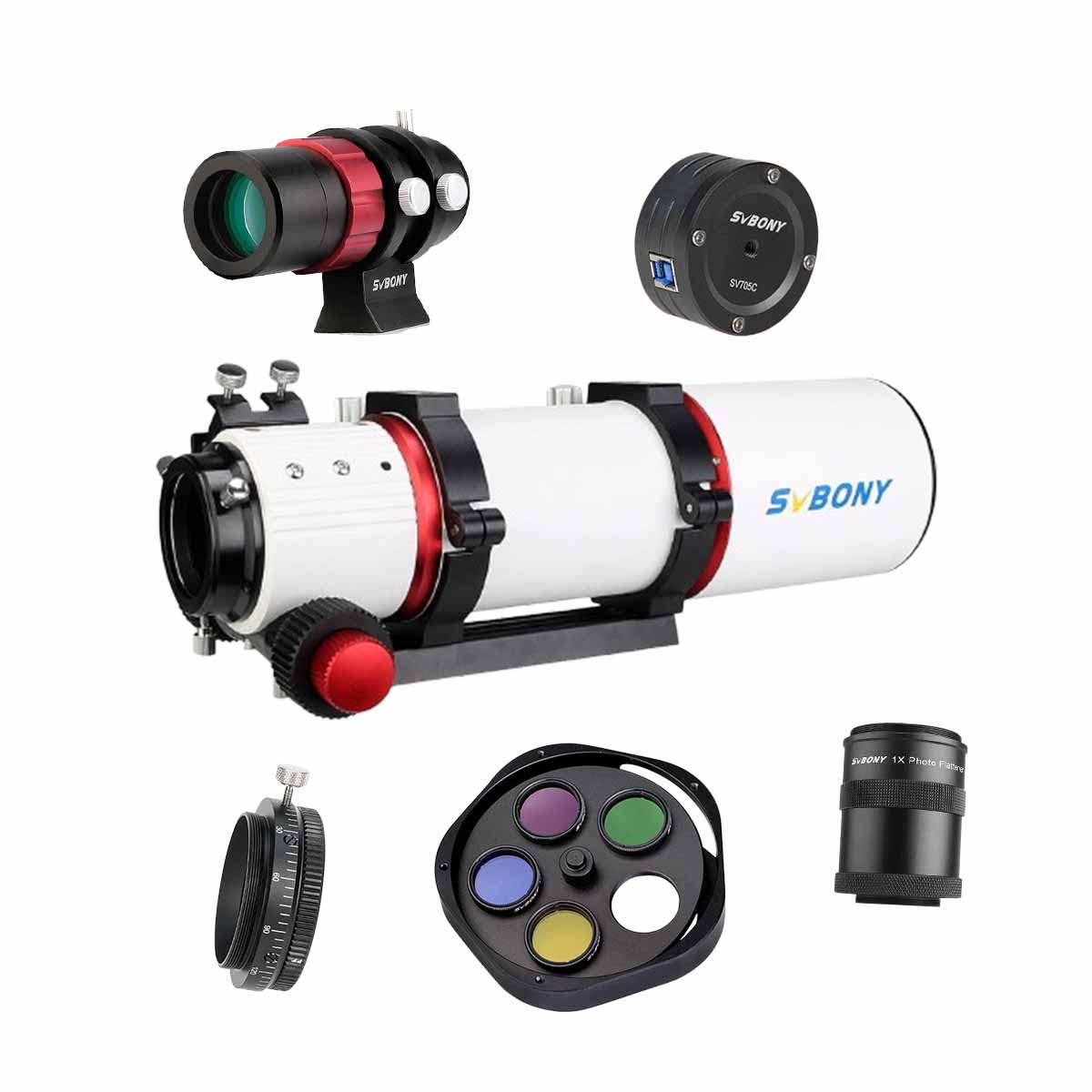

Photography Set Includes:

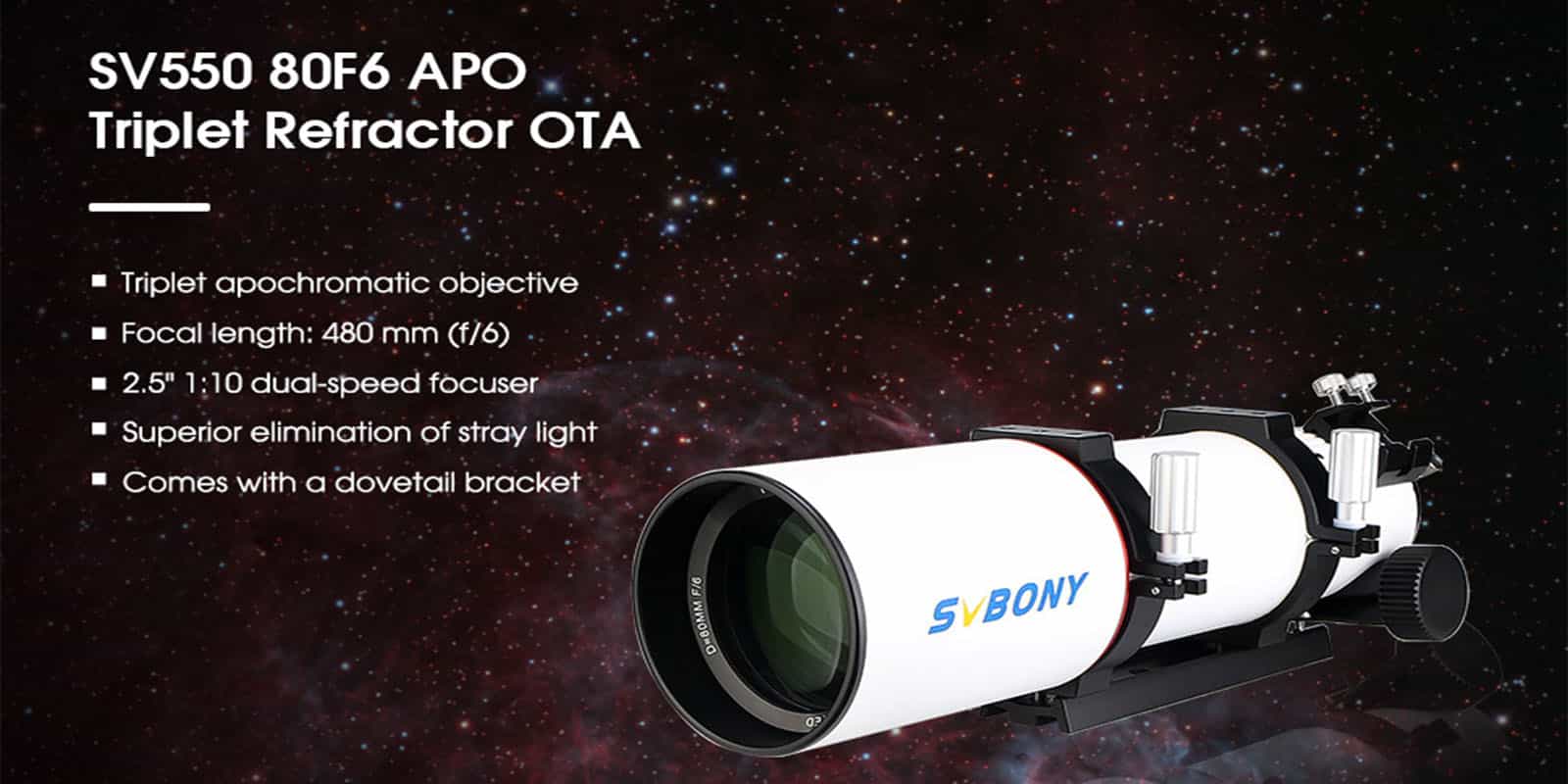

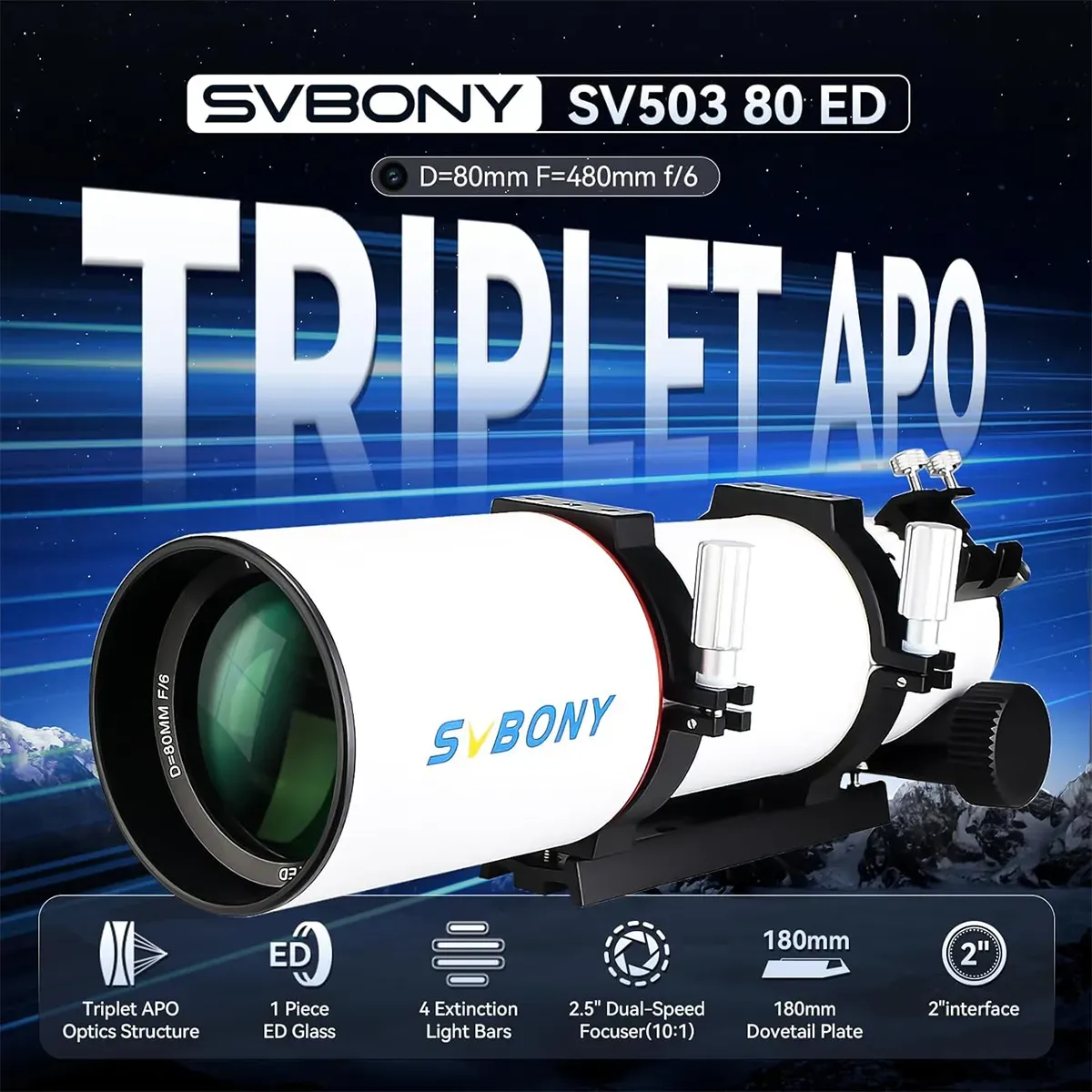

- SV550 80APO OTA, SKU: F9381A

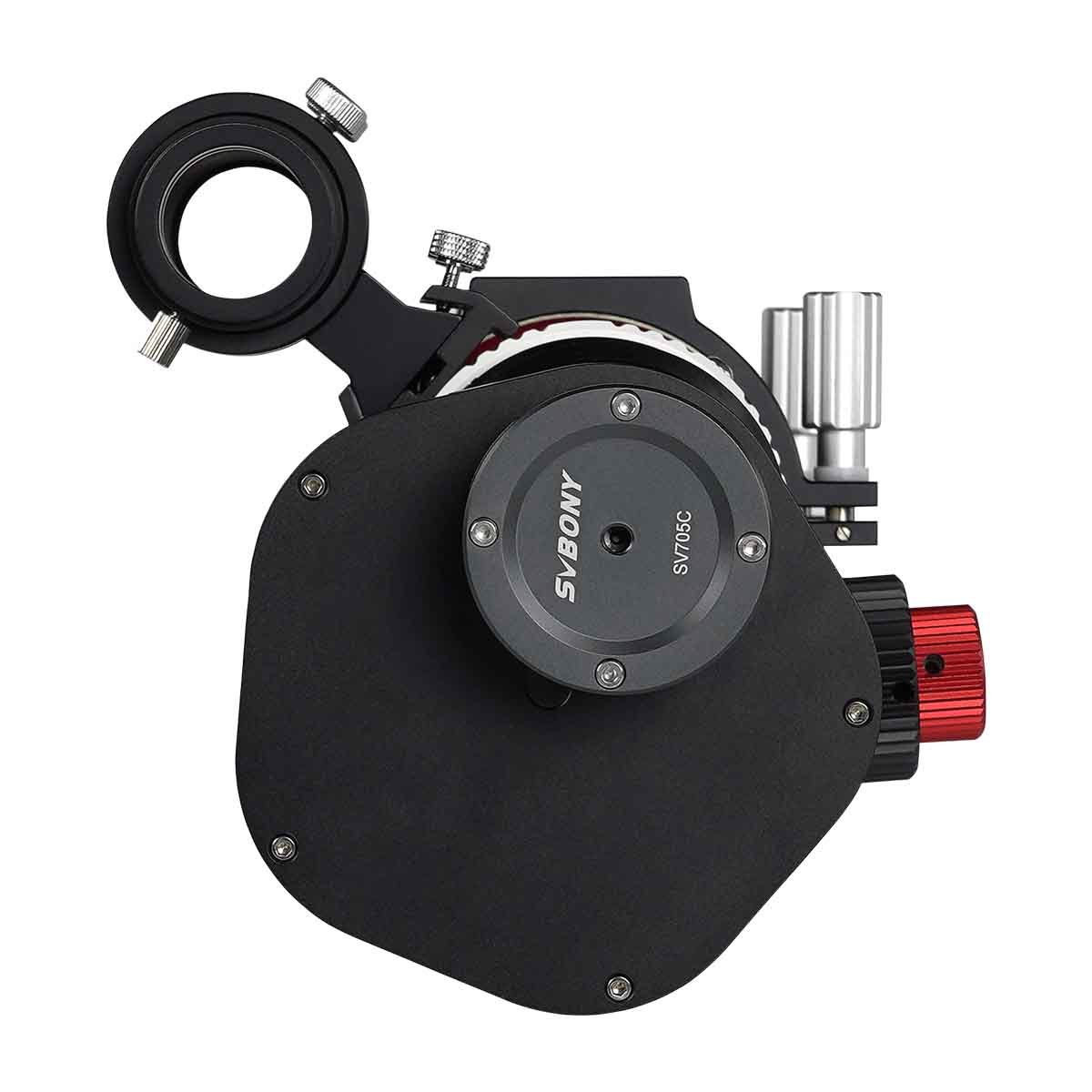

- SV705C Color Planetary Camera, SKU: F9198J
- SV165 30mm Guide Scope, SKU: W9125A
- SV209 1.0x Field Flattener/Focal Reducer, SKU: W9161A

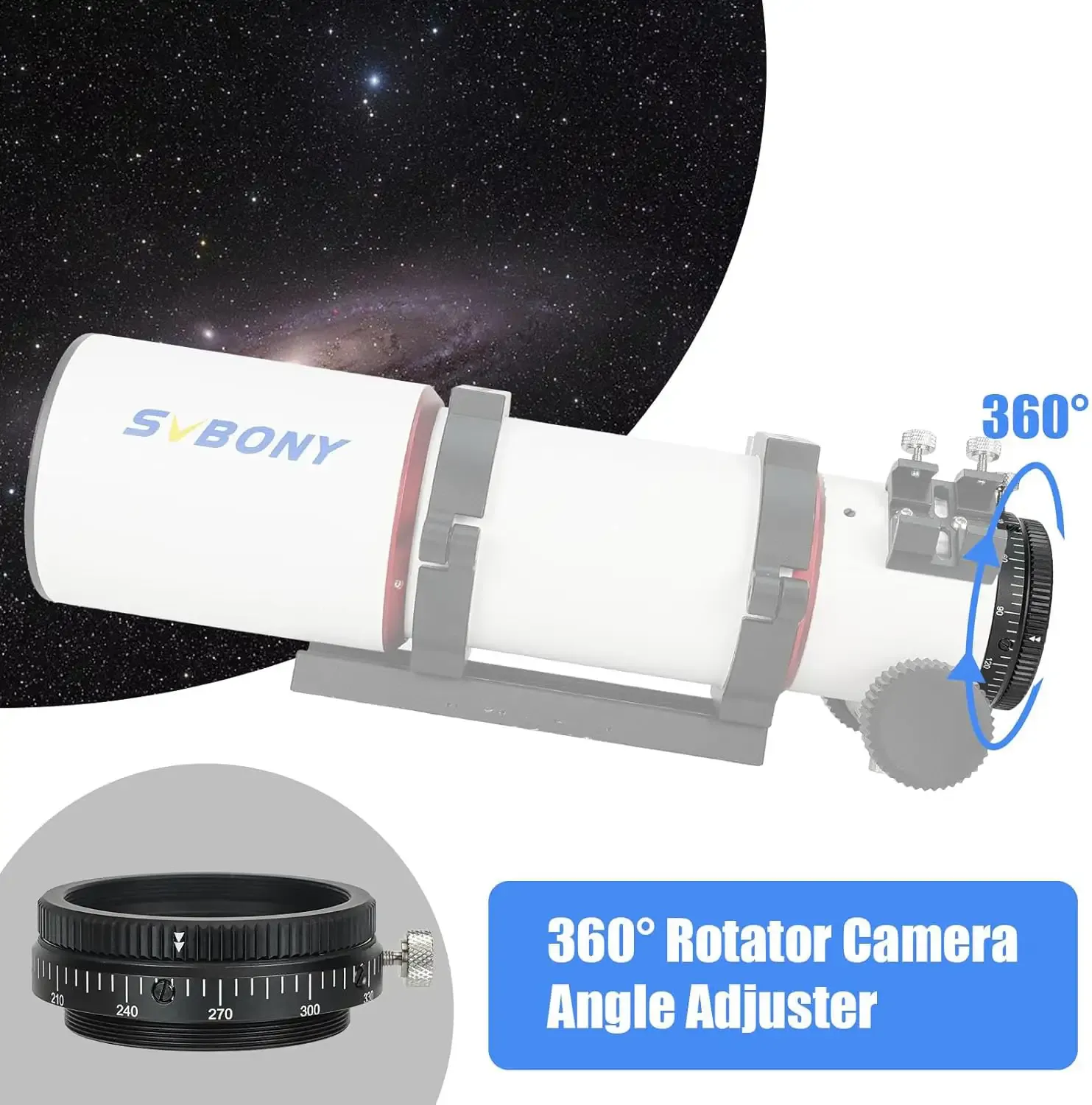

- SV210 M63 CAA 360 Degree Rotator Camera Angle Adjuster, SKU: W9162A
- SV133 Filters Wheel 1.25inch Multiple 5-Position, SKU: W9103A
FAST shipping, duty-free
| Model | SV550 |
| Product Name | APO Refractor |
| Aperture | 80mm |
| Focal Length | 480mm |
| Focal Ratio | f/6 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.45 arc seconds |
| Coatings | SMC |
| Limiting stellar magnitude | 11.6 |
| Lens design | Apochromatic |
| dovetail plate length | 150-175mm |
| barrel weight | 2900g |
| mirror Brief Size | 377.8mm |
| Tube Outer Diameter | 103mm |
| Net weight | 3750g |
| Gross weight | 3850g |
| Package size | 440x220x210mm |
| Model | SV705C |
| Product Name | Planetary Camera |

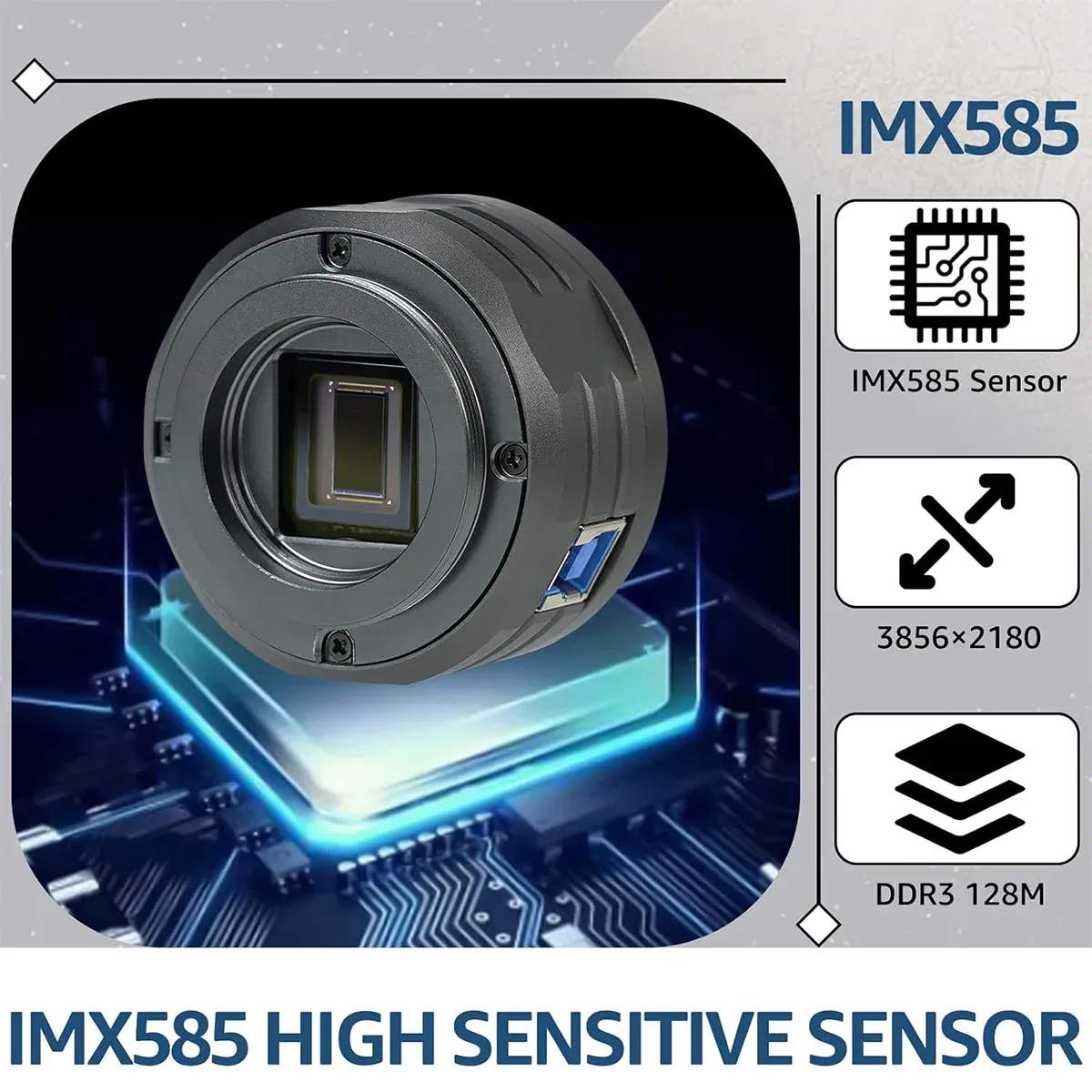

| Sensor | IMX585 |
| Total Pixels | 8.3 Mega Pixels |
| Diagonal | 12.85mm |
| Max Resolution | 3856×2180 |
| Pixel Size | 2.9μm X 2.9μm |
| Chip Size | 11.2mm×6.3mm |
| Frame Rate | 45FPS |
| Shutter | Rolling shutter |
| Exposure Range | 32μs-2000s |
| Readout Noise | 6.5e~0.7e |
| QE Peak | ≈90% |
| Full Well | 38k e |
| ADC | 12 bit |
| ROI | YES |
| BIN | 1X1 2X2 |
| Digital noise reduction | HCG |
| Compatible OS | Windows , Linux OS Raspberry Pi，Mac os, Chrome os |
| Caching | 128M |
| Guiding Port | ST4 |
| Data Port | USB3.0 |
| Adapter | 1.25″/2″/ M42X0.75/CS/C |
| Back Focal Length | 6.5mm/12.5mm |
| Protective Window | AR Coating |
| Working Humidity | 30%-80% |
| Storage Humidity | 20%-90% |
| Operating Temperature | -10℃ to +50℃ |
| Storage Temperature | -20℃ to +60℃ |
| Net Weight | 575g |
| Product Size | Ø58x38.3mm |
| Model | SV165 |
| Product Name | 30mm Mini Guider Scope |
| Aperture | 30mm |
| Focal length | 120mm |
| Focal Ratio | F4 |
| Hoop and Mount | Yes |
| Tube travel | 45mm |
| Back Focus Length | 26mm |
| Mount | UNC 1/4-20 |
| Material | Aluminum |
| Surface technology | Sandblasting oxidation |

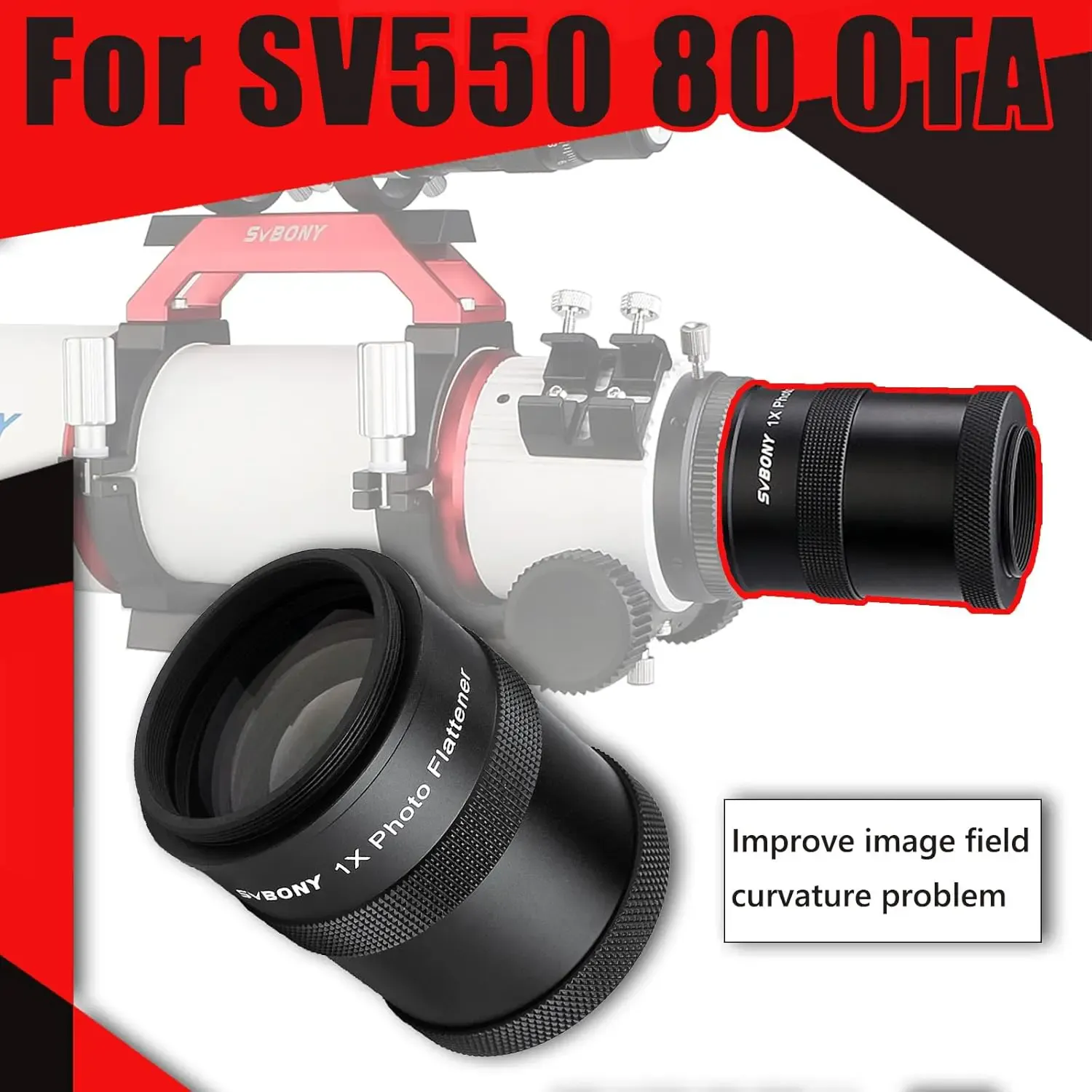

| Model | SV209 |
| Product Name | Field Flattener 1.0x |
| Additional Thread | M63x1 female thread for photo adaptions |
| Connection at Telescope Side | M63x1 male thread |
| Connection 1 at Camera Side | M63x1 thread female - working distance 103 mm |
| Connection 2 at Camera Side | M48x0.75 male thread - working distance 55 mm or 91.5 mm |
| Fully Illuminated Field | 45 mm（Support Full Frame Sensors） |
| Number of Elements | 2 lenses |
| Factor | 1.0 - no change of focal length to the focal plane |
| Coating | FMC |
| Diameter of the Housing | 67mm |
| Length | 87.5 mm without the male thread |
| Model | SV210 |
| Product Name | M63 CAA 360° Rotator Camera angle adjuster |
| Extension thickness | 20.7mm |
| Fit for | SV550 80F6 |
| Locking Screw | M4 |
| Positioning lock Function | Yes |
| Male Thread | M63x1 |
| Female Thread | M63x1 |
| Length of Male Thread | 8mm |
| Length of Female Thread | 9mm |
| Material | 6061T |
| Color | Black |
| Net Weight | 91.2g/3.22oz |

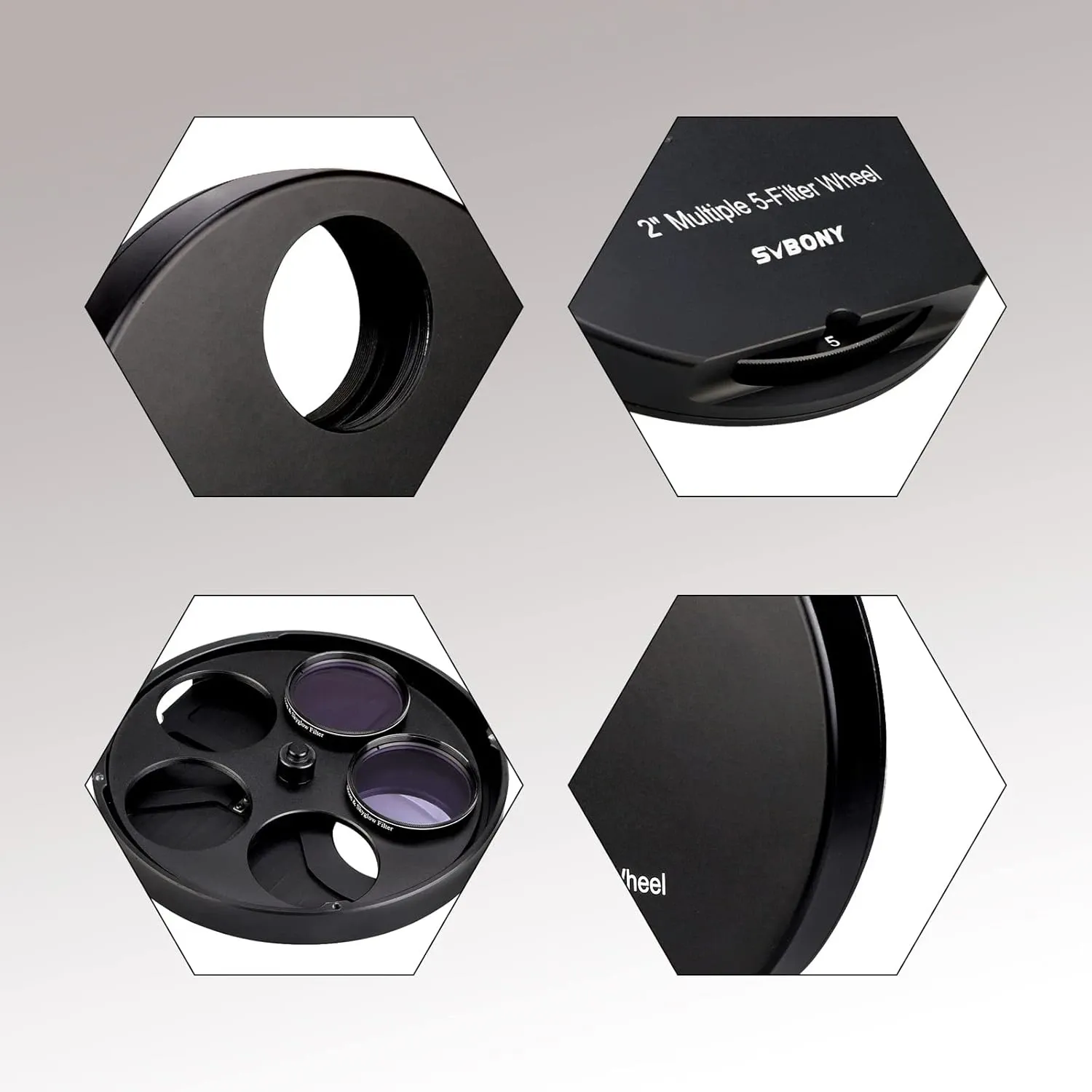

| Model | SV133 |
| Product Name | Filters Wheel 1.25inch Multiple 5-Position |
| Size | 1.25'' |
| Type | Manual |
| Color | Black |
| Net Weight | 351.5g / 12.4oz |
Features
- 1. Dual speed focuser
2. Finder base included
3. APO Objective Lens Structure & FMC Coating
4. 2.5 inch magnesium alloy focuser
5. Comes with 180mm dovetail plate
