Sony has developed the approx 2.13M effective pixel back illuminated CMOS image sensor IMX290LQR with improved sensitivity in the visible-light and near infrared light regions for industrial applications.

Back-illuminated structure with 2.9um-square unit pixel

High sensitivity characteristics (two or more times that of the existing product)

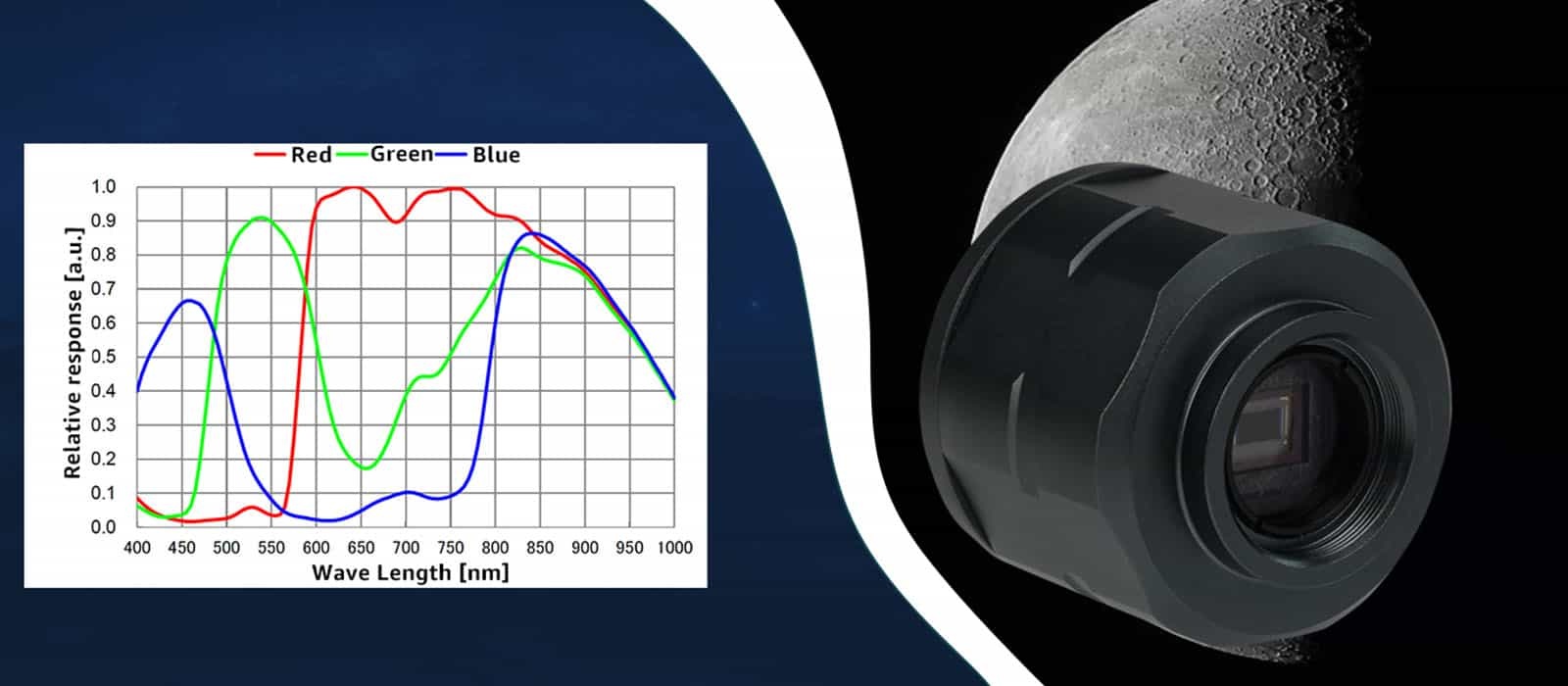

Improved sensitivity in the near infrared light region (three or more times that of the existing product)

Support WDR (multiple exposure WDR, DOL-WDR)

Versatile interface （CMOS parallel, low-voltage LVDS serial, MIPI CSI-2）

Back-illuminated (BSI) CMOS Sensor

The SV305 uses an extremely sensitive CMOS sensor, the Sony IMX290.  This sensor has very high QE, and very low (0.7e-) read noise, which improved sensitivity in the visible-light and near infrared light regions for industrial applications.

128MB DDR Buffer

The SV305 has a built-in 128MB DDRII image buffer. The benefit of the image buffer is that the memory will cache the image and transfer it to the computer when the USB interface is not busy or being interrupted, and the frame will not be lost or corrupted. This buffer also allows a slower computer with USB 2.0 socket to capture every frame without loss even if the USB socket is occasionally busy with other peripherals. This buffer also makes it possible to run multiple cameras using one computer without USB transfer problems.

Any Area ROI Support

The SV305 has ROI function. A smaller region of interest (ROI) is read out from the sensor, leaving the image scale of the object being imaged, unchanged. Allow arbitrary resolutions to be set.

ADC 12bit

The SV305 camera offers 8 bit RAW output or 12 bit.

Specification:

1.     Brand: SVBONY

2.     Model: SV305

3.     Sensor: 1/2.8" CMOS SONY IMX290

4.     Pixel Size: 2.9X2.9μm

5.     Resolution: 2 Mega Pixels 1920X1080

6.     Shutter: Electronic Shutter

7.     Max FPS: 130fps（320*240）

8.     Video encoding format：RAW

9.     ADC: 12 bit

10.  ROI support: Any area ROI.

11.  On camera image buffer: 128M DDR buffer

12.  IR-cut filter: Yes

13.  Interface: USB 2.0

14.  Net weight: 125g

15.  Material: Aluminum alloy

16.  Supported OS: Windows

17.  Power Consumption: 200mA@5V

18.  Working Temperature: -5°C~50°C

19.  Storage Temperature: -10°C~60°C

Package Includes:

l  1 X SV305 Astronomy Camera

l  1 X USB2.0 Cable

l  1 X 1.25” Extension tube

l  1 X C-lens adapter

l  1 X User manual

l  1 X CD (Astronomy software & driver & electronic user manual)

l  1 X Cleaning cloth
