SV601 Microscope SV305 Astronomy Camera

In Stock Unavailable
SKU: F9198A-F9365A-W2811E

Regular price $211.99

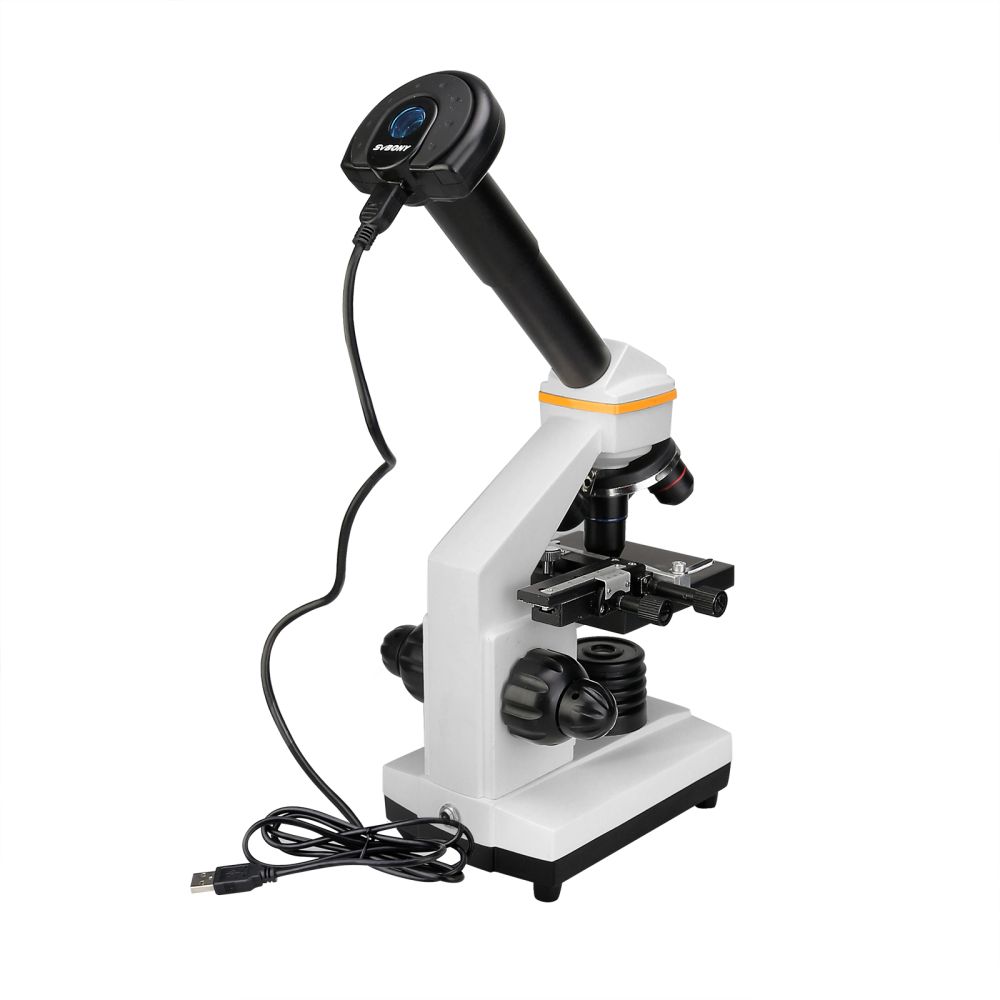

SV601 Microscope can work well with SV305 Astronomy Camera. you just need to use a 0.91” to 1.25” Adapter to easily connect. You can capture every detail of the specimen by Using SV305, the image is clear and sharp. Welcome to explore the micro-world with SV601 Microscope and SV305 Astronomy Camera.

Remove Eyepiece and 2X Extender

SVBONY SV601 Microscope、0.91”to 1.25” Adapter、SVBONY SV305 Astronomy Camera

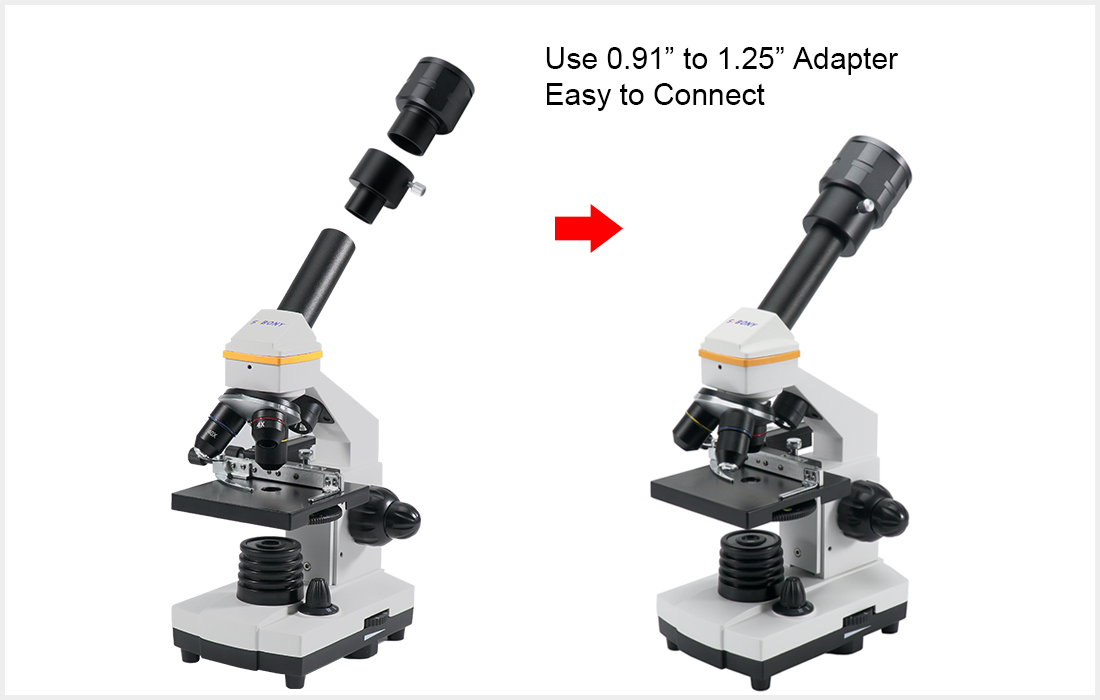

Use 0.91” to 1.25” Adapter,Easy to Connect

Travel in the Microcosm to Record Every Detail

High-Definition and Sharp Images Restore True Colors

specimen of Stem of Wood Dicotyledon, Epidermis Onion, and Housefly Legs

0 reviews

Write a review

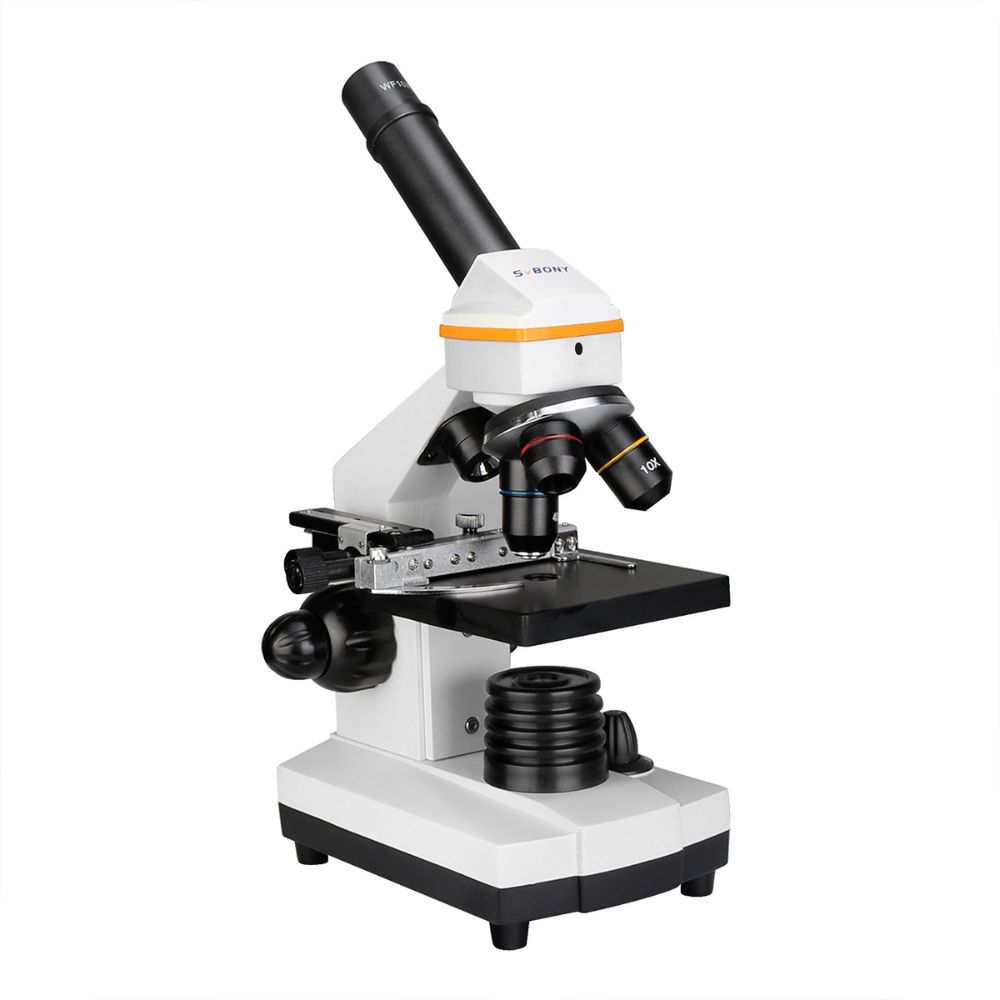

Model

SV601

Optical System

Finite Biological Microscope

Eyepiece

WF10X WF20X

Objective

4X 10X S40X

Barlow lens

2.0X

Magnification

40X-1600X

Working Stage

90mmX90mm Square/Moving Scale/Disc Filters

Adjustment

Coarse Focuser & Fine Focuser (dual knobs)

Illuminator Top/Bottom

LED Lights,Uses 2xAA batteries (Not included)

Net Weight

1200g / 2.65lb

Item Size

155x110x290mm

Model

SV305

Sensor

1/2.8" CMOS SONY IMX290

Pixel Size

2.9X2.9μm

Resolution

2 Mega Pixels 1920X1080

Shutter

Electronic Shutter

Max FPS

130fps(320*240

ADC

12 bit

ROI support

Any area ROI

On camera image buffer

128M DDR buffer

Optic window

IR-cut filter

Interface

USB 2.0

Net weight

125g

Material

Aluminum alloy

Supported OS

Windows, Linux, Raspberry Pi

Power Consumption

200mA@5V

Working Temperature

-0°C~45°C

Storage Temperature

-10°C~60°C

Working Relative Humidity

20%~80%

Storage Relative Humidity

20%~95%

1, SVBONY SV601 can be used in conjunction with SVBONY SV305, the image is clear and sharp, and it is convenient to record every detail you need.

2, SVBONY SV601 and SVBONY SV305 only need a 0.91" to 1.25" adapter to connect easily.

3, There are two top and bottom LED light sources and 8 light levers on SVBONY SV601, you can adjust the brightness as needed.

4, In order to find the observation target conveniently, before using SVBONY SV305, you can first use the 10x eyepiece and the 4x objective lens, and use the two knobs to adjust the position of the slide to move the target to the center of the field of view.

5, Before connecting SVBONY SV305, you need to take out the 2X extender and 10x eyepieces from the microscope.

6, When adjusting the focus, please adjust the coarse focus wheel first. When the image is close to clear, use the fine focus wheel. At the same time, pay attention to the distance between the glass slide and the objective lens to prevent the lens from crushing the glass slide.

7, Learn more about the combination:

https://www.svbony.com/blog/How-to-use-the-SVBONY-SV601-Microscope-with-the-SVBONY-SV305-Astronomy-Camera-/
