For deep-sky astrophotographers, a telescope needs to offer more than aperture and focal length. Optical design, image circle, focal ratio, back focus, and mechanical interfaces all affect how well it fits into a complete imaging system.

The SV580 80mm f/4.5 Petzval APO astrograph combines an 80mm aperture, 360mm focal length, and f/4.5 focal ratio with a Sextuplet Petzval APO optical system, a 44mm full-frame image circle, and integrated field correction.

Together, these features make the SV580 a compact 80mm refractor telescope built primarily for wide-field deep-sky astrophotography and full-frame imaging.

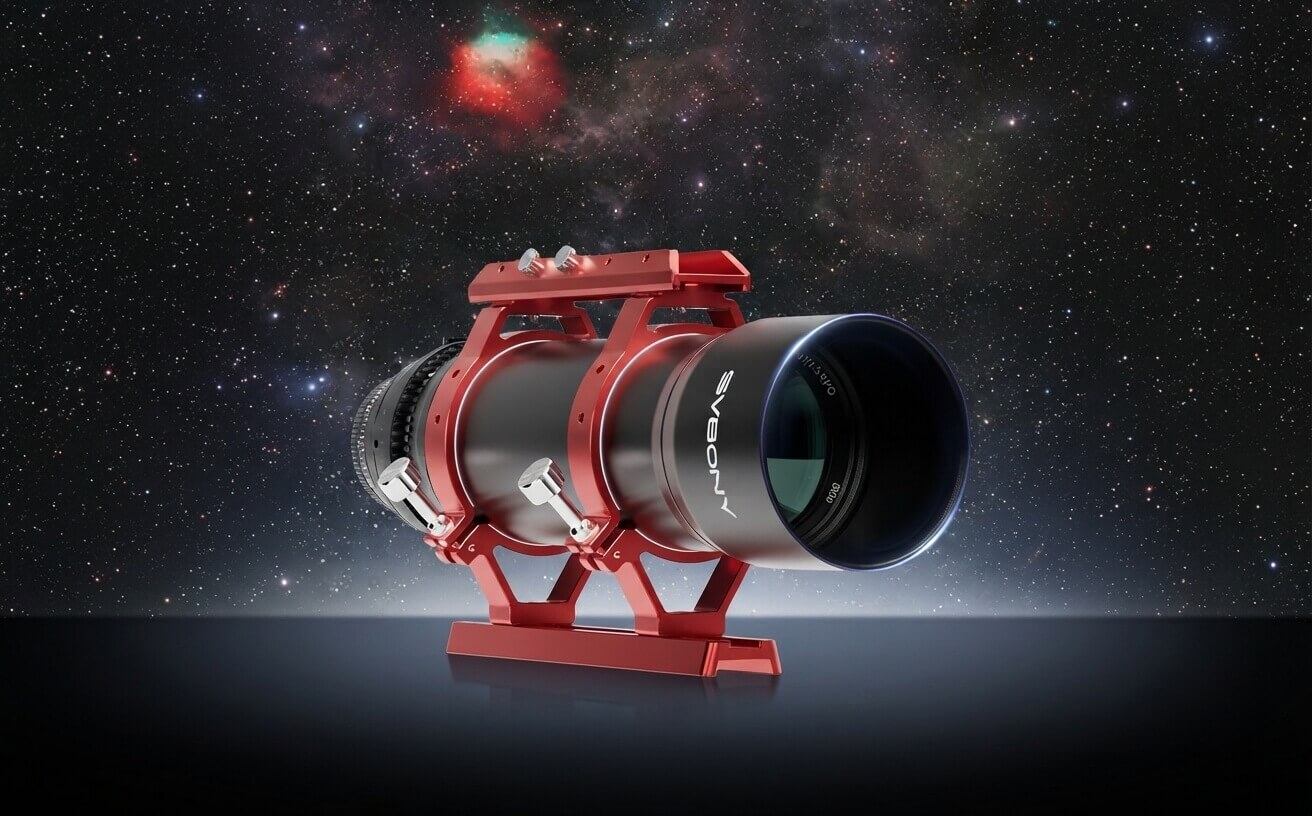

What Is the SV580 80mm Full-Frame Astrograph?

The SV580 is an 80mm APO refractor telescope built specifically for astrophotography. Its 360mm focal length provides a relatively wide field of view, while the f/4.5 focal ratio makes it a fast astrograph for extended deep-sky targets.

At the optical level, the telescope uses a Sextuplet Petzval APO design with six elements in four groups, including two ED elements. The system provides a specified 44mm image circle for full-frame imaging and incorporates field correction into the telescope.

The main specifications are:

These specifications position the SV580 as an imaging-focused refractor built around wide-field deep-sky astrophotography.

A Closer Look at the SV580’s Petzval APO Design

The SV580 uses a Sextuplet Petzval APO optical system with six elements in four groups, including two ED elements.

For astrophotographers, one of the key features is integrated field correction. The SV580 incorporates field correction into its optical system, so a separate external field flattener is not required as part of its basic configuration.

The telescope is also specified with a 44mm image circle for full-frame imaging.

For users comparing an 80mm Petzval telescope with other refractor designs, the main point is how these elements come together as an imaging system: Sextuplet Petzval optics, integrated field correction, and full-frame coverage.

The optical principles behind the Petzval configuration and its effect on image performance will be covered in greater detail in a separate technical article.

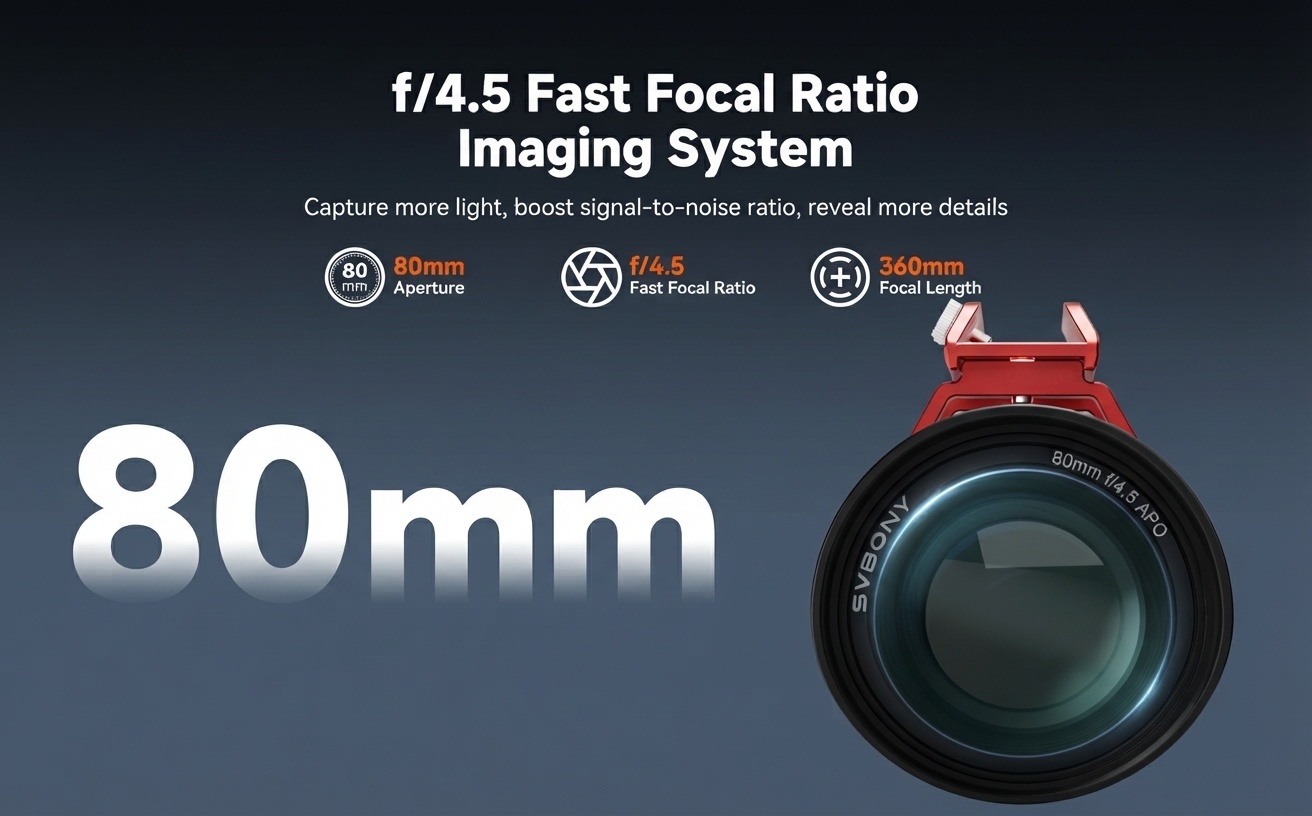

80mm f/4.5 for Wide-Field Deep-Sky Astrophotography

The SV580 combines an 80mm aperture, 360mm focal length, and f/4.5 focal ratio in a relatively compact optical tube.

The 360mm focal length provides a wider field of view than longer-focal-length refractors, making the telescope well suited to larger deep-sky subjects and compositions that include surrounding star fields.

It can be used for targets such as large emission and reflection nebulae, extended nebular regions, star clusters, and other deep-sky objects that benefit from a broader field of view.

The f/4.5 focal ratio also makes the SV580 a fast astrophotography telescope for wide-field imaging. Its 80mm aperture provides more light-gathering area than smaller wide-field telescopes, while the 360mm focal length keeps the system focused on broader deep-sky framing rather than high-magnification targets.

Full-Frame Astrophotography with the SV580

The SV580's optical design is supported by several mechanical features intended for a complete imaging system.

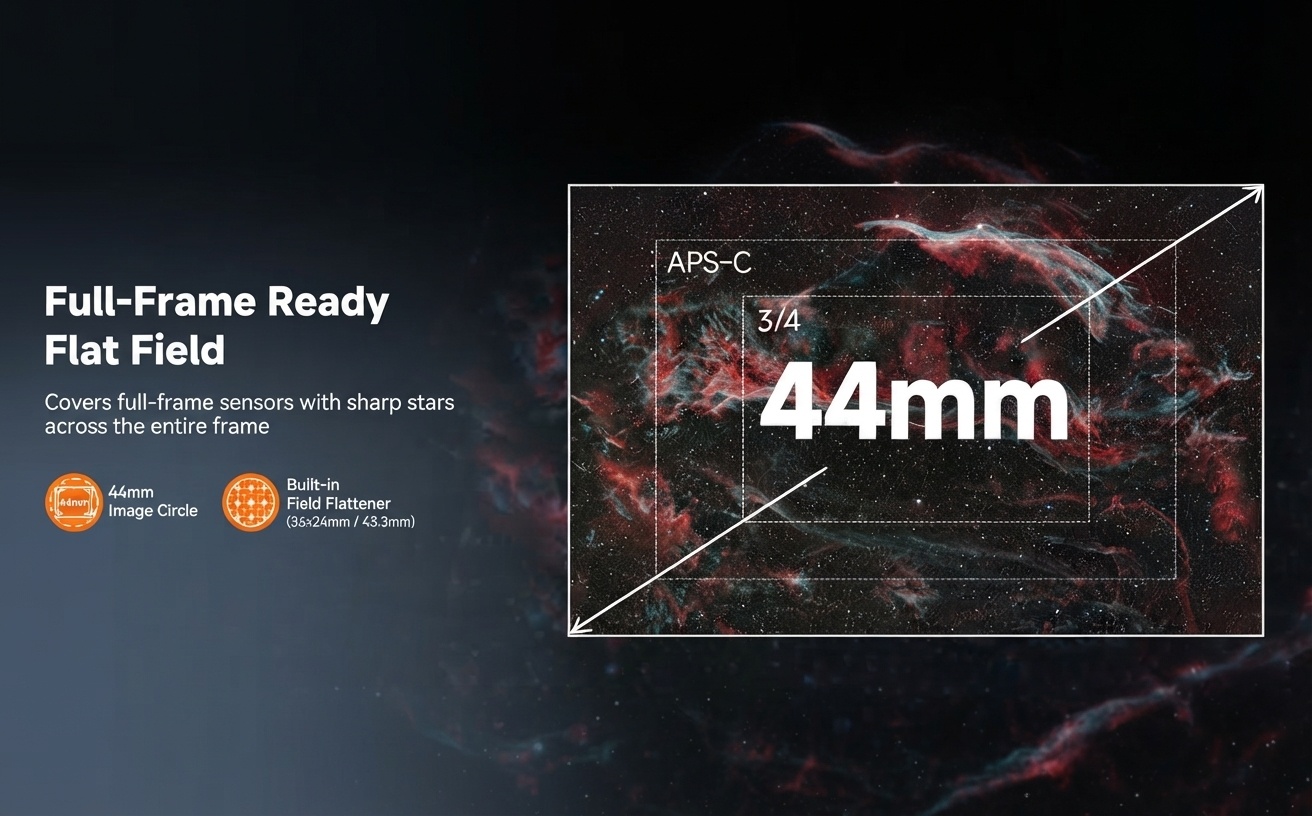

Its 44mm image circle is specified for full-frame imaging, while the 55mm back focus provides a reference for positioning the camera and other components.

The telescope also includes:

• M48 and M54 camera connections
• A lockable 360° rotator with a graduated scale
• An integrated 2" filter holder
• An M93 × 1 front filter thread
• A helical / screw focuser
• An EAF mounting solution

The 360° rotator allows the camera orientation to be adjusted while maintaining the telescope's pointing position. This can be useful when framing a target or setting the orientation of a rectangular camera sensor.

The integrated 2" filter holder allows compatible filters to be incorporated into the optical path without requiring a separate external filter holder.

The exact imaging configuration will depend on the camera, filters, OAG, adapters, and other accessories used.

Hands-On Experience: Building an Imaging Setup

Specifications explain what a telescope is designed to do, while hands-on use can reveal smaller details that are harder to capture in a specification table.

In one third-party hands-on evaluation, the reviewer described the SV580's helical focuser as smooth and damped. The reviewer also reported using the supplied EAF mounting solution with a ZWO EAF and a Gemini focuser without significant mechanical difficulty, with minimal backlash in those configurations.

These observations come from one user's equipment setup and should not be taken as a universal compatibility or performance guarantee.

Practical Details for Everyday Setup

The tube rings also include a small mechanical detail that can be useful during setup: the ring-closing hardware is captive, so the fastening components remain attached to the rings.

While this is a small detail, it can be convenient when assembling or adjusting equipment in the dark.

What to Consider When Building Your Imaging Setup

The SV580's integrated field correction means a separate external field flattener is not required as part of its basic optical configuration, but the rest of the imaging train still needs to be planned around the telescope's specifications.

The 55mm back focus provides the reference point for positioning the camera and other components. In one reported configuration, the reviewer fit an OAG, filter drawer, and camera within the available backspacing.

The exact spacing will depend on the individual camera, filter system, OAG, adapters, and other accessories.

Before assembling a setup, check:

• 55mm back focus and the required spacing of each component
• Camera sensor size
• M48 or M54 camera connection
• Filter thickness and position
• OAG spacing
• Electronic focuser compatibility
• Camera and accessory weight
• Mount capacity
• Mechanical clearance around the focuser and camera angle adjuster

Planning the complete optical path before assembly can help ensure that the individual components fit together within the available space.

Compact 80mm Design for Astrophotography

The SV580 provides an 80mm imaging aperture in a relatively compact optical tube.

The tube measures approximately Φ114 × 365mm when fully retracted and uses 6061 aluminum alloy with CNC machining. Its compact form factor can be useful for astrophotographers balancing telescope size with cameras, filters, focusers, and mounting equipment.

The included 254mm Vixen dovetail plate, tube rings, and handle provide the mounting hardware needed to integrate the telescope into an imaging setup.

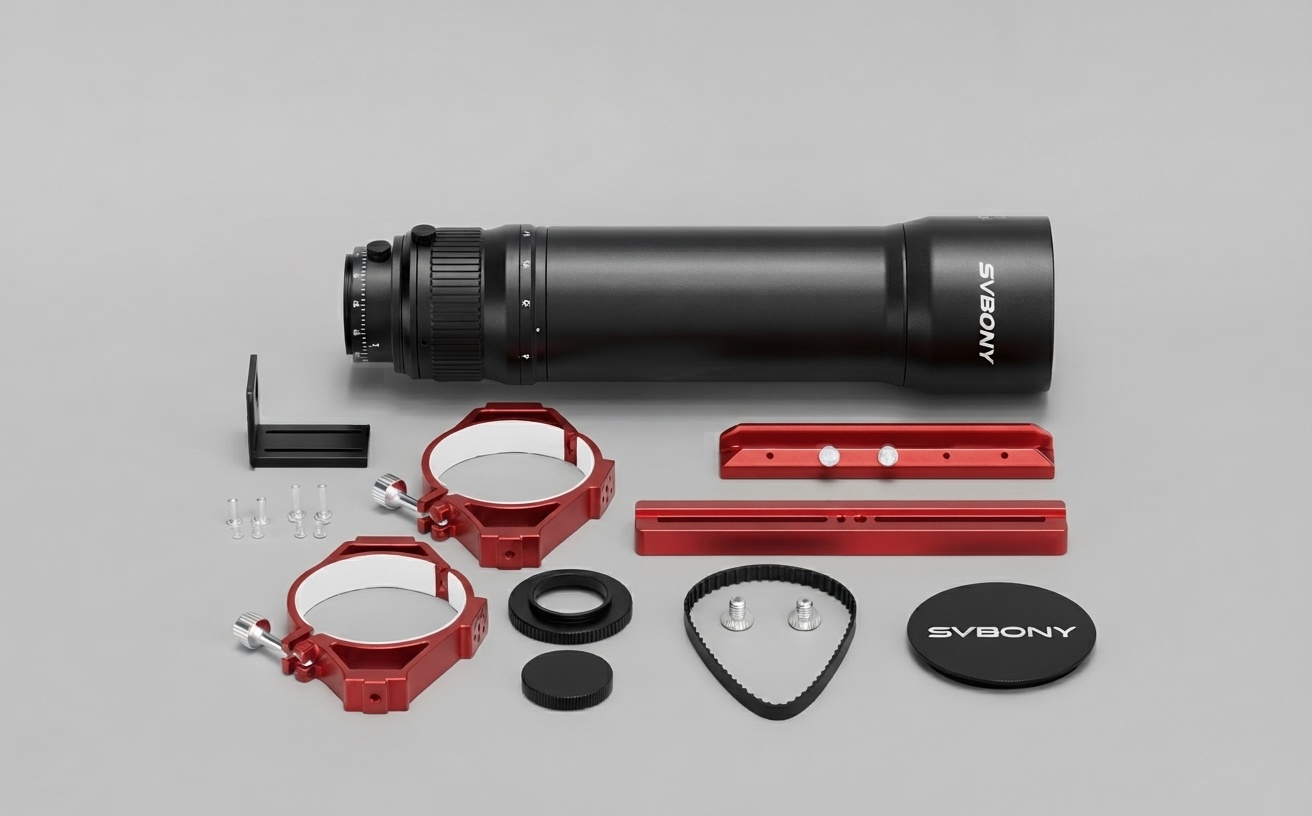

What's Included with the SV580?

The SV580 package includes:

• SV580 80mm f/4.5 OTA
• EAF Mount Kit
• Pair of Tube Ring Sets
• Handle with integrated Vixen Finder saddle
• 254mm Vixen dovetail plate
• M48 & M54 camera adapter
• Metal lens cover
• M48 dust cap
• Hand-carrying case
• Instruction manual

The camera, mount, filters, OAG, and other imaging accessories can then be selected according to the user's preferred imaging workflow.

Real-World Deep-Sky Imaging with the SV580

The SV580 has also been used for real-world deep-sky imaging with an SVBONY deep-sky camera.

One hands-on evaluation included a Crescent Nebula image captured with the SV580 and SV571CC, with approximately eight hours of total integration under Bortle 6 suburban skies.

Crescent Nebula captured with the SV580 and SC571CC

Approximately 8 hours of total integration · Bortle 6 suburban skies

Image and capture data: third-party hands-on evaluation

The image provides a practical example of deep-sky imaging with the SV580, showing an extended nebular target framed with surrounding star fields.

As with any astrophotography image, the final result reflects the complete imaging system and workflow. The image is best viewed as a real-world example of the telescope in use rather than as a standalone optical measurement.

A separate technical article will examine the SV580's Petzval optical design and present center-to-corner performance data from full-frame testing.

Who Is the SV580 Best Suited For?

The SV580 is primarily aimed at astrophotographers looking for a fast 80mm refractor telescope with full-frame imaging coverage and integrated field correction.

It may be particularly relevant for users who:

• Want a dedicated telescope for deep-sky astrophotography
• Use or plan to use a full-frame astronomy camera
• Prefer a wider field of view for nebulae, star clusters, and other extended targets
• Want an f/4.5 astrograph for wide-field imaging
• Prefer integrated field correction and flexible camera orientation
• Need a relatively compact telescope for an imaging setup

While the SV580 is an astronomy telescope, its design is optimized for astrophotography rather than general-purpose visual observation.

The SV580 at a Glance

The SV580 brings together an 80mm aperture, 360mm focal length, f/4.5 focal ratio, Sextuplet Petzval APO optical design, two ED elements, and a 44mm full-frame image circle in a compact imaging platform.

Its integrated field correction, 55mm back focus, M48/M54 connections, 360° rotator, integrated 2" filter holder, and EAF mounting solution support a dedicated wide-field imaging workflow.

For astrophotographers considering an 80mm Petzval telescope, 80mm APO refractor telescope, or full-frame astrograph, the SV580 is built around wide-field deep-sky imaging in a compact format.
