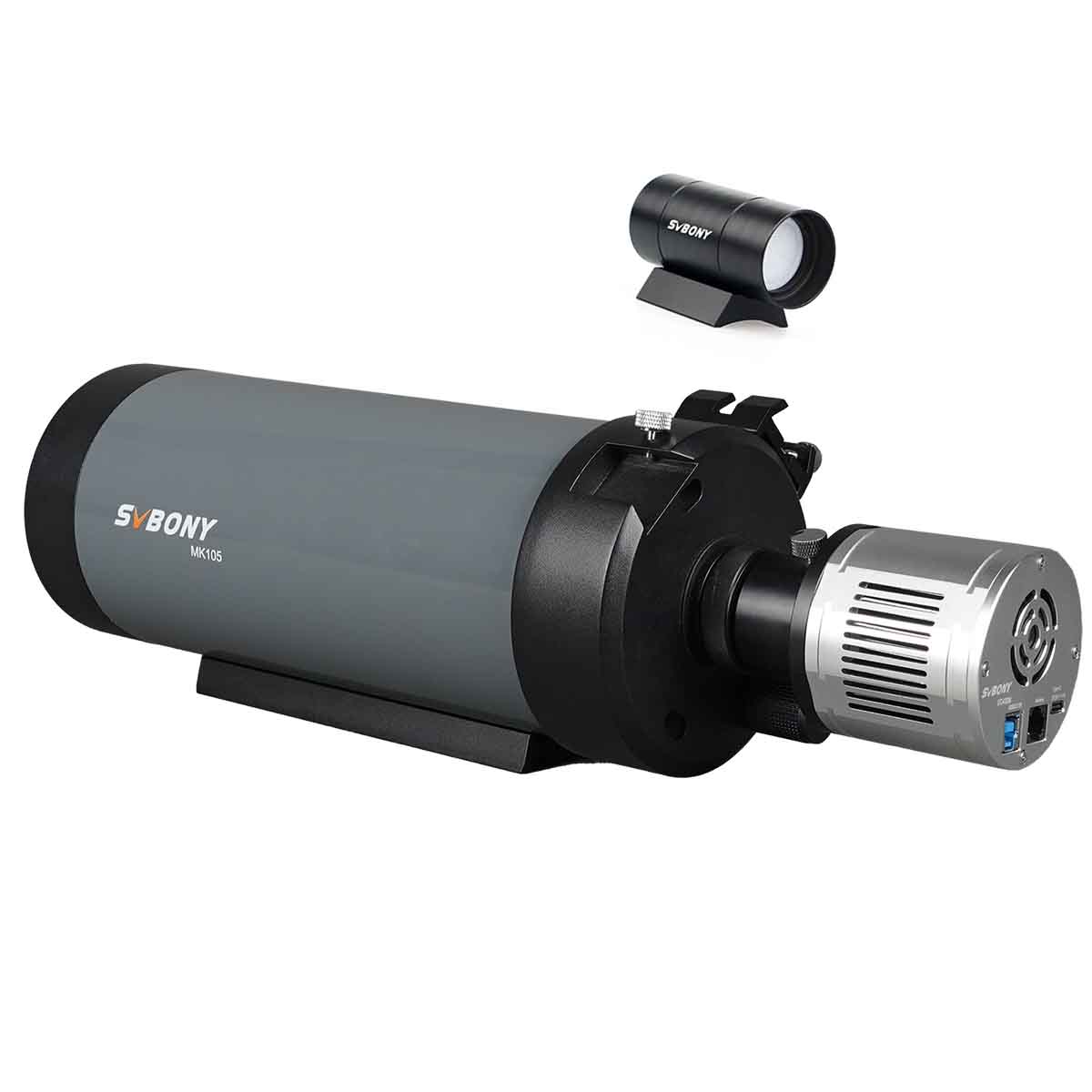

This Solar Set includes:
In Stock
| Brand | SVBONY |
| Model | MK105 |
| Type | Maksutov Cassegrain |
| Mounting Base Number | 2PCS |
| Aperture | 105mm |
| Resolution | 1.1arc second |
| Focal Length | 1365mm |
| Limiting Magnitude | 12.1 |
| Focal Ratio | f/13 |
| Light Gathering Power | 210x |
| Primary Mirror | Multi-coated Precision Aluminum Coating |
| Optical Tube Length | 377mm |
| Optical Tube Diameter | 119mm |
| Focus | Internal Optical Tube |
| Net Weight | 2193g / 4.83lbs |
| Adapter Thread | M42x0.75 for T-ring |
| Brand | SVBONY | |
| Style | SV229 | |
| Name | Solar Filter | |
| Material | Polymer+ Aluminum Frame | |
| Model | W9183B | W9183C |
| Aperture | 103mm | 140mm |
| Outer Diameter | 80mm - 118mm | 118mm - 159mm |
| Fit for OTA | SV503 70mm f/6, SV503 80mm f/7, SV550 80mm f/6, MK90, SV48P 90 | SV48P 102, Mk105, SV503 102mm f/7, SV550 122mm f/7 |
| Name | Solar Camera |
| Model | SC432M |
| Sensor | SONY IMX432 Mono CMOS |
| Shutter Type | Global Shutter |
| Frame Rate | 120FPS |
| Pixel Size | 9μm |
| Resolution | 1608×1104 |
| Minimum Back Focal Length | 7.5mm/12.5mm |
| Target Surface Size | 14.5mm×9.9mm |
| Diagonal Length | 17.5mm |
| Cache | DDR3, 256M |
| Protective Glass | AR Anti-reflection coating |
| QE | 0.79 |
| Full Well | 97Ke |
| Readout Noise | 2.4e-20.8e |
| ADC | 12bit |
| Temperature Display | Add temperature sensor, software interface displays real-time temperature of the chip |
| Exposure | 20μs-2000s |
| Gain | Absolute value |
| USB Speed | 0,1,2 |
| Background Level | 0-255 |
| ROI | Support |
| HCG | Gain 140, automatically activate HCG noise reduction mode, readout noise reduced to 2.4e, achieving 12 stops of dynamic range |
| BIN | BIN1, BIN2, BIN3, BIN4 |
| Color Space | MONO8, MONO16 |
| Output Format | PNG/JPG/AVI/SER/FITS/TIFF/ADV |
| Image Flip | None/Horizontal/Vertical/Both |
| Contrast | 0-100 |
| Gamma | 0-10 |
| Sharpening | 0-100 |
| Histogram Display | Support |
| Local Driver | Supports imaging software such as Sharpcap, Firecapture, AstroDMX Capture |
| ASCOM Driver | Support |
| Compatible Systems | Windows OS 7-11/Linux Ubuntu/Mac OS X86, ARM, M1, M2/Raspberry Pi 3, Pi4 |
| Camera Body Interface 1 | M42 thread interface (M420.75) |
| Camera Body Interface 2 | USB-C power data port |
| Camera Body Interface 3 | ST4 guide star interface |

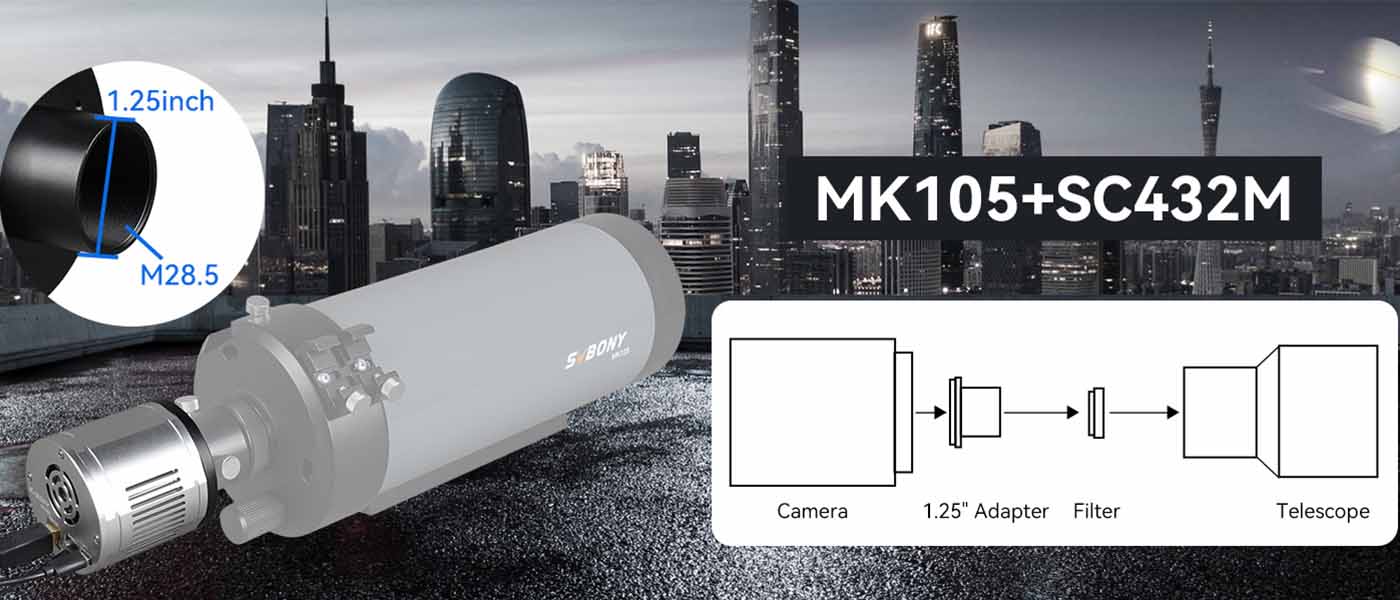

| External Interfaces | M42 thread to 1.25-inch extension tube M28.5 filter thread interface |
