The SC432M monochrome planetary camera with global shutter has large pixel which makes you see the clear image. The global shutter can capturing the ever-changing moments of the sun, 9um pixel size makes it able to work at longer focal ratio and with high sensitivity.
Special offers and product promotions

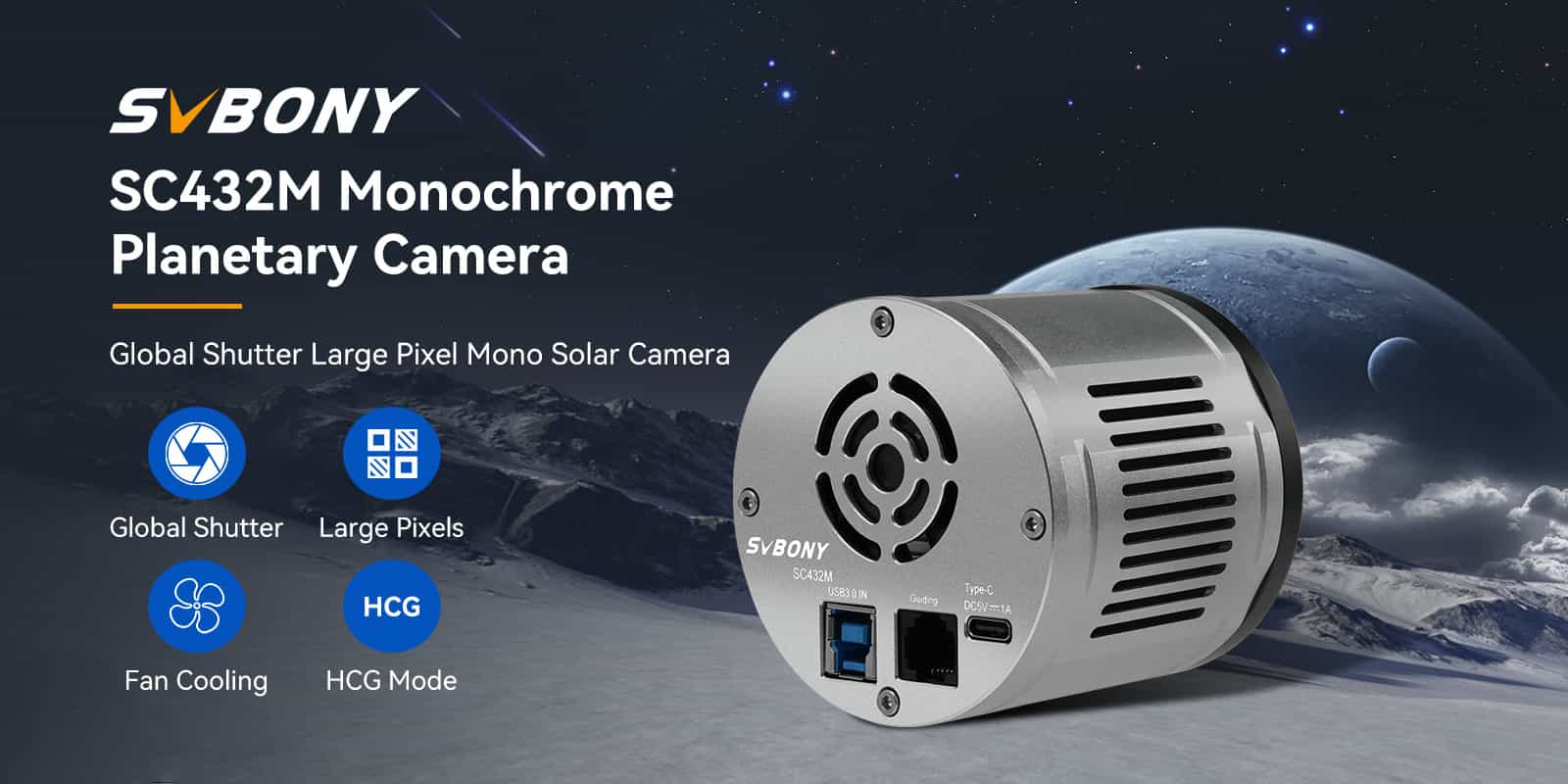

SC432M Monochrome Solar Imaging Camera
SC432M monochrome planetary camera is designed with global shutter technology; with pixels reaching 9um; which makes its full well reach 100Ke; these features make the SC432M camera unique.

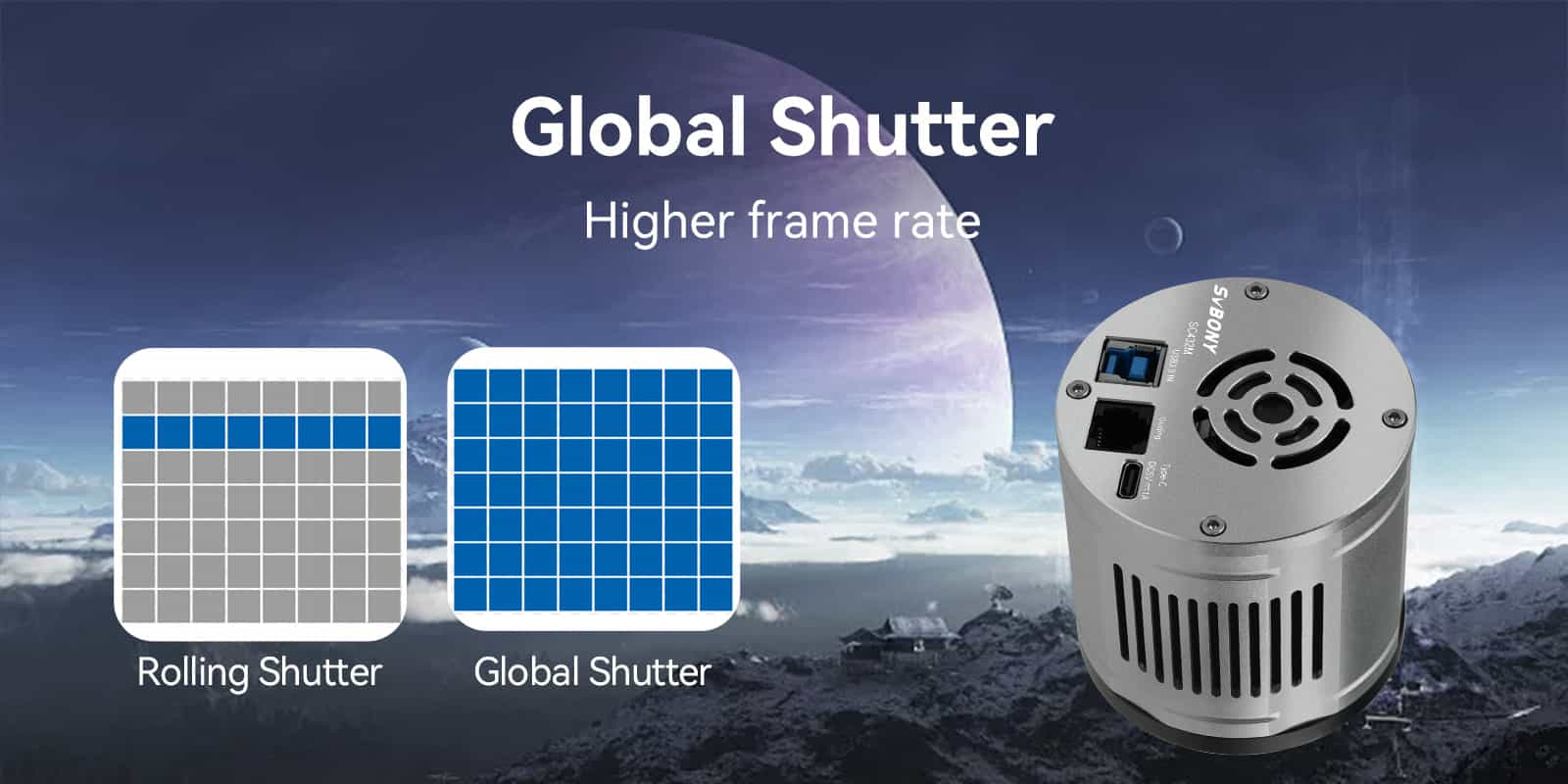

Global Shutter
As we know, slight atmospheric jitter and equipment shaking bring great difficulties to imaging. The global shutter can achieve fast imaging; greatly improving shooting efficiency by capturing the ever-changing moments of the sun.
Being a global shutter camera, SC432M telescope camera also features a 120 high frame rate per second; it’s not only good for solar and lunar imaging; also suitable for you to photograph ISS and other fast-moving objects.

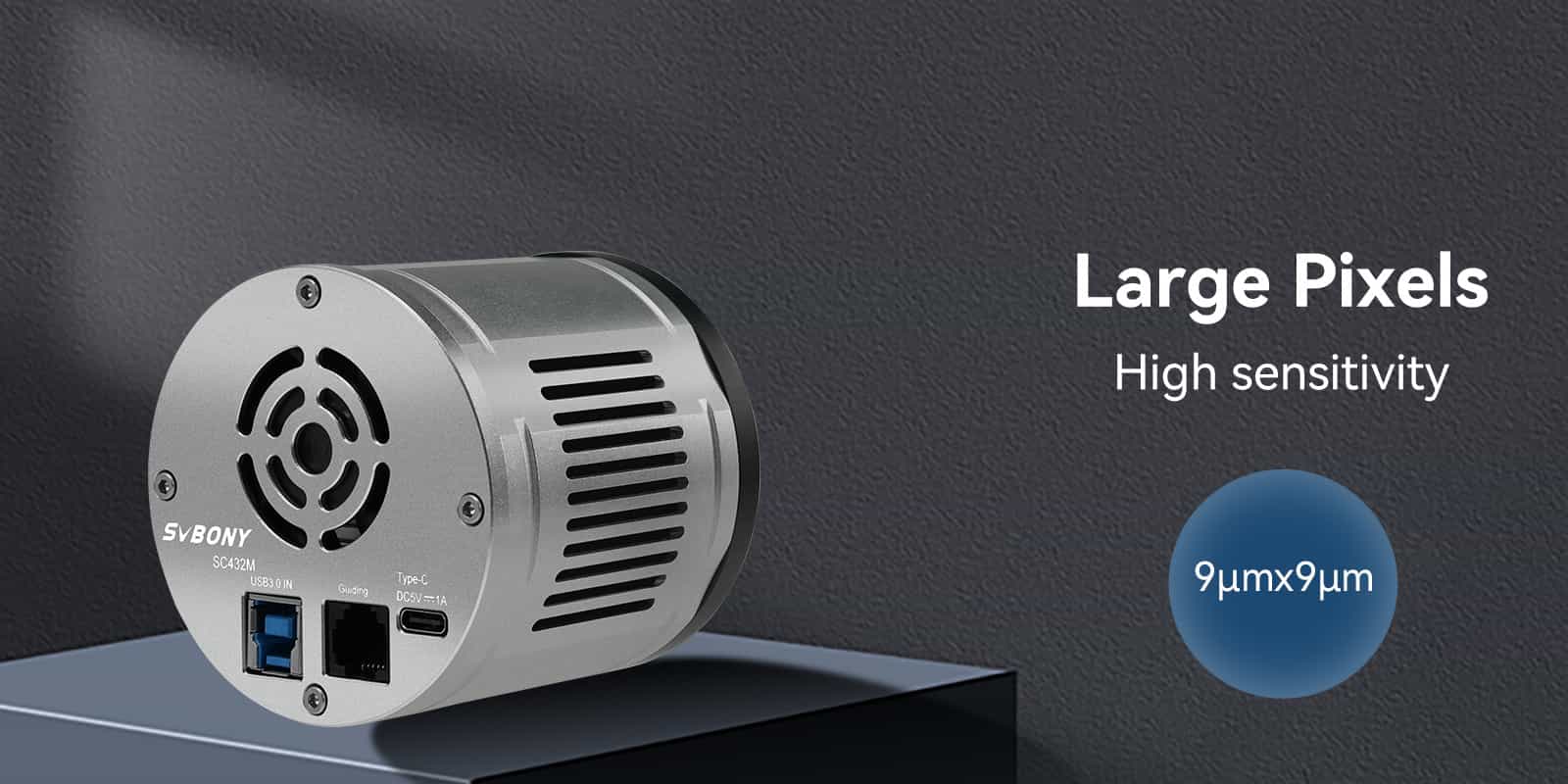

Large Pixels
This camera pixel is 9μm x 9μm, which means it can works at longer focal ratio. With its high sensitivity, images with finer colors and subtler details are possible; you can have full trust in its solar imaging performance. Large shooting area can cover 80% or even the entire sun; this 9μm large pixels provide clear imaging details; greatly reducing the number of post-processed images.

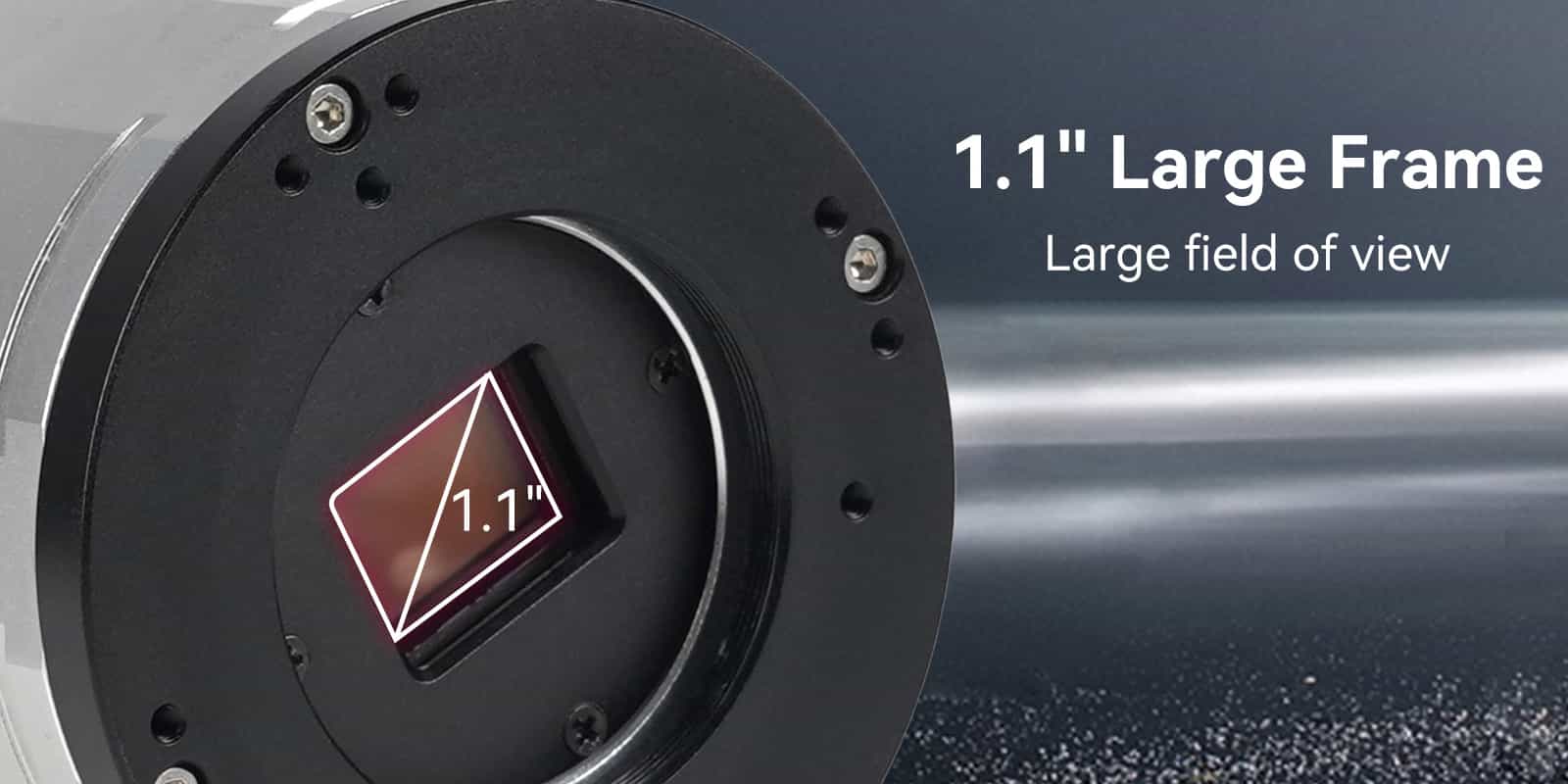

1.1-inch Large Frame
SC432M astrophotography camera has a 1.1" large format; a larger field of view; and a larger area than currently recognized planetary cameras; if it is used to take pictures of the sun and moon; it is naturally a better choice; it can meet the different observation needs of yours. When under conditions with flares and other activities, a camera with a small target area can only capture part of the sun; while a large format camera can capture a complete image of the sun.

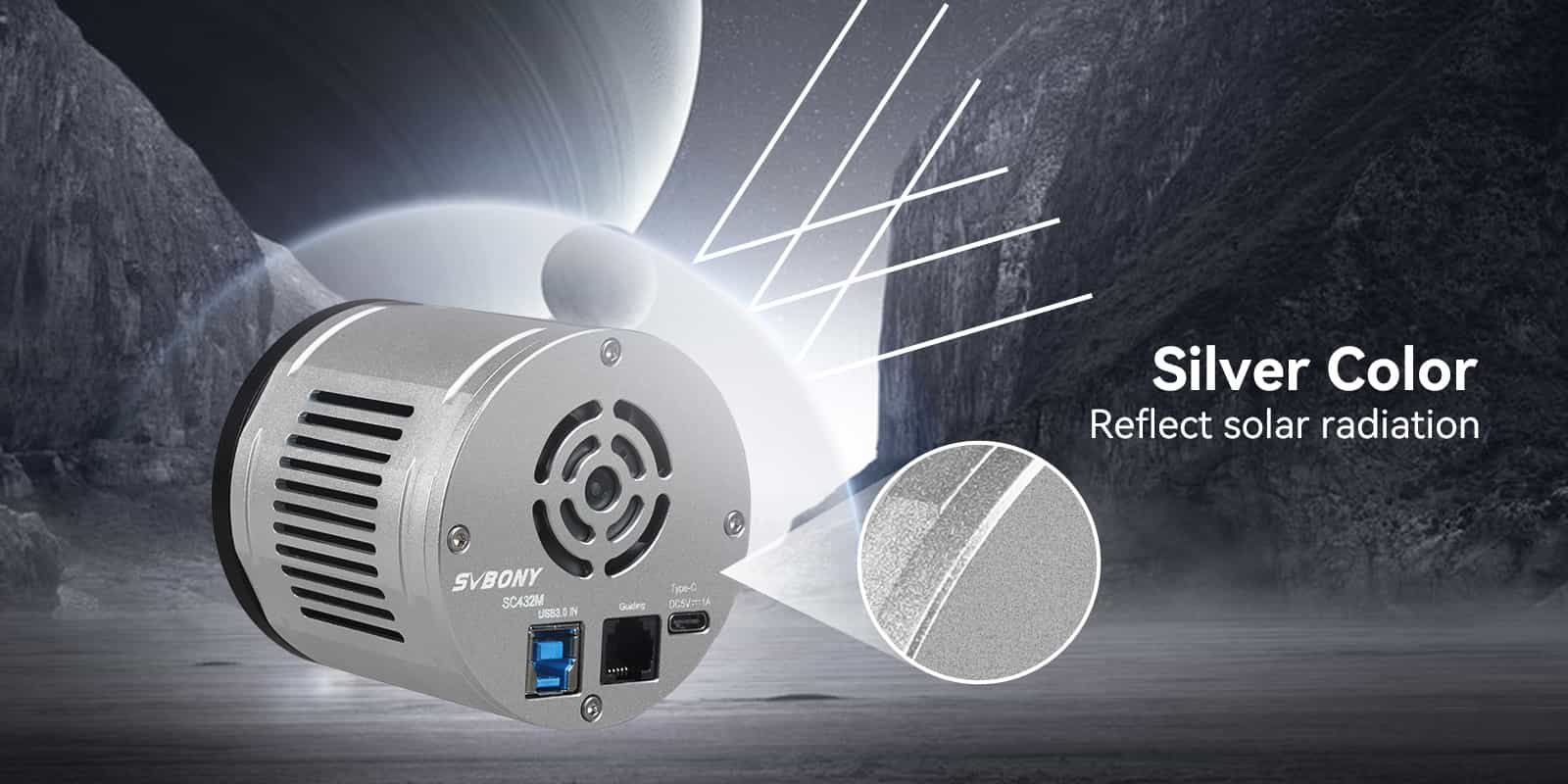

Silver Color
Silver appearance can reflect part of the sunlight and reduce the heat absorption of the camera when shooting the sun. The body absorbs less heat and ensures no noise when producing images.

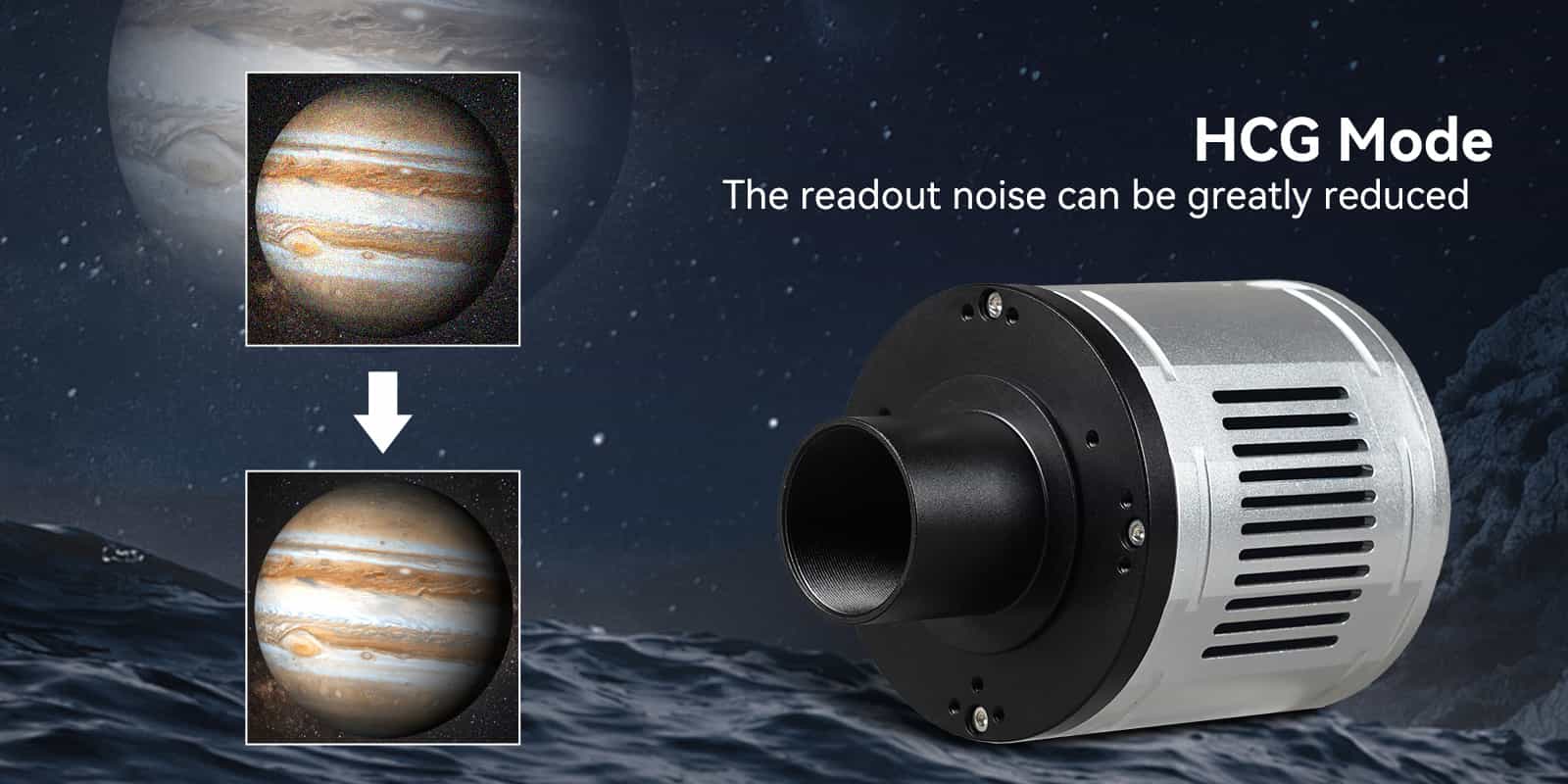

HCG Mode
HCG mode will automatic open when Gain is 140, readout noise will drop to2.4e. And dynamic range will rise to 12 stops. Sensors with HCG enable the camera to image in darker environments without worrying about noise that affects image quality. Turn on HCG mode when the gain value is 140; the readout noise can be greatly reduced and high dynamic range is retained; avoid celestial tailing and increase celestial details.

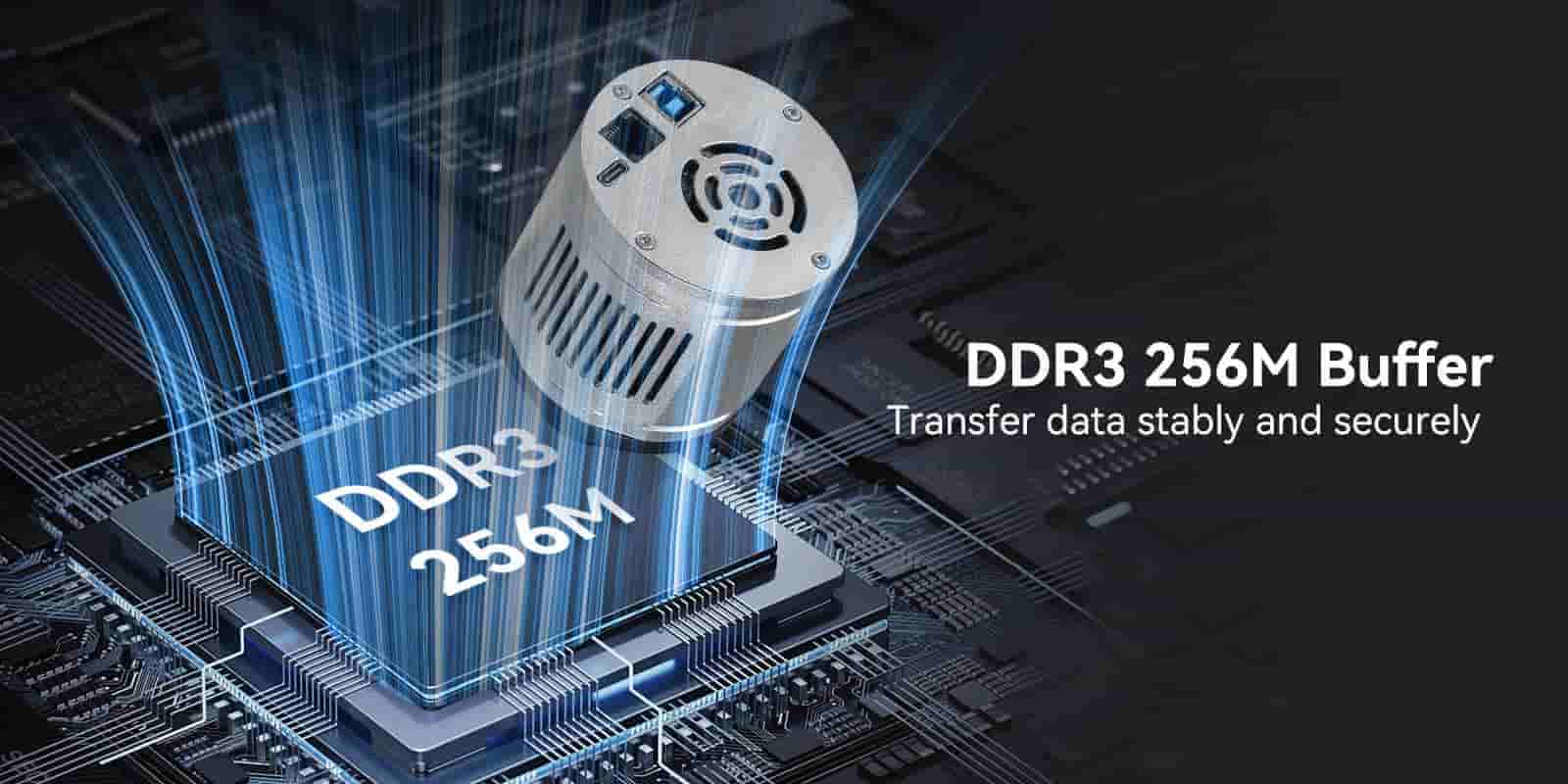

DDR3 256M Buffer
With the DDR3 cache, the camera does not have high demands on computing needs any longer, it will have excellent performance. USB 3.0 & 256MB DDR3 Memory; the planetary camera is no longer as computationally demanding and still offers excellent performance even when connected to a USB 2.0 port.

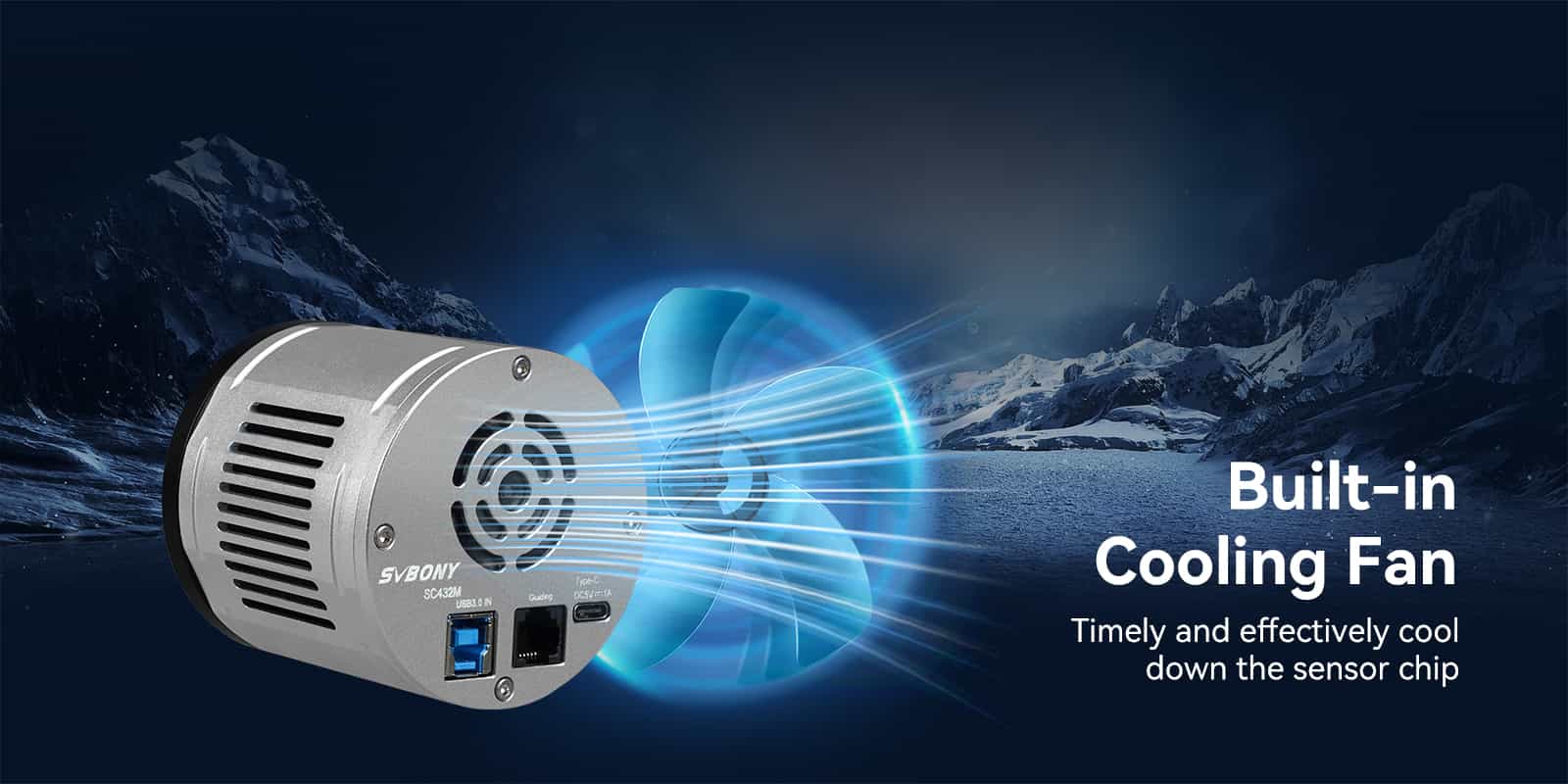

Bulit-in Cooling Fan
Connected to an external 5V1A power supply; type-C power supply; which can lower the camera temperature by 5-10 degrees to ensure better imaging effects. The heat dissipation is about 20 degrees under high temperature; extending the service life; long exposure reduces noise and ensures the quality of the picture. The camera uses cooling fan to avoid it overheating, the camera working temperature will be cool down lower 5-10 degree.

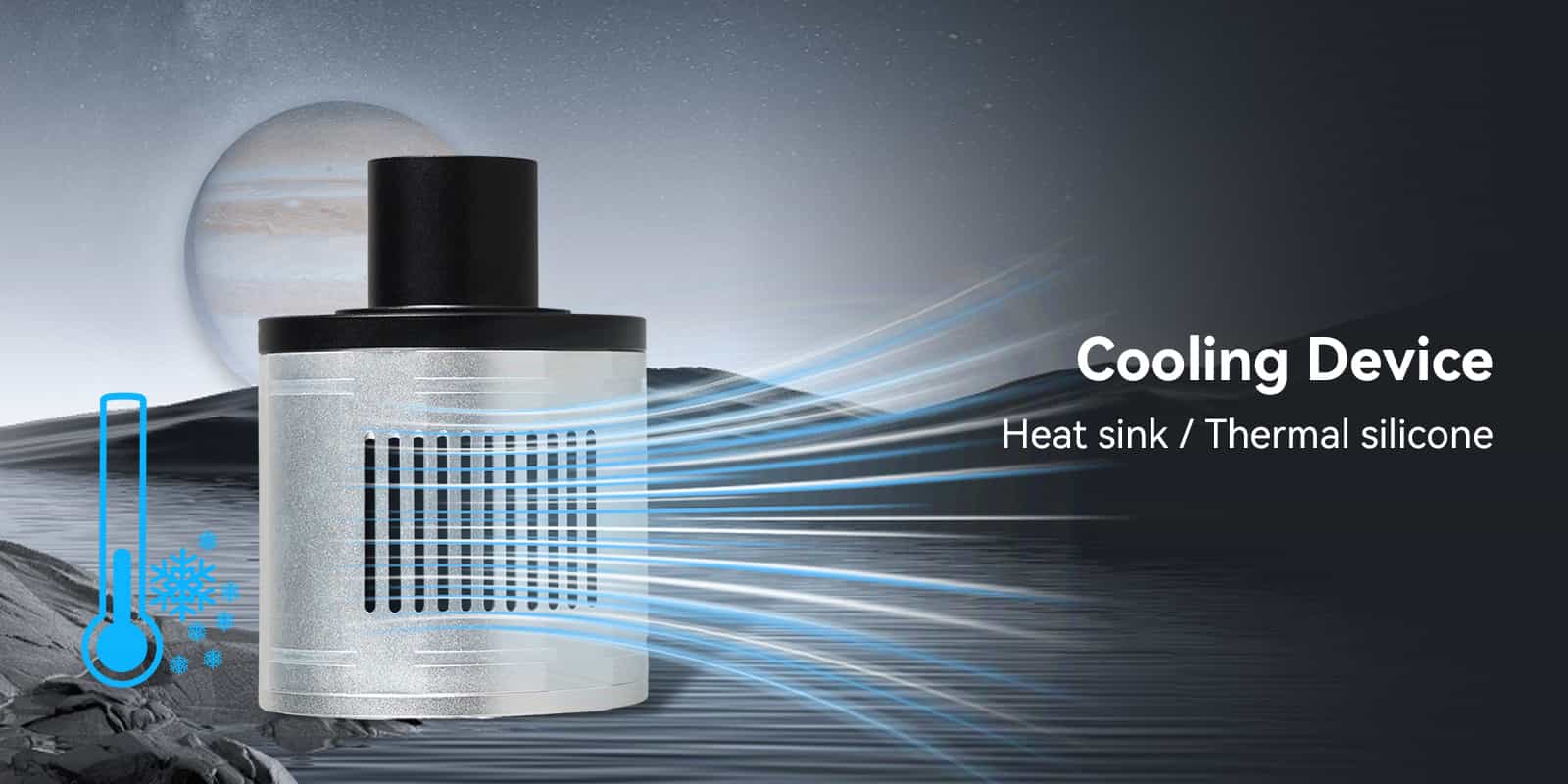

Cooling Device
Both the heat sink and thermally conductive silicone added to the back of the chip to ensure the heat dissipation effect, since they have good thermal conductivity and can effectively conduct the heat to the surrounding environment.

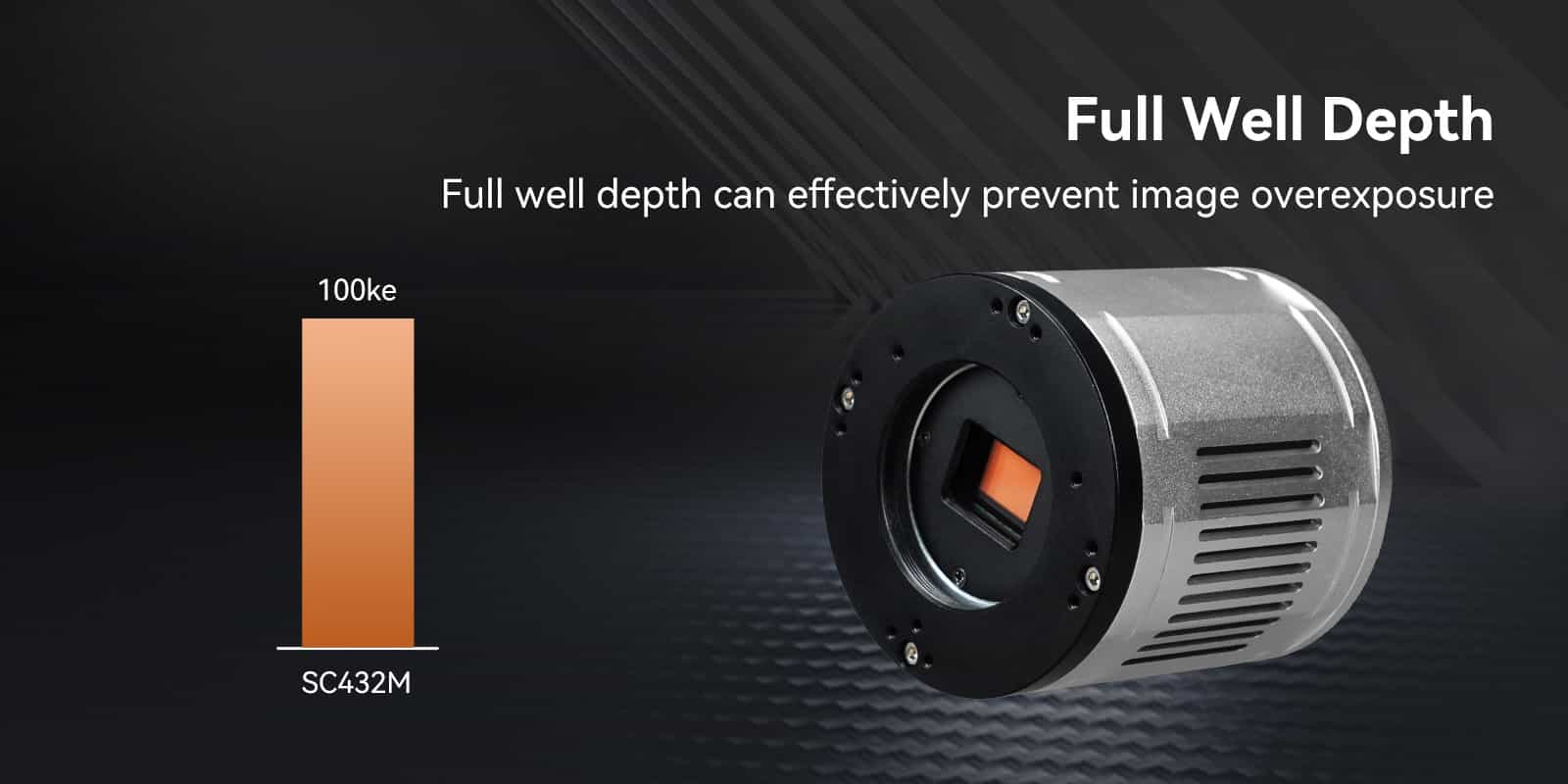

Full Well Depth
The full well depth is the maximum amount of detection signal that each pixel can accommodate. SC432M has a full well depth of 100ke; the larger full well depth provides the camera with stronger sensitivity; when we want to photograph the Sun surface and prominences, a very good quality image can be obtained.

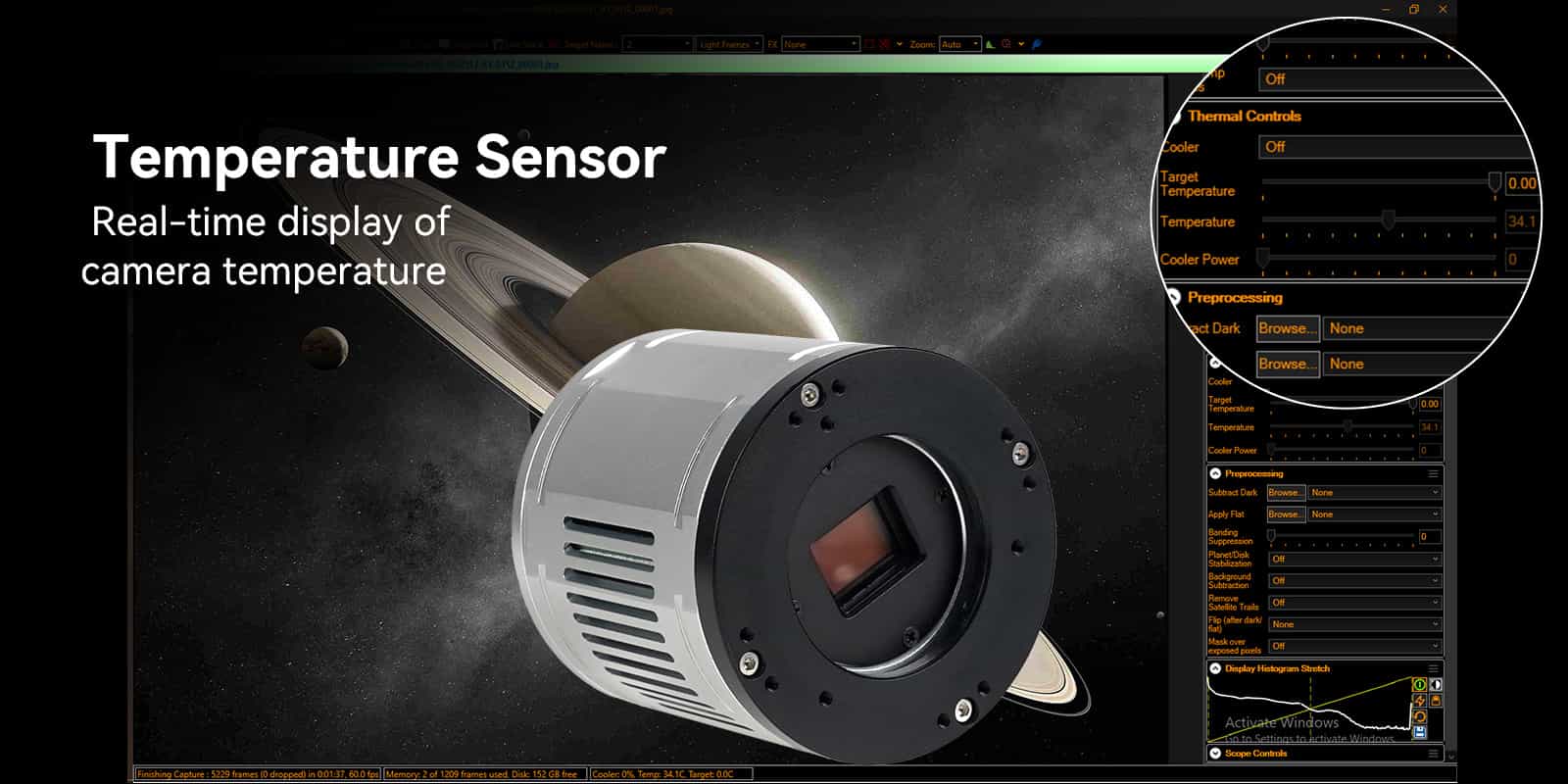

Temperature Sensor
Add a temperature sensor and the software will display the real-time temperature of the camera.

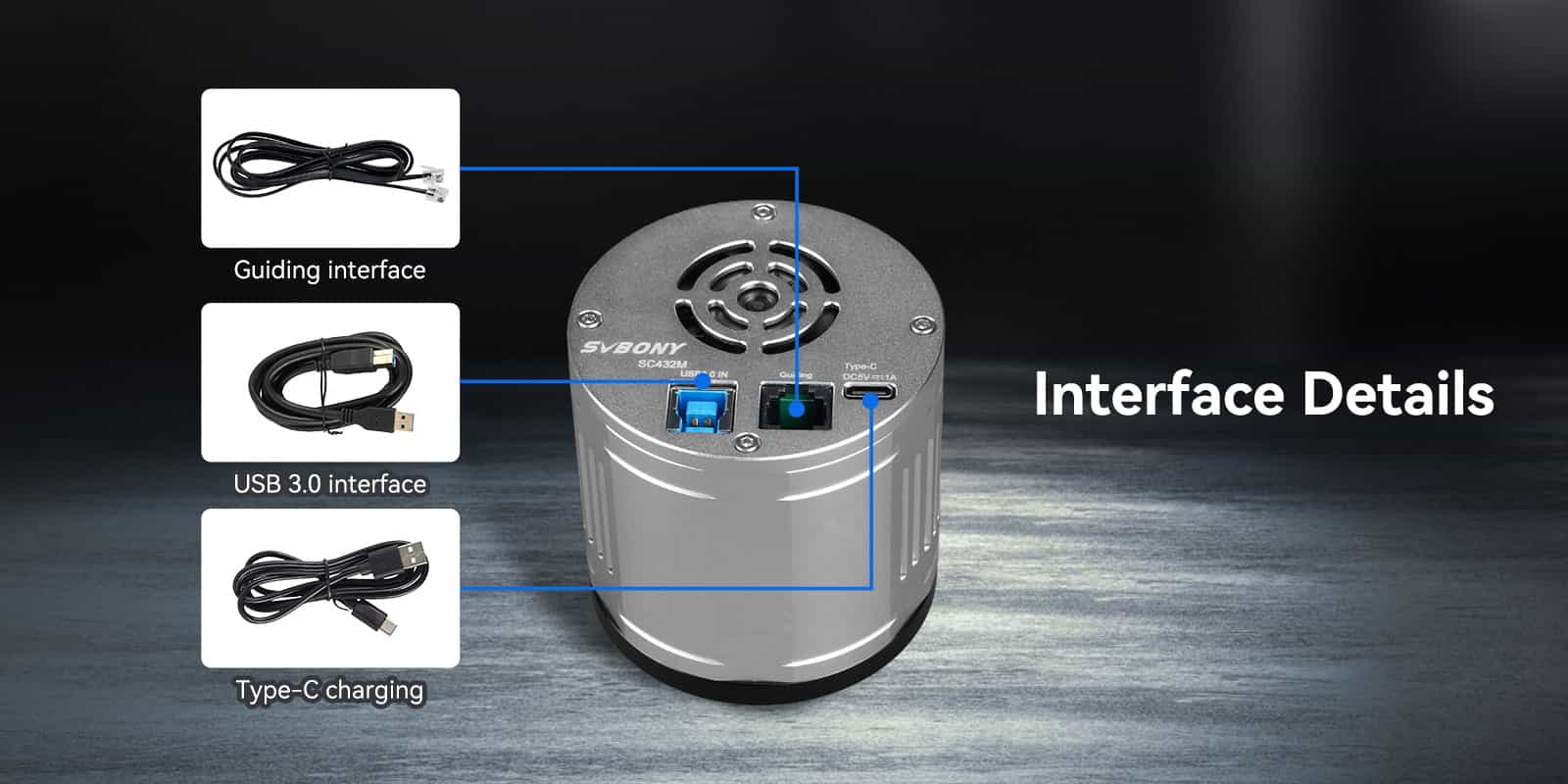

Interface Details
The astrocamera has M42 thread interface; USB-C power supply interface; M28.5 filter thread interface; ST4 guide star interface four interfaces.

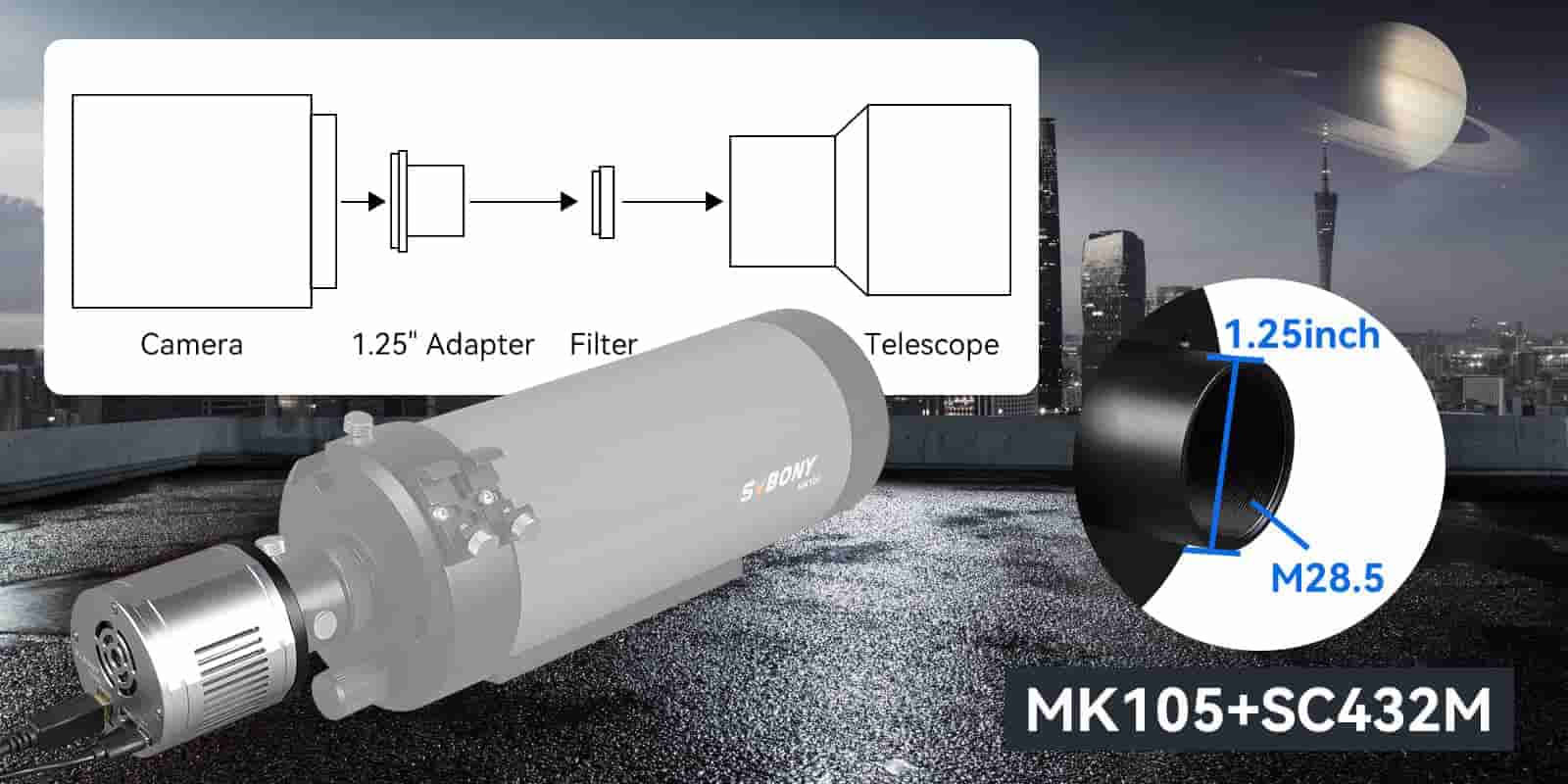

Compatible Products- MK105 for Planetary Shooting
SC432M can be used with MK105 to shoot planets, or you can add planetary filters.

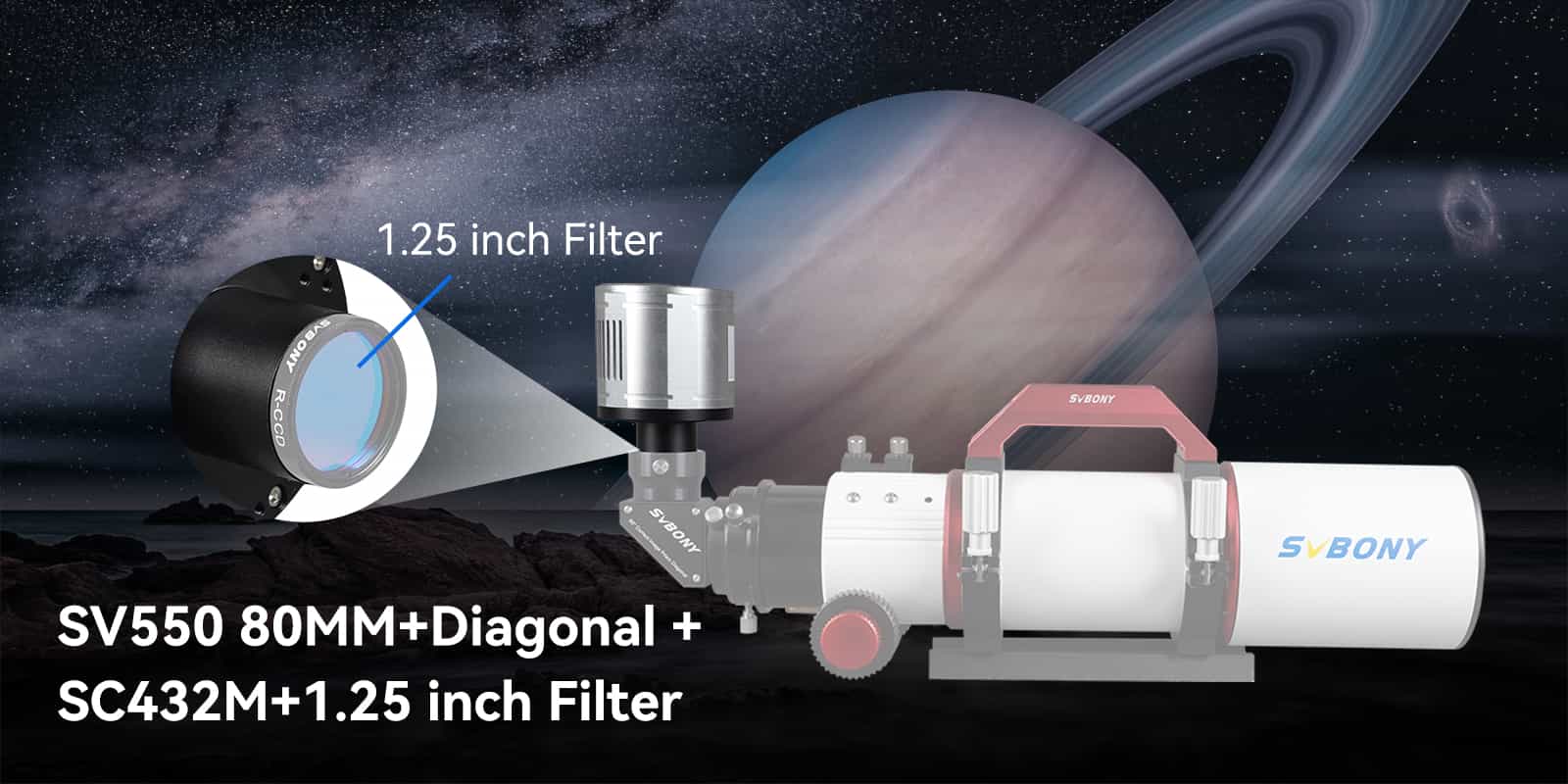

Compatible Products- SV550 for Deep Space Shooting
You can use SV550 80mm APO and a SV223 diagonal for deep space shooting.

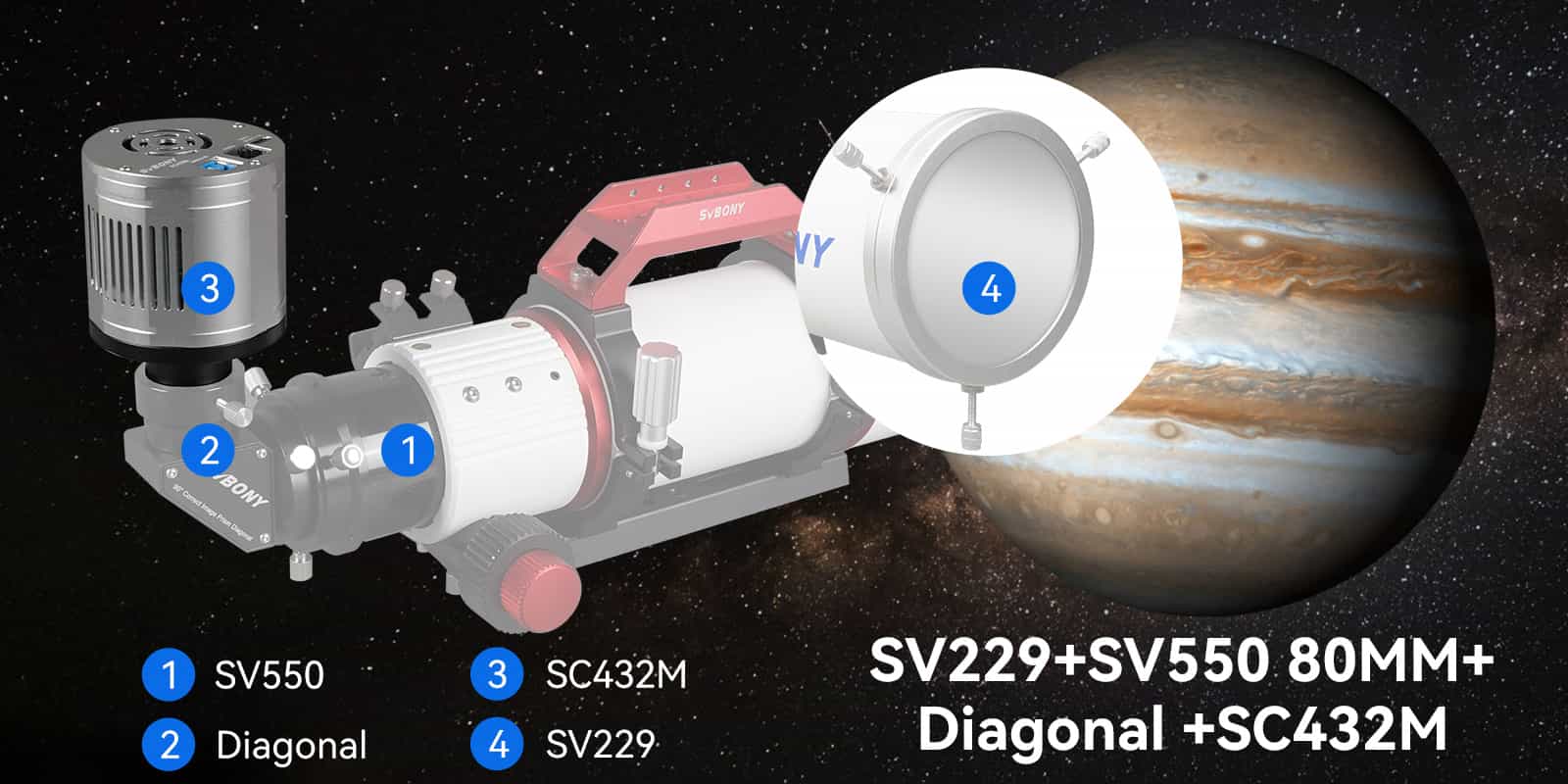

Compatible Products- SV550+SV229 for Sun Photography
Also, you can use SV229 solar filter for sun photography.

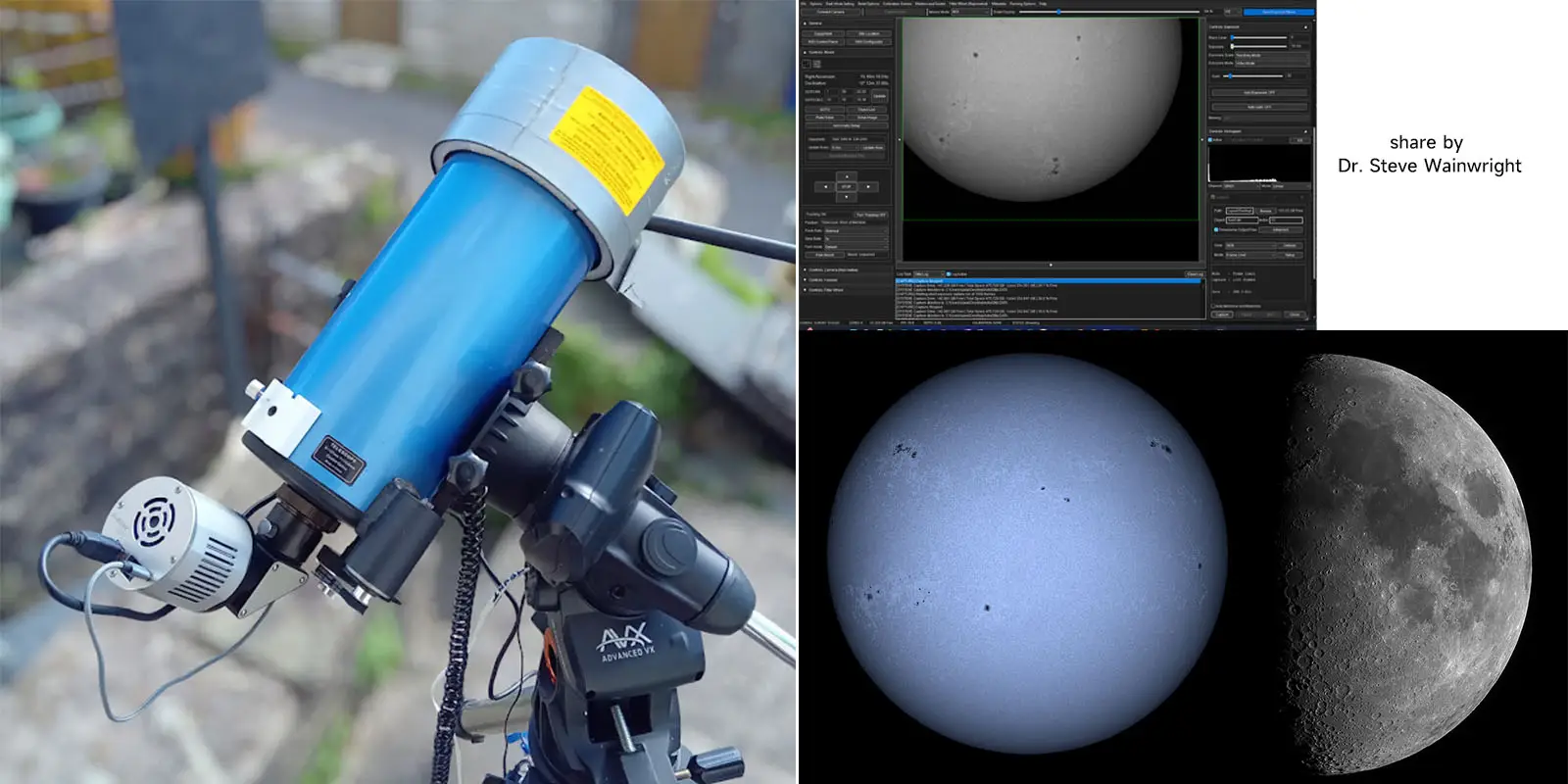

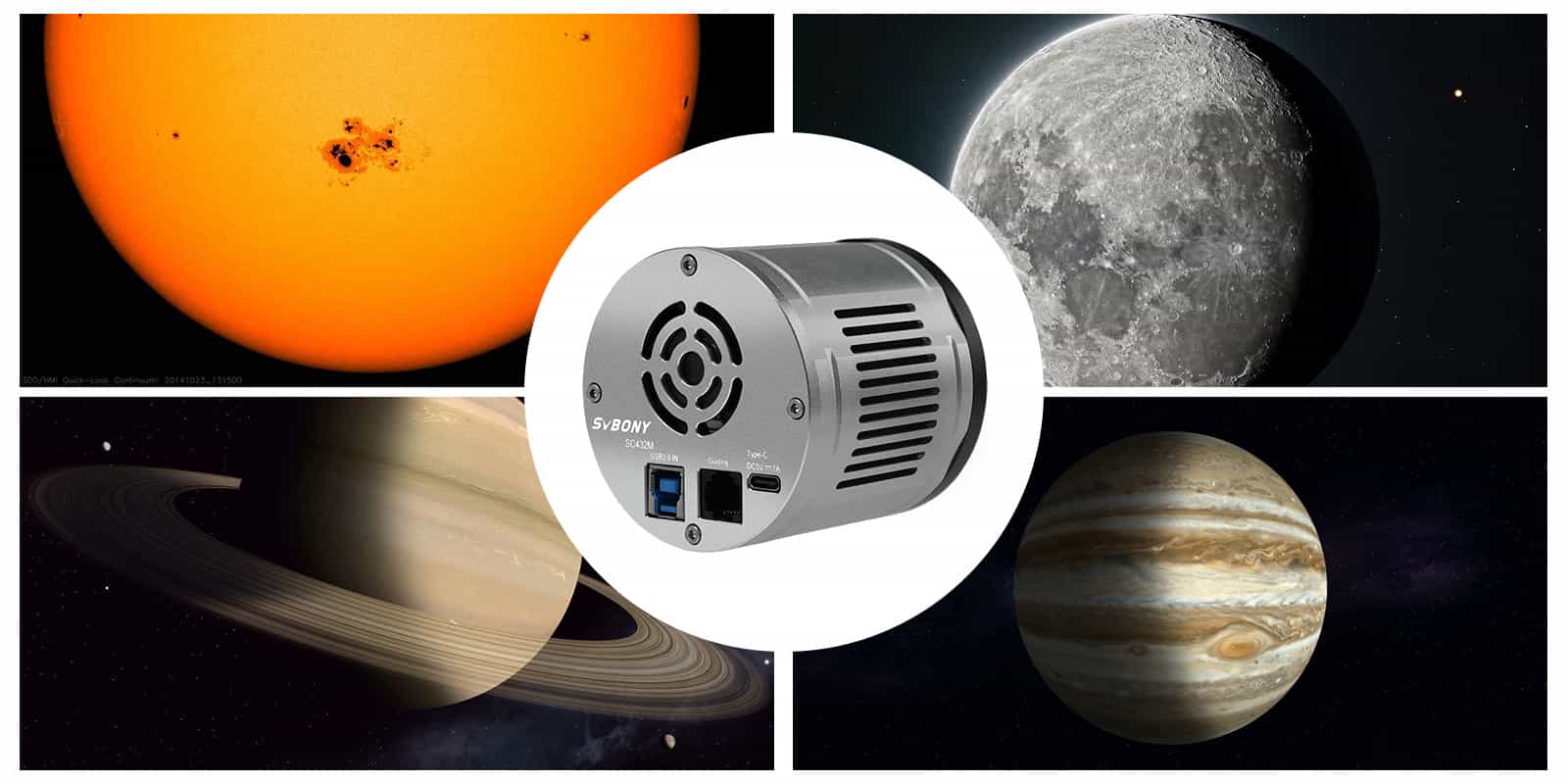

Application Scenarios
The camera has better performance in planetary photography and lunar surface photography.
Specifications
| Name | Solar Camera |
| Model | SC432M |
| Sensor | SONY IMX432 Mono CMOS |
| Shutter Type | Global Shutter |
| Frame Rate | 120FPS |
| Pixel Size | 9μm 9μm |
| Resolution | 1608×1104 |
| Minimum Back Focal Length | 7.5mm/12.5mm |
| Target Surface Size | 14.5mm×9.9mm |
| Diagonal Length | 17.5mm |
| Cache | DDR3, 256M |
| Protective Glass | AR Anti-reflection coating |
| QE | 0.79 |
| Full Well | 97Ke |
| Readout Noise | 2.4e-20.8e |
| ADC | 12bit |
| Temperature Display | Add temperature sensor, software interface displays real-time temperature of the chip |
| Exposure | 20μs-2000s |
| Gain | Absolute value |
| USB Speed | 0,1,2 |
| Background Level | 0-255 |
| ROI | Support |
| HCG | Gain 140, automatically activate HCG noise reduction mode, readout noise reduced to 2.4e, achieving 12 stops of dynamic range |
| BIN | BIN1, BIN2, BIN3, BIN4 |
| Color Space | MONO8, MONO16 |
| Output Format | PNG/JPG/AVI/SER/FITS/TIFF/ADV |
| Image Flip | None/Horizontal/Vertical/Both |
| Contrast | 0-100 |
| Gamma | 0-10 |
| Sharpening | 0-100 |
| Histogram Display | Support |
| Local Driver | Supports imaging software such as Sharpcap, Firecapture, AstroDMX Capture |
| ASCOM Driver | Support |
| Compatible Systems | Windows OS 7-11/Linux Ubuntu/Mac OS X86, ARM, M1, M2/Raspberry Pi 3, Pi4 |
| Camera Body Interface 1 | M42 thread interface (M420.75) |
| Camera Body Interface 2 | USB-C power data port |
| Camera Body Interface 3 | ST4 guide star interface |
| External Interfaces | M42 thread to 1.25-inch extension tube M28.5 filter thread interface |
Packages
| Packaging | SVBONY universal white box, model SC432M (based on packaging design dimensions) |
| Adapter Ring 1 | M42 thread to 1.25-inch extension tube |
| Adapter Ring 2 | M42 thread to C-lens thread |
| Cable 1 | USB-C charging cable |
| Cable 2 | Type B USB 3.0 data cable |
| Cable 3 | Guide star data cable |
| Manual | User manual in seven languages |
| Cleaning Tool 1 | 1.25-inch dust cover and M42 thread dust cover for camera body |
| Cleaning Tool 2 | Lens cleaning cloth |
| Adjustment Wrench | 2 pieces (one large, one small, suitable for adjusting target surface adjustment ring screws) |
Feature
1. Global Shutter: Capturing the ever-changing moments of the sun
2. 9um Pixel: Can work at longer focal ratio and it has high sensitivity
3. 1.1-inch Frame: Can capture a complete image of the sun
4. Bulit-in Cooling Fan: To avoid overheating, the working temperature will be cool down lower 5-10 degree
5. Silver Color: Absorb less heat and ensures no noise when producing images
6. Temperature Sensor: Display the real-time temperature
7. HCG Mode: Automatic open when Gain is 140, readout noise will drop to2.4e. And dynamic range will rise to 12 stops
8. DDR3 256M Buffer: Transfer data stablely and securely
9. Full Well Depth: 100ke with stronger sensitivity
10. Reticle adjustment ring: 4 sets of screws to adjust the sensor calibration; each set consists of two screws; one push and one pull; it has a built-in high-density sponge light-blocking pad; which can block the side seam light and prevent side leakage
