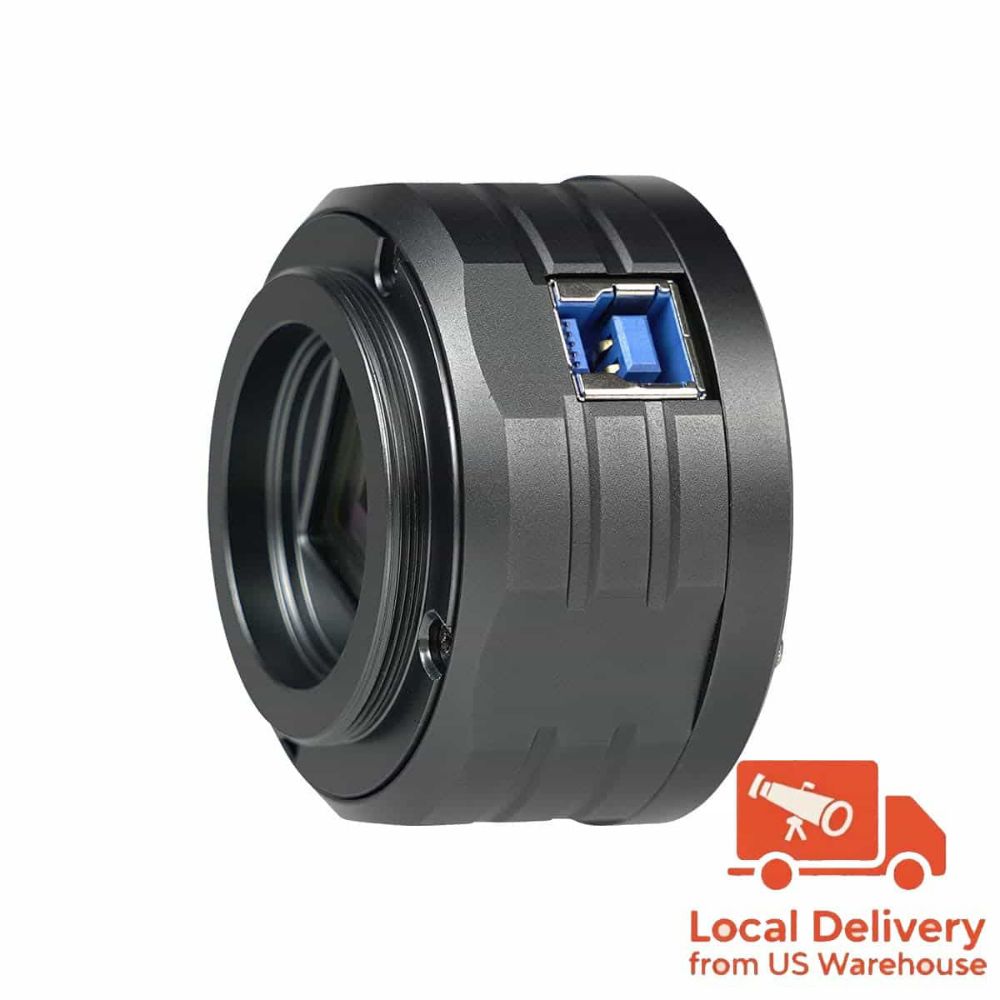

SV205 Electronic Camera IMX415 for Telescope Astrophotography 8MP USB3.0
3 | ReviewsKey Features
- High-Resolution Imaging
- Plug-and-Play
- Dark Light Compensation
- Smooth Video Capture
- Versatile Telescope Compatibility

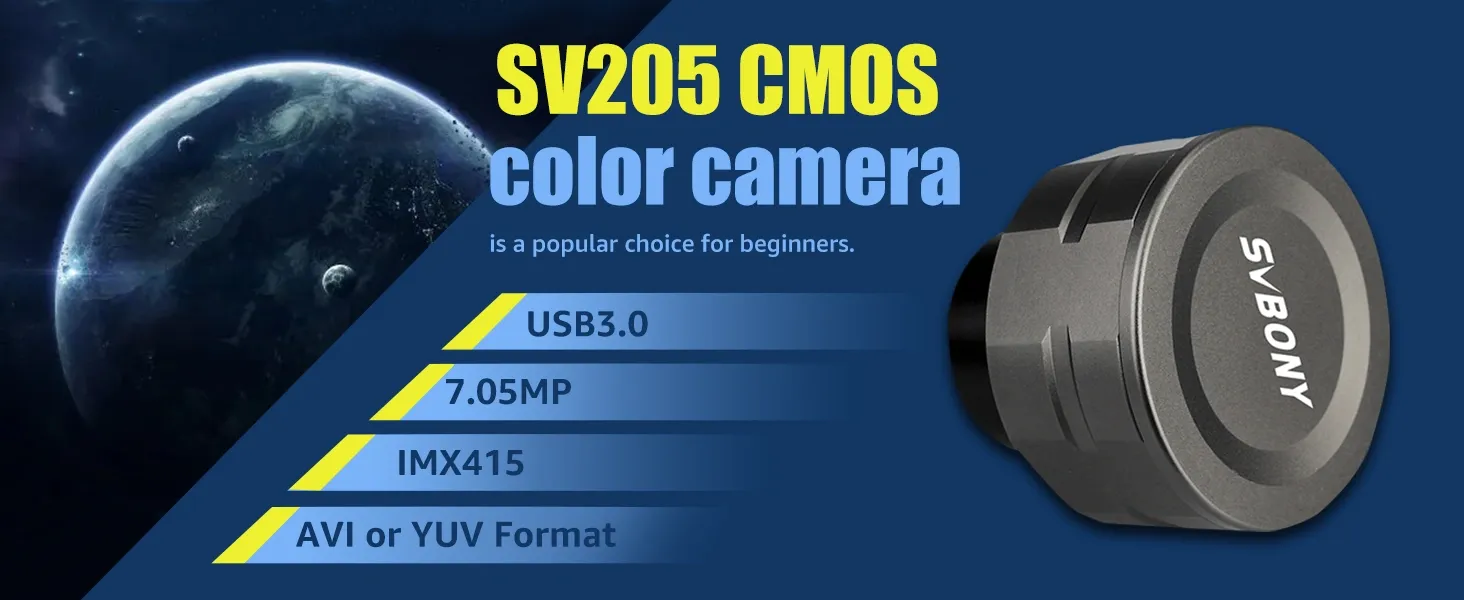

SV205 8MP USB3.0 Electronic Eyepiece Camera 1.25'' For Astronomy Photography
- SV205 is a primary planetary camera, ideal for photographing the Moon, Jupiter, Saturn and binary stars. It is also suitable for observing some bright deep space objects.
-
-
1/2.8”COMS Sensor
-
The iteratived SV205 with IMX415 sensor, which is 8.29 Mega Pixels with a resolution 3840x 2160 under ideal conditions. In order to fixing the Pixel Vignetting color issue on the original version SV205 camera, we cut the new one out of some pixels, the parameter will be 7.05MP with 3264x2160, pixel size is adjusted to 1.45µmx1.45µm.
This newly developed IMX415 stacked CMOS image sensor uses Sony's unique high-sensitivity, low-noise technology to reduce the pixel size to 1.45 square microns, approximately 80% smaller than the previous generation IMX274, creating a record-breaking 1/2.8-inch stacked 4K CMOS image sensor and with excellent low-light performance.

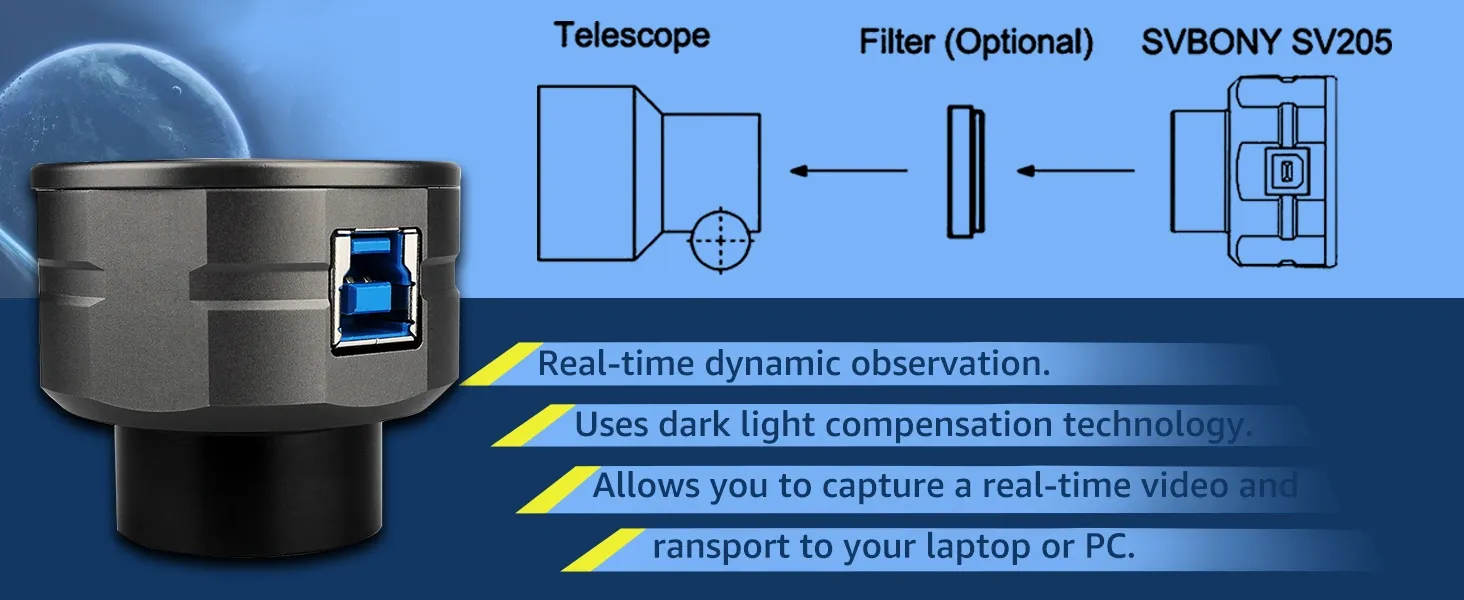

Camera Interface
NOTE
- 1.Computer configuration requirements:
1) The configuration of desktop computer is not less than Intel 4 generation i5, and the memory is not less than 4G.
2) Laptop configuration is not less than Intel 6 generation i5, memory is not less than 8g.
2. The SV205 camera is best used with a refractor or reflector telescope. It is not recommend for taking images through the eyepiece of a telescope. You may also require additional accessories and filters to get the best results. You need to buy an eyepiece projection adapter if would like to use the SV205 camera to capture images through telescope eyepiece.
3. The SV205 camera is indeed suitable for planetary photography. If you are looking for visual observation, you would typically need a 1.25-inch eyepiece; however, we do not recommend using an eyepiece in front of the SV205 due to connection constraints. If you prefer not to use an eyepiece, you can view images directly through the camera by connecting the SV205 to your computer. Before doing this, please ensure you install software such as SharpCap. Once the software is open, you will be able to see the image on your computer and adjust the telescope's focus system for a clearer view.
SV205 8MP USB3.0 Electronic Eyepiece Camera 1.25'' For Astronomy Photography
- SV205 is a primary planetary camera, ideal for photographing the Moon, Jupiter, Saturn and binary stars. It is also suitable for observing some bright deep space objects.
-
-
1/2.8”COMS Sensor
-
The iteratived SV205 with IMX415 sensor, which is 8.29 Mega Pixels with a resolution 3840x 2160 under ideal conditions. In order to fixing the Pixel Vignetting color issue on the original version SV205 camera, we cut the new one out of some pixels, the parameter will be 7.05MP with 3264x2160, pixel size is adjusted to 1.45µmx1.45µm.
This newly developed IMX415 stacked CMOS image sensor uses Sony's unique high-sensitivity, low-noise technology to reduce the pixel size to 1.45 square microns, approximately 80% smaller than the previous generation IMX274, creating a record-breaking 1/2.8-inch stacked 4K CMOS image sensor and with excellent low-light performance.
Camera Interface
NOTE
- 1.Computer configuration requirements:
1) The configuration of desktop computer is not less than Intel 4 generation i5, and the memory is not less than 4G.
2) Laptop configuration is not less than Intel 6 generation i5, memory is not less than 8g.
2. The SV205 camera is best used with a refractor or reflector telescope. It is not recommend for taking images through the eyepiece of a telescope. You may also require additional accessories and filters to get the best results. You need to buy an eyepiece projection adapter if would like to use the SV205 camera to capture images through telescope eyepiece.
3. The SV205 camera is indeed suitable for planetary photography. If you are looking for visual observation, you would typically need a 1.25-inch eyepiece; however, we do not recommend using an eyepiece in front of the SV205 due to connection constraints. If you prefer not to use an eyepiece, you can view images directly through the camera by connecting the SV205 to your computer. Before doing this, please ensure you install software such as SharpCap. Once the software is open, you will be able to see the image on your computer and adjust the telescope's focus system for a clearer view.
Customer Reviews
Martin
Oct 07, 2024
Very happy woth camera, very good for lunar and planetary photography considering price point. I needed support woth firmware versions and Sara was very helpful in assisting, very happy woth the product and support.
gary
Jun 14, 2024
Easy install on windows. This is my second svbony camera, my first was the 105 which was awesome. This one is just as awesome + it’s higher resolution, so it’s..... awesomer? Don’t think about it, just buy it. The support team is fantastic about any questions you may have so this is really a low risk investment. Compare the cost to a dslr and a telescope adapter.
Fabio Batista
Oct 30, 2022
My sv205 camera glass broke, does SVBONY sell this dust protection glass? Is this glass common or does it have a filter function? UV filter type? I await the answer. Thank you so much. Fabio Batista. Brazil.
| Model | SV205 |
| Color Camera | Yes |
| Image Sensor | 1/2.8” COMS Sensor |
| Sensor Model | SONY IMX415 |
| Image Resolution | 7.05 Mega Pixels (3264*2160) |
| USB Type | USB 3.0 |
| Pixel Size | 1.45μm X 1.45μm |
| Shutter | Electronic Rolling Shutter |
| Exposure Time | 15ms-1000ms |
| Gain | 0-120 |
| Maximum Frame Rate(YUY2) | 30fps MJPG 1920*1080 |
| 15fps YUY2 3264*2160 | |
| ADC | 10 bit |
| Filter | IR Cut Filter |
| Interface Type | Standard UVC protocol |
| Cable Length | 1.8m |
| Weight | 100g |
| Support System | Windows, Linux, Android, Raspberry Pi OS |
| Support Telescope | Telescope with 1.25 inch diagonal base hole |
| Power Consumption | 230MA@5V |
| Cable Length | 1.8m |
| Working Humidity | 30%-80% |
| Storage Humidity | 20%-90% |
| Operating Temperature | 0℃ to +50℃ |
| Storage Temperature | -10℃ to +60℃ |
>Windows system with Sharpcap software for Windows
https://www.sharpcap.co.uk/sharpcap/downloads
>Linux system and Raspberry Pi system with AstroDMx capture for Linux
https://www.astrodmx-capture.org.uk/astrodmx-capture-downloads/
> Android with USB Camera
Download 【USB Camera】 in your android APP Store
Notice: SV205 is not compatible with N.I.N.A
Pls don't connect to the Mac system for poor compatibility.
