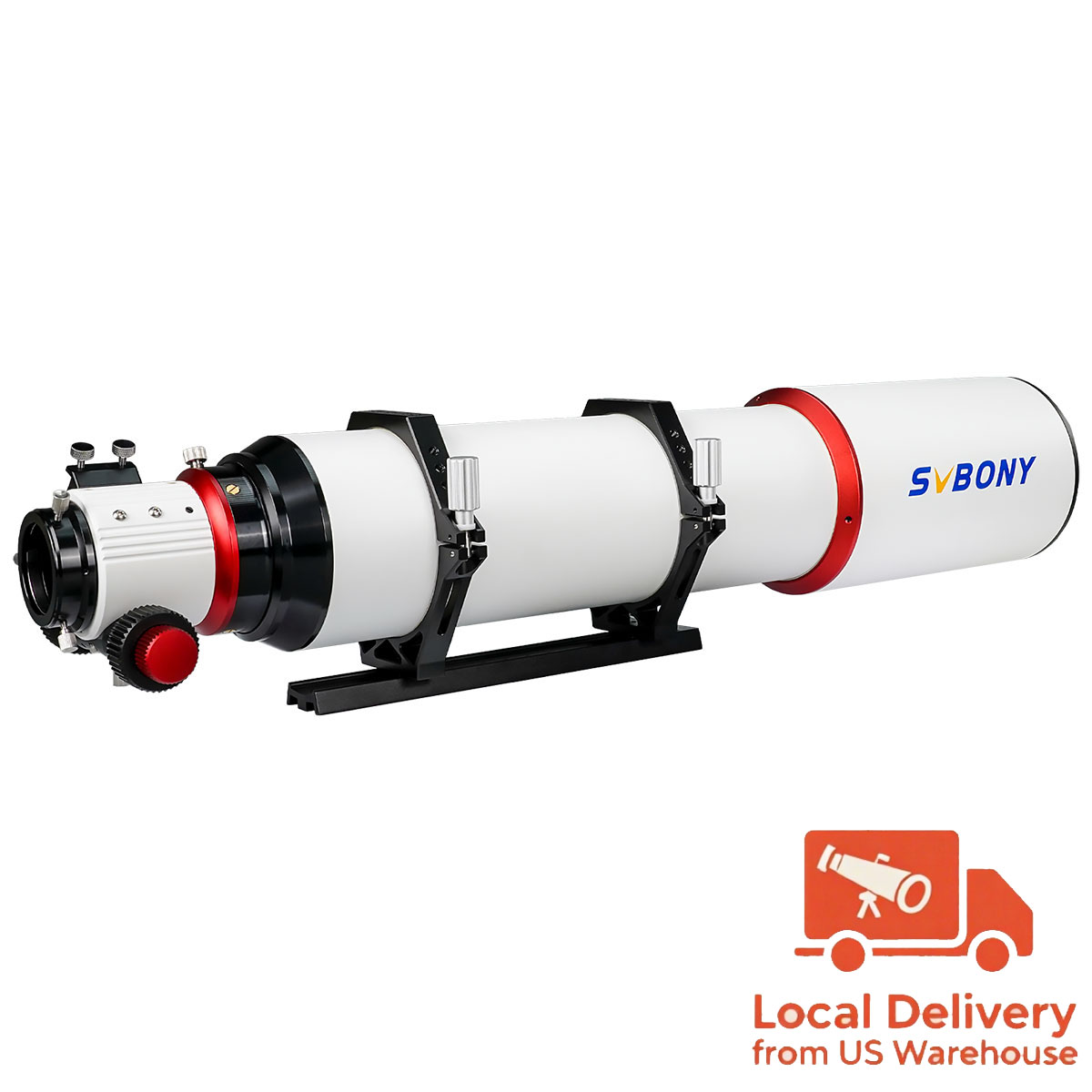

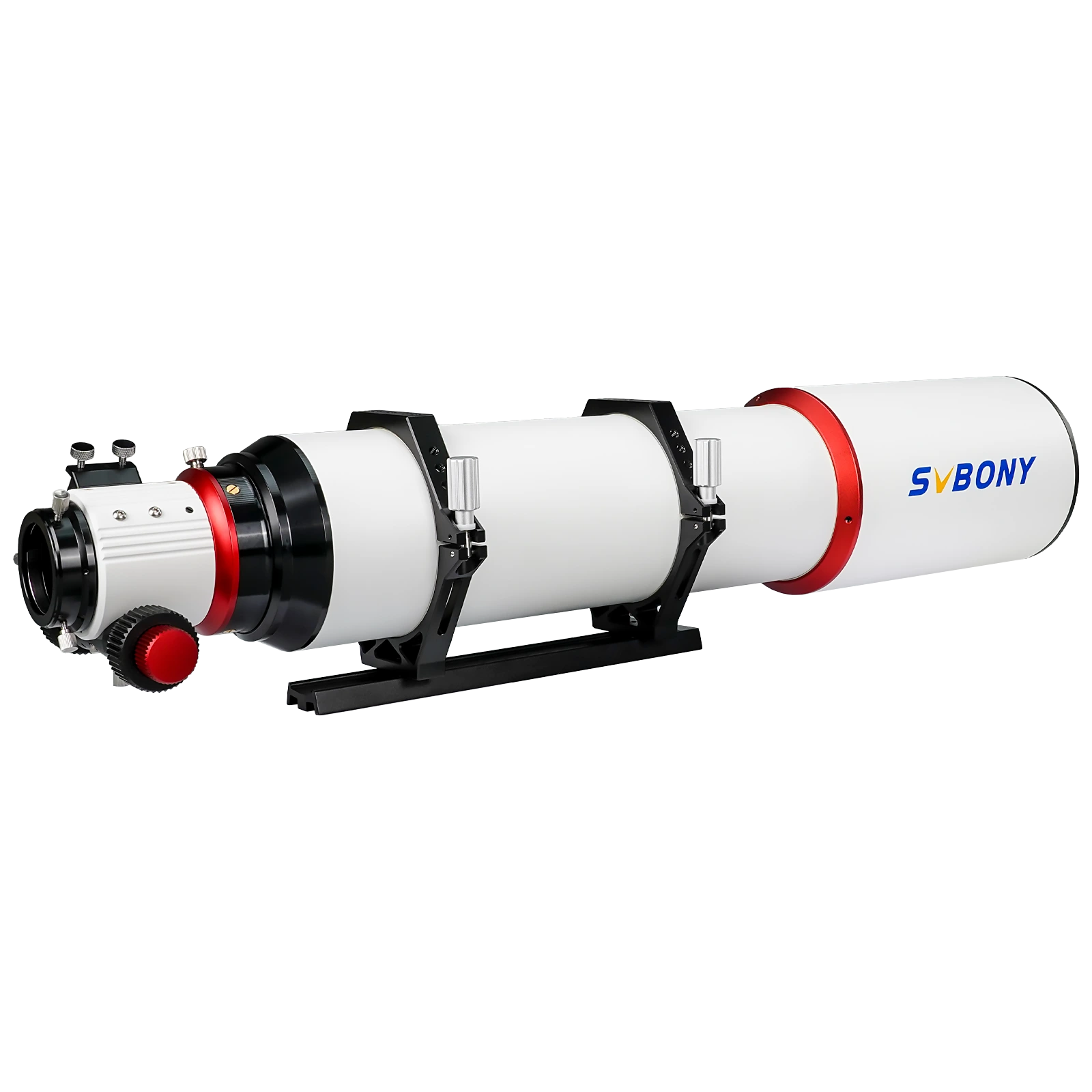

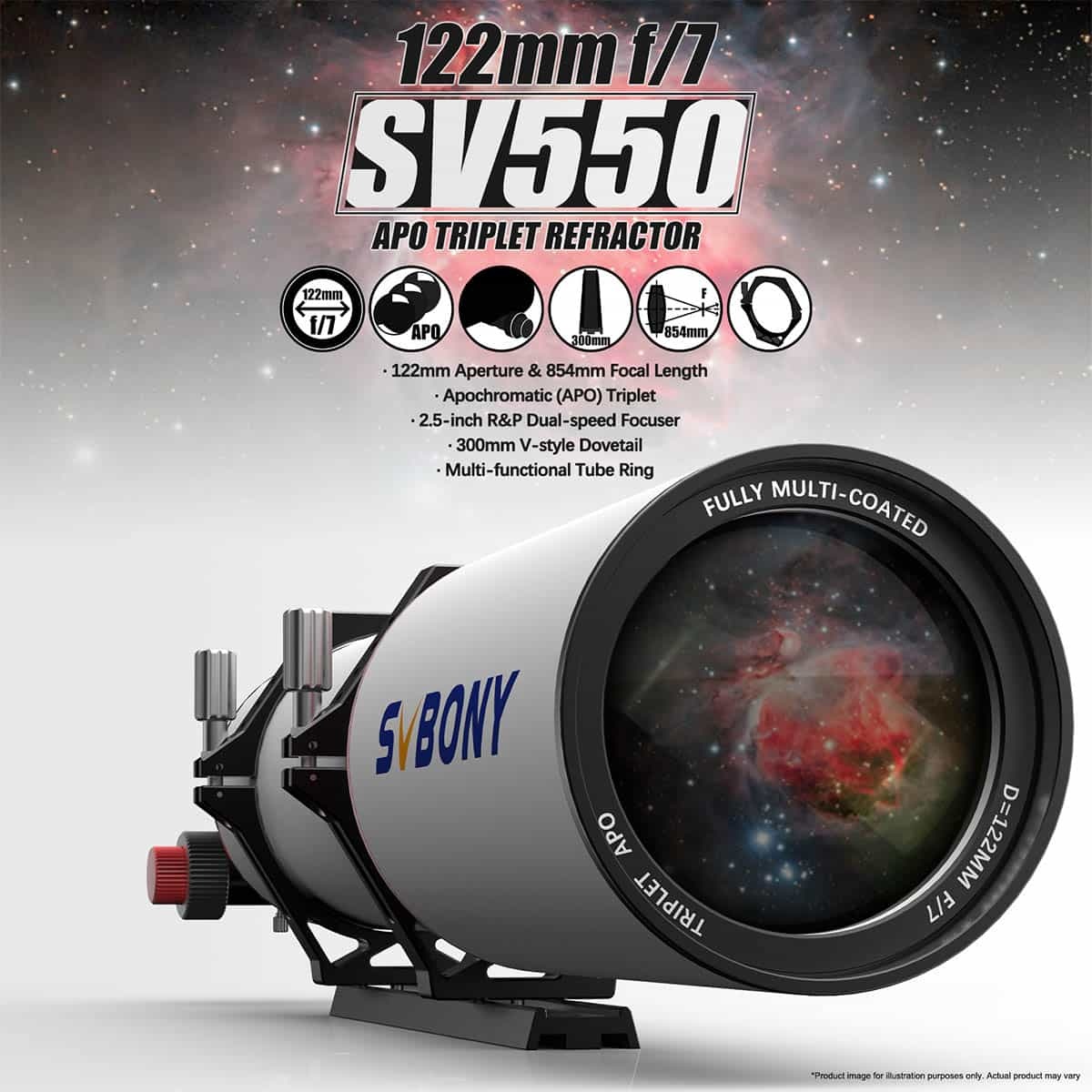

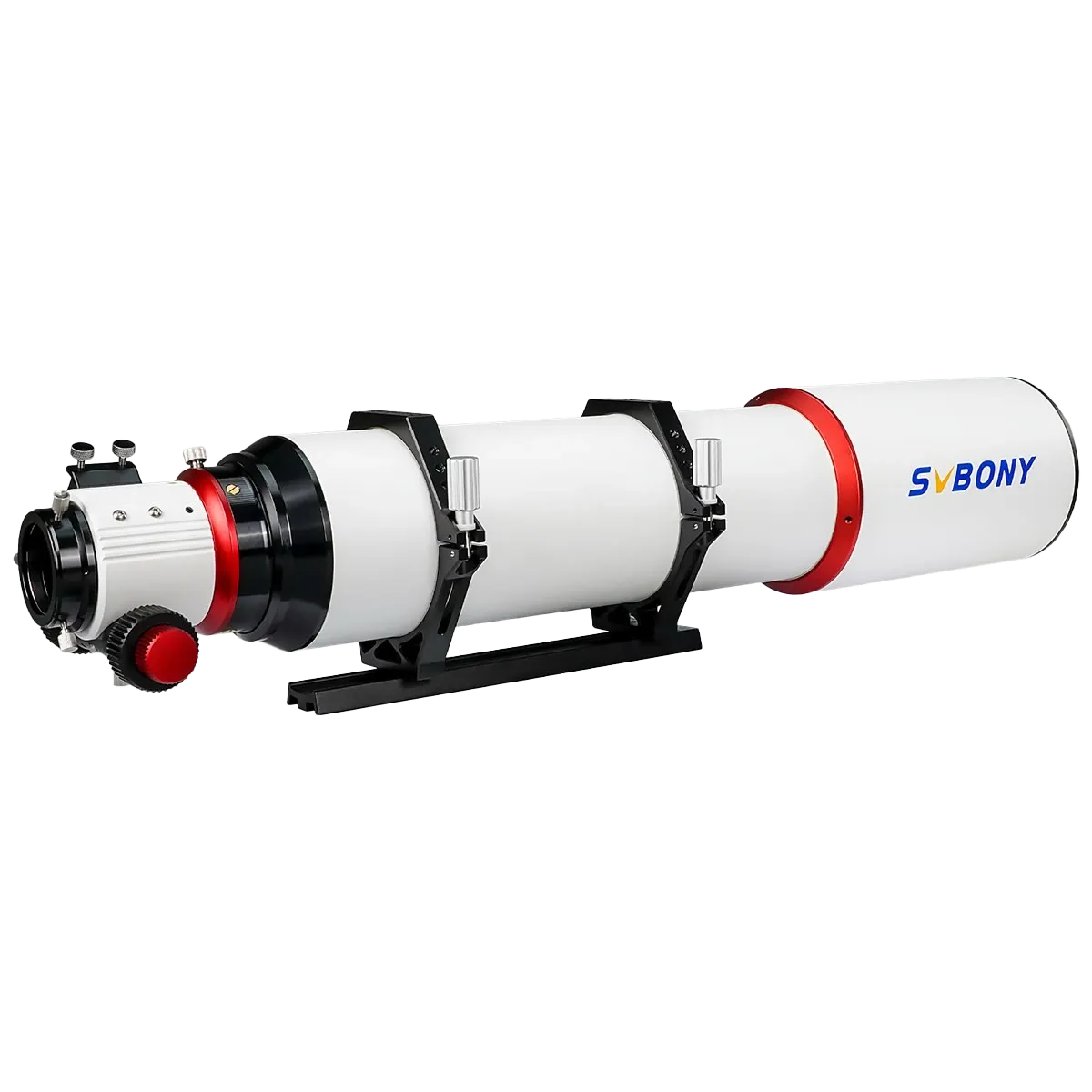

SVBONY SV550 APO Refractor Telescope Apochromatic Triplet 122mm F7 Telescope With Case Bag for Deep Sky Astrophotography
- Large 122mm aperture; f/7 focal ratio and 854mm focal length; a great travel telescope for astrophotography and observation; and even some fainter deep sky objects due to the higher limiting magnitude;
- FPL-51 triplet apochromatic lens structure; the astro refractor telescope contains one piece of ED glass, for better correction of aberration, greatly reduce chromatic aberration and enhance the clarity & sharpness;
- Dual speed 2.5-inch toothed focuser with 1: 10 gear ratio; easy to achieve accurate focus; the dual speed focuser can provide two focusing speeds by using a set of co-axial knobs; for fast focusing and fine focusing;
- 300mm dovetail length; it can maintain the balance to the greatest extent; and more convenient in the adjustment process;

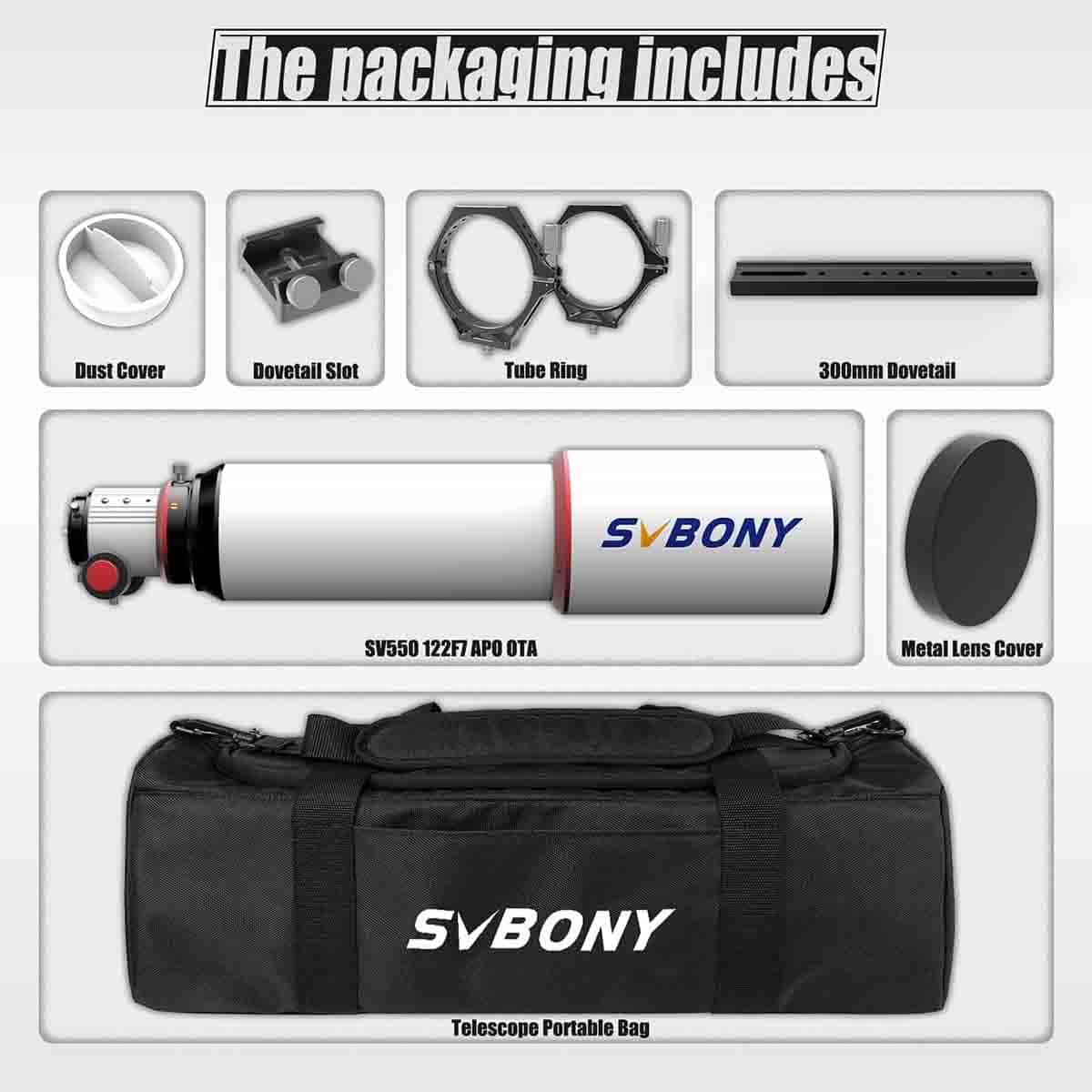

- Carrycase included; this telescope bag has a removable shoulder strap and hand-carry strap.
(Note: The bag is included in the OTA, so you needn't buy one separately. For extra accessories, pls choose our bundle set)
Review Video by @NebulaPhotos Unboxing Video
FREE shipping, duty-free

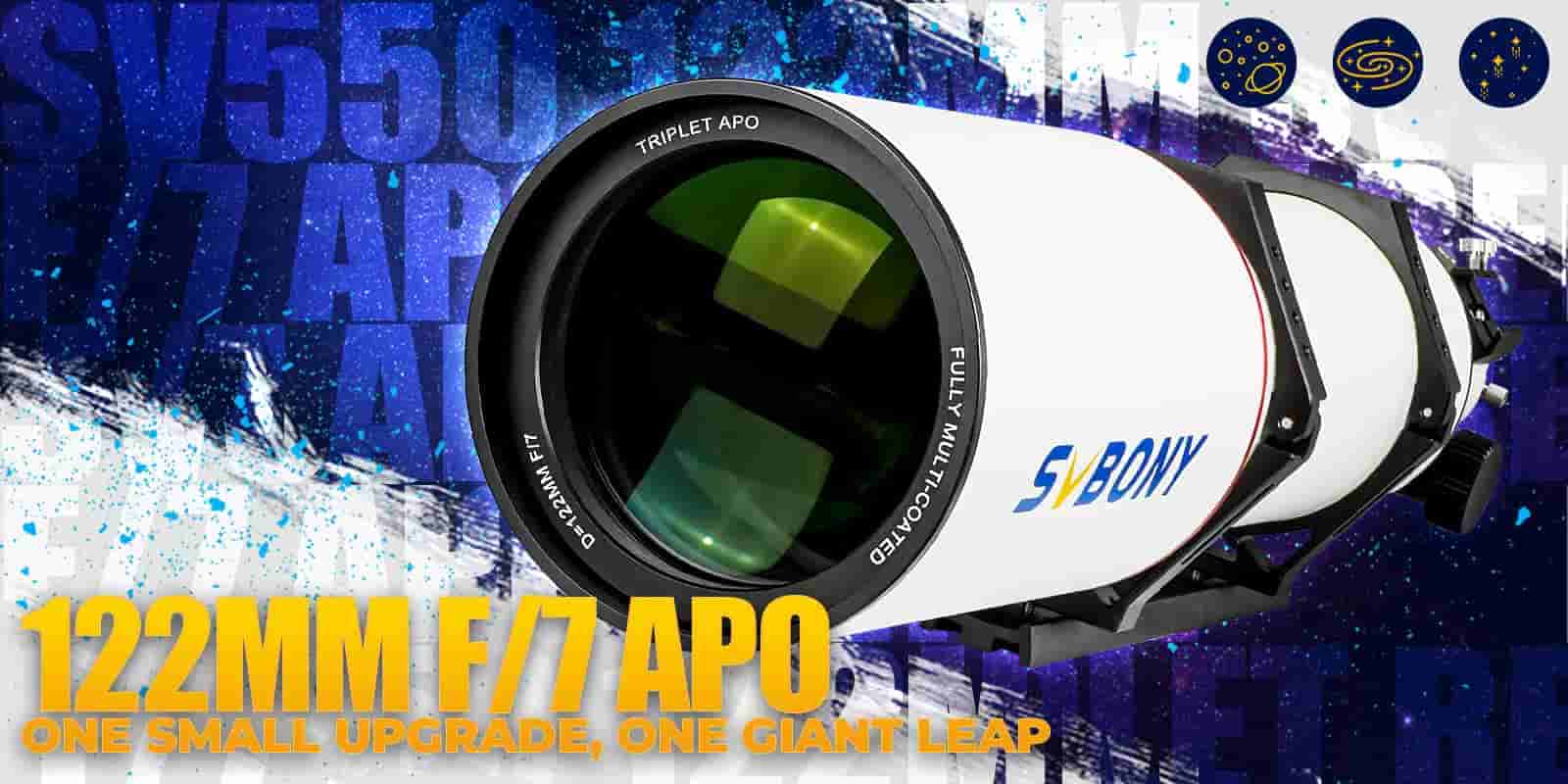

SVBONY SV550 APO Refractor Telescope - One Small Upgrade, One Giant Leap

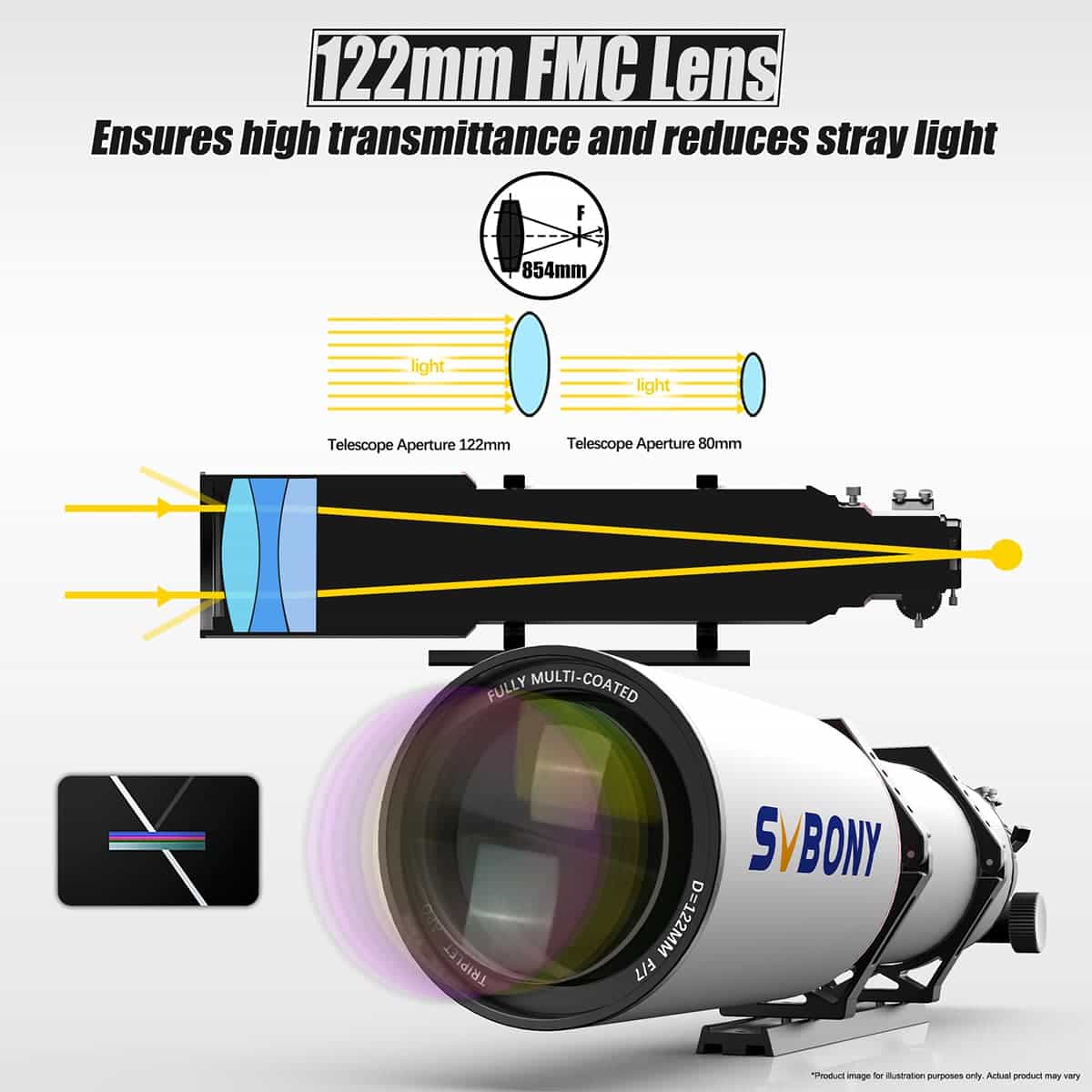

The SV550 APO triplet refractor is a compact refractor with 122mm aperture, f/7 focal ratio and 854mm focal length, a great travel telescope for astrophotography and observation. The APO refractor is an absolutely upgraded version of the SV550 80mm. The refractor gathers more light, and offers more clear and detailed images, suitable for deep sky photography and observation, for galaxies, nebulae, star clusters and even some fainter deep sky objects, due to the higher limiting magnitude.

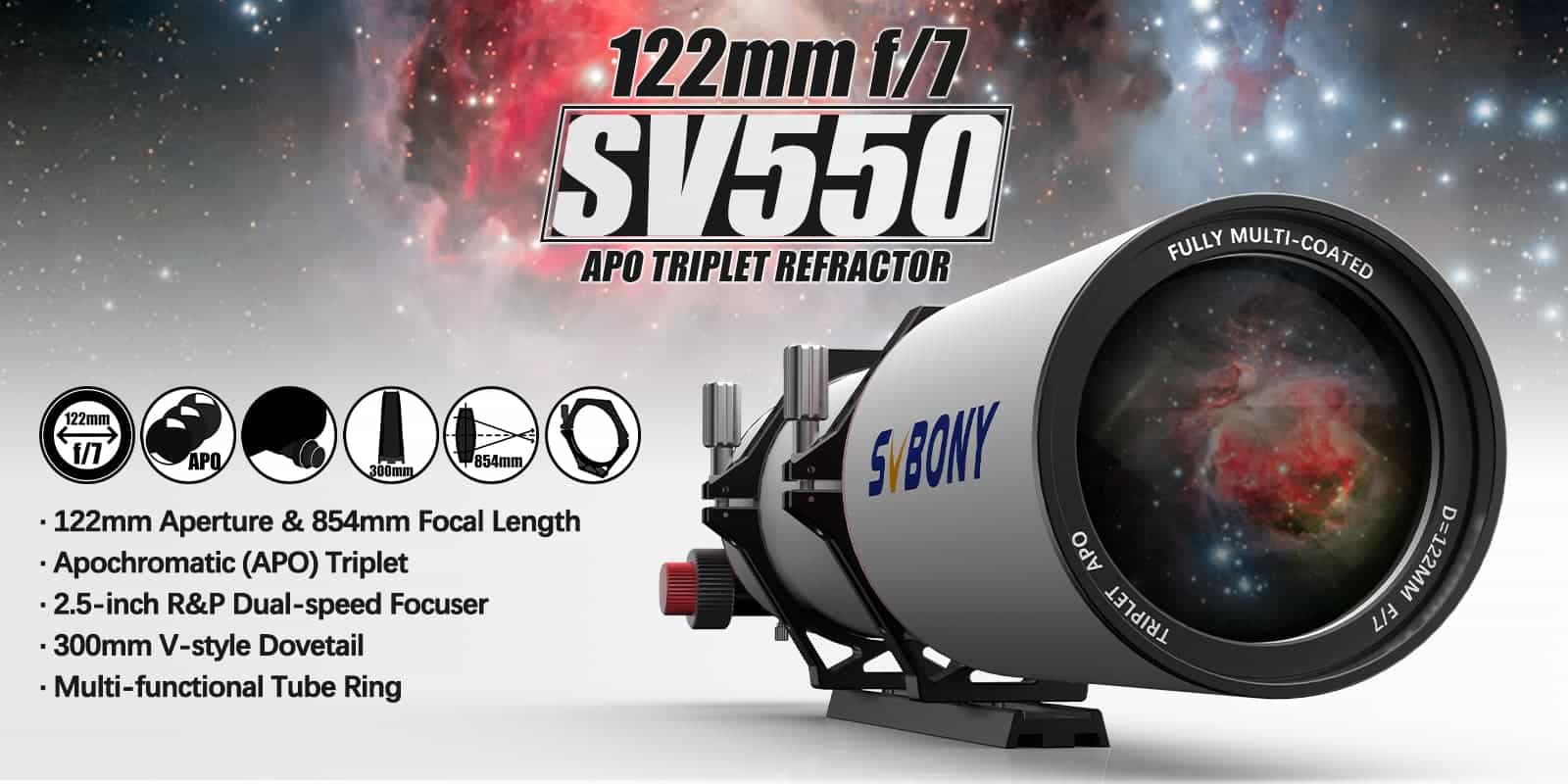

SV550 122 F7 APO Refractor Telescope for Deep Sky Astrophotography

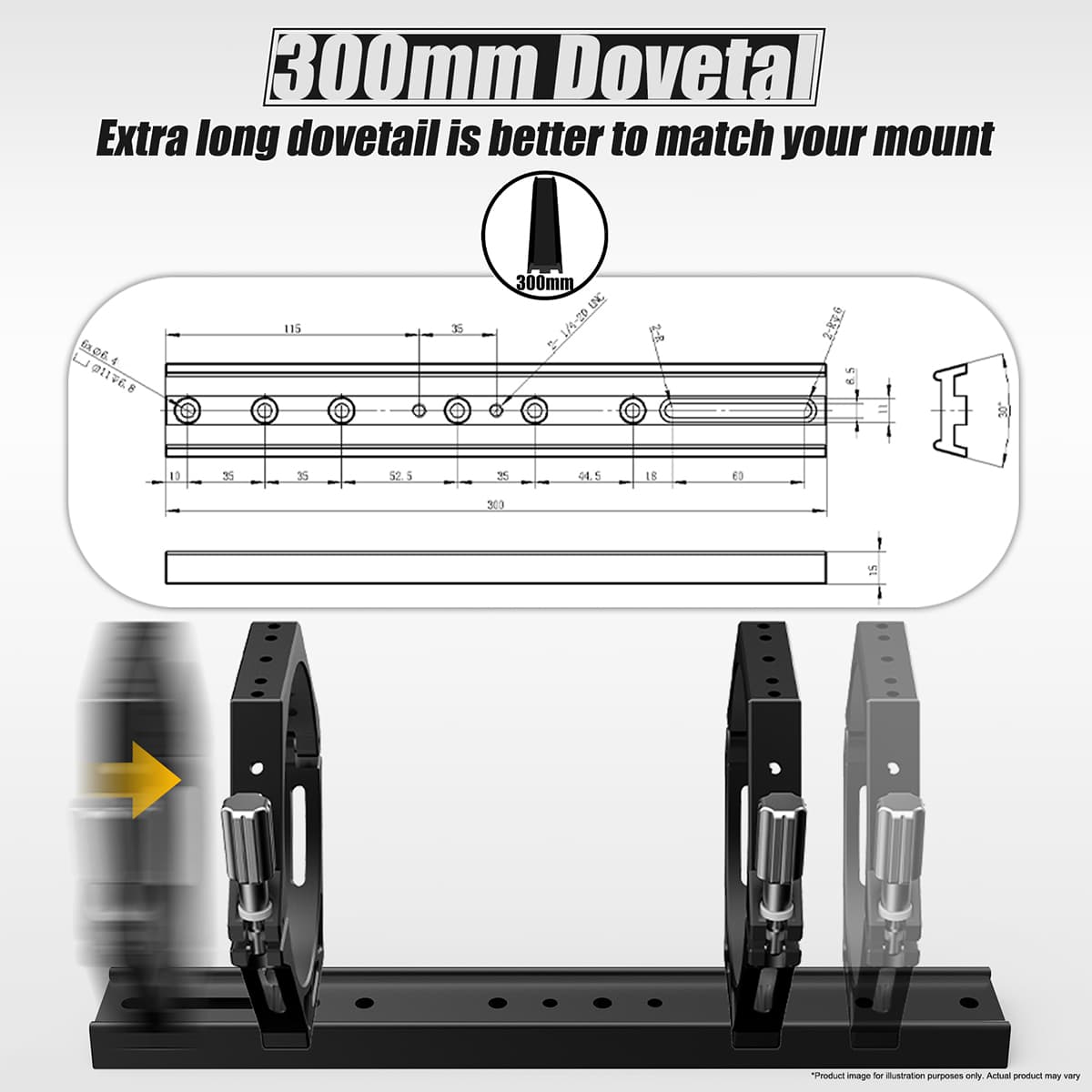

The OTA weighs only 6.44kg/ 14.18lb, easy to carry out when fitting into the carrying case. The length of the dovetail is as high as 300mm, longer than the length of most dovetails. It can maintain the balance to the greatest extent, and it will be more convenient in the adjustment process. The entire tube rings have 26 screw holes + a mounting screw handle. Such tube rings with so many screw holes can be compatible with more equipment installations, like Smart WIFI device, guide scope, astronomy camera etc., meeting various needs of installations.
-

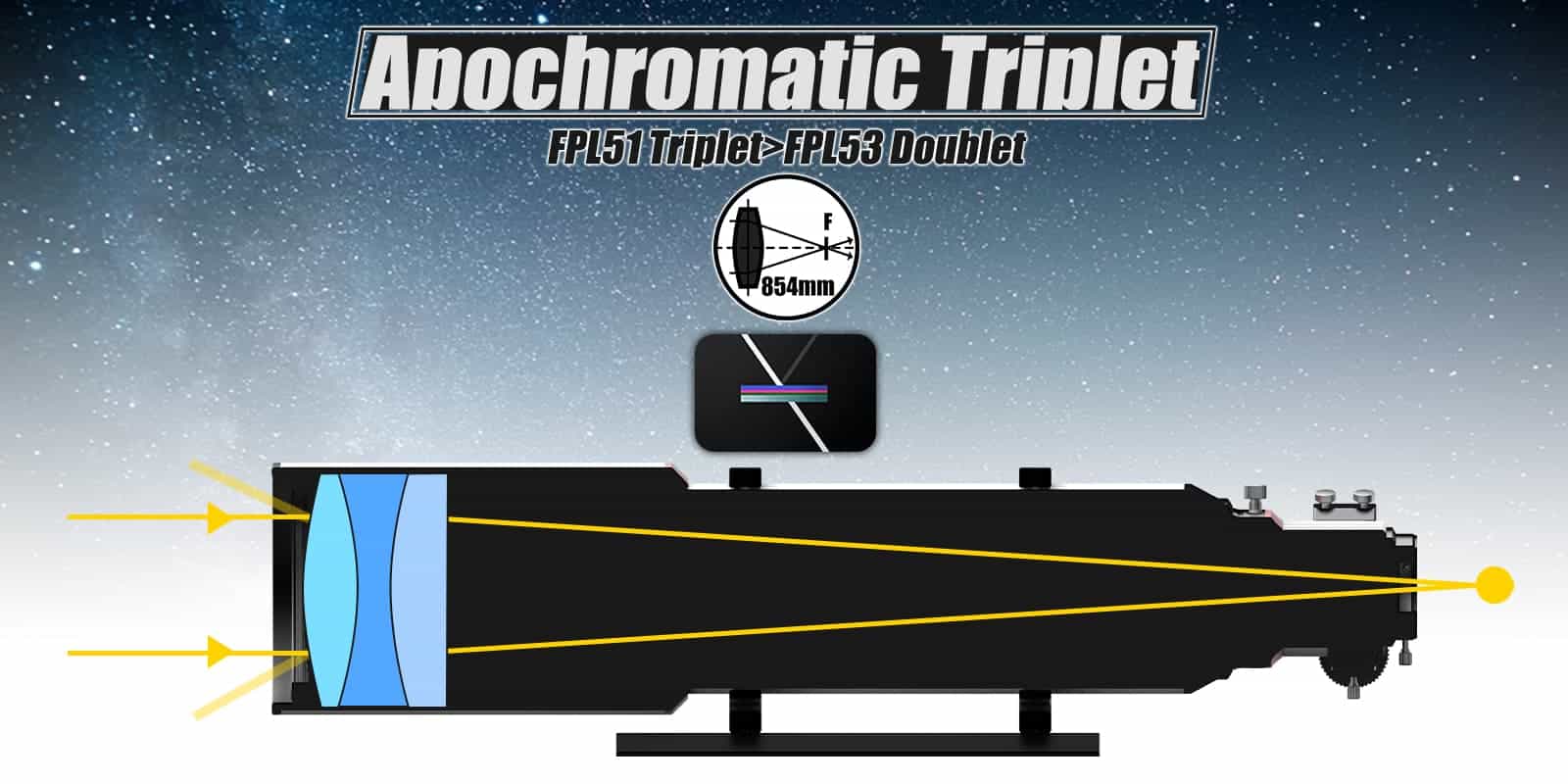

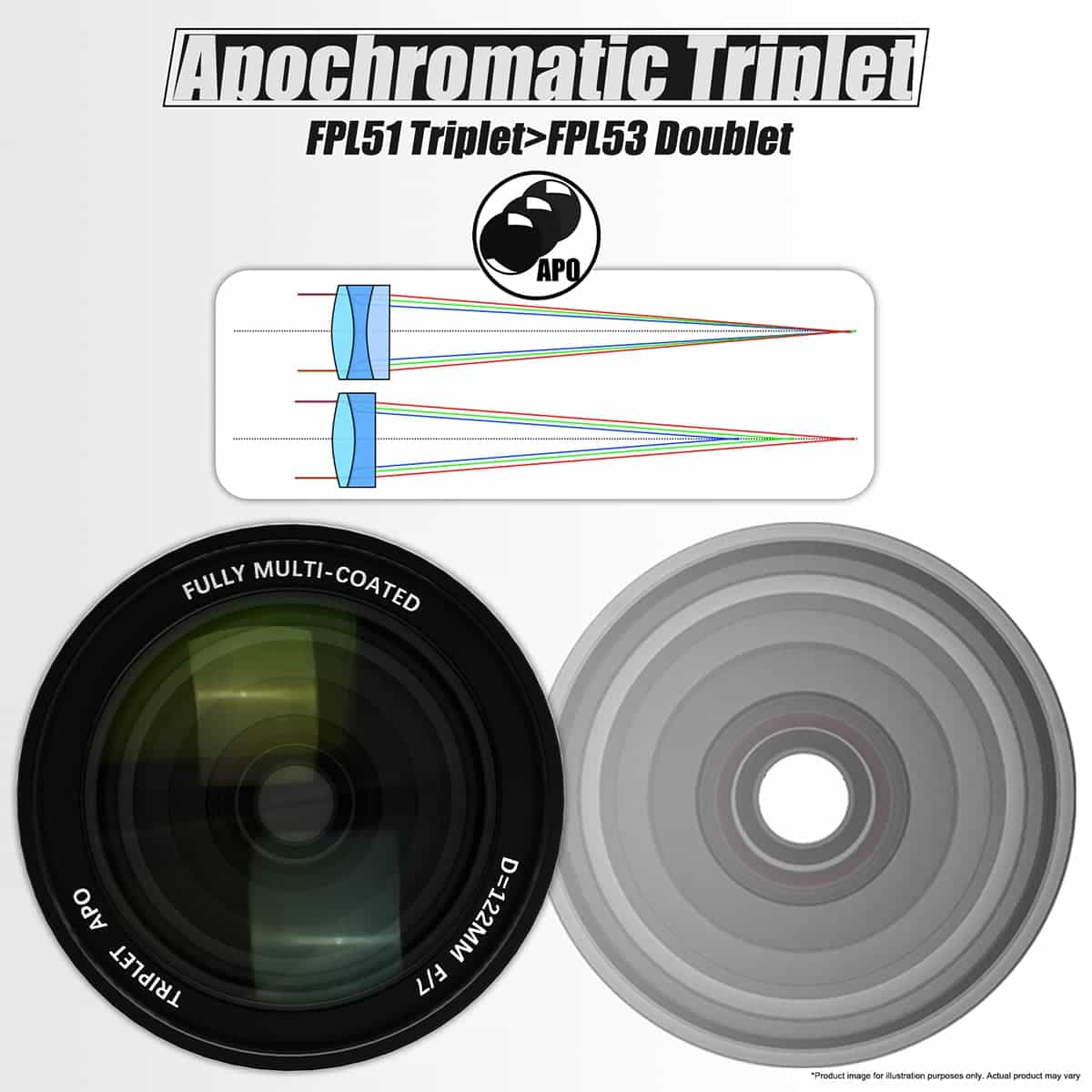

FPL51 Triplet > FPL53 Doublet - Just For Better Clarity

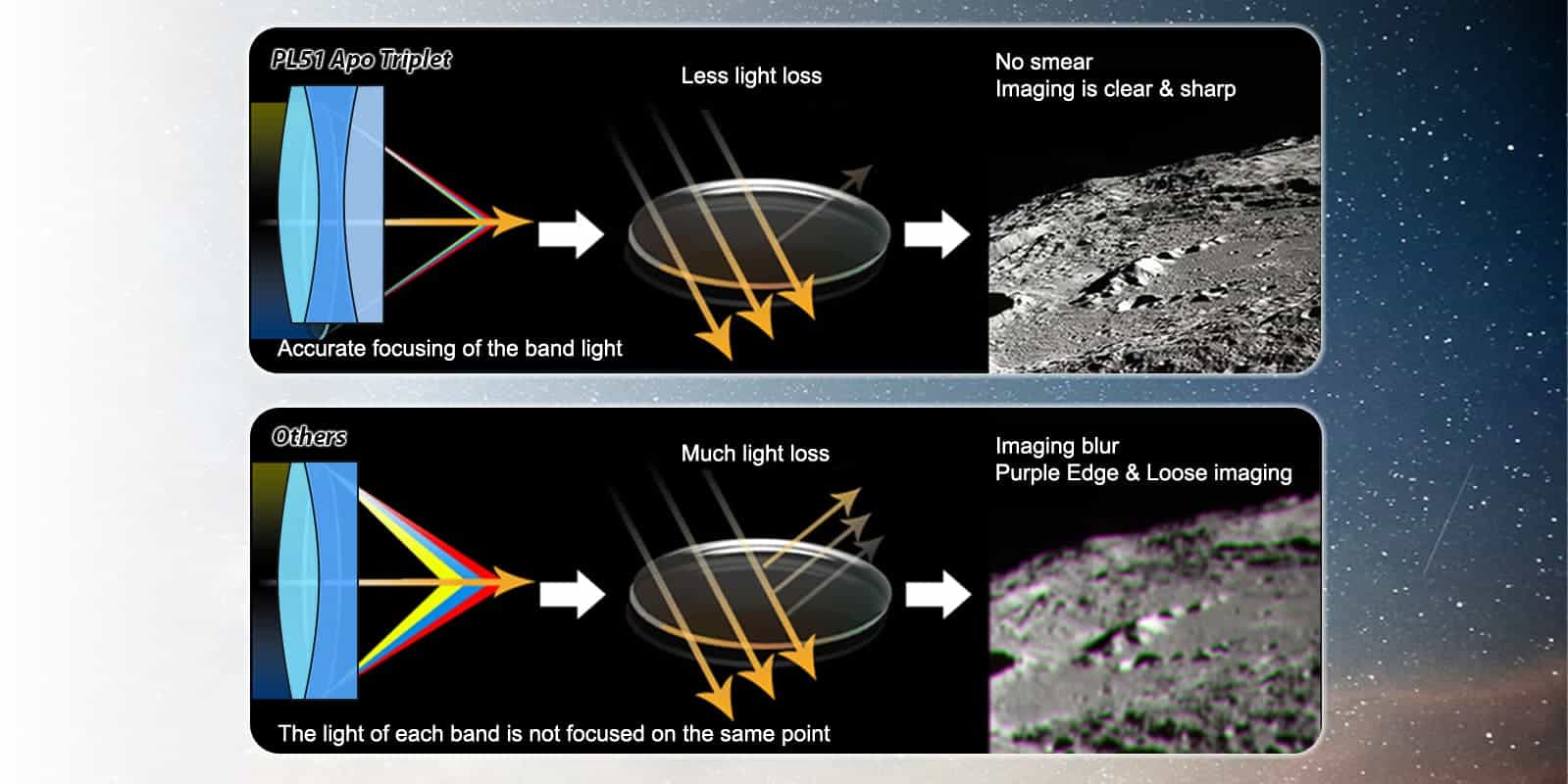

The SV550 122mm adopts a FPL-51 triplet apochromatic lens structure which contains one piece of ED glass. The triplet lens provides better correction of aberration and significantly reduces chromatic aberration and enhance the clarity and sharpness.

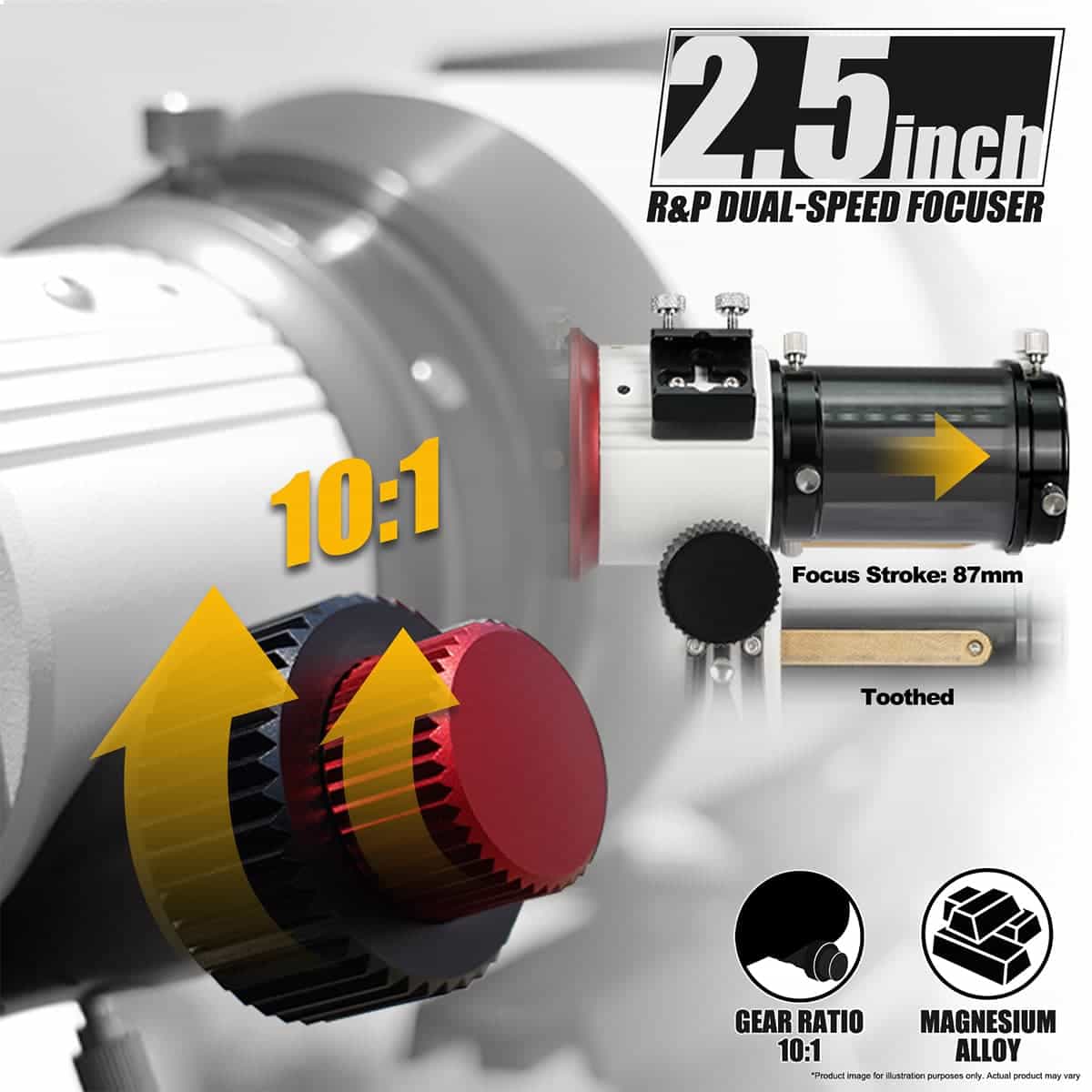

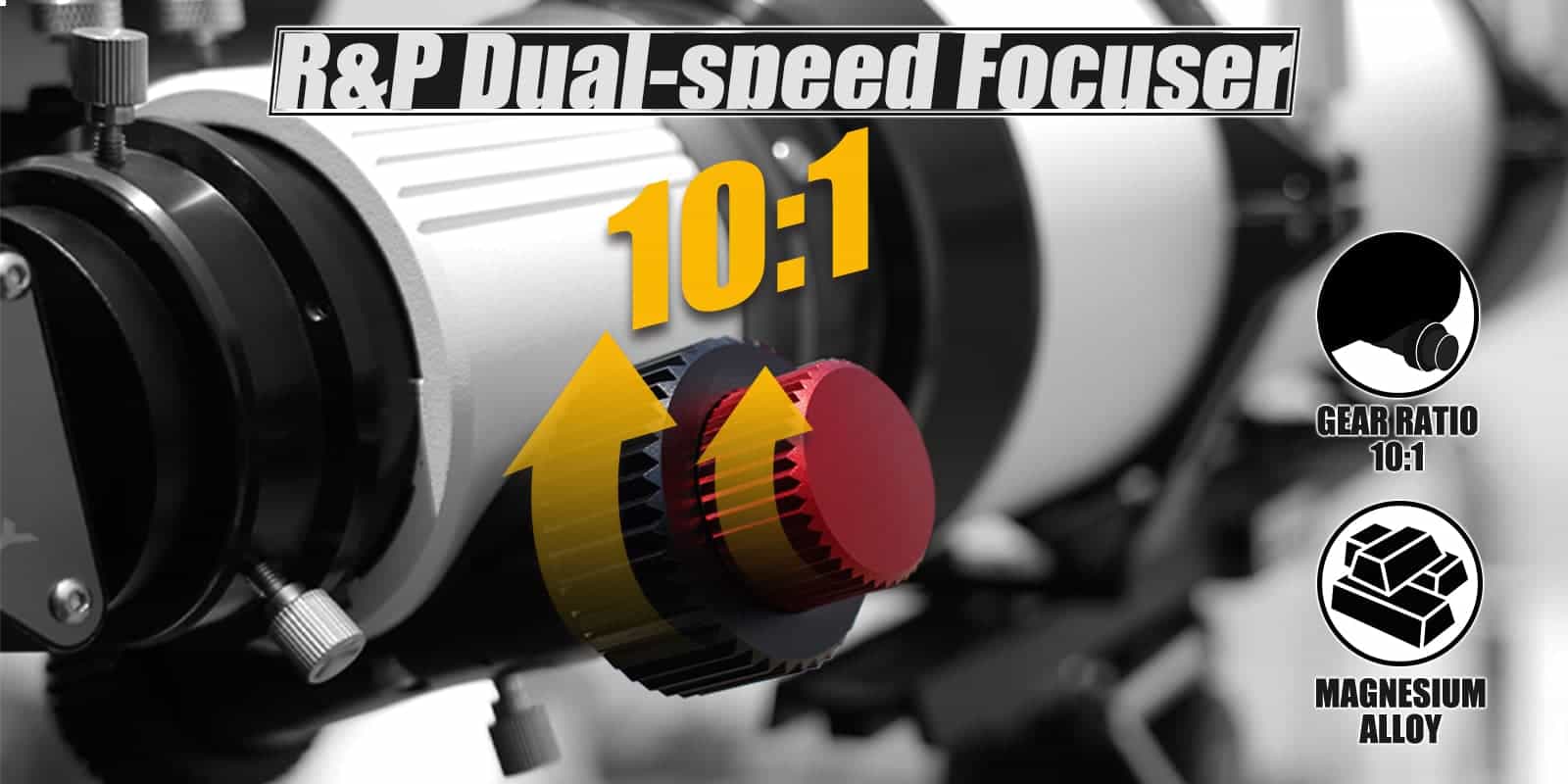

R&P Dual Speed Focuser
The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10, which makes it easy to achieve accurate focus. The dual speed focuser can provide two focusing speeds by using a set of co-axial knobs, for fast focusing and fine focusing.

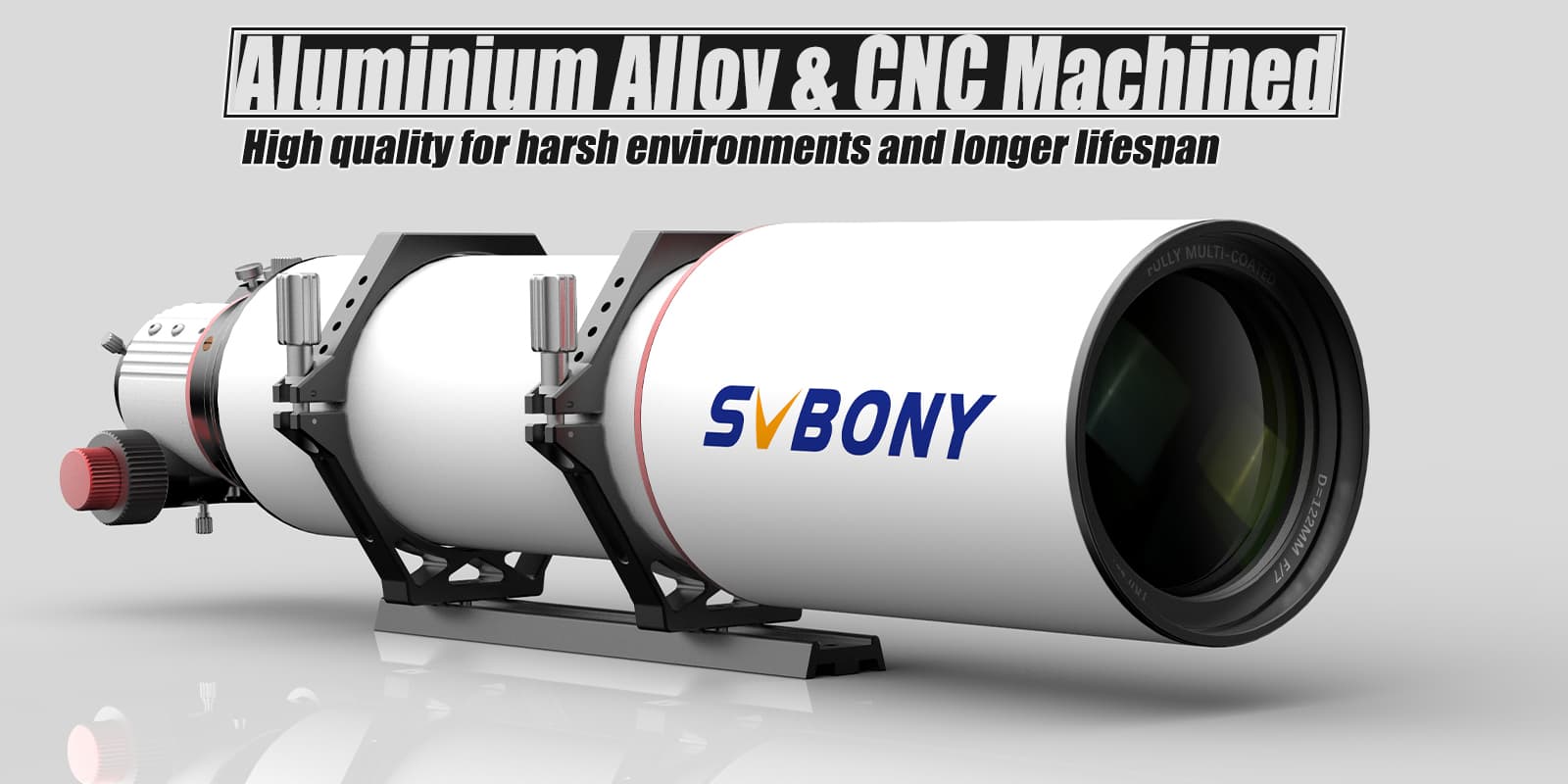

Aluminium Alloy & CNC Machined
The SV550 refractor is designed with Aluminium Alloy & CNC Machined, which makes it have high quality for harsh environments and longer lifespan.

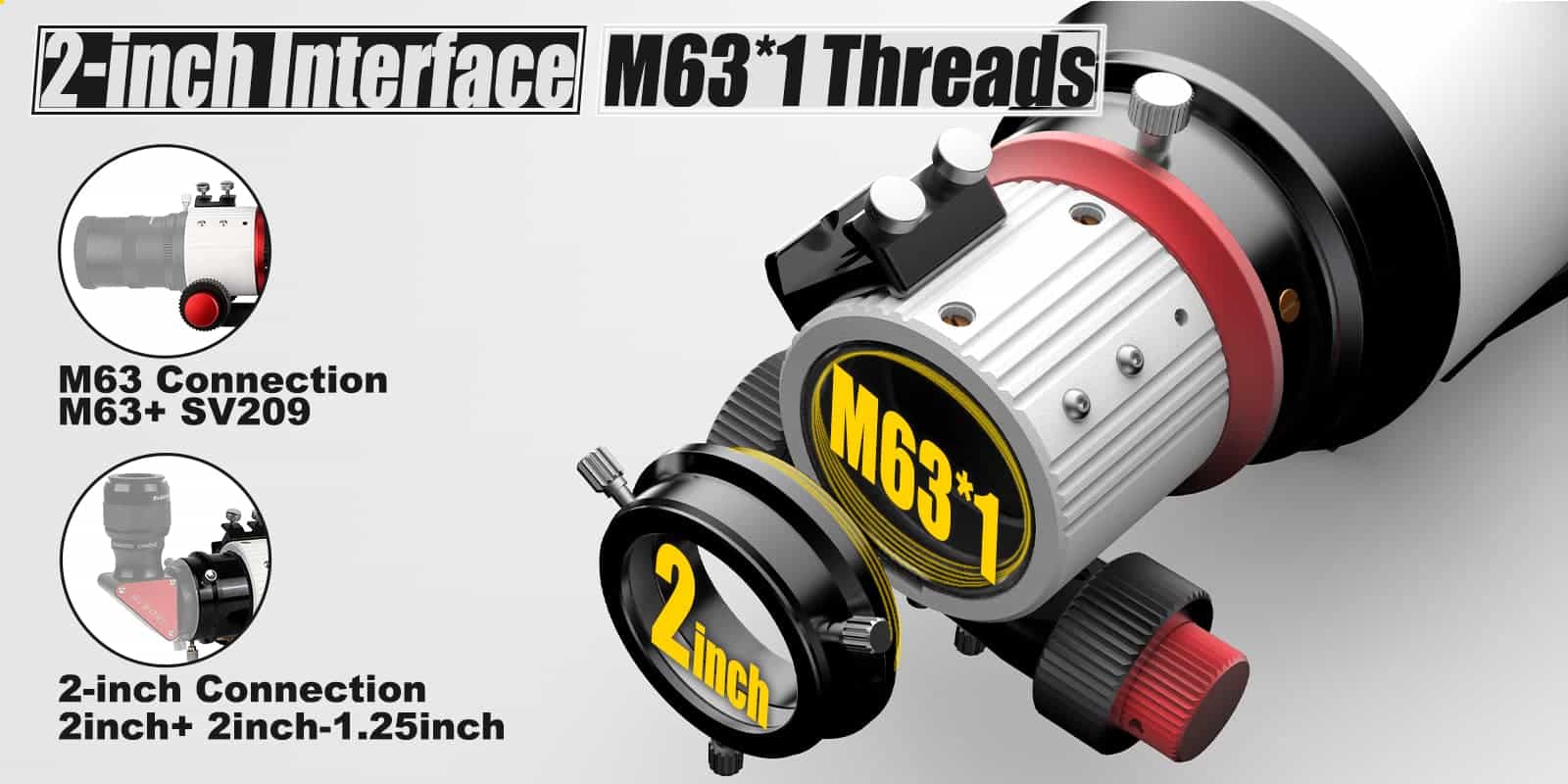

Compatible With 2-inch Interface & M63*1 Threads
The SV550 refractor is compatible with 2-inch and M63*1 accessories. The front is a 2-inch adapter for connecting a camera or 2-inch accessories; Rotating off the adapter, here threaded the M63*1 threads, for connecting the SV209 field flattener or other M63*1 accessories.

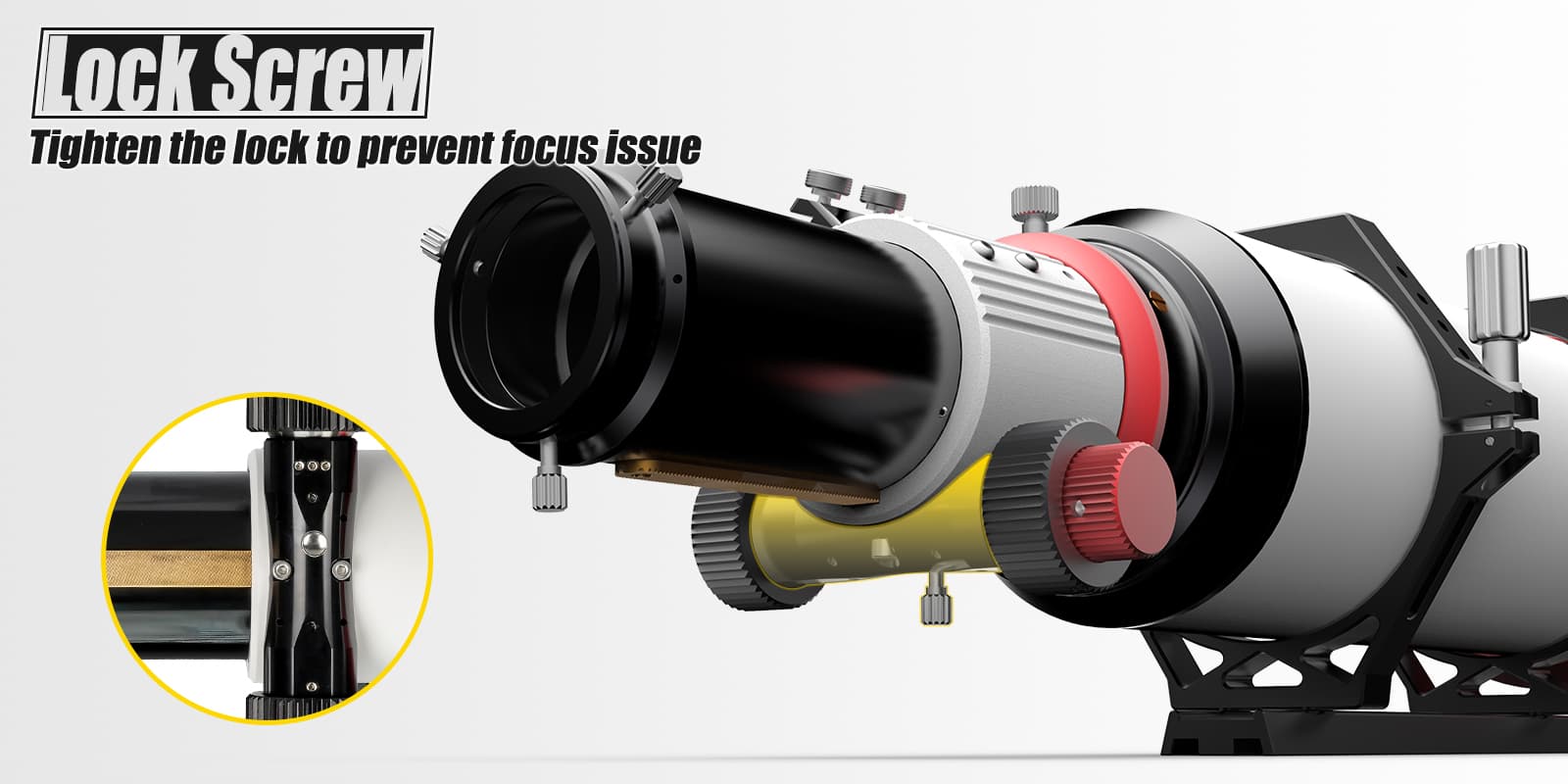

Lock Screw - Tighten The Lock To Prevent Focus Issue

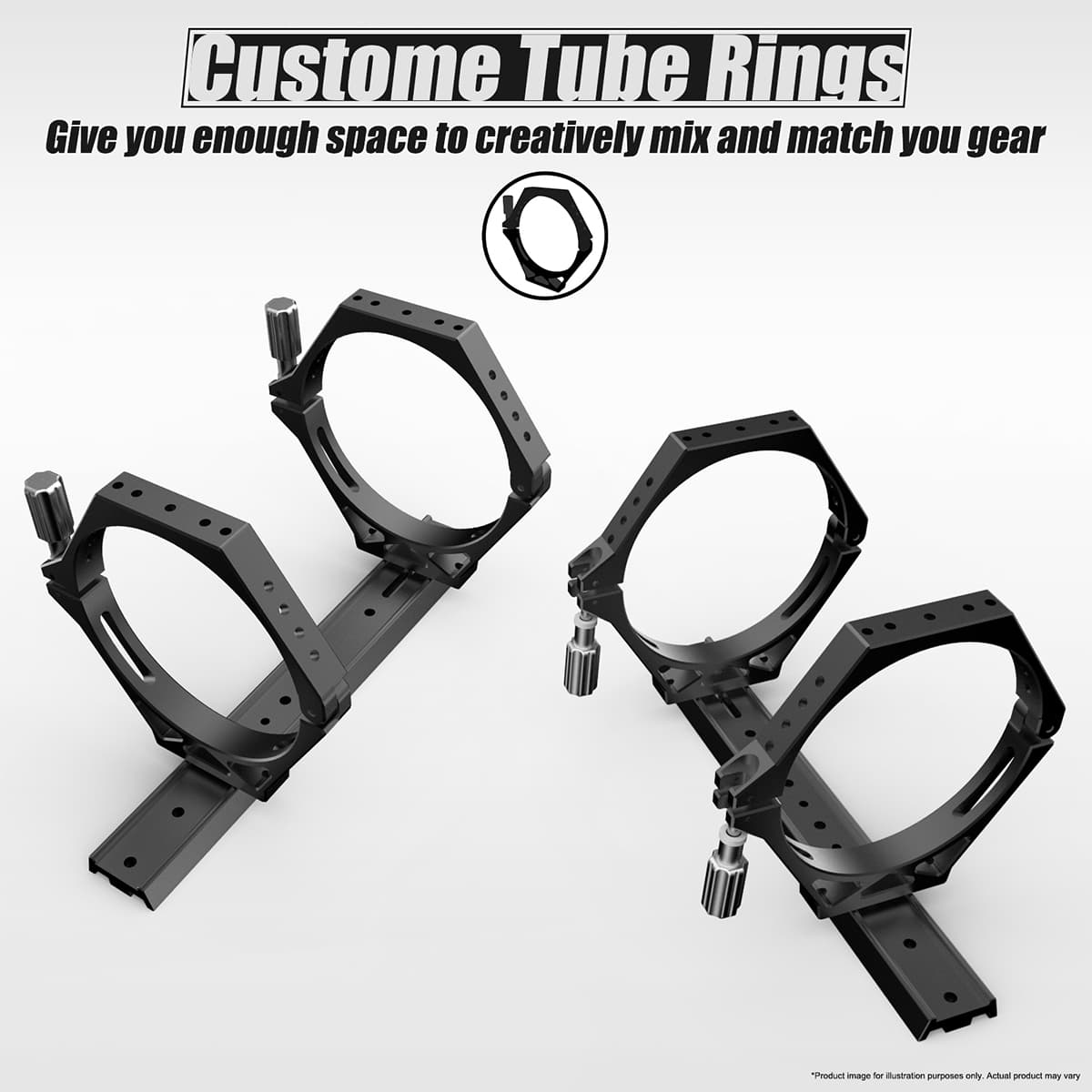

The entire tube rings have 26 screw holes + a mounting screw handle. Such tube rings with so many screw holes can be compatible with more equipment installations, like Smart WIFI device, guide scope, astronomy camera etc., meeting various needs of installations.

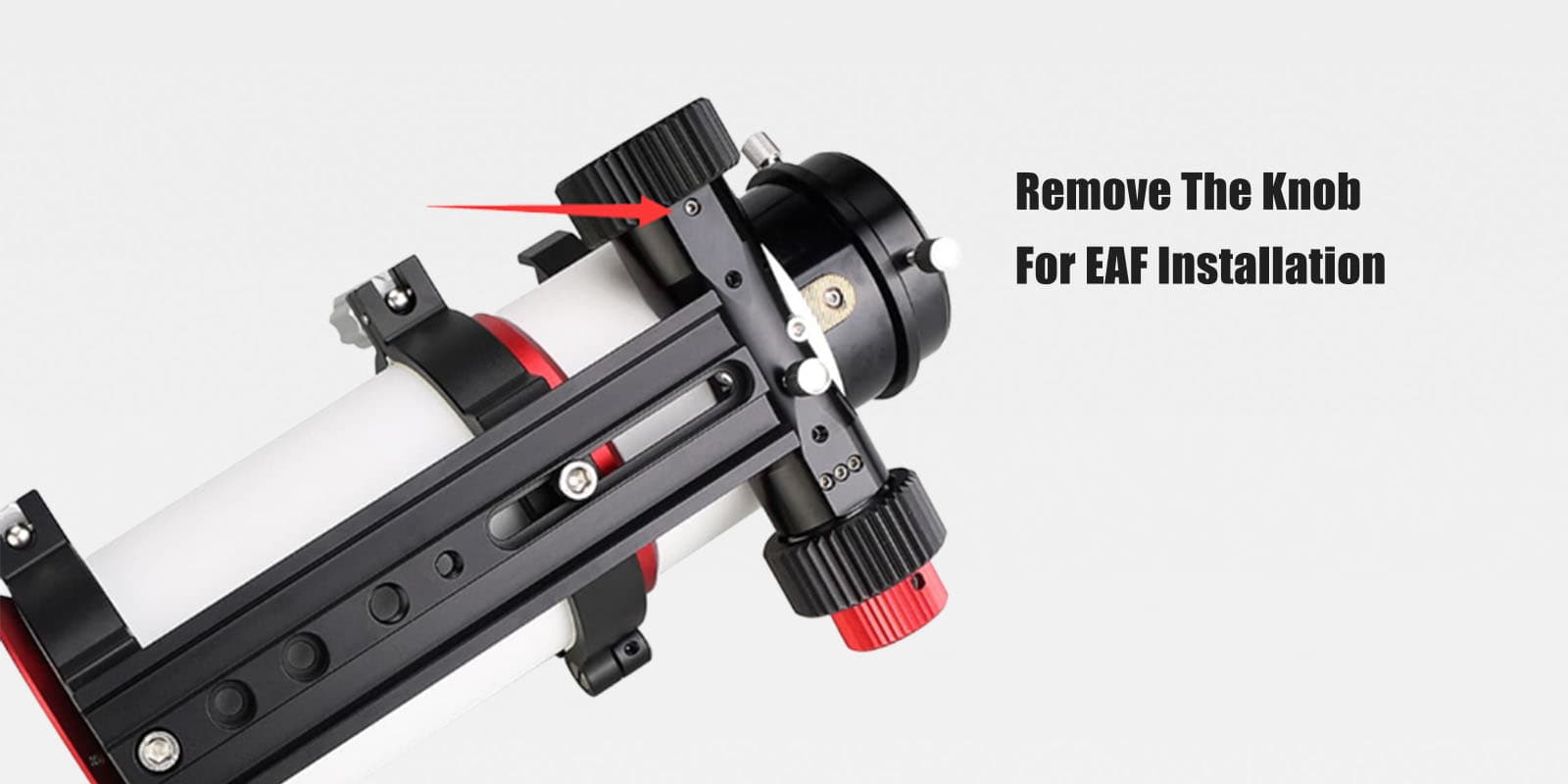

For EAF Installation
This SV550 122 APO is compatible with EAF focuser. To install the EAF, first you should remove the screw completely as shown. Then look inside the hole and slowly rotate the focuser until you see another set screw inside the hole. This screw actually secures the focusing knob to the shaft. Insert a wrench and loosen this screw. Note that there may be two of these screws, so rotate the focusing shaft one turn to be sure. The focus knob will slide off after that.

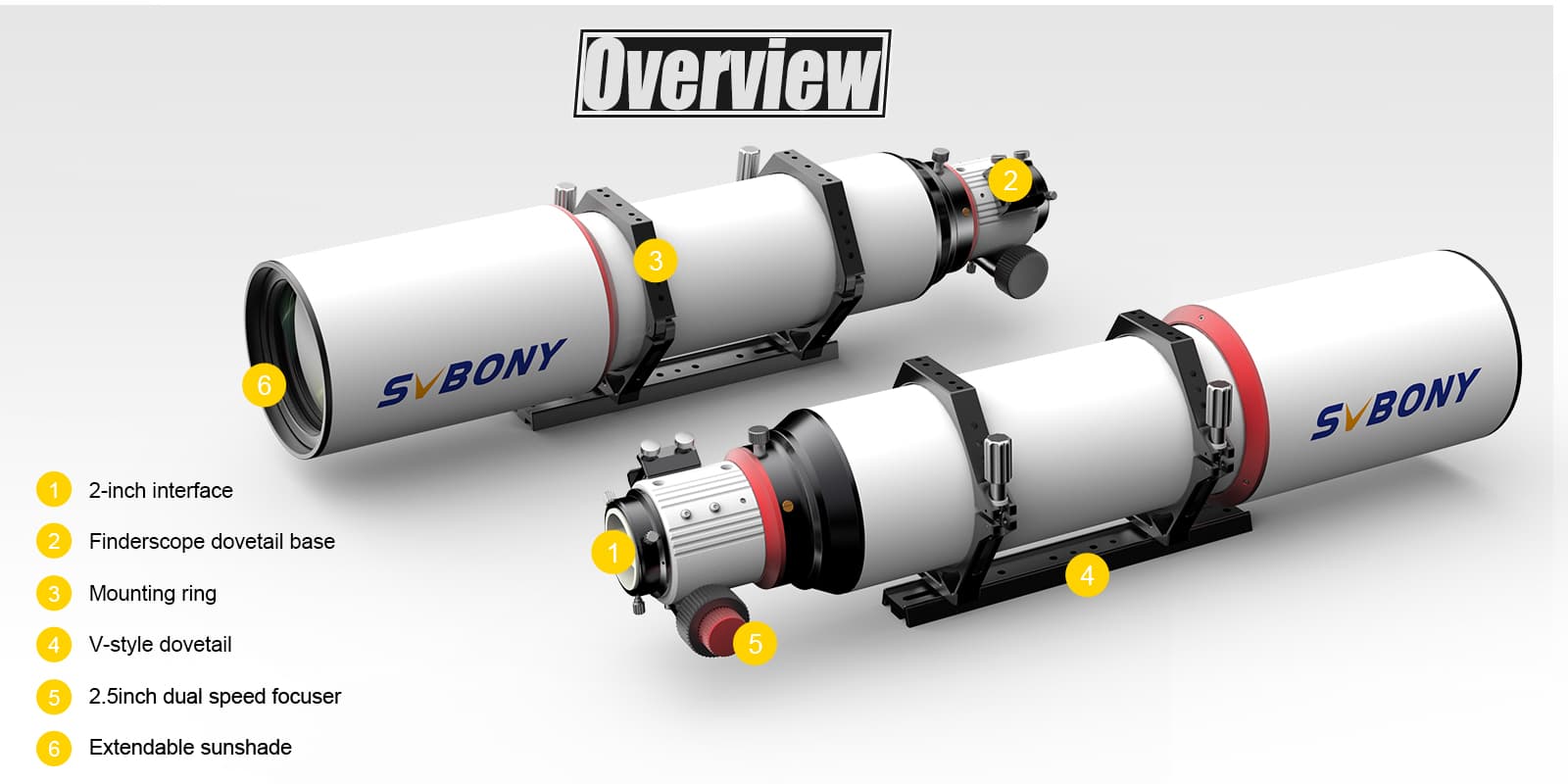

The Overview of The APO SV550
- 1. A 122mm aperture upgraded-An aperture upgrade, a big step stride
- 2. FPL51 Triplet>FPL53 Doublet-Just for better clarity
- 3. Multifunctional ring tube-Unlock more measures, experience diverse pleasures

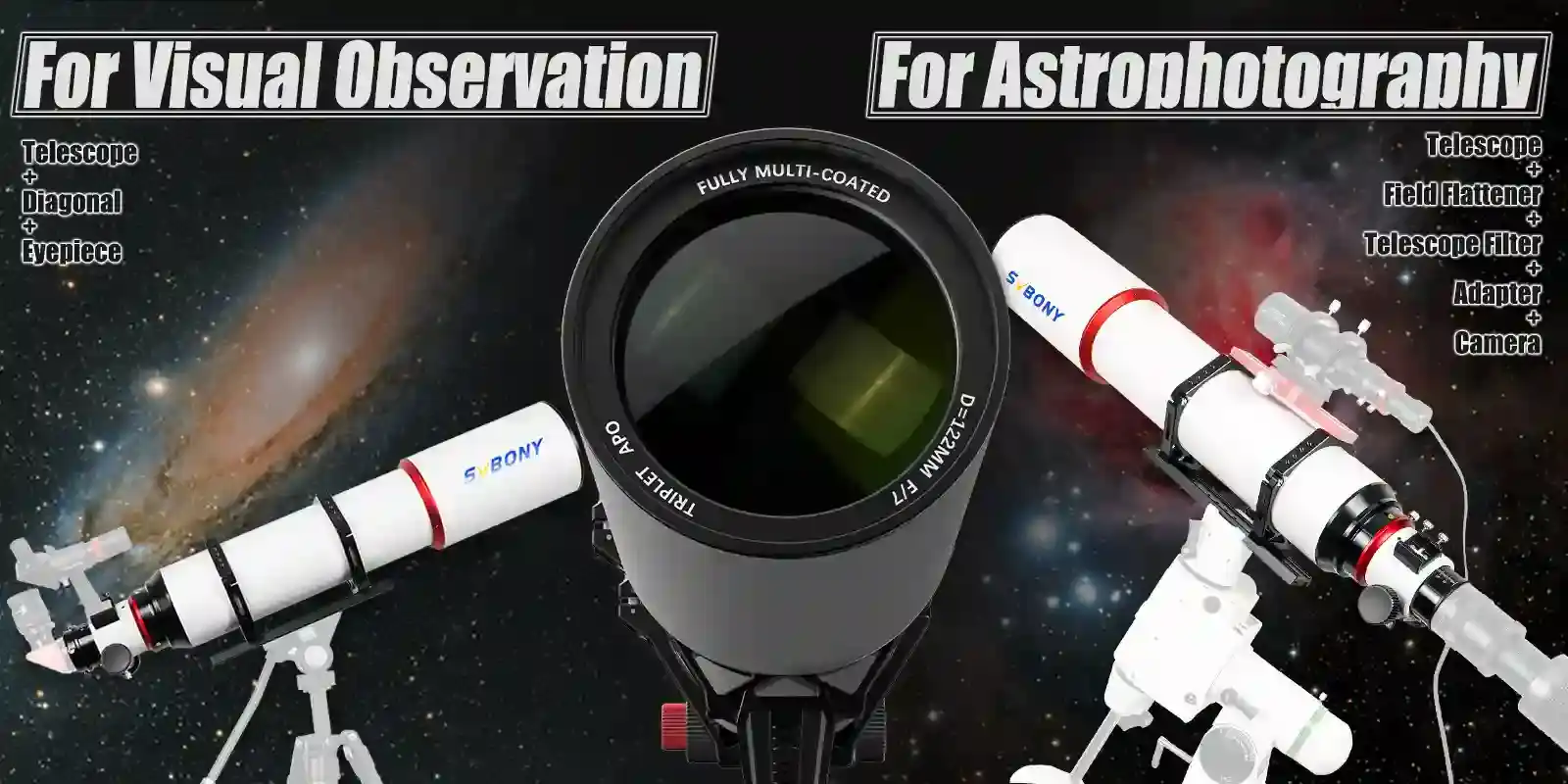

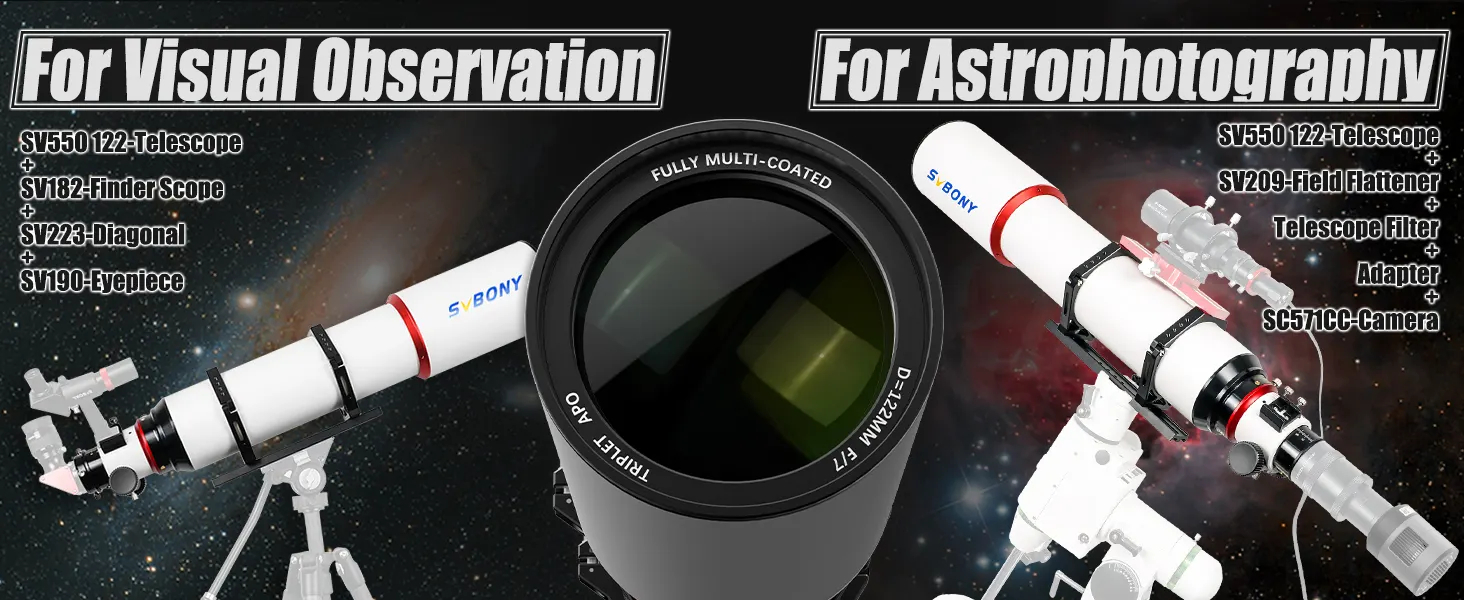

For Visual Observation & Astrophotography
The f/7 SV550 APO OTA Refratcor 122mm is a great travel telescope for both visual observation and astrophotography.
Learn more Collocation Schemes for SV550 122MM, Click https://www.svbony.com/blog/sets-for-sv550-122mm-visual-or-photography-svbony/
Brand | SVBONY |
Model | SV550 |
Aperture | 122mm |
Focal Length | 854mm |
Focal Ratio | f/7 |
ED Glass | FPL51 |
Telescope Type | Refractor |
Resolution | 1.15 arc seconds |
Coatings | Fully Multi-coated |
Tube Material | Aluminum |
Focuser | 2.5" rack-and-pinion, dual speed (1/10) |
Tube Travel | 87mm |
Visual Limiting Magnitude | 12.3 |
Lens Design | Apochromatic |
Dovetail Plate Length | 300mm |
Highest Useful Magnification | 244x |
Additional Thread | M63x1 female thread for adaptions |
Dew Shield Type | Retractable |
Tube Outer Diameter | 154mm |
Net Weight | 6440g/14.18lb |
Gross Weight | 10000g |
Features
- 1. The SV550 APO Triplet refractor with 122mm aperture and f/7 focal ratio, a great travel telescope for observation and astrophotography
2. Fully multi-coated triplet apochromatic optics using an ED center element
3. 2.5" dual-speed rack-and-pinion focuser 10:1 ratio fine focusing with M63x1 female thread for adaptions
4. Retractable lens shade/dew shield-the APO even fits into the hand luggage
5. CNC multi-function Dual hinged split tube rings with a 300mm versatile V-style dovetail, support mounting of various accessories
6. Finder shoe on the focuser is included
7. Multipurpose shock-absorbing telescope protective bagrunning AstroDMx Capture
The Real Shot Image by SV550 122mm APO
View more new deepspace photos captured by SV550, please refer to the blog https://www.svbony.com/blog/some-new-deep-space-photos-captured-by-sv550/

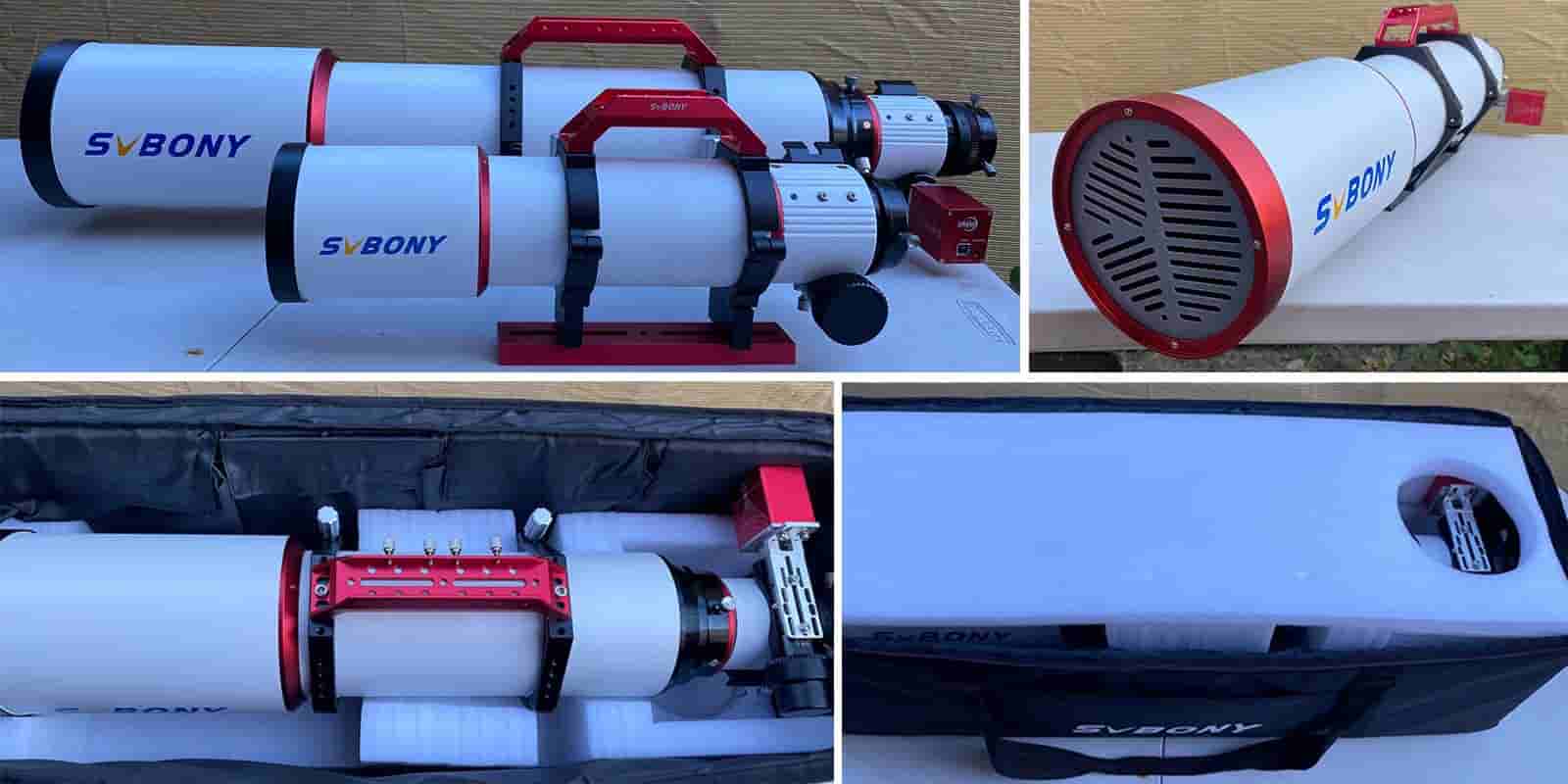

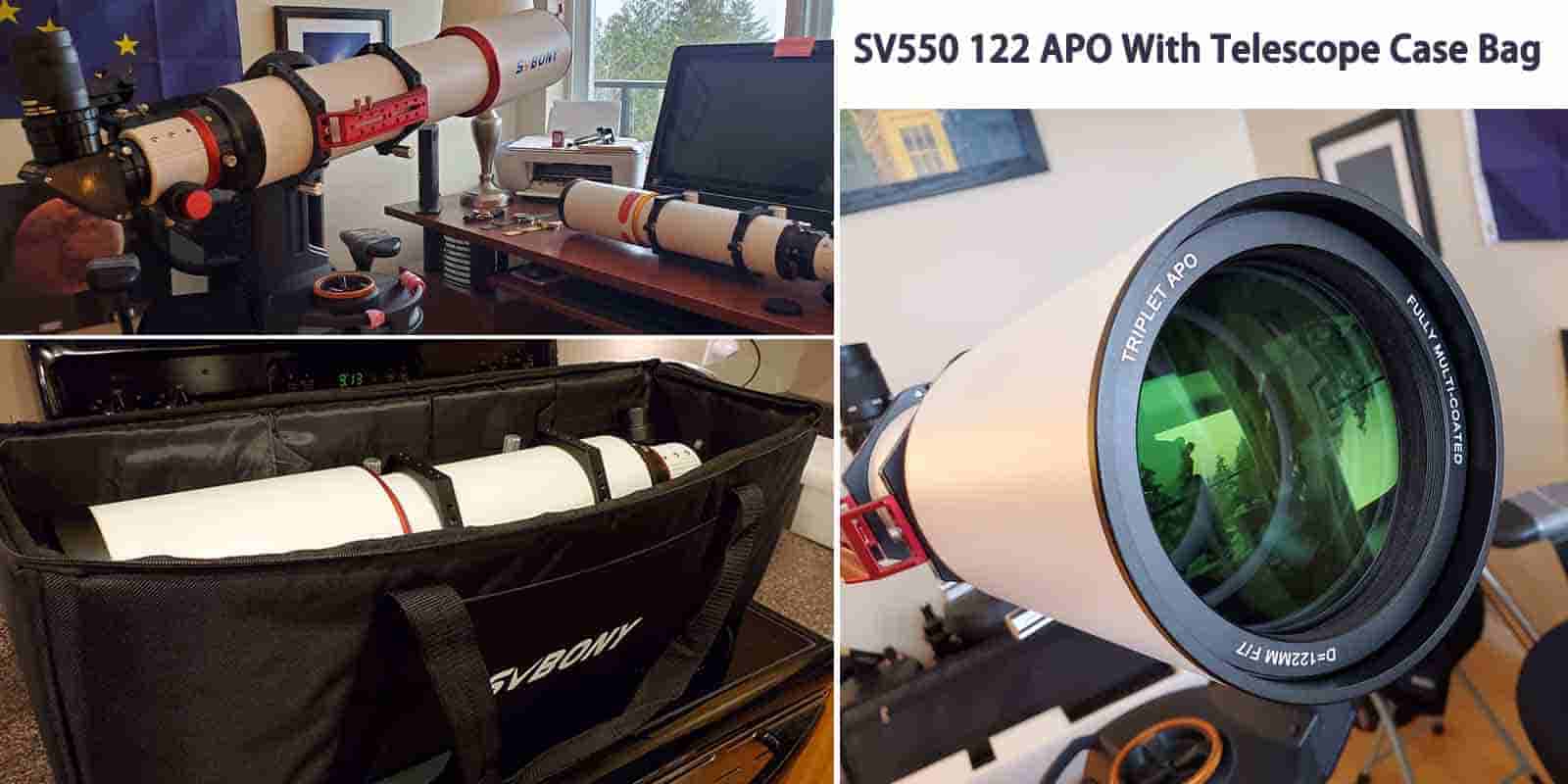

The Unboxing of SV550 122mm OTA From Our Clients
Note: The SV550 122 OTA includes a bag, so no need to buy one separately. For extra adapters, pls choose our bundle set on the listing page.

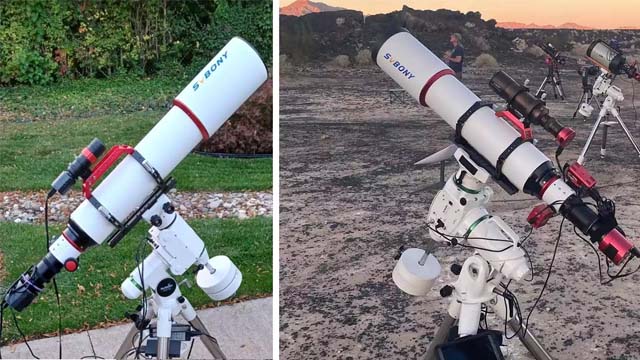

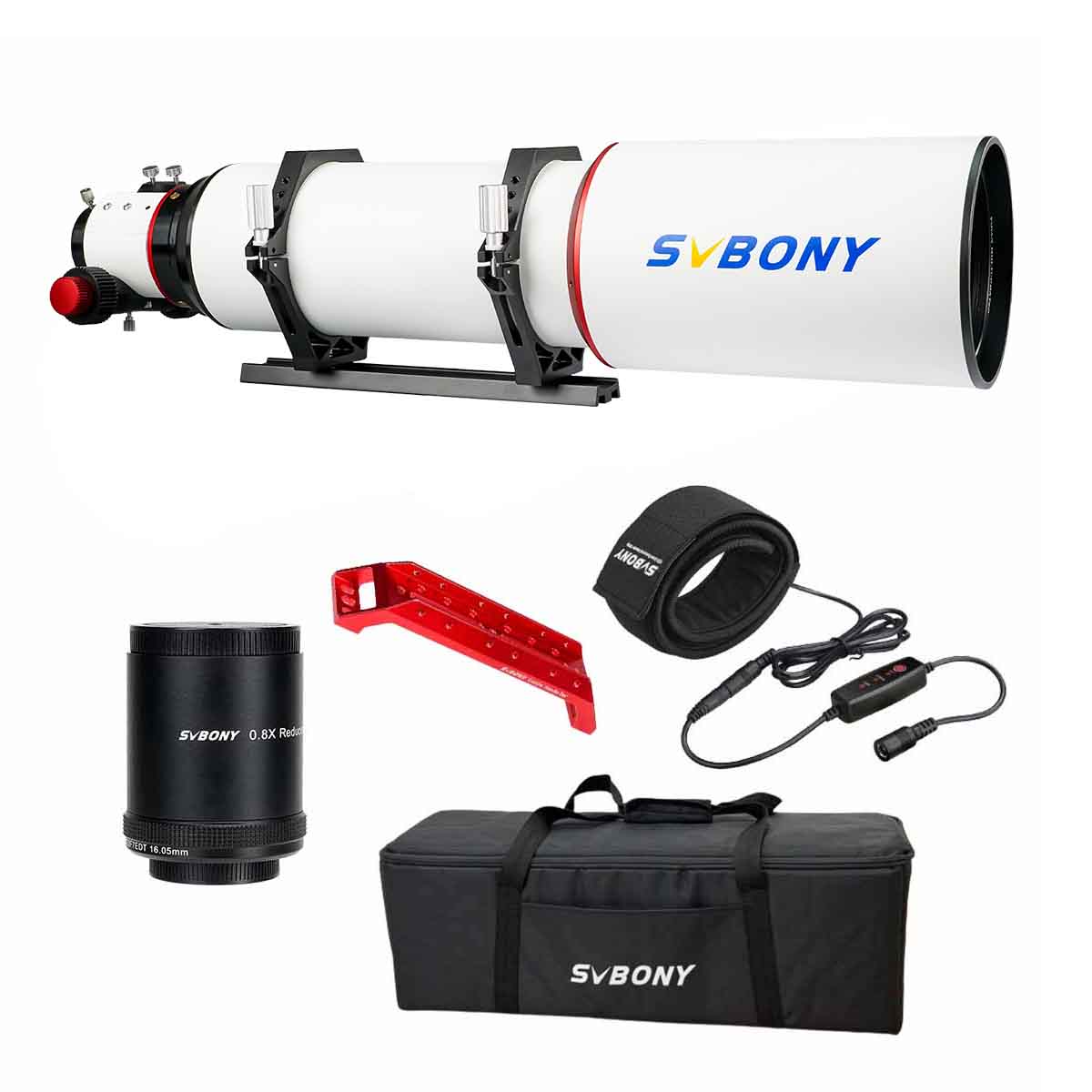

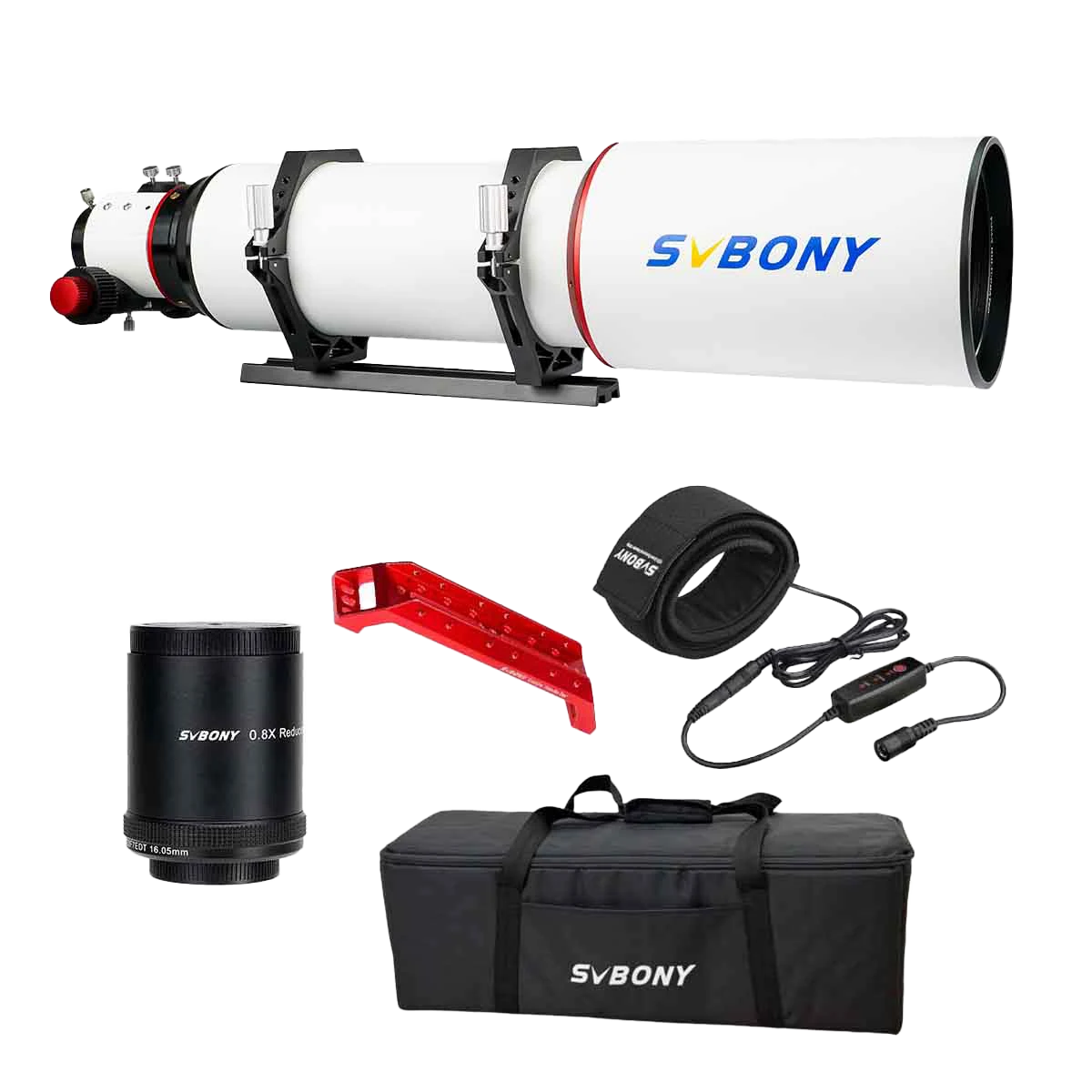

The Bundle Set of SV550 122mm by Our Clients
The Reviews of SV550 122mm by Christian Ralph
https://www.youtube.com/watch?v=cE6Bo7JgdYk
My first scope was the sv503 80mm and it was a great scope to get me hooked on the hobby! Now i have the sv550 80mm, sv550 122mm and sv555 54mm. All are great budget scopes!
I would say it was an excellent purchase, the optics arrived in perfect condition, the Star test was OK, and the images of the planet, Moon and deep sky were beautiful. The telescope was purchased for visual purposes and not astrophotography, but from what I've read it also does well in that area. The weight and price are lower than the competition. I'm very happy with this telescope. The only downside is the delivery time to Portugal, 16 business days. This could be improved.
Upgraded from a 72mm Astro-Tech doublet to the 122mm Sv550.. Although a much bigger, heavier telescope I’d still class it as a portable travel scope -just took a few sessions to get used to the extra weight. The quality of the images is outstanding - the step up from doublet to triplet makes a real difference in image quality and detail. The telescope is solid and classy - pinpoint stars with no noticeable chromatic abberation .
I received the telescope yesterday. The telescope was packed very well with accessories. Tomorrow the weather is going to be good so I will check it.
I received the telescope yesterday. Perfectly packed with accessories. First impression very positive, great glass. We'll see how the first photons fall.
I have been using this scope for almost half a year and you find my detail review on SVbony blog. To summarize, I find SVbony SV550 122mm APO as an excellent value-price solution. For your money, you will receive a very well manufactured and solid APO telescope with excellent mechanical machine as well as optics. The large aperture of 122mm provides high light-gathering capacity and resolution, both focal lengths options, 683 and 854 mm, using two potential SVbony flatteners, are optimal for most of the DSO targets. I recommend buying some of the telescope bundles, including at least a flattener/reducer, and eventually an SVbony dew heater band, a handle, a filter drawer and a guide scope, if you already do not have any. I must admit I am very satisfied and pleased with the scope.
It is a rather large 122mm aperture ApoChromat (see definition on Wikipedia) with excellent color correction. On a few good nights I was able to get a few images with it, just to test it out. I used a Skywatcher HEQ5 mount (an AVX would work just as well) and a RisingCam IMX571 camera. Pros : Excellent optical quality for the price Very well-made focuser, ring mounts and 0.8x reducer Complete accessories (finder mount, guider mount etc) Cons : This thing has a good size and is not light !
The build quality is superb, the optics are bright and sharp, the focus mechanism is extremely solid and smooth. The entire assembly is much more solid that it appears to be in pictures. Definitely a higher end scope. Pretty thrilled with it so far. After getting some more clear nights boy this thing performs beyond expectations, I’m imaging with the ASI2600MM pro in mono with it and wow, pinpoint stars across the entire feild, no aberration noticeable at all. This scope is the deal of the century. If you’re on a budget and looking for a very high performance APO for astrophotography then it can’t be beat there’s nothing I’d complain about. I mounted it to a Losmandy rail to add room for power supplies and my imaging computer. I still haven’t had enough clear night to really push it to it’s limits but having taken some images under less than perfect conditions the results are impressive to say the least…
I have been doing astrophotography for a little less than two years. I started out with an 8 inch Schmidt Cassegrain style telescope (SCT) but I wanted a telescope with a wider field of view. I decided to order the SV550 80 mm refractor telescope from Svbony and loved it. So when SVBONY came out with the SV550 122 mm telescope and I saw some video reviews, I decided to order one to replace the 8 inch SCT reflector. I couldn't be happier with a telescope. It is a little on the heavy side (14 lb/6.4 kg vs 12 lb/5.4 kg for the SCT) but it's not too much for a senior citizen like me to handle. It has a nice long dew shield that extends and retracts smoothly. I use the manual focuser with a Bahtinov mask as a focus aid. It dials in smoothly and maintains focus once set. With the 1.0x field flattener, the stars are sharp and round points of light all across the field of view. In comparison with the 8" SCT with a 0.63x focal reducer, the quality of the images has improved greatly. In comparison with the SV550 80 mm telescope, it has over twice the light-gathering capability, so I am able to get more detail in my images during a single night of photography. All in all, I am extremely happy with this telescope and expect to get many years of great images with it.
The scope is outstanding. Build quality is what you would expect from Svbony. Surprisingly light for the size. With a large front aperture, your camera setup on the back will be easy to balance. Another great product from a great company.
Very well made, a solid piece of equipment made with quality Ohara Japan S-FPL51 ultra low dispersion glass. I coupled it with a solid Skywatcher HEQ5 mount and a Sony IMX571 chip 26Mp cooled deep sky camera. You can see my first visual impressions on YouTube under video labelled : KLTyzWgymQ0 Stay tuned for more pictures !
I ve been very pleased with SVBONY's budget scopes. I have the 122mm version and its my favorite of all my scopes. Visually, its such a nice and sharp APO good for planetary watching. I only wish they sold more variety of field flatteners. It came with dew heater, handle, FF. SVbony also reaches out to you and ask if you have any questions or suggestions. Best service I like this brand.
