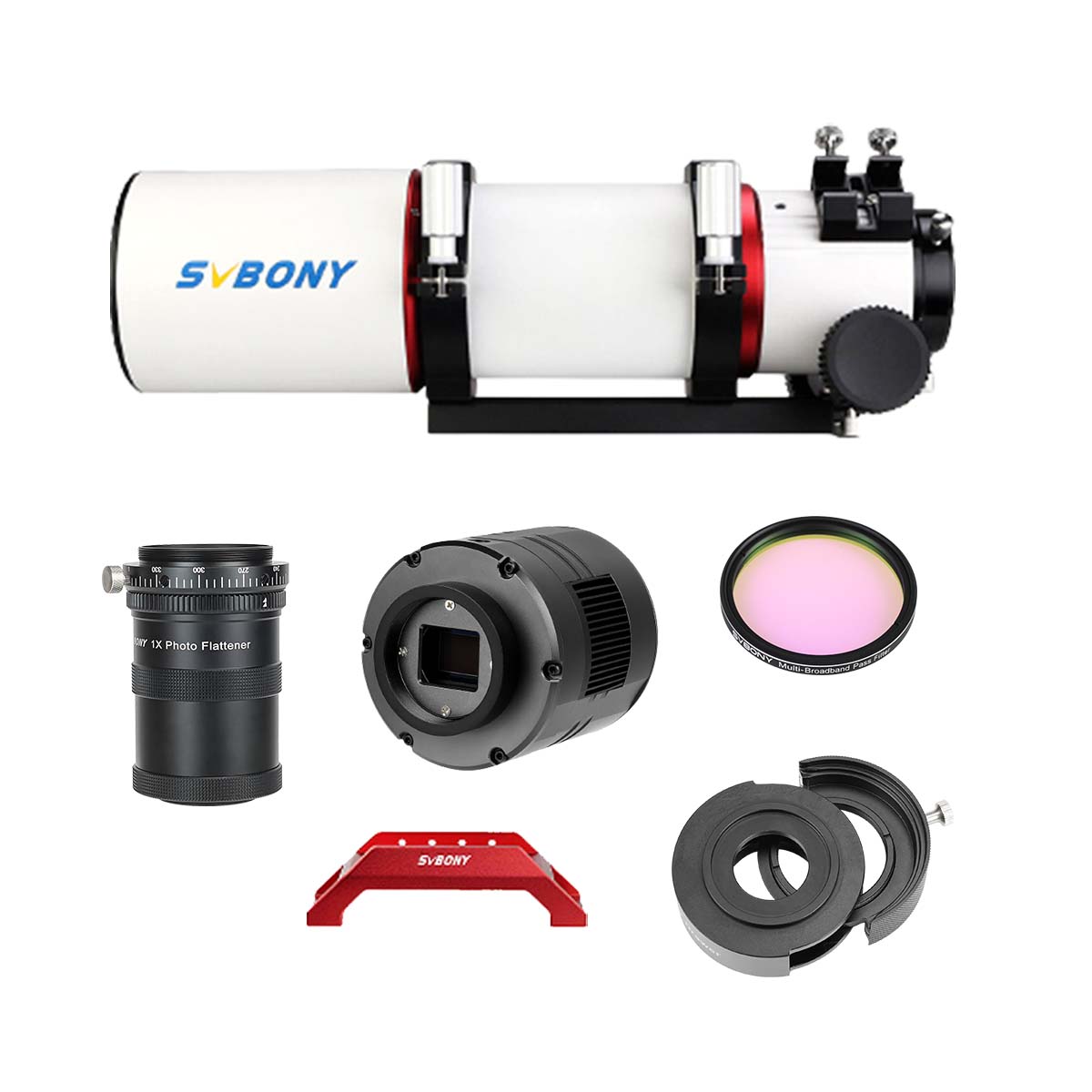

This SV550 triplet bundle includes:
- SV550 80APO;
- SV405CC osc cooled camera;
- SV209 1.0x flat-field reducer;
- SV210 M63 CAA 360 degree rotator camera angle adjuster;
- SV220 Dual-band filter 7nm 2inch;
- SV226 2inch filter drawer;
- SV211 135mm handle bar.
FAST shipping, duty-free
In Stock
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 80mm |
| Focal Length | 480mm |
| Focal Ratio | f/6 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.45 arc seconds |
| Coatings | SMC |
| Limiting stellar magnitude | 11.6 |
| Lens design | Apochromatic |
| dovetail plate length | 150-175mm |
| barrel weight | 2900g |
| mirror Brief Size | 377.8mm |
| Tube Outer Diameter | 103mm |
| Net weight | 3750g |
| Gross weight | 3850g |
| Package size | 440x220x210mm |
| Model | SV405CC |
| Sensor | IMX294 |
| CMOS Image Resolution | 4144*2822 |
| Total Pixels | 11.7 megapixel |
| Pixel Size | 4.63µm |
| Target Size | 19.2mm*13mm |
| Diagonal | 23.2mm |
| Maximum Frame Rate | 19FPS |
| Shutter Type | Rolling Shutter |
| USB Type | Type-B USB 3.0 |
| DDRIII Buffer | DDR3 256M |
| Exposure | 0.05ms-2000s |
| Readout Noise | 1.2e |
| QE Peak | 0.75 |
| Full Well | 63ke |
| ADC | 14bit |
|
Brand |
SVBONY |
|
Model |
SV220 |
|
Name |
Multi-Broadband Filter |
|
Size |
2-inch |
|
Substrate Thickness |
1.80mm |
|
Clear Aperture |
44mm |
|
Wavelength Range |
300-1100nm |
|
FWHM |
OIII (7nm) & HA (7nm) |
|
Blocking |
OD5 |
|
Peak Transmittance |
500.7nm@T>90%; 656.3nm@T>94% |
|
Surface Quality |
60/40 |
|
Surface Parallelism |
1/4λ |
|
Thread |
M48x0.75 |
|
Single Thread |
Yes |
|
Net Weight |
12.5g / 0.44oz /0.027lb |
| Brand | SVBONY |
| Model | SV209 |
| Optical Tube Length | 120 Millimeters |
| Eye Piece Lens Description | FMC |
| Objective Lens Diameter | 50.8 Millimeters |
| Telescope Mount Description | Equatorial Mount |
| Product Dimensions | 5"D x 4"W x 3"H |
| Focus Type | Manual Focus |
| Power Source | Focal Reducer |
| Finderscope | Straight-Through |
| Item Weight | 0.45 Kilograms |
-
-
Feature
- 1.The SV550 80 triplet apochromatic optics structure (1 piece of S-FPL51 low-dispersion ED glass and 2 pieces of correction glass) effectively improves the blue-edge chromatic aberration problem of single-ED structure imaging;
2.Dual-speed toothed focus mount (1:10); reduces vignetting on full-frame cameras and reduces the weight of the support platform;

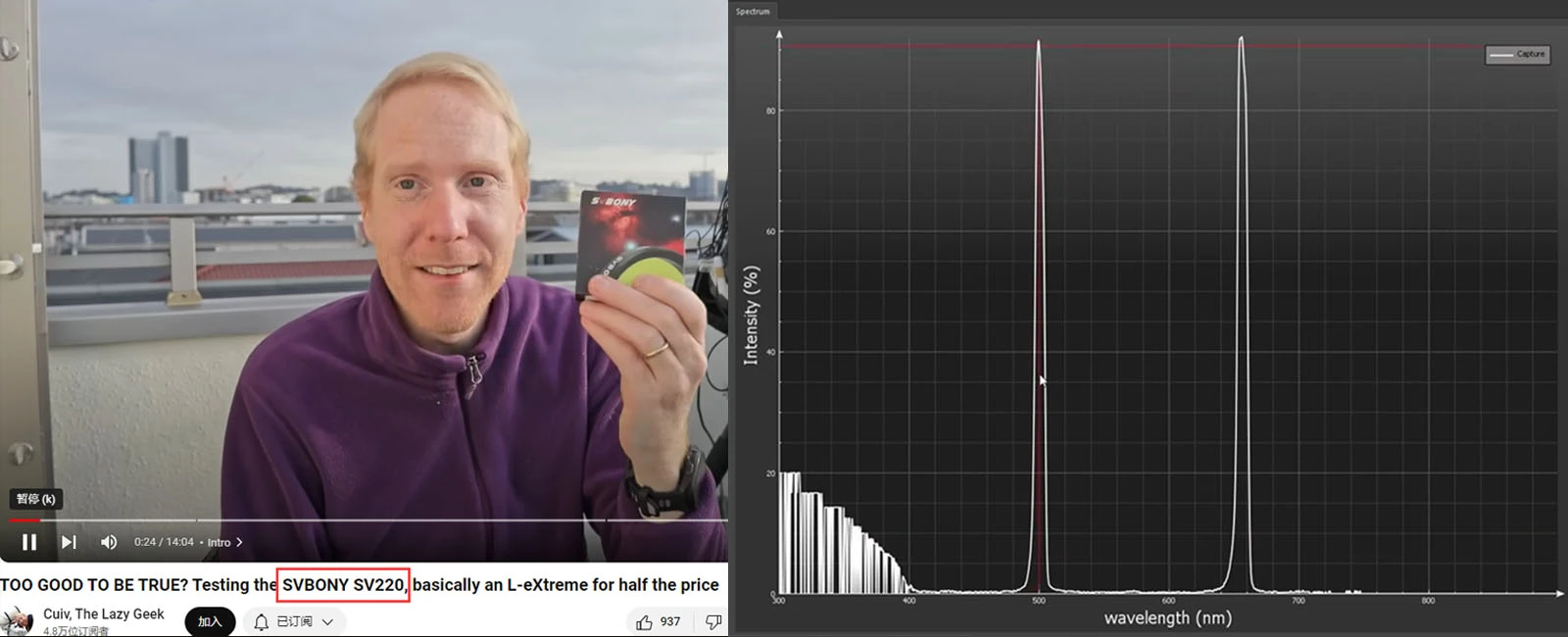

3.SV220 7nm dualband filter with over 90% peak transmission and sharp cut-off can greatly enhance the contrast and bring out the most detailed information for those deep-sky objects in light polluted area;
4.SV405CC cooled color camera with IMX294 color CMOS sensor, USB 3.0 high-speed interface, and two-stage tec cooling system.
-
