This Planetary Imaging Set includes the SV503 70ED refractor and the the SV705C planetary camera with a high-sensitivity IMX585 sensor, delivering stunning detail of the Moon, Jupiter, Saturn, and more. The SV165 30mm guide scope and SV905C camera ensure precise tracking, while the SV241 PowerBox keeps your setup organized and fully powered. To keep your views clear all night long, the SV172 400mm dew heater protects your optics from moisture.
Whether you're a beginner or an experienced astrophotographer, this all-in-one kit makes it easy to capture the cosmos.

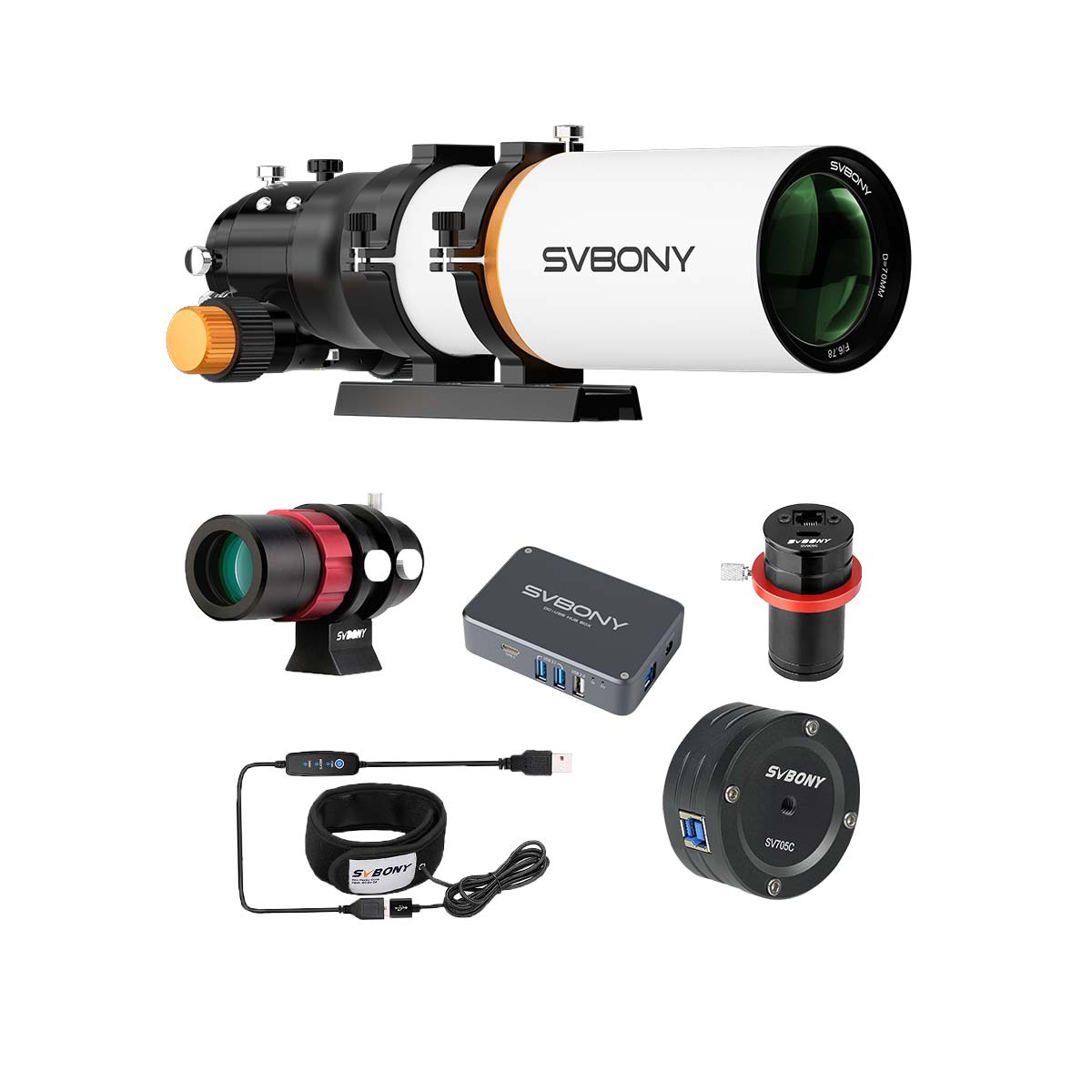

Bundle Includes:

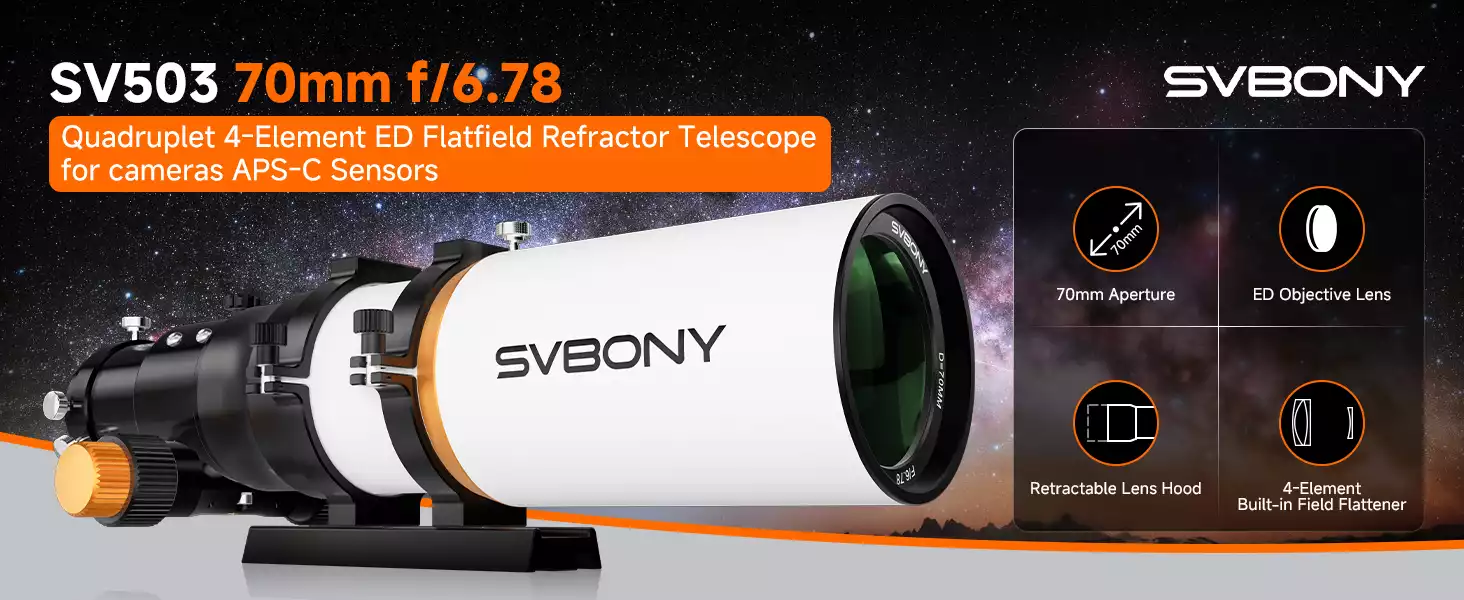

SVBONY SV503 70mm f/6.78 Refractor Telescope
The SV503 70ED OTA with 4-element ED optical design combines FPL51 and lanthanum glass to minimize chromatic aberration and deliver excellent image fidelity. With built-in flat-field correction and an f/6.78 focal ratio, it ensures high-quality, wide-field views of the night sky. The dual-speed 1:10 focuser allows for ultra-fine adjustments, while the retractable lens hood improves portability. Compatible with both 1.25" and 2" accessories, it offers maximum flexibility without swapping tubes - perfect for both imaging and visual observation.

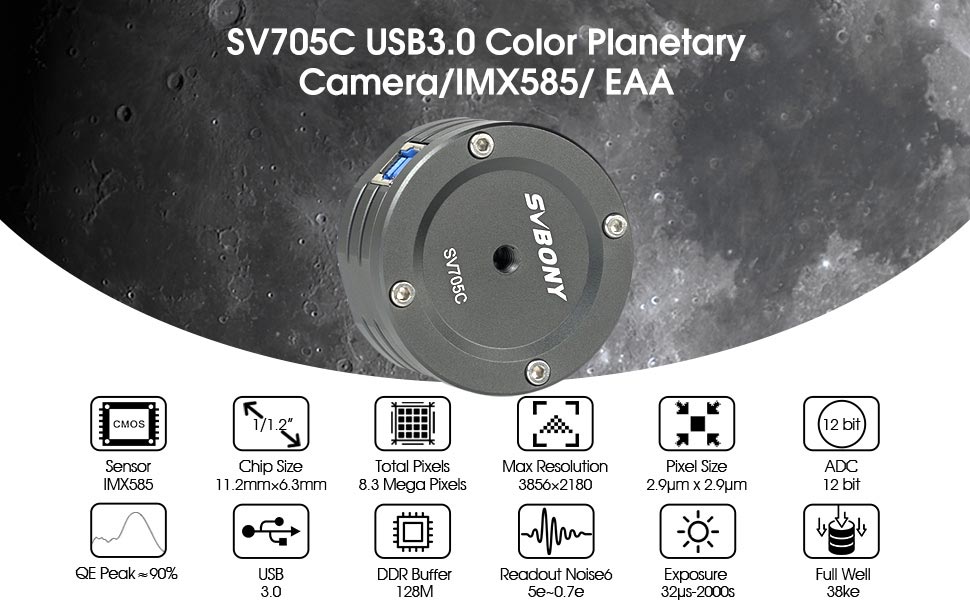

The SV705C planetary camera, built around IMX585 1/1.2″ back‑illuminated sensor. With a resolution of 3856 × 2180 (8.3 MP), 2.9 μm pixels, and a high 90% peak quantum efficiency, it delivers sharp, color‑rich images - ideal for capturing planets, Moon, nebulae, and more.
This camera adopts anti-amp-glow technology, which maximizes the camera's photography performance, and the image is clean whether you are using long exposures or high gain values.Boasting a fast 45 fps frame rate, ultra‑low readout noise (0.7-6.5e⁻), and a generous 38k e⁻ full‑well capacity, the SV705C is engineered for clean, high‑dynamic‑range imaging - even under low‑light conditions.
The built‑in 128 MB buffer ensures smooth USB 3.0 data transfer, preventing frame loss during busy sessions.Designed for versatility, it includes an ST‑4 guiding port compatible with PHD2, ASCOM, and major mount systems. Included adapters allow seamless integration with various scopes and setups.
The SVBONY SV905C guide camera is a compact, 1.2 MP color guiding and planetary camera based on the IMX225 sensor with 3.75 µm pixels, delivering up to 39 fps and an impressive ~80% peak QE and ~4e⁻ read noise - ideal for detecting faint guide stars and capturing fine details.
It supports exposures from 64 µs to 2000 s, includes ROI and 2×2 binning for flexible use, and features a USB‑C (USB 2.0) + ST‑4 interface for easy integration with PHD2 and ASCOM mounts.
Its AR‑coated front window, 1.25″ body, and CS/C‑mount adapter ring enhance protection and adaptability.It offers solid performance, especially suited for f/4–f/6 guide scopes.

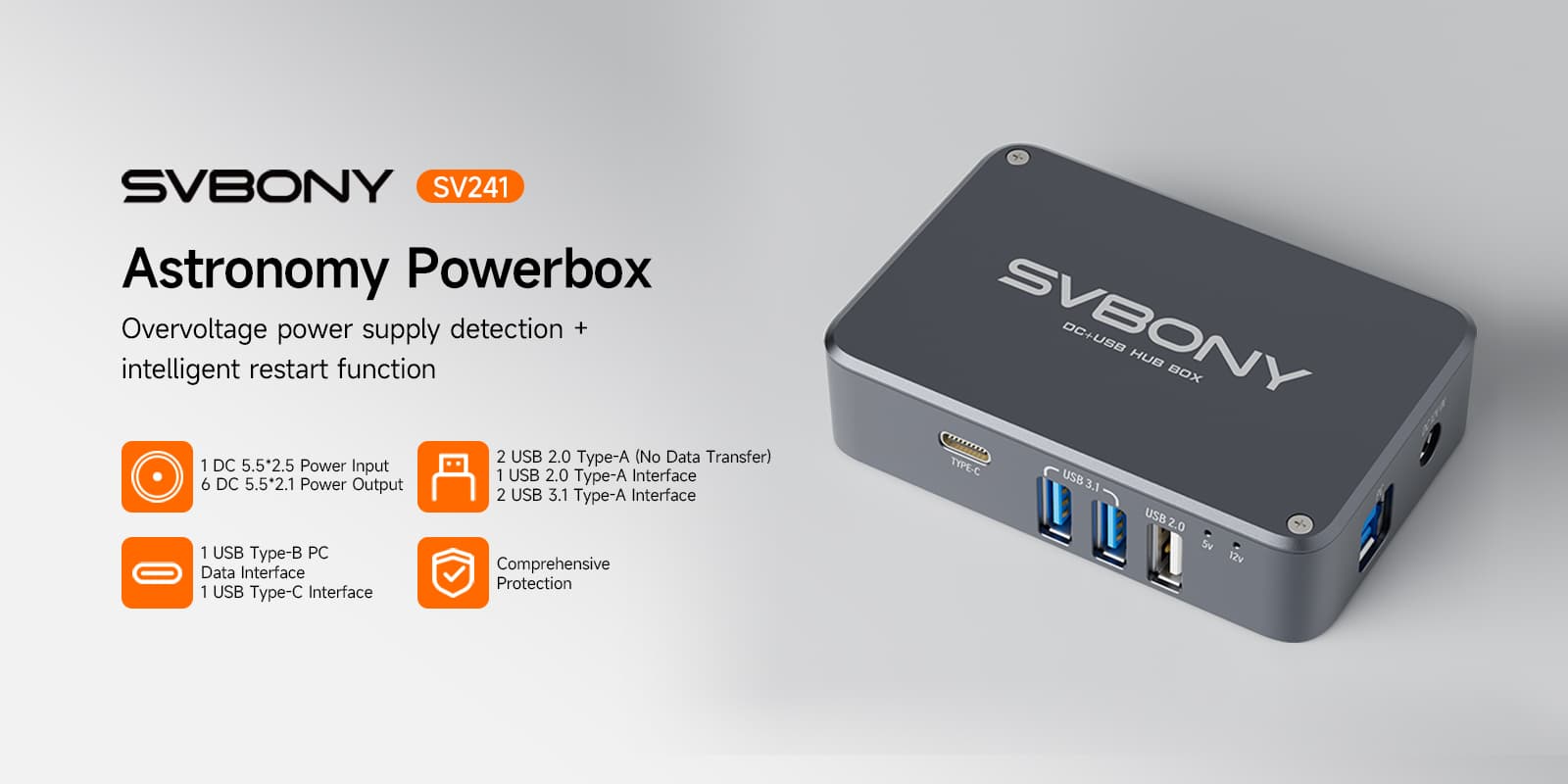

The SVBONY SV241 Astronomy Power Pack is a miniature DC+USB hub designed specifically for astrophotography. It has 6 12V DC output ports (supporting 10A high current), 2 USB3.1 high speed data ports, 1 USB2.0 data port, 2 power-only USB2.0 ports and 1 Type-C connector. It can simultaneously power and transfer data for astronomical cameras, equatorial instruments, stargazer cameras, dew heater and other devices. Its lightweight design with M4 and UNC 1/4-20 screw holes allows for easy installation, and it is also equipped with multiple safety features such as ESD protection and reverse polarity protection.
