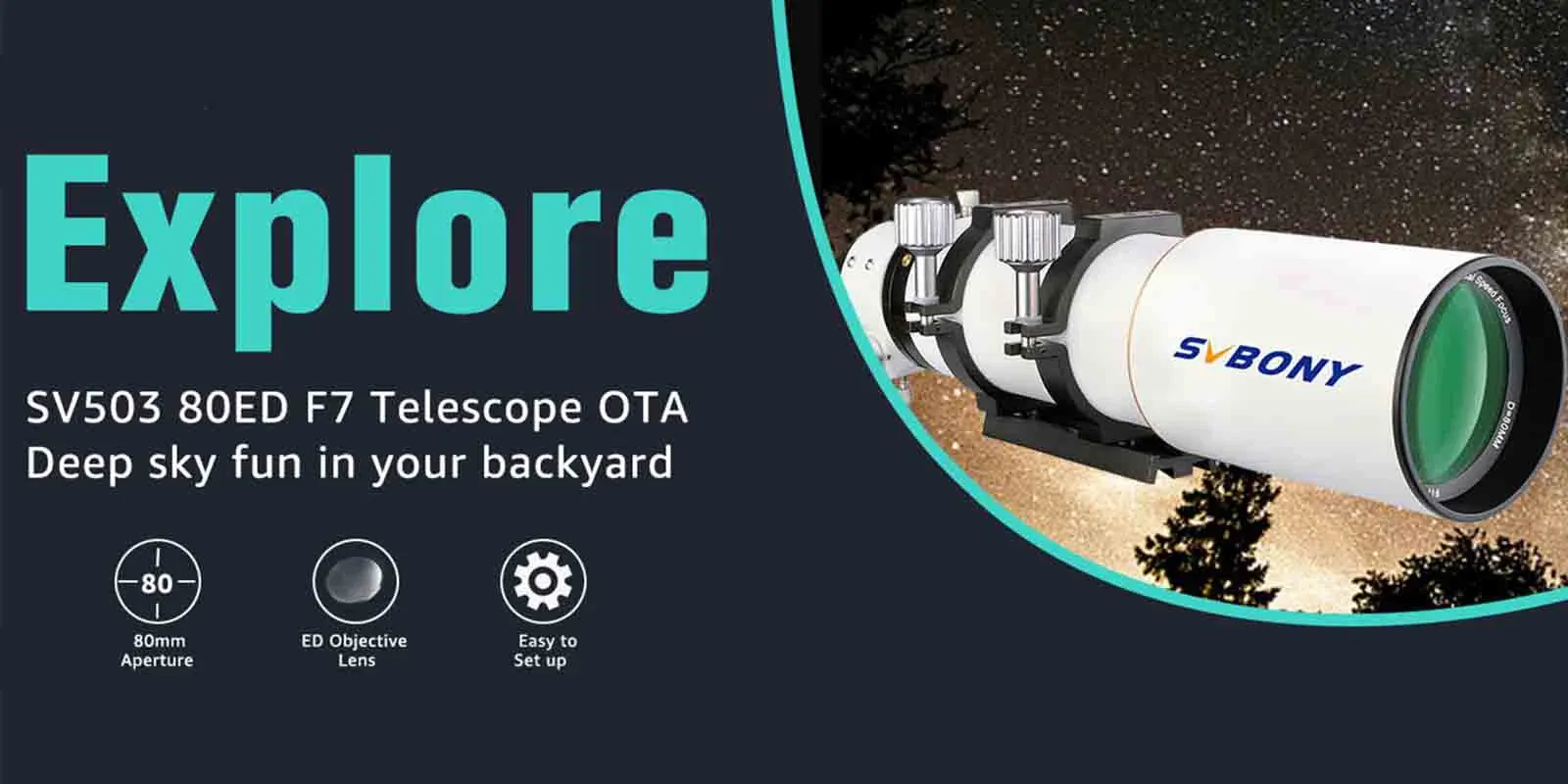

SVBONY SV193 Focal Reducer 2 Inch 0.8X Field Flattener Telescope Accessory for SV503 80mm F7 ED Telescope. The objective lens of the OTA features an S FPL-51 extra-low dispersion glass ED element, which virtually eliminates chromatic aberration. This results in the best color correction for an ED doublet lens. The 0.8 times defocusing system shortens the exposure. It can meet the needs of astrophotographers who need sufficient exposure in a short time. With advanced refractor, it can take dazzling celestial photos without worrying about the distortion of the star points on the edge of the photo. SV182 Finder Scope with 90-degree viewing angle lets you view a more comfortable and convenient operation compared to a traditional straight-through viewing finder.

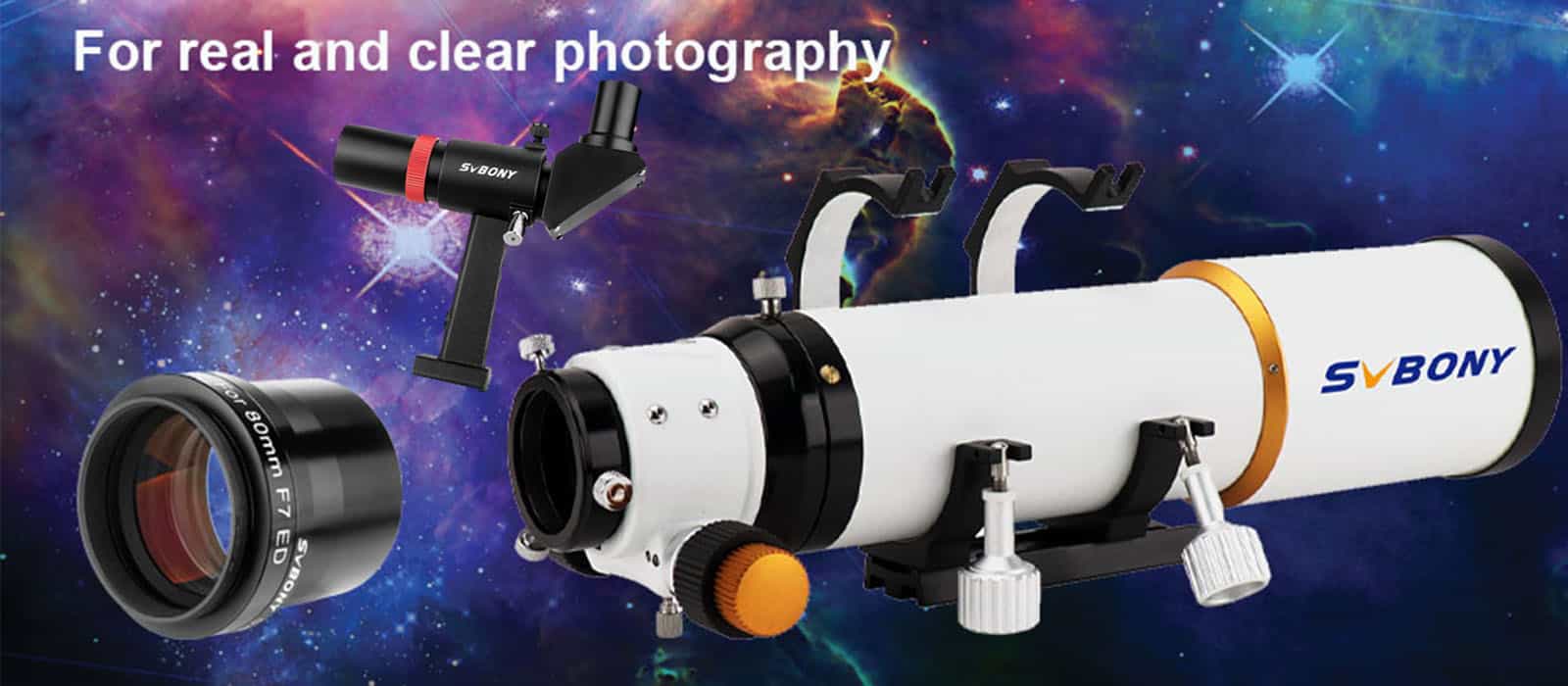

SV503 80F7 Telescope - SV193 Focal Reducer - SV182 6x30 Right-Angle Correct-Image Finder Scope
Specifications
| Brand | SVBONY | Brand | SVBONY | |
| Model | SV550 | Model | SV182 | |
| Aperture | 80mm | Lens Diameter | 30mm | |
| Focal Length | 480mm | Focal Length | 120mm | |
| Focal Ratio | f/6 | Magnification | 6x | |
| ED Glass | FPL51 | Eye Relief | 15mm | |
| Telescope Type | Refractor | Exit Pupil | 5mm | |
| Resolution | 1.45 arc seconds | Field of View | 7.5° | |
| Coatings | SMC | Lens coating | FMC | |
| Limiting stellar magnitude | 11.6 | Image Orientation | Correct-image | |
| Lens design | Apochromatic | Reticle | Single crosshair | |
| dovetail plate length | 150-175mm | Adjustment System | Spring-loaded X-Y | |
| barrel weight | 2900g | Objective | Achromatic 2-Element | |
| mirror Brief Size | 377.8mm | IIIuminated | No | |
| Net weight | 3750g | Adjustable focus | Yes | |
| Gross weight | 3850g | Viewing angle | 90 Degree | |
| Package size | 440x220x210mm | Net Weight | 295g / 0.651b / 10.41oz |
| Model | SV193 |
| SKU | W9152B |
| Back focus | 55 |
| Barrel size | 2-inch |
| Threads Standard | M48*0.75 |
| Lens Structure | 3-Elements/2Groups |
| Lens Coating | FMC |
| Blackened Lens Edges | Yes |
| Net Weight | 164g / 5.78oz / 0.36lb |
Features
- High-quality Materials
2. ED Objective Lens
3. FMC Lens Coating

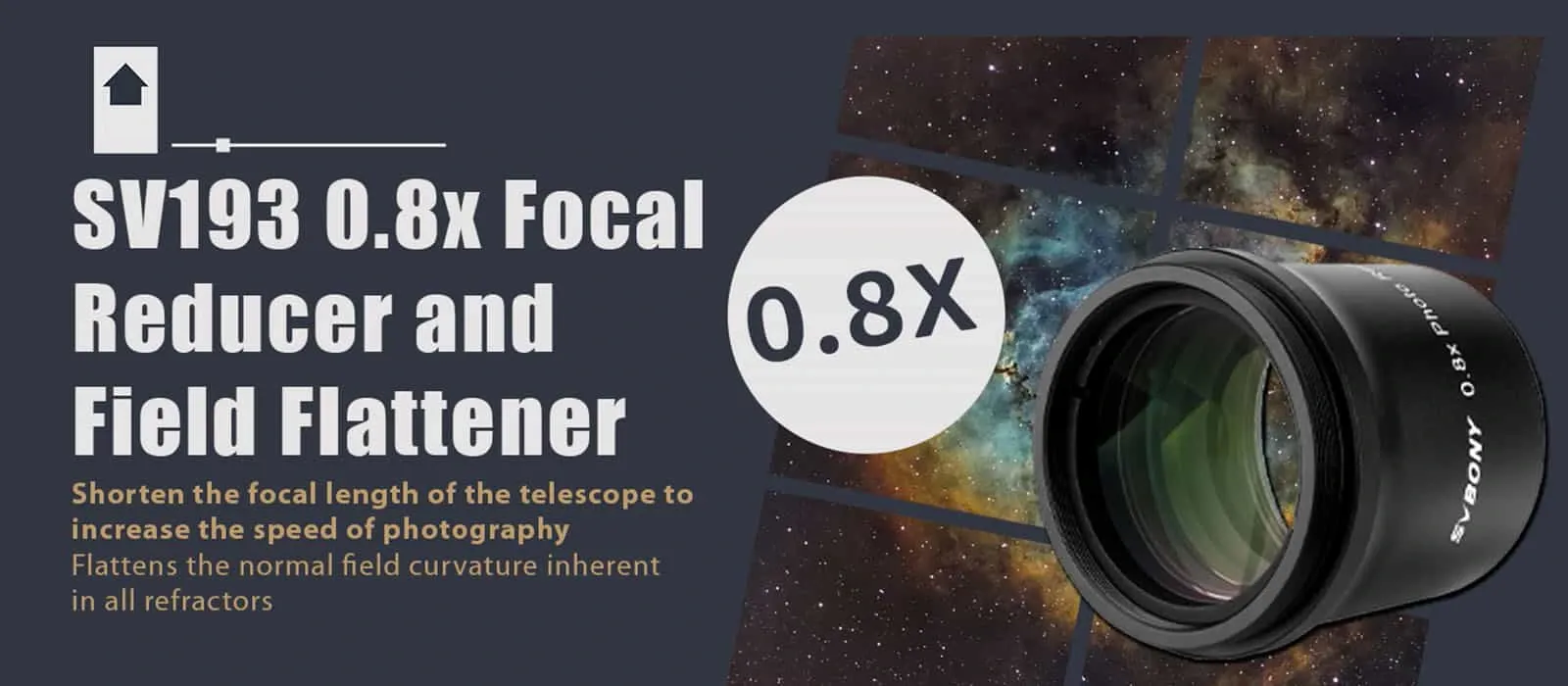

4. SV193 Focal Reducer

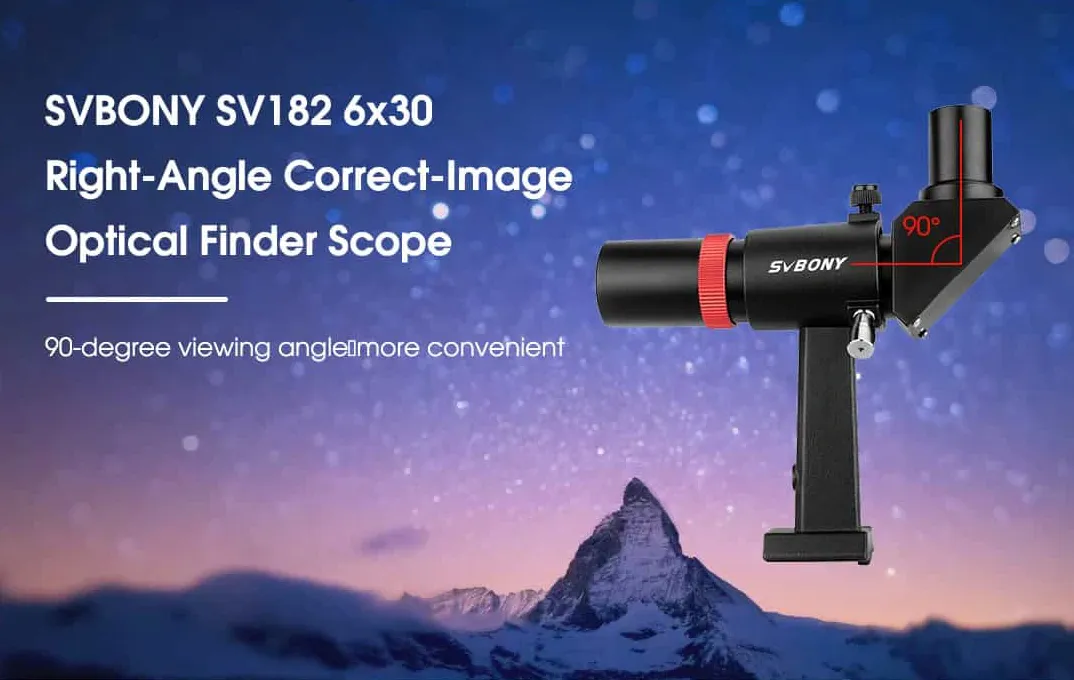

5. Standard 2-inch Socket - 6. SV182 6x30 Right-Angle Correct-Image Optical Finder Scope
Applicable Accessories
