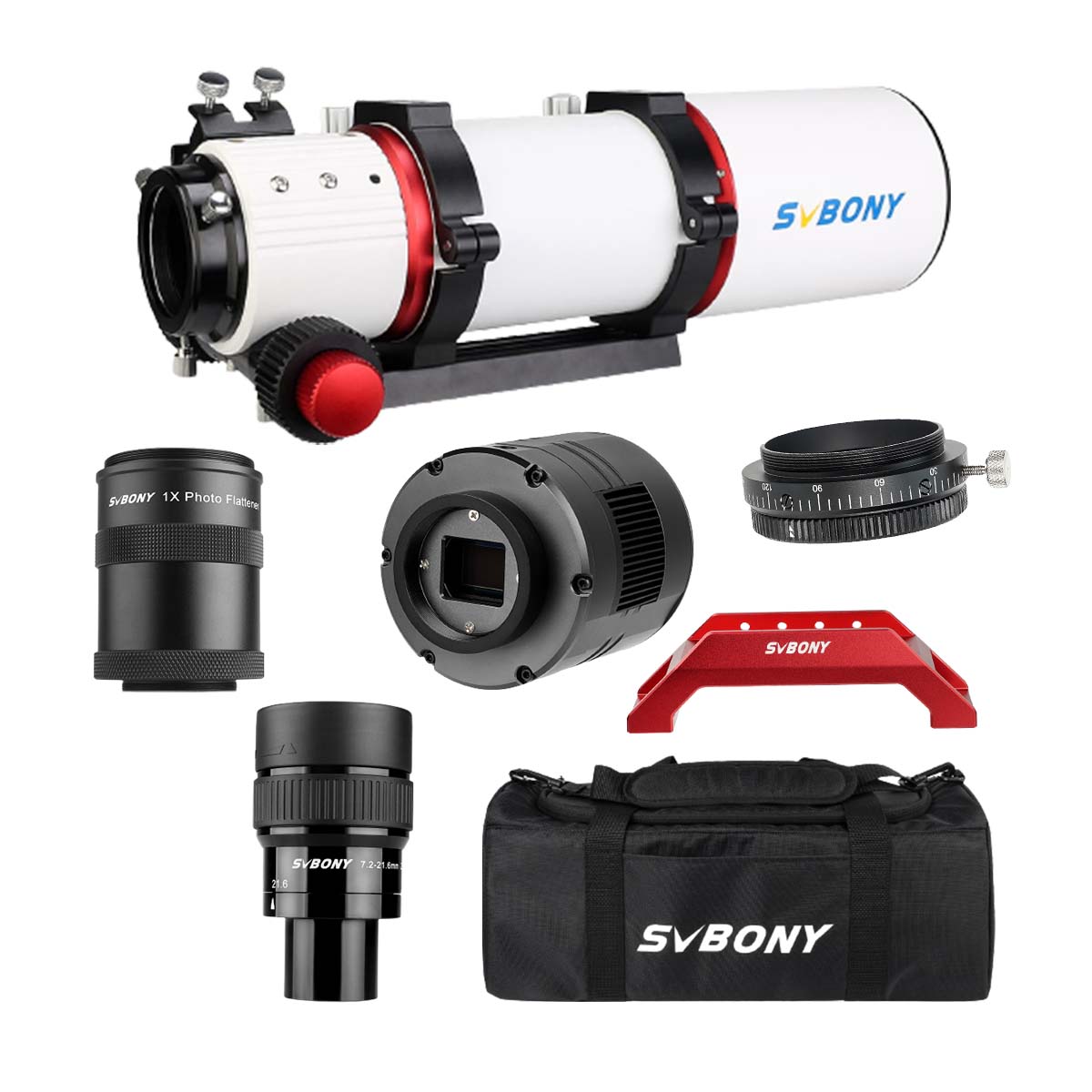

SVBONY SV550 refractor APO triplet apochromatic telescope 80mm DSO deep space vision and photography suits -- combining the SV550 Telescope with the SV405CC deep space camera, SV209 field flattener, SV210 M63 CAA 360 degree rotator camera angle adjuster, SV191 zoom telescope eyepiece and a SV211 135mm handle bar, enables both deep sky vision & photography.
SV550 Refractor Telescope APO Triplet Apochromatic 80mm Deep Space Vision & Photography Set

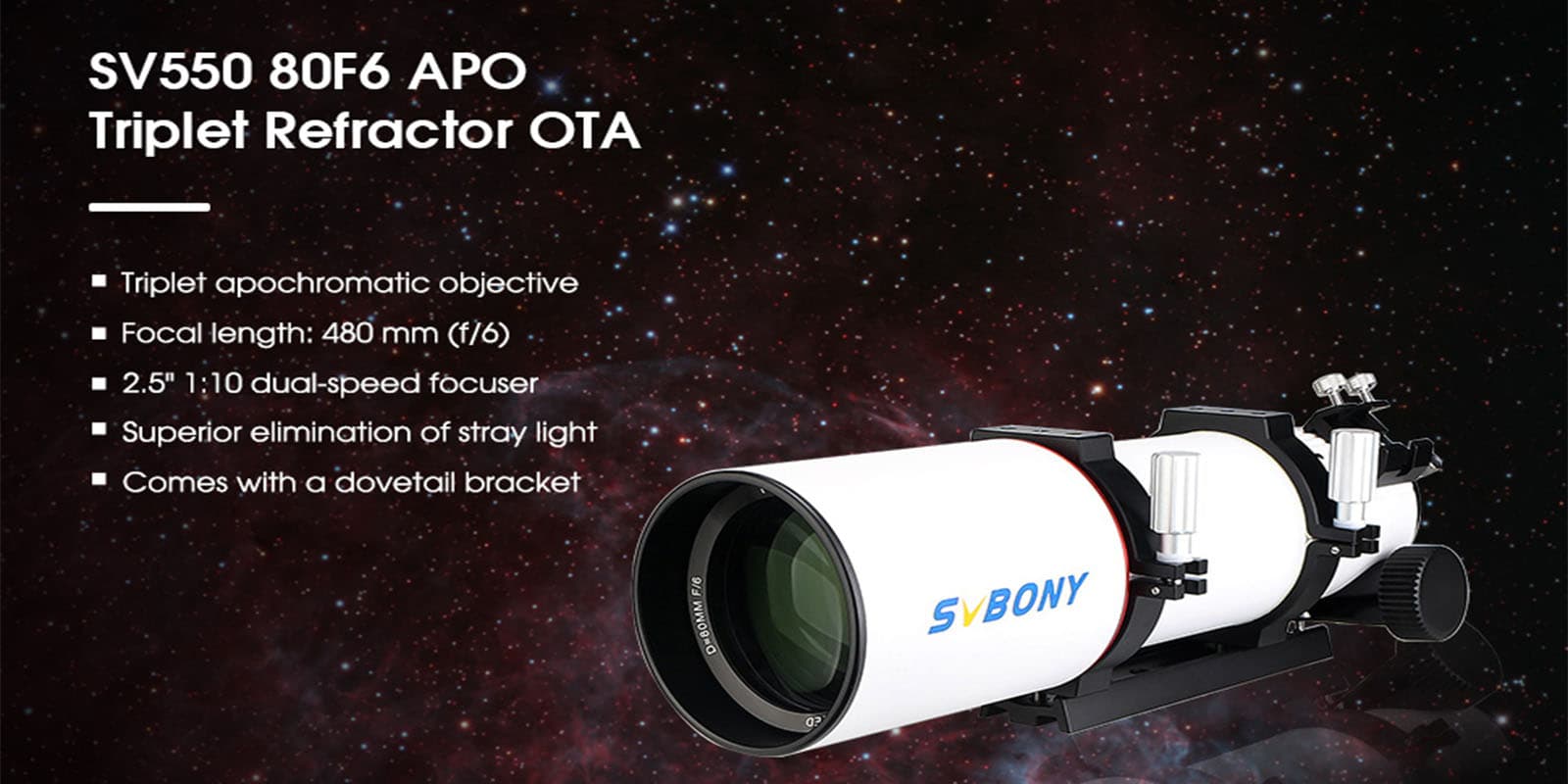

The SV550 APO triplet refractor with 80mm aperture and fast f/6 focal ratio, a great travel telescope for observation and astrophotography.
Deep sky photography OTA

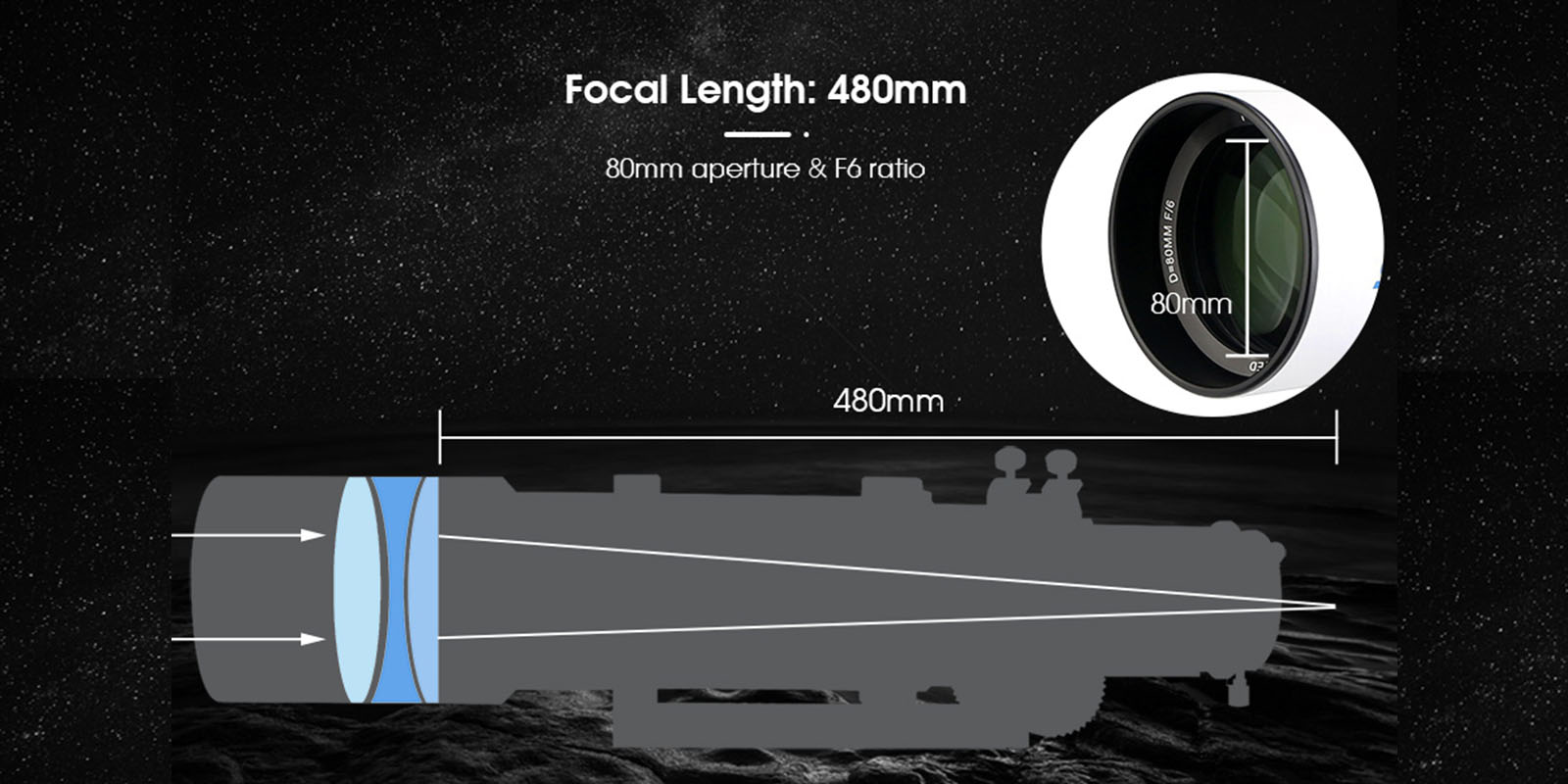

Focal Length: 480mm
The focal length is 480mm, suitable for deep sky observation and photography, for galaxies, nebulae, star clusters and other deep sky objects.

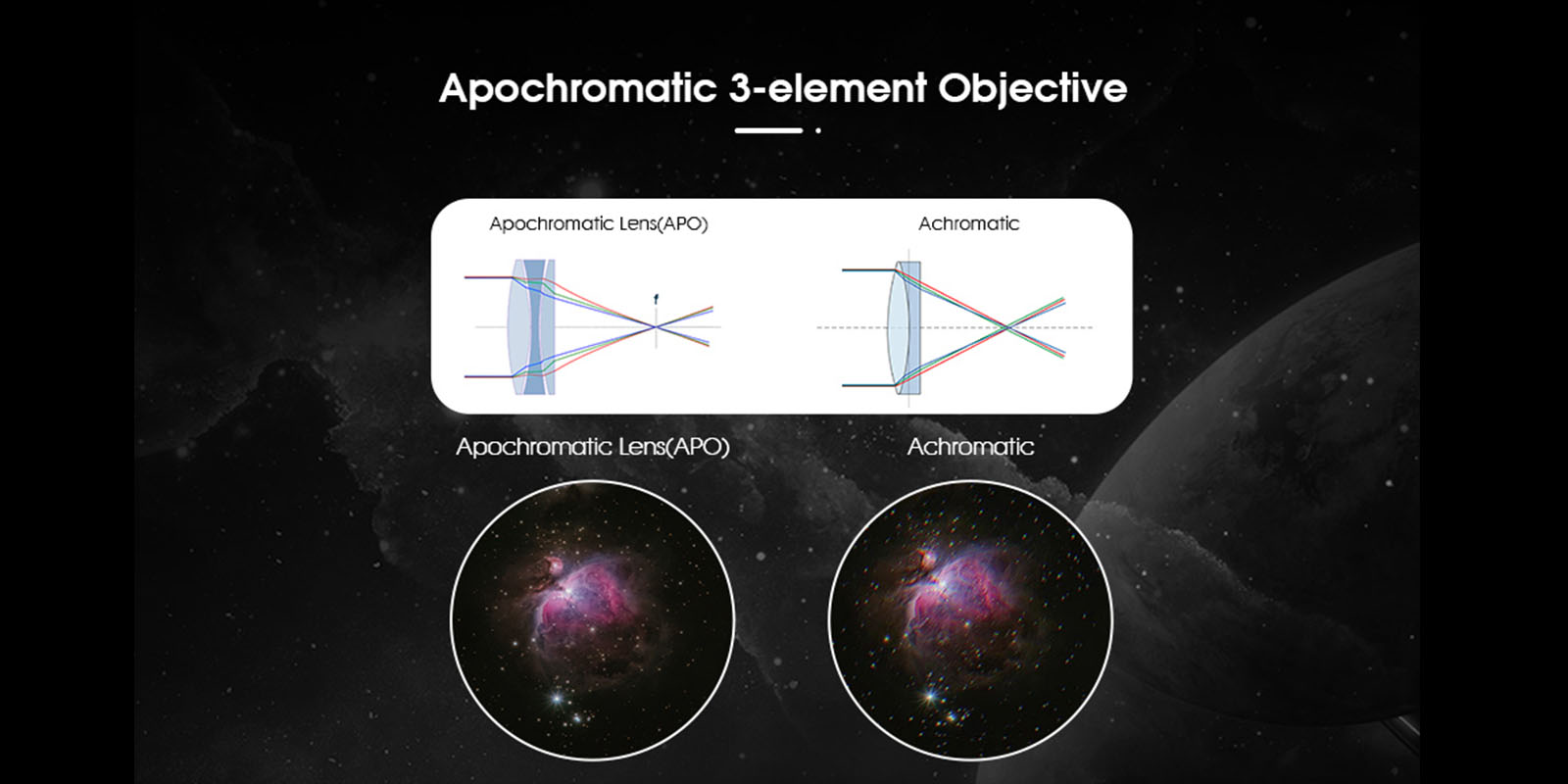

APO Structure
Apochromatic triplet uses a series of three lenses. It provides better correction of aberration and significantly reduces dispersion. It reduces chromatic aberration, and it corrects for two wavelengths to reduce spherical aberration. The apochromatic triplet objective provides high-quality, sharp and high-contrast images.

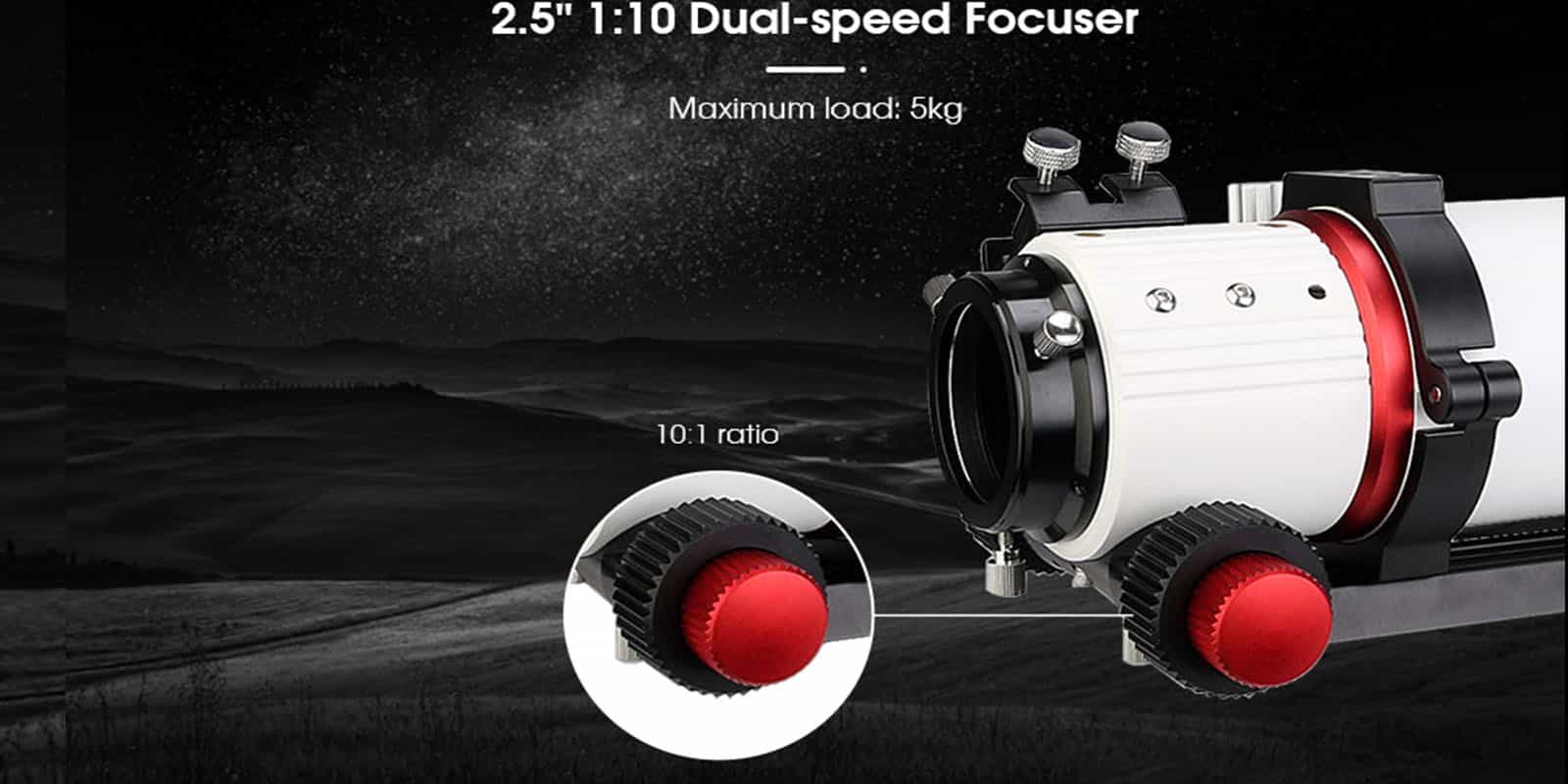

2.5" 1:10 Dual-speed Focuser
The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10, which makes it easy to achieve accurate focus. The dual speed focuser can provide two focusing speeds by using a set of co-axial knobs, for fast focusing and fine focusing. Magnesium alloy focusing seat, compared with aluminum alloy materials of the same specification, the weight can be reduced by more than 20%, reducing the load

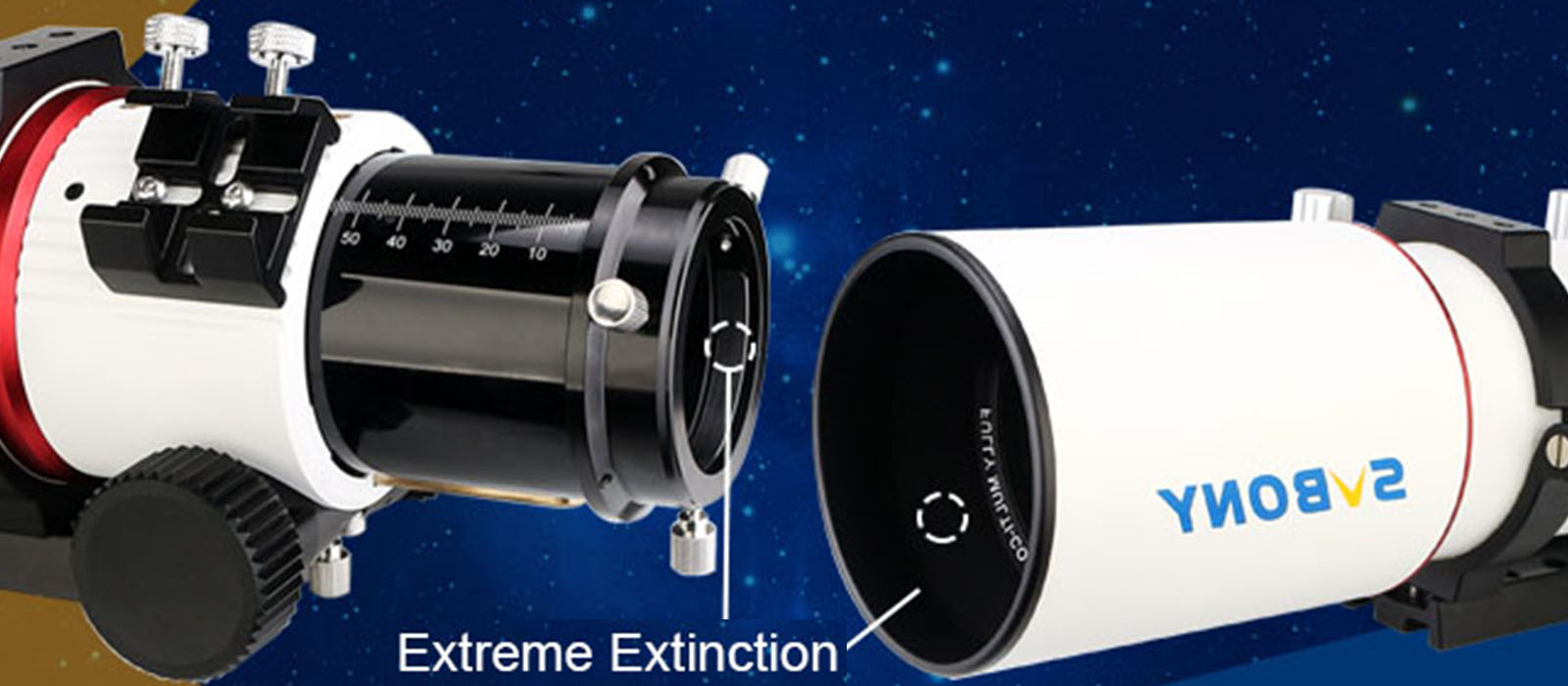

Extreme Extinction
4 extinction light bars are used inside the lens barrel, which can eliminate all stray light interference on the inner wall of the lens barrel.

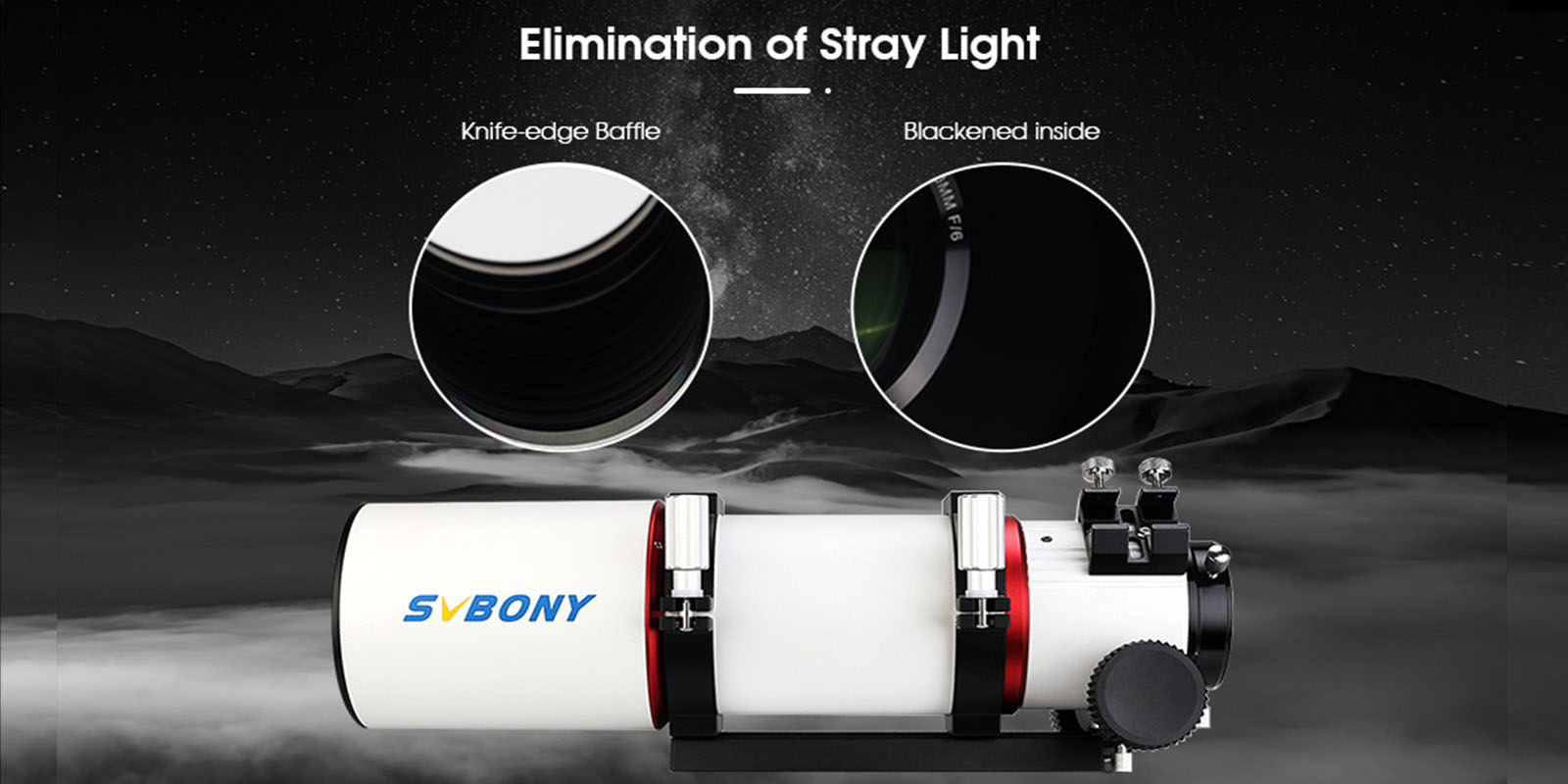

Elimination of Stray Light
Blackened inside and knife-edge baffle are for reduction of stray light and improvement of image contrast.

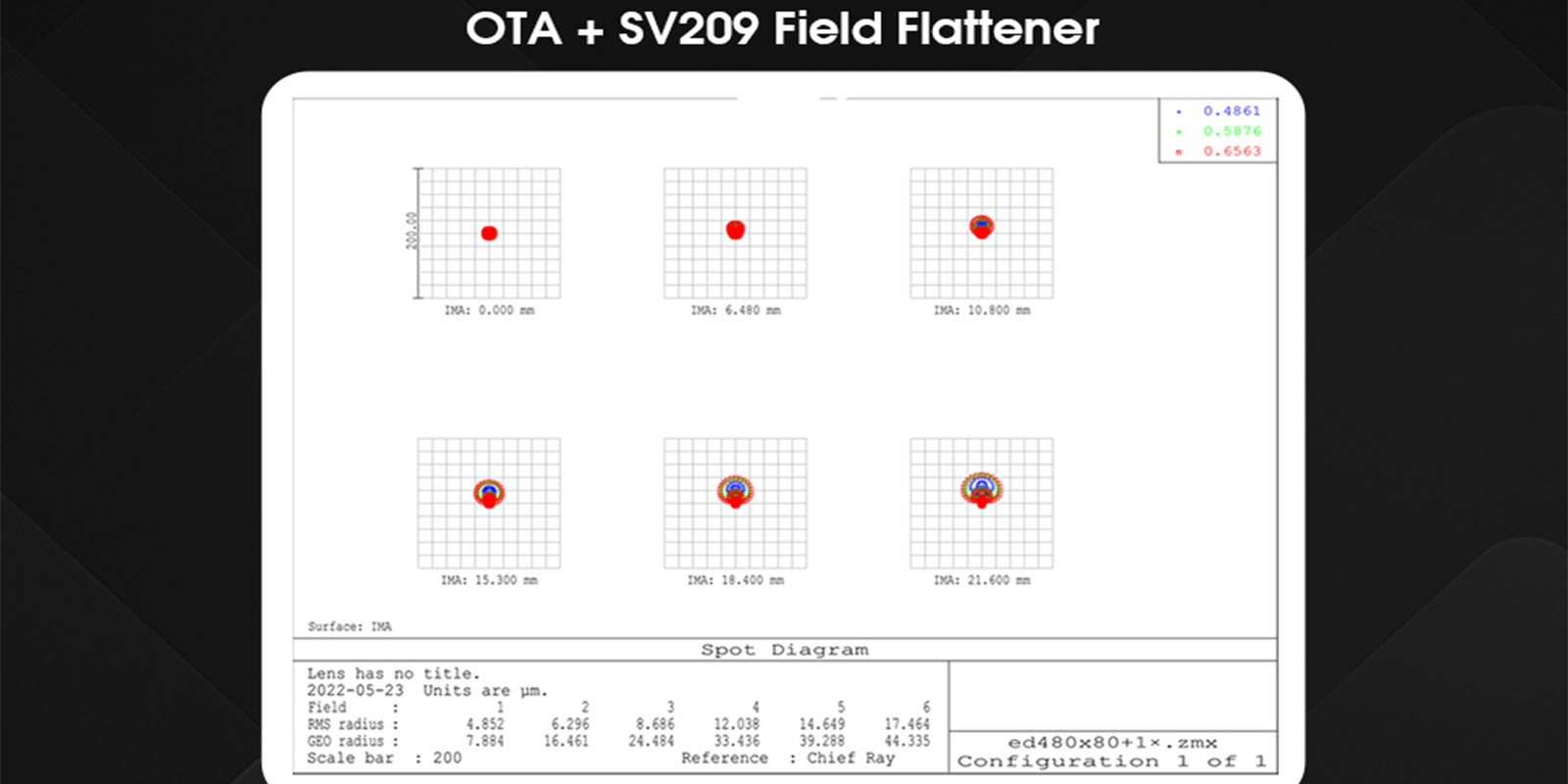

Why should SV209 be used together with SV550？
SV209 1.0x Flattener Corrects the Field for Astrophotography M63x1 Connection Black.
It is a special flat field mirror developed for SV550 80F6 OTA, which can effectively improve the image quality of SV550 OTA edge field, while maintaining the focal length and focal plane position of the Objective lens. The sv209 is equipped with M63 extension cylinder and M48 adapter ring to ensure that the rear intercept of the flattener is the astronomical conventional 55mm length.
SV210 M63 CAA 360 Degree Rotator Camera angle Adjuster for Visual Rotation Black
The image field rotator of sv210 CAA camera is mainly used for astronomical photography scenes.

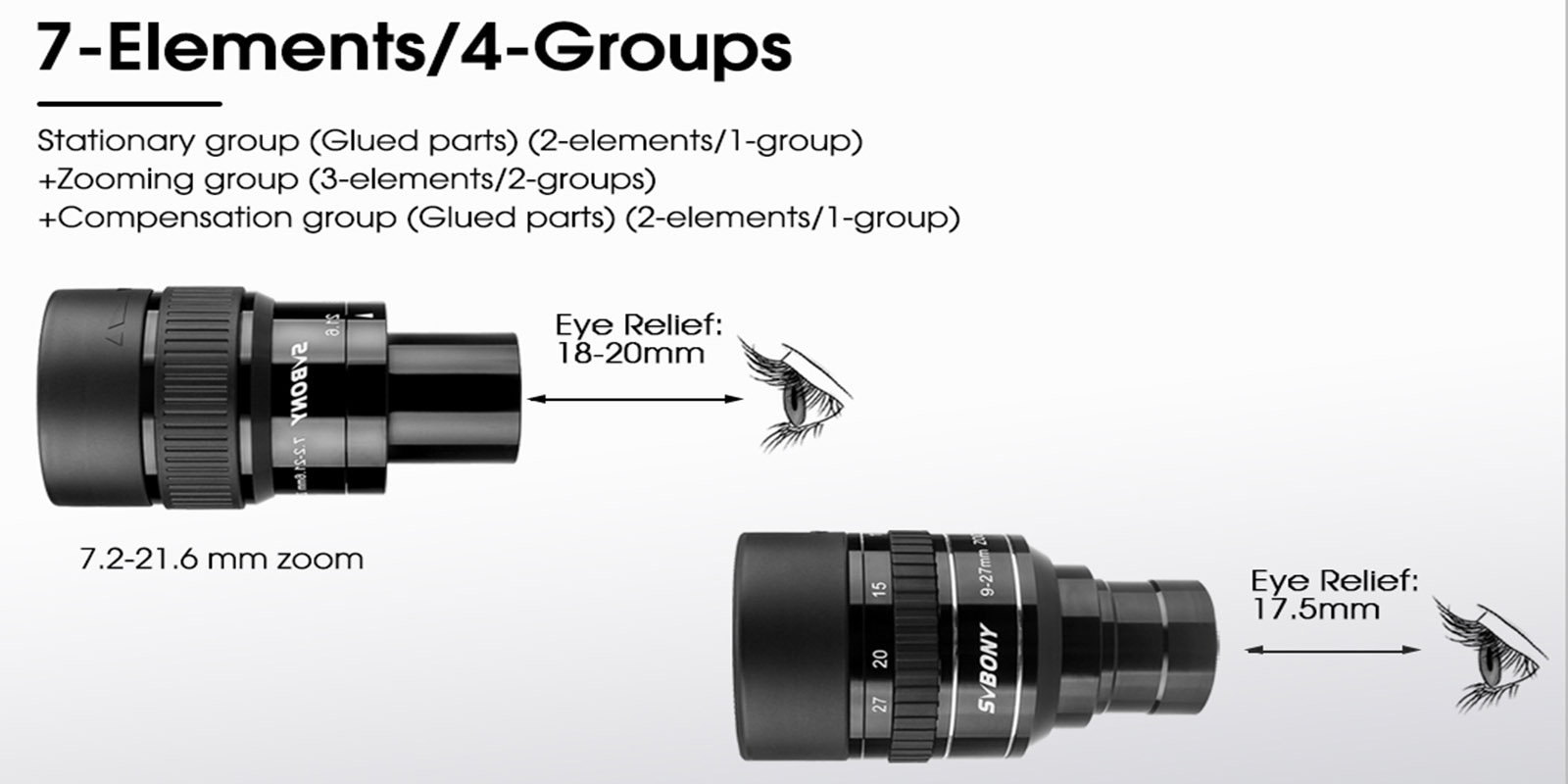

SV191 super-wide-angle 1.25'' zoom eyepiece 7.2-21.6mm and 9mm-27mm, allow you to change magnification power without swapping out eyepieces.

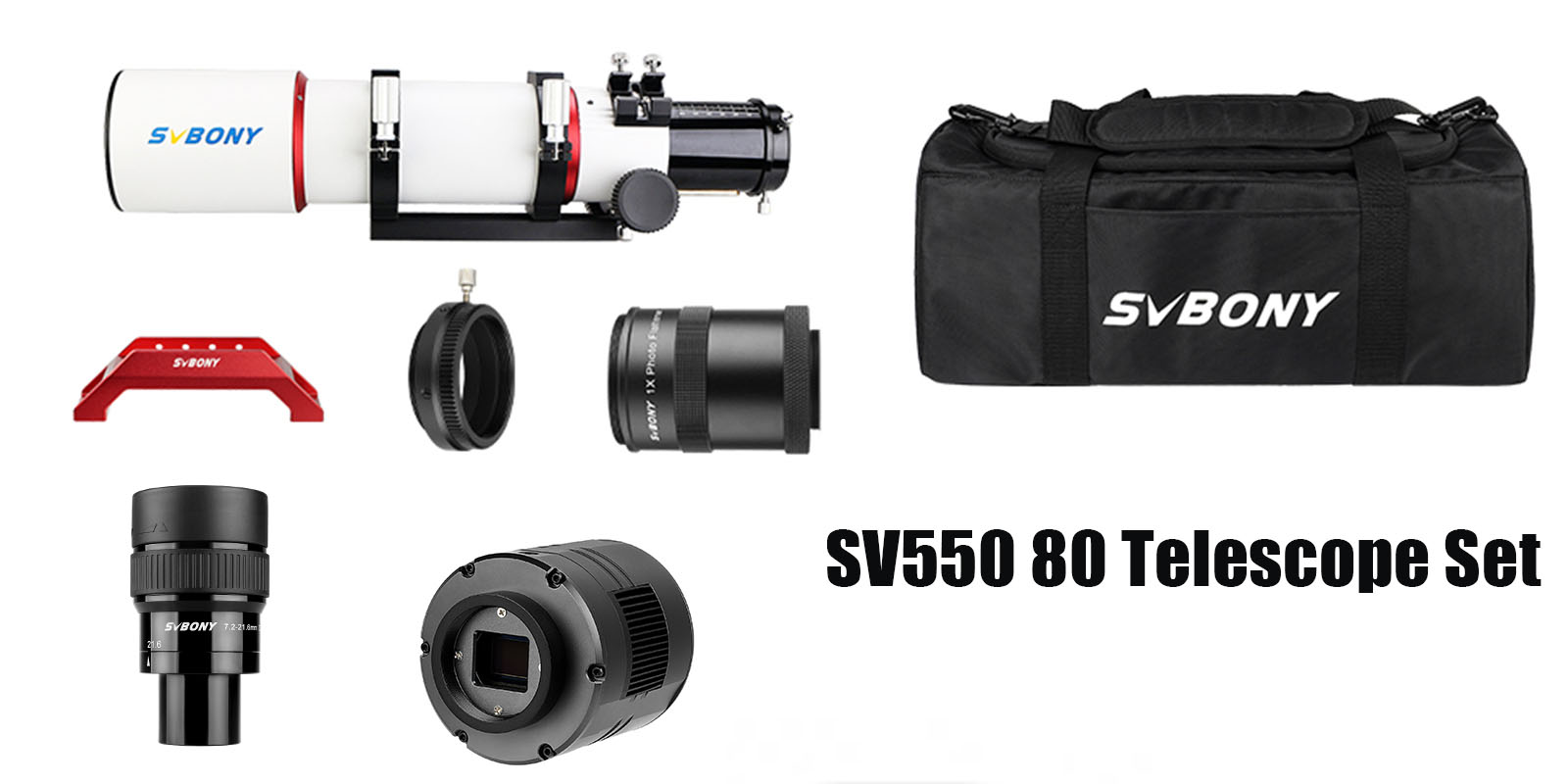

- Combining the SV550 80 APO with the SV405CC deep space camera, SV209 field flattener, SV210 CAA, SV191 Zoom Telescope Eyepiece and a SV211 135mm Handle Bar, enables deep sky vision and photography perfectly.
Specifications
| Brand | SVBONY | Brand | SVBONY | |
| Model | SV550 | Model | SV209 | |
| Aperture | 80mm | Connection at telescope side | M63x1 male thread | |
| Focal Length | 480mm | Connection 1 at camera side | M63x1 thread female - working distance 103 mm | |
| Focal Ratio | f/6 | Connection 2 at camera side | M48x0.75 male thread - working distance 55 mm or 91.5 mm | |
| ED Glass | FPL51 | Fully illuminated field | 45 mm（SupportFull Frame Sensors） | |
| Telescope Type | Refractor | Number of elements | 2 lenses | |
| Resolution | 1.45 arc seconds | Factor | 0 - no change of focal length to the focal plane | |
| Coatings | SMC | Coating | FMC | |
| Limiting stellar magnitude | 11.6 | Diameter of the housing | 67mm | |
| Lens design | Apochromatic | Length | 5 mm without the male thread | |
| dovetail plate length | 150-175mm | |||
| barrel weight | 2900g | |||
| mirror Brief Size | 377.8mm | |||
| Net weight | 3750g | |||
| Gross weight | 3850g | |||
| Package size | 440x220x210mm |
| Brand | SVBONY | Model | SV191 | |
| Model | SV210 | Focal Length | 7.2-21.6mm | |
| Product Name | M63 CAA 360° Rotator Camera angle adjuster | Eye Relief | 18-20mm | |
| Extension thickness | 20.7mm | Apparent Field of View | 42°-65° | |
| Fit for | SV550 80F6 | Field stop diameter | 16mm | |
| Locking Screw | M4 | Barrel Size | 1.25" | |
| Positioning lock Function | Yes | Lens Structure | 7-Elements/4-Groups | |
| Male Thread | M63x1 | Filter Threads Standard | M28.5*0.6 | |
| Female Thread | M63x1 | Coatings | Fully Multi-Coated | |
| Length of Male Thread | 8mm | Blackened Lens Edges | Yes | |
| Length of Female Thread | 9mm | Eyecups | Twist-Up | |
| Material | 6061T | Eyecups Material | Metal | |
| Color | Black | Net Weight | 167g / 5.87oz / 0.367lb | |
| Net Weight | 91.2g/3.22oz |
| Model | SV405CC | Brand | SVBONY | |
| Sensor | 4/3'' SONY IMX294 CMOS | Model | SV211 | |
| Sensor size | 19.2mm*13mm | Fit for | SV550 (80F6) SV503 (70F6 80F7) | |
| Pixel Size | 4.63*4.63μm | Color | Red | |
| Diagonal | 23.2mm | Material | 6061T Aluminums | |
| Resolution | 11.7 megapixels 4144*2822 | Length | 135mm | |
| Exposure time | 0.05ms-2000s | Width | 42mm | |
| QE peak | 0.75 | High | 39mm | |
| Readout noise | 1.2e | Net Weight | 136g / 4.8oz | |
| Full well | 63ke | |||
| ADC | 14 bit | |||
| Maximum Frame Rate | 19 FPS | |||
| Interface | USB 3.0 | |||
| Back Focus | 6.5mm | |||
| ROI | Support | |||
| Protective window | AR coating | |||
| Digital Noise Reduction | Support | |||
| Binning | BIN1,BIN2,BIN3,BIN4 | |||
| Interface Type | M42 | |||
| Supported OS | Windows, Linux, Raspberry Pi & Mac OS | |||
| Power Consumpton | 200mA 5V | |||
| Working Temperature | -10℃-50℃ | |||
| Storage Temperature | -20℃-60℃ | |||
| Working Relative Humidity | 20％-80％ | |||
| Storage Relative Humidity | 20％-95％ |
Features
1. Dual speed focuser
2. Finder base included
3. APO Objective Lens Structure & FMC Coating
4. 2.5 inch magnesium alloy focuser
5. Comes with 180mm dovetail plate
