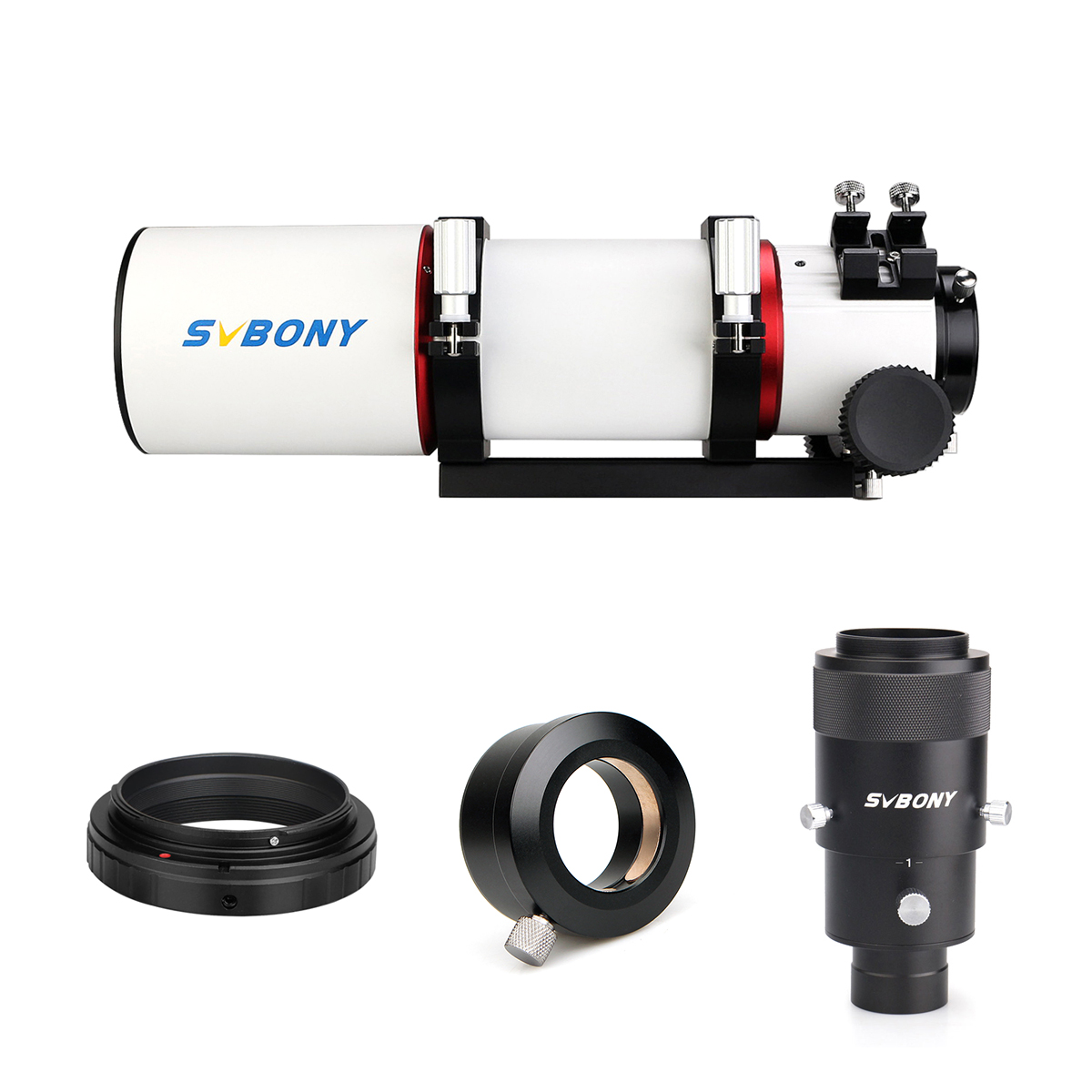

SV550 OTA Set for Eyepiece Projection Astrophotography

SKU: F9381A-W2811C
US$ 1,199.00

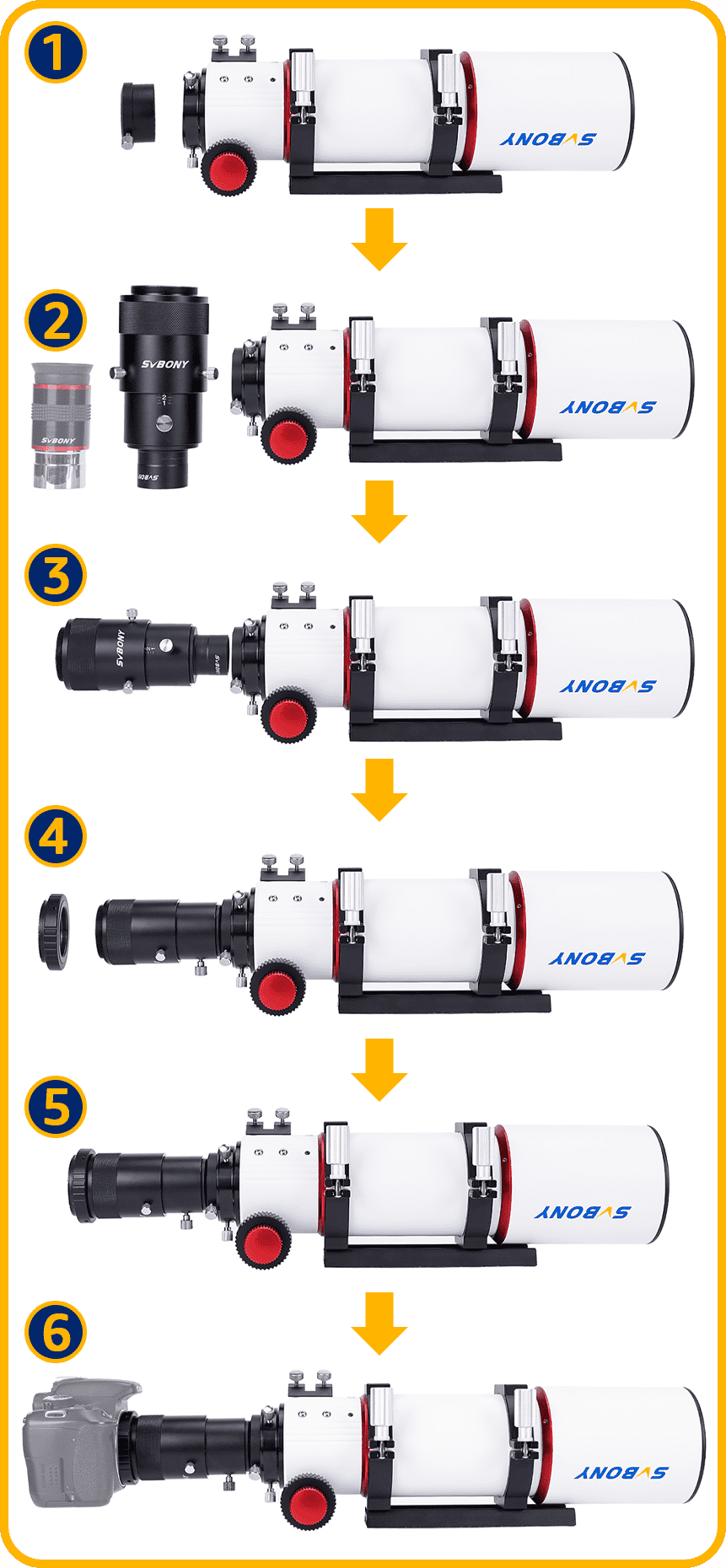

Eyepiece projection is a great way to take detailed shoots of moon and planets. Photographed objects in these images are considerably larger and show more detail than such taken with prime focus shots. This SV550 OTA set can realize eyepiece projection. Not include eyepiece, you can choose eyepiece from svbony website.

In Stock Out Of Stock

Eyepiece projection is a great way to take detailed shoots of moon and planets. Photographed objects in these images are considerably larger and show more detail than such taken with prime focus shots. This SV550 OTA set can realize eyepiece projection.

                                                      sv550 eyepiece projection astrophotography

sv550 sets package.jpg

0 reviews

Write a review

Brand SVBONY
Model SV550
Aperture 80mm
Focal Length 480mm
Focal Ratio f/6
ED Glass​ FPL51​
Telescope Type Refractor
Resolution 1.45 arc seconds
Coatings  SMC
Limiting stellar magnitude 11.6
Lens design  Apochromatic​
dovetail plate length 150-175mm
barrel weight 2900g
mirror Brief Size  377.8mm
Net weight​ 3750g
Gross weight​ 3850g
Package size​ 440x220x210mm​
Model W2811C
Size  2" to 1.25"
Material Metal
Color Black
Model SV305
Sensor 1/2.8" CMOS SONY IMX290
Pixel Size 2.9X2.9μm
Resolution 2 Mega Pixels 1920X1080
Shutter Electronic Shutter
Max FPS 130fps(320*240)
Video encoding format RAW
ADC 12 bit
ROI support Any area ROI
On camera image buffer 128M DDR buffer
Optic window IR650 glass
Interface USB 2.0
Material Aluminum alloy
Supported OS Windows, Linux, Raspberry Pi & Mac OS
Power Consumption 200mA@5V
Working Temperature -0°C~45°C
Storage Temperature -10°C~60°C
Working Relative Humidity 20%~80%
Storage Relative Humidity 20%~95%
Model  SV194
Size  M42*0.75
Male thread Nikon F-mount Male
Color Black
Material Metal Aluminum
Net weight 31g / 1.05oz
Model  SV195
Size  M42*0.75
Male thread Canon EF-Mount
Color Black
Material Metal Aluminum
Net weight 44.7g
Model SV196
Material Metal Aluminum
Color Black
Thread M42*0.75 Female---SONY A-mount Male
Thickness 10mm
Net Weight 35.7g / 1.26oz
Note No electrical connection and diaphragm & focusing are required to be set manually
Model SV196
Material Metal Aluminum
Color Black
Thread M42*0.75 Female---Sony E-mount Male
Thickness 36.5mm
Net Weight 68.3g / 2.4oz
