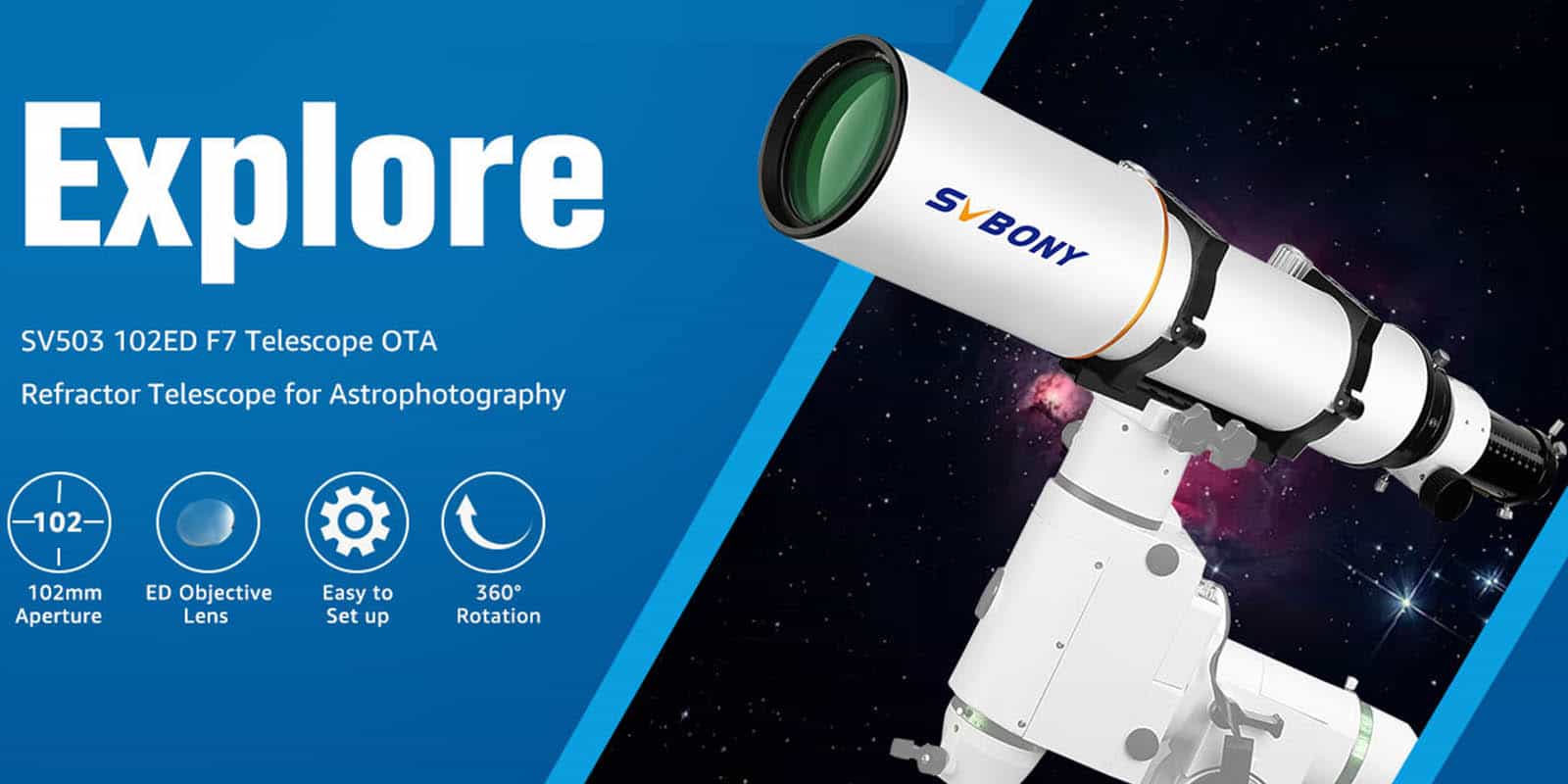

SV503 102 ED F7 Refractor Telescope Visual Set for Astronomy
1 | ReviewsOfficial Store Exclusive – Buy now to earn points for a limited time.+76 Points
Key Features
102 mm extra‑low dispersion refractor delivers sharp, high‑contrast celestial views with minimal chromatic aberration
Includes diagonal, finder scope, handle bar and dovetail base for a ready‑to‑use observing setup.
Rack‑and‑pinion focuser with fine control enables accurate focusing for detailed views.

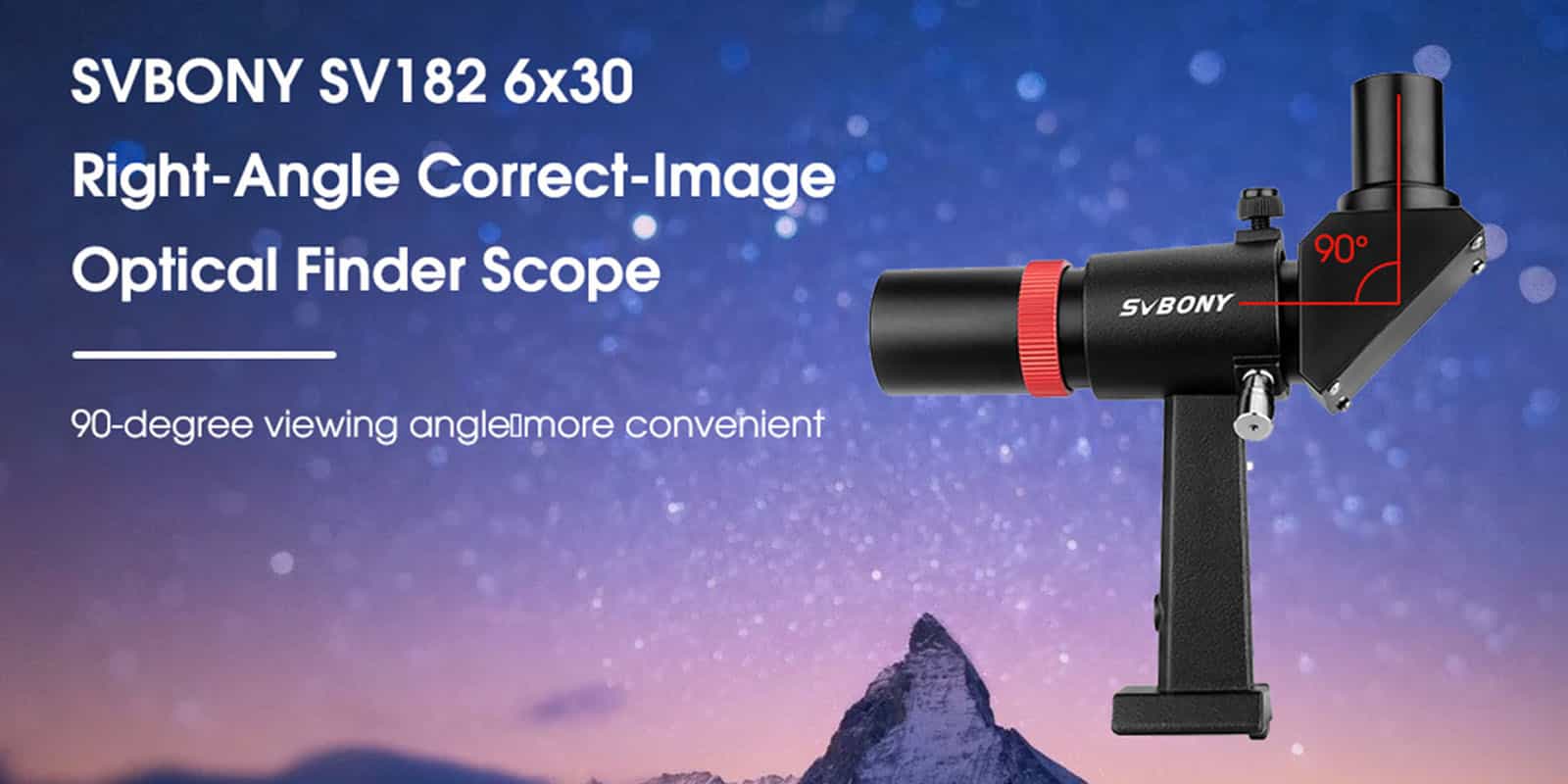

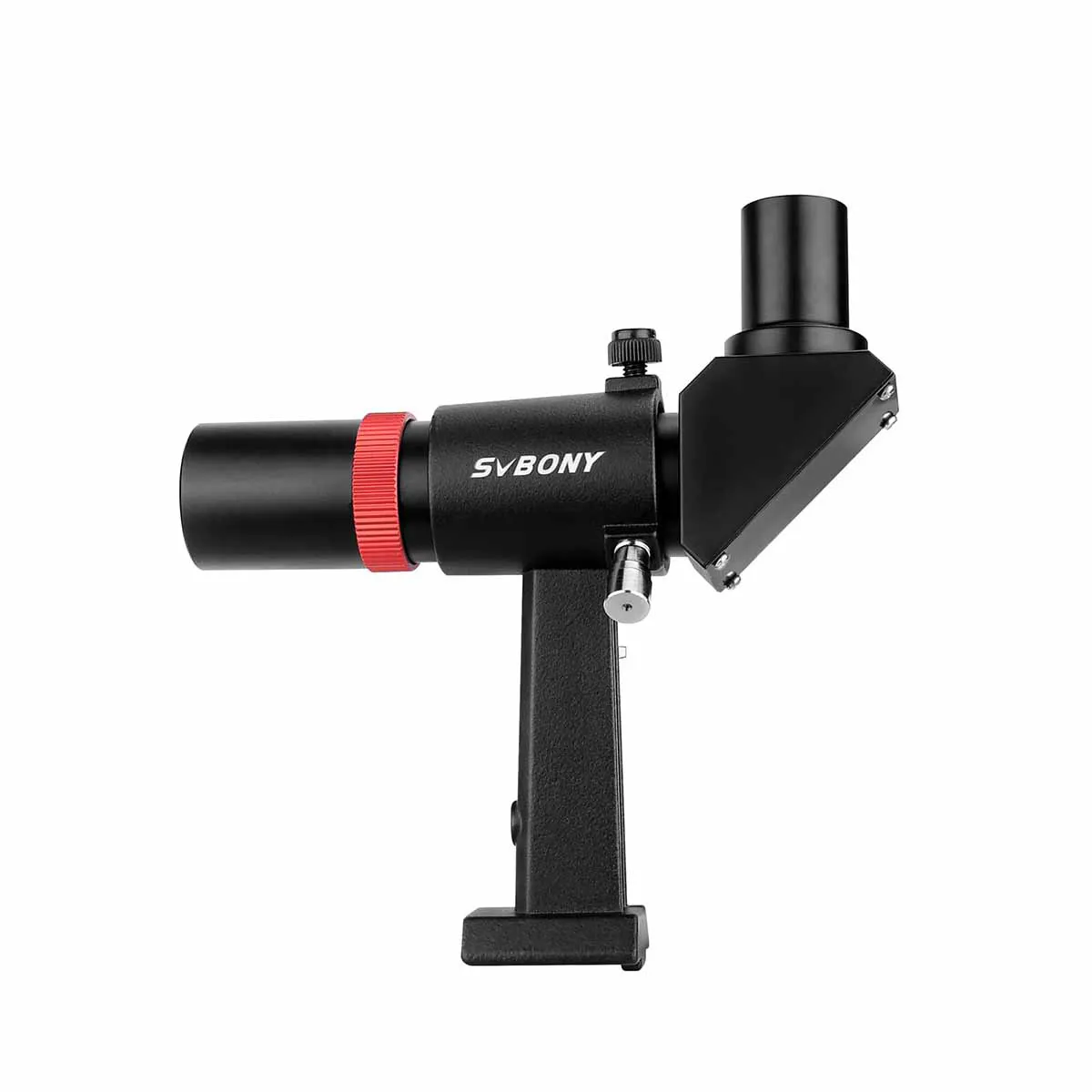

SV182 6×30 right‑angle correct‑image finder makes locating targets easier and more intuitive.
f/7 focal ratio and large aperture provide bright, detailed observation of planets and deep‑sky targets.

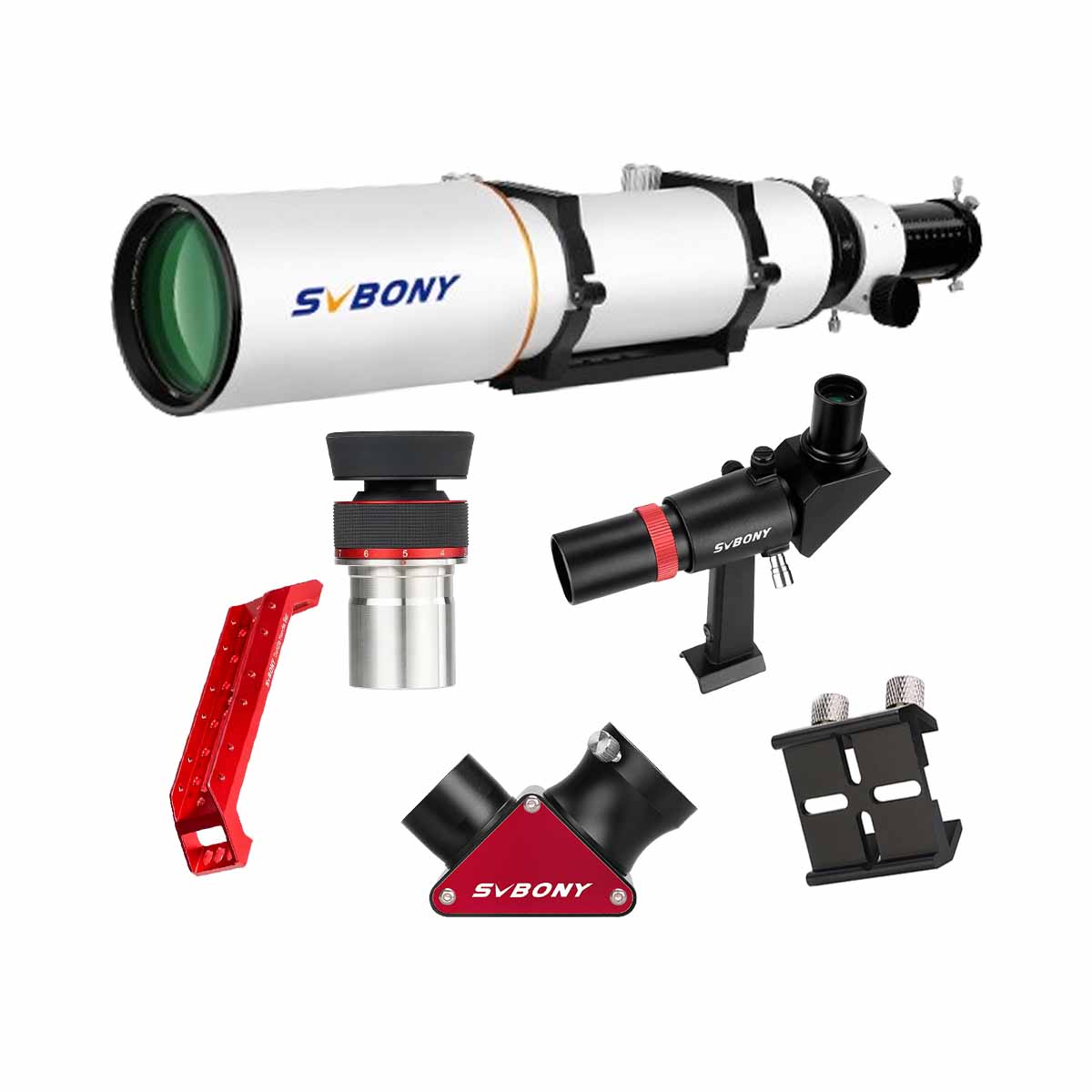

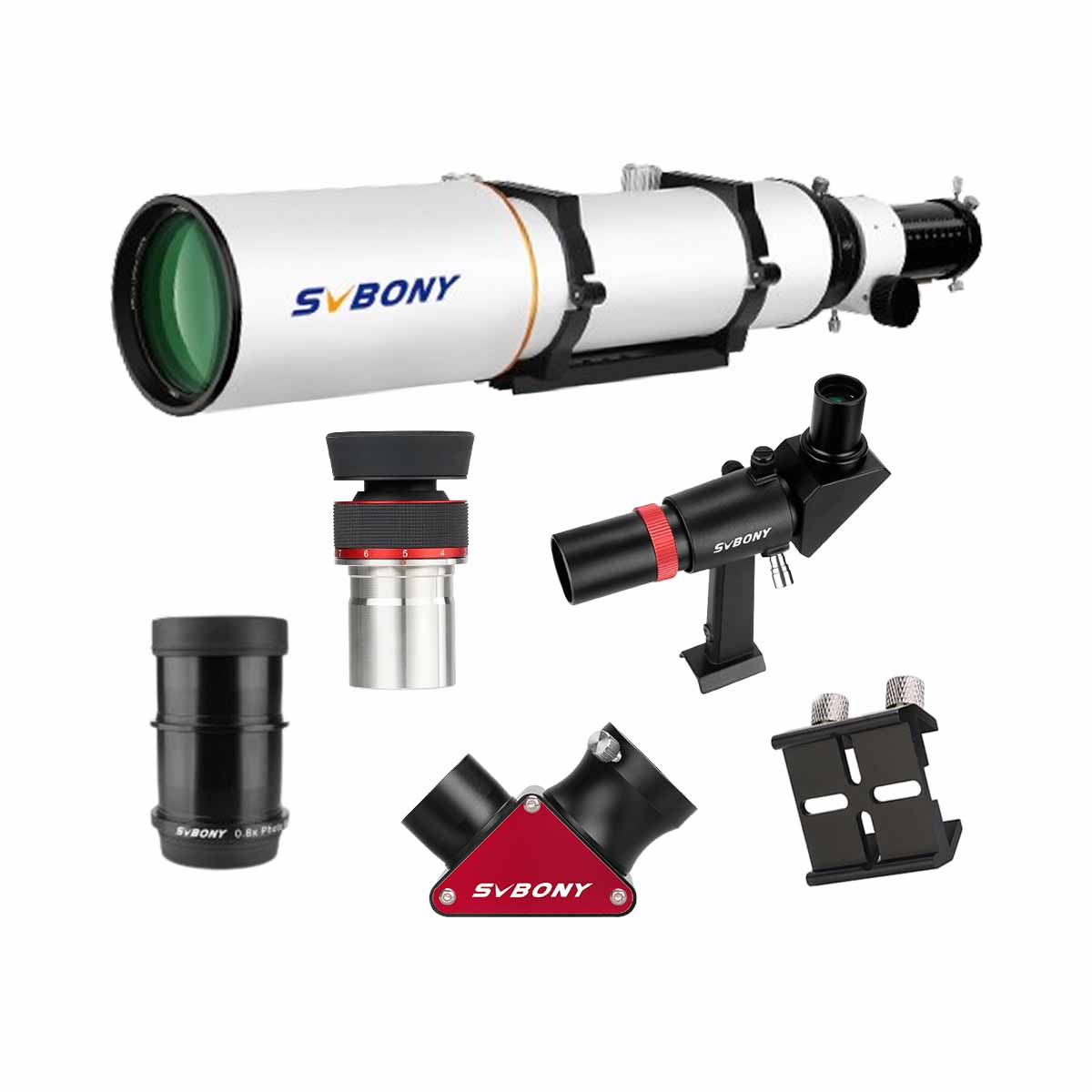

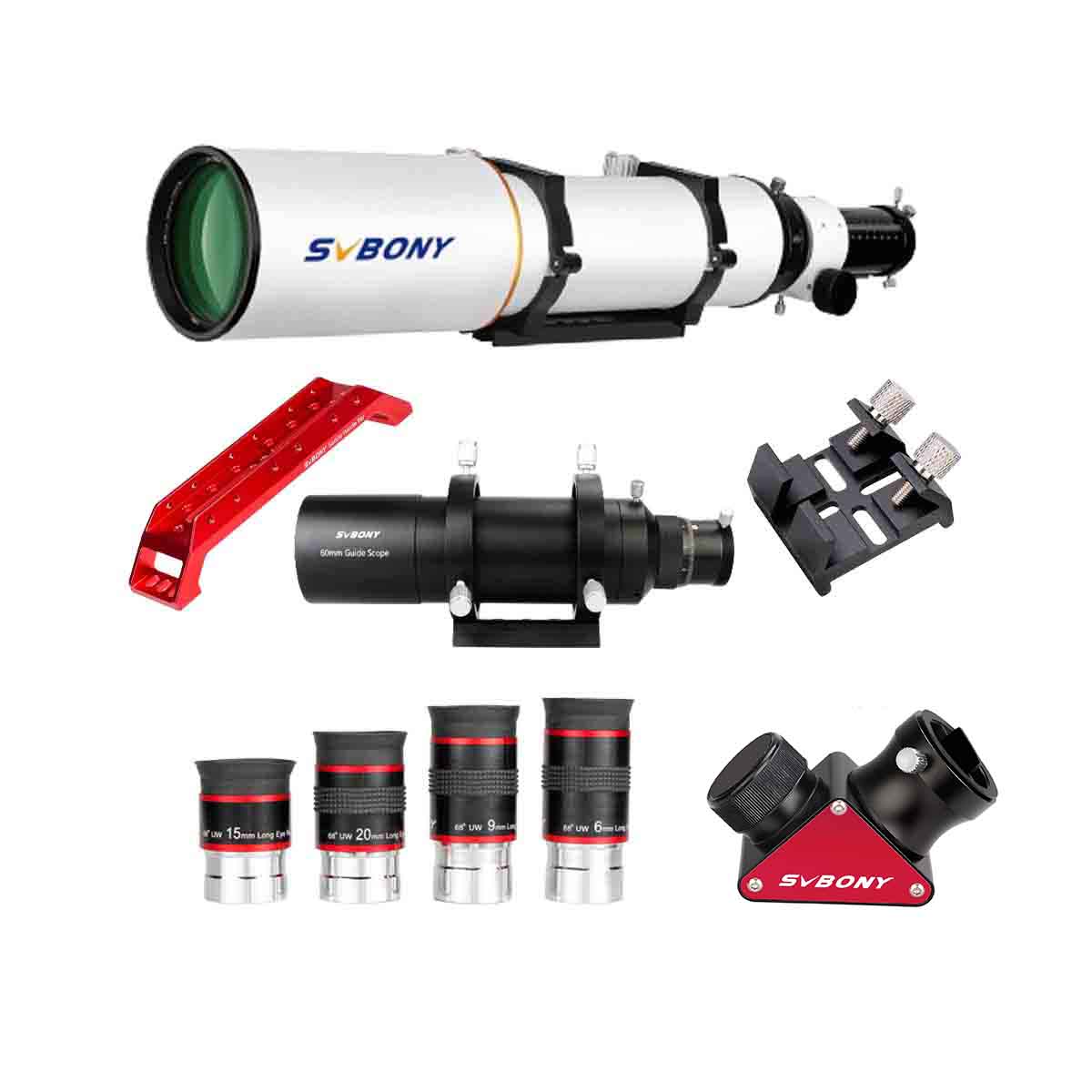

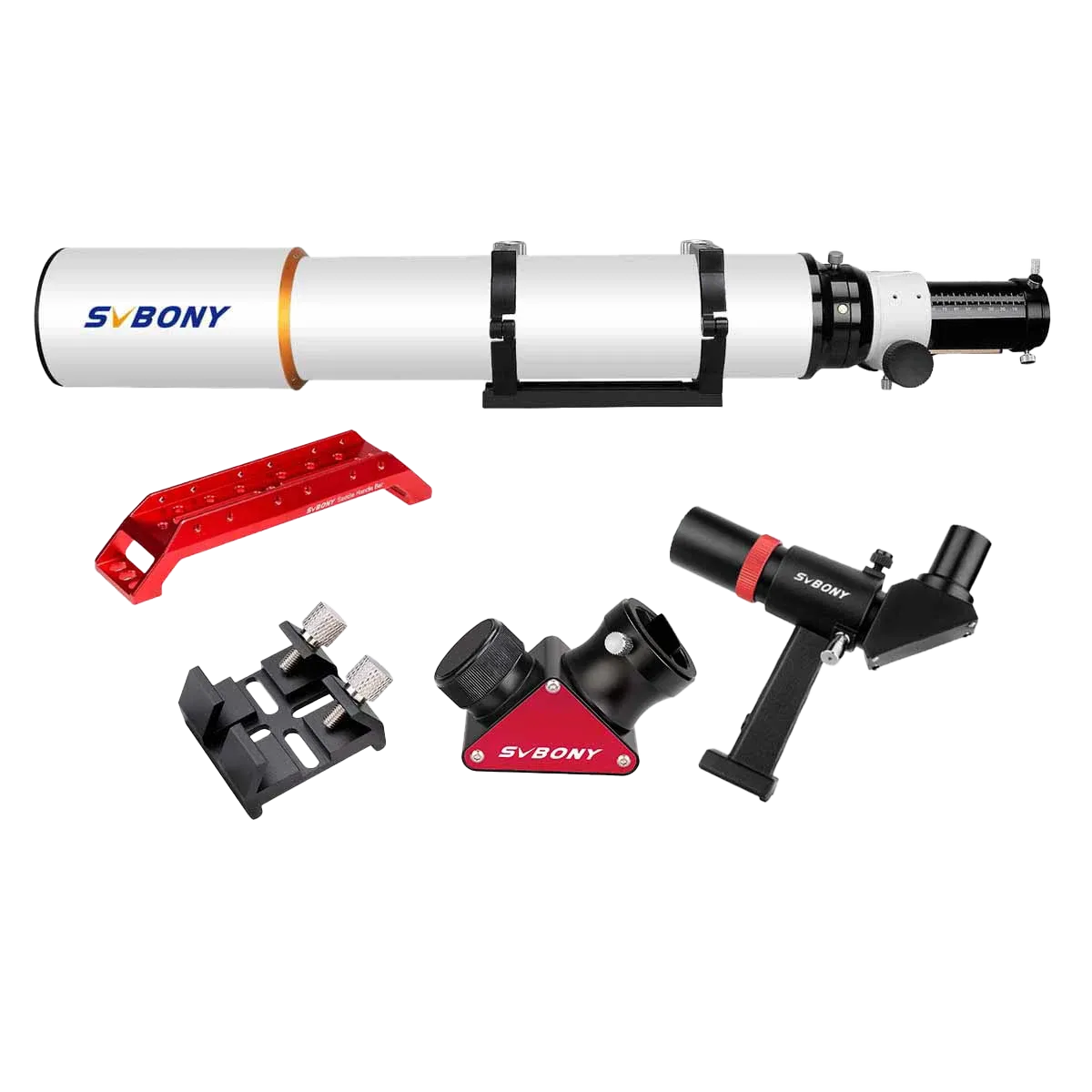

This SV503 telescope combination set includes a 102mm ED F7 refractor telescope, a SV188P 90 degree diagonal mirror, a SV182 6x30 right-angle correct-image optical finder scope, a SV211 203mm saddle handle bar and a universal dovetail base. It is a suitable telescope visual set for astronomy.
FAST shipping, duty-free
Bundle 1
Bundle 2
Bundle 3
Bundle 4
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT
Secure Payments | SSL Encrypted
Fast, Free Shipping
30-Day Money-Back Guarantee
Hassle-Free Warranty | No Hidden Fees
Lifetime Technical & Customer Support
Payment Methods
Payment Methods
SVBONY SV503 Refractor 102mm ED F7 Telescope Visual Set for Astronomy
SVBONY SV503 Refractor 102mm ED F7 Telescope Visual Set for Astronomy
Customer Reviews
All Reviews
Loading...
| Brand | SVBONY |
| Model | SV503 102F7 ED Astronomy Telescope |
| Type | Refractor |

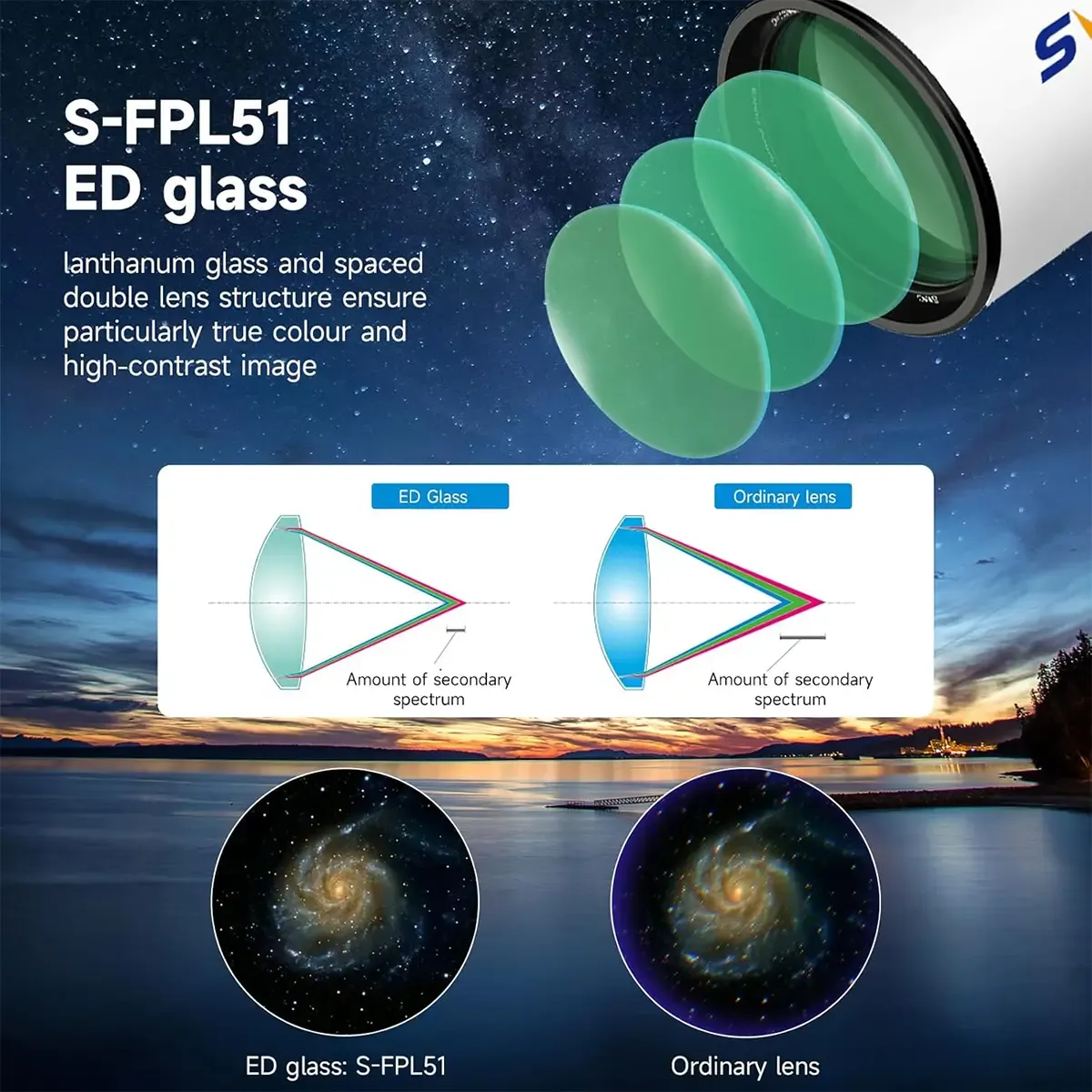

| ED Glass | S-FPL51 |
| Coating | SMC |
| Aperture | 102mm / 4.01-Inch |
| Focal length | 714mm |
| Focal Ratio | f/7 |
| Type of Focuser | RAP (Rack and Pinion) |
| Gear Reduction | 1:10 Fine movement |
| Resolving capacity | 1.17" |
| Limit value | 12.1 |
| Light gathering capacity | 212x |
| Max. Useful magnification | 204x |
| Tube weight（with rings） | 5.5kg |
| Tube outer diameter | 121mm |
| Tube material | Aluminum |
| Back Focus Length | 101.9mm |
| OTA Length | 630mm |
| Dovetail & Ring | Yes |
| Brand | SVBONY | Brand | SVBONY |

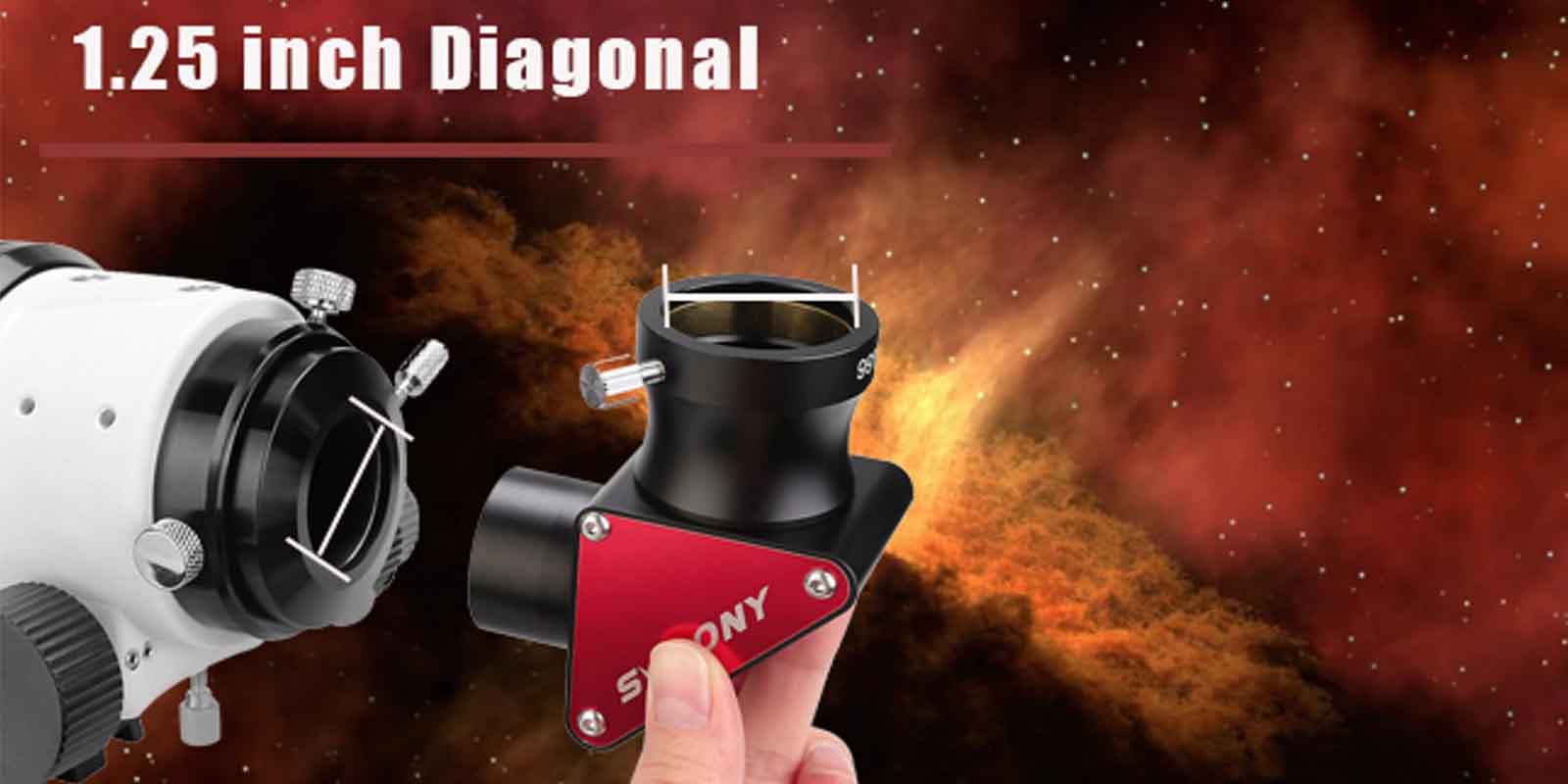

| Model | SV188P | Model | SV182 |
| Size | 1.25inch | Lens Diameter | 30mm |
| Optical Design | Mirror Diagonal | Focal Length | 120mm |
| Coatings | Dielectric | Magnification | 6x |
| Reflectivity | dielectric 99% coating for bright images | Eye Relief | 15mm |
| Material | Aluminum Alloy | Exit Pupil | 5mm |
| Filter Threads | M28.5*0.6 | Field of View | 7.5° |
| M4 Set Screws | Yes | Lens coating | FMC |
| Outer Connection(Lens Sided) | Barrel 1.25inch | Image Orientation | Correct-image |
| Inner Connection(Lens Sided) | Thread M28.5x0.6 | Reticle | Single crosshair |
| Inner Connection(Eyepiece Sided) | Clamp 1.25inch | Adjustment System | Spring-loaded X-Y |
| Reflection Surface | Dielectrically Coated | Objective | Achromatic 2-Element |

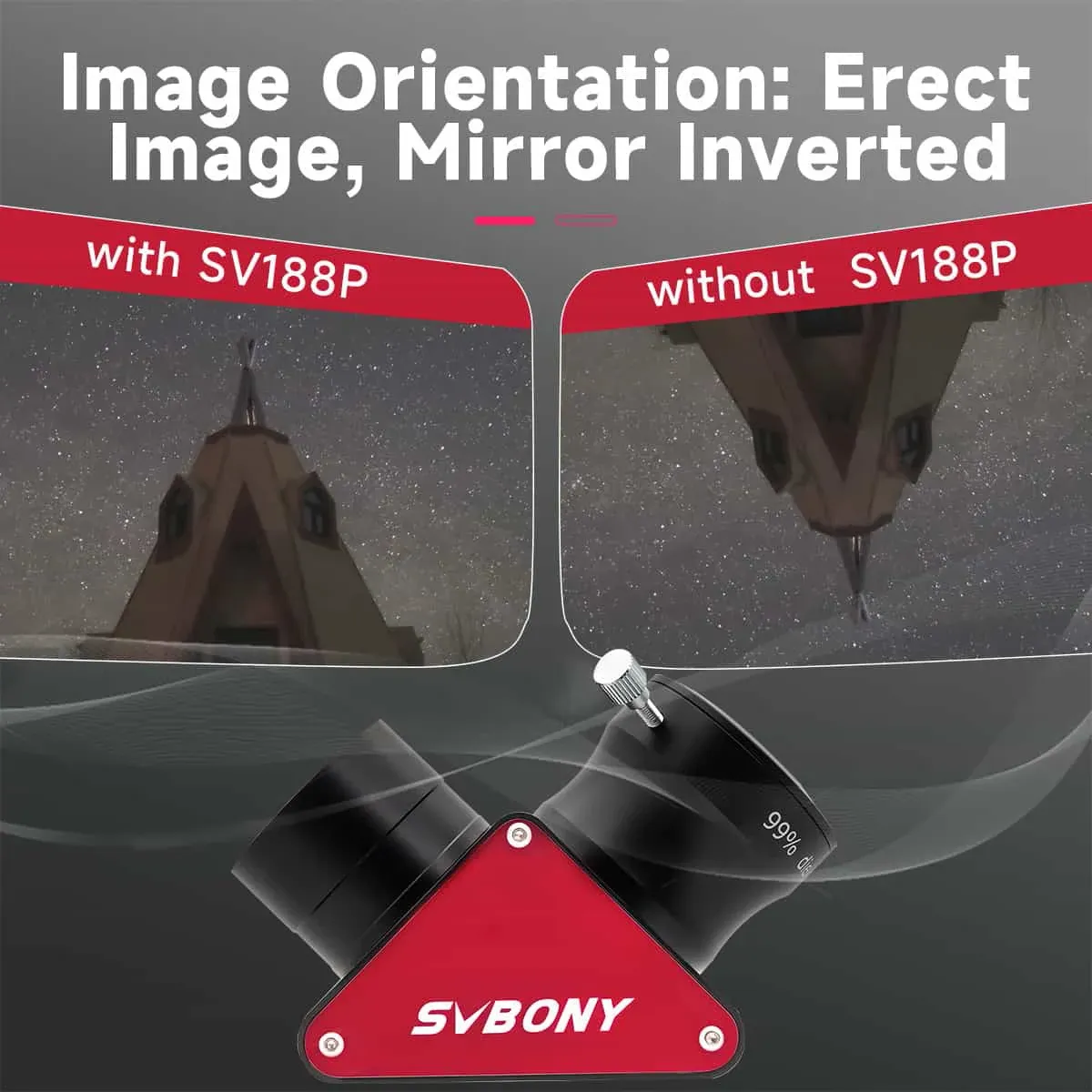

| Image Orientation | Erect Image, Mirror Inverted | IIIuminated | No |
| Thickness of Mirror | 11mm | Adjustable focus | Yes |
| Net Weight | 125g / 4.41oz | Viewing angle | 90 Degree |
| Net Weight | 295g / 0.651b / 10.41oz |
| Brand | SVBONY | Brand | SVBONY |

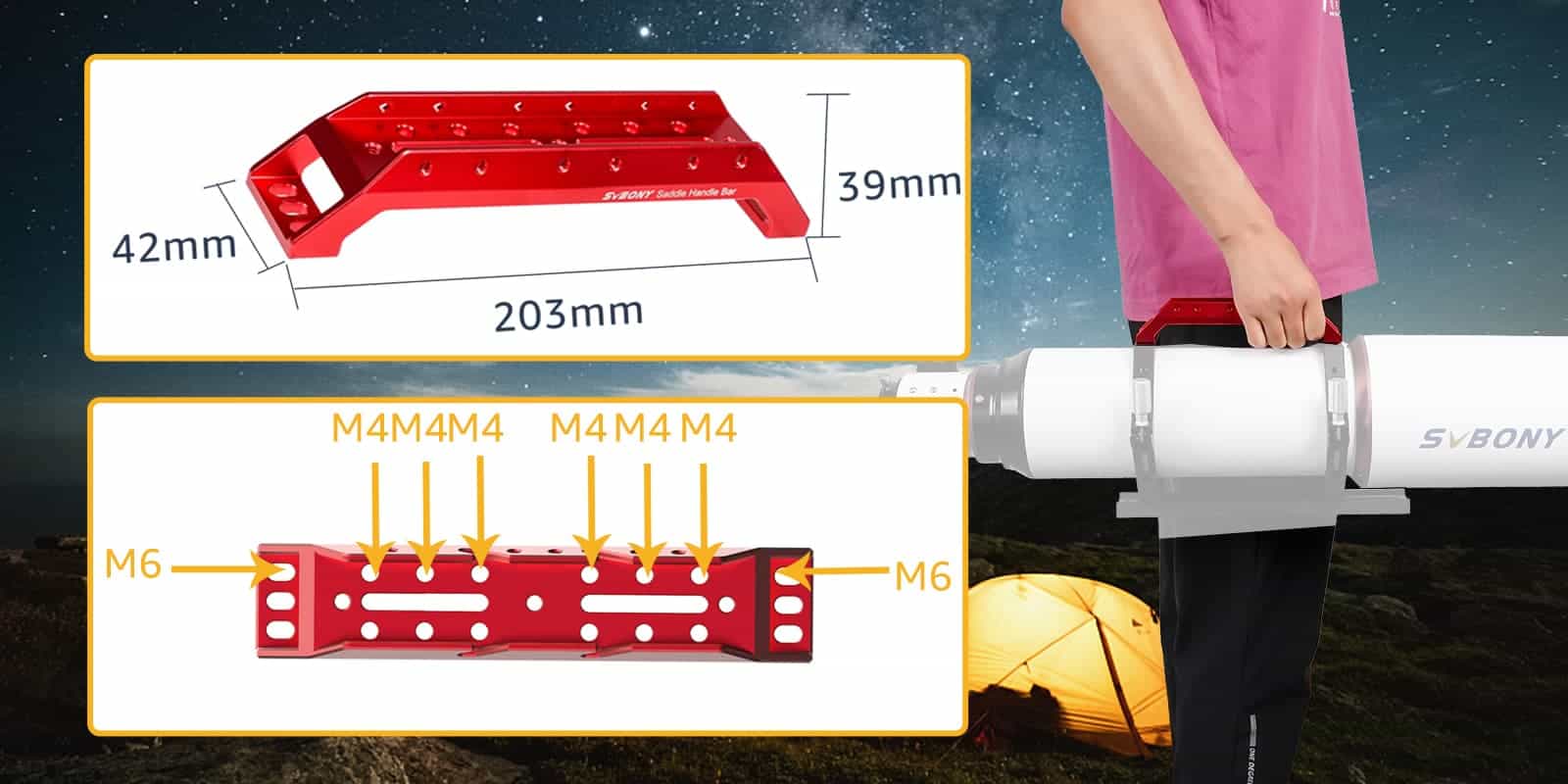

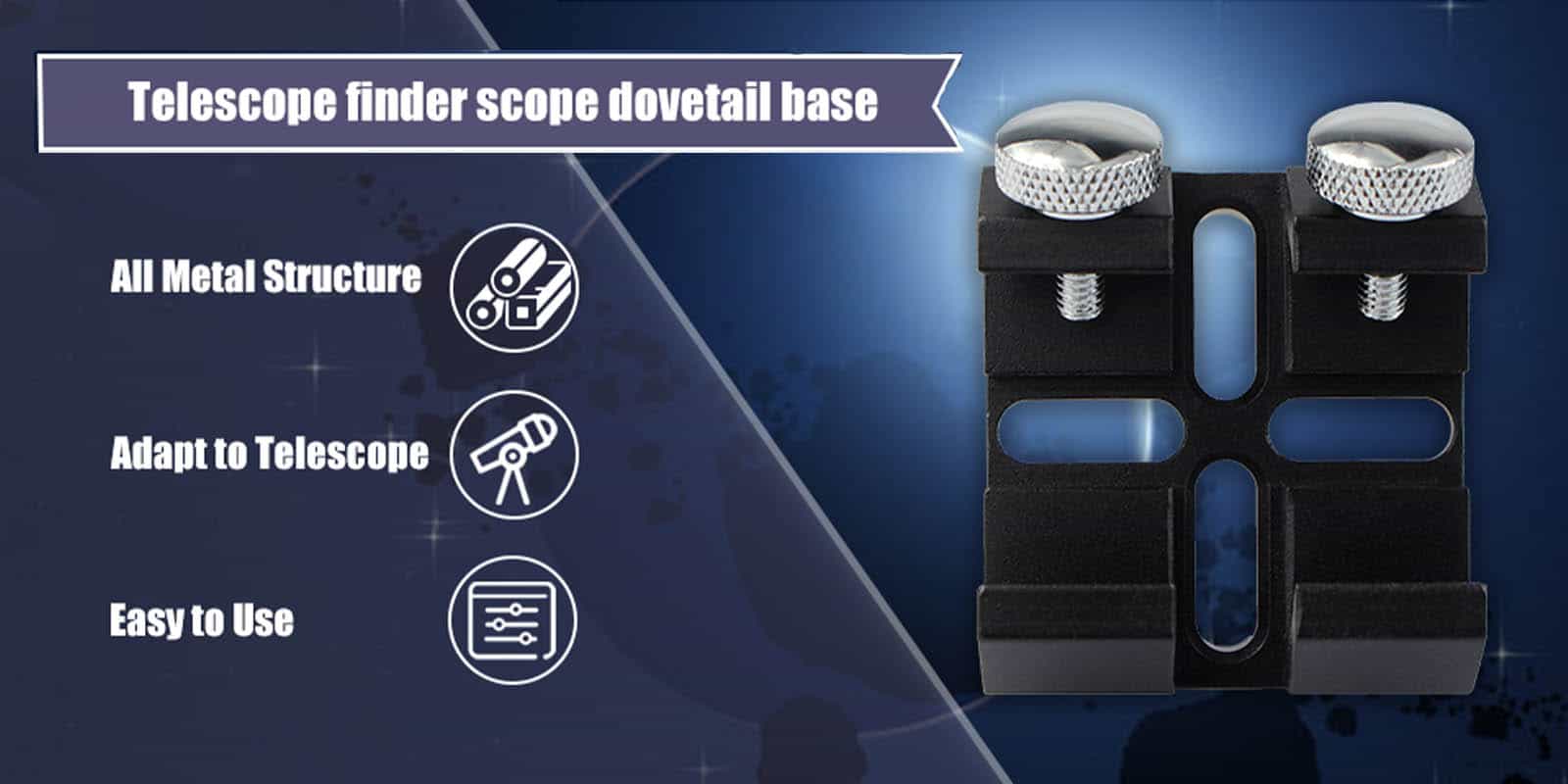

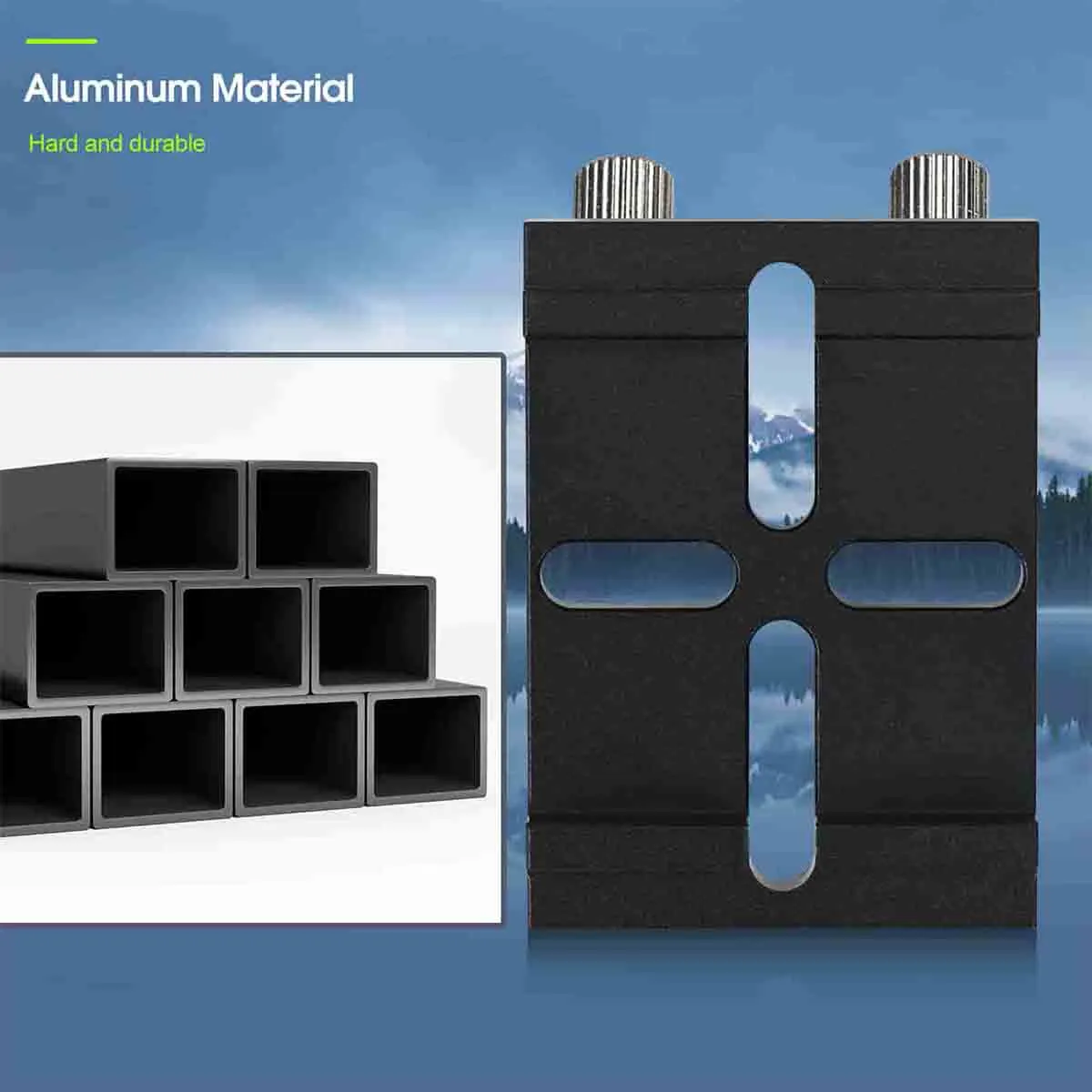

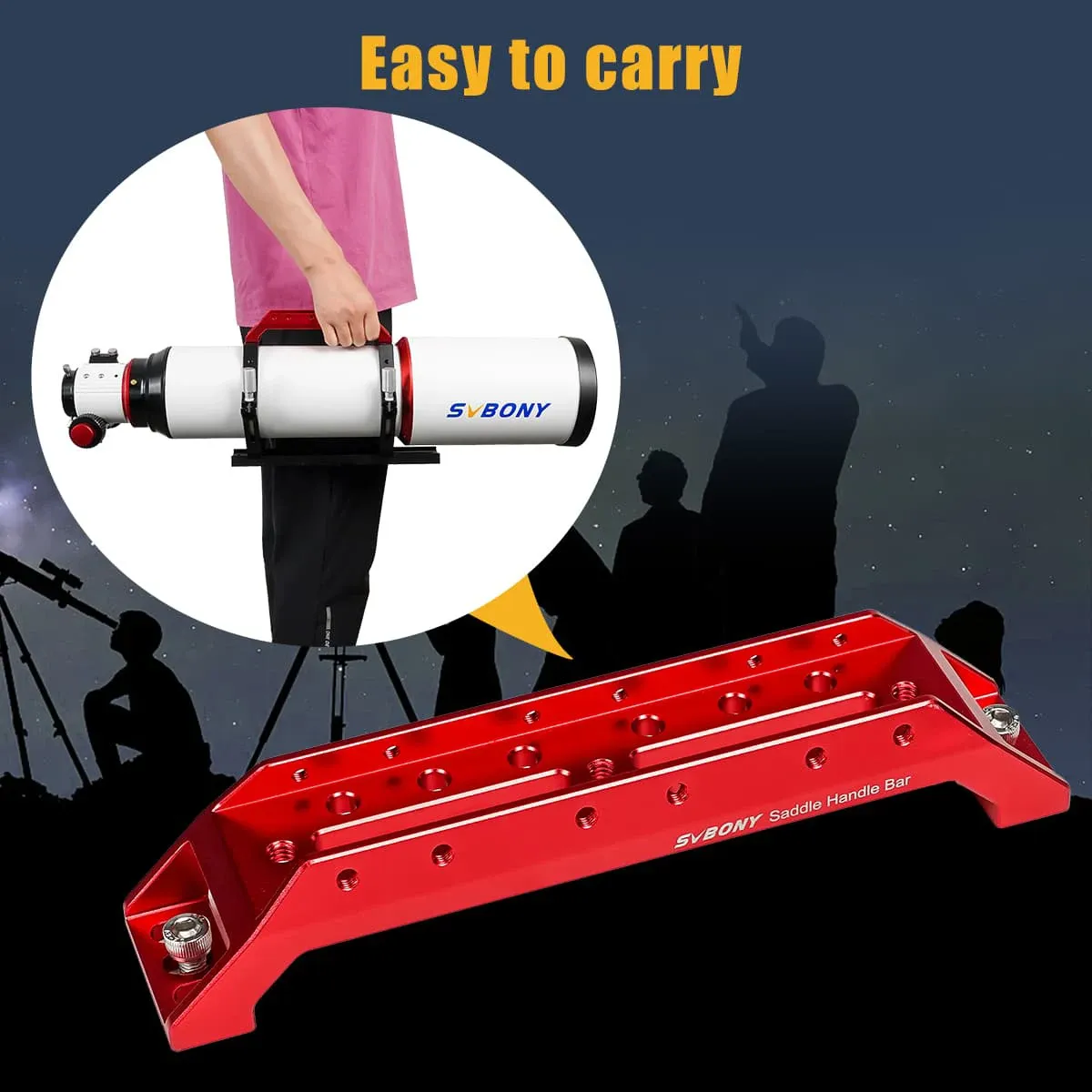

| Model | SV211 | Model | W2370A |
| Color | Red | Length | along the 34mm |
| Material | 6061T Aluminums | Width of internal slot | 4.2mm |
| Length | 203mm | Horizontal length of internal slot | 36.5mm |
| Width | 42mm | Vertical length of internal slot | 36.5mm |
| High | 39mm | Can be fixed | M3-M4 screw |
| Net Weight | 161.5g/5.7oz | Color | Black |
| Fit For OTA | SV503 102mm f/7、SV550 122mm f/7 | Weight | 41g |
| Distance Between Two M6 Screws | 187mm | L*W*H | 45*40*25mm |
