SV550 122 Triplet APO Telescope Set For Astronomical Visual Observation
4 | ReviewsOfficial Store Exclusive – Buy now to earn points for a limited time.+209 Points
Key Features
For stargazers, eliminates blur, delivers sharp celestial views.
Adopts APO lens, enhances light transmission for vivid details.
Ideal for backyard or field use, elevates astronomical experiences.
Comes with 2-year warranty, ensures reliable after-sales support.
Free custom adapter, plus member-only discount on purchase.

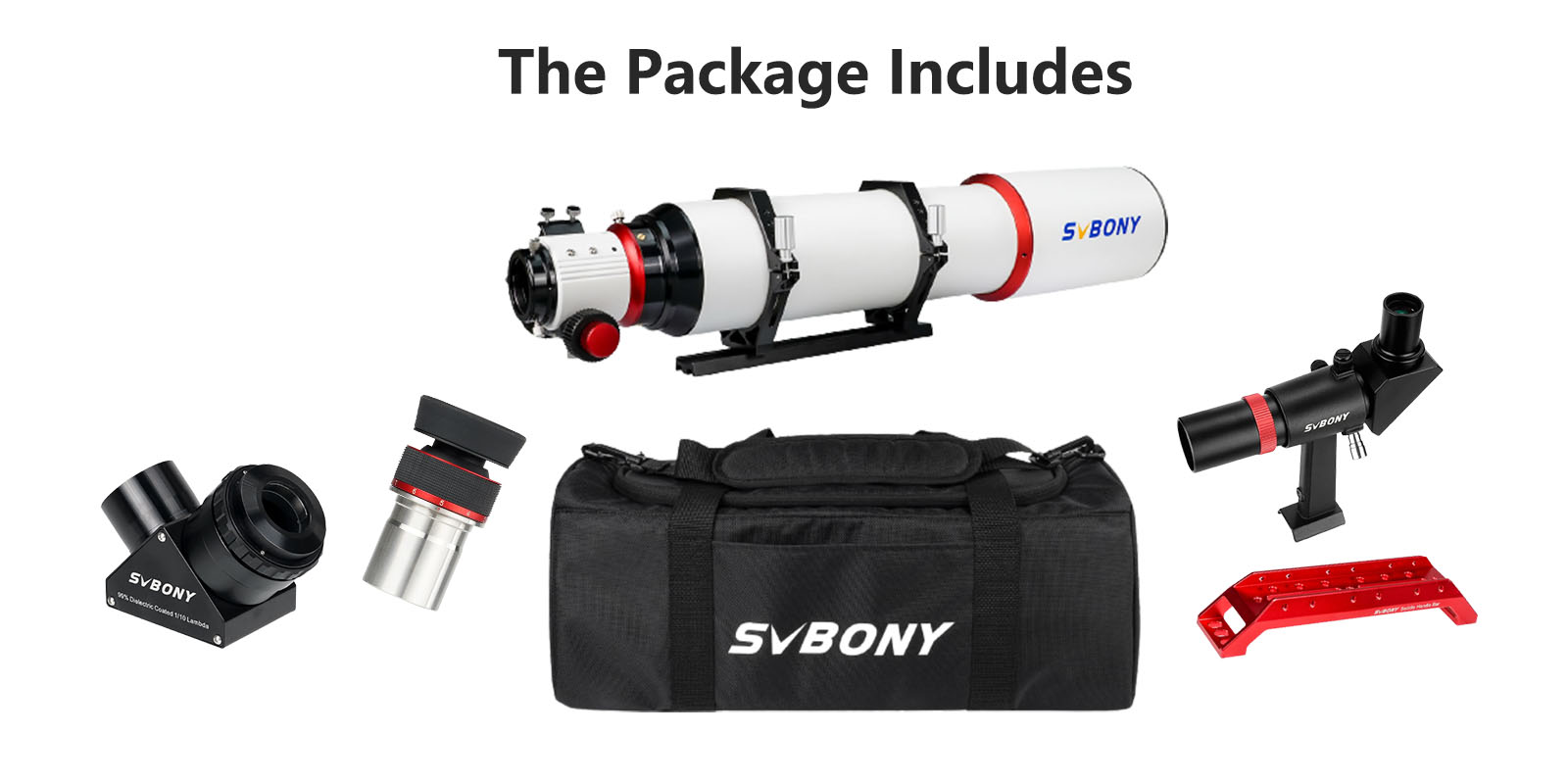

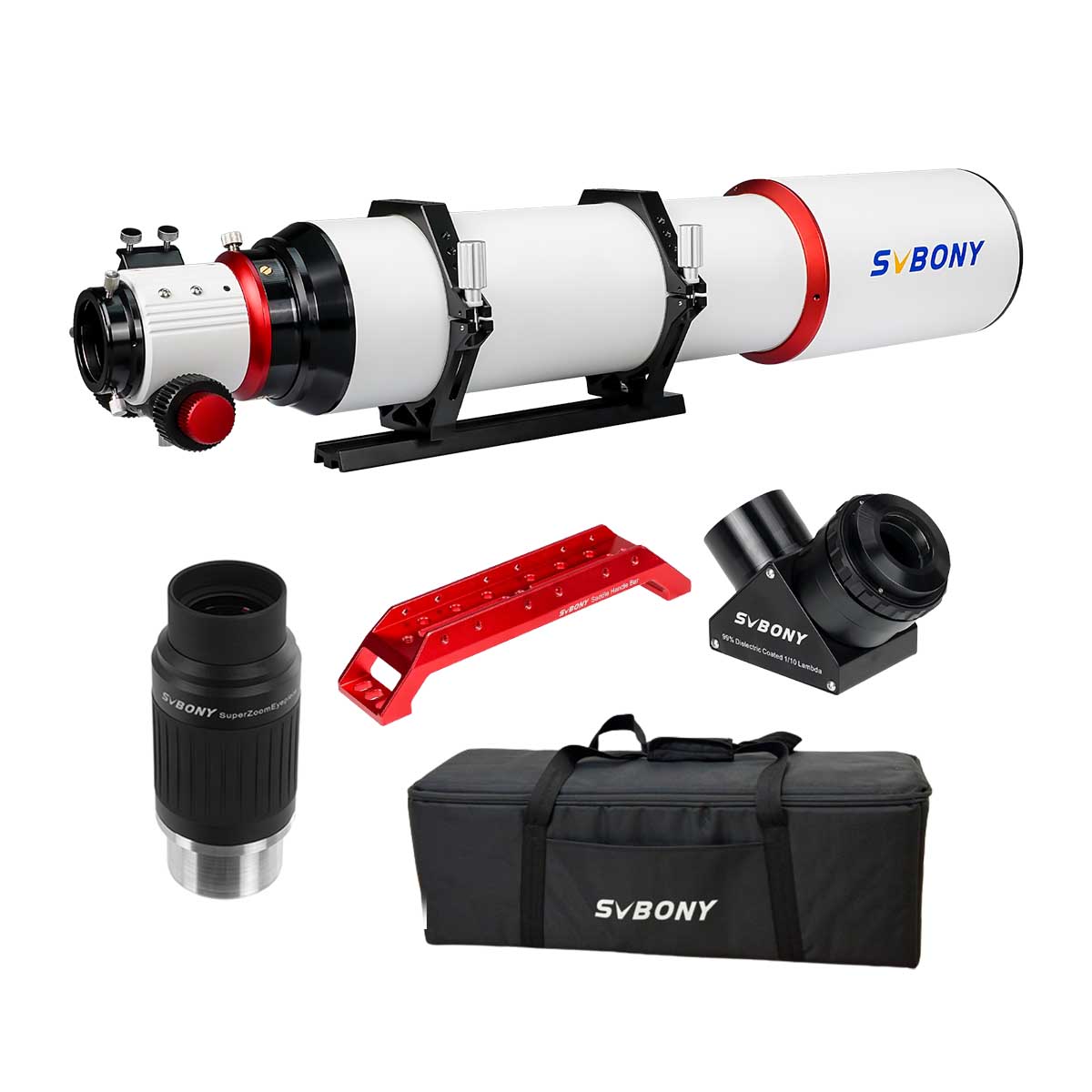

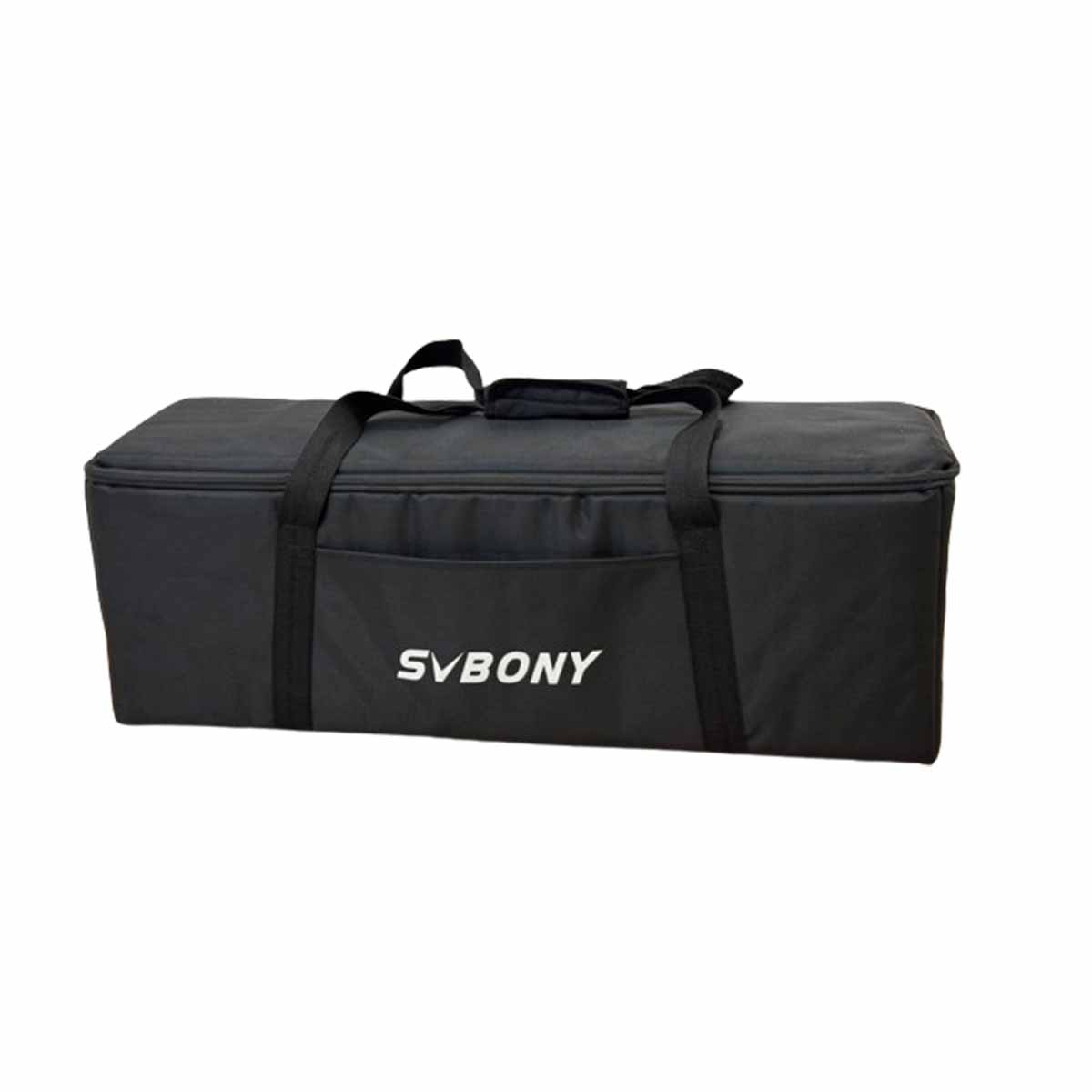

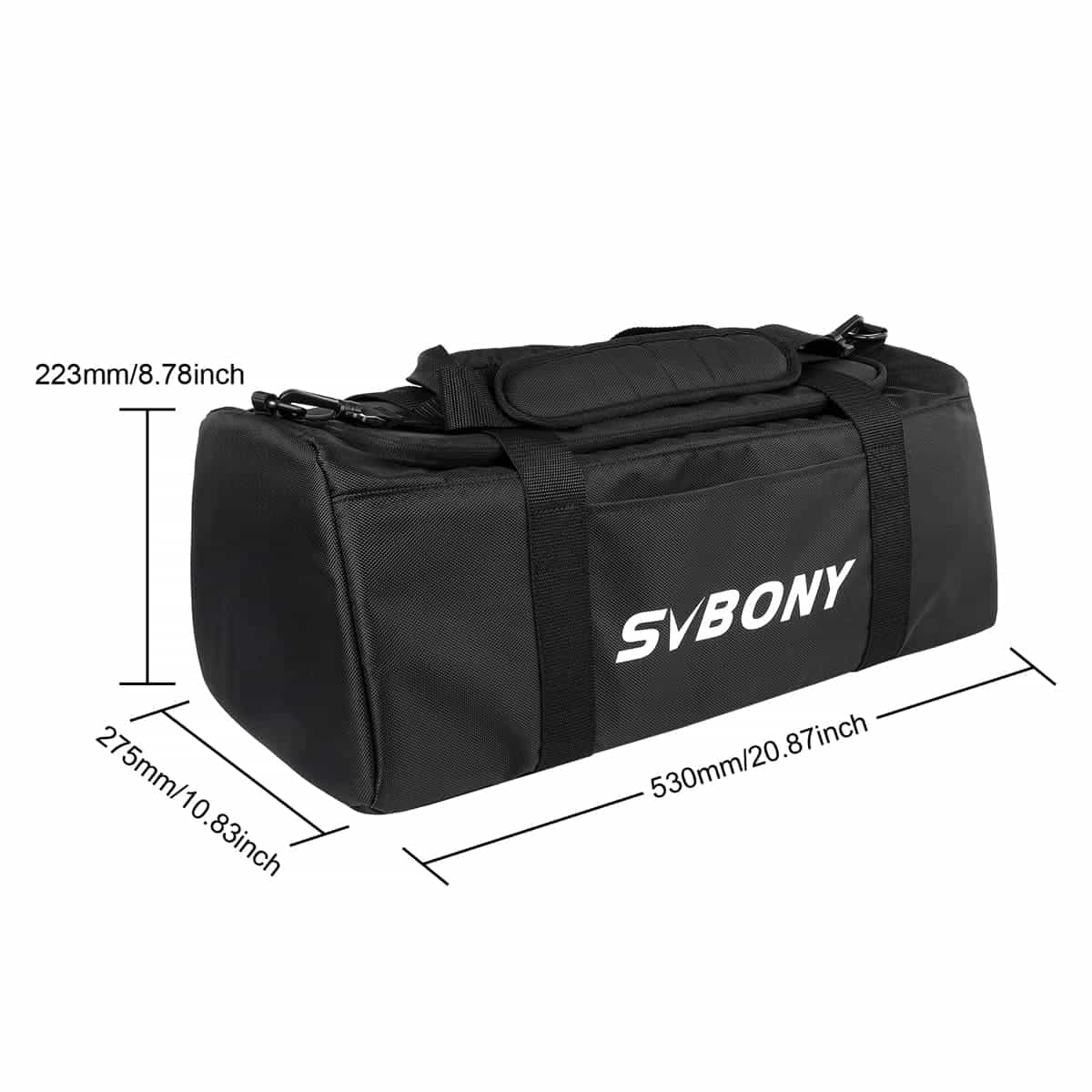

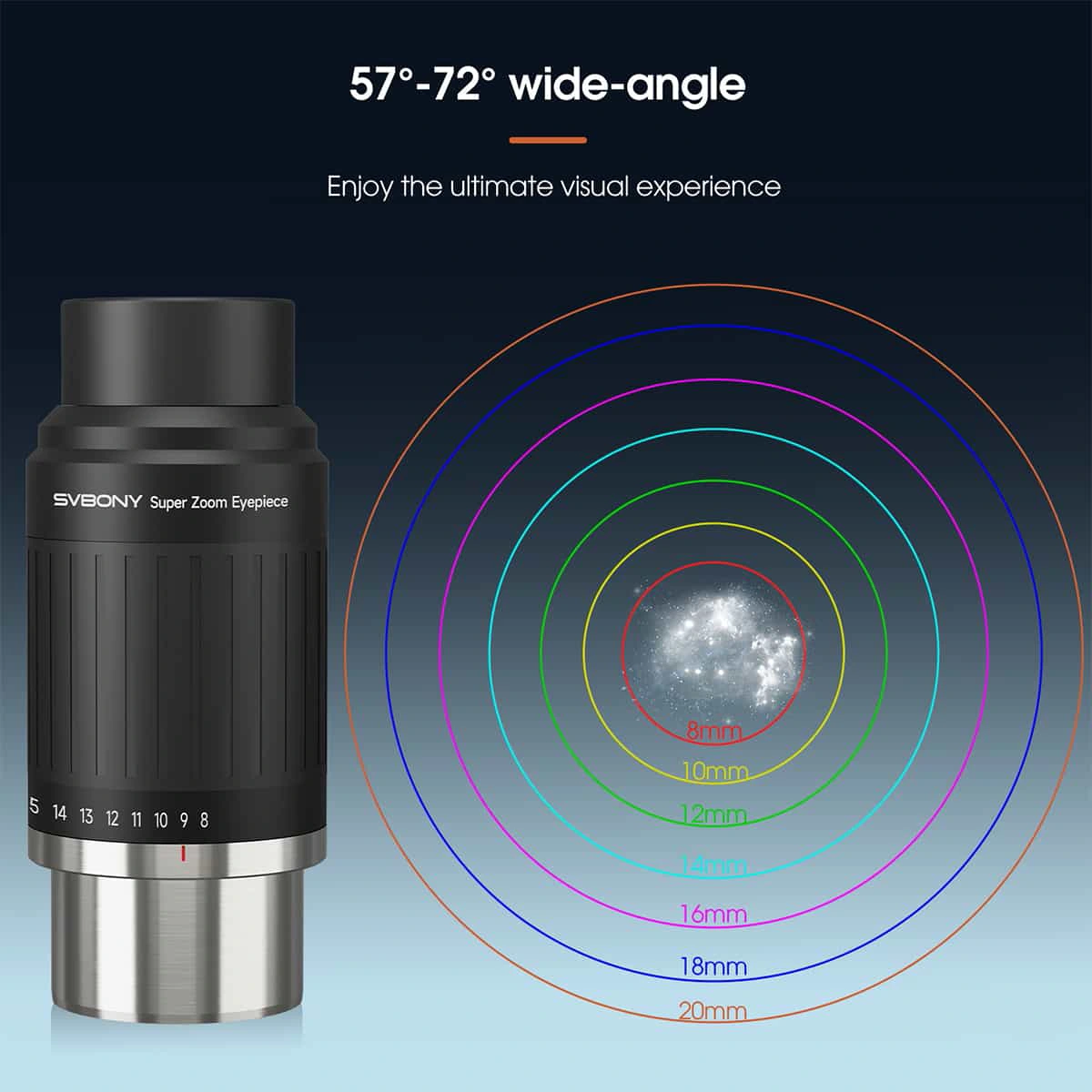

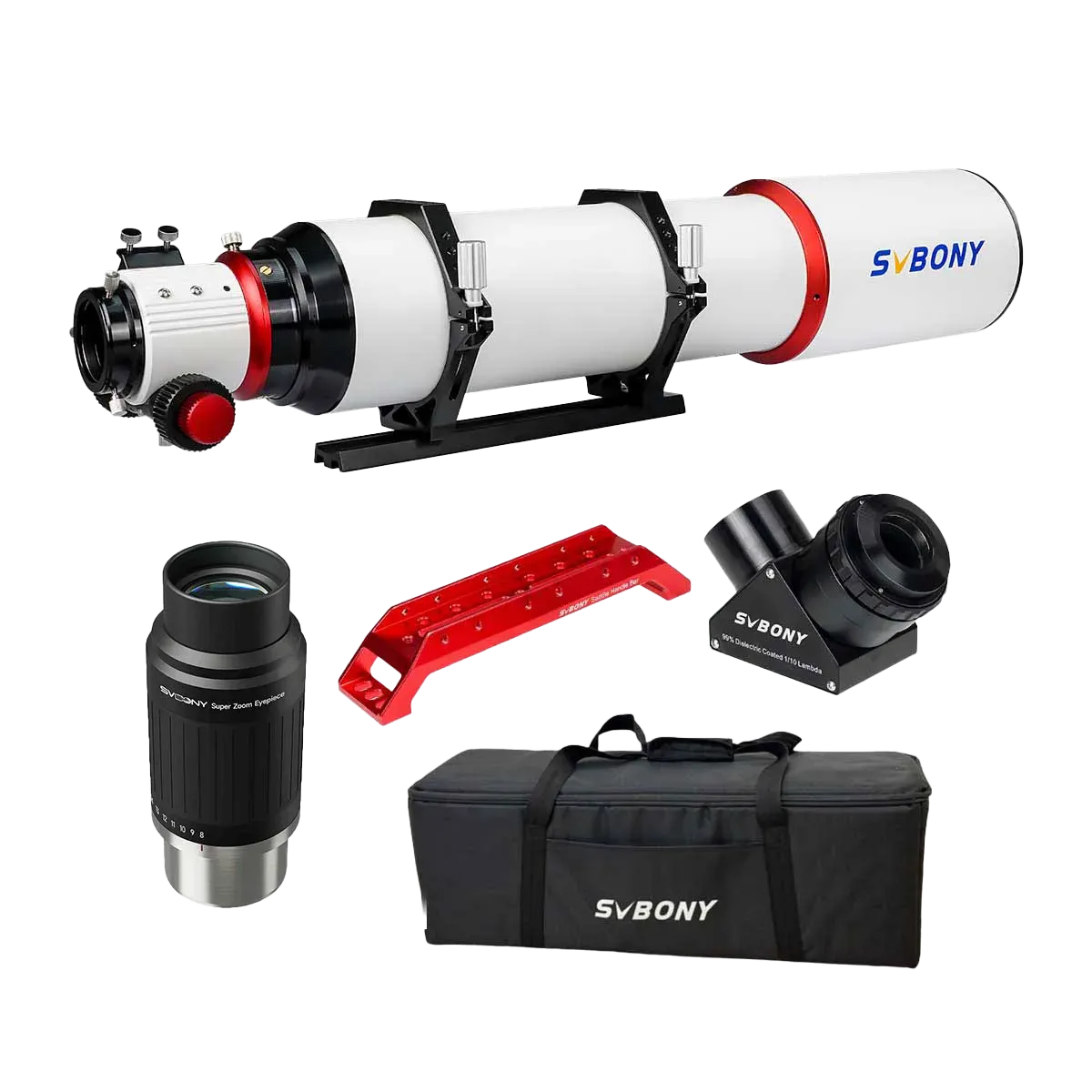

Bundle 1: SV550 122APO telescope OTA + SV230 Zoom Eyepiece + SV223 Diagonal + SV211 Handle Bar + SV212 Telescope Case Bag

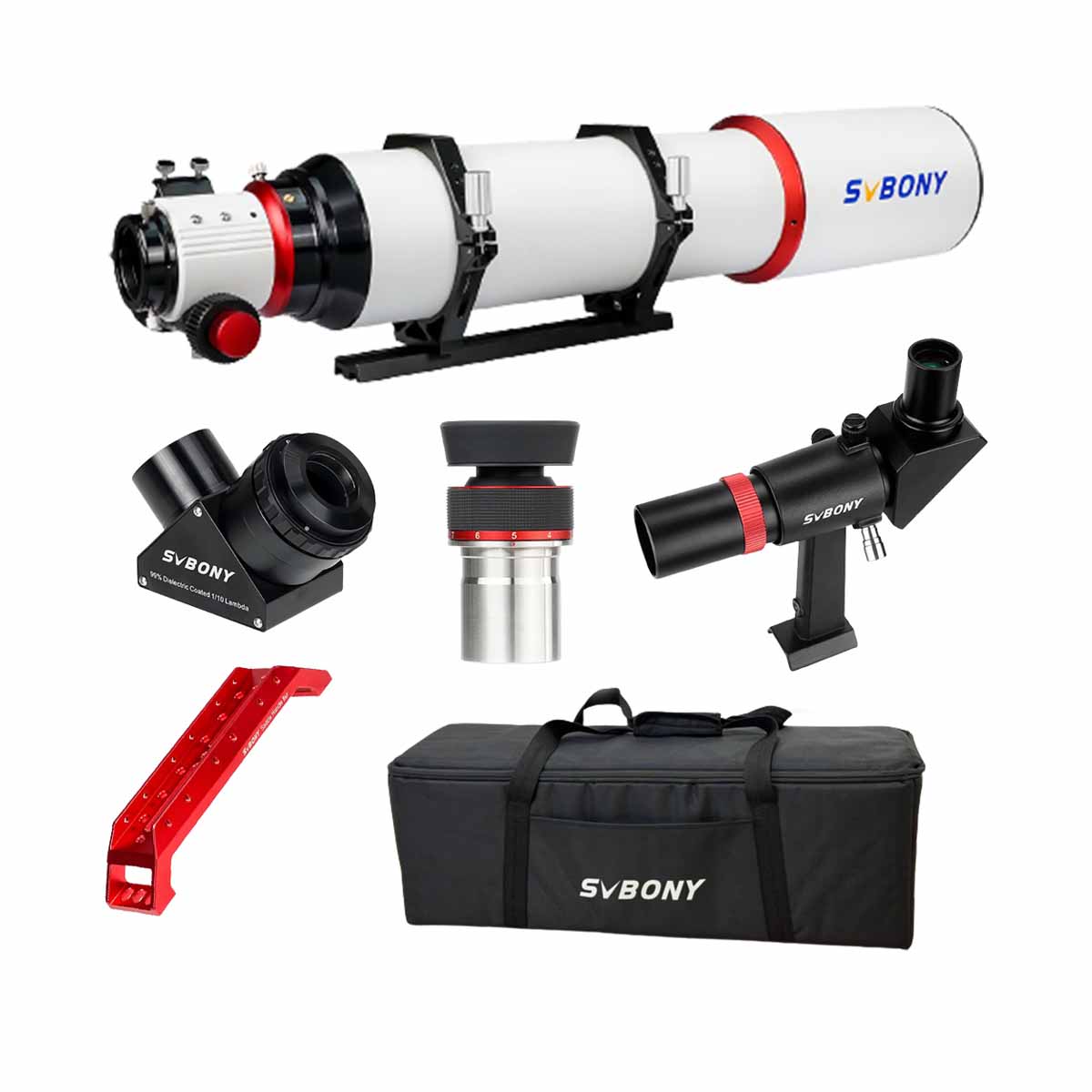

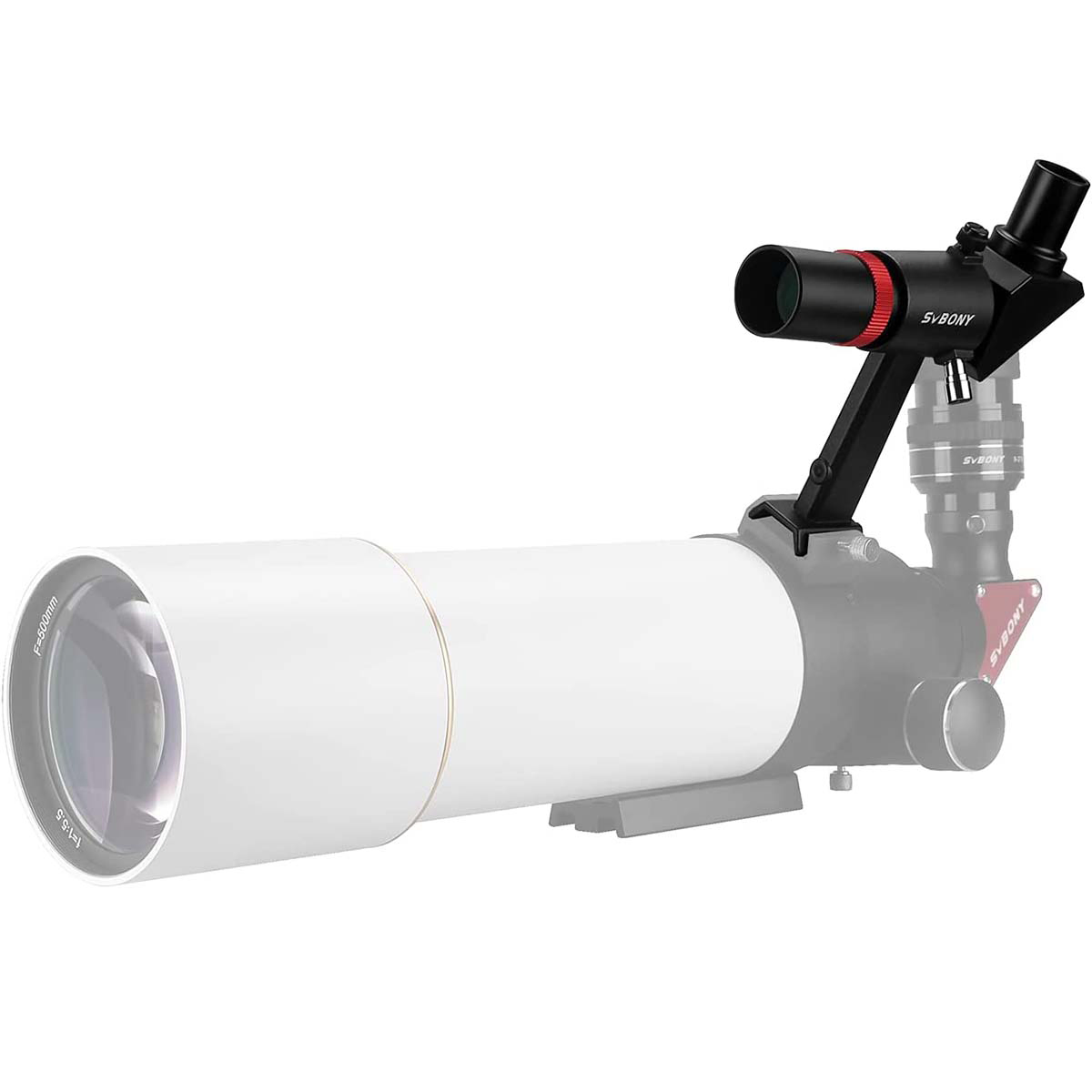

Bundle 2: SV550 122APO telescope OTA + SV215 Zoom Eyepiece + SV223 Diagonal + SV211 Handle Bar + SV182 Finder Scope + SV212 Telescope Case Bag

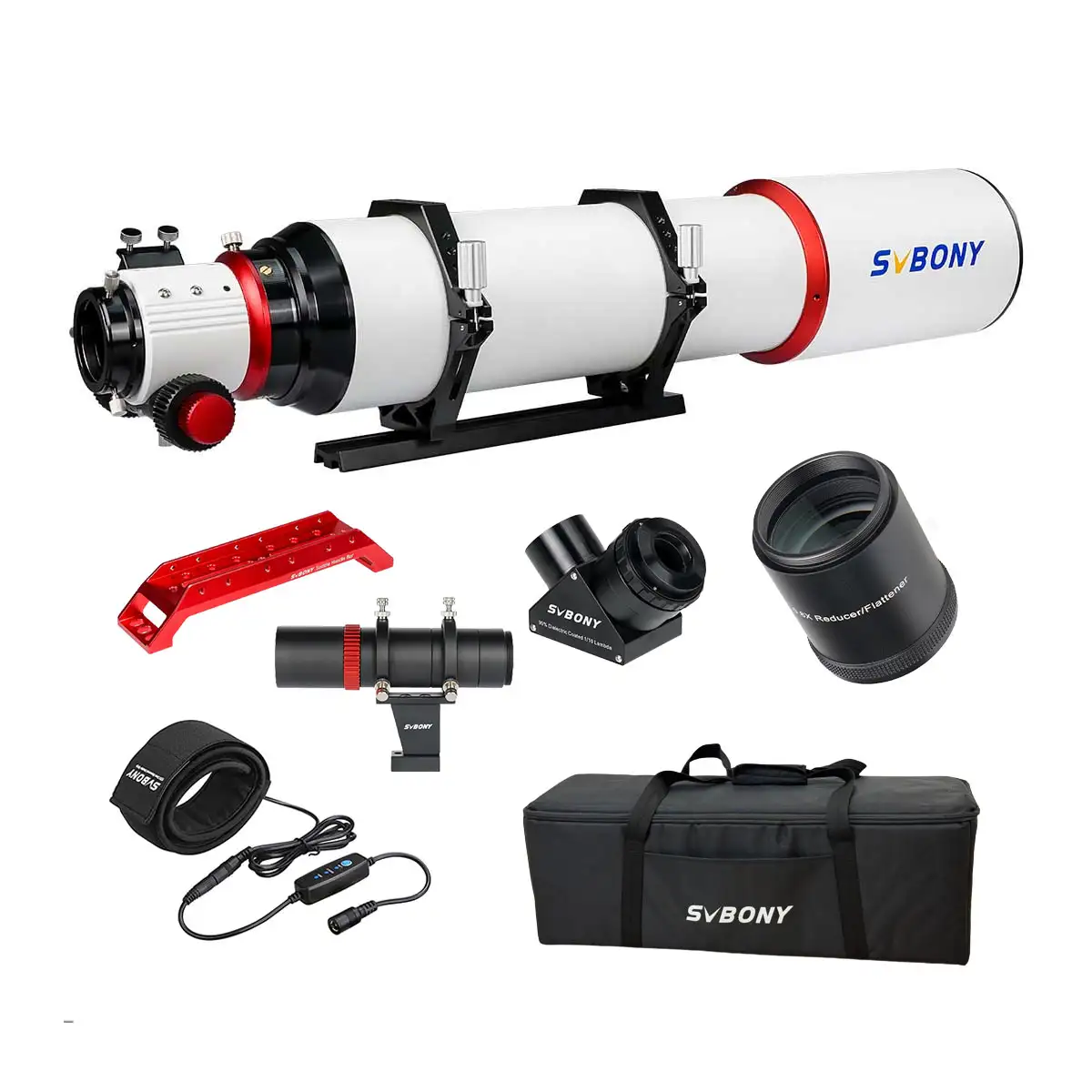

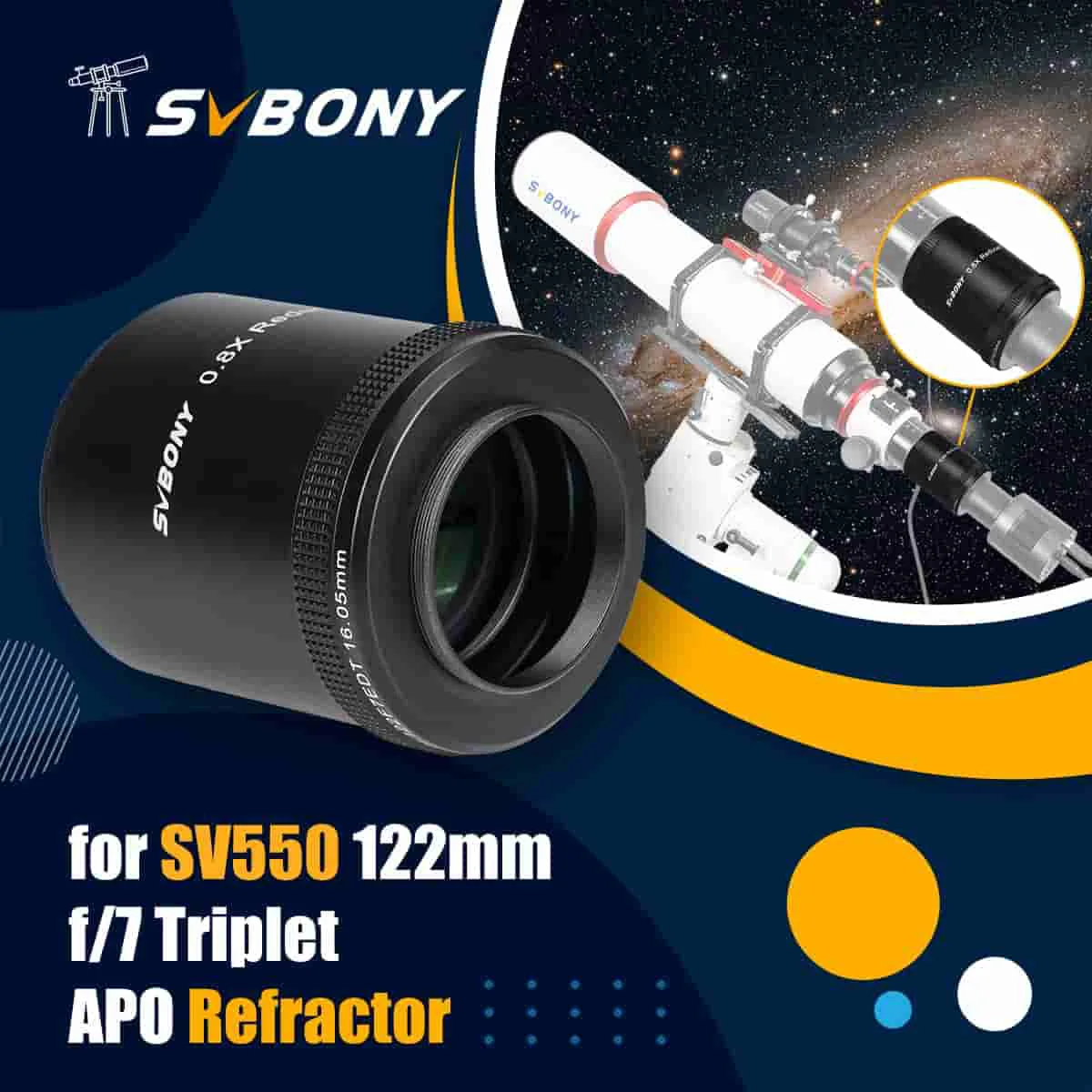

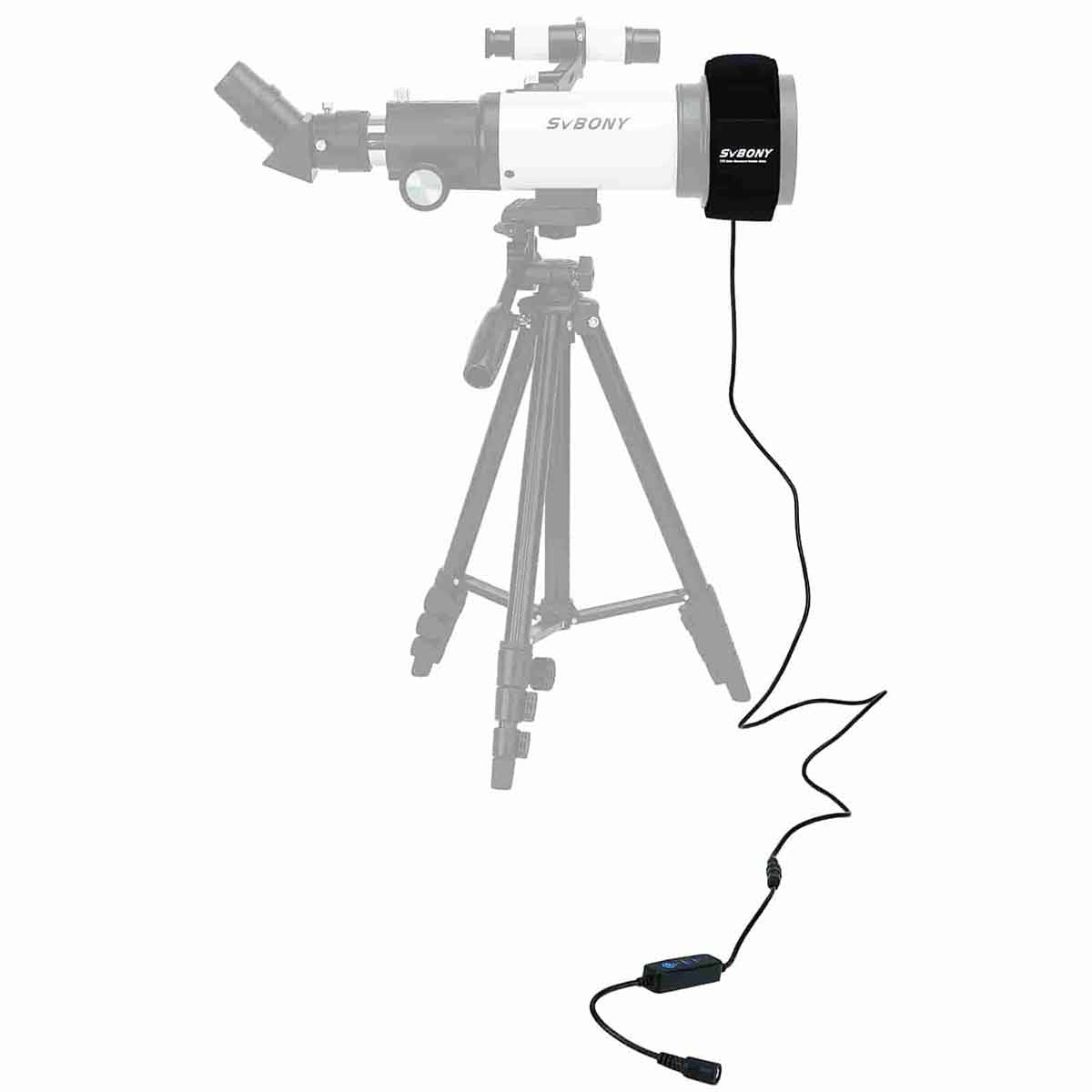

Bundle 3: SV550 122APO telescope OTA + SV209 Focal Reducer/Field Flattener + SV223 Diagonal + SV211 Handle Bar + SV165 Guide Scope + SV192 Dew Heater
Bundle 1
Bundle 2
Bundle 3
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT
Secure Payments | SSL Encrypted
Fast, Free Shipping
30-Day Money-Back Guarantee
Hassle-Free Warranty | No Hidden Fees
Lifetime Technical & Customer Support
Payment Methods
Payment Methods
SV550 122MM Triplet APO Telescope Set For Astronomical Observation
SV550 122MM Triplet APO Telescope Set For Astronomical Observation
Customer Reviews
All Reviews
Loading...
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 122mm |
| Focal Length | 854mm |
| Focal Ratio | f/7 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.15 arc seconds |
| Coatings | Fully Multi-coated |
| Tube Material | Aluminum |
| Focuser | 2.5" rack-and-pinion, dual speed (1/10) |
| Tube Outer Diameter | 154mm |
| Tube Travel | 87mm |
| Visual Limiting Magnitude | 12.3 |
| Lens Design | Apochromatic |
| Dovetail Plate Length | 300mm |
| Highest Useful Magnification | 244x |

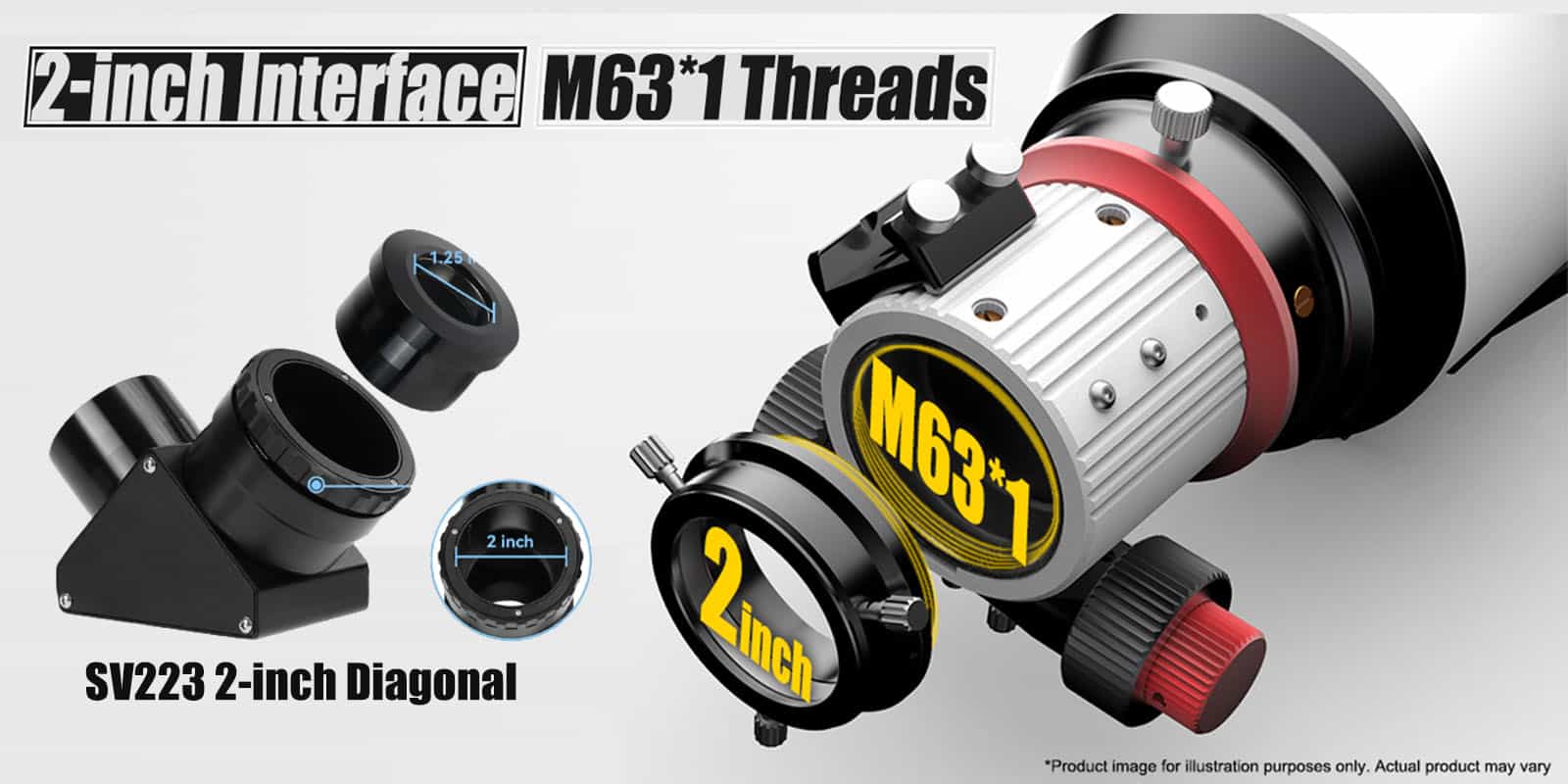

| Additional Thread | M63x1 female thread for adaptions |
| Dew Shield Type | Retractable |
| Net Weight | 6440g/14.18lb |
| Gross Weight | 10000g |
| Brand | SVBONY | Brand | SVBONY |

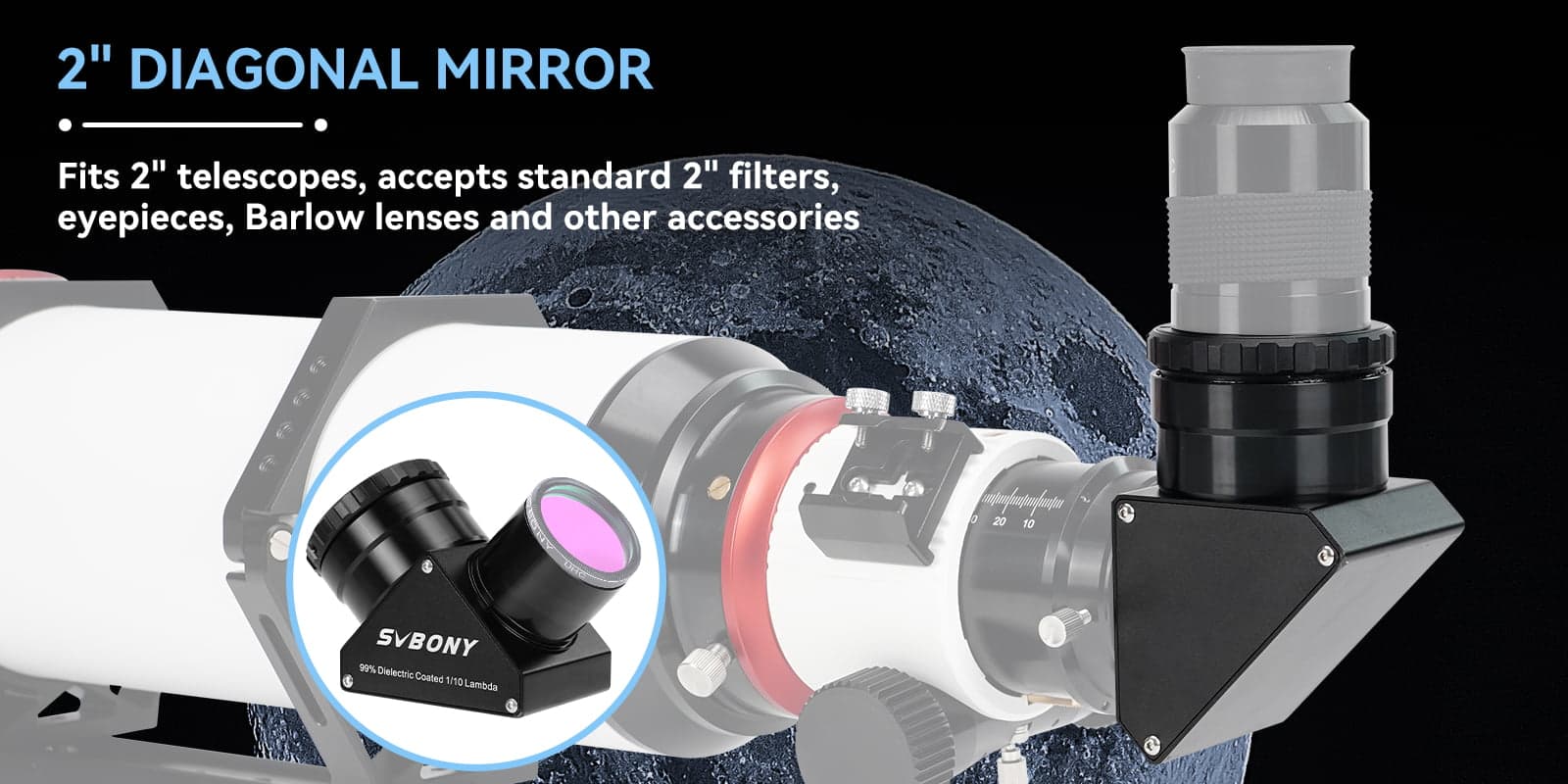

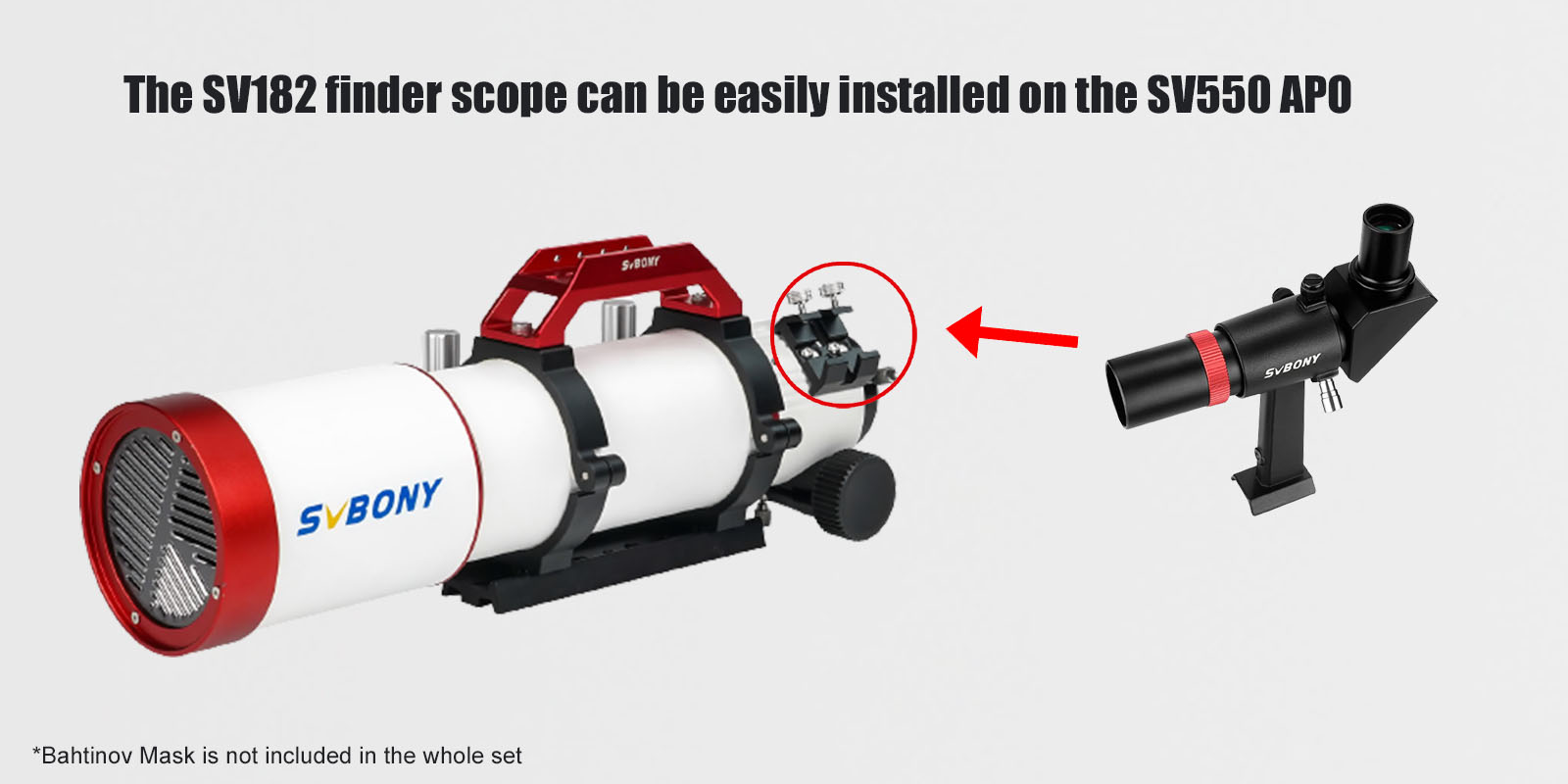

| Model | SV182 | Model | SV223 |
| Lens Diameter | 30mm | Size | 2inch |
| Focal Length | 120mm | Optical Design | Mirror Diagonal |
| Magnification | 6x | Inner Connection (Lens Sided) | Thread M48x0.75 |
| Eye Relief | 15mm | Outer Connection (Lens Sided) | Barrel 2inch |
| Exit Pupil | 5mm | Inner Connection (Eyepiece Sided) | Clamp 2inch |
| Field of View | 7.5° | Reflection Surface | Dielectrically Coated |
| Lens coating | FMC | Reflectivity | >99% |
| Image Orientation | Correct-image | Image Orientation | Erect image, Mirror Inverted |
| Reticle | Single crosshair | Optical Length | appr. 109.1mm |
| Adjustment System | Spring-loaded X-Y | Clamping System | Clicklock |
| Objective | Achromatic 2-Element | Deflection Angle | 90° |
| IIIuminated | No | Clear Aperture | 43mm |
| Adjustable focus | Yes | Material | Metal |
| Viewing angle | 90 Degree | Thickness of Mirror | 11.5mm |
| Net Weight | 295g / 0.651b / 10.41oz | Net Weight | 573.7g/20.24oz |
| Brand | SVBONY | Brand | SVBONY |

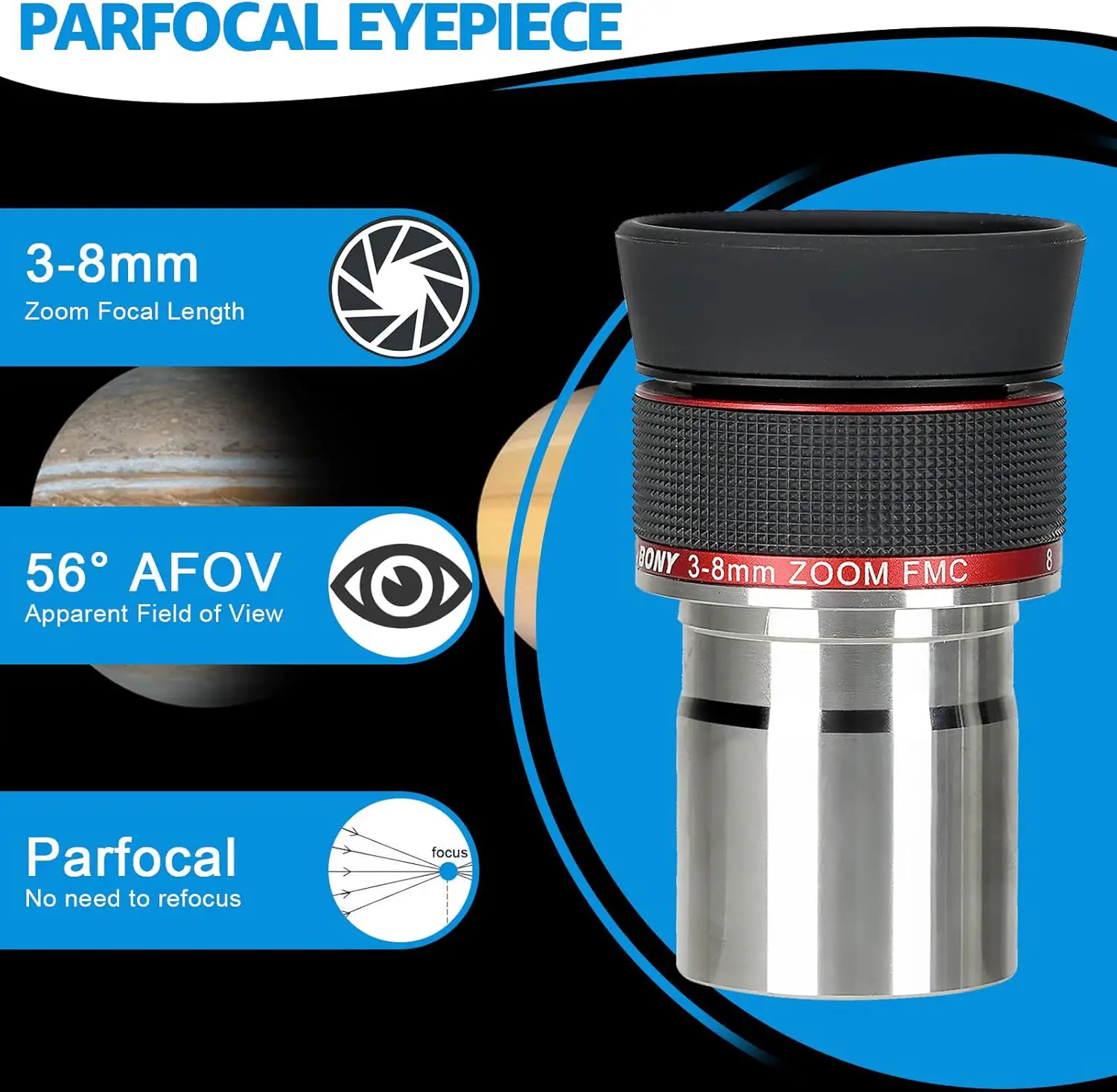

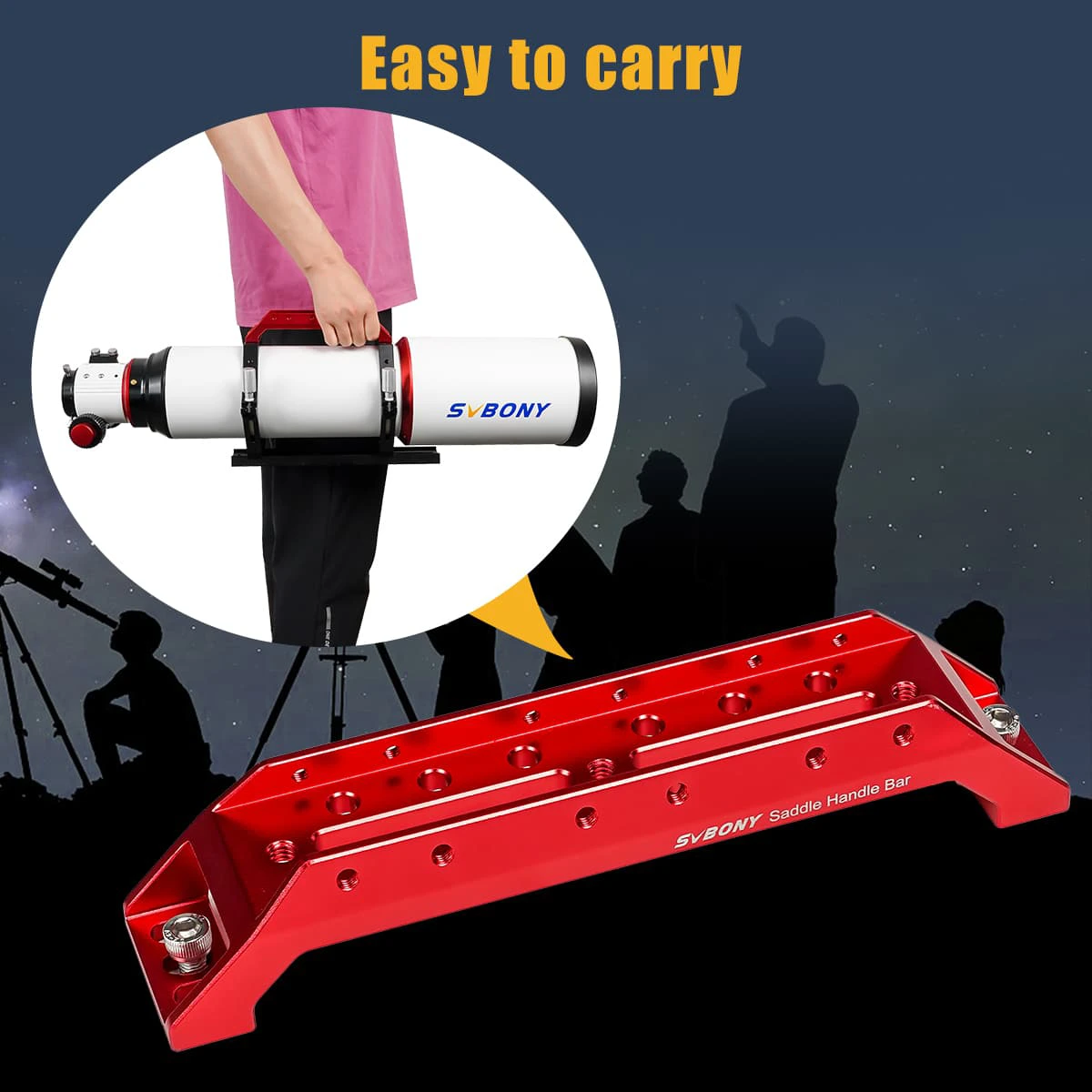

| Model | SV215 | Model | SV211 |
| name | Zoom eyepiece | Color | Red |
| Apparent Field of View | 56° | Material | 6061T Aluminums |
| Coatings | Fully Multi-Coated | Length | 203mm |
| Blackened Lens Edges | Yes | Width | 42mm |
| Eye Relief | 10mm | High | 39mm |
| Focal Length | 3-8mm | Net Weight | 161.5g/5.7oz |
| Filter Threads | M28.5x0.6 | Fit For OTA | SV503 102mm f/7、SV550 122mm f/7 |
| Barrel Size | 1.25" | Distance Between Two M6 Screws | 187mm |
| Lens Elements | 6 | ||
| Lens Groups | 4 | ||
| Barrel Type | With safety undercut | ||
| Rubber Eye Guard | Yes |
Features

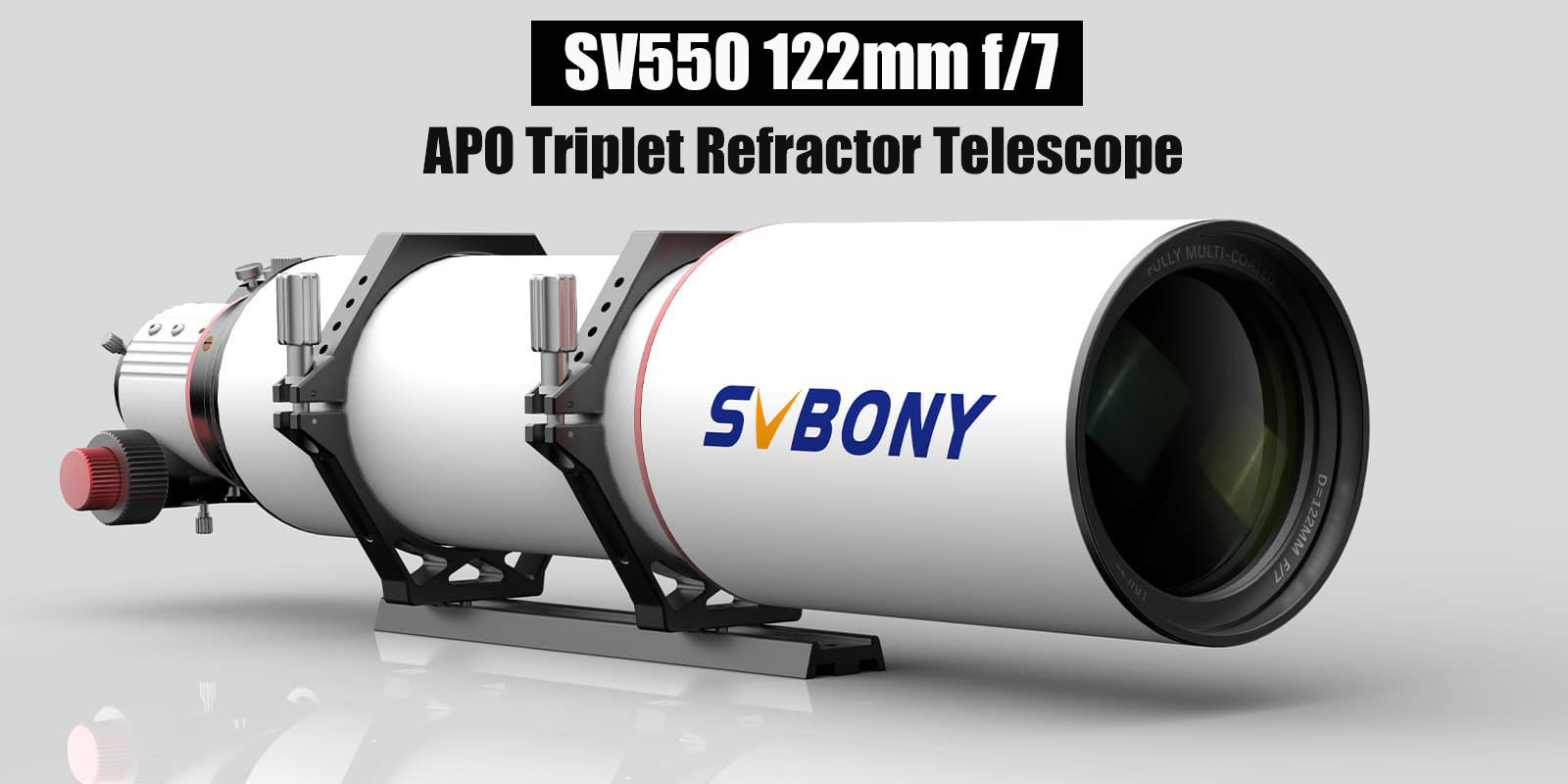

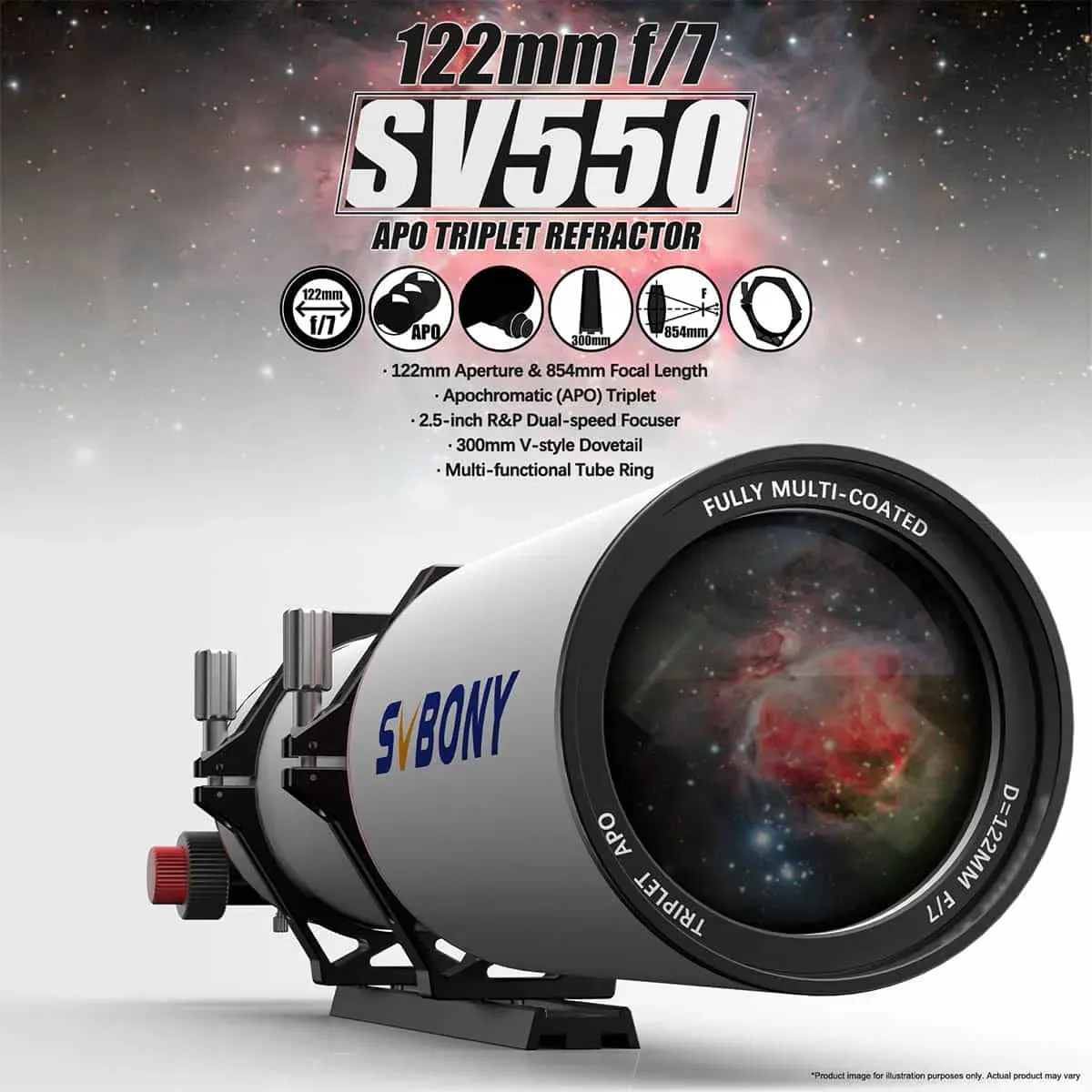

- 1. The SV550 APO Triplet refractor with 122mm aperture and f/7 focal ratio, a great travel telescope for observation and astrophotography
2. Fully multi-coated triplet apochromatic optics using an ED center element
3. 2.5" dual-speed rack-and-pinion focuser 10:1 ratio fine focusing with M63x1 female thread for adaptions
4. Retractable lens shade/dew shield-the APO even fits into the hand luggage
5. CNC multi-function Dual hinged split tube rings with a 300mm versatile V-style dovetail, support mounting of various accessories
