$Svbony SV550 80mm Triplet APO F6 Refractor Telescope OTA for Deep Sky$

Svbony SV550 80mm Triplet APO F6 Refractor Telescope OTA for Deep Sky

Name: Svbony SV550 80mm Triplet APO F6 Refractor Telescope OTA for Deep Sky
Brand: Svbony
SKU: F9381A
Price: 759.99 USD
Availability: InStock
Rating: 5 (7 reviews)

7 | Reviews

Autumn Sale

Days

Hours

Mins

Secs

Official Store Exclusive – Buy now to earn points for a limited time.+75 Points

—Estimated delivery in 3-7 business days.

Key Features

Triplet APO Optics

Apochromatic 3‑element design with FPL51 ED glass delivers sharp, high‑contrast views with minimal chromatic aberration.

Fast f/6 Focal Ratio

80 mm aperture and 480 mm focal length provide bright images ideal for deep‑sky targets and wide‑field astrophotography.

Dual‑Speed Focuser

2.5″ rack‑and‑pinion focuser with 10:1 fine focus control improves precision for imaging and visual use

Stray Light Suppression

Internal light baffles and blackened surfaces reduce stray light for improved contrast in celestial views

Stable, Portable OTA

Lightweight aluminum tube with retractable dew shield and dovetail plate fits most mounts for travel and field use.

Note: This SV550 80 OTA comes with a dedicated dovetail slot for the finderscope.

FAST shipping, duty-free

STYLE: SV550 80 APO OTA

SV550 80 APO OTA

SV550 Visual Set

In Stock

You May Also Need

Add to Favorites

Add To Compare

Ask A Question

🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT

Secure Payments | SSL Encrypted

Fast, Free Shipping

30-Day Money-Back Guarantee

Hassle-Free Warranty | No Hidden Fees

Lifetime Technical & Customer Support

Payment Methods

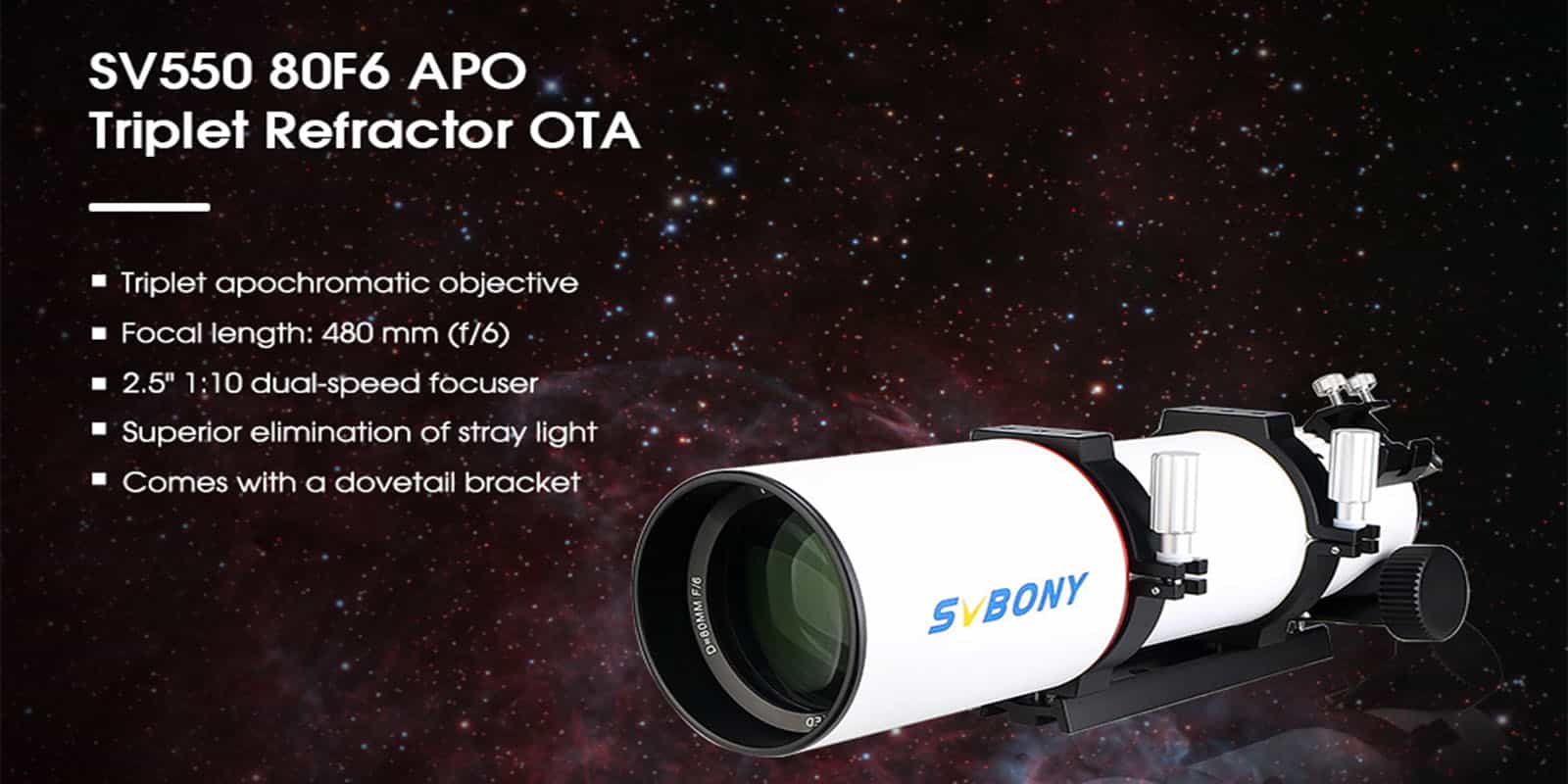

SV550 APO Triplet Refractor 80 F6 OTA For Visual & Deep Sky Astrophotography

The SV550 APO Triplet refractor with 80mm aperture and fast f/6 focal ratio, it is definitely a great travel telescope for observation and astrophotography.

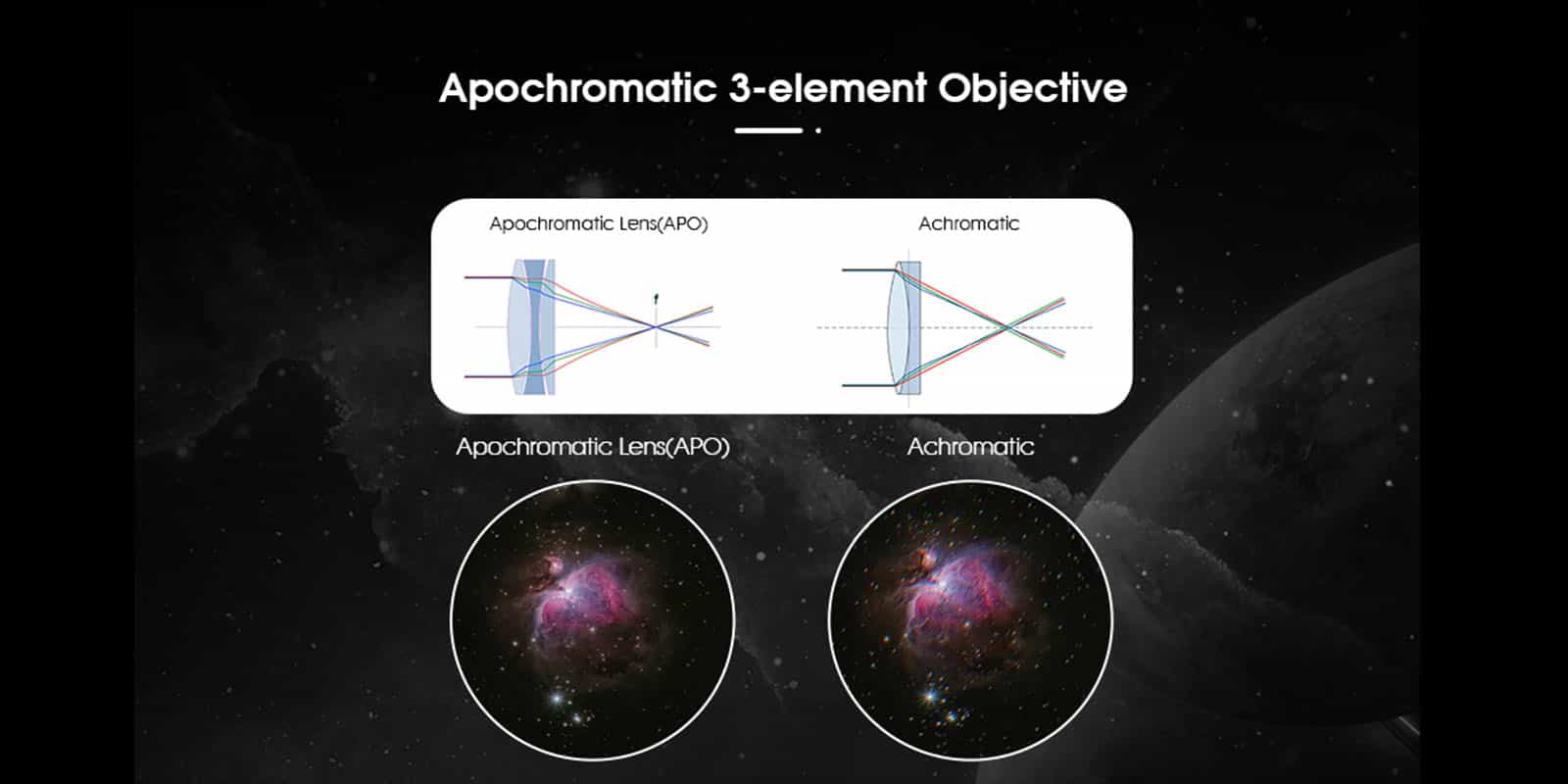

Apochromatic 3-element Objective

The triplet apochromatic optics structure (1 piece of S-FPL51 low dispersion ED glass + 2 pieces of correction glass) is adopted to significantly improve the image quality of the captured image (15.8% increase by the spectrometer calculation). Significantly reduces edge dispersion resulting in blue fringing problems.

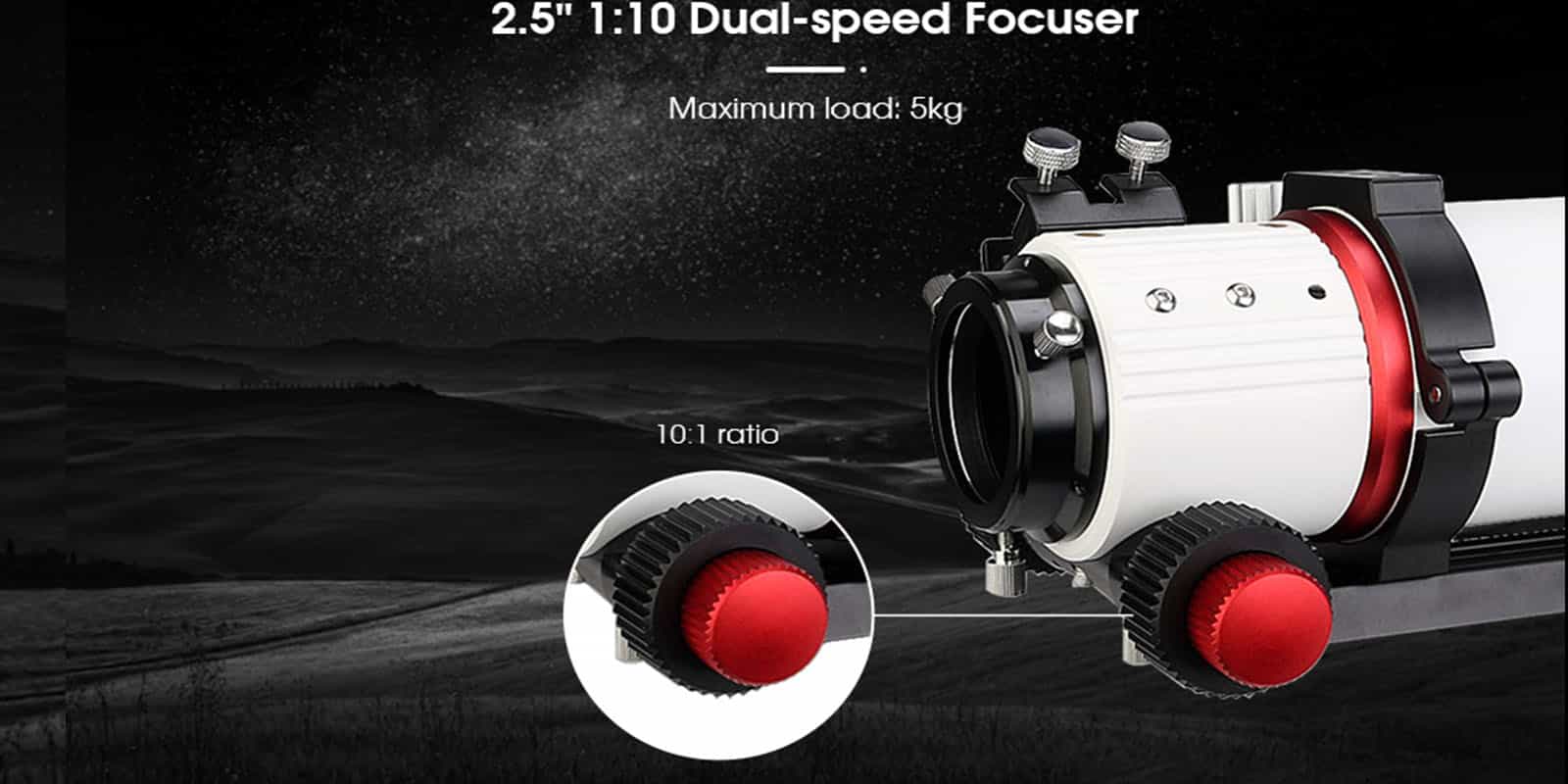

2.5 inches 1:10 Dual-speed Focuser

The 2.5-inch focusing base can effectively reduce the vignetting problem when connecting to a full-frame camera, and the FPL51 APO can improve the quality of the captured images.

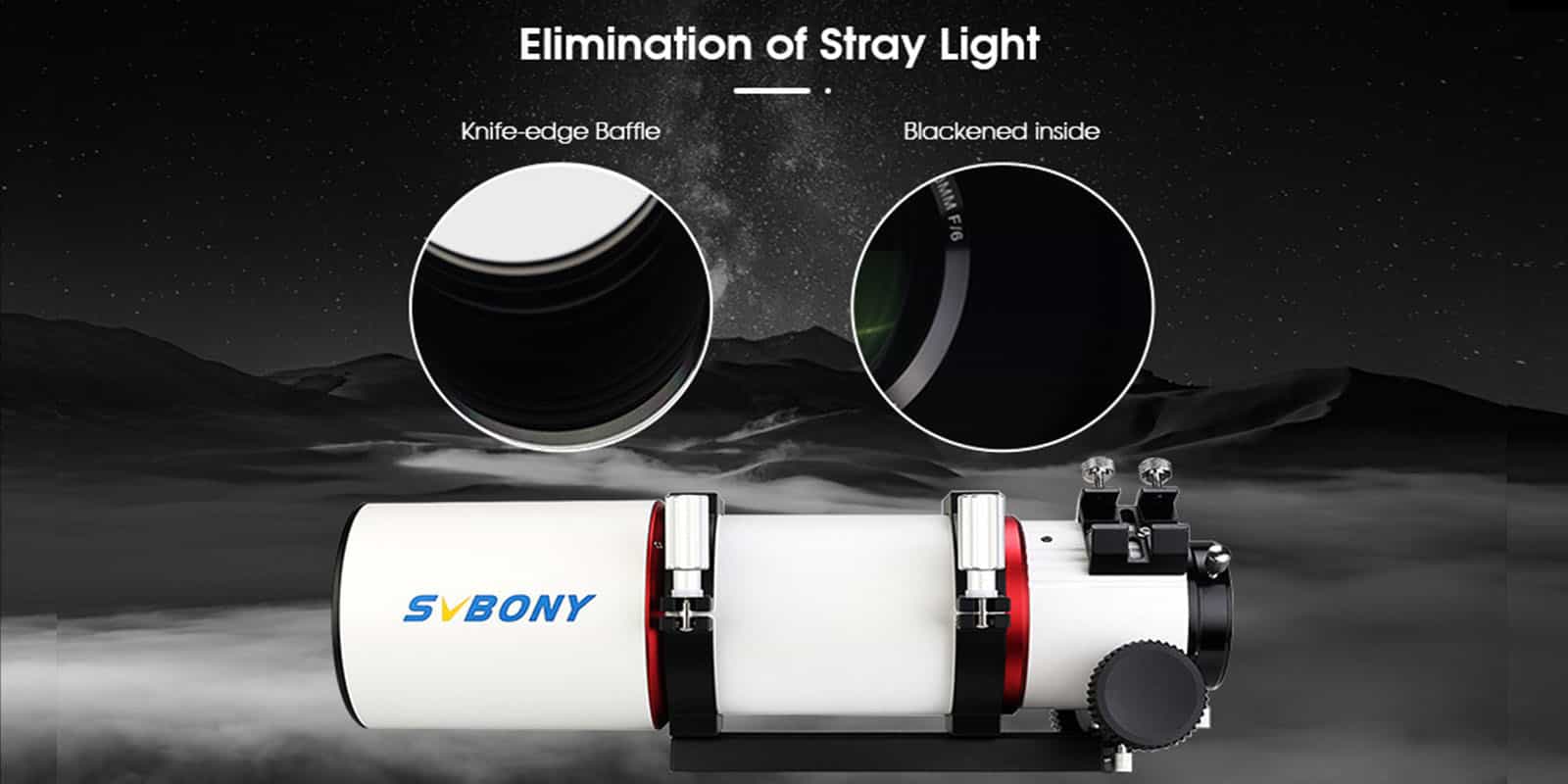

The Elimination Of Stray Light

4 extinction light bars are used inside the lens barrel, which can eliminate all stray light interference on the inner wall of the lens barrel.

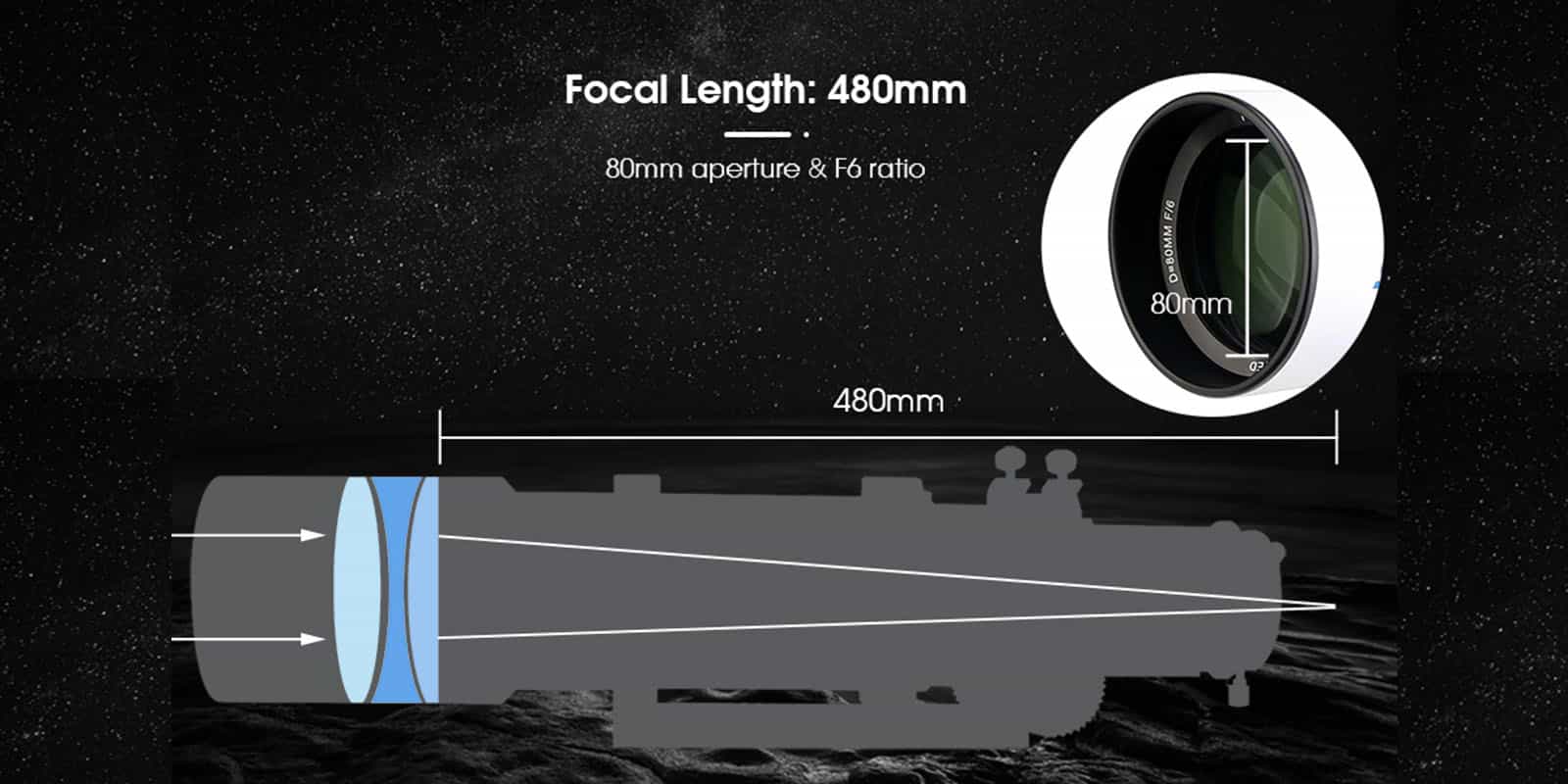

Focal Lenght of 480mm

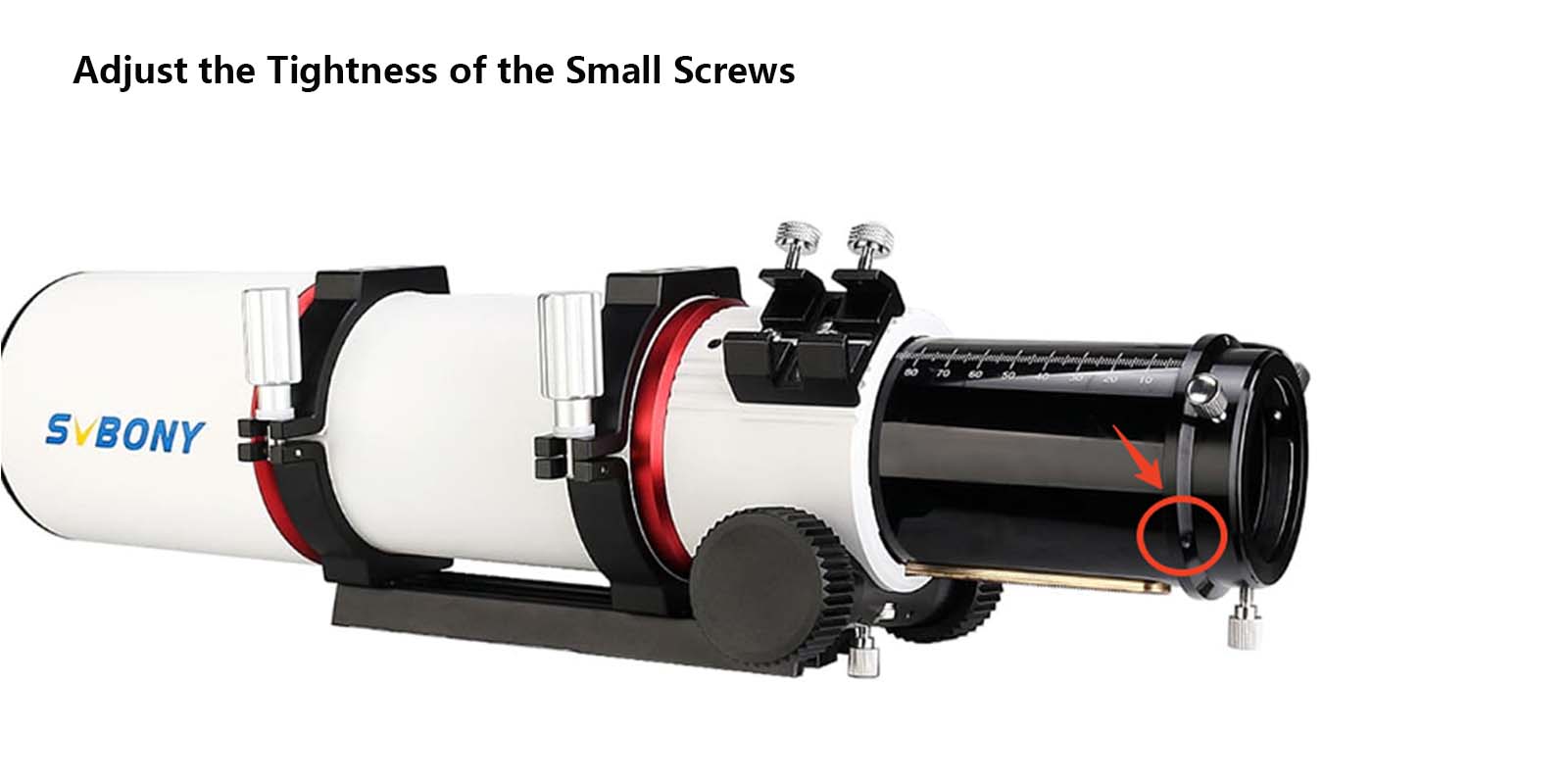

To remove the 2-inch adapter from the focuser, you will need to loosen the three small screws on the side of the adapter (as indicated in the red circle in the image). Please use an appropriate Allen wrench to gently loosen these screws; there is no need to completely remove them down. Once the three screws are sufficiently loosened, you can turn the adapter counterclockwise to detach it, allowing you to proceed with installing the SV209 flat field lens.

Additionally, if you experience any loosening of the focuser adapter during use, you can also adjust the tightness of the small screws to secure it properly.

Realistic works captured with this device

NGC7000 from Rijeka in Croatia

SV550 @Anto Špodnjak

NGC 6960

SV550 @wandhammer christophe

The Iris Nebula – First Light for the SVBONY Setup (and Why Old Data Deserves a Second Look)

SV550 @@AstroBassDee

Chasing the Veil: A Seven-Night Mosaic of NGC 6992 and NGC 6960

Customer Reviews

0
Based on __COUNT__ reviews

Quality

Ship

Other

Write a review

With media

All Reviews

Brand	SVBONY
Model	SV550
Aperture	80mm
Focal Length	480mm
Focal Ratio	f/6
ED Glass	FPL51
Telescope Type	Refractor
Resolution	1.45 arc seconds
Coatings	FMC
Limiting stellar magnitude	11.6
Lens design	Apochromatic
Dovetail plate length	150-175mm
Barrel weight	2900g
Mirror Brief Size	377.8mm
Tube material	Aluminum
Focuser	2.5'' rack-and-pinion,dual speed(1/10)
Load bearing of focuser	5kg
Tube Outer Diameter	103mm
Tube Travel	80mm
Dew shield type	Retractable
Additional thread	M63×1 female thread for photo adaptions
Net weight	3750g
Gross weight	3850g
Package size	440x220x210mm

Features

1. Finder base included
2. Triplet APO apochromatic objective lens structure & FMC coating
3. 2.5" dual-speed rack-and-pinion focuser
4. Extreme extinction process
5. Hollow-out standard 180mm dovetail plate
