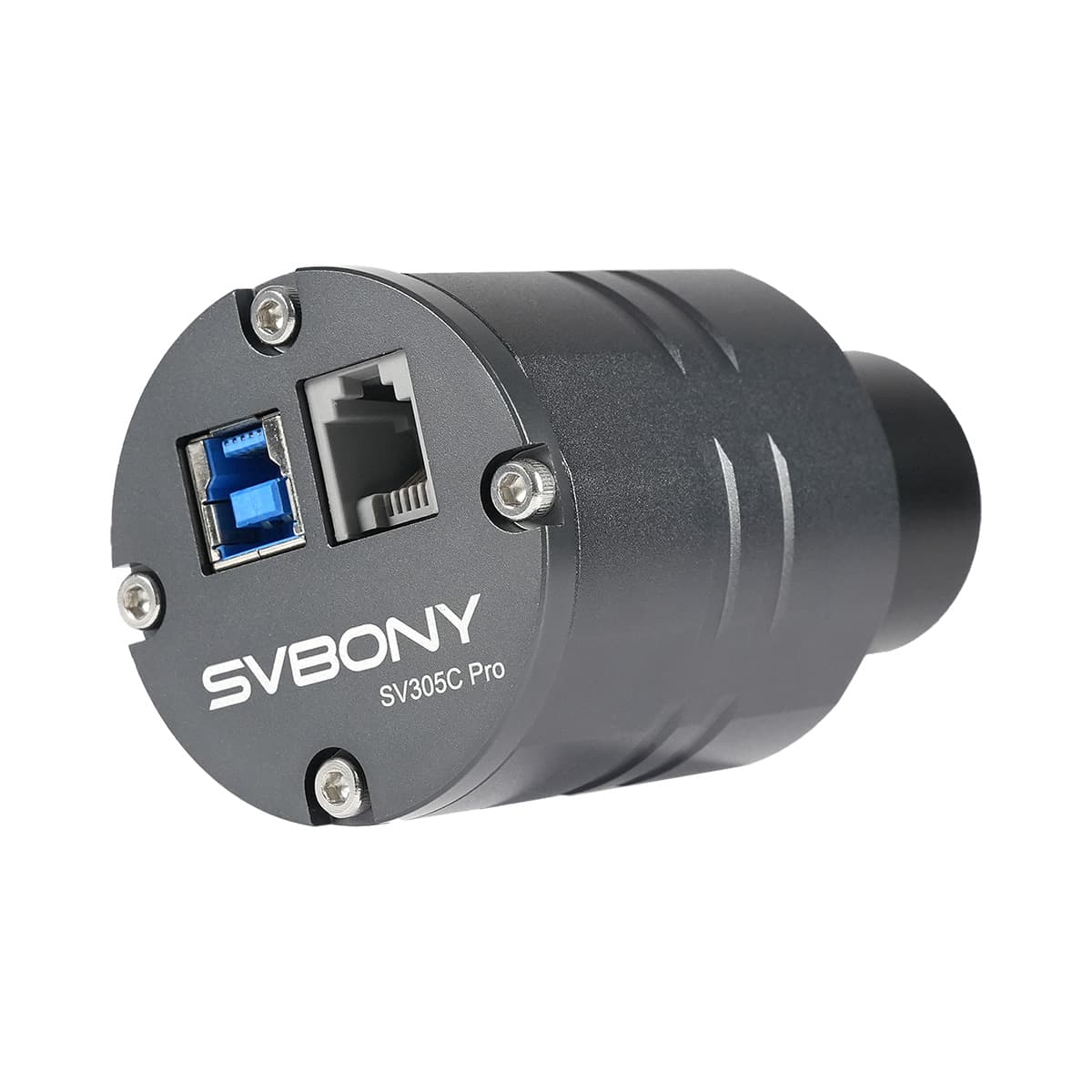

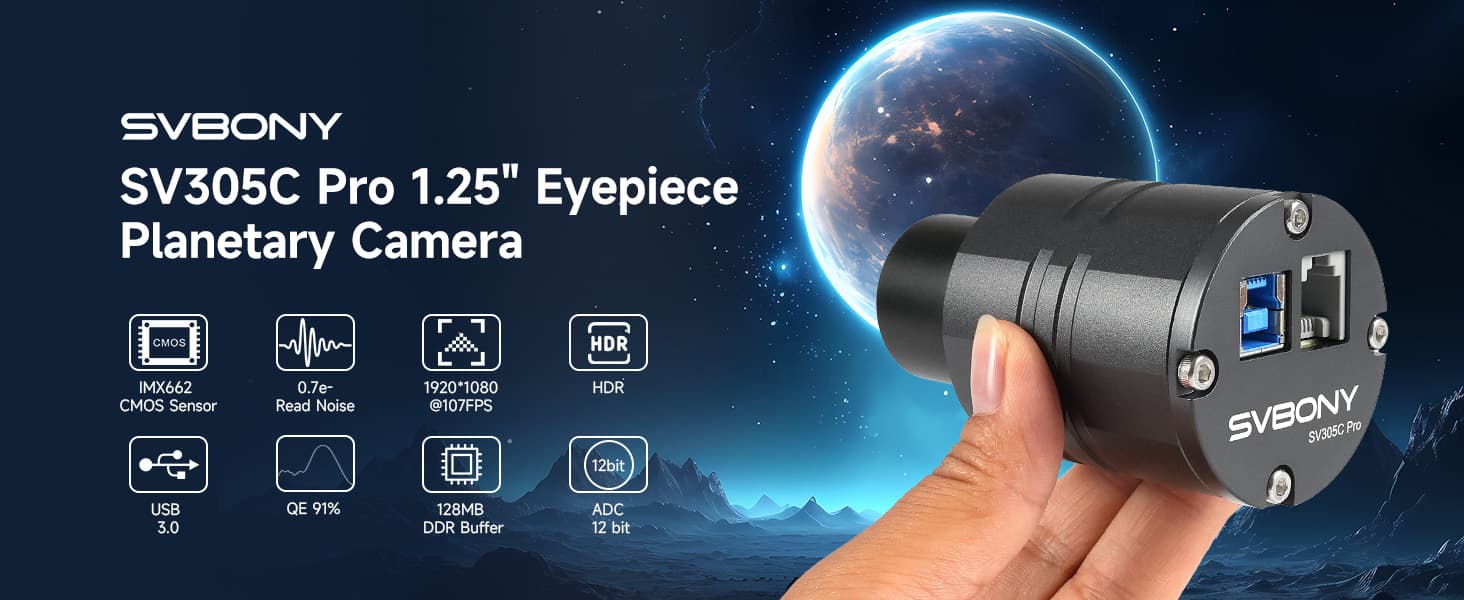

SV305C Pro Camera 2MP USB3.0 Guiding Camera

Name: SV305C Pro Camera 2MP USB3.0 Guiding Camera
Brand: Svbony
SKU: F9198M-
Price: 159.99 EUR
Availability: InStock
Rating: 4.88 (8 reviews)

SKU: F9198M-

US$

IMX662 1/2.8" CMOS Sensor: Back-illuminated (BSI) pixel technology, high quantum efficiency,high sensitivity, fast readout speed, no glow and greatly improved NIR, can effectively avoid overexposure,low noise (0.7e-), ideal for low-light planetary imaging;
High Resolution & Frame Rate: 1920×1080@107FPS, captures fast-moving planets (Jupiter, Saturn) sharply;
Low Readout Noise: 0.7e- ensures cleaner, detailed images with minimal interference;

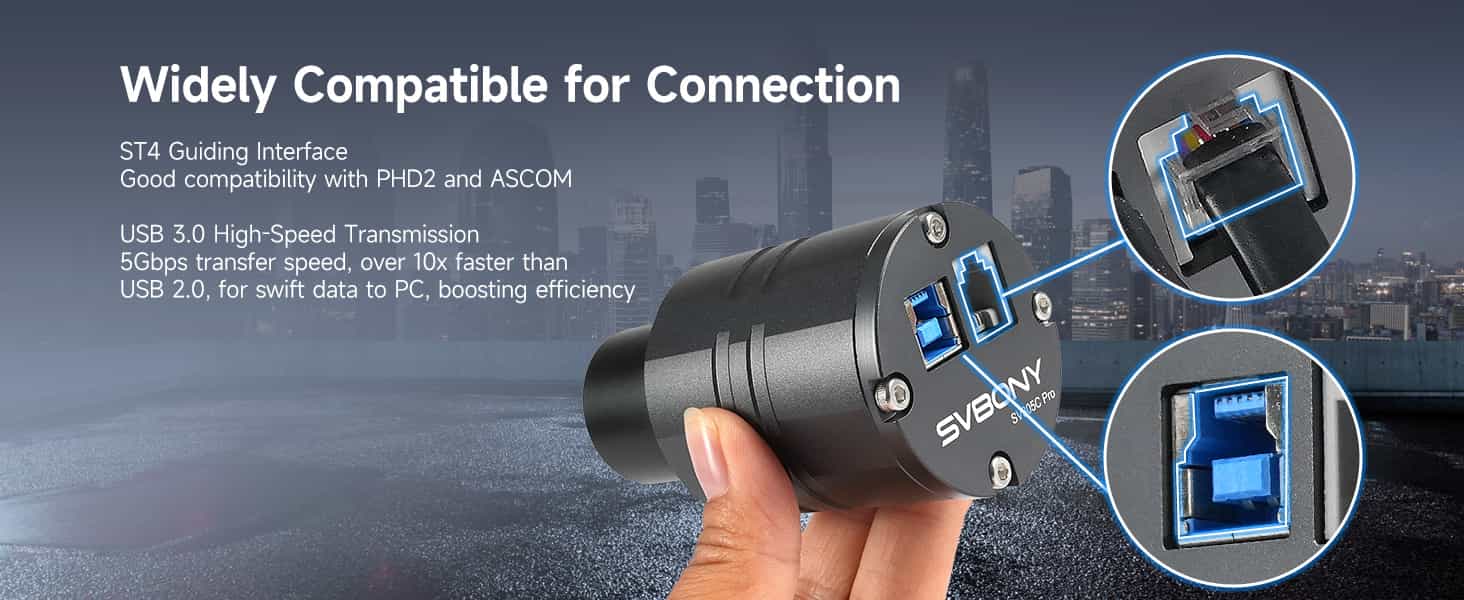

USB 3.0: 5Gbps transfer speed, 10x faster than USB 2.0, boosting workflow;
ST4 Guiding Interface: Compatible with PHD2/ASCOM, enables precise celestial tracking;
Wide Compatibility: Works with various telescopes and guiding equipment;
Heat Dissipation: Ensures stability during long exposures, reducing noise;
HDR: Captures vibrant, aberration-free planetary details with broad dynamic range;
128MB DDR Buffer: Prevents image loss, supports continuous capture;

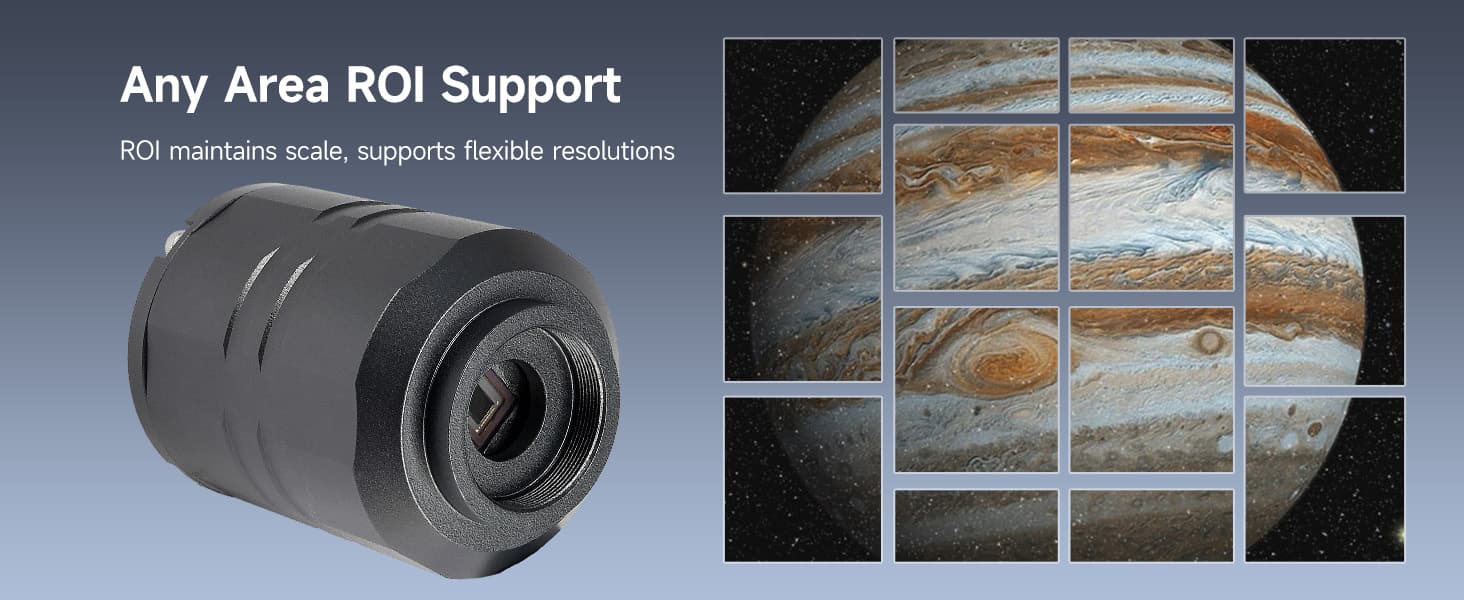

Any Area ROI: Flexible resolution for targeted imaging without scale loss;
12-bit ADC: Enhances dynamic range and color accuracy.

In Stock

Add to Wishlist

SV305C Pro SV305C Pro-SV106 Guide Scope

⚡ Shipped: 72 hrs after ordering (Pre-sale products excluded).

🔥 101658 PEOPLE ARE LOOKING FOR THIS PRODUCT

🔒 Secure Payments | SSL Encrypted

💰️ 30-Day Money-Back Guarantee

🛡️ Hassle-Free Warranty | No Hidden Fees

🎧 Lifetime Customer Support

Product Details
Product Reviews
SPEC
FEATURE AND Q&A

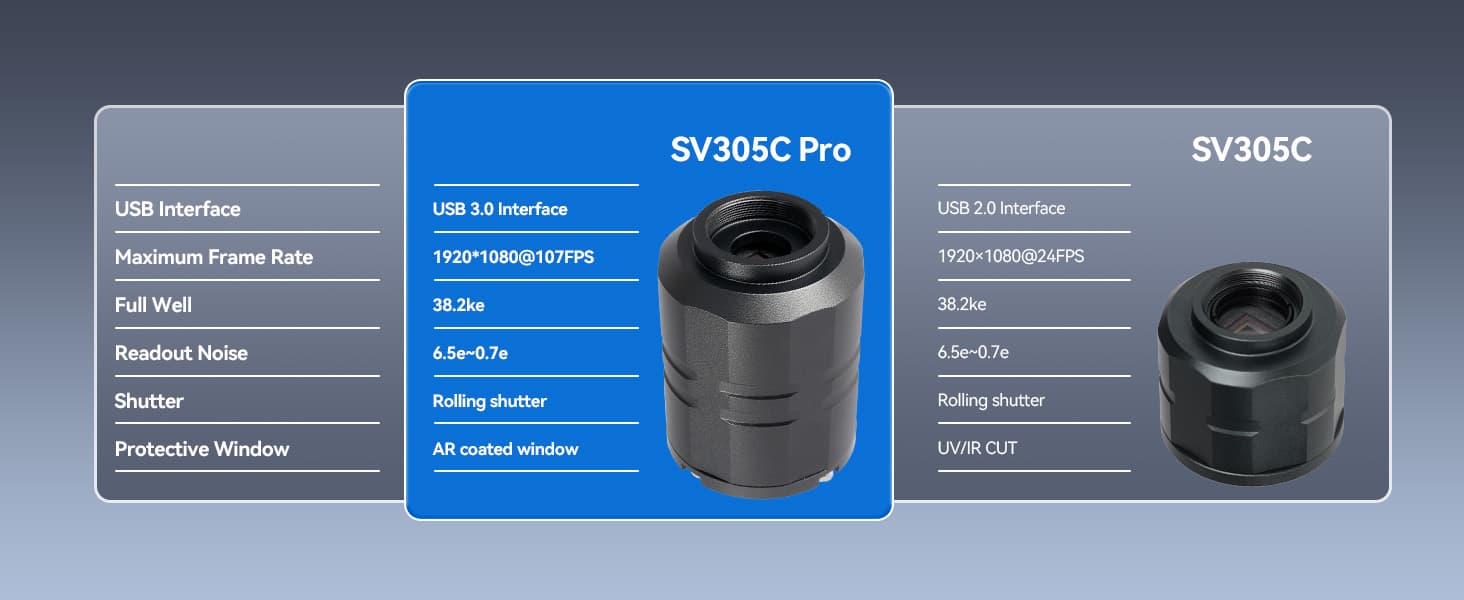

sv305c pro camera

SKU	Model	CMOS Sensor	Classification	Pixel Size	Resolution	USB Type
F9198A	SV305	IMX290	Color	2.9μm x 2.9μm	2MP	USB 2.0
F9198M	SV305C Pro	IMX662	Color	2.9μm x 2.9μm	2MP	USB3.0
F9198C	SV305Pro AR	IMX290	Color	2.9μm x 2.9μm	2MP	USB3.0
F9198D	SV305M Pro	IMX290	Monochrome	2.9μm x 2.9μm	2MP	USB3.0
F9198L	SV305C	IMX662	Color	2.9μm x 2.9μm	2.1MP	USB2.0
F9198G	SV905C	IMX225	Color	3.75μm x 3.75μm	1.2MP	USB2.0
F9198H	SV505C	IMX464	Color	2.9μm x 2.9μm	4.2MP	USB3.0
F9198J	SV705C	IMX585	Color	2.9μm x 2.9μm	8.3MP	USB3.0
F9384A	SC311	IMX662	Color	2.9μm X 2.9μm	2.1MP	Type-C

8 reviews

Write a review

Name

Rating

Review Title

Body of Review (1500)

Great Cam with long exposure for a small price

Philipp Fonberg on Apr 29,2025

I needed a cam with extrem weak light situation for an DYE raman spectrometer in a very close range (20cm). I could plug the camera into my PC (Windows 10) via USB and it got recognized by many astro apps instantly, especially SharpCap with no extra driver installation. In very dim light situations, the image is a bit noisy, but with SharpCap you can stack this noise away and will get an good picture. The cam gets a bit warm, but not hot and works very well with my C-Mount lenses, very precisely cut and sturdy aluminium case. The long exposure feature buys this product for me- I used it in all ranges up to 30secs and could catch even dimmest light signals- In combo with SharpCap this is an high recommendation for everybody hunting small light signals (micro or tele) in an very affordable range. It was also not very difficult to remove the IR filter, so I can use that IR range as well now.

Very satisfied with my purchase

Philippe Herbillot on Feb 15,2025

After several weeks of use, I am very satisfied with this camera. In planetary photography, the results are excellent and in autoguiding, it works perfectly with Phd2. No installation difficulties, recognized without problem in Windows 11, Phd2, SharCap or FireCapture. The driver works perfectly. The manufacturing and finishing are excellent and to have the same quality in other brands, you have to pay a lot more. I do not regret my choice and I trust SVbony more and more to equip me at a reasonable price.

Excellent for guiding, and also for the moon and planets

Wilbur on Oct 11,2024

The SV305 is a great camera. Excellent for guiding, and also for the moon and planets, although I would strongly recommend the SV305pro as it has USB3, which is very important for taking pictures of planets.

Good camera for beginners.

AZ on Jun 21,2024

I think this is good camera for first time buyer like me. ST4 port is good option for the future upgrade.

exellent rapport qualité prix

bigand robert on Apr 08,2022

this camera is excellent value for money ideal for planetary photography with sharpcap and autoguiding with PHD2, you can also do some nebulae provided you respect the back-focus of the camera which I measured at 11 mm +/- 15% from the edge of the camera but it is 6 mm if you put the camera in abutment on the shoulder + of course you have to add the back-focus of your focal reducer if you have an SCT etc for example a 6.3 focal reducer its back-focus is 105 mm +/- 15% so you need the length of your 50 mm photo adapter + several rings to reach 100 mm plus the 6 mm or 106 mm of back focus is good. Be careful to check the back-focus of your focal reducer with your dealer!! It can vary from 55 mm to 85 mm to 105 mm depending on the model.

no consigo ver nada

MARIA LUISA on Sep 12,2021

sigo las instrucciones y veo jupiter con mi telescopio, pero la camara solo reproduce un circulo rojo y azul que no tiene definicion ¿que hago mal?

Great camera for a great price

Falko Schulz on Aug 19,2021

Have to be honest - I have been a bit skeptical about the camera given it's rather low price compared to similar spec'd brands. However, you will be surprised not just about the performance but also about the build-quality. Sealed in a metal frame, it feels solid and indestructible. It comes securely packaged along with all cables and additional spacers. With recent driver updates, you can connect the camera to any software package including any ASCOM compliant client. I tested with SharpCap as well as N.I.N.A - both work great. Together with the SV503 80mm refractor - it produces beautiful and sharp results. Given it's HD resolution you are probably restricted to planetary captures but given it also supports the ST4 auto guider port - it represents a great alternative as guide scope as well. I tested with PHD2 and star detection and tracking work great. Overall - great camera for a great price!! Clear skies everyone.

everything in one box

on Nov 25,2020

I bought the sv305pro as I wanted a guide scope/ imaging camera for my skywatcher startravel 150 and explorer 130 pds... let me tell you it hasn't disappointed... works well with sharpcap and the buffer helps with slower usb connections .... I would recommend this or the sv305 if you don't need the guide features ... its worth the little bit more to have them though.... this astrophotography aid has been a game changer for me and has revitalised the stargazing hobby for me .... Happy imaging and clear sky's... barry

Brand	SVBONY
Model	SV305C Pro
Senso	r1/2.8" CMOS Color
Sensor Model	SONY IMX662
Pixel Size	2.9µmx2.9µm
Maximum Frame Rate	1920*1080@107FPS
USB Type	USB3.0
Shutter	Electronic Rolling Shutter
ADC	10 bit/12 bit Out 8 bit/12 bit

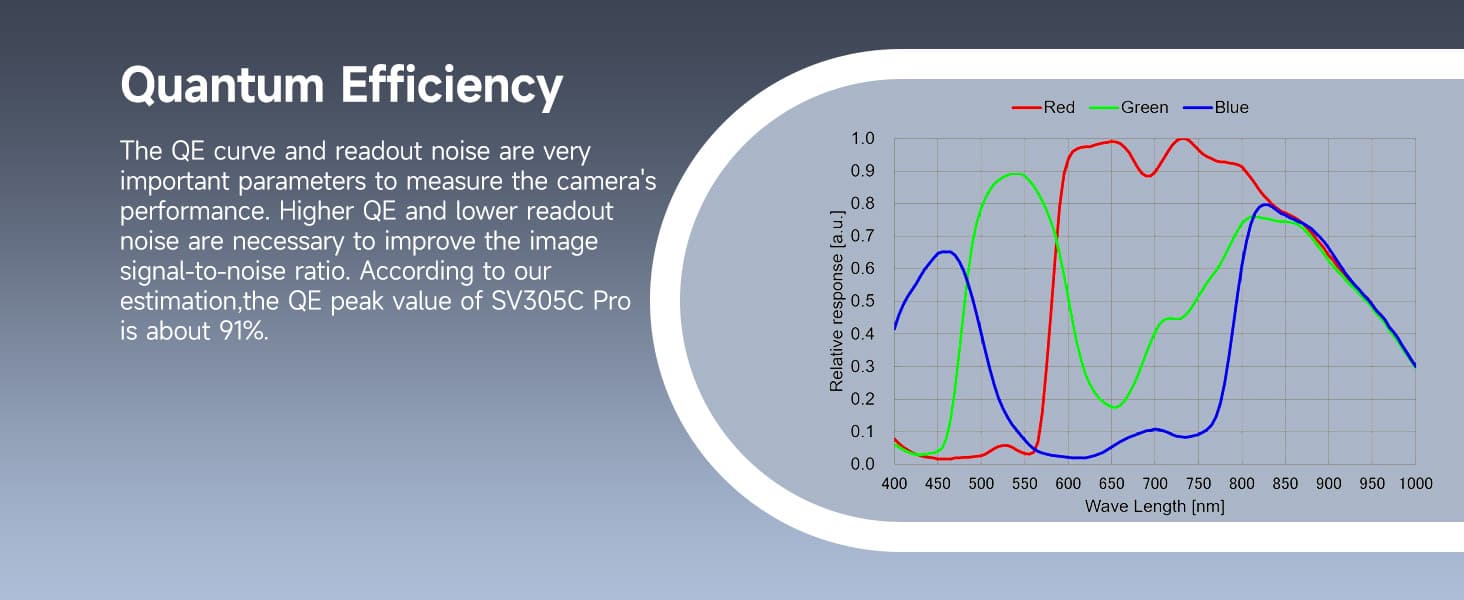

QE	91%
Full well	38.2Ke
Read noise	0.7e
Protective Window	AR coated window

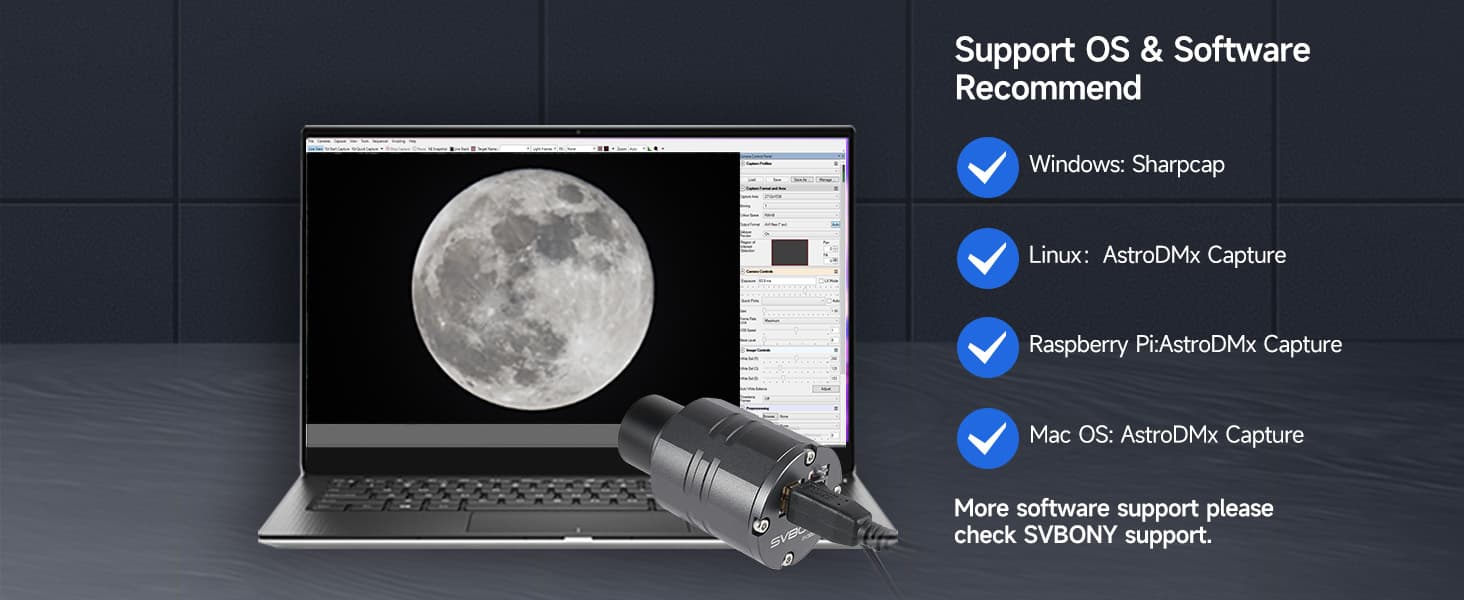

Support OS	Windows （without win 7）Linux, Raspberry Pi & Mac OS.
Software recommend	Windows:sharpcap / Linux:AstroDMx capture / Raspberry Pi:AstroDMx capture / Mac OS: AstroDMx capture. More software support please check SVBONY support.
Cable 1	2m USB3.0 cable
Cable 2	1.5m 6Pin guiding cable
Working Humidity	30%-80%
Storage Humidity	20%-90%
Operating Temperature	-10°C~50°C
Storage Temperature	-20°C~60°C
Weight	135g
Package LengthWidthHeight	Ø49.565mm
