SV503 70/80/102 ED OTA with dovetail slot

In Stock Unavailable
SKU: F9359-W2370A
Regular price US$ 368.99

The popular SV503 series 70/80/102 mm ED telescope with side dovetail slot, more choice for your Astronomy hobby.

Local warehouse, 3-5 days shipping!

Please contact solutions@svbony.com before placing an order to confirm that the local warehouse has inventory.

Except for the UK, the SV503 102ED is out of stock in the European area.

F9359B+W2370AF9359B+W2370A InstallationF9359B+W2370A InstallationSV503+SV198+W2370A

W2370A- (8).jpgW2370A- (9).jpg

0 reviews

Write a review

Product Name SV503 70F6 ED Astronomy Telescope SV503 80F7 ED Astronomy Telescope SV503 102F7 ED Astronomy Telescope
Type Refractor Refractor Refractor
ED Glass S-FPL51 S-FPL51 S-FPL51
Coating SMC SMC SMC
Aperture 70mm / 2.75-Inch 80mm /3-Inch 102mm / 4.01-Inch
Focal length 420mm 560mm 714mm
Focal Ratio f/6 f/7 f/7
Type of Focuser RAP (Rack and Pinion) RAP (Rack and Pinion) RAP (Rack and Pinion)
Gear Reduction 1:10 Fine movement 1:10 Fine movement 1:10 Fine movement
Resolving capacity 1.97" 1.5" 1.17"
Limit value 11.3 11.6 12.1
Light gathering capacity 100x 130.6x 212x
Max. Useful magnification 140x 160x 204x
Tube weight 2.22kg 3.95kg 5.5kg
Tube outer diameter 88mm 121mm
Tube material Aluminum Aluminum Aluminum
Back Focus Length 90mm 90mm 101.9mm
OTA Length 318mm 465mm 630mm
Dovetail & Ring Yes Yes Yes
Dovetail Length 150mm 137mm 200mm

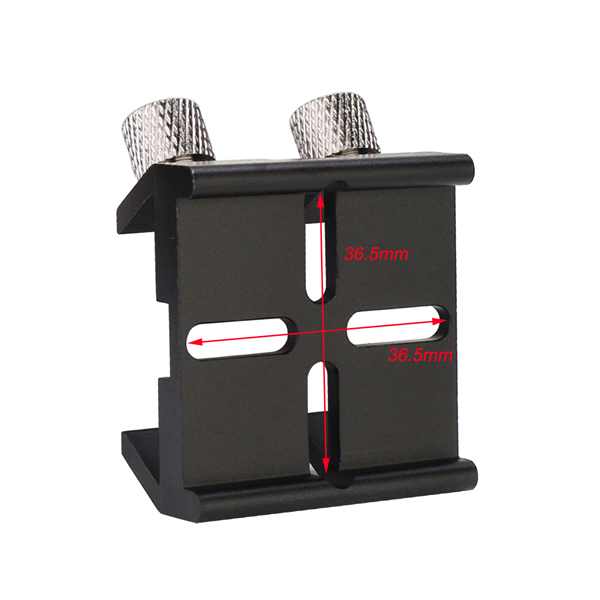

Model W2370A
Length along the 34mm

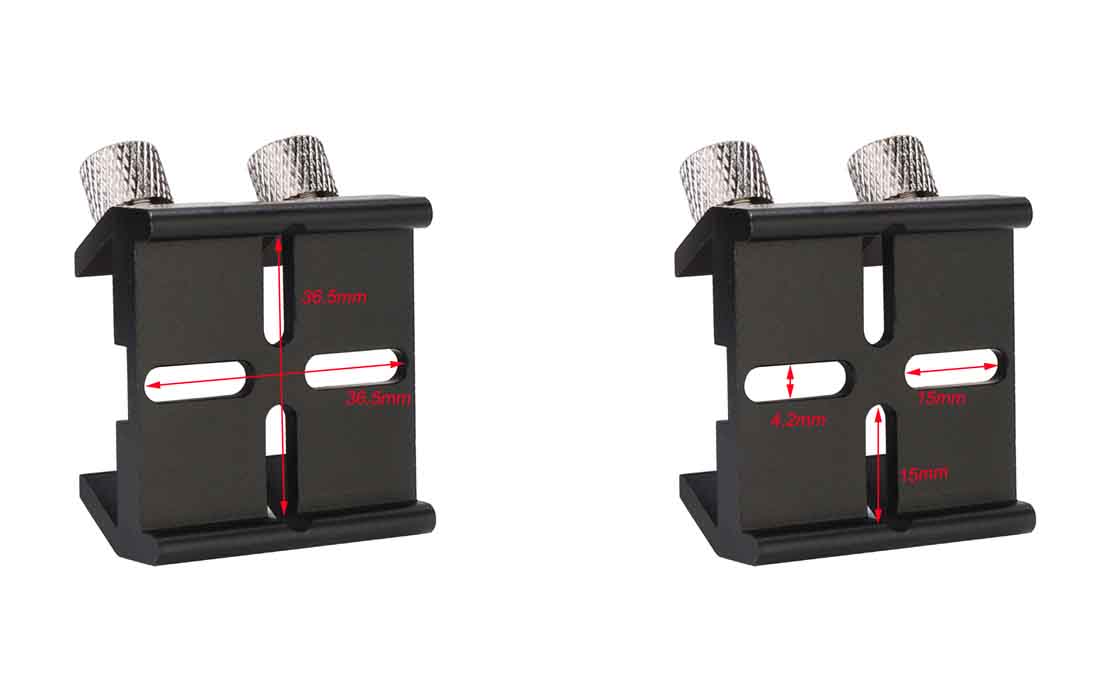

Width of internal slot 4.2mm
Horizontal length of internal slot 36.5mm
Vertical length of internal slot 36.5mm
Can be fixed M3-M4 screw
Color Black
Weight 41g
L*W*H 45*40*25mm

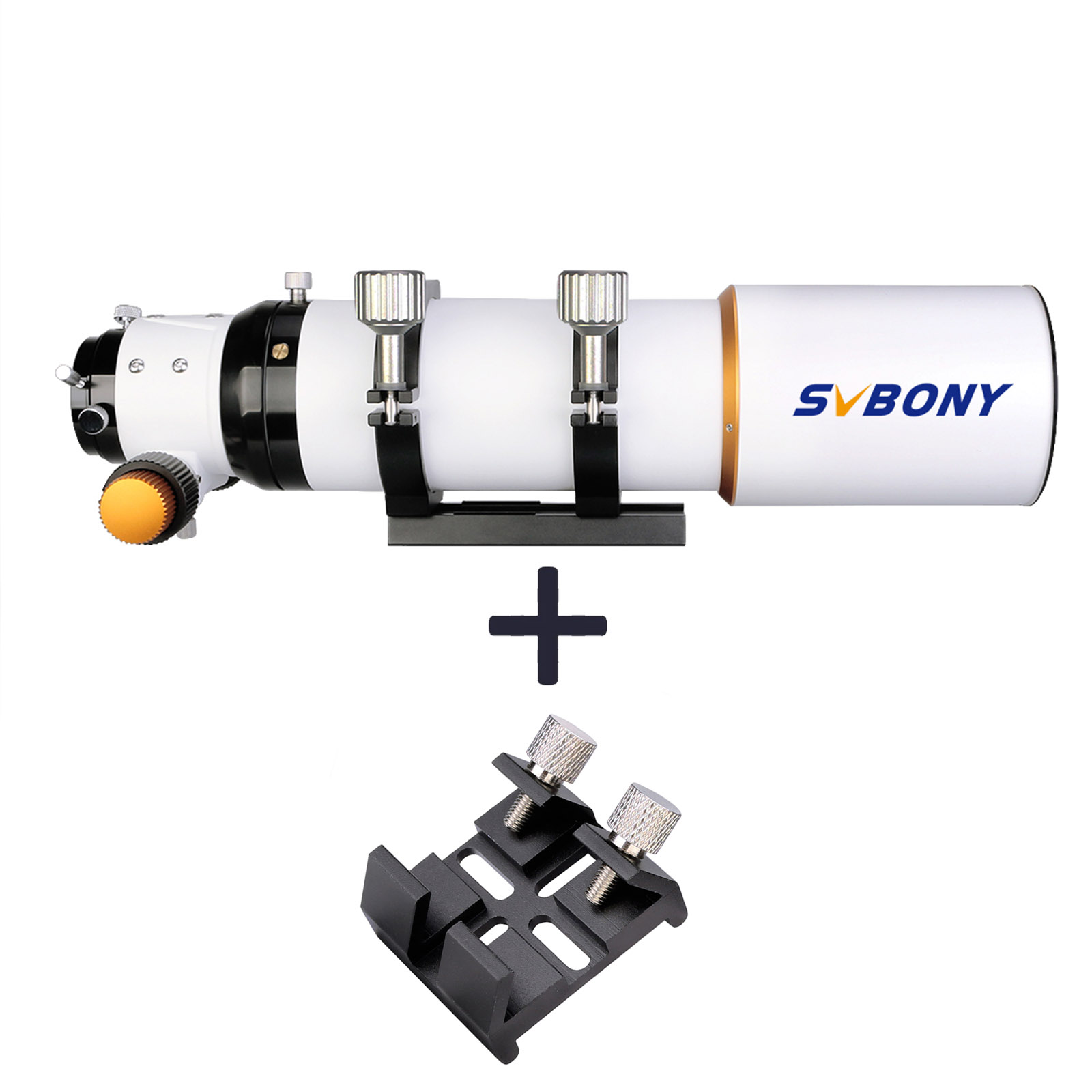

To facilitate our Astronomy fans install their guide scope, we set this combination.
