The SV550 APO triplet refractor is a compact refractor with 122mm aperture, f/7 focal ratio and 854mm focal length, a great travel telescope for astrophotography and observation. The APO refractor is an absolutely upgraded version of the SV550 80mm. The refractor gathers more light, and offers more clear and detailed images, suitable for deep sky photography and observation, for galaxies, nebulae, star clusters and even some fainter deep sky objects, due to the higher limiting magnitude.
Summer Sale! Exclusive discounts, buy now!
Use coupon code "Nico60" for an additional $60 off!
Discover the exceptional performance of the APO by checking out the video link (@NebulaPhotos) below:
https://www.youtube.com/watch?v=QTUS6Mx8Rko

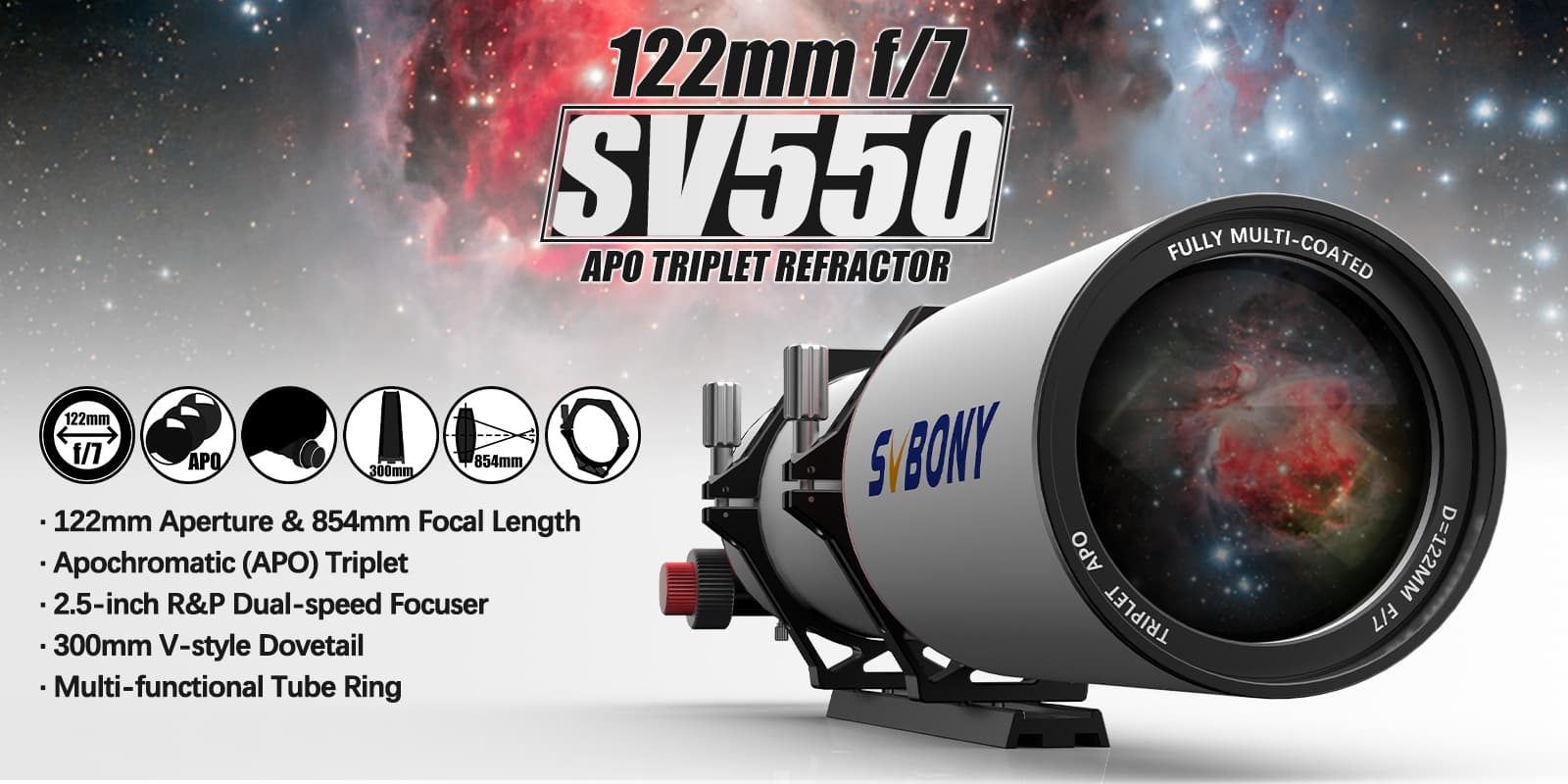

SVBONY SV550 APO Refractor Telescope
The SV550 APO Triplet refractor is a compact refractor with 122mm aperture, f/7 focal ratio and 854mm focal length. It is a great travel telescope for astrophotography and observation. The OTA weighs only 6.44kg/ 14.18lb, easy to carry out when fitting into the carrying case.
Superior Performance
1. The APO triplet refractor features a 122mm aperture and 854mm focal length,which is an absolutely upgraded version of the SV550 80mm. The refractor gathers more light, and offers more clear and detailed images, suitable for deep sky photography and observation, for galaxies, nebulae, star clusters and even some fainter deep sky objects, due to the higher limiting magnitude.
2. The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10, which makes it easy to achieve accurate focus. The dual speed focuser can provide two focusing speeds by using a set of co-axial knobs, for fast focusing and fine focusing.
3. The length of the dovetail is as high as 300mm, longer than the length of most dovetails. It can maintain the balance to the greatest extent, and it will be more convenient in the adjustment process.
4. The entire tube rings have 26 screw holes + a mounting screw handle. Such tube rings with so many screw holes can be compatible with more equipment installations, like Smart WIFI device, guide scope, astronomy camera etc., meeting various needs of installations.

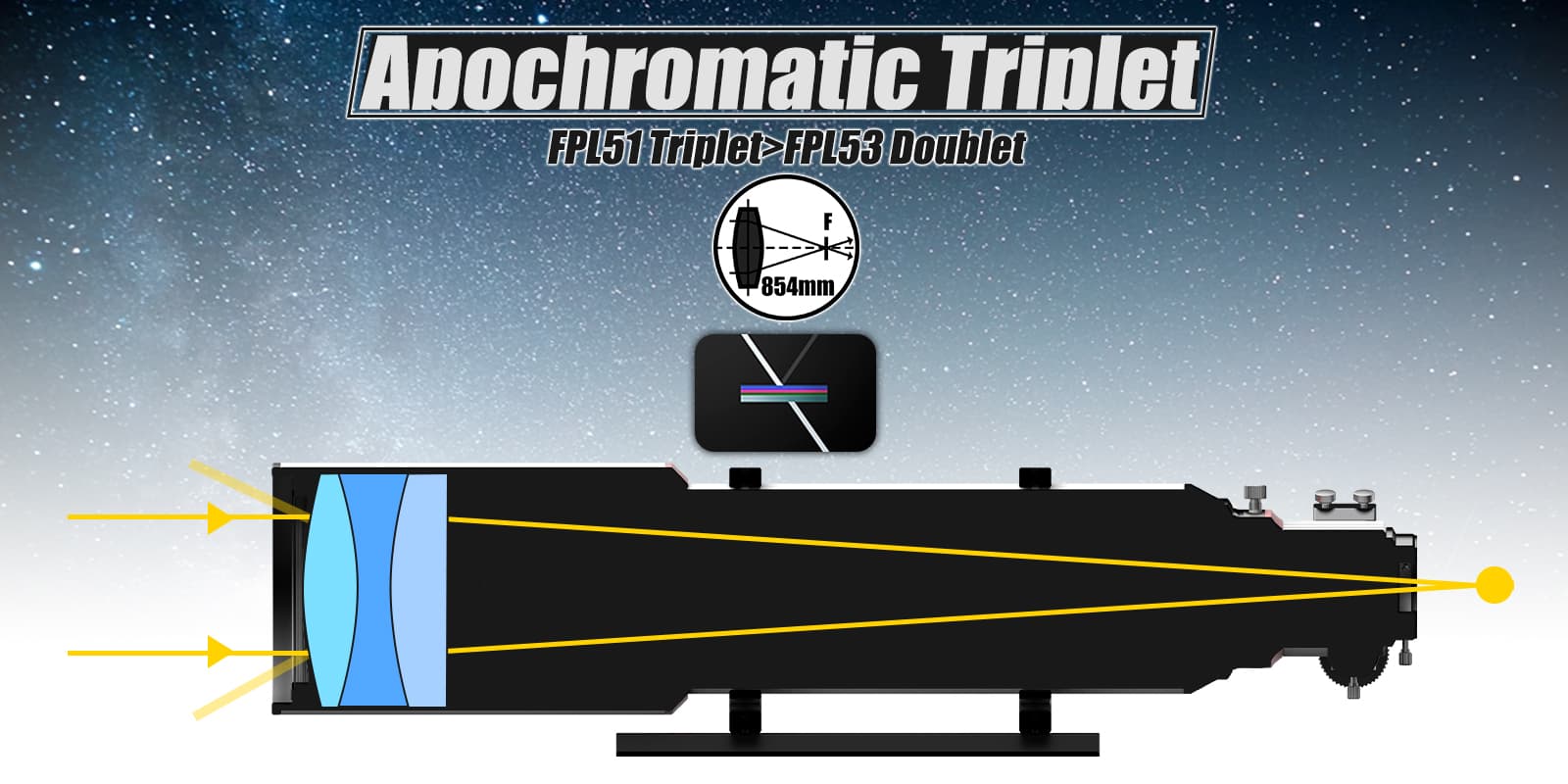

FPL-51 Triplet Apochromatic Lens Structure
-
FPL51 Triplet > FPL53 Doublet -- Just For Better Clarity

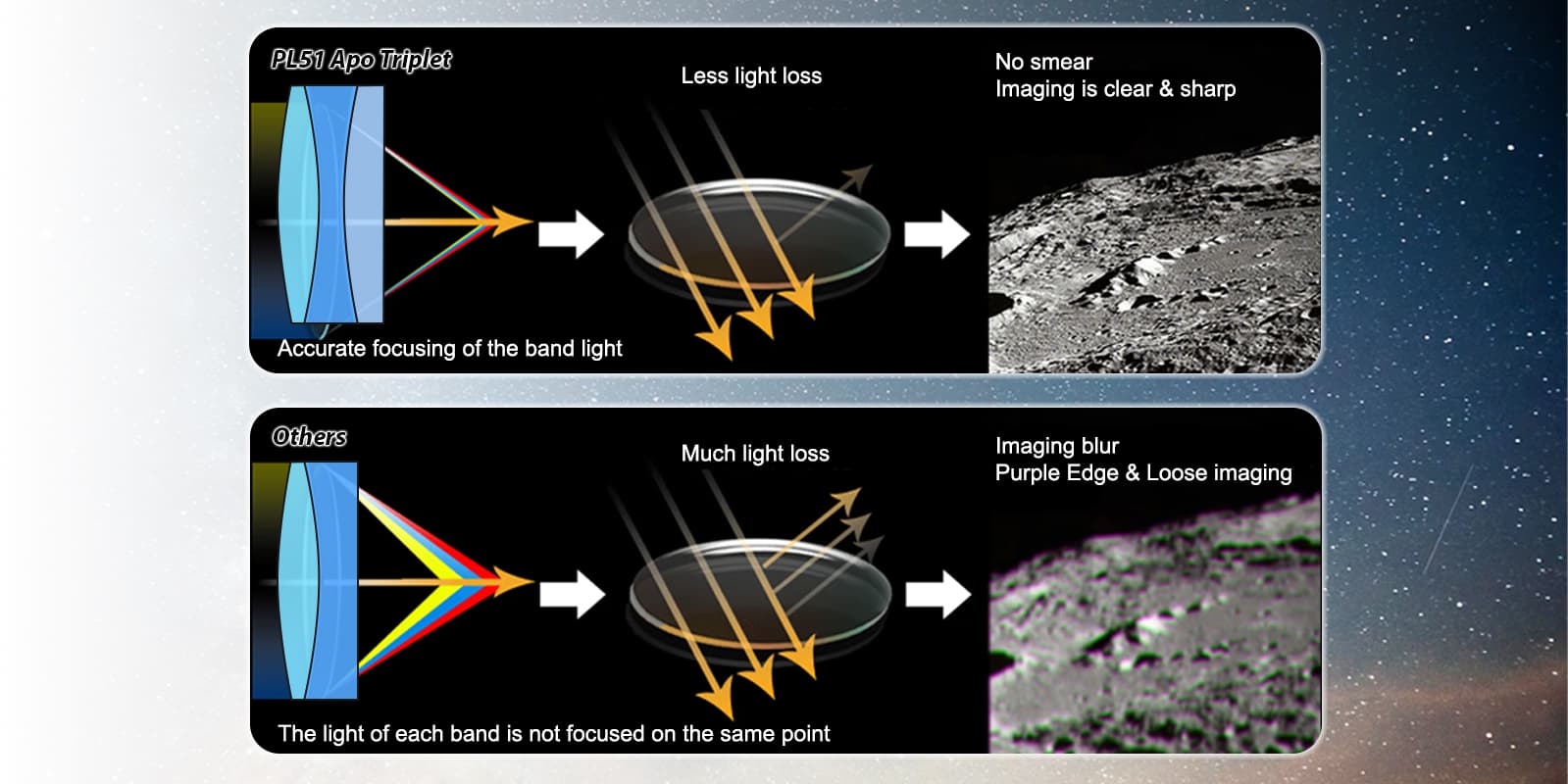

The SV550 122mm adopts a FPL-51 triplet apochromatic lens structure which contains one piece of ED glass. The triplet lens provides better correction of aberration and significantly reduces chromatic aberration and enhance the clarity and sharpness.

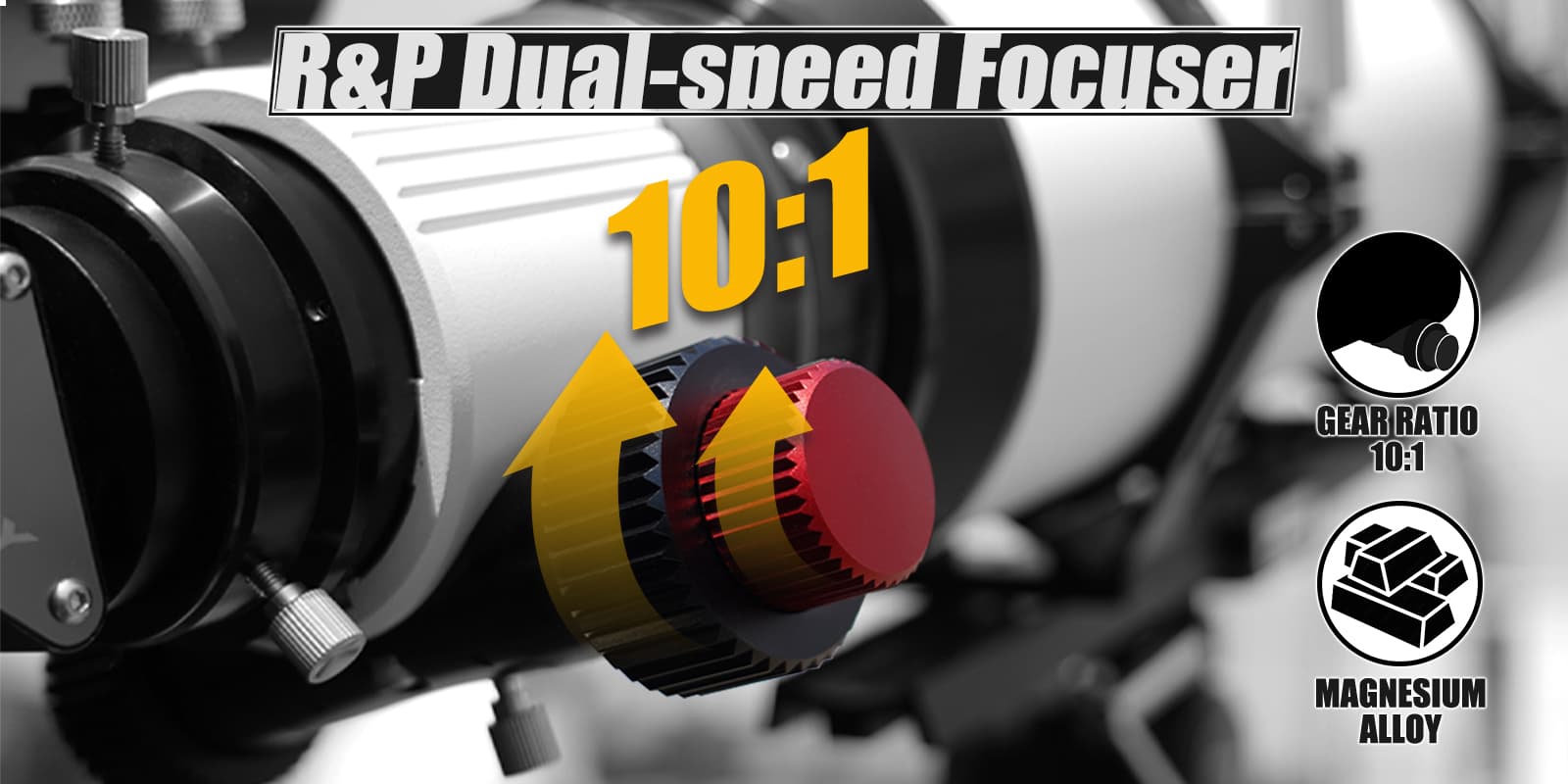

R&P Dual Speed Focuser
The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10, which makes it easy to achieve accurate focus. The dual speed focuser can provide two focusing speeds by using a set of co-axial knobs, for fast focusing and fine focusing.

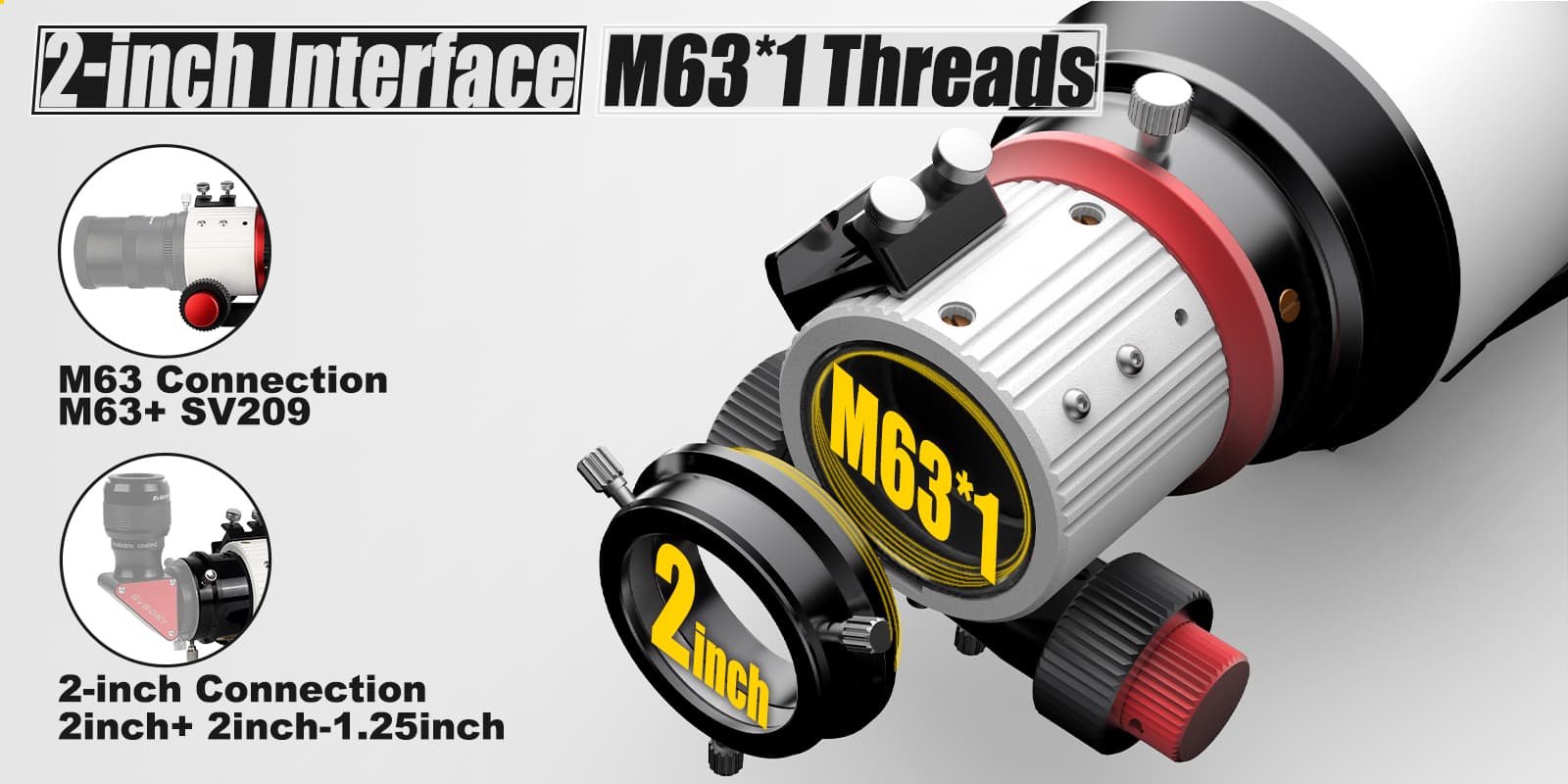

Compatible With 2-inch Interface & M63*1 Threads
The SV550 refractor is compatible with 2-inch and M63*1 accessories. The front is a 2-inch adapter for connecting a camera or 2-inch accessories; Rotating off the adapter, here threaded the M63*1 threads, for connecting the SV209 field flattener or other M63*1 accessories.
A great all-around telescope
Specifications
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 122mm |
| Focal Length | 854mm |
| Focal Ratio | f/7 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.15 arc seconds |
| Coatings | Fully Multi-coated |
| Tube Material | Aluminum |
| Focuser | 2.5" rack-and-pinion, dual speed (1/10) |
| Tube Travel | 87mm |
| Visual Limiting Magnitude | 12.3 |
| Lens Design | Apochromatic |
| Dovetail Plate Length | 300mm |
| Highest Useful Magnification | 244x |
| Additional Thread | M63x1 female thread for adaptions |
| Dew Shield Type | Retractable |
| Tube Outer Diameter | 154mm |
| Net Weight | 6440g/14.18lb |
| Gross Weight | 10000g |
Features
- The SV550 APO Triplet refractor with 122mm aperture and f/7 focal ratio, a great travel telescope for observation and astrophotography
2. Fully multi-coated triplet apochromatic optics using an ED center element
3. 2.5" dual-speed rack-and-pinion focuser 10:1 ratio fine focusing with M63x1 female thread for adaptions
4. Retractable lens shade/dew shield-the APO even fits into the hand luggage
5. CNC multi-function Dual hinged split tube rings with a 300mm versatile V-style dovetail, support mounting of various accessories
6. Finder shoe on the focuser is included
7. Multipurpose shock-absorbing telescope protective bagrunning AstroDMx Capture
The Real Shot Image by SV550 122mm APO
View more new deepspace photos captured by SV550, please refer to the blog https://www.svbony.com/blog/some-new-deep-space-photos-captured-by-sv550/
The Unboxing of SV550 122mm From Our Clients

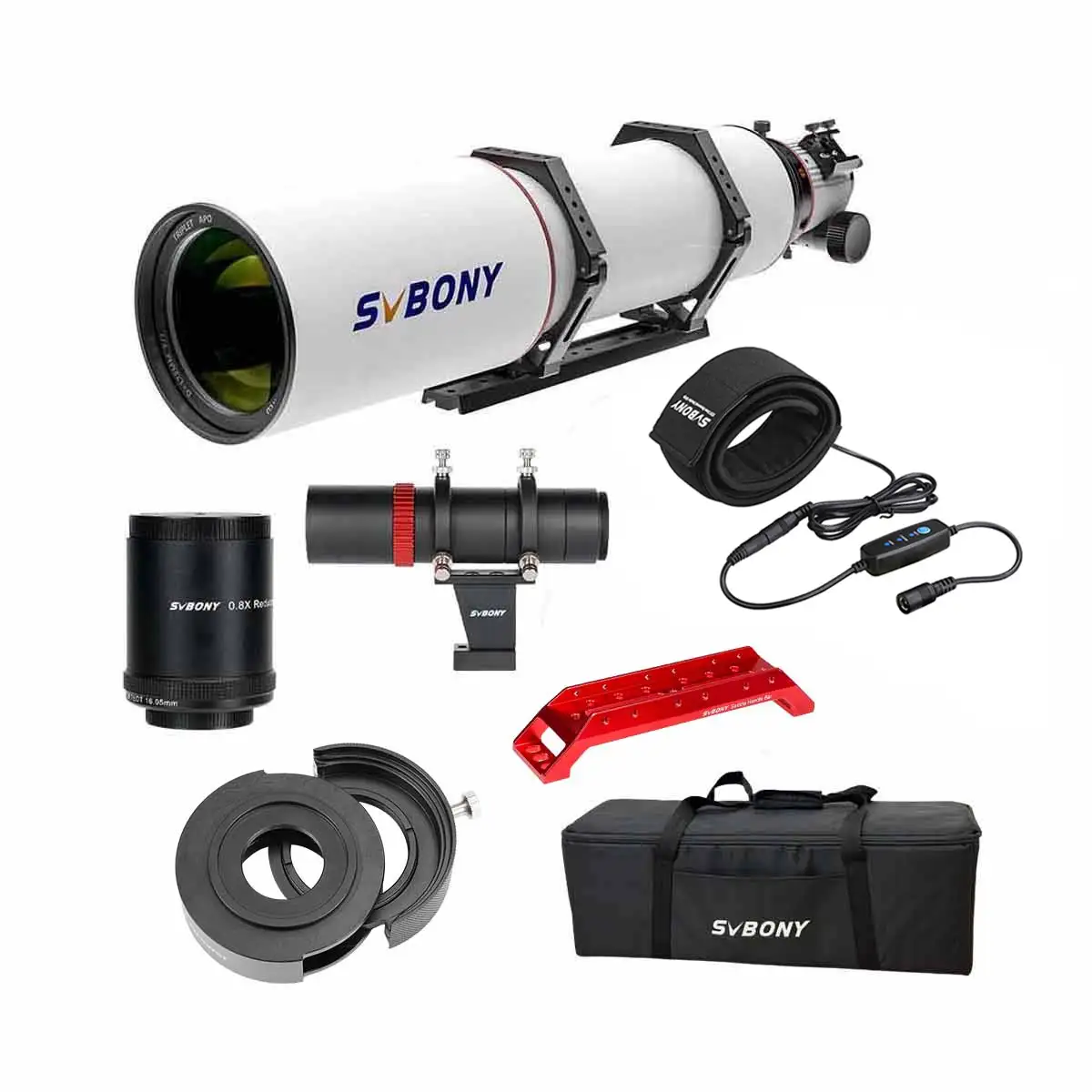

The Bundle Set of SV550 122mm by Our Clients
