Product Detail

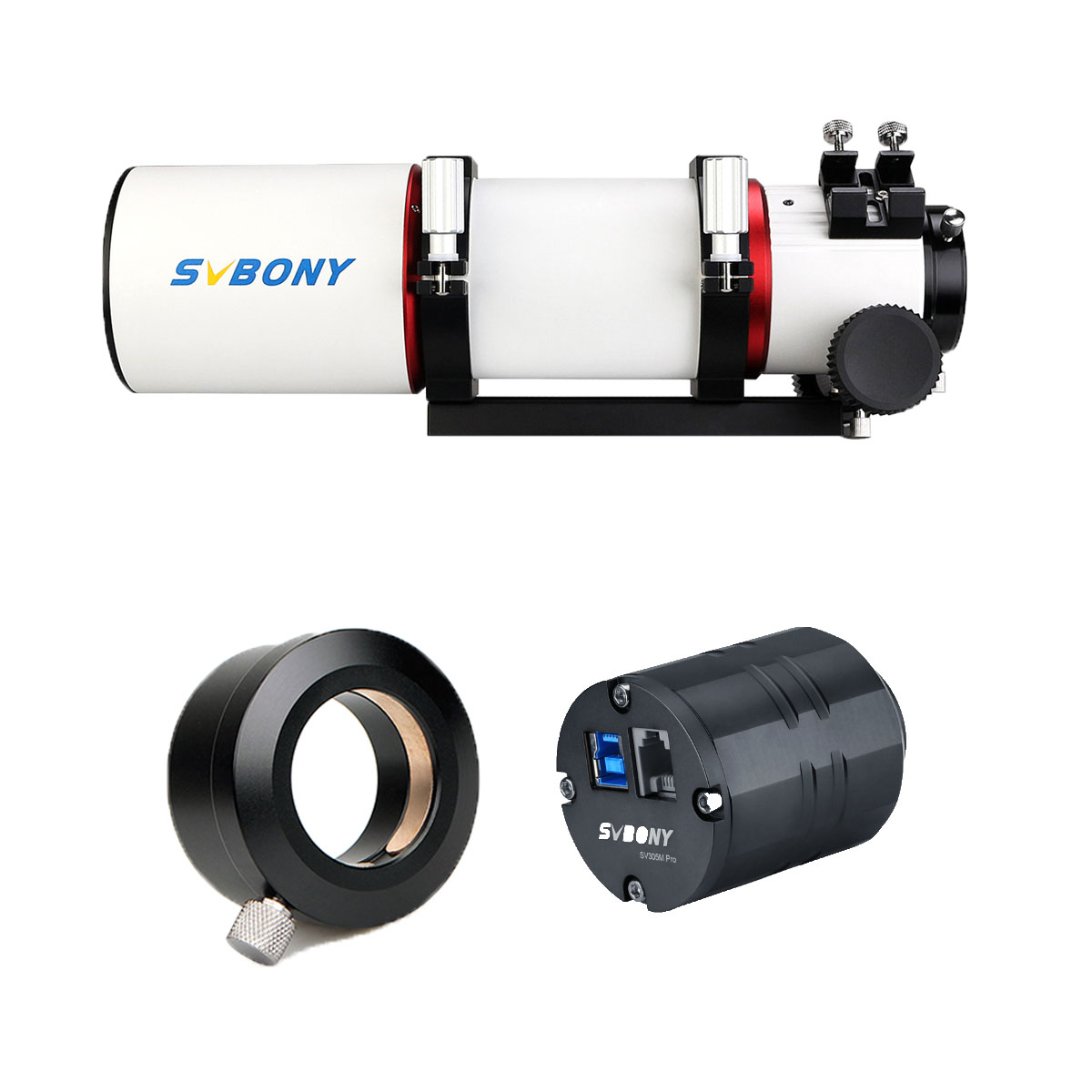

SV550 OTA Astronomy Gear for CMOS Astrophotography

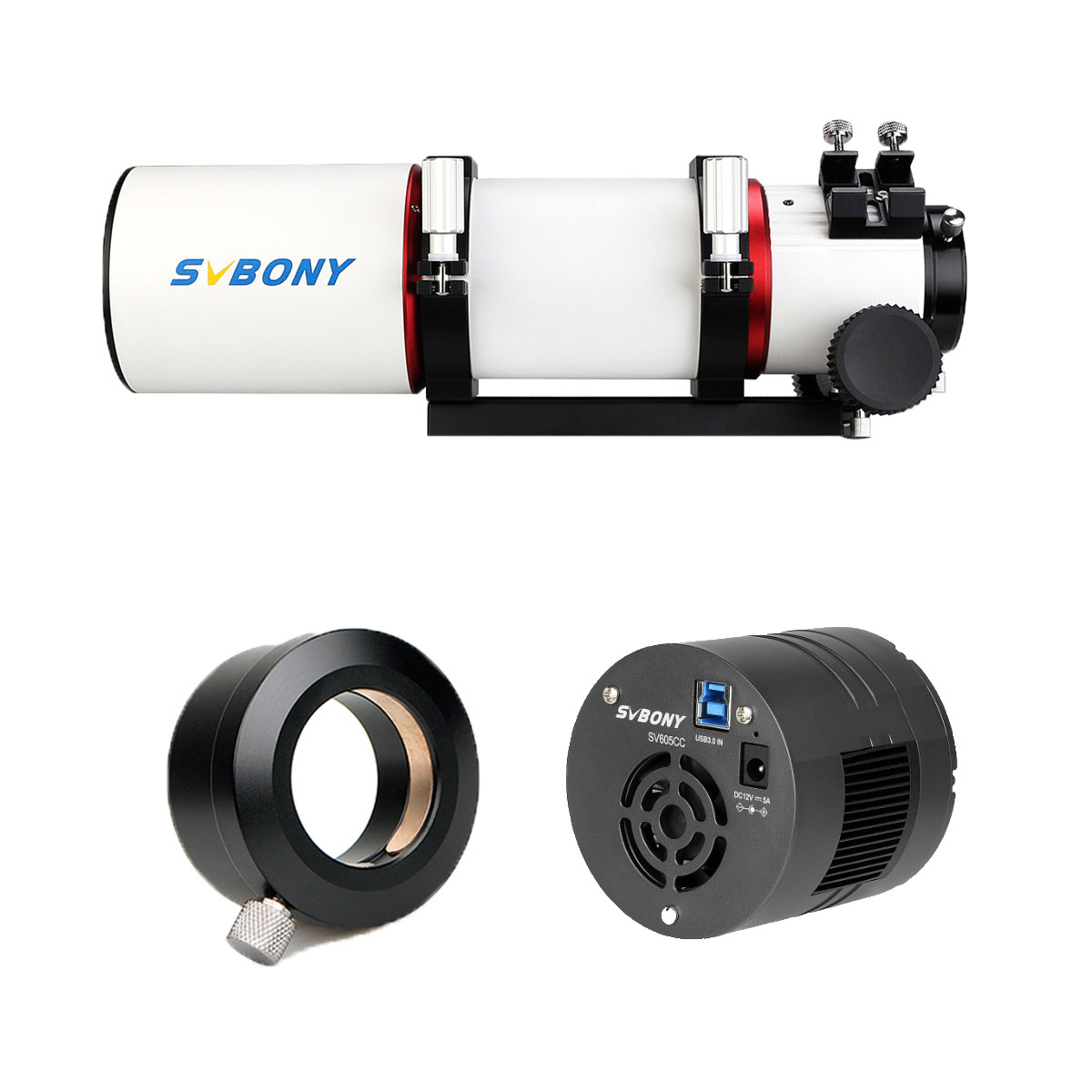

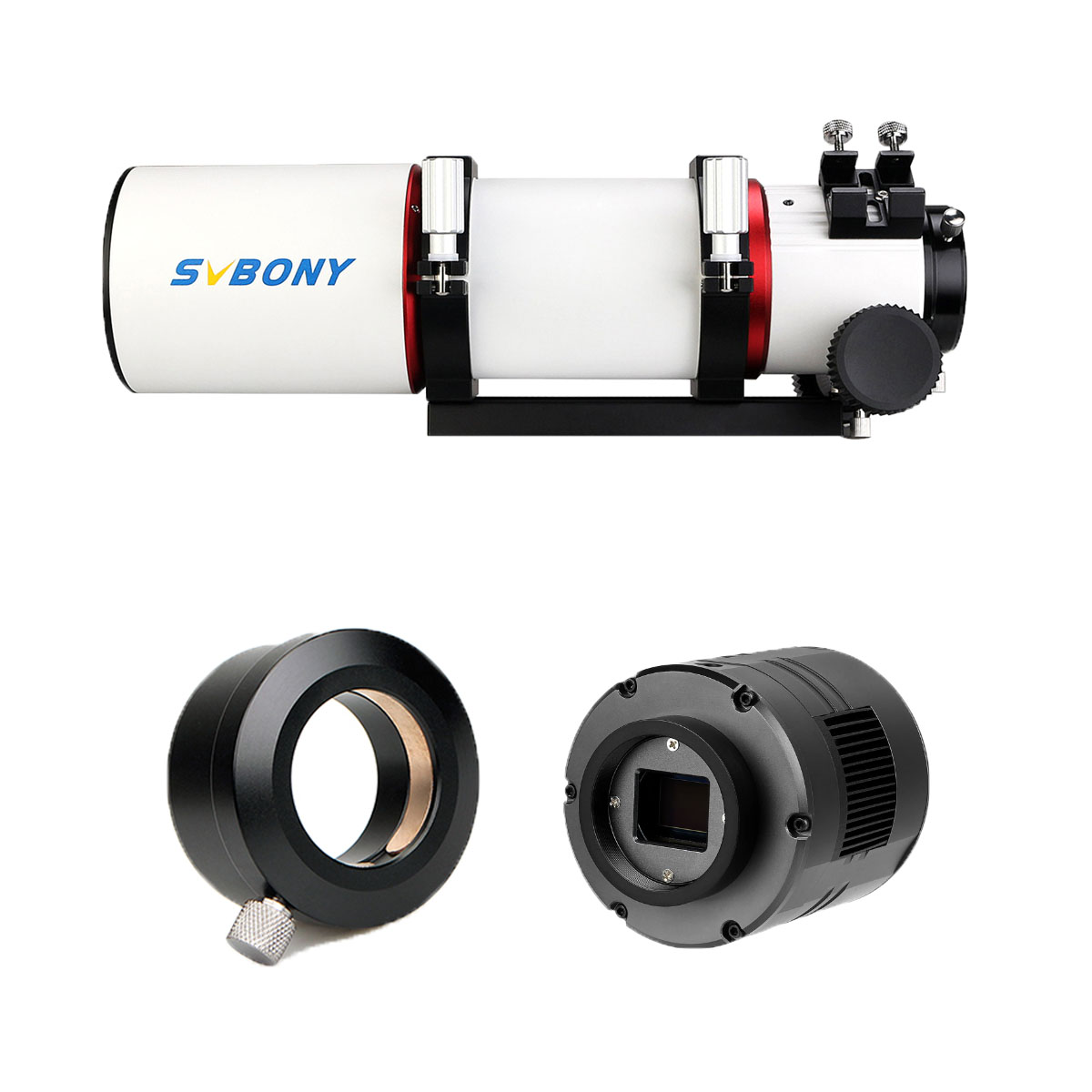

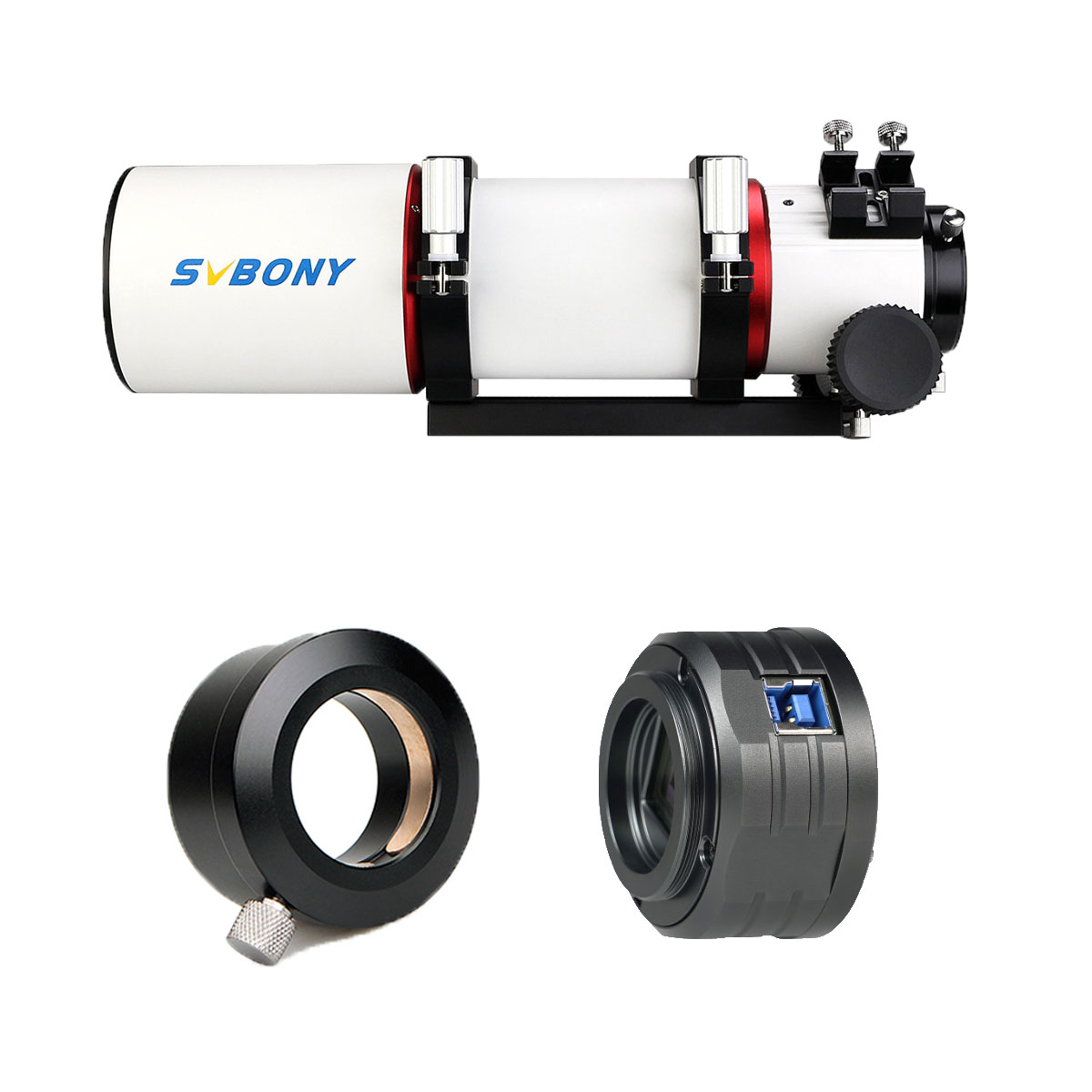

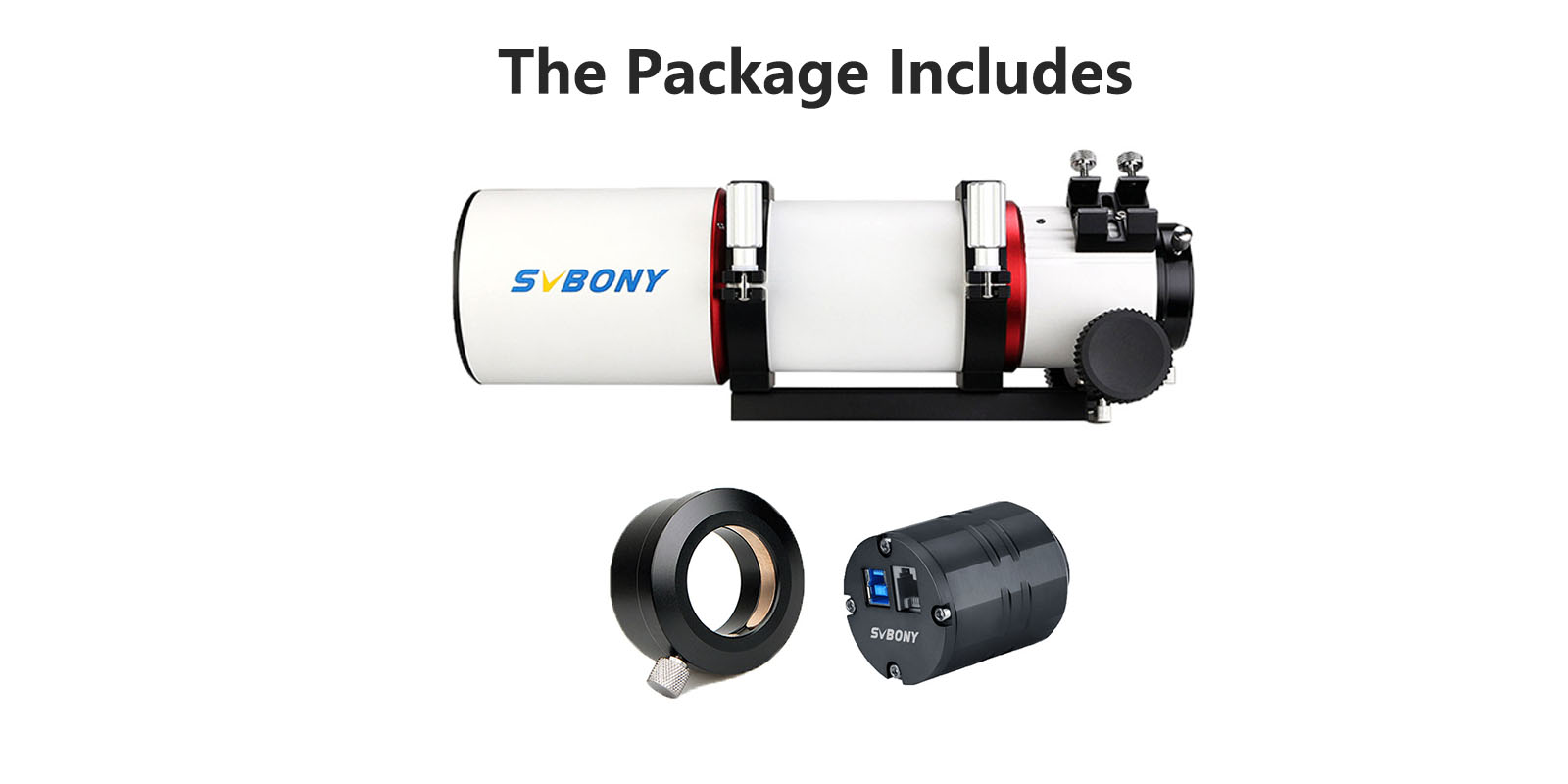

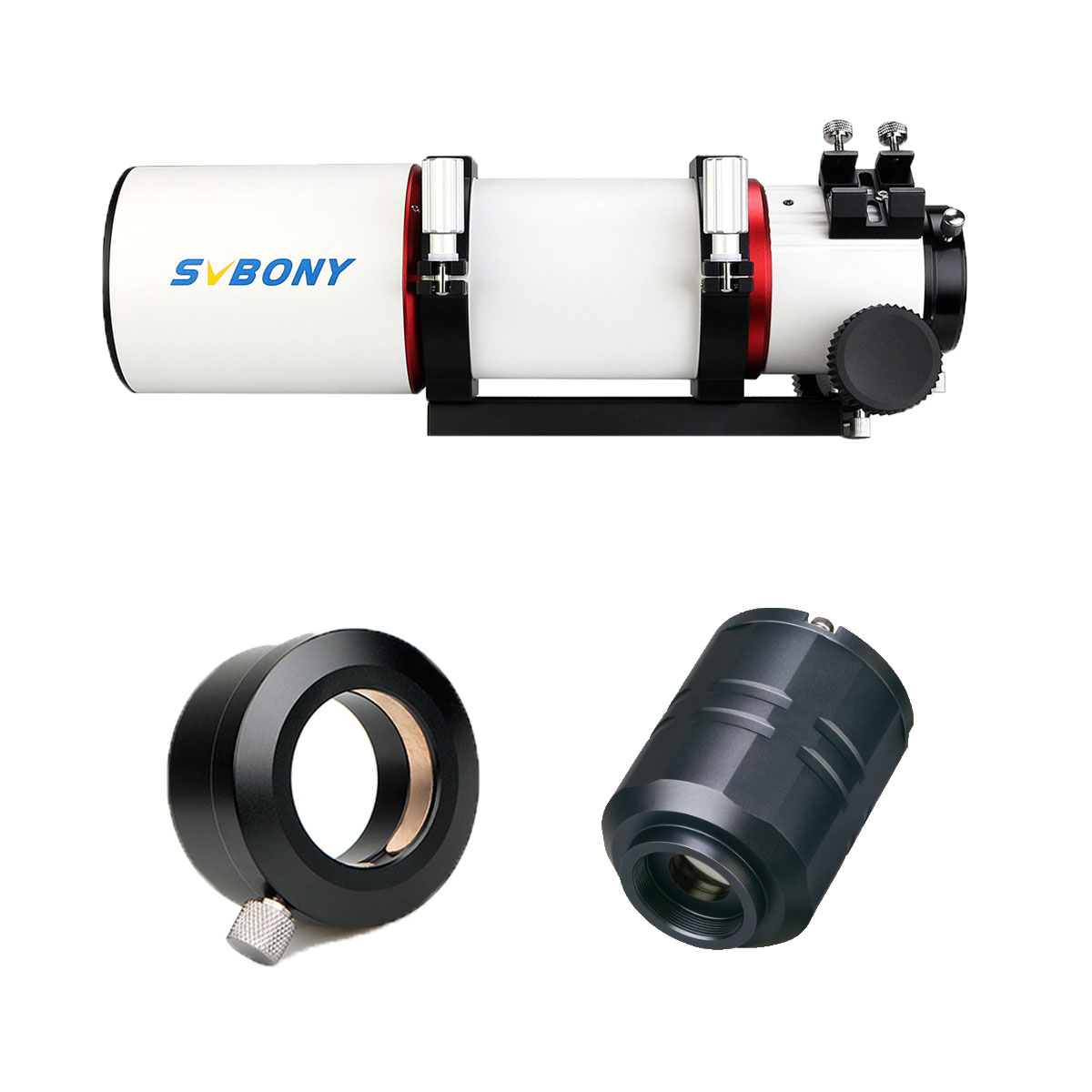

Set Includes:
- SV550 80APO OTA, SKU: F9381A
- Fully Metal Telescope Eyepiece Adapter, SKU: W2811C
Here are the cameras you can choose from:
- SV305 Pro Camera, SKU: F9198B
- SV305Pro AR Coating Astronomy Camera, SKU: F9198C
- SV305M Pro Astronomy Camera, SKU: F9198D

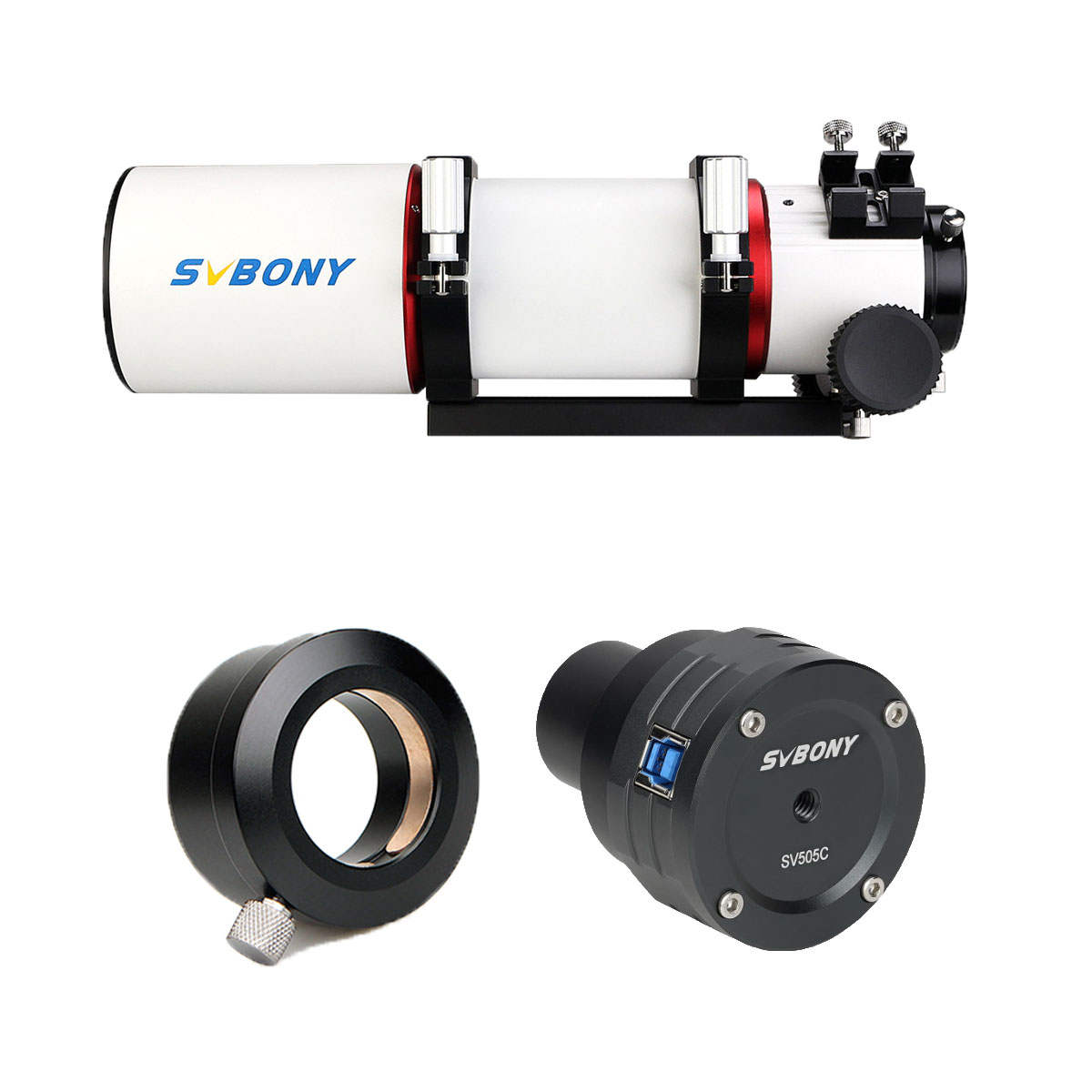

- SV505C Color Planetary Camera, SKU: F9198H
- SV705C Planetary Camera, SKU: F9198J
- SV605CC OSC Camera, SKU: F9198K
- SV405CC Cooled Color Camera, SKU: F9198F
| Model | SV503-F9359A | SV503-F9359B | SV503-F9359D |
| Type | Refractor | Refractor | Refractor |
| ED Glass | S-FPL51 | S-FPL51 | S-FPL51 |
| Coating | SMC | Ultra-wideband coating（SMC） | SMC |
| Aperture | 70mm / 2.75-Inch | 80mm | 102mm / 4.01-Inch |
| Focal length | 420mm | 560 mm | 714mm |
| Focal Ratio | f/6 | F7 | f/7 |
| Type of Focuser | RAP (Rack and Pinion) | 2 inch Dual speed focuser | RAP (Rack and Pinion) |
| Gear Reduction | 1:10 Fine movement | 1:10 | 1:10 Fine movement |
| spec | F9198A | F9198B | F9198C | F9198D |
| Model | SV305 | SV305 Pro | SV305 Pro AR | SV305M Pro |
| Sensor | 1/2.8" CMOS SONY IMX290 | 1/2.8" CMOS Color SONY IMX290 | 1/2.8" CMOS Color SONY IMX290 | 1/2.8” COMS monochrome Sensor SONY IMX290 |
| Pixel Size | 2.9X2.9μm | 2.9µmx2.9µm | 2.9µmx2.9µm | 2.9um X 2.9um |
| Resolution | 2 Mega Pixels 1920X1080 | 2MPixels(1920*1080@120FPS)360*240@260fps | 2MPixels(1920*1080@120FPS)360*240@260fps | 2M Pixels (1944*1096) |
| Shutter | Electronic Shutter | Electronic Rolling Shutter | Electronic Rolling Shutter | Electronic Rolling Shutter |
| ADC | 12 bit | 10 bit/12 bit Out 8 bit/12 bit | 10 bit/12 bit Out 8 bit/12 bit | 12bit |
| ROI support | Any area ROI | Any resolution | ||
| Supported OS | Windows, Linux, Raspberry Pi & Mac OS | Windows, Linux, Raspberry Pi & Mac OS | Windows, Linux, Raspberry Pi & Mac OS | Windows8.1& win 10 & Linux &Raspberry Pi & Mac OS |
| Power Consumption | 200mA@5V | 230mA@5V | 230mA@5V | |
| Working Temperature | -0°C~45°C | -10°C~50°C | -10°C~50°C | -10℃ to +50℃ |
| Storage Temperature | -10°C~60°C | -20°C~60°C | -20°C~60°C | -20℃ to +60℃ |
| Working Relative Humidity | 20%~80% | 30%-80% | 30%-80% | 30%-80% |
| Storage Relative Humidity | 20%~95% | 20%-90% | 20%-90% | 20%-90% |
| USB Type | USB3.0 | USB3.0 | USB 3.0 | |
| Exposure Time | 1ms~30min | 1ms~30min | 0.03ms-2000s | |
| Gain | Automatic/Manual | Automatic/Manual | 1~30 | |
| Maximum Frame Rate | 120FPS(1920*1080) | 120FPS(1920*1080) | 130FPS (1920*1080) / 500FPS(320X240) | |
| BIN | 1×1,2×2 |
| spec | F9198F | F9198H | F9198J | F9198K |
| Model | SV405CC | SV505C | SV705C | SV605CC |
| Sensor | 4/3'' SONY IMX294 CMOS19.2mm*13mm | SONY IMX464 CMOS | IMX585 | Color IMX533 CMOS |
| Pixel Size | 4.63*4.63μm | 2.9μm* 2.9μm | 2.9um X 2.9um | 3.76um x 3.76um |
| Resolution | 11.7 megapixels 4144*2822 | 2712×1538 | 3856×2180 | 3008*3008 |
| Shutter | Rolling shutter | Rolling Shutter | ||
| ADC | 14 bit | 12bit | 12 bit | 14bit |
| ROI support | Support | YES | YES | Support |
| Supported OS | Windows, Linux, Raspberry Pi & Mac OS | Windows , Linux OS Raspberry Pi，Mac os, Chrome os | Windows , Linux OS Raspberry Pi，Mac os, Chrome os | Windows,Linux,Mac OS,Raspberry Pi,Chrome OS |
| Power Consumption | 200mA 5V | |||
| Working Temperature | -10℃-50℃ | -10℃ to +50℃ | ||
| Storage Temperature | -20℃-60℃ | -20℃ to +60℃ | ||
| Working Relative Humidity | 20％-80％ | 30%-80% | ||
| Storage Relative Humidity | 20％-95％ | 20%-90% | ||
| USB Type | USB3.0 | USB3.0 | Type-B USB 3.0 | |
| Exposure Time | 0.05ms-2000s | 64us-2000s | 0.05ms-2000s | |
| Gain | 0-500 | |||
| Maximum Frame Rate | 19 FPS | 93FPS | 45FPS | 20FPS |
| BIN | BIN1,BIN2,BIN3,BIN4 | 1X1 2X2 | 1X1 2X2 | BIN1,BIN2,BIN3,BIN4 |
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 80mm |
| Focal Length | 480mm |
| Focal Ratio | f/6 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.45 arc seconds |
| Coatings | SMC |
| Limiting stellar magnitude | 11.6 |
| Lens design | Apochromatic |
| dovetail plate length | 150-175mm |
| barrel weight | 2900g |
| mirror Brief Size | 377.8mm |
| Net weight | 3750g |
| Gross weight | 3850g |
| Package size | 440x220x210mm |
| Model | W2811C |
| Size | 2" to 1.25" |
| Material | Metal |
| Color | Black |
