Use this APO OTA apochromatic refractor to reveal the wonders of celestial bodies!
Bundle1: SV550 80APO OTA + SV223 Diagonal + SV216 Barlow Lens + SV172 Dew Heater + 68 Degree UWA Eyepiece Set
Bundle2: SV550 80APO OTA + SV182 Finder Scope + SV188P Diagonal + SV230 Zoom Eyepiece
Note: This SV550 80 OTA comes with a dedicated dovetail slot for the finderscope.

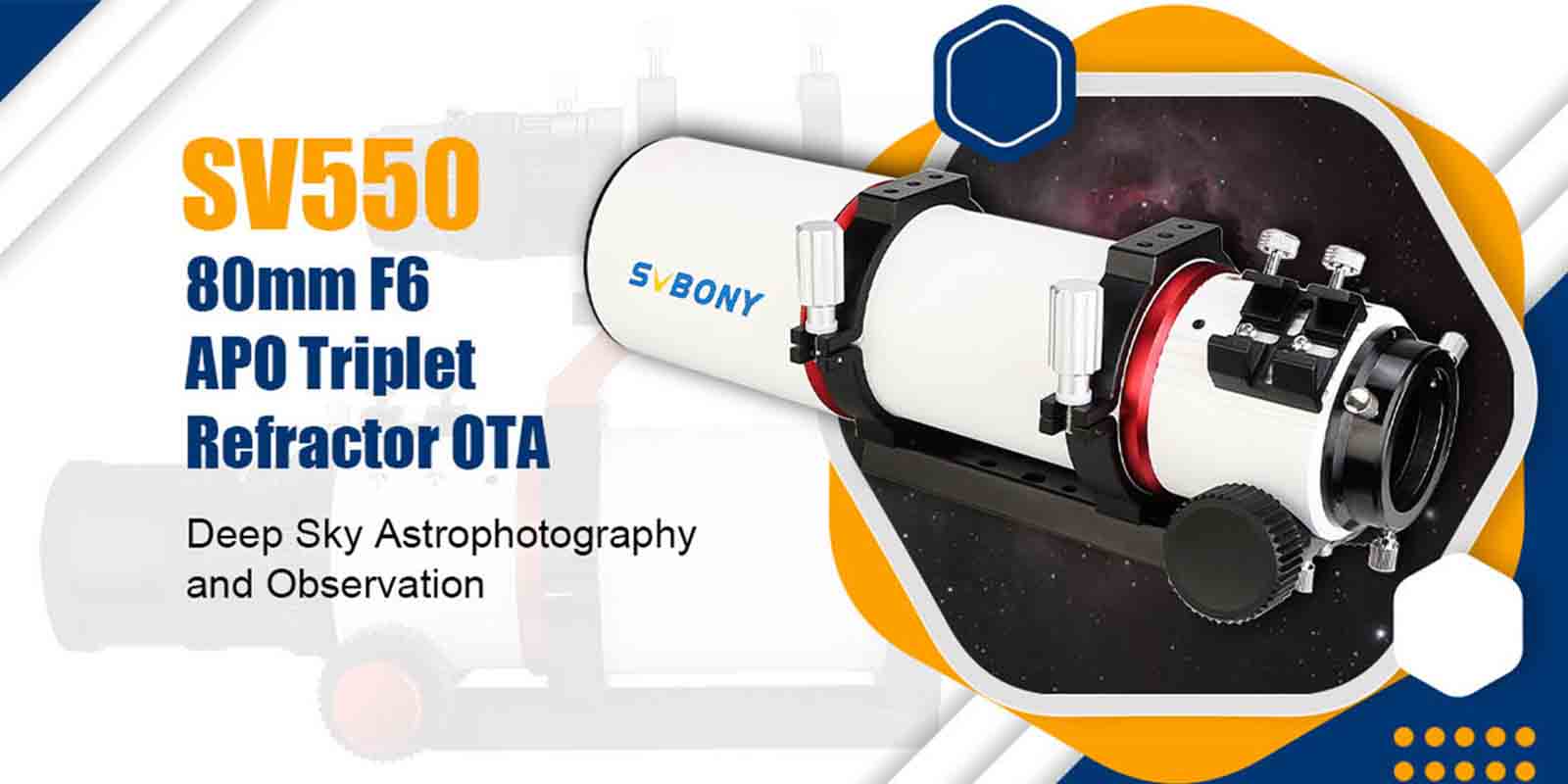

The SV550 APO Triplet refractor with 80mm aperture and fast f/6 focal ratio, it is definitely a great travel telescope for observation and astrophotography.

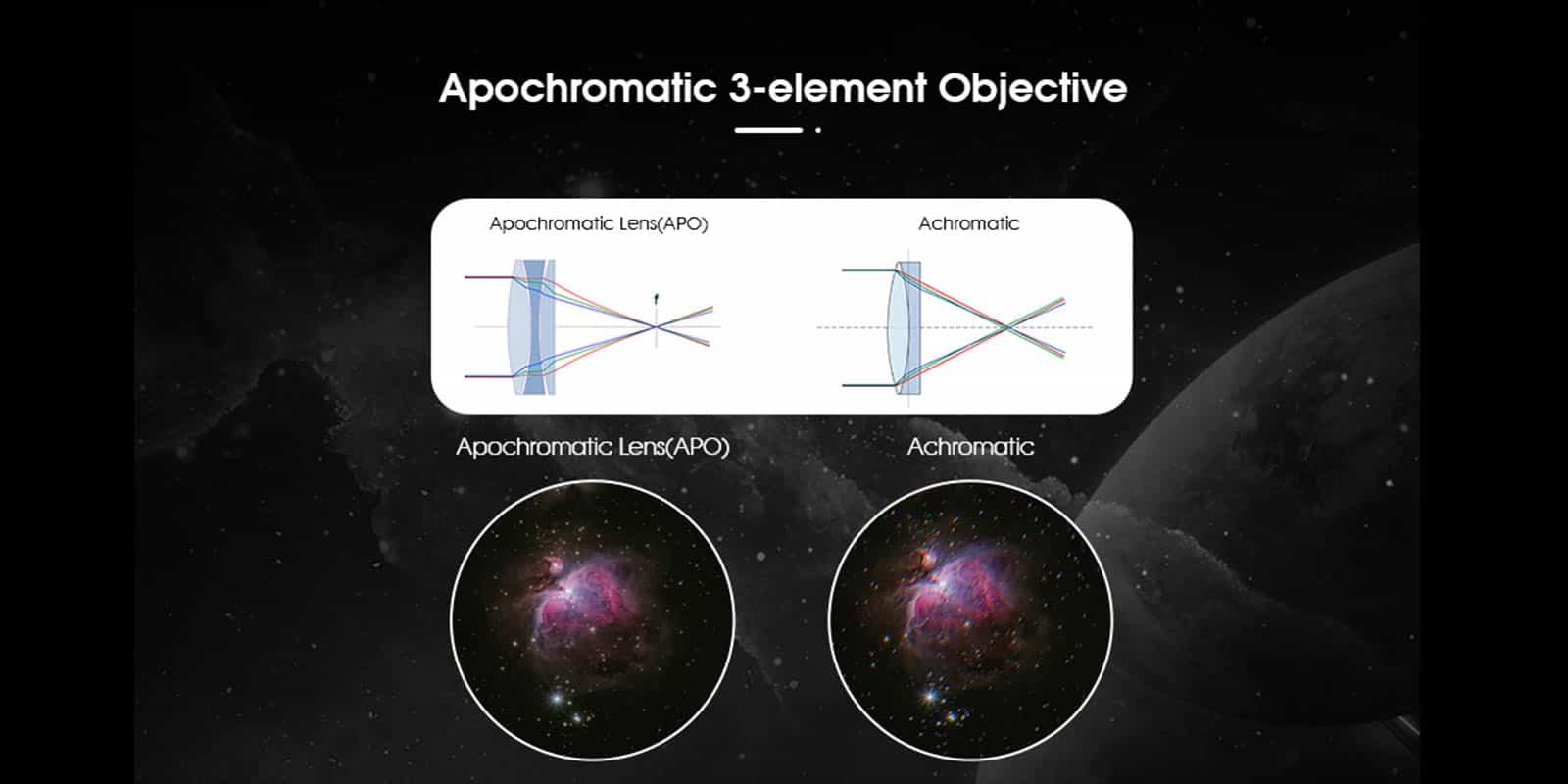

The triplet apochromatic optics structure (1 piece of S-FPL51 low dispersion ED glass + 2 pieces of correction glass) is adopted to significantly improve the image quality of the captured image (15.8% increase by the spectrometer calculation). Significantly reduces edge dispersion resulting in blue fringing problems.

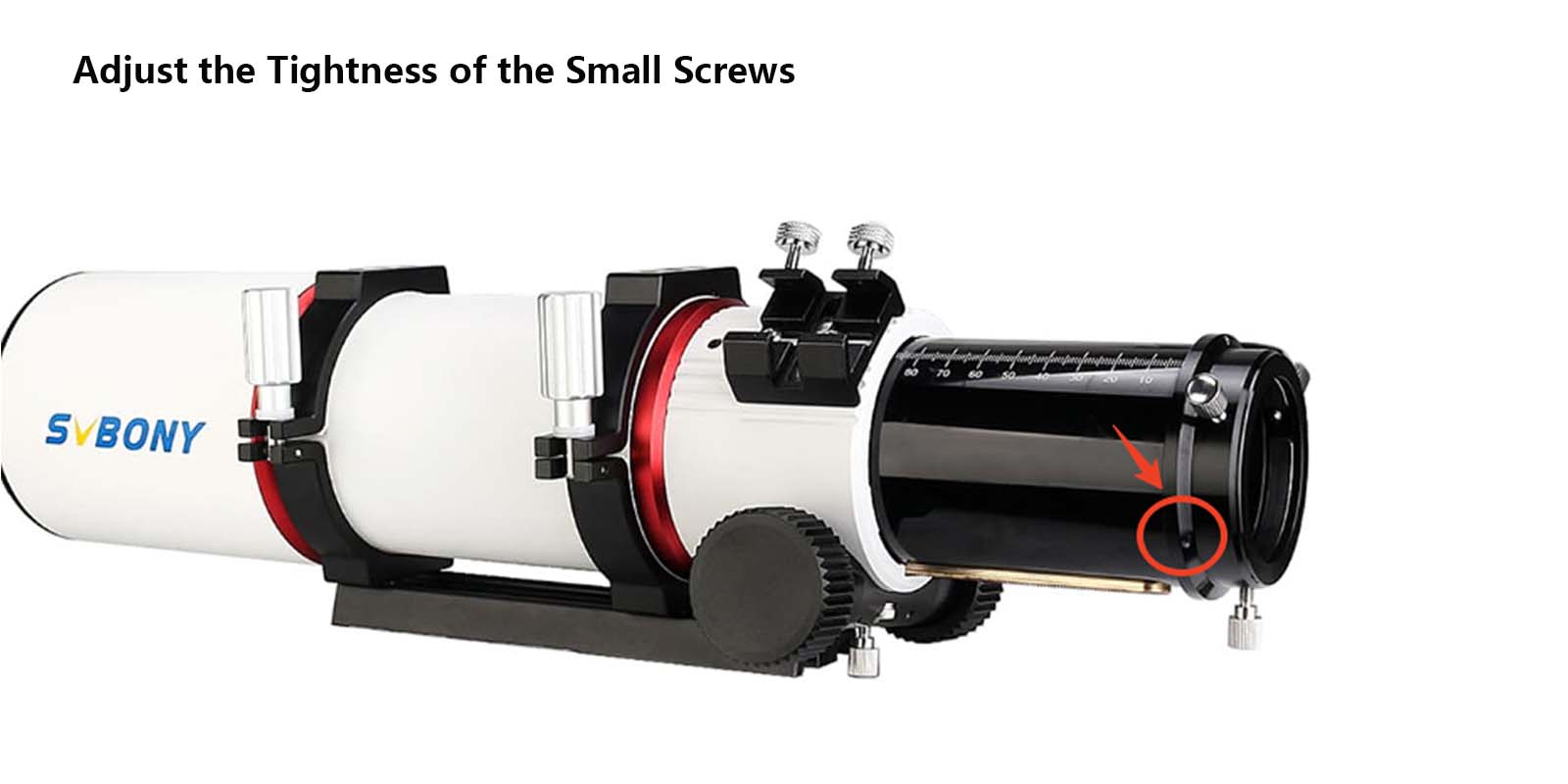

To remove the 2-inch adapter from the focuser, you will need to loosen the three small screws on the side of the adapter (as indicated in the red circle in the image). Please use an appropriate Allen wrench to gently loosen these screws; there is no need to completely remove them down. Once the three screws are sufficiently loosened, you can turn the adapter counterclockwise to detach it, allowing you to proceed with installing the SV209 flat field lens. Additionally, if you experience any loosening of the focuser adapter during use, you can also adjust the tightness of the small screws to secure it properly.
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 80mm |

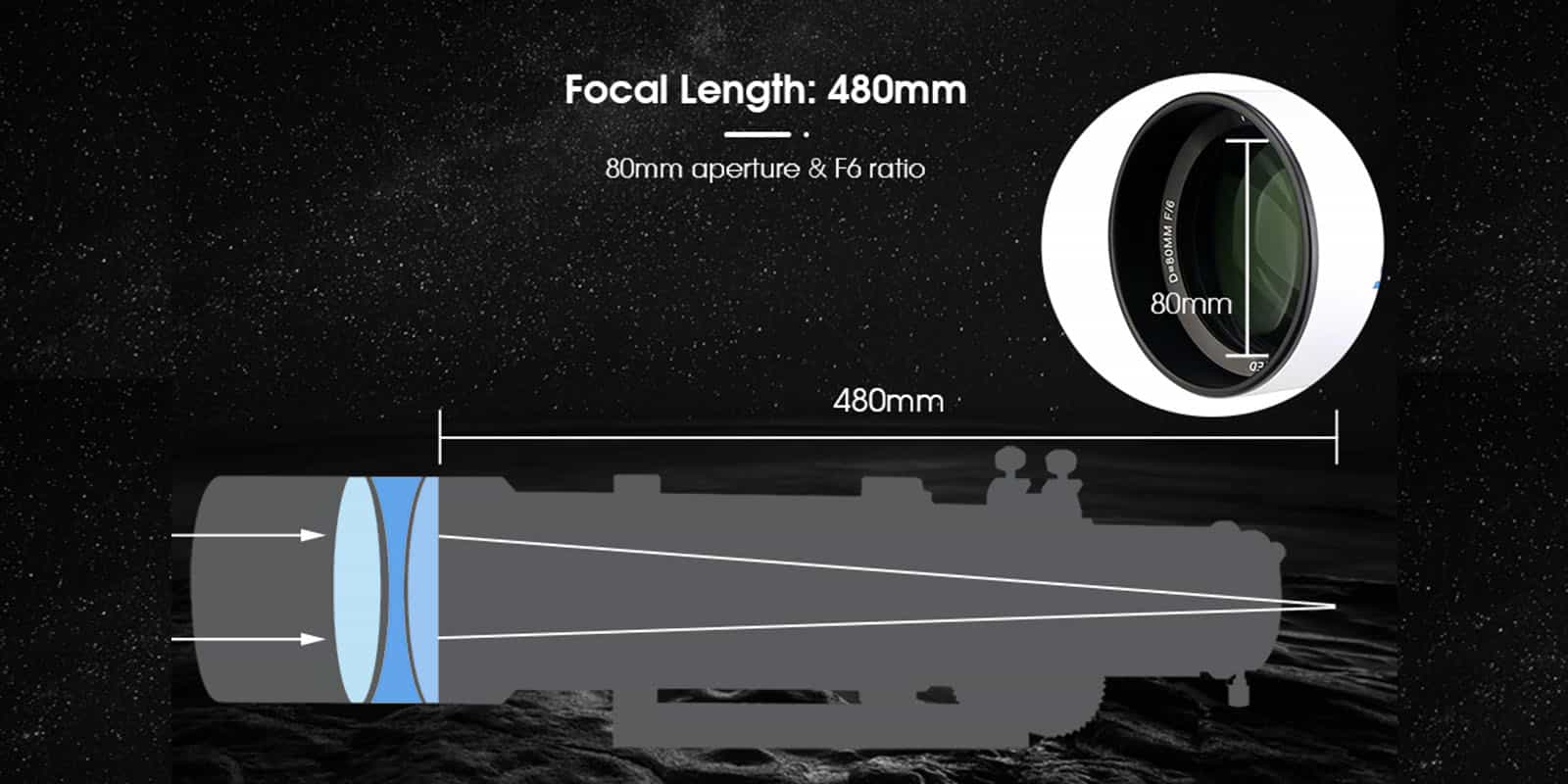

| Focal Length | 480mm |
| Focal Ratio | f/6 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.45 arc seconds |
| Coatings | SMC |
| Limiting stellar magnitude | 11.6 |
| Lens design | Apochromatic |
| dovetail plate length | 150-175mm |
| barrel weight | 2900g |
| mirror Brief Size | 377.8mm |
| Tube Outer Diameter | 103mm |
| Net weight | 3750g |
| Gross weight | 3850g |
| Package size | 440x220x210mm |
| Brand | SVBONY |
| Model | SV230 |
| Focal Length | 8mm-20mm |
| Apparent Field of View | 57°- 72° |
| Barrel Size | 1.25" & 2" |
| Coatings | Fully multi-coated |
| Blackened Lens Edges | Yes |
| Eye Relief | 17-19mm |
| Parfocal | Yes |
| Rubber Eye Guard | Yes |
| Clickstop Click Design | Yes |
| Dioptrix Mounting | Support |
| Material of Barrel | Stainless steel |
| Filter Threads | M28.5x0.6 & M48x0.75 |
| Groups/Elements | 6/9 |
| Outer Diameter | 60mm |
| Net Weight | 500g/17.66oz |
Features
- 1. Finder base included
2. Triplet APO apochromatic objective lens structure & FMC coating

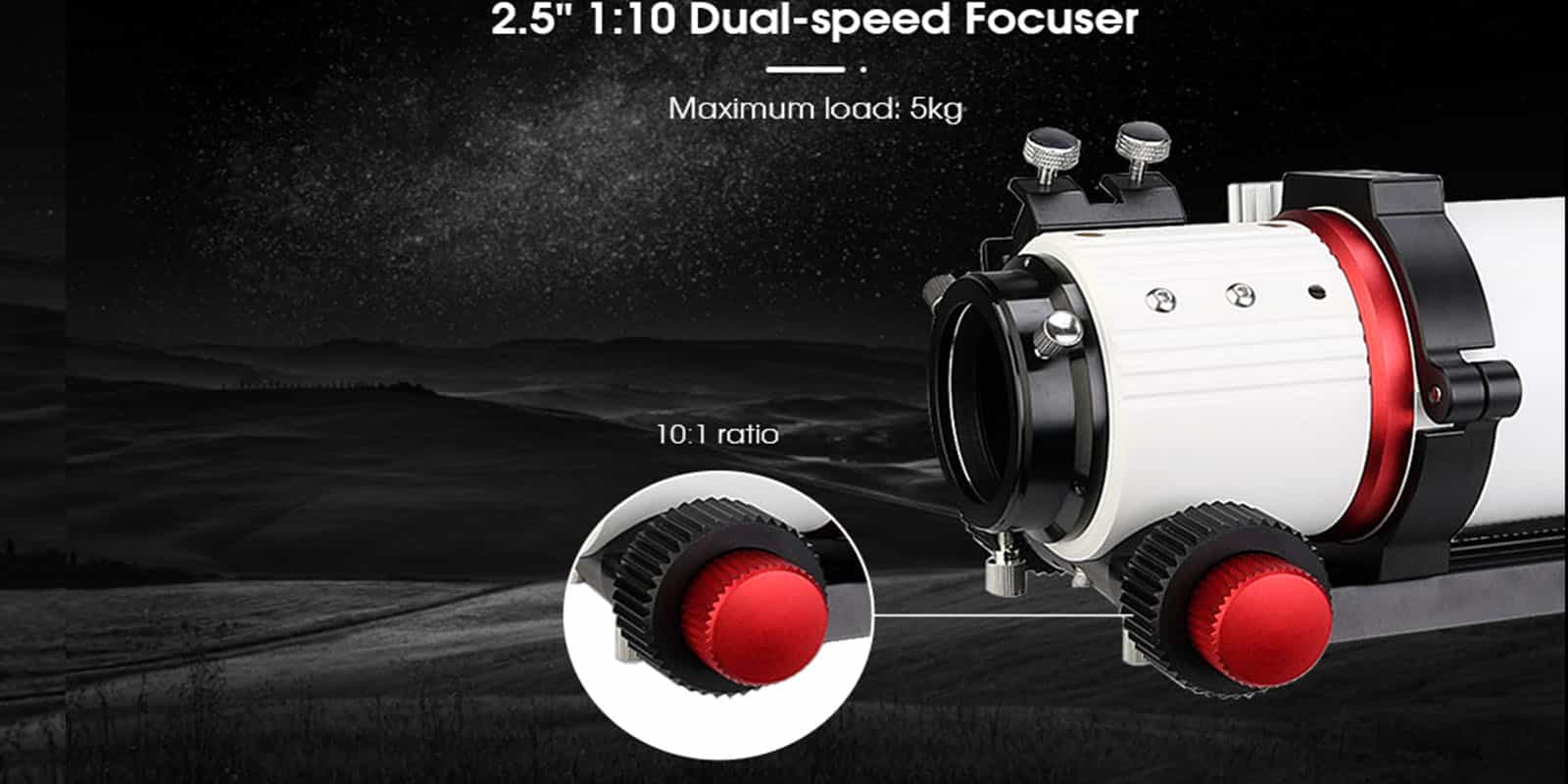

3. 2.5" dual-speed rack-and-pinion focuser
4. Extreme extinction process - 5. Hollow-out standard 180mm dovetail plate
