- The sensor incorporates a 14-bit A/D converter, the 14-bit digital output makes it possible to read out the signals of 9.07M effective pixels at a high speed of 20 FPS. Read-out noise is as low as 1.0e which makes sure the highly suitable for high definition, low noise deep space objects imaging;
- Foldable and portable: This camera is foldable and easy to carry, it can be easily stored in your backpack or pocket;
- The SV605MC features a USB 3.0 data transmission interface and a built-in 256MB DDR3 high-speed memory for fast and efficient deep-sky objects imaging, and to buffer image data and ensure stable data transmission;
- The HCG digital noise reduction technology is adopted, and the readout noise can be greatly reduced while maintaining a high dynamic range;
- SV605MC features an improved amp glow suppression design, which guarantees a high-quality "dark" image.
Special offers and product promotions
.jpg "product")
_tb.jpg "product")

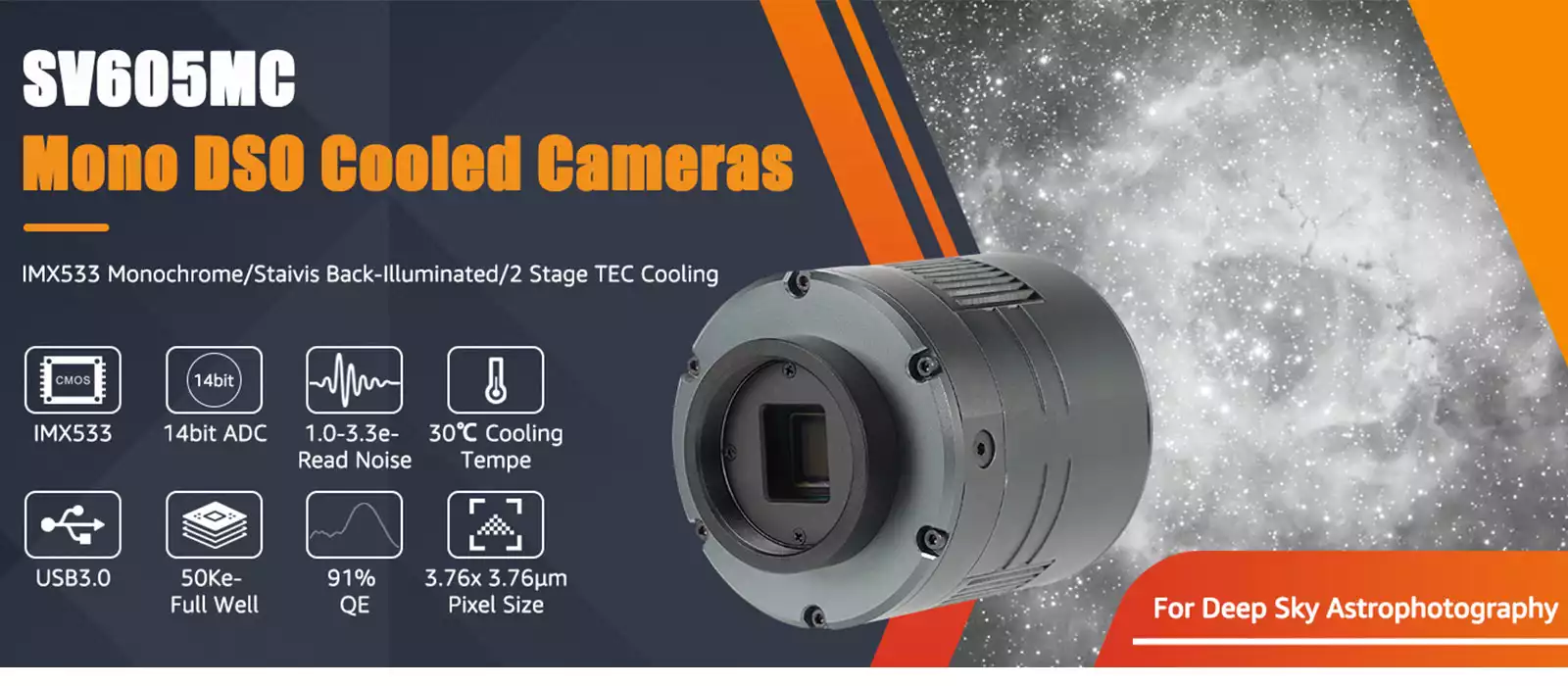

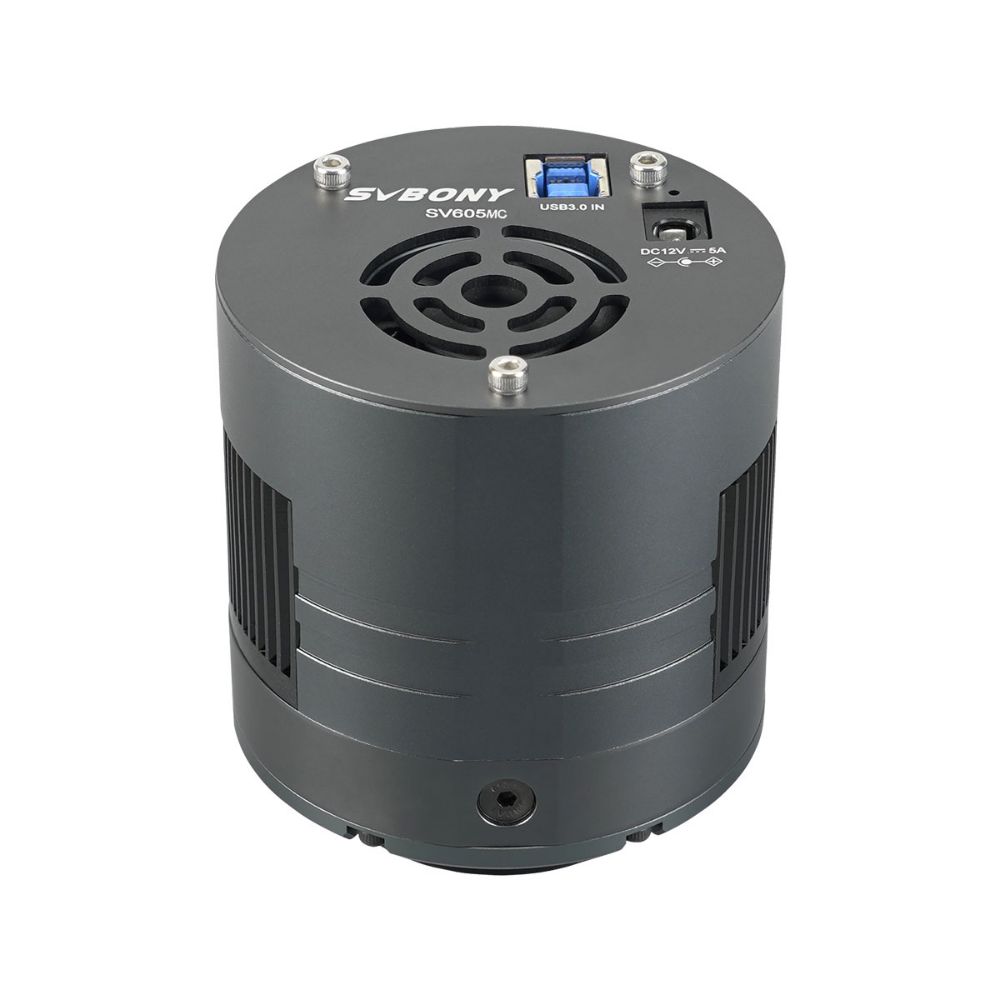

SV605MC IMX533 Monochrome Cooled Camera for Deep Space Astrophotography
SV605MC mono camera has a high quantum effect (QE), low readout nose, high frame rate. It can make the details more delicate. Staivis back-illuminated pixel technology and the exposure time of 32 μS-2000S improves sensitivity and can help enhancing image quality in a darker environment.
2 Stage TEC Cooling & Sensor Independent Cavity Design
The sensor of SV605MC cooled camera is designed of the independent cavity which can prevent the CMOS and protective window glass from the brought by multiple cooling.
Amplify Control
If you see a weak infrared light source at the corner of the unregulated image, this is a normal phenomenon, because traditional CMOS sensors often do not have no amp-glow during the operation. SV605MC telescope camera uses amplify control circuit, which can effectively suppress the glow.
USB 3.0 connection
With USB 3.0 connection, computer can improve the transmission rate, for planet observation, moon default observation, and deep sky objects.
SV605MC For Deep Sky Astrophotography
SV605MC astronomy camera is designed for deep sky photography. It can be used with other attachments for a series of photography activities. It can also be used for moon, planet and sun (extra with solar filter) photography.
| SKU | F9198E | F9198F | F9198K | F9387A |
| Model | SV605MC | SV405CC | SV605CC | SC432M |
| Sensor | IMX533 | IMX294 | IMX533 | IMX432 |
| Classification | Monochrome | Color | Color | Monochrome |
| Shutter Type | Rolling Shutter | Rolling Shutter | Rolling Shutter | Global Shutter |
| Pixel Size | 3.76μm X 3.76μm | 4.63µm | 3.76μm X 3.76μm | |
| Resolution | 9MP | 11.7MP | 9MP | |
| Diagonal Length | 15.968mm | 23.2mm | 15.968mm | 17.5mm |
| USB Type | USB3.0 | USB3.0 | USB3.0 |
