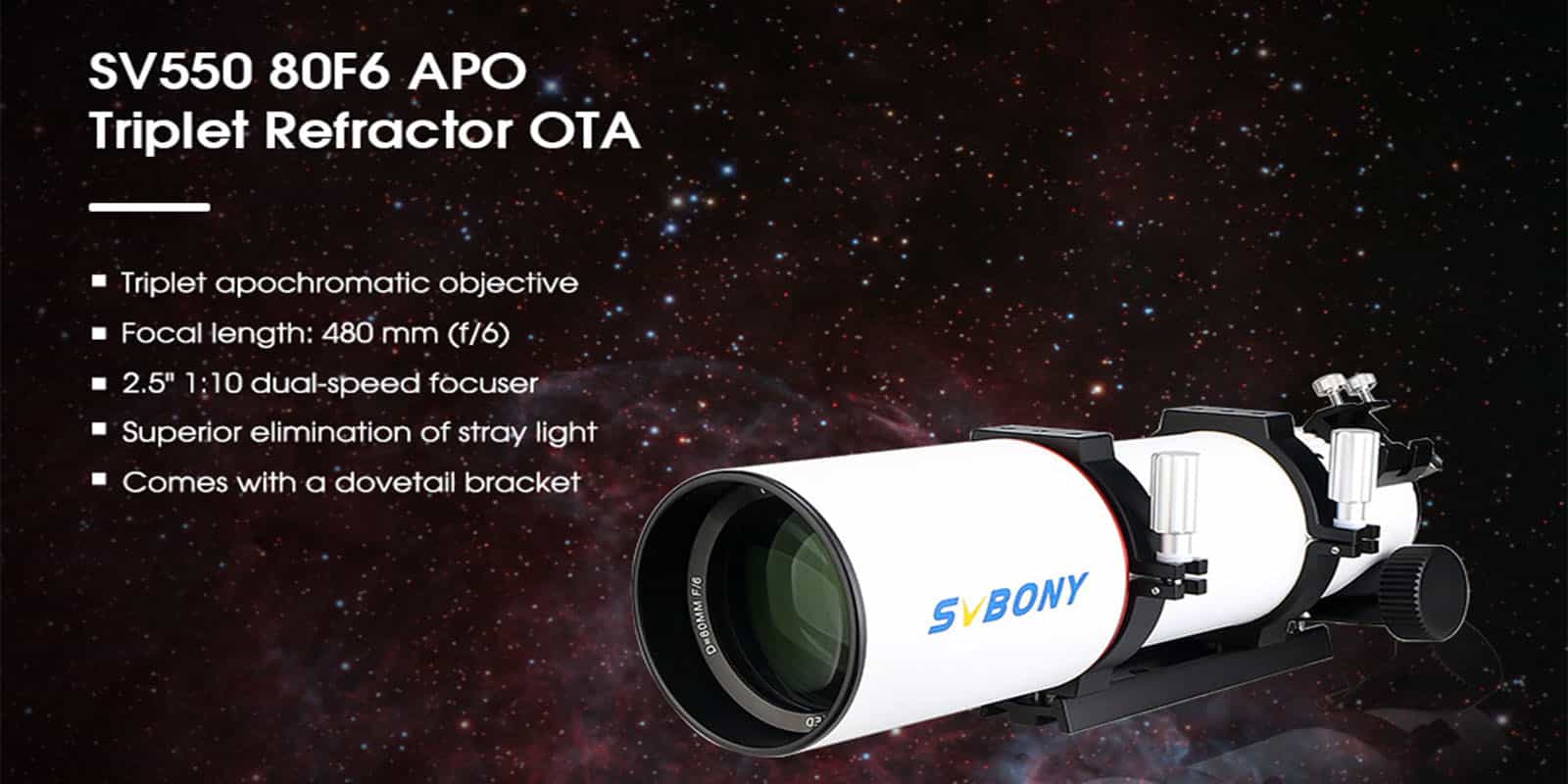

APO refractor Telescope Triplet SV550 80 | Svbony
5 | ReviewsOfficial Store Exclusive – Buy now to earn points for a limited time.+84 Points
Key Features
Comes with SV209 0.8x field flattener, eliminates edge distortion for uniform clarity across the entire view.
80mm APO telescope delivers high color fidelity, reducing chromatic aberration for stunning celestial photos.
Ideal for deep-sky astrophotography and planetary viewing, perfect for both beginners and seasoned enthusiasts.
Precision-machined components ensure optical stability, backed by SVBONY’s professional quality assuranc
Integrated telescope + field flattener set, no extra accessories needed for immediate astrophotography setup.

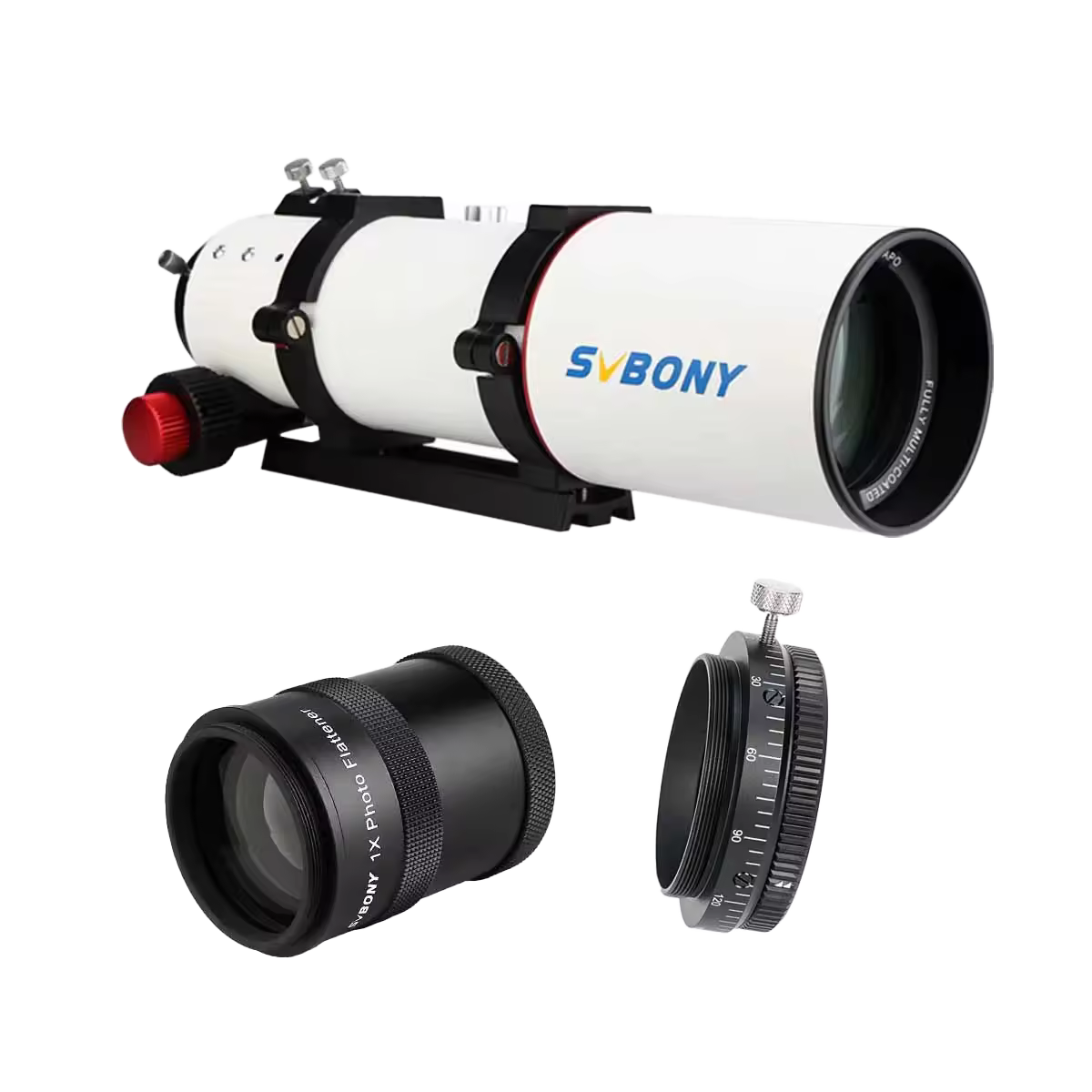

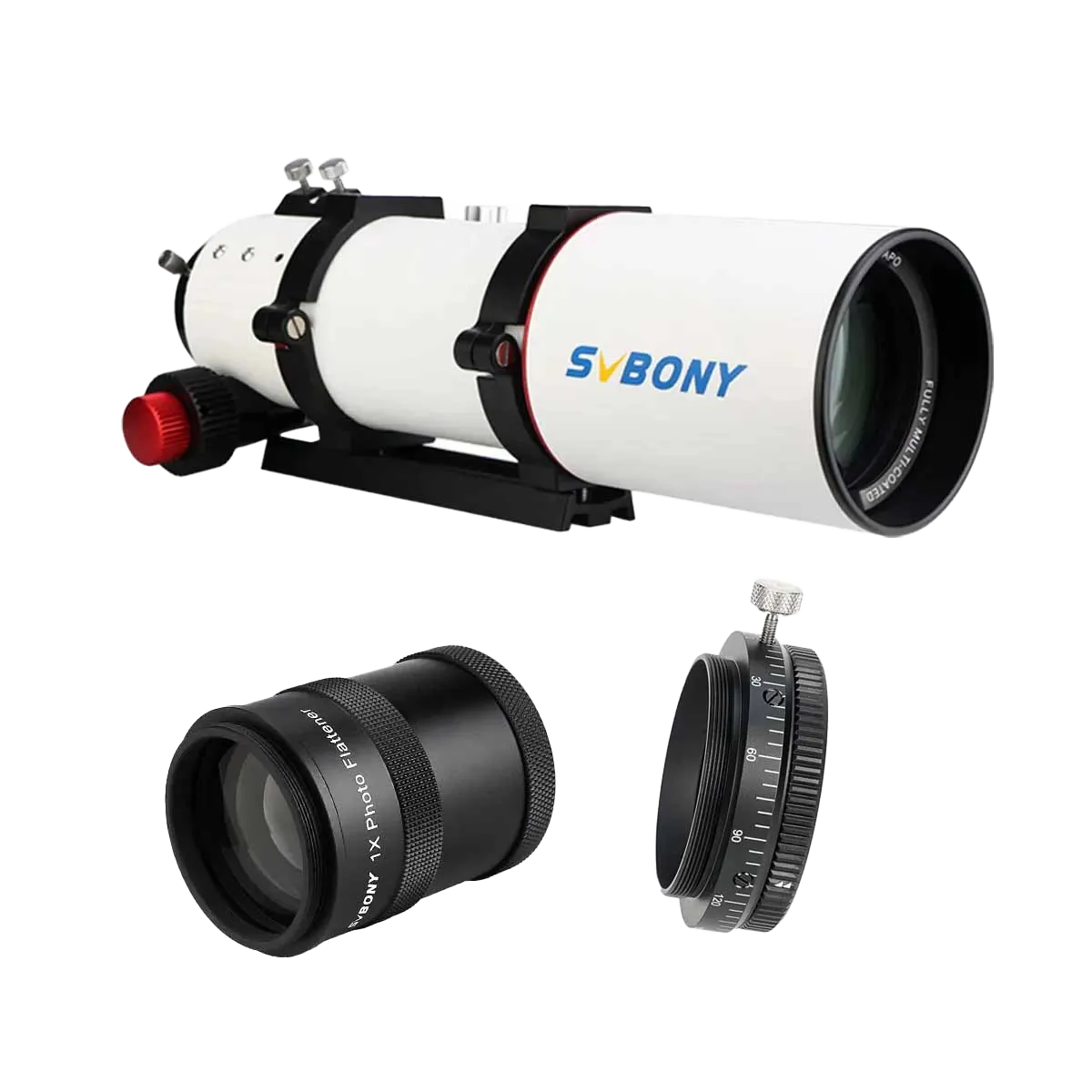

Photography Set Includes:
OTA-Field Flattener-CAA
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT
Secure Payments | SSL Encrypted
Fast, Free Shipping
30-Day Money-Back Guarantee
Hassle-Free Warranty | No Hidden Fees
Lifetime Technical & Customer Support
Payment Methods
Payment Methods

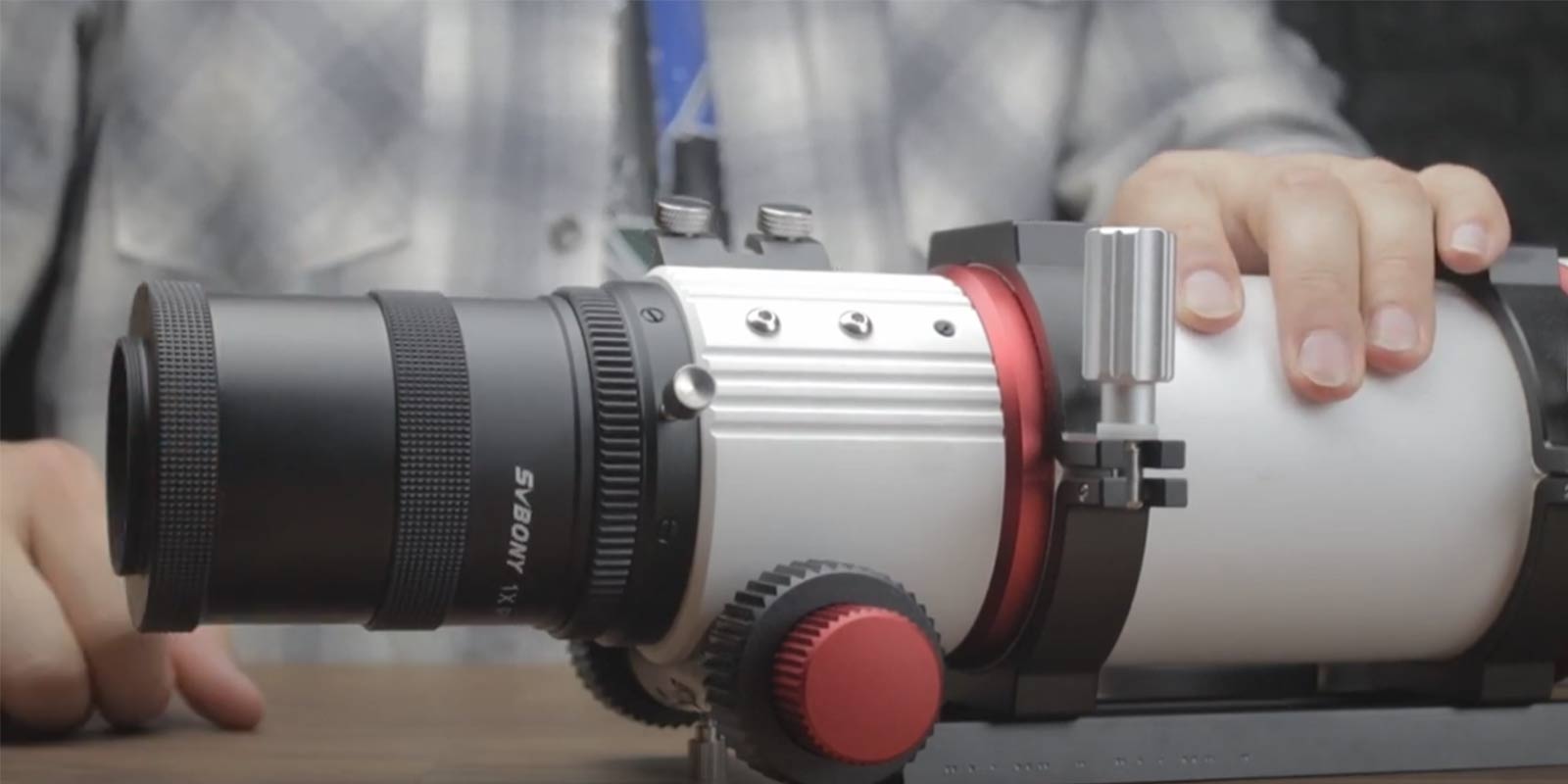

Installation Display
Installation Display

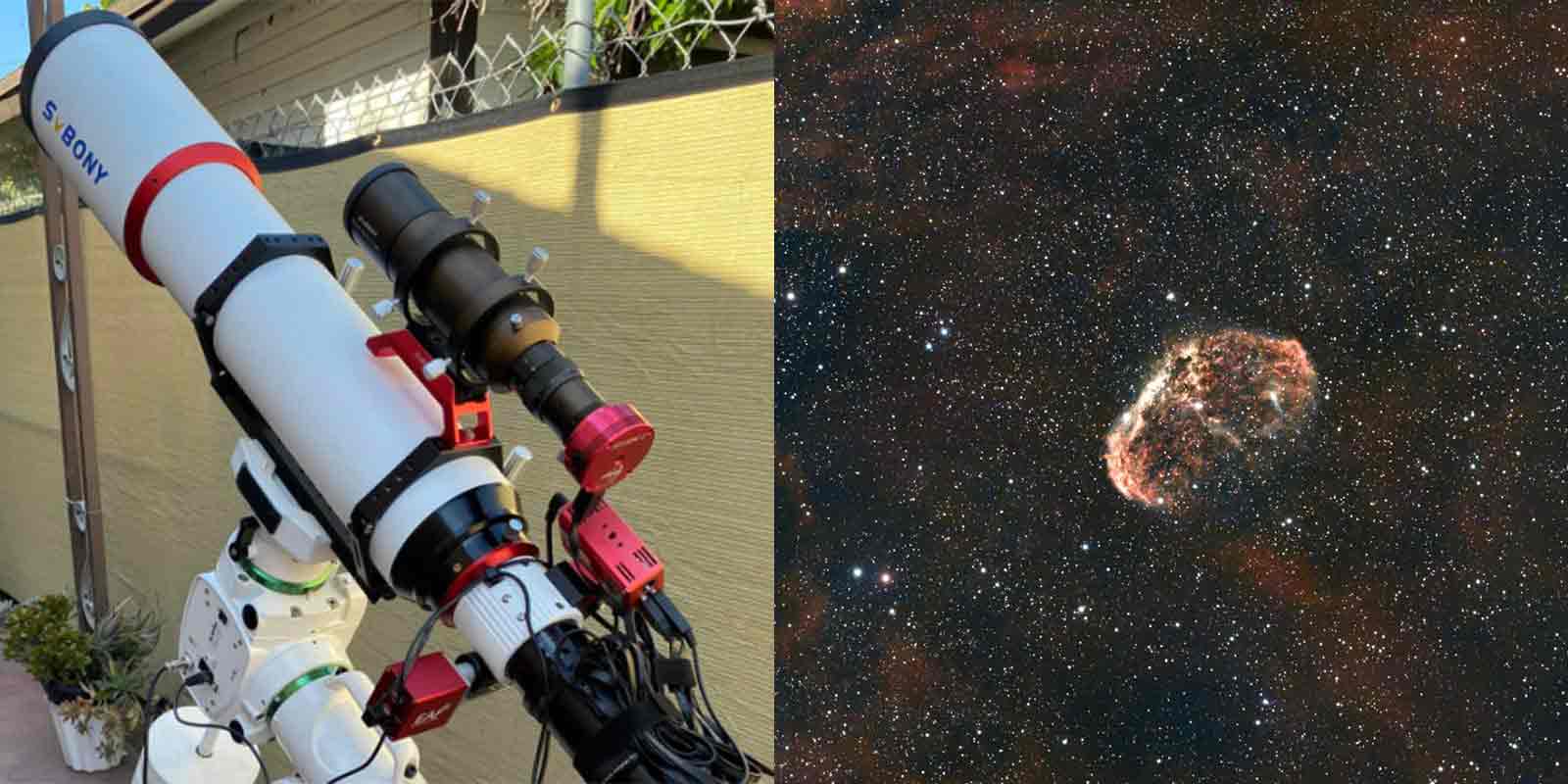

Realistic works captured with this device
5
Customer Reviews
All Reviews
Loading...
| Brand | SVBONY |
| Model | SV550 |
| Aperture | 80mm |
| Focal Length | 480mm |
| Focal Ratio | f/6 |
| ED Glass | FPL51 |
| Telescope Type | Refractor |
| Resolution | 1.45 arc seconds |
| Coatings | SMC |
| Limiting stellar magnitude | 11.6 |
| Lens design | Apochromatic |
| dovetail plate length | 150-175mm |
| barrel weight | 2900g |
| mirror Brief Size | 377.8mm |
| Tube Outer Diameter | 103mm |
| Net weight | 3750g |
| Gross weight | 3850g |
| Package size | 440x220x210mm |
| Brand | SVBONY |
| Model | SV209 |
| Additional Thread | M63x1 female thread for photo adaptions |
| Connection at Telescope Side | M63x1 male thread |
| Connection 1 at Camera Side | M63x1 thread female - working distance 103 mm |
| Connection 2 at Camera Side | M48x0.75 male thread - working distance 55 mm or 91.5 mm |
| Fully Illuminated Field | 45 mm（Support Full Frame Sensors） |
| Number of Elements | 2 lenses |
| Factor | 1.0 - no change of focal length to the focal plane |
| Coating | FMC |
| Diameter of the Housing | 67mm |
| Length | 87.5 mm without the male thread |
| Brand | SVBONY |
| Model | SV210 |

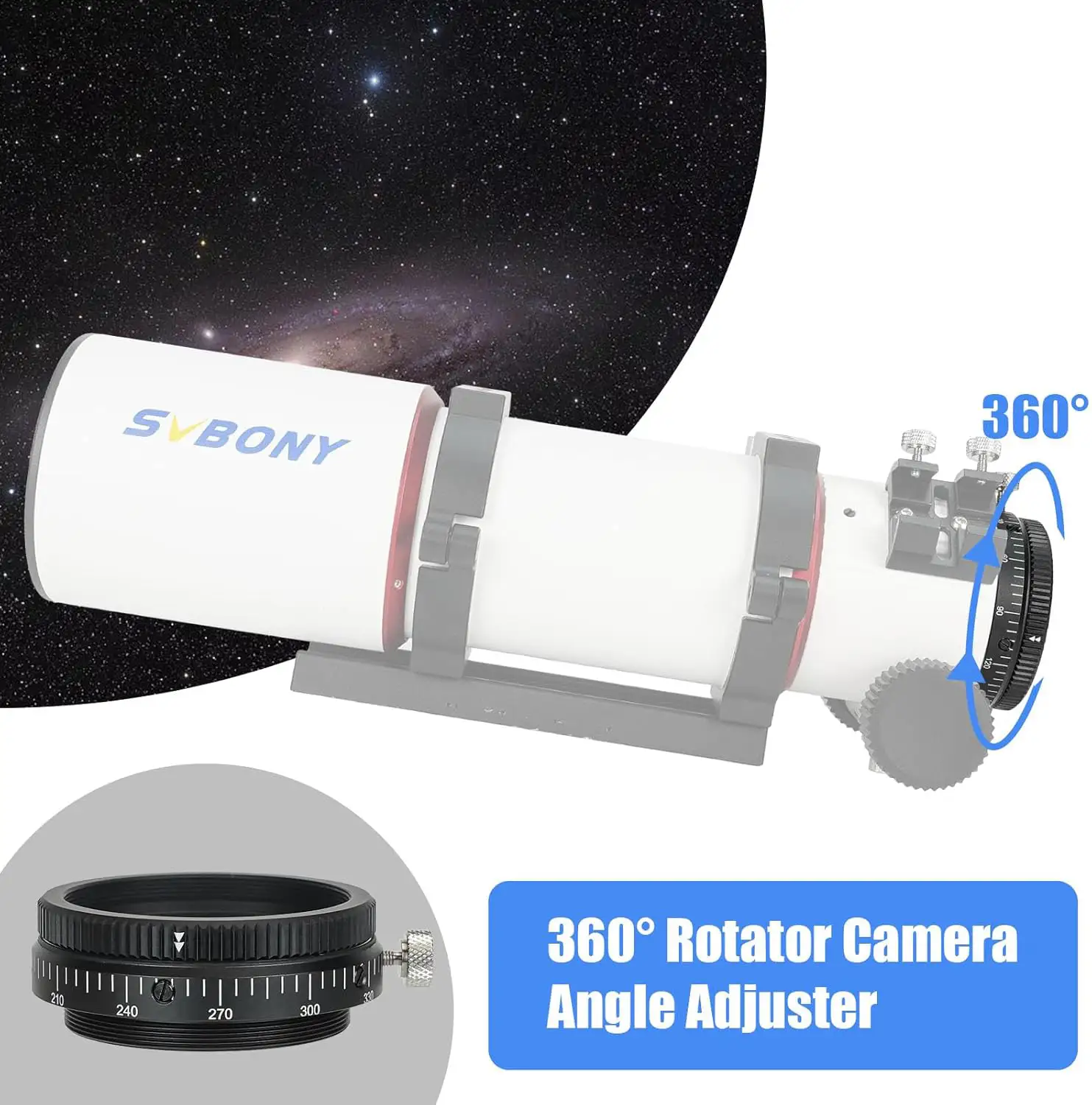

| Product Name | M63 CAA 360° Rotator Camera angle adjuster |
| Extension thickness | 20.7mm |
| Fit for | SV550 80F6 |
| Locking Screw | M4 |
| Positioning lock Function | Yes |
| Male Thread | M63x1 |
| Female Thread | M63x1 |
| Length of Male Thread | 8mm |
| Length of Female Thread | 9mm |
| Material | 6061T |
| Color | Black |
| Net Weight | 91.2g/3.22oz |
Feature

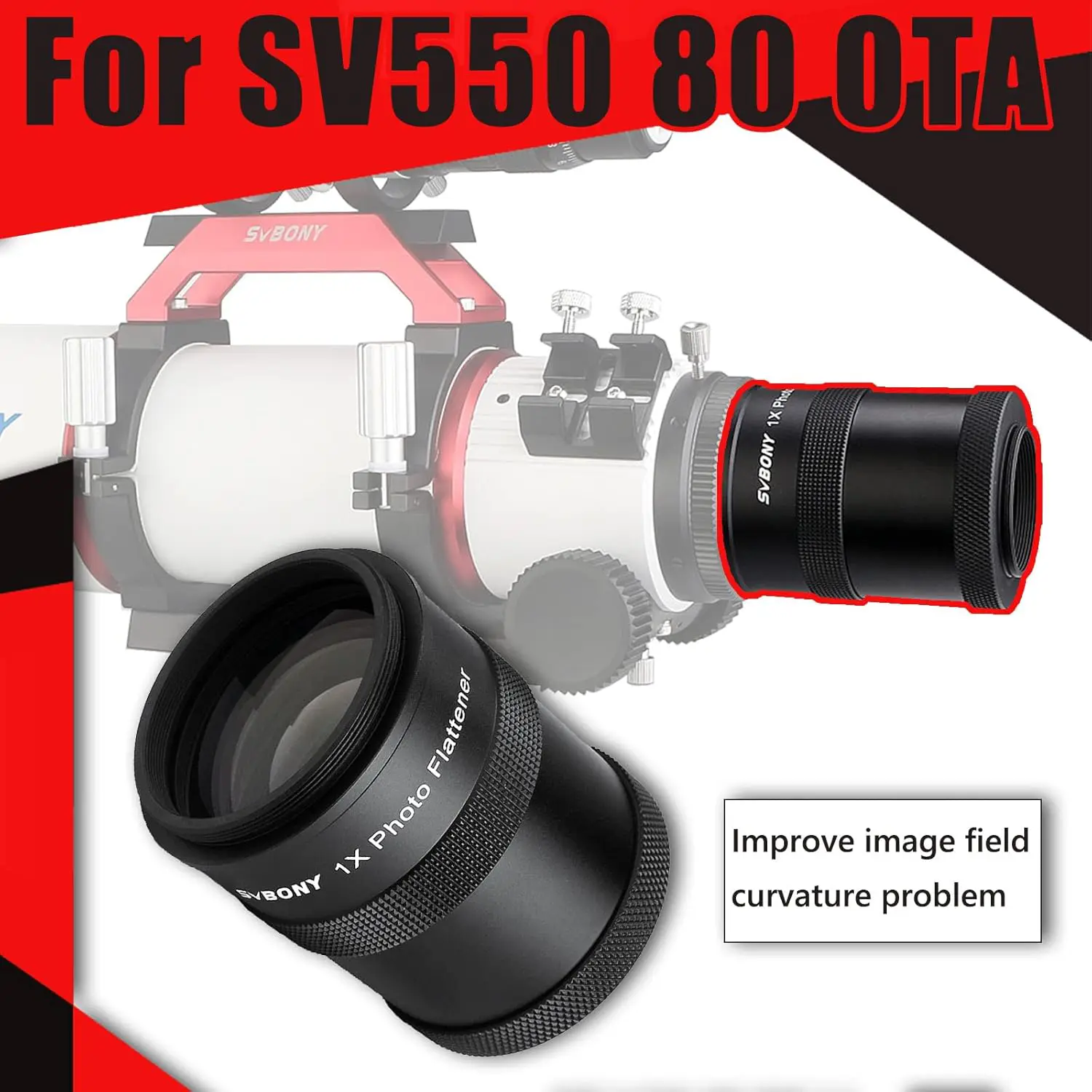

- 1.Most astronomical telescopes have a certain field curvature problem, which can be improved with SV209. The SV209 is a special field flattener for SV550 80F6 OTA, which can effectively improve the field curvature of fringe field images. Great for astrophotography.

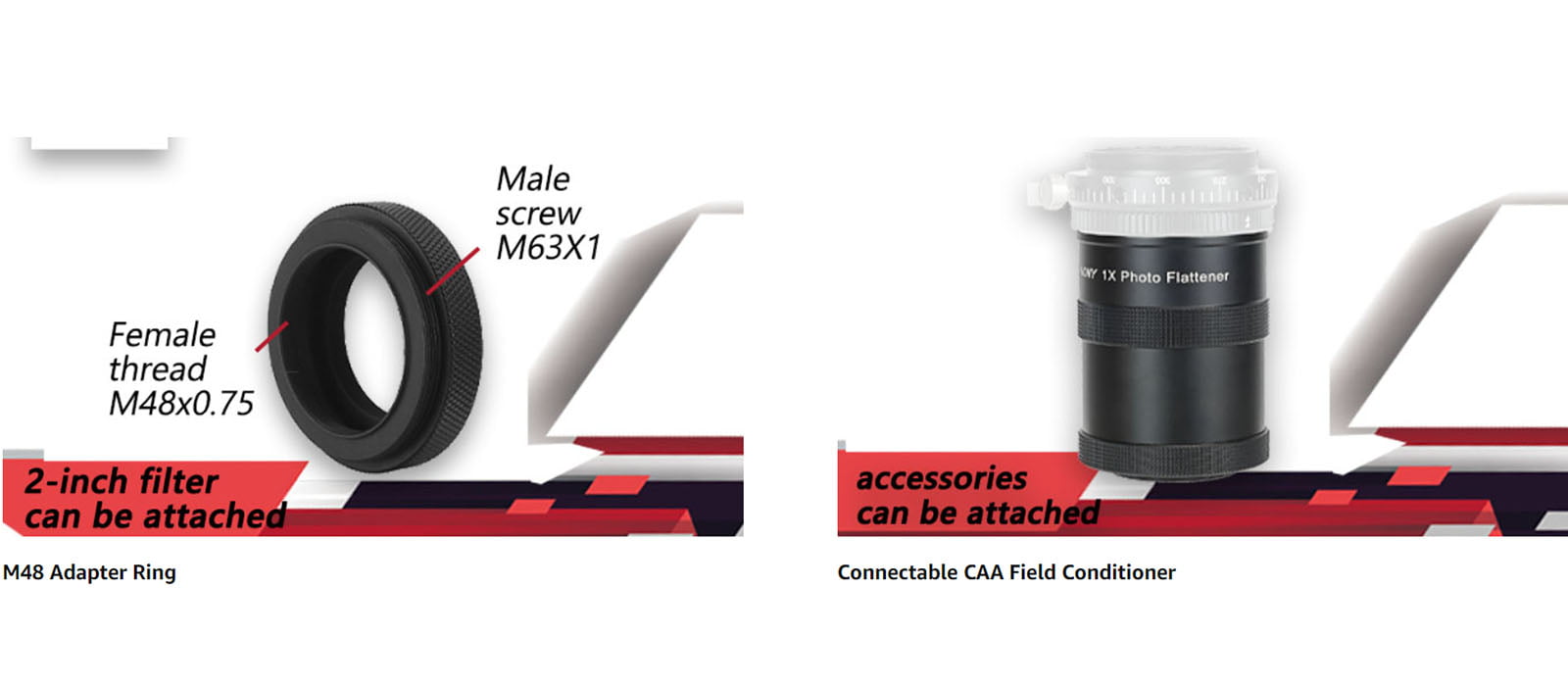

- 2.The SV209 is equipped with an M63 extension tube and an M48 adapter ring to ensure that the back focal length of the flat-field lens conforms to the traditional astronomical 55mm.
