SVBONY SV503 Telescope ED 70mm F6 Extra Low Dispersion Refractor OTA for Astrophotography

SKU: F9359A
US$ 349.99 -12%
List Price: US$ 399.99
  • Quality Optics; SV503 Telescope’s objective lens features an S-FPL51 extra-low dispersion glass ED element; which virtually eliminates chromatic aberration;
  • SV503 telescope can be for experienced observers; but also for ambitious beginners;With SV503 you will get the most authentic Image; can be satisfied with more discerning observers;
  • Doublet air spaced achromatic; quality 2-Element objective provides sharp and high-contrast images for travel and mobile use;

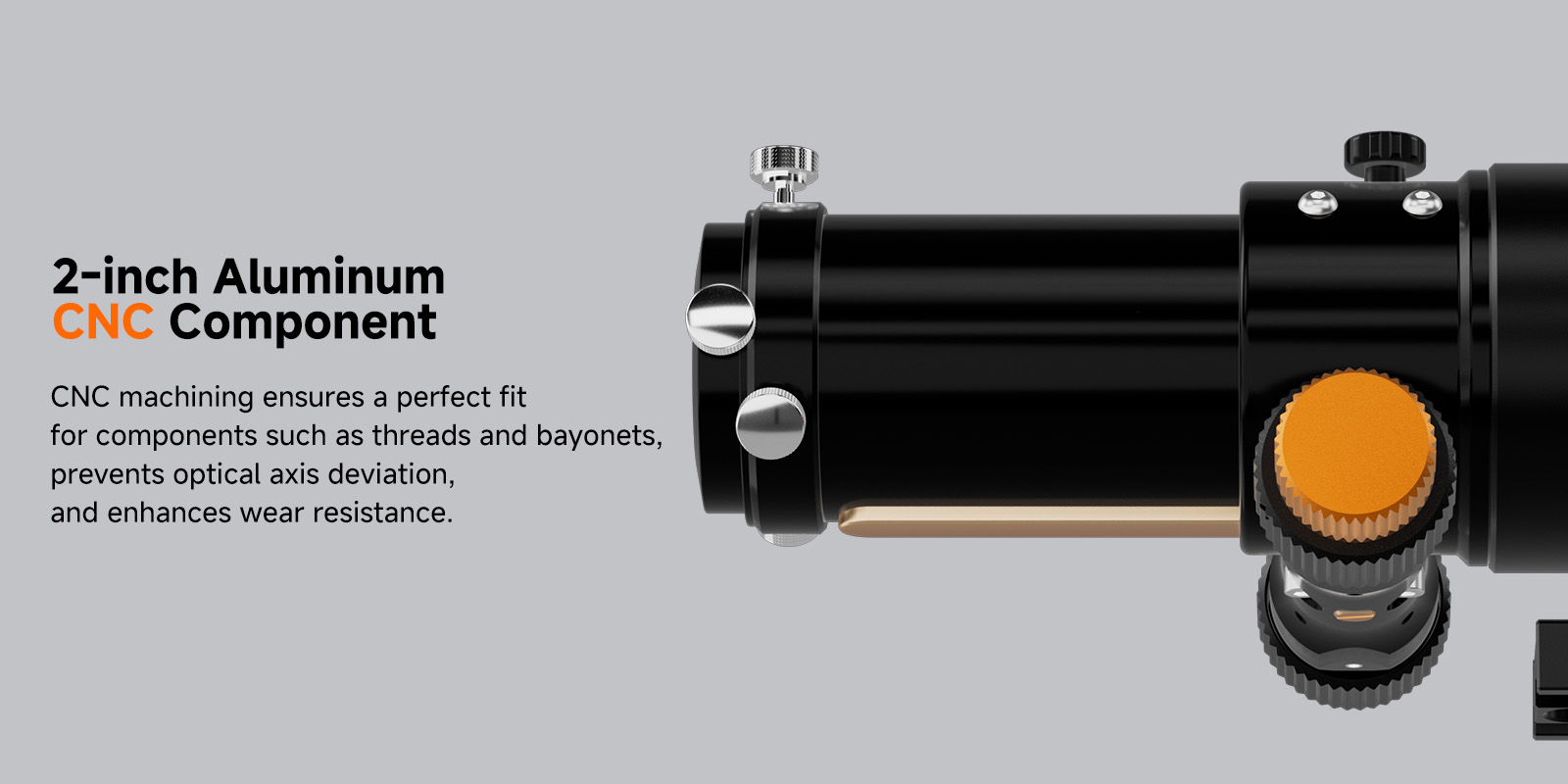

  • 2-inch rack and pinion; the 2 inch RAP focuser holds heavy photographic accessories safe
    Area of application; you can apply SV503 OTA to astrophotography; moon; nature observation; nebulae and galaxies.

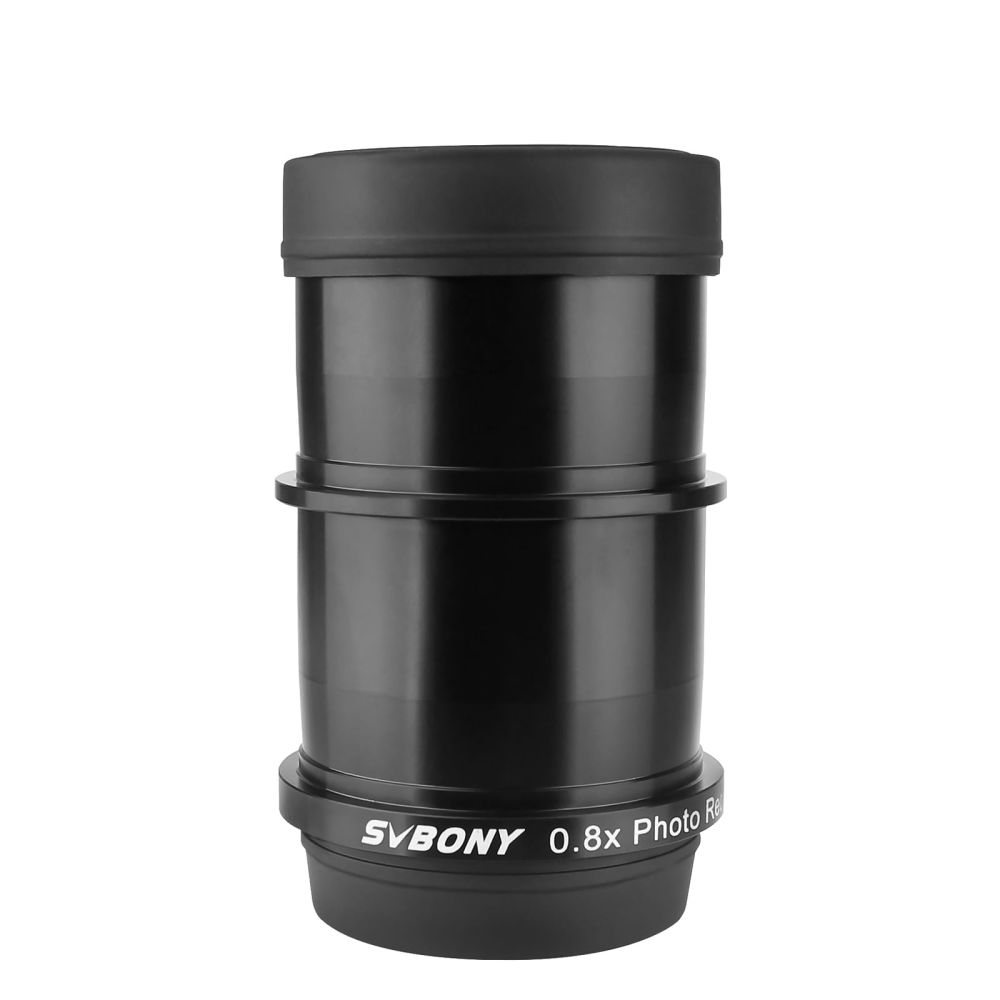

Note: The SV503 70ed is designed with f/6 focus ratio. When reducing the focus further, the image quality will not be guaranteed. This is why 0.8x flat field is not available.

In Stock Out Of Stock

Special offers and product promotions

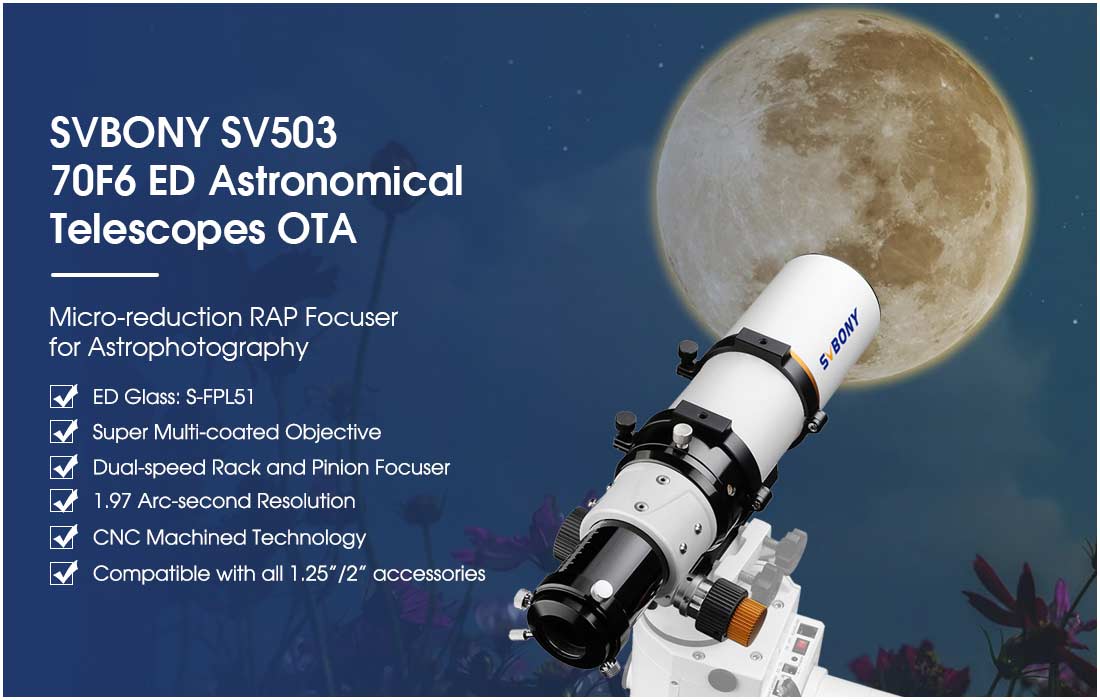

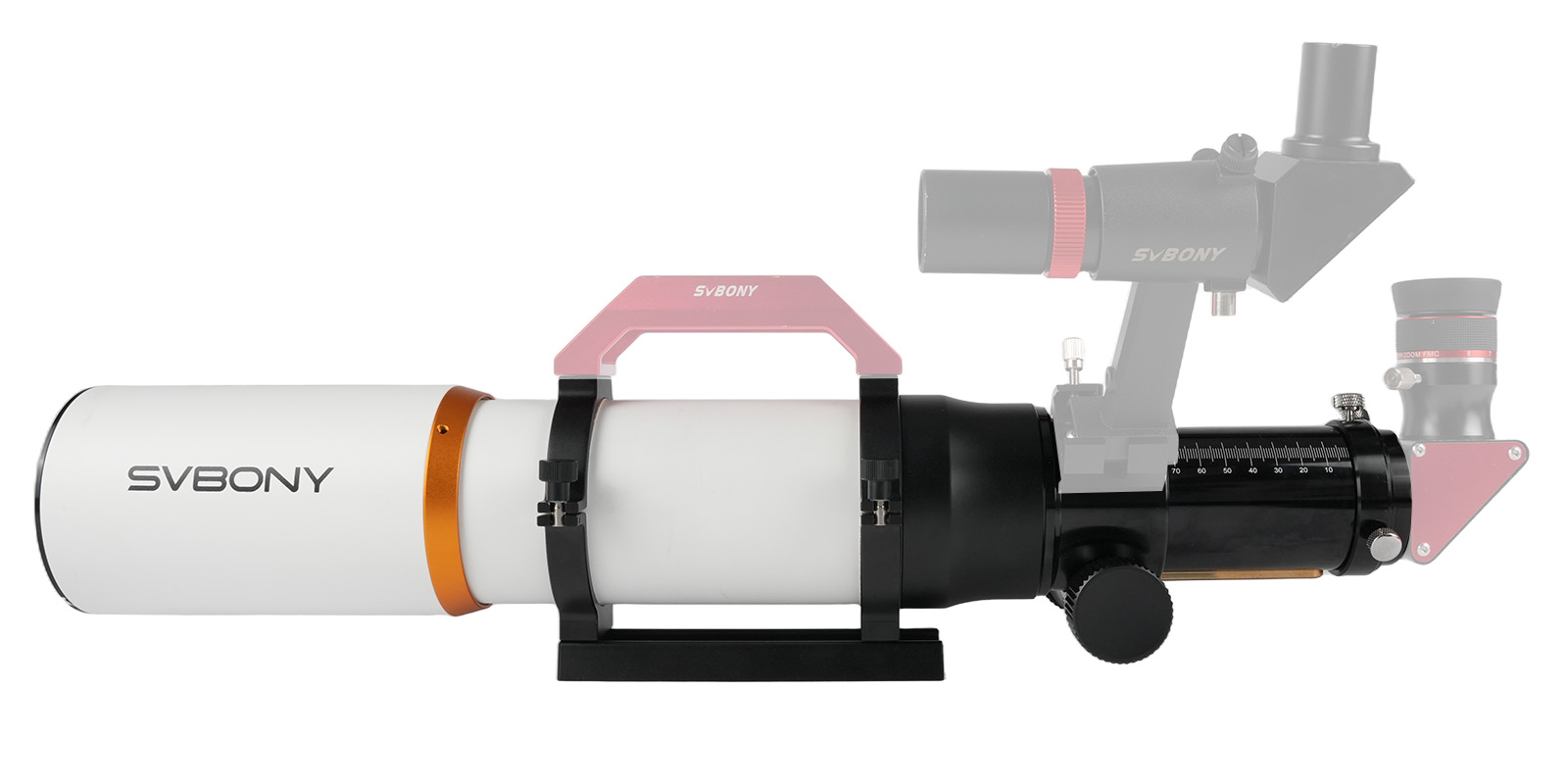

SVBONY SV503 70F6 ED Doublet Astronomy Photography Telescope

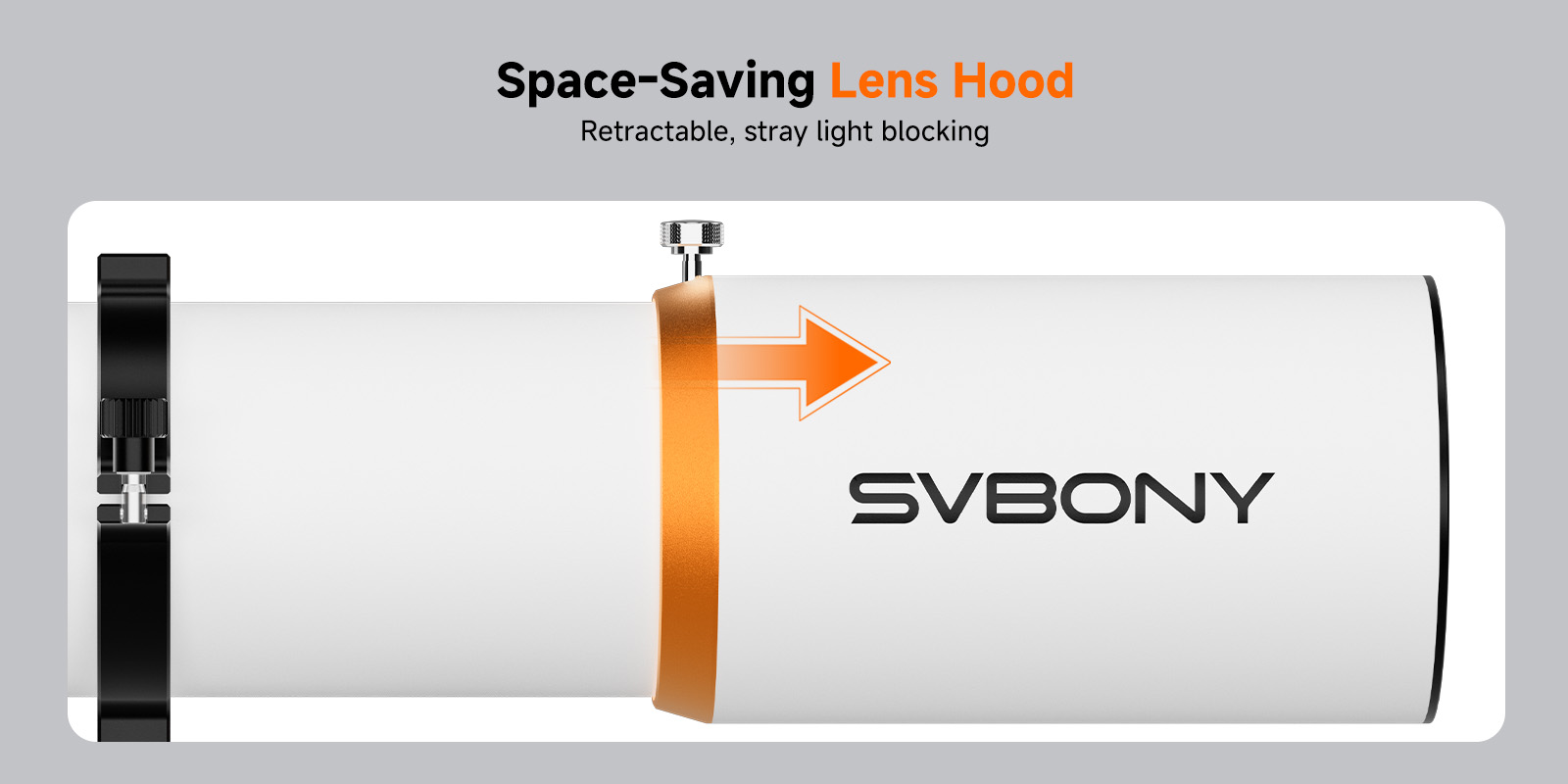

This SV503 70F6 ED refractor is an ideal telescope the telescope weighs only about 2.22 kg and thanks to the retractable dew cap it is only 318mm/ 12.52in short. Included accessories: 2" to 1.25" Eyepiece adapter, Dew Shield, Lens Cover, 1.25" Dust Cover, 150mm Dovetail Plate and Optics Tube Ring. Suitable for shooting sun and moon, landscape scenery, deep space photography.

S-FPL51 glass

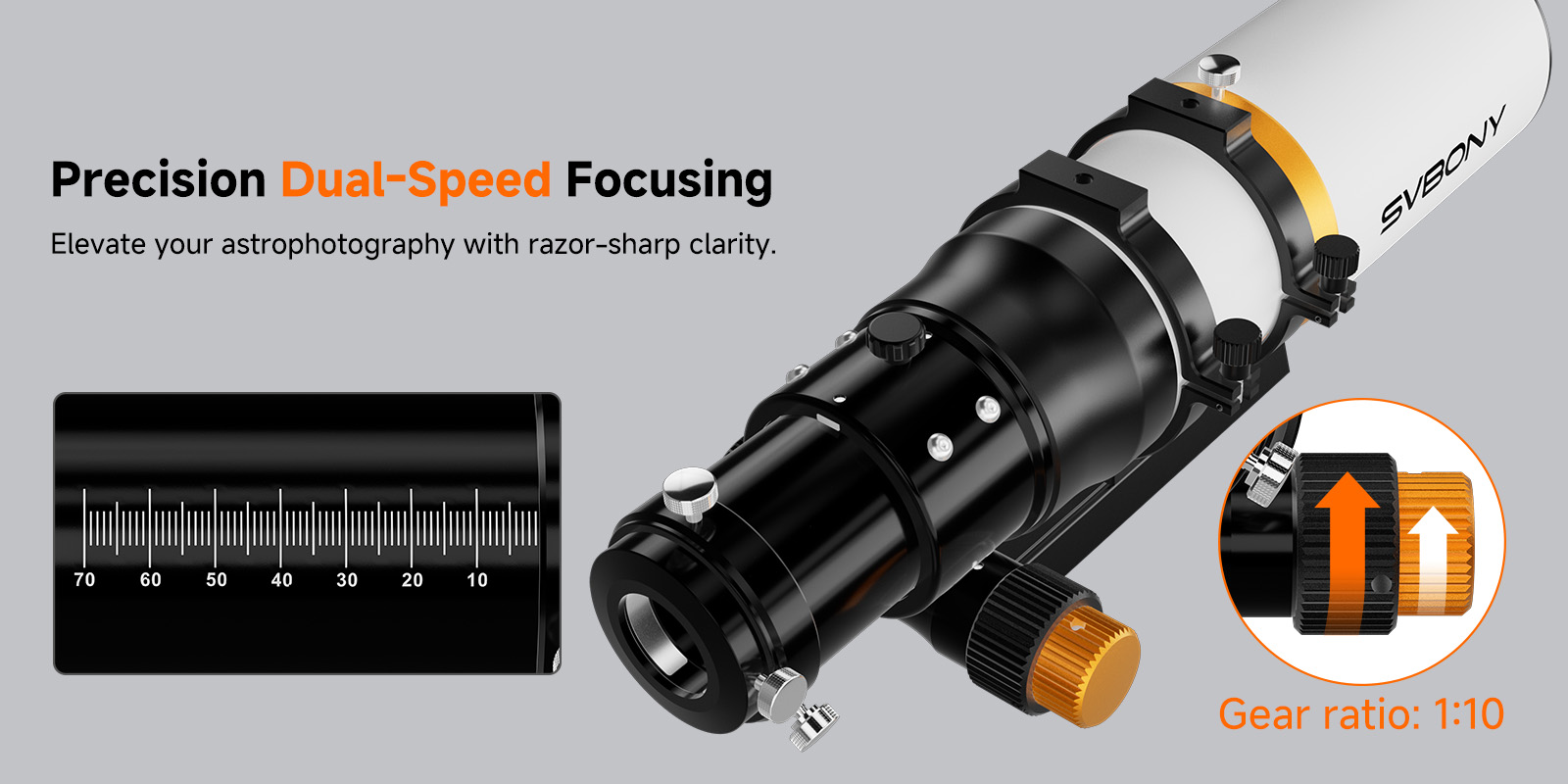

Dual-Speed Rack & Pinion Focuser

1:10 focuser

Back Focus 90mm

90mm Back Focus

1.97 Arc-second Resolution

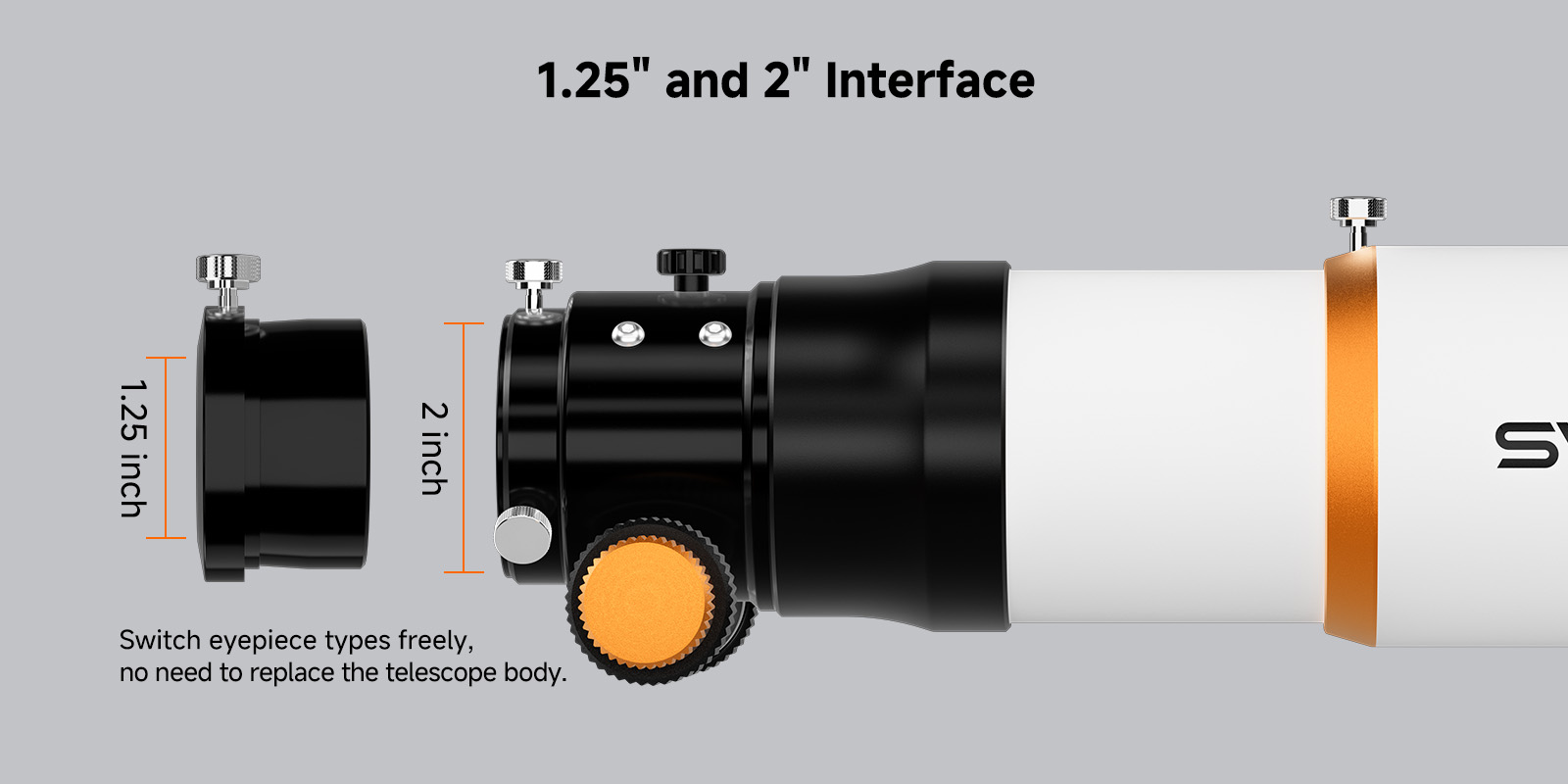

Compatible Adapter 1.25/2inch

1.25/2 inch interface

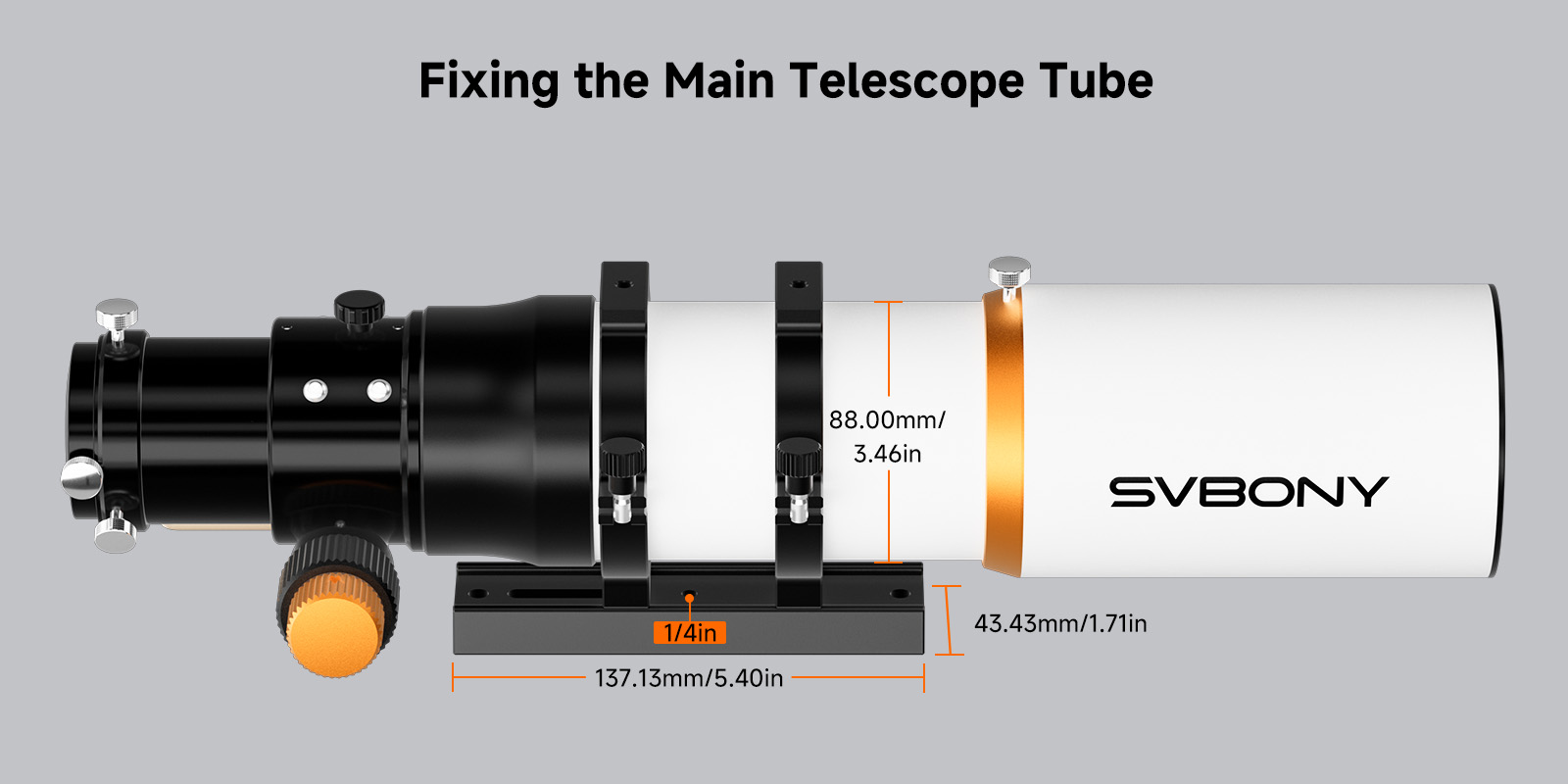

Metal Hoop With Dovetail



6 reviews

Write a review

Good quality

I use the SV503 70 ED. For around 300 dollars it's been an absolutely amazing scope, I've managed to produce some good images with it. I know a doublet isn't for everyone, but on a budget, it's minimal quality sacrifice for saving a couple hundred bucks instead of a triplet in my opinion.

Perfect

This is the first new telescope I've ever brought and it is perfect at the box my only issue is the dovetail is just a little bit small full telescope over wise performs perfectly to this day and I would have had it a year in November I need to used pretty much every week and lives outside permanently

Exceeded expectations

This 102mm f/7 ED refractor is worth well more than I paid for it! The first time I took it out for a night of observing the sky, the sharp, contrasty views of star clusters and nebulae impressed me and my observing buddies. They spent as much time looking through this scope as through their own, much larger, reflector telescopes. The objective lens gives wonderful views. The "mechanics" of the scope are well-made and put together, including the retractable dew/light shield at the lens end and the rotating focuser assembly at the eyepiece end. Two small quibbles: The main focuser is a bit tight to turn, but another owner tells me it will loosen as I use the fouser. (The fine-focuser worked very well right out of the box!) There was no user manual or documentation include with the telescope. But I found some pages of information and directions, particularly about the focuser, at a Svbony page online. I plan to use this refractor purely for observing, not astro-imaging.

Fantastic Telescope, Incredible Price!

The image of the Moon is a composite made from two images taken with the SvBony SV305 camera then stitched together for the full image. It created some excitement on Facebook as it shows a lot of detail you would not expect from a telescope of this size. The image of Venus was also taken with the SV305 camera. The third image of the solar prominence was taken with a 4x Powermate Barlow, a Daystar Quark Hydrogen-Alpha filter and a QHY174GPS camera. It was a composite of two images, one of the prominence and the other of the sun’s surface. The camera was monochrome so color was added. This telescope is a solar and lunar imaging machine! WARNING: Do not use to view the sun without proper filtering as permanent damage can occur to your eyes or equipment!

Great scope at a great deal

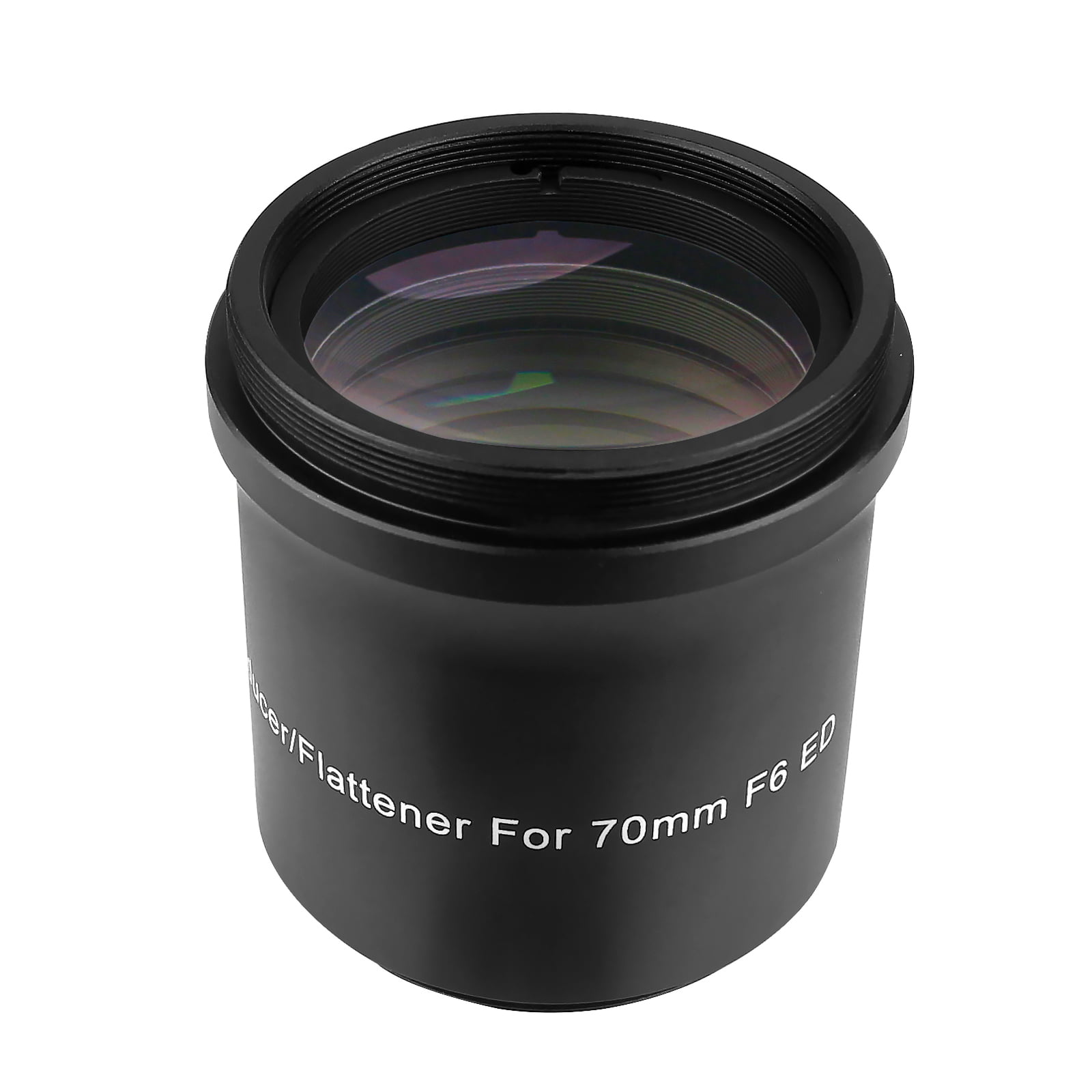

I am in love with this refractor. This is a well-made piece of equipment from an underrated company that will make noise in the astrophotography world. The only important piece of extra equipment needed is a field flattener to counteract the field distortion (due to it being a relatively small aperture telescope), which does come at a bit of a steep price. However, the flattener is specifically made for the sv503 70ED. The fine-tuning knob is a must for any deep sky photography, and is very smooth on the 70ED. Personally, I'd like to see a little more resistance to moving to counteract any accidental bumps after fine-tuning the focus. The 503 also comes with pre-drilled mounting points where you can attach two accessories. Currently, I have a guide scope and laser pointer attached to mine and it stays rock solid. The only trouble I've had with my scope is the relatively short dovetail plate it comes stock with. In order to balance everything well, I had to turn the plate around to extend a balancing point and barely made it work. All in all, I would have to have purchased the 80 or even 102 refractor, but my current mount won't accept more weight than the 70ED. Don't be skeptical of the price! When I first came across it, it seemed very strange that and ED refractor would be so affordable, but decided to take the chance. And I'm glad I did! I am definitely an svbony fan now and have had nothing but wonderful interactions with their sales team. Thank you!

Fine Telescope

Nicely crafted telescope. No chromatic aberration. Very nice colours too. But (so only 4 stars) strong curvature of field already with APS-C Sensor. So flattener is a must for astrofotography. Improvments recommended: longer dovetail for balancing with astrocam.

Specifications

Brand SVBONY
Product Name SV503 70F6 ED Astronomy Telescope
Type Refractor
ED Glass S-FPL51
Coating SMC
Aperture 70mm / 2.75-Inch
Focal length 420mm
Focal Ratio f/6
Type of Focuser RAP (Rack and Pinion)
Gear Reduction 1:10 Fine movement
Resolving capacity 1.97"
Limit value 11.3
Light gathering capacity 100x
Max. Useful magnification 140x
Tube weight 3240g
Tube outer diameter 88mm
Tube material Aluminium
Back Focus Length 90mm
OTA Length 318mm
Dovetail & Ring Yes
Dovetail Length 150mm
Product Dimensions 420mm*250mm*195mm

Features

1. The appearance of the telescope is baked with high-end fine-grained paint, with exquisite appearance and delicate feel;

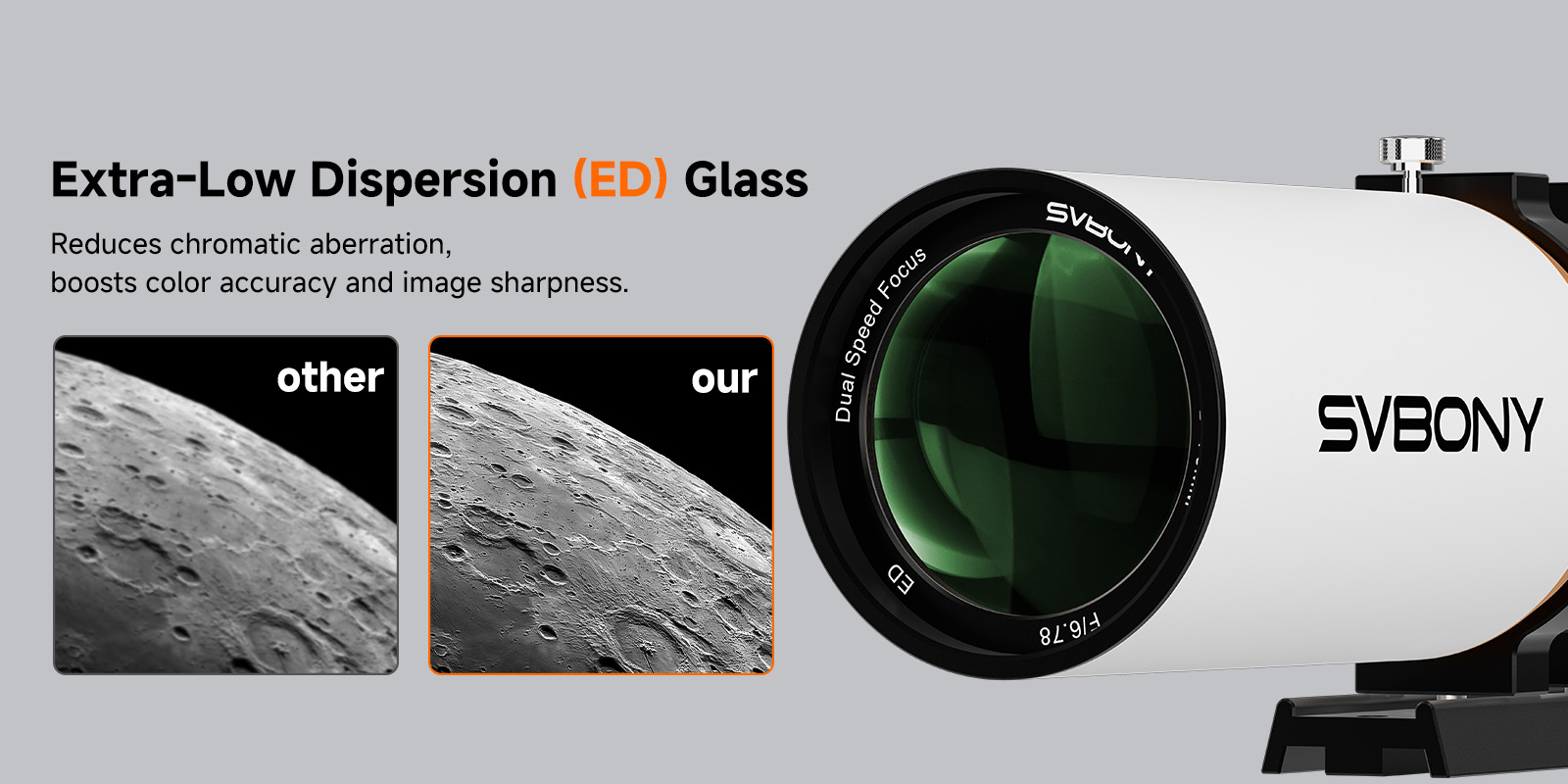

2. The objective lens features an S-FPL51 extra-low dispersion glass ED element, which eliminates chromatic aberration. This results in the best color correction for an ED doublet lens
3. The lens adopts optical processing and low polishing technology, which is carefully carved;
4. The deceleration ratio of the two-speed 2'' toothed focusing seat is 1:10, which makes it easy to achieve accurate focus;
5. If the 70ED is matched with a large chip, A possible way is to: The SV193 increases the field of view of the shot, which is sufficient for most DSOs. The stacked image edges may need to be cropped in the post-process to improve image quality.

The Real Shot Image by SV503 70mm ED Telescope
